Audio Visual System Integration: What It Is and How It Works

Audio visual system integration brings displays, audio, conferencing, and controls together so people can use a room without managing each device separately. It combines design, installation, configuration, testing, and training around the way the space will actually be used.

Why audio visual system integration matters

A room can contain good equipment and still be difficult to operate. Integration addresses compatibility, signal routing, and the user interface so that presenting, joining a call, and adjusting sound follow a clear workflow.

In a suitably designed system, a touch panel can coordinate display power, audio, lighting, and shades. Those functions depend on supported devices and configured connections; they are not automatic features of every integrated room.

The goal is a room people can operate confidently, with a support team that understands how it works.

The cost of poor integration

Poor integration can create recurring problems that extend beyond the equipment purchase:

• Compatibility gaps: A new video conferencing platform doesn’t talk to the room’s existing microphones or cameras.
• Control chaos: Staff need three remotes and a laptop just to start a call.
• Inconsistent experience: One conference room works fine, another down the hall never does, because each was set up by a different vendor with no shared standard.
• Support blind spots: When something breaks, nobody knows if the fault sits with the display, the DSP, the network switch, or the software, so troubleshooting turns into guesswork.

Across multiple locations, undocumented differences make those problems harder to diagnose. A shared design standard and a tested handoff can help reduce that burden.

Why businesses can’t ignore it anymore

Hybrid meetings rely on more than a working screen. Understanding how a video conferencing system works helps teams plan audio coverage, camera views, content sharing, and controls for both local and remote participants.

Retail, healthcare, and corporate sites also benefit from consistent operating procedures. The target is a familiar experience and a supportable system, with adjustments for each location’s layout and requirements.

How audio visual system integration works

The components of audio visual integration depend on the application. A small room may use a video bar and meeting computer; a larger space may add a digital signal processor (DSP), signal distribution, and a control processor. The integrator connects and configures these functions so the selected workflows operate together.

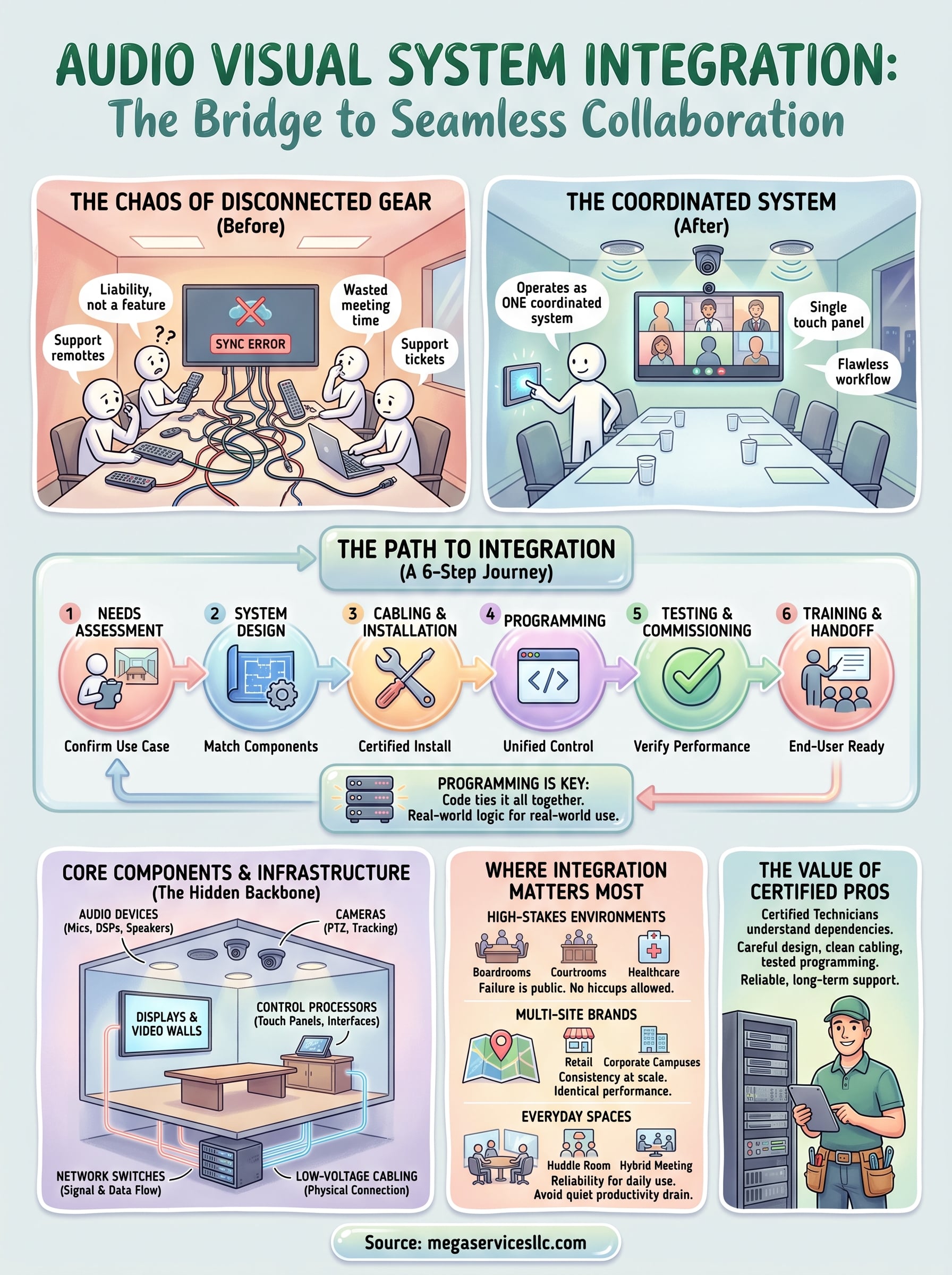

The integration process step by step

Getting from a room full of separate boxes to a system that behaves like one device follows a fairly consistent sequence of AV integration services, whether it’s a single huddle room or a hundred-room rollout:

1. Needs assessment: A technician or engineer walks the space, confirms room size, use case, and existing infrastructure.
2. System design: Equipment gets specified based on that assessment, checking the required audio, video, control, and network interfaces.
3. Cabling and installation: Low-voltage cabling, mounts, and hardware go in according to the design, not guesswork.
4. Configuration and programming: The team sets up device behavior and user controls, adding custom code where the design requires it.
5. Testing and commissioning: Every input, output, and automation gets tested under real conditions before anyone calls the room finished.
6. Training and handoff: End users learn how to run the room, and documentation gets left behind for whoever supports it next.

Integration isn’t finished until someone tests it under real conditions, not just on paper.

Where the real work happens: programming and commissioning

Reliable controls must account for device readiness, source changes, and unexpected user actions. Understanding how control systems work helps explain why configuration and testing matter. Custom code is not always required: Extron’s Global Configurator, for example, supports configuration-based AV control.

System commissioning services check that the installed system meets the agreed design. Test audio, video routing, content sharing, controls, and recovery from common interruptions. Record the results and unresolved items so the support team has a useful baseline.

Key components of an integrated AV system

Displays, microphones, speakers, cameras, processing, and network connections are common building blocks, but not every application needs them all as separate products. Check the relevant interfaces: a display needs compatible video sources and control connections, while an audio DSP needs appropriate audio inputs and outputs. A display does not inherently need to “pair” with a DSP.

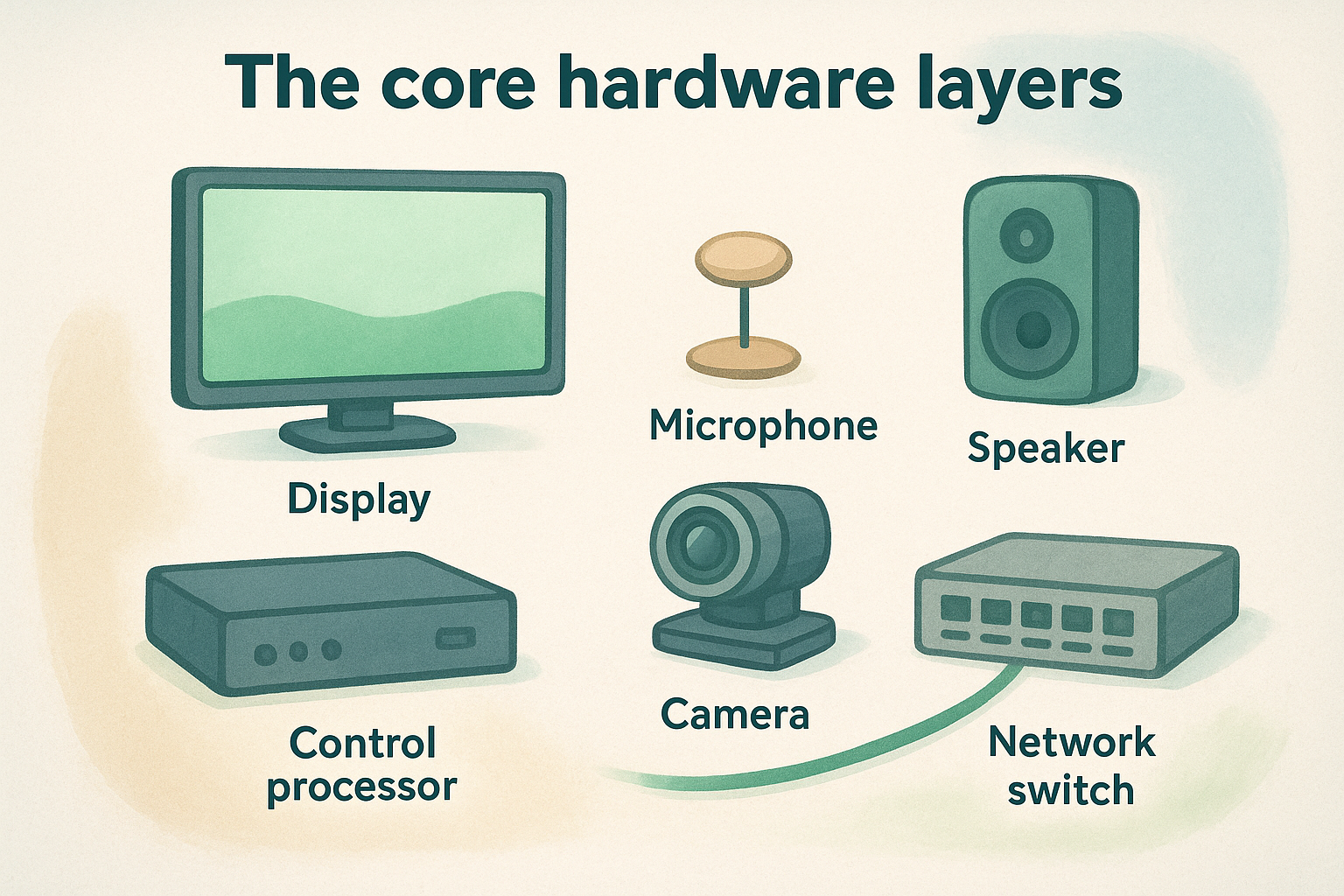

The core hardware layers

These common roles show why audio visual system integration is a design task rather than simply a shopping list:

Check compatibility at each actual connection, then test the complete workflow.

Software and control systems

The software layer may include a meeting platform, room controls, scheduling, and device management. These have different jobs. A scheduling panel shows availability; it does not necessarily operate the meeting. One-touch sequences are possible only when the selected systems support the required integrations.

Infrastructure that ties it together

Plan low-voltage structured cabling alongside equipment, mounts, power, and network access. Check signal distance limits, connectors, and power needs. For networked AV, coordinate switch features, capacity, and configuration with IT rather than assuming any available port is suitable.

Where AV system integration makes the biggest impact

Well-planned audio visual system integration supports many environments, from presentation rooms to digital signage networks. The design should reflect what users need to do and what happens if a component becomes unavailable.

Set acceptance tests around the space’s real activities, not just whether the devices turn on.

High-stakes environments

Examples include:

• Boardrooms and briefing centers: Prioritize clear presentations, remote participation, and simple controls.
• Courtrooms: Confirm the required audio, video, recording, and support workflows with the project owner.
• Healthcare facilities: Coordinate clinical workflows, privacy, and facility requirements when planning audiovisual services for hospitals.
• Higher education: Plan instructor coverage, student questions, content sharing, and the level of operator support needed.

Multi-site brands and consistency at scale

Multi-site digital signage installation and meeting-room rollouts benefit from a repeatable design, site surveys, and consistent documentation. Technical staffing and installation support can provide onsite capacity. Confirm location coverage, qualifications, scope, and scheduling before deployment.

Everyday spaces that add up

Huddle rooms, training centers, and hybrid meeting spaces need the same practical attention. A simple, well-tested workflow can be more useful than adding features people rarely use.

Bringing it all together

Audio visual system integration turns compatible equipment into a usable, supportable system. The essentials are a clear design, sound installation, appropriate configuration or programming, and documented testing.

If your team needs onsite support for one room or a multi-location rollout, book a MegaTech for your AV integration work. Bring the scope, equipment list, and desired user workflows so the installation and handoff can be planned around them.
