Auditorium Speaker Placement: The Complete Guide to Even Sound Coverage

A great sound system can still fail if the speakers are in the wrong place.

Walk into an auditorium with poor speaker placement and you’ll notice it immediately. The front rows are painfully loud. People in the back struggle to understand dialogue. Under the balcony, entire sections of the audience miss important announcements.

Here’s the frustrating part: these problems usually aren’t caused by bad equipment. They’re caused by poor planning.

Once speakers are mounted, fixing coverage issues becomes expensive and time-consuming. No amount of EQ, amplifier tuning, or DSP adjustments can fully compensate for speakers that were installed in the wrong locations.

This guide walks you through the proven process AV professionals use to achieve consistent, intelligible sound throughout an auditorium; from measuring the room and calculating coverage angles to placing delay speakers, under-balcony fills, and verifying performance with SPL measurements.

Quick Takeaways

• ✓ Measure the room before selecting speakers.
• ✓ Keep SPL variation within 6 dB.
• ✓ Match speaker dispersion to room width.
• ✓ Use delay speakers in deep rooms.
• ✓ Install under-balcony fills.
• ✓ Verify coverage with SPL measurements.

What even coverage really means for your auditorium

Even coverage doesn’t mean everyone hears the same volume. It means every seat gets intelligible sound within a tight, predictable range, regardless of whether that seat sits in row 3 or under the balcony overhang in row 40. Sound pressure level (SPL) consistency and frequency response consistency both matter, and confusing loudness with coverage is the single biggest mistake auditorium designers make. A room can measure loud everywhere and still sound terrible in the back third because the high frequencies that carry speech clarity have already fallen off.

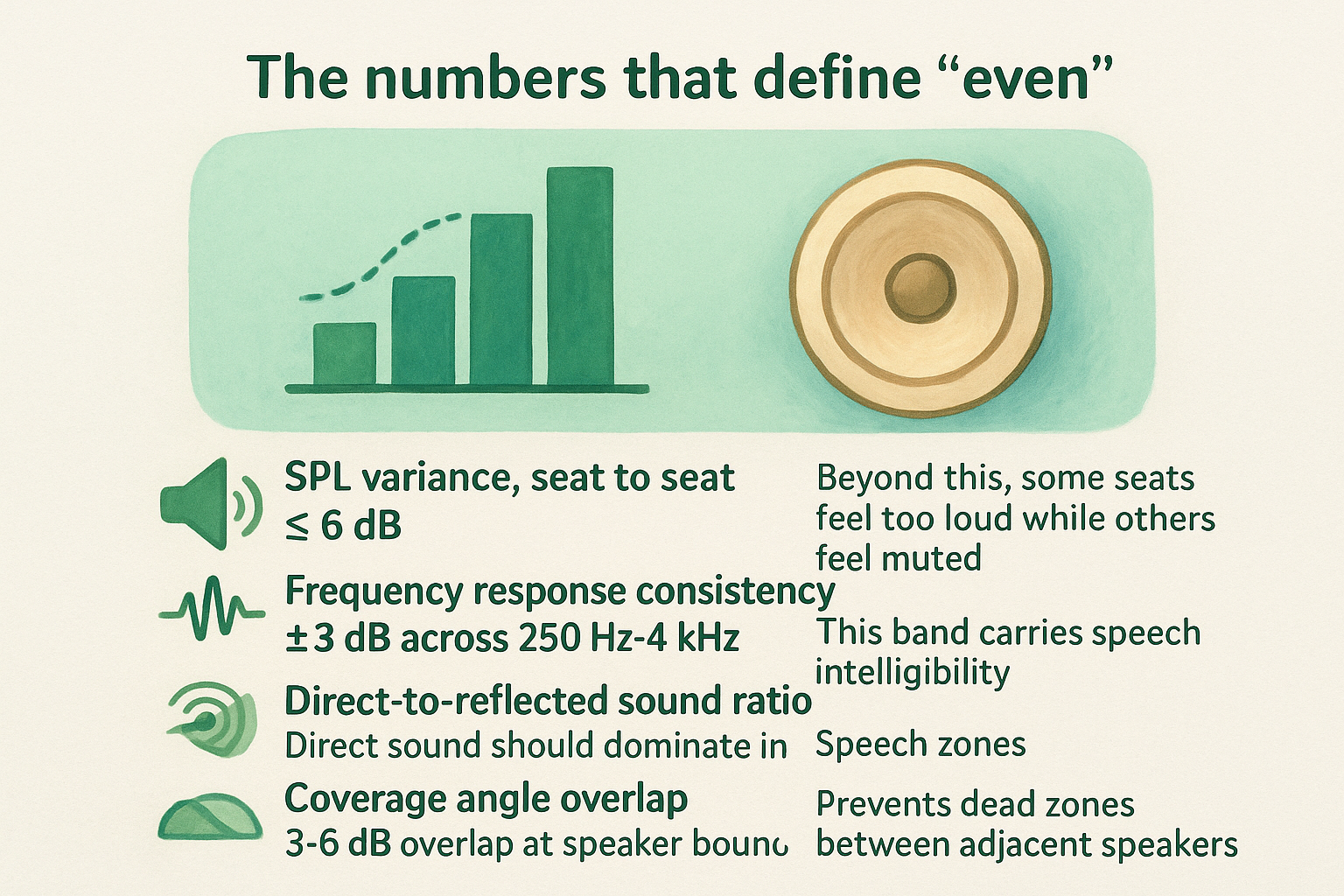

The Performance Benchmarks Every Auditorium Should Meet

Professional AV standards give you a target to design against, and it’s tighter than most people expect. The Audio Engineering Society and most commissioning engineers treat a spread of 6 dB or less across the seating area as the benchmark for acceptable coverage. Anything wider than that, and listeners in different zones are having noticeably different experiences with the same program material.

Even coverage means every seat hears the same clarity, not the same volume.

Why Even Expensive Sound Systems Develop Coverage Problems

Most uneven coverage problems trace back to three recurring causes: speakers aimed at the wrong dispersion angle for the room’s width, insufficient delay speakers for depth, and reflective surfaces that scatter energy unpredictably. A center cluster designed for a 60-foot-wide room will overshoot a 40-foot room and undershoot an 80-foot one. Balconies compound the problem because they create a shadow zone underneath that main speakers, mounted high and aimed downward, simply can’t reach without help from dedicated fill speakers.

Geometry isn’t the only culprit. Seating rake, the slope of the floor from front to back, changes how sound travels over the heads in front of each row. A flat floor lets earlier rows block sound from reaching later ones, while a properly raked floor gives every seat a clear sightline to the speaker and a cleaner sound path. If you’re evaluating an existing auditorium, check the rake before you touch the speakers. Sometimes the fix isn’t more speakers, it’s acknowledging that the architecture is working against you.

Louder Isn’t Better—Coverage Is About Clarity

Treating coverage as a loudness problem leads to the classic overcorrection: cranking gain on rear speakers until the SPL meter reads even, while ignoring that the frequency content arriving at those seats is thin and smeared by reflections. That approach can pass a quick SPL check and still fail every listener in the room. Understanding coverage as a clarity and consistency problem, not a volume problem, changes every decision that follows, from how many speakers you use to where you point them.

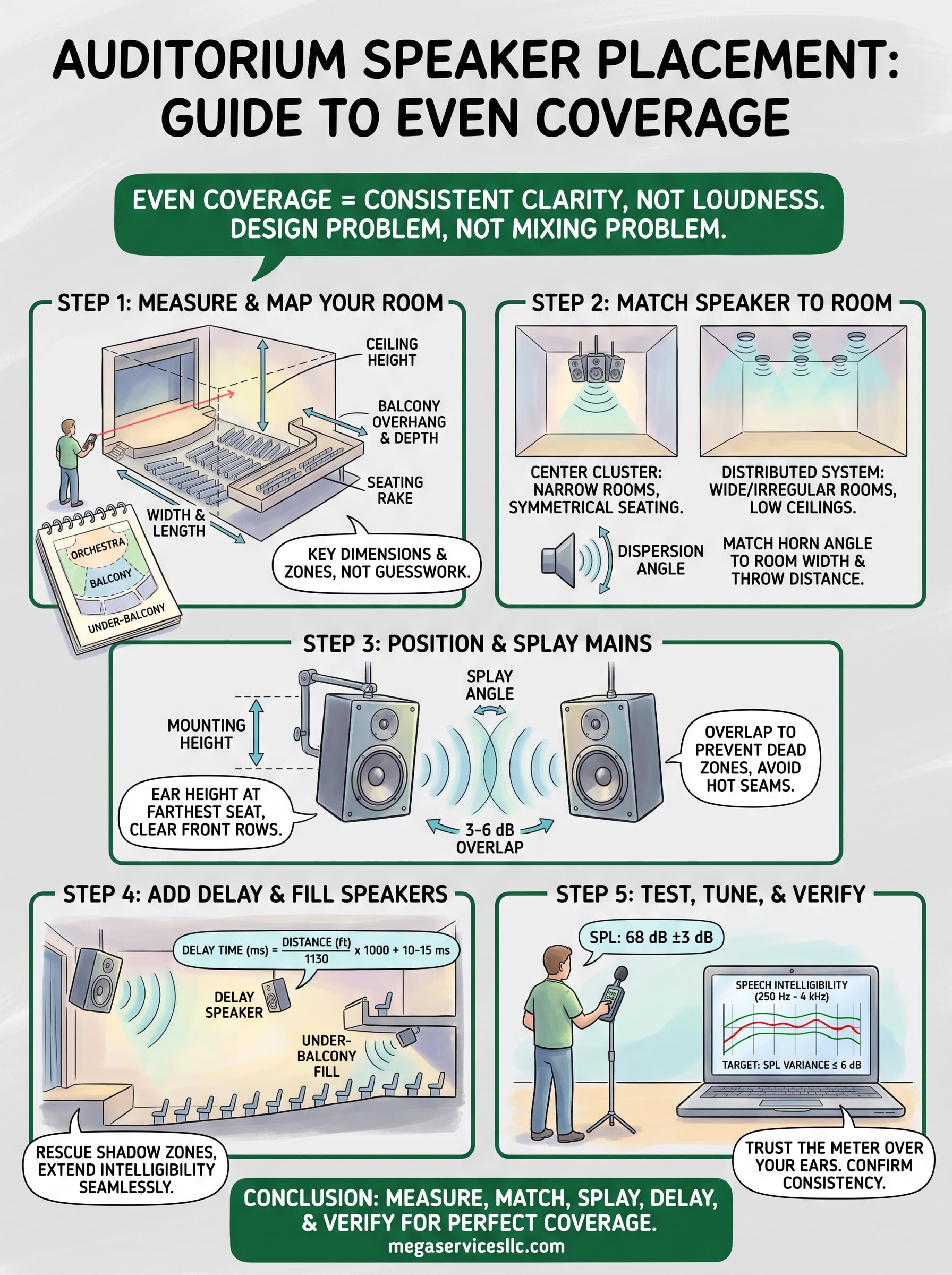

Once you accept that framing, the rest of this guide follows a logical order: measure the room, choose speaker types that match its shape, place mains for horizontal evenness, add delay and fill for depth and shadow zones, then verify everything with real measurements. Skip a step and you’ll end up chasing symptoms with EQ instead of fixing the layout that caused them.

7 Speaker Placement Mistakes to Avoid

• Choosing speakers before measuring the room
• Using overly wide dispersion horns
• Mounting speakers too low
• Ignoring balcony shadow zones
• Skipping delay speakers
• Relying on EQ instead of placement
• Never verifying SPL after installation

Now that you know what even coverage looks like, and why so many systems miss the mark, it’s time to design your layout. Everything starts with accurate measurements.

Step 1. Measure your room and map the seating area

Before you look at a single speaker spec sheet, grab a laser measure and walk the room. Room geometry dictates every decision that follows, and guessing at dimensions is how coverage problems get built into the design from day one. You need hard numbers on width, length, ceiling height, balcony overhang, and seating rake, plus a sketch that marks where those numbers change. Any credible auditorium speaker placement guide starts here, because throw distance and dispersion angle calculations are worthless if they’re based on approximate measurements.

Capture the dimensions that drive speaker choice

Start with the numbers that determine throw distance and dispersion angle, since those two variables shape almost every placement decision later in the process.

• Overall width and length of the seating area, measured at floor level and again at the farthest seat
• Ceiling height at the front, middle, and rear, since sloped or coffered ceilings change mounting options
• Balcony depth and overhang height, which tells you how large the shadow zone underneath will be
• Seating rake angle, or confirmation the floor is flat, since this affects how sound clears the heads in front
• Distance from planned speaker positions to the nearest and farthest seats

Divide the seating area into coverage zones

Once you have dimensions, break the seating plan into zones rather than treating it as one continuous space. A typical auditorium splits into front orchestra, rear orchestra, under-balcony, and balcony seating, and each zone behaves differently acoustically. Grouping seats this way lets you assign speaker types to zones instead of forcing one design to stretch across the whole room, which is exactly where uneven coverage starts.

Map the room in zones, not as one big rectangle, and coverage gaps become predictable instead of mysterious.

Note obstructions and reflective surfaces

Walk the room again, specifically hunting for anything that will scatter or block sound: support columns, exposed HVAC ductwork, glass panels, hard plaster walls, and any structural beams near planned mounting points. Document each one on your sketch with its dimensions and distance from the nearest seat. These notes matter later when you’re choosing between distributed speakers and a center cluster, since a column blocking line-of-sight to row 15 might force a fill speaker you wouldn’t otherwise need. Skipping this walk-through is the most common reason installs need rework after the first listening test.

Common Mistake: Increasing rear speaker volume instead of correcting speaker placement often makes speech intelligibility worse, not better.

Pro Tip: If you can clearly hear where one speaker stops and another begins, your coverage overlap is too narrow.

Step 2. Match speaker type and coverage angle to your room

With your measurements in hand, the next decision is whether your room calls for a center cluster, a distributed system, or some combination of the two. This choice isn’t aesthetic, it’s math. A single point-source cluster mounted above the proscenium works well in rooms under roughly 60 feet wide with a clear sightline to every seat, but it starts to fail once balconies, wide fan shapes, or low ceilings get involved. Any thorough auditorium speaker placement guide treats this as a room-by-room calculation, not a default answer.

Weigh center cluster against distributed coverage

Compare the two approaches against your actual room dimensions before committing to either one.

Calculate the coverage angle you actually need

Once you’ve picked an approach, work out the horizontal dispersion angle each speaker must cover. Take your seating width at the speaker’s throw distance, then use basic trigonometry: the angle equals twice the arctangent of half the width divided by the throw distance. A speaker throwing 50 feet across a 40-foot-wide section needs roughly a 45-degree horizontal pattern, not the 90-degree default that ships on many boxes. Buying a wider horn than the room requires wastes energy on side walls and invites flutter echo; buying one too narrow leaves the outer seats starved.

Match the horn’s dispersion angle to the room’s width, not the other way around.

Choose vertical pattern for throw distance and mounting height

Vertical coverage angle matters just as much, especially in rooms with steep seating rake or a mix of near and far rows from a single mounting point. Asymmetrical vertical patterns, common in modern line-array and point-source boxes, let you aim more energy toward distant rows and less toward the front rows already close to the source. Check the manufacturer’s polar plots against your throw-distance numbers from Step 1 before ordering hardware, since a mismatch here shows up immediately as hot front rows and weak rear ones once the system powers on.

Center Cluster vs Distributed Speakers

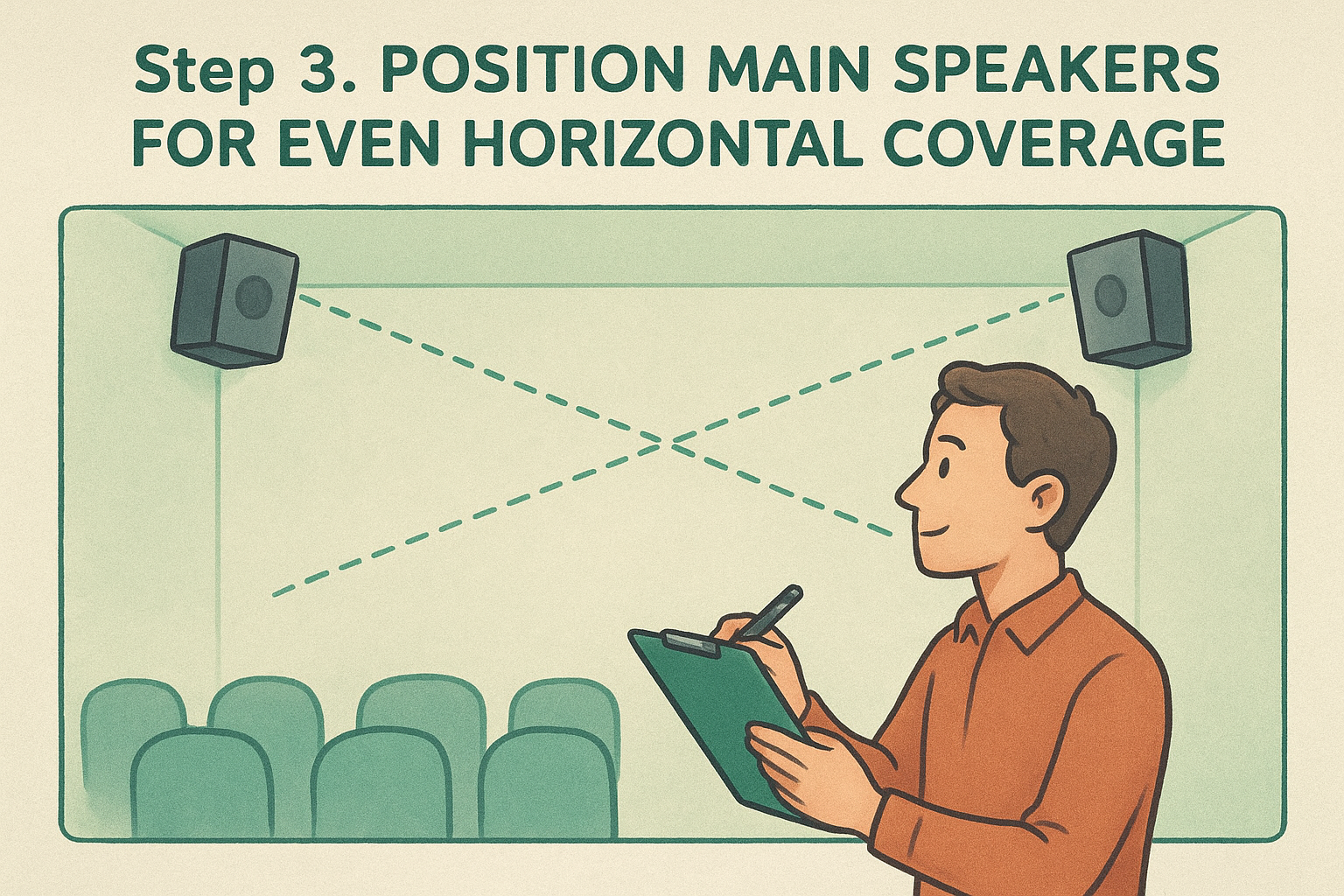

Step 3. Position main speakers for even horizontal coverage

Now you get to actual placement. With room dimensions mapped and coverage angles calculated, position your main speakers so their horizontal patterns overlap just enough to eliminate dead zones without doubling up energy in the middle. Mounting height and splay angle work together here, and getting either one wrong undoes the math you did in Step 2.

Set mounting height before you touch splay angle

Height determines throw distance, and throw distance determines how much horizontal spread you actually need at the far seats. Mount speakers too low and you shorten the throw, forcing a wider angle than the box was designed for. Mount them too high and you clear sightlines but steepen the vertical angle to front rows, creating exactly the hot-front, weak-back problem this guide is trying to avoid.

• Aim the acoustic center of each cabinet at roughly ear height for the farthest seat in its zone, not the nearest one
• Keep at least 8-10 feet of vertical clearance above the front rows to avoid near-field harshness
• Confirm the mounting point has a clear line of sight to every seat in the assigned zone before drilling

Calculate splay angle for a cluster of two or more boxes

When a single box can’t cover the full width, you split the room between two or more cabinets and splay them apart. Splay angle is the angle between adjacent cabinets, and it should create 3-6 dB of overlap at the boundary between their coverage zones, matching the overlap target from the table in the first section. Too little splay leaves a gap where SPL drops noticeably; too much creates a hot seam where both cabinets add energy on top of each other.

Overlap coverage zones by a few degrees, don’t just abut them, or you’ll trade one dead zone for two.

Verify horizontal evenness with a walk-and-listen pass

Before locking any speaker into its final position, walk the seating area from side to side at a few different rows, front, middle, and back, while pink noise plays through the system. Listen for volume or clarity that shifts noticeably as you cross from one speaker’s zone into another’s. A well-splayed pair should sound seamless; if you can pinpoint the exact seat where the sound changes, adjust the angle by a few degrees and walk it again. This quick check catches horizontal coverage problems before you move on to the vertical and depth issues that delay and fill speakers solve in the next step.

Pro Tip

Use painter’s tape on the floor to mark projected coverage zones before permanently mounting speakers.

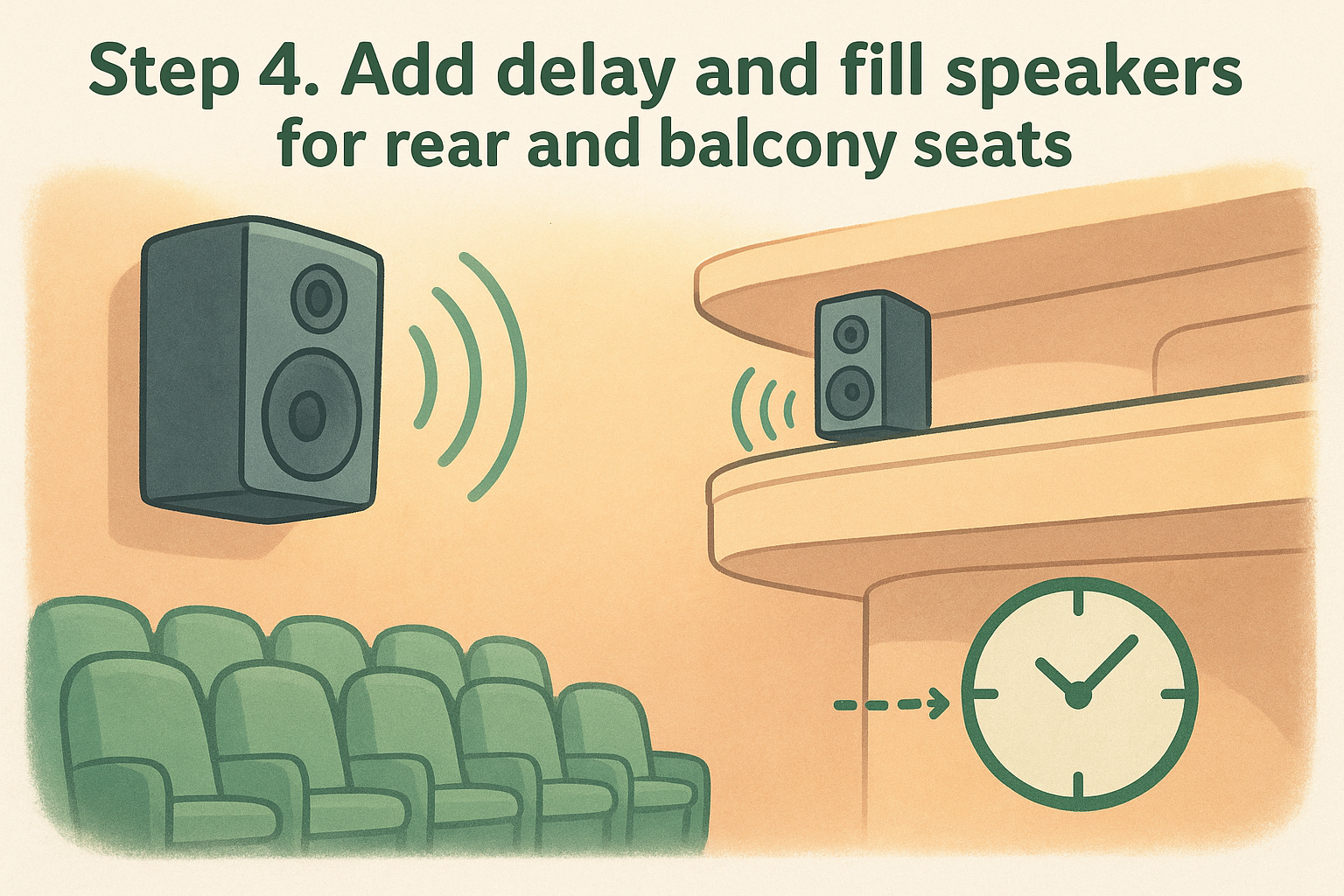

Step 4. Add delay and fill speakers for rear and balcony seats

Main speakers, no matter how well splayed, can’t solve every coverage problem in a deep room. Delay speakers extend intelligible sound to distant rows without raising overall volume, and fill speakers rescue the shadow zone under a balcony overhang that main speakers physically can’t reach from their mounting height. Skipping this step is why so many otherwise well-designed systems still sound thin past the halfway point of the room.

Calculate delay time so speakers don’t fight each other

Sound travels roughly 1,130 feet per second, so every foot of distance between your main speaker and a delay speaker adds about 1 millisecond of travel time. Set the delay speaker’s electronic delay to match that travel time plus 10-15 milliseconds extra, a technique the Haas effect makes possible: listeners localize sound to the source that arrives first, so the small extra delay keeps the main speaker as the perceived source even though the delay speaker is physically closer to the listener

Delay Speaker Formula

Delay (ms) =

Distance (ft) ÷ 1,130 × 1000 + 10–15 ms

Get this wrong and you create a slap-back echo instead of a seamless extension, which is worse than no delay speaker at all.

Delay speakers should extend the sound, not announce themselves as a second source.

Place under-balcony fill speakers to erase the shadow zone

Imagine a 120-foot-deep auditorium with a balcony extending 18 feet over the rear seating.

A center cluster alone will leave listeners beneath the balcony in an acoustic shadow. Adding two rows of delayed fill speakers restores speech clarity without increasing overall system volume.

Mount fill speakers into the balcony soffit itself, aimed straight down or slightly forward, spaced so their coverage patterns overlap by the same 3-6 dB margin you used for main speakers in Step 3. Deep overhangs, anything beyond about 15 feet, usually need two rows of fills rather than one to keep the back of the shadow zone from going dark. These speakers exist purely to patch a geometry problem, not to add impact, so keep their coverage tight to the seats they’re actually rescuing.

Tune fill speaker level relative to mains

Set fill speaker output 3-6 dB below the main system’s level at the same listening position, checked with an SPL meter, not by ear. Louder fills pull the perceived source away from the stage and undercut the localization the delay timing just fixed. Once levels and delays are set, walk under the balcony while pink noise plays and confirm the transition from open seating to under-balcony seating is inaudible, not obvious.

Even a perfectly planned speaker layout needs verification. Measurements, not assumptions, are what separate a good installation from a great one. This final step confirms every seating section meets your coverage targets.

Step 5. Test, tune, and treat the room for clarity

Placement and delay math get you close, but only measurement gets you the rest of the way. SPL meters and real-time analyzers (RTA) turn guesswork into verified numbers, and this step is where you confirm the 6 dB variance target from earlier actually holds across the whole room, not just at the seats you happened to check by ear.

Pro Tip

Manufacturer coverage angles are measured under ideal conditions. Always verify performance in the actual room.

Run a full SPL and frequency sweep

Set up a measurement mic on a stand at ear height in each zone you mapped in Step 1: front orchestra, rear orchestra, under-balcony, and balcony. Play pink noise or a swept sine tone through the system and log SPL and frequency response at every position.

• Record SPL at a minimum of 8-12 seats spread across all zones
• Compare readings against the 6 dB seat-to-seat variance target and the ±3 dB target across 250 Hz-4 kHz
• Flag any zone that falls outside those windows for a follow-up adjustment before moving on
• Repeat the sweep after every adjustment, since one fix can shift results elsewhere

Trust the meter over your ears. A room can sound fine to you and still fail the numbers.

Adjust EQ and delay based on what the numbers show

When a zone reads outside target, resist the urge to just add gain. Parametric EQ on the DSP handles narrow frequency dips caused by reflections or destructive interference, while gross level differences usually point back to a splay angle or delay time that needs revisiting rather than a mixing-board fix. If the rear third reads thin above 2 kHz, check delay timing first; if it reads uniformly quiet, check whether the main speaker’s vertical pattern actually reaches that far before touching EQ at all.

Treat surfaces that measurements expose

Some problems won’t respond to speaker or DSP adjustments because they’re architectural. Hard rear walls, glass, and flat ceilings above the seating area create reflections that show up as smeared consonants on the RTA even when SPL looks even. Add absorptive panels or diffusers at the first reflection points, identified by tracing the angle from speaker to surface to listener, and re-run the sweep afterward. According to guidance from the National Institute of Building Sciences on acoustic design, treating reflective surfaces early prevents costly rework once seating and finishes are locked in, so plan for treatment before the room’s interior is finalized wherever possible.

Getting every seat to sound its best

Great auditorium sound isn’t about buying the most expensive speakers—it’s about putting the right speakers in the right places.

When room measurements, coverage angles, delay timing, and speaker placement all work together, every seat receives clear, intelligible audio without excessive volume or distracting echoes.

Whether you’re designing a new auditorium or troubleshooting an existing installation, following a systematic placement process eliminates guesswork and reduces costly rework later.
