A poorly wired AV rack doesn’t just look bad, it costs real money. Every tangled cable run, every unlabeled connector, and every shortcut taken during installation adds up to longer service calls, misidentified circuits, and frustrated technicians. Following AV rack wiring best practices separates racks that perform reliably for years from ones that become a recurring headache the moment something needs troubleshooting or swapping out.
At MegaServices, our technicians build and service AV racks across the country for integrators managing projects at scale. Since 2007, we’ve deployed over 2,000 vetted AV technicians to job sites nationwide, and rack wiring quality is something we see, and fix, constantly. The difference between a clean, serviceable rack and a chaotic one almost always comes down to whether a few core principles were followed from the start.

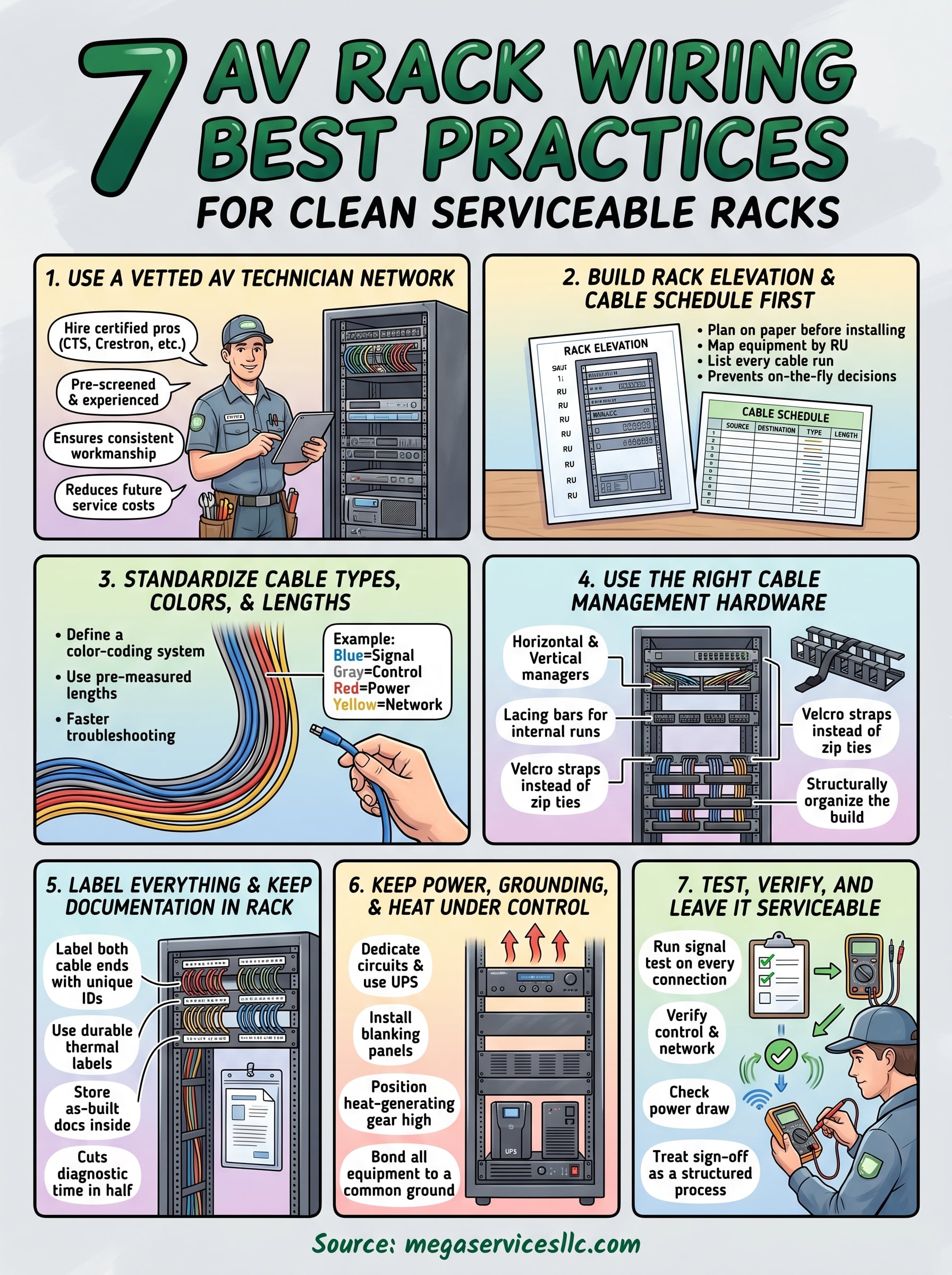

This article breaks down seven proven practices that keep AV racks organized, accessible, and ready for whatever changes come next. Whether you’re building racks yourself or managing teams who do, these guidelines will help you maintain a professional standard that holds up long after the initial install is complete.
1. Use a vetted AV rack technician network
Following AV rack wiring best practices starts before a single cable gets routed. The foundation of every clean, serviceable rack is the technician building it. Hiring an unqualified installer saves money upfront and costs far more when you’re troubleshooting signal loss or redoing cable runs six months later.
What to do
Work with technicians who hold verified AV certifications such as CTS, Crestron, Biamp, or Shure credentials. Before assigning anyone to a rack build, confirm they have hands-on experience with structured cabling, signal flow, and rack integration rather than general IT or electrical work. A vetted technician network, like the one MegaServices maintains, gives you access to over 2,000 pre-screened technicians deployable within 24 to 48 hours anywhere in the US or Canada.
The technician you assign to a rack build sets the quality ceiling for everything that follows. No cable management product fixes poor planning or sloppy terminations.
Why it matters
Certified technicians bring consistent workmanship standards to every project, which means your documentation matches the physical installation and the next technician who touches the rack can actually service it. Using an unvetted installer means you inherit their habits, and those habits show up as unlabeled cables, improper bend radii, or mixed signal and power runs that cause interference down the line.
Poorly built racks also drive up your service call costs significantly. When the original wiring is unclear, technicians spend time decoding the rack instead of fixing the actual problem, and that wasted time gets billed directly to you or your client.
Tools and materials to use
Your technicians should arrive with a professional toolkit specific to AV rack work, not a generic electrician’s bag. The right tools include:
- A cable tester for verifying every run before sign-off
- A label printer for consistent, readable cable identification
- A tone generator and probe for tracing runs inside a dressed rack
- Velcro straps and cable ties for organized cable dressing
- A torque screwdriver for properly securing rack equipment
- A laptop. Used for programming and troubleshooting.
Quick checklist
Before work begins, verify your technician meets these standards to protect the quality of the entire install:
- CTS certification or a recognized manufacturer credential (Crestron, Biamp, Shure, Extron)
- Documented experience with AV rack builds and low-voltage cabling
- Familiarity with signal flow and rack elevation planning
- A complete AV-specific toolkit on site
- Ability to produce as-built documentation at project completion

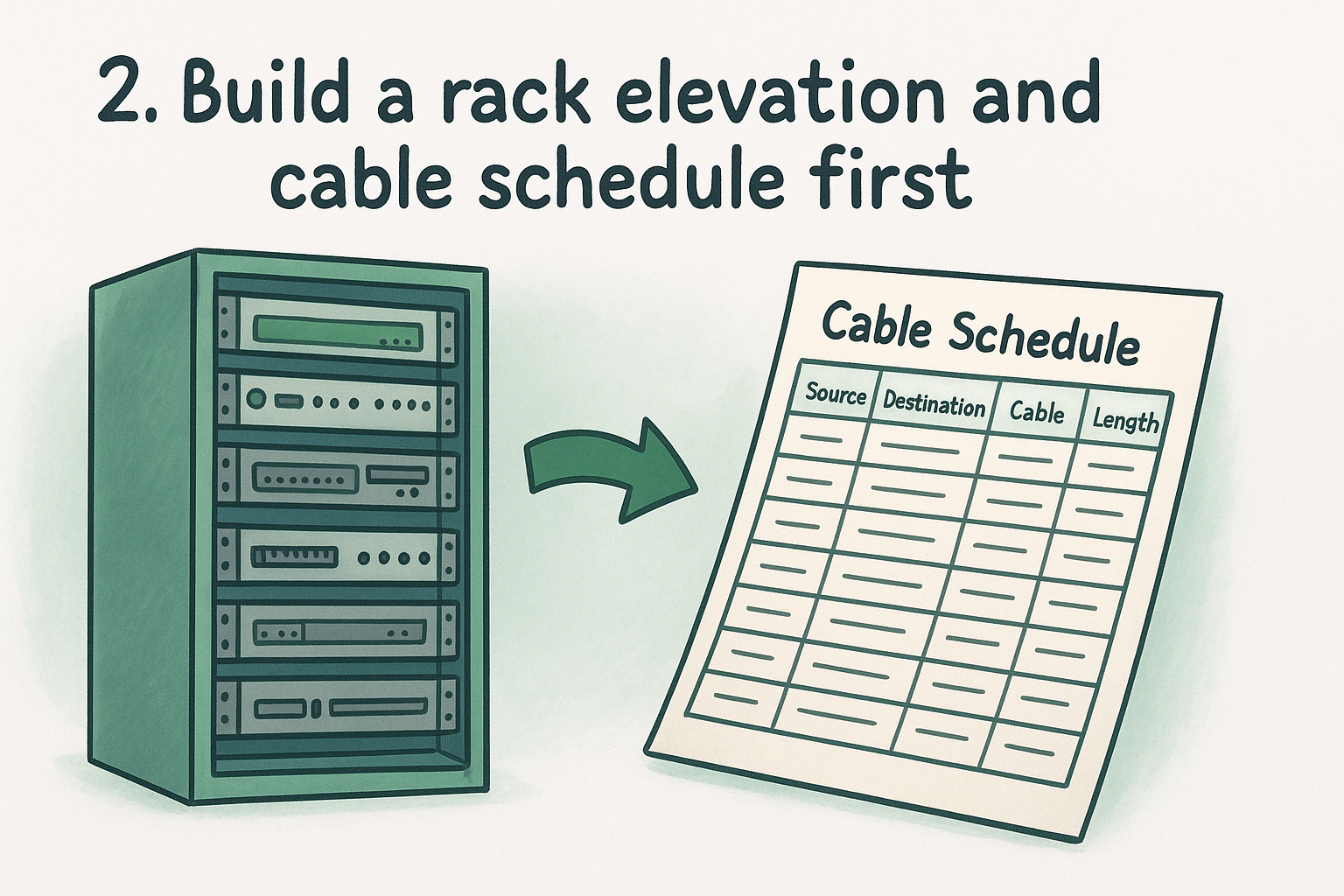

2. Build a rack elevation and cable schedule first
Planning on paper before touching a cable is one of the most overlooked av rack wiring best practices. A rack elevation drawing maps every piece of equipment by rack unit (RU) position, and a cable schedule lists every connection, its type, length, and endpoint. Together, these two documents give your technician a clear build plan before a single screw is turned.
What to do
Create a rack elevation drawing that assigns each piece of gear to a specific RU slot, grouping devices logically by function (audio, video, control, power). Alongside it, build a cable schedule in a spreadsheet that captures source, destination, cable type, color, and length for every single run in the rack.
Why it matters
Without a plan, technicians make on-the-fly decisions that compound fast. A missing cable run gets improvised, lengths get guessed wrong, and the final rack looks nothing like what the next technician expects to find when a service call comes in.
A rack elevation and cable schedule completed before installation saves more time during service calls than any single cable management product ever will.
Tools and materials to use
- Rack elevation software such as Visio or AutoCAD for layout drawings
- A spreadsheet template tracking source, destination, cable type, color, and length for every run
- Printed copies stored in a document sleeve mounted inside the rack door
Quick checklist
- Rack elevation drawing completed and approved before the build begins
- Cable schedule documents every run with type, color, and length
- Equipment grouped by signal type and heat output
- Document copies stored on-site inside the rack for future technicians
3. Standardize cable types, colors, and lengths
Standardization is one of the most practical av rack wiring best practices you can enforce on any project. When every cable color has a defined meaning and every run gets cut to a consistent length, your rack becomes readable to any technician who opens it, not just the one who built it.
What to do
Define a color-coding system before the build starts and apply it without exception across every run. Cut cables to pre-measured lengths that match your cable schedule so runs dress cleanly without excess slack bunching inside the rack. A common starting point looks like this:
| Color | Cable Type |
|---|---|
| Blue | AV signal |
| Gray | Control |
| Red | Power |
| Yellow | Network |
Why it matters
Random cable colors and mismatched lengths make every service call harder than it needs to be. A technician who can read your color scheme identifies the right cable in seconds instead of minutes, which reduces downtime and the risk of accidental disconnections. Consistent lengths also keep cable dressing tight and predictable, and that holds up better over years of repeated rack access.
A single cable color convention, applied from day one, cuts troubleshooting time on every service call that follows.
Tools and materials to use
- Pre-terminated patch cables in standard colors for signal and control runs
- A cable cutting and termination station for custom-length runs built on site
- A printed color-code legend stored inside the rack door for future reference
Quick checklist
- Color-coding system defined and documented before the build starts
- All cable lengths pre-measured and confirmed against the cable schedule
- Color legend mounted inside the rack for any technician who services it later

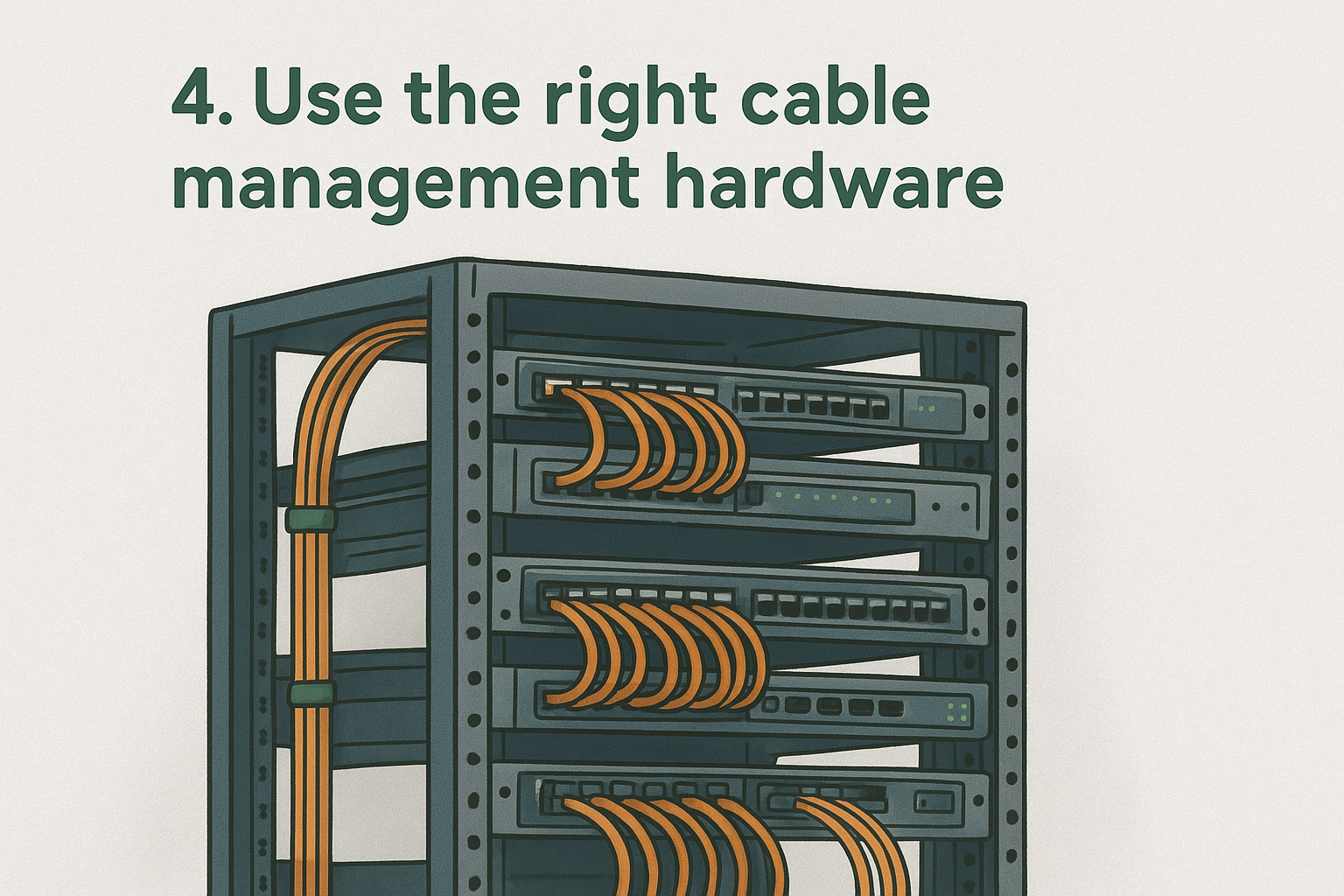

4. Use the right cable management hardware
Cable management hardware is what separates a rack that stays organized for years from one that deteriorates after the first service visit. Selecting the correct horizontal and vertical cable managers, lacing bars, and patch panels before installation begins is one of the most practical av rack wiring best practices you can follow.
What to do
Mount horizontal cable managers between every piece of active equipment to route patch cables cleanly across the rack face. Use vertical cable managers on both sides of the rack for longer runs that travel up or down the full height. Plan your patch panel placement so signal runs stay short and avoid crossing the rack multiple times.
Why it matters
Wrong or missing cable management hardware forces technicians to improvise, and improvised cable runs create stress on connectors, restrict airflow, and make every future service call harder. When cable managers are in place from the start, each run stays supported and accessible without disturbing adjacent cables.
Cable management hardware is not an optional add-on. It is a structural part of the rack build.
Tools and materials to use
- 1U and 2U horizontal cable managers with covers to keep patch cables contained
- Vertical cable managers mounted on both sides of the rack frame
- Velcro straps instead of zip ties for bundles that need future adjustment
- Lacing bars for securing longer internal cable runs at consistent intervals
Quick checklist
- Horizontal managers installed between every active device
- Vertical managers on both rack sides for long runs
- Velcro straps used throughout for easy re-dressing during service calls
- Patch panels positioned to minimize cable travel across the rack
5. Label everything and keep documentation in the rack
Labeling is one of the most consistently skipped av rack wiring best practices, and it’s the one that punishes you hardest during service calls. Every cable, port, and device in your rack needs a clear, durable label that any technician can read without guessing or tracing runs by hand.
What to do
Label both ends of every cable with a consistent naming convention that matches your cable schedule. Use a thermal label printer to produce legible, professional labels that stay readable for years. Mount a laminated copy of your rack elevation and cable schedule inside the rack door so the documentation travels with the equipment.
Why it matters
When a technician arrives on a service call without labels or documentation, the first task becomes identifying the source rather than resolving the actual fault. That wasted diagnostic time adds direct cost to every visit and increases the risk of accidental disconnections while tracing unmarked runs.
A labeled rack with on-site documentation can cut service call diagnosis time by more than half.
Tools and materials to use
Your technicians need the right labeling tools on site from day one to keep the standard consistent across every rack build:
- A thermal label printer rated for wire and patch panel labels
- Self-laminating cable labels for runs exposed to heat or frequent handling
- A document sleeve mounted inside the rack door for printed as-builts
Quick checklist
- Both ends of every cable labeled with a matching identifier
- Labels match the cable schedule exactly
- Rack elevation and cable schedule printed and stored inside the rack
6. Keep power, grounding, and heat under control
Power management and thermal control are av rack wiring best practices that get treated as afterthoughts far too often. Every piece of active equipment in your rack generates heat and draws current, and failing to plan for both creates reliability problems that compound over time and show up as equipment failures at the worst possible moments.
What to do
Dedicate a separate circuit for each rack whenever possible, and run all equipment through a rackmount UPS and power conditioner rather than a standard power strip. Position heat-generating equipment like amplifiers toward the top of the rack, and install blanking panels in any empty rack units to force airflow through equipment instead of bypassing it. Bond all equipment to a common ground point to prevent noise from entering your signal chain.
Why it matters
Unmanaged heat is one of the leading causes of premature equipment failure in AV racks. When amplifiers and processing gear run hot without proper airflow, components degrade faster and you face unexpected failures during critical hours with no warning.
Poor grounding introduces noise into your signal chain that no amount of cable management or processing can correct after the fact.
Ground loops from improperly bonded equipment produce audible hum and visual artifacts that take significant diagnostic time to resolve without knowing the root cause.
Tools and materials to use
- A rackmount UPS with surge protection and battery backup
- 1U blanking panels for every empty rack space
- A rackmount power conditioner with isolated outlets
Quick checklist
- Dedicated circuit confirmed before the build begins
- Blanking panels installed in all empty rack units
- UPS and power conditioner rackmounted and properly bonded
- Heat-producing equipment positioned at the top of the rack
7. Test, verify, and leave it serviceable
The final step in following av rack wiring best practices is treating sign-off as a structured process, not a formality. A rack that passes a documented test and verification process before handoff gives the next technician a confirmed baseline instead of a set of assumptions.
What to do
Run a signal test on every active connection in the rack before closing it up, confirming that each cable delivers the expected signal at the destination. Verify control system communication, confirm network connectivity, and check that every power circuit draws within its rated load. Walk through the rack one final time to confirm cable dressing, labels, and documentation all match the as-built cable schedule.
Why it matters
Skipping verification means you hand off unconfirmed problems to whoever services the rack next. A cable that appears connected but delivers no signal is much cheaper to fix during the build than during a live event or a client visit.
A rack you can’t verify at handoff is a rack you haven’t actually finished building.
Tools and materials to use
- A cable tester for verifying every data and signal run end to end
- A network analyzer for confirming IP connectivity on control and AV-over-IP devices
- A multimeter for checking power draw and ground continuity
Quick checklist
- Every cable run tested and confirmed against the cable schedule
- Control system commands verified from the control interface
- Power draw within rated limits on each circuit
- As-built documentation updated and stored inside the rack
Next steps
These seven av rack wiring best practices give you a repeatable framework for building racks that perform cleanly and stay serviceable long after the initial installation wraps up. The difference between a rack that holds up and one that becomes a liability is almost always traceable to decisions made early in the build, before the first cable gets routed.
Applying these practices consistently takes qualified technicians who know how to plan, execute, and document a rack build to a professional standard. That’s where MegaServices comes in. Since 2007, we’ve deployed vetted, certified AV technicians across the US and Canada to support integrators and project managers who need reliable labor fast. Whether you need one technician or a full crew, we can put the right people on your job site within 24 to 48 hours with no contracts or minimums required.
Book a MegaTech for your next rack project and get your next build done right.
