AV System Installation: What It Is and How It Works

AV system installation brings audio, video, and control equipment together so a space works as intended. It includes cabling, mounting, configuration, testing, and handoff, supported by a clear design and site assessment. The scope can range from a single meeting room to a multi-location rollout.

This guide explains the process from planning through commissioning, the components a proposal may include, and the coordination needed before technicians arrive.

For project managers and field service coordinators, the goal is a usable, tested, documented system. Confirm who owns design, physical installation, programming, and final acceptance, since these may be separate services.

Why AV system installation matters for your organization

Poor installation can interrupt meetings, make controls confusing, and create avoidable support work. It is not the only possible cause of a dropped call or frozen display: network conditions, software, and equipment faults also need consideration.

The hidden costs of getting it wrong

Installation-related issues to check include:

• Signal degradation from damaged terminations or cable runs that do not meet equipment requirements
• Control system conflicts when routing or programming does not match the intended room operation
• Callback visits that could have been avoided with proper commissioning the first time
• Warranty disputes when installation errors get blamed on hardware defects
• Site readiness gaps when power, pathways, or mounting requirements remain unresolved

Clear requirements and documented tests help distinguish installation problems from equipment or network faults.

Reliability compounds when you scale

Multi-site projects benefit from repeatable cable labels, configuration standards, and acceptance tests. Record site-specific differences rather than assuming every room can use the same design. This gives support teams a consistent starting point for troubleshooting.

Standardize the checks, not just the equipment list.

Protecting your reputation and your budget

Evaluate proposals by their deliverables, exclusions, and acceptance criteria, not price alone. Confirm whether programming, calibration, user training, documentation, and return visits are included.

Relevant experience and AV technician certifications help assess qualifications, but certification alone does not guarantee performance. Match the technician’s skills to the equipment and scope, then verify the completed work.

How AV system installation works, step by step

The project phases behind AV integration services provide a useful framework for AV system installation. Larger projects may divide these phases among designers, installers, programmers, and commissioning specialists.

From site survey to sign-off

A site assessment checks room dimensions, existing infrastructure, equipment access, power, and network readiness. Confirm cable pathways and suitable mounting support before installation. Resolve structural or electrical questions with the appropriate qualified professionals.

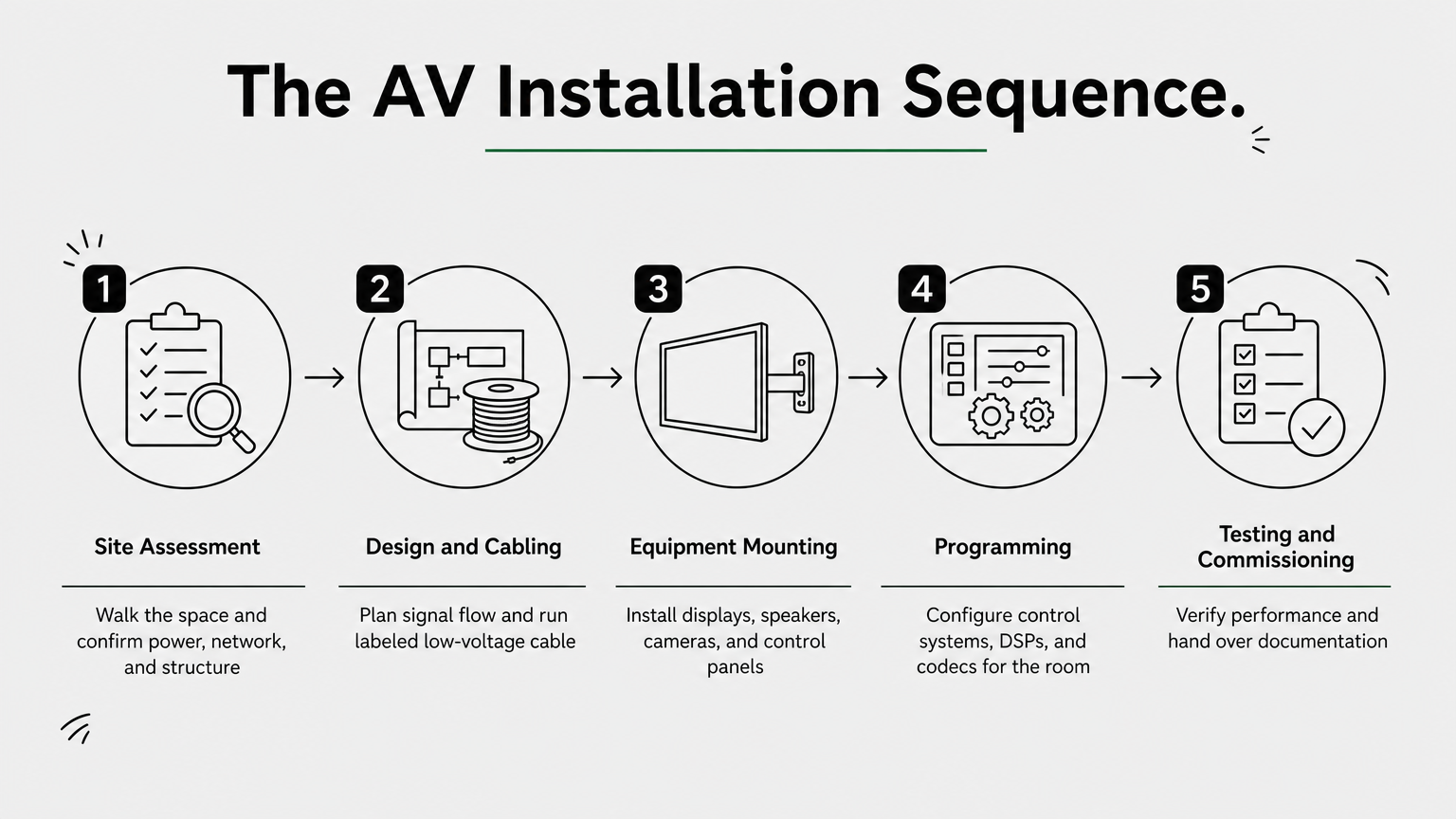

After the survey, a typical project includes these steps. Some overlap, depending on the scope:

1. Design and engineering: finalize equipment placement, cable routing, and signal flow based on the room’s actual use case.
2. Procurement and staging: confirm gear matches specs and pre-configure devices where possible before arriving on site.
3. Low-voltage cabling: run and terminate low-voltage cabling according to project and site requirements, labeling every run for future troubleshooting.
4. Equipment mounting: install displays, speakers, cameras, and control panels according to the design.
5. Programming and configuration: set up control systems, DSPs, and codecs so they match how the room will actually be used.
6. Testing and calibration: verify audio levels, video resolution, and control logic against real-world conditions, not just a bench test.
7. Commissioning and documentation: confirm the system performs as designed and hand over as-built drawings and test results.

Define completion criteria before installation so everyone knows what must be tested and delivered.

What commissioning should verify

Professional AV commissioning checks the installed system against agreed requirements. Test calls on the actual conferencing platform, microphone coverage at intended seats, content sharing, source switching, and mute behavior. For conferencing audio, verify acoustic echo cancellation and routing with a remote participant. Record results and outstanding issues before acceptance.

Common components in an AV system installation

The equipment list depends on the room’s purpose. Common AV system installation components fall into physical infrastructure, signal processing, controls, and support documentation. A simple display setup will not need every component listed below.

The physical layer

Plan displays, speakers, cameras, mounts, cable pathways, power distribution, and rack access together. Follow equipment ventilation and clearance requirements to reduce overheating risk. Knowing how to build an AV rack helps with airflow, service access, and cable organization. Label connections so future changes do not depend on tracing every cable.

The signal and control layer

Signal processing and control may include DSPs (digital signal processors), video switchers, video conferencing equipment, and a room-control interface. These functions may be separate devices or built into an integrated product. Conferencing DSP can provide mixing, level control, and acoustic echo cancellation, which reduces far-end audio being sent back through room microphones.

A usable system lets people complete everyday tasks without needing to understand the equipment behind them.

Documentation and support resources

Agree on the handoff package in advance: as-built drawings, cable labels, equipment inventory, configuration backups, test results, warranty details, and user instructions as appropriate. Identify support contacts and escalation ownership. AV project management support can help coordinate these deliverables across teams.

Common challenges that derail AV installations

Technical work depends on scheduling, access, materials, and communication. Addressing these dependencies early helps keep AV system installation projects on track.

Scheduling and technician reliability

Confirm the technician’s scope, relevant experience, tools, and site access before dispatch. Field service management from intake to closeout should include status updates and a contingency plan. When using a vetted technician network, make sure replacement personnel receive the same drawings and instructions.

A clear escalation contact helps teams respond when access, equipment, or staffing changes.

Scope and communication gaps

A useful scope of work identifies deliverables and responsibilities. Common coordination gaps include:

• Unclear scope documents that don’t specify exact equipment, mounting heights, or programming requirements
• No pre-site confirmation call, leading to missing access, locked rooms, or absent stakeholders
• Change orders discovered mid-install instead of during design
• Poor handoff communication between the field technician and the project manager back at HQ

Document changes, cost impacts, and approvals before proceeding with work outside the agreed scope.

Documentation and closeout failures

Physical installation is not the same as project closeout. Use accountable dispatch communication to collect completion reports, test results, and updated drawings. Assign an owner and due date to any unresolved item rather than marking an untested system complete.

Getting your next AV installation right

Successful AV system installation combines suitable equipment, a workable design, skilled installation, and documented testing. Start with the room’s use cases and agree on what a successful handoff looks like.

For one room or many locations, provide your staffing partner with the equipment list, site requirements, schedule, and expected closeout documents. Confirm which tasks need specialist programming or commissioning support.
