5 Key Building Automation System Components Explained

Understanding building automation system components helps facility teams scope upgrades and troubleshoot problems. A BAS combines field devices, control logic, communications, and operator tools to manage building services. These systems often overlap with AV and smart building technology, but their integration requirements need to be defined separately.

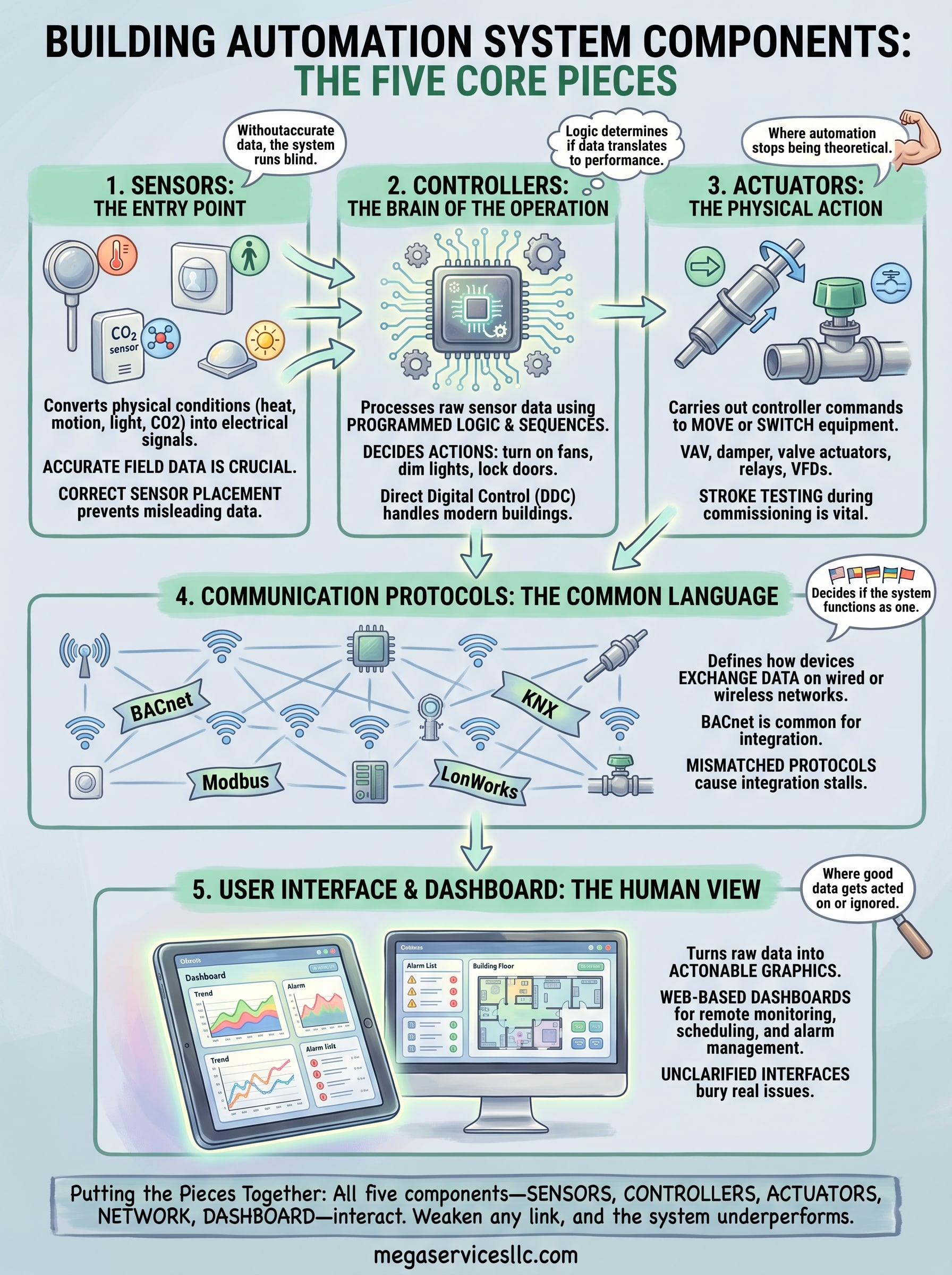

The five main groups are sensors, controllers, output devices and actuators, the communication network, and the user interface. Here is what each does and what to check when planning an installation.

For a rollout, identify who owns HVAC controls, electrical work, networking, and commissioning. Experience with low-voltage cabling or AV does not automatically qualify a technician to program building controls. Match the assigned specialists to the platform and approved scope.

1. Sensors

Sensors measure conditions such as temperature, humidity, and occupancy. Controllers use that information to adjust HVAC or lighting according to the programmed sequence. Data may also be shared with access control systems where the integration is supported and specified.

How they work

Sensors translate conditions such as temperature, motion, light, humidity, or CO2 into a signal. Depending on the device, this may be resistance, voltage, current, a contact state, or network data. Follow the manufacturer’s wiring, shielding, calibration, and installation guidance. Some networked sensors also report diagnostic information, but they still require suitable placement and verification.

Common types

• Temperature and humidity sensors
• Occupancy and motion detectors, including traffic counters at entry points
• CO2 and air-quality sensors
• Light-level (photocell) sensors
• Water leak and flow sensors
• Door and window contacts

When combining manufacturers, confirm input types, ranges, units, power requirements, and wiring before connecting devices.

Why they matter for building performance

Poor placement or an inaccurate sensor can cause unnecessary heating or cooling. A room sensor near a supply vent, exterior door, or heat source may not represent the occupied space.

A building automation system is only as reliable as the sensor data feeding it.

Verify sensor placement and readings during commissioning, and record the expected measurement range.

2. Controllers

Controllers process inputs and execute programmed sequences. A building automation system controller may adjust a fan, valve, or lighting output based on sensor readings, schedules, and operating modes. Access control and life-safety functions require their own appropriate systems and approved interfaces.

How they work

A typical control loop reads an input, compares it with a setpoint, and adjusts an output. Direct digital control (DDC) is common in commercial BAS installations. Existing sites may also contain pneumatic or electromechanical equipment that requires a suitable interface.

Common types

• Unitary controllers for single zones or air handlers
• Building-level controllers managing multiple zones
• Supervisory controllers overseeing an entire site or campus
• Programmable logic controllers (PLCs) for specialized equipment

Why they matter for building performance

A misconfigured controller wastes energy even when every sensor and actuator downstream works perfectly.

The controller’s logic determines whether accurate sensor data actually translates into efficient building performance.

Test controller programming against the approved sequence, including schedules, operating modes, alarms, and recovery after a power or communication interruption.

3. Output devices and actuators

Actuators turn controller commands into physical movement, such as opening a damper or adjusting a valve. Other output devices switch circuits or vary motor speed.

How they work

Control methods include on/off, floating, analog, and network commands, depending on the device. A damper actuator moves a shaft, while a relay switches a circuit. Modulating devices provide intermediate positions or levels instead of only fully on or off.

Common types

• VAV and damper actuators
• Valve actuators for hot and chilled water
• Relays and contactors for lighting and equipment
• Variable frequency drives (VFDs) for motors and fans
• Electronic door strikes and lock actuators

Why they matter for building performance

A stuck actuator or incorrectly scaled command can prevent equipment from reaching the requested position. Where feedback is available, compare the command with the actual response.

Verify what the output device does, not just what the controller commands.

During the commissioning process, test travel, direction, response, and specified fail-safe behavior using the manufacturer’s procedure.

4. Communication network and protocols

The communication network connects controllers, supervisory systems, and networked field devices. Communication protocols define how they exchange data. Many basic sensors and actuators connect directly to controller inputs and outputs instead of using a network protocol.

How they work

Networked devices exchange data using agreed message formats over wired or wireless connections. BACnet supports building automation applications, while other systems use Modbus, KNX, LonWorks, or proprietary protocols. Gateways can connect some different protocols, but the required data and commands must be mapped and tested.

Common types

• BACnet/IP, BACnet MS/TP, and BACnet Secure Connect, as supported
• Modbus
• LonWorks
• KNX
• Proprietary manufacturer protocols

Why they matter for building performance

An open protocol can reduce integration barriers, but a shared protocol name does not guarantee that every desired function will work between products.

Define the required data exchange before selecting devices and gateways.

Confirm supported objects and services, point lists, addressing, units, and read/write permissions. For BACnet products, review the product’s protocol implementation statement and relevant BTL listing. Coordinate network access and security with the building’s IT team.

5. User interface and dashboard

The building automation dashboard gives operators a view of equipment status, alarms, schedules, and trends. Local controllers may continue their programmed operation without the dashboard, depending on the system design.

How they work

A user interface obtains data from controllers or servers and presents graphics, trend charts, and alarm lists. Options include dedicated workstations, local displays, and web-based dashboards. Authorized operators can adjust permitted settings and acknowledge alarms. Remote access depends on the platform and the site’s approved security configuration.

Common types

• Graphical front-end software tied to the supervisory controller
• Web and mobile dashboards for remote monitoring
• Alarm and notification consoles
• Energy reporting and analytics platforms

Why they matter for building performance

Clear labels and useful alarms help operators recognize problems and respond consistently.

The dashboard is where good data either gets acted on or gets ignored.

Configure alarm priorities, trend retention, and operator permissions during handoff. Train staff to distinguish temporary overrides from permanent changes and explain how to restore normal operation.

Putting the pieces together

Sensors measure conditions, controllers apply logic, and output devices carry out commands. Direct wiring and the communication network connect the appropriate components, while the dashboard supports supervision. Test the complete sequence as well as each device.

A clear scope should list equipment, point mappings, sequences, testing responsibilities, backups, and operator training. If you need field support, book a MegaTech for your building automation install and provide the platform and task requirements so appropriate expertise can be confirmed.
