Cat6 cable installation standards cover more than the cable label. Pathway design, component compatibility, bend and pulling limits, termination quality, field testing, labeling, and documentation all affect whether the finished link meets its intended category performance.
This guide presents a practical six-step workflow. Project specifications, current TIA standards, the National Electrical Code as adopted locally, authority requirements, and the cable and connectivity manufacturers remain the controlling sources for an actual installation.
Use this article as a planning guide, then build the project-specific requirements into a written installation and closeout checklist.
Why Cat6 installation standards matter
A link can pass a basic wiremap and still fail category-performance testing because of excessive insertion loss, return loss, crosstalk, poor termination, damaged cable, or incompatible components. Following a consistent process helps prevent hidden faults and makes troubleshooting easier after the space is occupied.
The applicable TIA-568 series defines performance and topology requirements for balanced twisted-pair cabling. Electrical and fire-safety requirements depend on the adopted code, installation location, and project documents. A qualified team should identify those requirements before any low-voltage structured cabling work begins. Related TIA, NEC, and BICSI considerations should be mapped to the project scope.
Design for performance, install to the product limits, and test against the project standard.
Step 1. Plan the route and link configuration
Map the pathway from the telecommunications room to each outlet using the actual route, not a straight-line estimate. Include vertical transitions, sleeves, cable supports, service loops, fire-rated penetrations, equipment locations, and space for future access. Our overview of the structured cabling technical baseline provides additional system context.
Keep link and channel length in the design
For conventional balanced copper cabling, industry guidance uses a maximum 90-meter permanent link and a 100-meter channel that includes equipment and patch cords. Fluke Networks explains the difference between permanent-link and channel testing. Do not use a tester tolerance or a marginal pass as permission to design beyond the stated limit.
Large floors may need additional telecommunications rooms or other approved architecture. Plan distribution points and structured cabling components before construction closes the preferred pathway.
| Planning item | What to document |
|---|---|
| Link type | Permanent link, channel, modular plug terminated link, or another approved configuration |
| Route | Actual pathway, supports, sleeves, and access points |
| Environment | Air-handling spaces, risers, outdoor exposure, moisture, heat, and EMI sources |
| Firestopping | Rated assembly, approved system, and inspection requirements |
| Acceptance | Test limit, tester configuration, labeling, and closeout format |
Step 2. Select compatible cable and components
Category performance applies to the installed link, not only the cable. Select cable, jacks, patch panels, cords, and consolidation hardware that are compatible with the project performance target and the manufacturer warranty requirements, if a system warranty is part of the scope.
Match the cable construction to the application
Solid-conductor horizontal cable is commonly used for fixed building links, while stranded cable is commonly used for flexible patch cords. Shielded systems require compatible hardware, bonding, grounding, and installation practices. Choose unshielded or shielded construction based on the electromagnetic environment, design, and manufacturer instructions rather than treating shielding as an automatic upgrade.
Use the correct listing and environmental rating
Plenum, riser, general-purpose, outdoor, wet-location, and direct-burial requirements are not interchangeable. A CMX marking alone does not automatically mean a cable is listed for direct burial. Confirm the exact listing, product data, local code, and installation space. Our guide to low-voltage cable types and ratings explains the common categories.
| Selection question | Why it matters |
|---|---|
| Is the pathway an environmental-air space? | The adopted code and product listing determine the permitted cable |
| Is the run exposed to moisture, sunlight, or burial? | Indoor cable may not have the required jacket or listing |
| Is shielding required? | The complete channel and bonding approach must support it |
| Will Power over Ethernet be used? | Bundle size, conductor gauge, temperature, and equipment requirements may affect design |
| Is a manufacturer warranty required? | Approved components and installer requirements may apply |
Step 3. Follow bend, tension, support, and separation limits
Use the cable manufacturer data sheet for minimum bend radius, maximum pulling tension, temperature limits, and approved lubricant. Common rules of thumb can be useful during planning, but the selected product and installation condition control the actual limit.
Support cable with hardware approved for the pathway, avoid crushing bundles, and prevent sharp edges or tight fasteners from deforming the jacket. Separation from power, motors, transformers, lighting, and other interference sources depends on the applicable pathway standard, circuit type, shielding, and local requirements. Follow the project design instead of relying on one universal distance. See these network cable installation practices and structured cabling best practices for related planning considerations.
Step 4. Terminate consistently
Choose T568A or T568B according to the project standard and apply it consistently at both ends. The two schemes provide the same category performance when correctly installed. Mixing them unintentionally creates a crossover condition and complicates troubleshooting.
Maintain pair twist as close to the termination as the connector instructions require, remove only the necessary jacket, and use the tool and procedure specified for the hardware. Do not force a universal untwist number onto a connector system with different published requirements. Spot-check early work against the selected patch panel wiring method before the crew repeats an error across a floor.
Step 5. Test every completed link
A continuity tester can find opens, shorts, reversals, and split pairs, but it does not certify Category 6 performance. When the scope requires certification, use a calibrated field certifier with the correct adapters, test limit, cable type, nominal velocity of propagation, and permanent-link or channel configuration.
Review wiremap, length, insertion loss, return loss, near-end crosstalk, power-sum measurements, delay, and other parameters included in the selected limit. Investigate marginal passes and confirm the tester result rather than assuming length alone determines performance.
A wiremap confirms connectivity. A standards-based field test evaluates the installed link.
Save the native test files and readable reports. Organize them by the same identifiers used on the patch panels and outlets so the client can match a failed port to its installation record. These records can also support system commissioning and closeout.
Step 6. Label and document the system
Use a consistent labeling convention based on the project administration standard. Apply durable, legible identifiers at both ends and update records when a link is rerouted or reassigned. The closeout package should include as-built drawings, port maps, test results, product information, warranty documents, and approved firestop records where required.

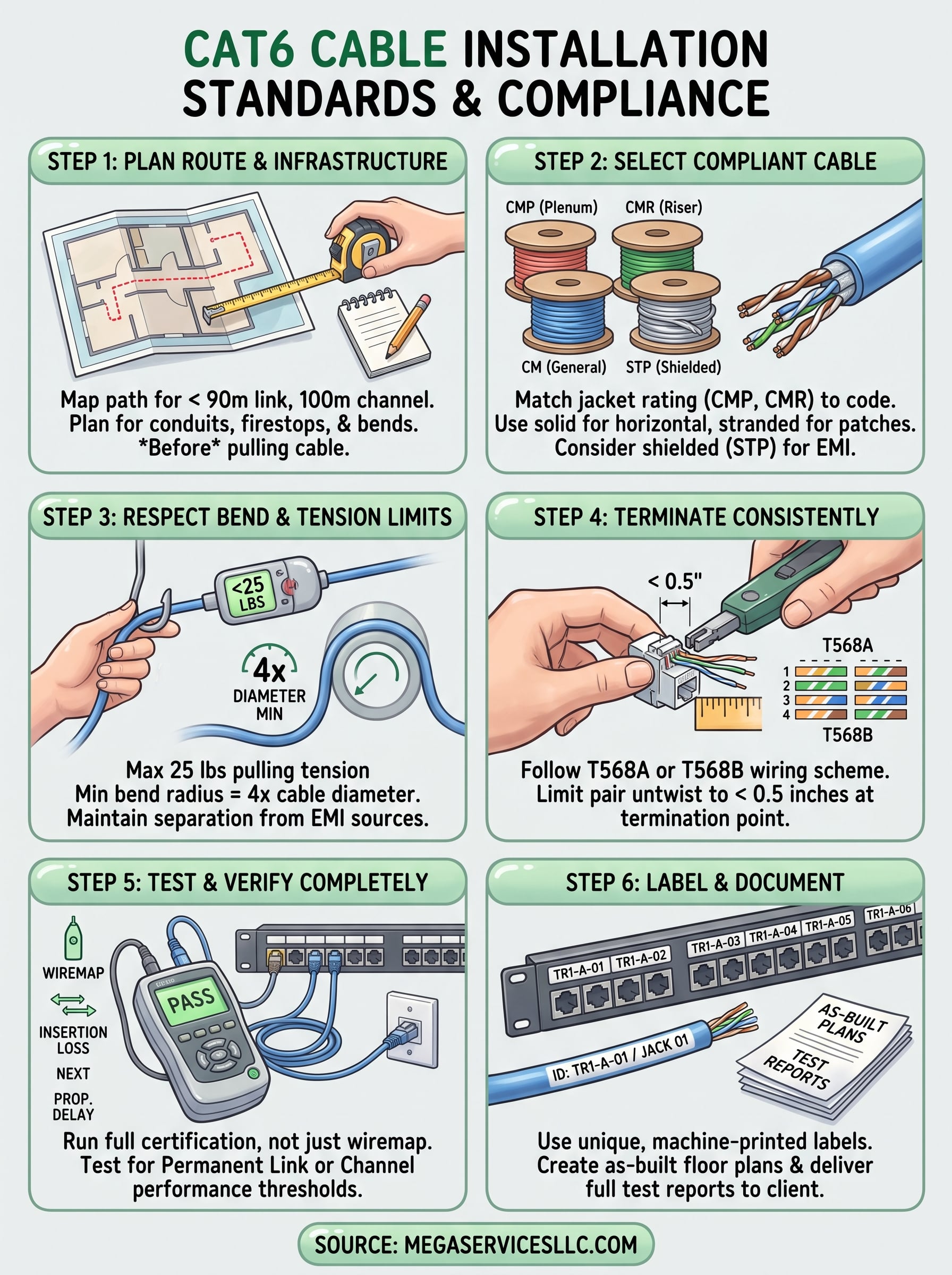

The infographic summarizes common guidance. Verify bend radius, pulling tension, pair preparation, support spacing, and separation against the selected manufacturer, current standards, and project requirements.
Turning standards into reliable installations
Reliable Cat6 work comes from a connected process: plan the route, choose compatible components, protect the cable during installation, terminate consistently, test against the correct limit, and deliver usable records. No single product label or tester result replaces that full workflow.
