Ceiling Speaker Installation Guide: Placement, Wiring & Setup

Getting ceiling speakers right the first time matters, especially when you’re rolling out installations across multiple sites or managing a project with tight deadlines. This ceiling speaker installation guide covers every step from planning speaker placement to pulling wire and making final connections, so your team can execute installs cleanly and consistently.

Whether you’re mounting a pair of speakers in a single conference room or coordinating installs across a national rollout, the fundamentals stay the same: proper placement for even coverage, correct wiring practices, and a solid connection to the audio source. Skip any of these, and you’ll end up with hot spots, dead zones, or costly return trips to fix problems that should have been caught during the first visit.

At MegaServices, we’ve supported AV integration teams with skilled, certified technicians since 2007, deploying labor for ceiling speaker installs and dozens of other Pro AV tasks across the U.S. and Canada. We built this guide based on real-world field experience, not theory. Below, you’ll find step-by-step instructions on speaker positioning, cutting ceiling openings, running and terminating speaker cable, and testing the finished system. Let’s get into it.

Before you start: tools, parts, and safety checks

Before you cut a single hole or pull a single foot of wire, confirm that your crew has everything on hand. This ceiling speaker installation guide is built around efficiency, and nothing kills a job schedule faster than a technician who has to leave the site to grab a forgotten tool or a missing part. Run through this section before dispatch, not after you arrive on site.

Tools you need on site

Every ceiling speaker install requires a core set of tools. Missing even one can stall the job, so verify your kit against this list before you load the van.

ToolPurpose
Stud finder (electronic)Locate joists and avoid cutting into framing
Oscillating multi-tool or drywall sawCut speaker openings cleanly
Fish tape or wire fish rodsRoute cable through walls and ceiling cavities
Drill with long bit (18"+ auger or spade)Drill through blocking or top plates
Non-contact voltage testerConfirm no live wires in the work area
Wire stripper and crimperTerminate speaker cable ends accurately
Tape measure and chalk lineMark accurate speaker positions
Low-tack painter’s tape and pencilMark cutout circles without marring the ceiling
HeadlampWork in ceiling cavities and dark attic spaces
Label maker or cable labelsTag every wire run before pulling

Always bring a non-contact voltage tester to every install, even if you’re told the circuit is dead. Verify it yourself before touching anything above the ceiling line.

Parts and materials checklist

Speaker selection and cable gauge are the two decisions that shape everything downstream, so confirm both before the job starts. For most commercial installs, 16 AWG or 14 AWG in-wall rated cable (CL2 or CL3) is the standard. Runs under 50 feet from the amplifier can use 16 AWG; longer runs or higher-wattage speakers call for 14 AWG to prevent resistance-related power loss.

Your parts list for a typical ceiling speaker install should include:

  • Ceiling speakers (confirm impedance: 8-ohm for most standard installs)
  • CL2 or CL3 rated speaker wire in the correct gauge for your run length
  • Low-voltage mounting brackets if required by local code
  • Nail plates to protect cable near framing members
  • Wire nuts or push-in connectors for any junction points in the run
  • Banana plugs or spade connectors if your amplifier uses binding posts
  • Blank wall plates for any unused rough-in ports

Safety checks before you cut

Electrical and structural hazards are the two risks that can turn a routine install into a liability. Before you pick up the drywall saw, run through these checks on every job, every time.

First, use your stud finder in AC detection mode to sweep the full work area for live wiring hidden above the ceiling. Second, identify the ceiling material: plaster ceilings require slower cutting speeds and more controlled pressure than standard drywall, and they crack if you rush. Third, confirm with the building contact that no HVAC ducts, conduit runs, or sprinkler lines pass through the target zone. Cutting into a sprinkler line is a four-figure mistake that a two-minute conversation prevents. Document your sweep results and keep them on file for the project record before any cutting begins.

Step 1. Plan your zones, source, and control method

Before you touch the ceiling, map out how the audio system is structured. Every decision in this step shapes the wire runs, amplifier selection, and physical speaker layout that follow. Skipping the planning phase is one of the most common reasons installers pull wire twice on the same job, so lock this in before anyone sets foot on a ladder.

Define your audio zones

A zone is a group of speakers that share the same audio signal and volume control. Single-zone installs are the simplest: one amplifier output feeds all speakers in the space, and one volume control adjusts the entire room. Multi-zone systems send different audio signals to different areas independently, which is common in restaurants, open-plan offices, and retail environments where background music in one section shouldn’t interfere with paging in another.

Zone TypeTypical Use CaseMinimum Equipment
Single zoneConference rooms, small retailStereo or mono amplifier
Multi-zoneRestaurants, large open officesMulti-channel amp or DSP
Addressable zoneCampus or enterprise installsNetwork audio system or DSP with control integration

Choose your audio source

The source determines the signal type your amplifier receives and tells you which additional cable runs, such as HDMI, balanced audio, or network drops, need to land near the equipment rack before speakers go in. Common source options include dedicated distributed audio amplifiers, streaming-enabled hardware like Dante-networked devices, and AV receivers with speaker-level outputs.

Confirm the source and amplifier match before ordering wire. A system designed around a streaming amplifier needs a network drop at the rack; a traditional AV receiver setup needs analog RCA or balanced XLR inputs instead.

Select your control method

Your control method decides how the end user adjusts volume and switches sources. In-wall volume controls are the standard for smaller systems, wired directly in the speaker loop between the amplifier and the speaker pair. Larger installs in this ceiling speaker installation guide context often use a DSP or a control system like AMX or Crestron, which gives you centralized level management, scheduling, and remote monitoring from a single interface.

Step 2. Map speaker placement and spacing in the room

With your zones and sources locked in, the next task is to mark exactly where each speaker goes on the ceiling before anyone picks up a saw. Placement affects coverage more than speaker model selection does, and errors at this stage create the dead zones and volume hot spots that force return trips to fix. This step in the ceiling speaker installation guide gives you a repeatable, math-based method that works across any room size or shape.

Apply the standard spacing formula

The most reliable starting point for in-ceiling speaker layout is the one-times-ceiling-height rule: space speakers apart by a distance equal to the ceiling height, and position the first speaker from each wall at half that distance. In a room with a 10-foot ceiling, speakers sit 10 feet apart, with the first unit 5 feet in from the side wall. This distributes sound evenly without creating gaps between coverage areas or stacking too much output in one spot.

Apply the standard spacing formula

If the room has an irregular shape or obstructions like support columns, draw the layout to scale on graph paper before marking the ceiling. Finding a misalignment on paper takes a minute; finding it after you’ve cut takes much longer.

Use this quick reference table for common room configurations:

Ceiling HeightSpeaker SpacingFirst Speaker from Wall
8 ft8 ft4 ft
10 ft10 ft5 ft
12 ft12 ft6 ft
14 ft12-14 ft6-7 ft

Place for stereo or mono coverage

Stereo ceiling layouts require a left channel and right channel pair aimed toward the primary listening position. Keep the two channels within 6 to 8 feet of each other so a listener standing in the room hears a clear stereo image rather than two separate sound sources. Mono installs, which are far more common in commercial settings like retail floors, lobbies, and conference rooms, distribute speakers evenly across the grid without any left-right imaging requirement. Confirm with your project specifications which configuration applies before you mark the ceiling, because switching after cutting is a costly correction.

Step 3. Pick the right wire, amp, and protection

The wire, amplifier, and protection devices you select directly affect sound quality, system safety, and long-term reliability. Getting these choices locked in before the install begins prevents expensive callbacks that are difficult to diagnose once your ceiling is closed. This section of the ceiling speaker installation guide walks you through each decision with concrete specs you can apply on any job.

Choose the right wire gauge and rating

Wire gauge determines how much resistance your cable introduces between the amplifier and the speaker. Higher resistance on longer runs robs the speaker of power and causes audible distortion at the listening position. Use this table to match gauge to your run length:

Run LengthRecommended GaugeRating Required
Up to 50 ft16 AWGCL2 or CL3
50-100 ft14 AWGCL2 or CL3
100-200 ft12 AWGCL2 or CL3

Always use CL2 or CL3 rated in-wall cable for any run that passes through a ceiling or wall cavity. This is a code requirement in most jurisdictions, not a suggestion, and failing to comply exposes your project to inspection failures and insurance issues.

Never substitute standard lamp cord or unrated cable for in-wall runs. Code inspectors flag it, and insurance claims get denied when unrated cable is involved in a fault.

Match your amplifier to the speaker load

Your amplifier must handle the total impedance load your wiring configuration creates. Running two 8-ohm speakers in parallel drops the combined load to 4 ohms at the amplifier output terminal. Confirm that your amplifier is stable at 4 ohms before wiring parallel pairs, and verify that total wattage output covers the combined speaker power handling with at least 20 to 25 percent headroom above the speakers’ rated wattage.

For multi-zone installs, use an amplifier with dedicated output channels per zone rather than splitting a single stereo output across multiple rooms. This gives you independent level control and prevents one zone’s load from affecting another zone’s performance.

Add circuit protection

Inline fuses and speaker protection modules prevent amplifier faults from burning out your ceiling speakers during a failure event. Install an inline fuse rated at roughly 1.5 times each speaker’s rated wattage at the amplifier output terminal for every channel.

On commercial installs, circuit protection is a requirement, not optional hardware. A speaker that fails due to an unprotected amplifier fault creates a service call, a replacement cost, and a ceiling opening that shouldn’t need revisiting.

Step 4. Find joists, mark the cutouts, and cut cleanly

Cutting speaker openings in the wrong location wastes time and creates structural repairs that were never in the project scope. Before you pick up any cutting tool, confirm joist locations and verify that the space above is clear of obstructions. This step in the ceiling speaker installation guide protects your timeline and keeps the ceiling looking clean when the job is done.

Locate joists and clear the area above

Run your electronic stud finder across the full target zone in slow, overlapping passes. Mark joist edges with low-tack painter’s tape rather than pencil so you can reposition marks without damaging the ceiling surface. Once you have joist locations mapped, use a thin drill bit to probe the ceiling at your planned speaker positions. This confirms that your cut falls between framing members and away from any hidden blocking, HVAC ducts, or conduit runs that your stud finder may have missed.

If you hit unexpected resistance when probing, stop and reassess before cutting. One minute of investigation prevents a costly ceiling repair.

Mark and cut the openings

Most ceiling speakers ship with a paper or cardboard cutting template that matches the exact backcan diameter. Tape the template to the ceiling at your marked position, trace the cutout circle in pencil, then remove the template before cutting. Confirm the circle is centered between joists and that no joist edge falls inside the trace line.

Use an oscillating multi-tool or a dedicated drywall circle cutter for the actual cut. Cut slowly and apply consistent, light pressure. Rushing the cut causes the blade to catch, which chips the drywall face and leaves a ragged edge that the speaker grille may not fully cover. Keep a small trash bag or bucket positioned below the cut to catch drywall dust and debris rather than letting it fall onto equipment or finished flooring below. After the cut, reach into the opening and sweep the cavity with your hand before pulling wire to confirm no sharp edges, protruding fasteners, or unexpected obstructions sit inside the hole.

Step 5. Run, route, and label speaker wire the right way

With your ceiling openings cut, you can now pull wire through the building structure. How you route and label that wire determines whether the next technician on the job, or the one troubleshooting the system years later, can work efficiently without tearing apart the ceiling to figure out what goes where. This step in the ceiling speaker installation guide is where clean habits separate professional installs from problem jobs.

Plan your wire path before you pull

Map the wire path from each speaker opening back to the amplifier location before you insert a single foot of cable. Avoid running speaker wire parallel to AC power lines for more than a few feet; crossing at 90-degree angles is acceptable, but running alongside line voltage introduces hum into the signal. Where you need to pass through a wall top plate or ceiling blocking, use your long auger bit to drill a clean hole rather than forcing the cable around a sharp corner, which can damage the jacket and degrade performance over time.

Plan your wire path before you pull

Use this checklist to confirm your route is clear before you start pulling:

  • Confirm the path avoids HVAC ducts, conduit, and sprinkler lines
  • Mark every drill point with tape before drilling
  • Verify cable hangs freely in the cavity without pinching at framing members
  • Pull enough slack at each speaker opening to reach the floor before trimming

Leave at least 18 inches of extra cable at each speaker opening. Cutting too short before termination is one of the most common field mistakes, and splicing speaker wire inside a ceiling cavity creates a weak point in the run.

Label every run before it disappears into the ceiling

Label both ends of each wire run before you close up the ceiling. At the amplifier end, use a cable label that identifies the zone, channel, and speaker position, for example "Zone 1 / Left / Conference A." At the speaker end, wrap a label flag around the cable just inside the opening so it stays visible when you return for termination. Consistent labeling conventions across your entire install cut troubleshooting time significantly and make the system far easier to hand off to the client or a service technician.

Step 6. Connect, mount, and finish the speaker install

With your wire runs labeled and pulled through the openings, you’re ready to make the final connections and secure each speaker in place. This is the step where all your earlier planning pays off, and clean termination habits here are what separate a professional-grade install from one that generates callbacks. Work through each opening in sequence so you don’t lose track of which run belongs to which speaker position.

Make the wire connections

Strip approximately three-quarters of an inch of jacket from each conductor at the speaker end, then twist the bare strands tight before connecting. Most ceiling speakers use spring-clip or screw-terminal binding posts on the backcan. Match the positive conductor, typically marked with a stripe or printed with a "+" on the jacket, to the red terminal, and the negative conductor to the black terminal. Polarity consistency across every speaker in the install keeps all drivers moving in phase, which directly affects bass response and overall sound quality.

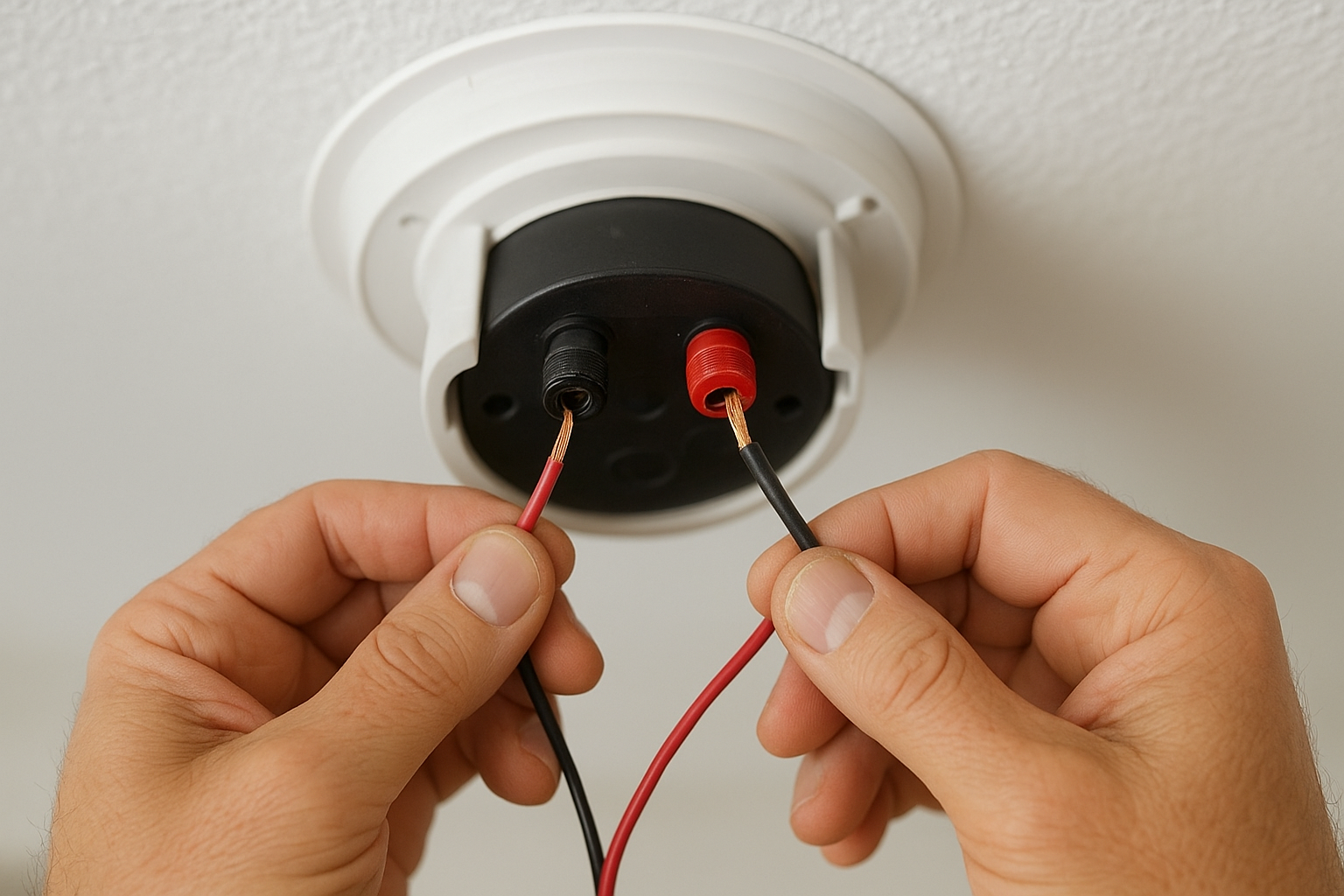

Make the wire connections

Reversing polarity on even one speaker in a multi-speaker install causes audible cancellation at low frequencies, and tracing it after the ceiling is closed takes far longer than getting it right the first time.

Confirm that no bare wire strands contact the wrong terminal or touch the metal backcan housing before proceeding. A stray strand shorting against the can will not damage the speaker immediately, but it creates an intermittent fault that is nearly impossible to diagnose remotely.

Seat and secure the speaker

Push the speaker body into the ceiling opening until the flange sits flush and flat against the ceiling surface. On most ceiling speaker models, you tighten the mounting dogs, the small metal tabs that fold out from the backcan, by turning the front-panel screws clockwise. These dogs grip the back face of the drywall and pull the speaker tight into position. Tighten each dog screw evenly in small increments rather than driving one fully before moving to the next, which prevents the flange from cocking to one side.

Apply the grille and inspect the finish

Snap or press the grille cover onto the speaker frame until it seats fully around the perimeter. Step back and verify that the grille sits parallel to the ceiling line and that no gaps appear between the flange and the ceiling surface. This ceiling speaker installation guide consistently emphasizes clean finishing because visible gaps or misaligned grilles are the first thing clients notice. If a gap exists, loosen the mounting dogs slightly, reposition the speaker, and re-tighten before moving to the next unit.

Step 7. Power up, set levels, and verify performance

Every connection you made in the previous steps only matters if the system produces clean, even audio across the entire coverage zone. Powering up in the wrong order or skipping level verification is where otherwise solid installs fall apart at final walkthrough. This last step of the ceiling speaker installation guide gives you a repeatable startup and test sequence you can use on every job.

Power up in the correct sequence

Turn on your equipment in source-first order to protect both the amplifier and the speakers from power-on transients. A transient spike fed through an active amplifier into an unpowered speaker can damage the driver in under a second, so follow this sequence on every startup:

  1. Power on the audio source first and confirm it outputs a signal at a low level
  2. Power on any DSP or signal processor and verify input signal presence on the metering display
  3. Power on the amplifier last, with its master volume set to minimum
  4. Slowly raise the amplifier output while a test tone plays through the source

Never bring the amplifier up at full volume on the first power cycle. Starting low gives you time to catch a wiring fault before it damages equipment.

Set initial levels and balance

Once the system is running, set each zone’s output level to roughly 70 percent of its rated maximum as your starting point. Play a consistent test signal, ideally pink noise from a signal generator or a reliable playback app, rather than music, which has too much dynamic variation to reveal coverage gaps accurately. Walk the entire room while the signal plays and listen for dead spots, hot spots, or any speaker that sounds noticeably louder or quieter than its neighbors.

Verify coverage and document the result

Use a sound pressure level meter or a calibrated SPL app to take readings at several positions across the room. For most commercial installs, a variance of no more than 3 dB between measurement points indicates even coverage. Log your readings by speaker position, note the amplifier output level at the time of measurement, and attach the results to your project closeout documentation before you leave the site. That record protects you if the client reports coverage issues later and gives the next technician a reliable baseline to work from.

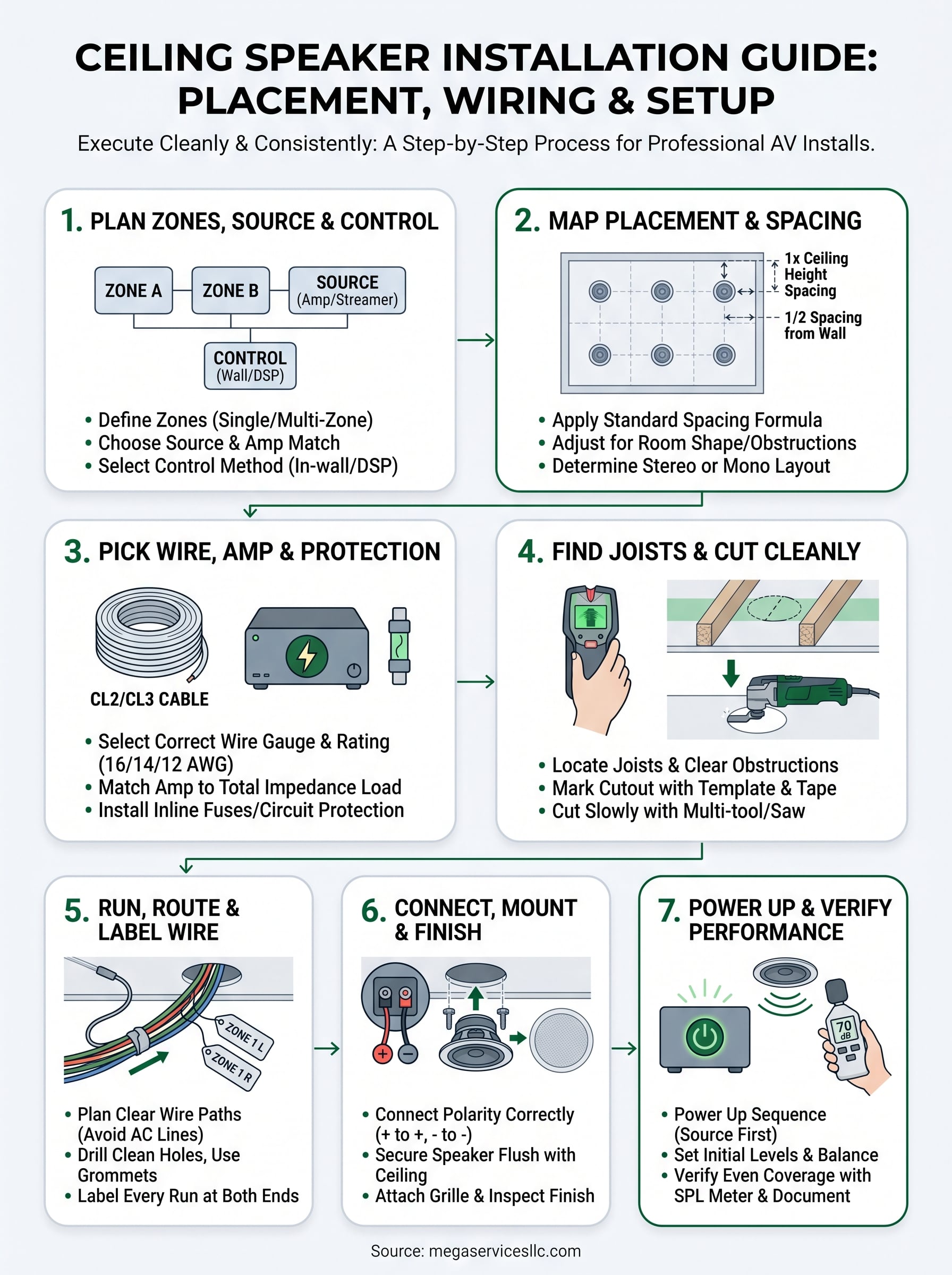

ceiling speaker installation guide infographic

Final checks and handoff

Before you close out the project, run a final walkthrough with the client or site contact present. Confirm that every speaker grille sits flush, all zone controls respond correctly, and your SPL documentation matches what the client hears in the room. This ceiling speaker installation guide has walked you through every stage from planning to verification, but the handoff conversation is what actually closes the job cleanly. Hand the client a one-page summary listing each zone, its coverage area, the amplifier output level, and the location of every in-wall volume control.
