Control Systems: What They Are, How They Work, And Examples

Every modern AV installation, from a corporate boardroom’s integrated displays to a university lecture hall’s automated lighting and sound, relies on control systems to function as a unified, responsive environment. Without them, each device operates in isolation, requiring manual adjustment and creating inefficiency at scale.

A control system takes user inputs, processes them through defined logic, and produces outputs that govern how equipment behaves. In professional AV, that might mean a Crestron or Extron processor coordinating displays, microphones, cameras, and lighting from a single touch panel. In industrial engineering, it could be a PLC managing a production line. The underlying principles are the same.

At MegaServices, our technicians install, configure, and commission control systems across the United States and Canada every day. We’ve supported AV control system deployments in thousands of environments since 2007, giving us a practical, hands-on perspective on how these systems work.

This article breaks down what control systems are, how they operate at a fundamental level, the differences between open-loop and closed-loop architectures, and real-world examples across engineering, robotics, and professional AV. Whether you’re a project manager scoping an integration or a technician brushing up on core concepts, this guide gives you a solid foundation to work from.

Why control systems matter in modern engineering

Modern engineering projects rarely involve a single isolated device. Large-scale systems, from data center infrastructure to stadium sound installations, require dozens or hundreds of components to respond to changing conditions in real time. Without a structured control framework, operators face constant manual intervention, slower response times, and higher rates of failure. Control systems solve this by building automatic coordination into the architecture of the system itself, so the environment responds predictably whether a human is watching or not.

How control systems reduce human error and operational overhead

Automated control removes the human from routine correction loops, which reduces exposure to the two most common failure sources: fatigue and inconsistency. A closed-loop system that monitors and adjusts in milliseconds does not get distracted or skip a step under pressure. This is why aerospace, manufacturing, and medical device engineering all depend on tightly specified control architectures as a baseline requirement, not an upgrade.

From an operational standpoint, well-designed control systems lower the long-term cost of managing complex environments. Predictable behavior means less reactive maintenance, fewer emergency service calls, and a shorter training curve for the people who operate the equipment day to day. You spend less time chasing failures and more time delivering consistent outcomes for your clients.

Why AV integrators depend on control system design

For AV integrators, control system design is often the difference between a client who calls back with complaints and one who expands the contract. A room where displays, conferencing cameras, microphones, and lighting all respond correctly to a single button press requires thoughtful programming and properly commissioned hardware. Poorly configured control logic creates exactly the kind of friction that frustrates end users and reflects badly on the integrator.

Your technicians need to understand not just how to wire a processor, but how the control logic flows, what each input and output is mapped to, and how the system behaves when something unexpected happens. Commissioning a control system correctly means testing edge cases, verifying feedback loops, and documenting the configuration so the next technician on site can work from a reliable baseline.

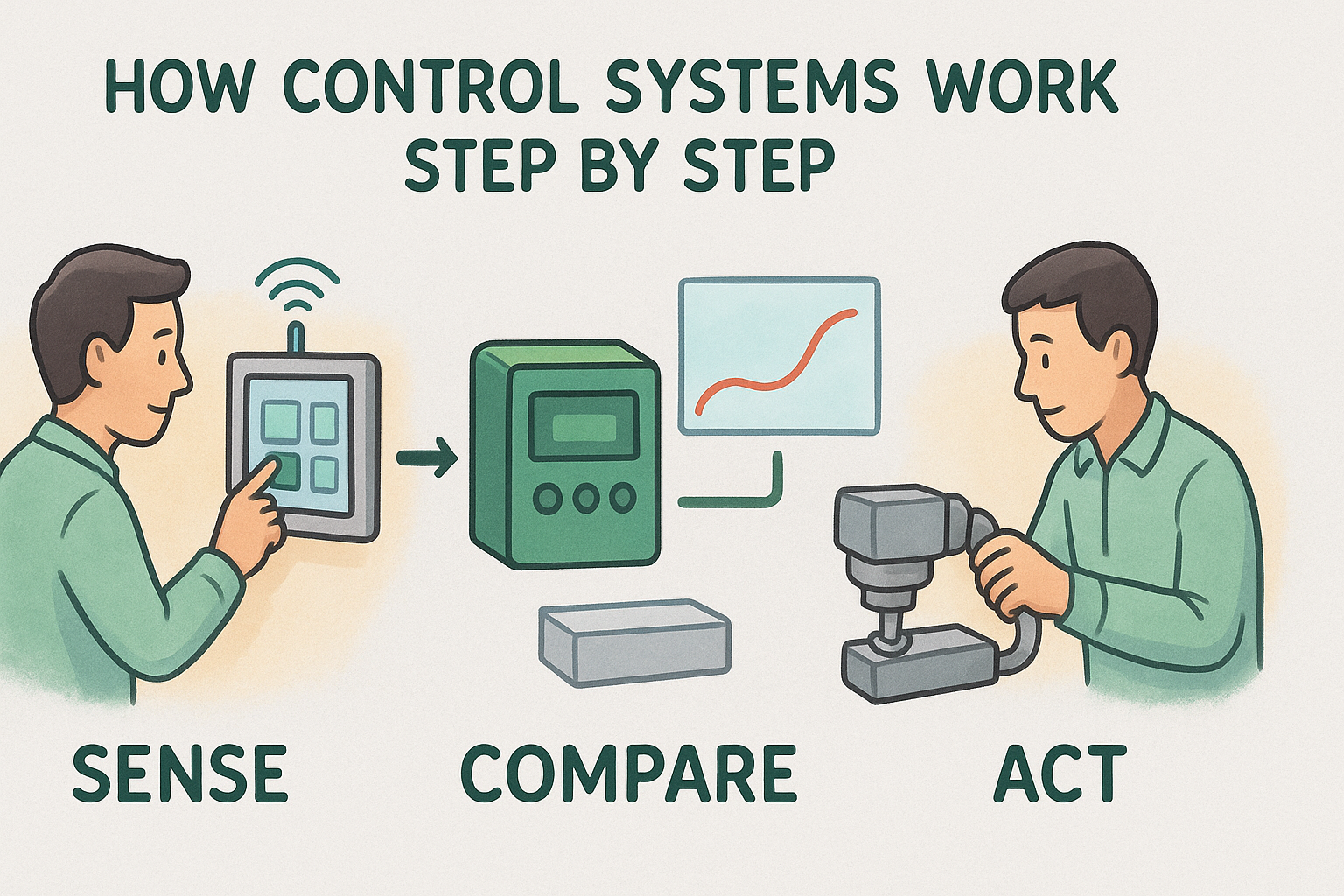

How control systems work step by step

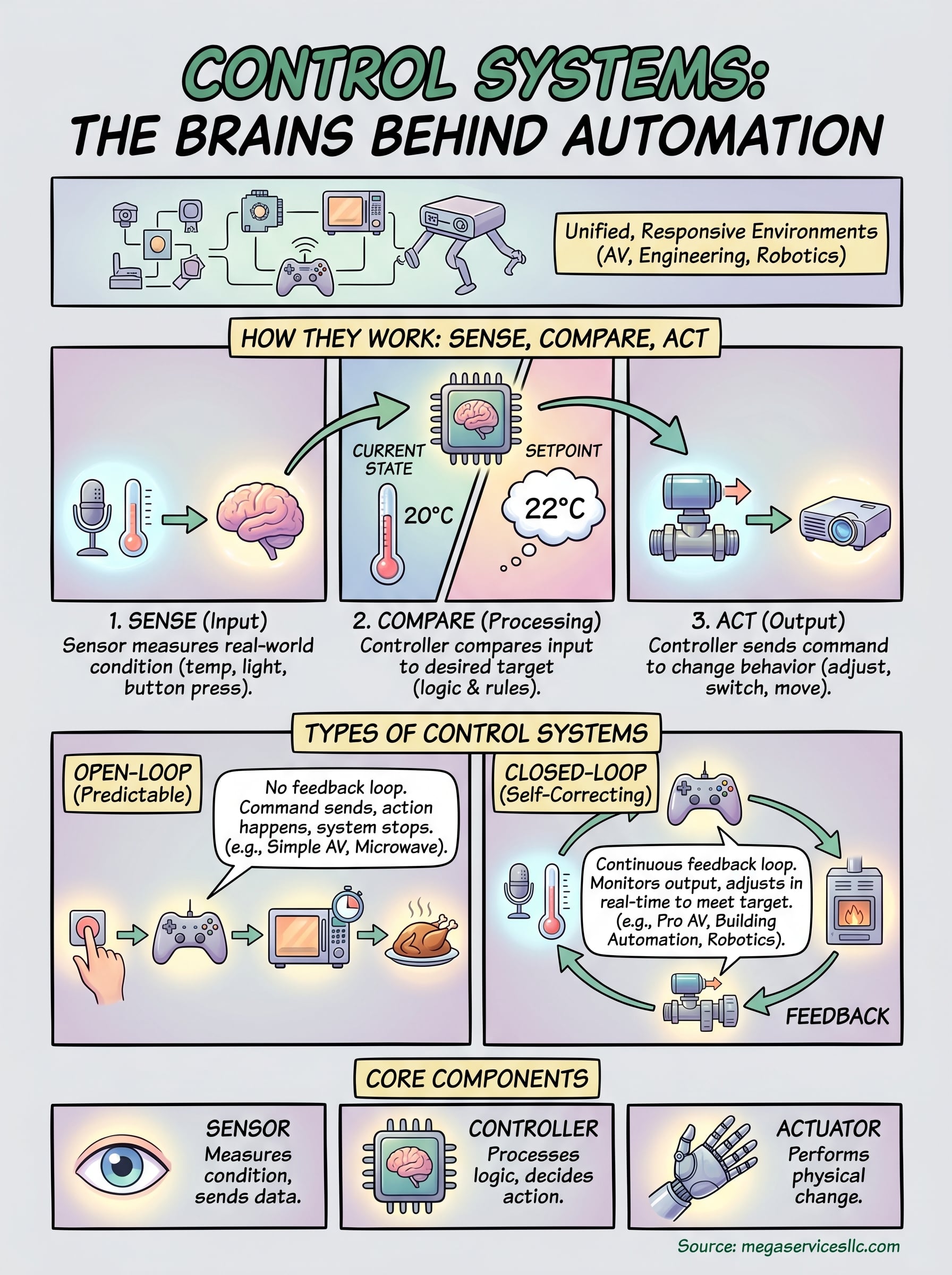

Every control system follows the same fundamental sequence: sense, compare, and act. Understanding this sequence helps you diagnose failures faster, configure systems more accurately, and communicate clearly with clients about what a system is doing at each stage. The logic is the same whether you are looking at a robotics arm on a factory floor or a Crestron control processor managing a boardroom.

The input: sensing what needs to change

The sequence starts with a sensor or input device that measures a condition in the real world. In a building automation system, that might be a thermostat reading ambient temperature. In a professional AV setup, it could be a button press on a touch panel triggering a signal state change. The sensor converts a physical condition into an electrical signal the controller can read. Without an accurate input, every stage downstream operates on bad data.

Processing and comparison: the decision layer

Once the controller receives an input signal, it compares the current state against a setpoint or desired value. This comparison is where the control logic lives. The controller evaluates the difference between where the system is and where it needs to be, then calculates what correction to apply. In closed-loop architectures, this comparison happens continuously, which is what gives the system its self-correcting behavior without requiring a human to intervene.

The quality of your control system’s programming determines how accurately and how quickly it responds when real-world conditions deviate from the target.

For professional AV control programming, this processing step is where experienced technicians earn their value. Writing logic that handles unexpected inputs gracefully, like a source that goes offline mid-presentation, separates a reliable installation from one that freezes at the worst possible moment. Mapping every edge case during commissioning prevents reactive service calls later.

The output: acting on the signal

After processing, the controller sends a command signal to an actuator or output device. That actuator physically changes something: a relay closes, a motor adjusts position, a display switches inputs, or a lighting scene activates. The output is the only part of the loop that users typically see, which means every error in the sensing or processing stages shows up at the output in a way that is visible and disruptive to the end user experience.

Types of control systems and when to use each

Not all control systems are built the same way, and choosing the wrong architecture for your project creates problems that no amount of programming fixes later. The two foundational types are open-loop and closed-loop control systems, and understanding the difference tells you where each one belongs and where each one breaks down.

Open-loop control systems

An open-loop system sends a command and does not check whether the intended result actually happened. The controller fires an output based on a preset instruction and then moves on. Think of a microwave: you set a time, the unit heats for that duration, and it stops regardless of whether the food is fully cooked. There is no feedback mechanism verifying the outcome against a target.

Open-loop systems work well in environments where the process is highly predictable and deviations are minimal. You see them in simple AV setups where a button triggers a fixed sequence of commands without any need for the system to confirm that each step completed successfully.

Closed-loop control systems

A closed-loop system continuously monitors its own output and adjusts behavior based on what it measures. The controller compares real-time feedback from sensors against a setpoint and corrects the difference. This self-regulating behavior makes closed-loop architectures the standard choice for any application where precision and consistency matter.

If your environment involves changing conditions, variable loads, or high stakes for the end user, a closed-loop system is not optional.

In professional AV, closed-loop logic handles scenarios like automatic gain control on microphone inputs or camera tracking that adjusts to presenter movement. In robotics and manufacturing, closed-loop systems keep motors, actuators, and processes within tight tolerances across varying loads and conditions. When you specify control systems for clients managing complex, multi-device environments, closed-loop design is what separates a system that holds up over time from one that requires constant manual correction.

The core parts of a control system

Every control system, regardless of its complexity, is built from the same fundamental components working together. Understanding each part helps you identify failure points faster, ask better questions during commissioning, and communicate more clearly with engineers and clients when something goes wrong.

The sensor

The sensor is the entry point for all system data. It measures a physical condition, temperature, pressure, position, light level, or signal state, and converts that measurement into an electrical signal the controller can read. Sensor accuracy determines the quality of every decision downstream, which is why specifying the right sensor for the environment matters more than most installers initially assume. A cheap temperature sensor with a three-degree margin of error creates real problems in a precision cooling system, even if everything else is configured perfectly.

The controller

The controller is the brain of the system. It receives the input signal from the sensor, compares it against a target setpoint, runs the programmed logic, and decides what output to send. In professional AV, this is typically a dedicated processor from manufacturers like Crestron, Extron, or AMX. In industrial settings, it is commonly a programmable logic controller. The quality of the programming inside the controller determines how accurately and how gracefully the system responds to both expected conditions and edge cases that the end user never anticipates.

The controller only performs as well as the logic it is given, which makes commissioning and programming some of the highest-value work in any integration project.

The actuator and feedback path

The actuator converts the controller’s output signal into physical action. A relay closes, a motor turns, a display switches inputs, or an amplifier adjusts gain. Without a correctly specified actuator, the controller’s decisions produce no real-world effect. In closed-loop control systems, the feedback path connects back to the sensor, continuously reporting the actual state so the controller can compare it against the setpoint and correct any deviation. This loop is what separates a system that self-regulates from one that fires a command and hopes for the best. Verifying the feedback path during installation prevents the most common source of control system failures that appear only under real operating conditions.

Real-world control system examples you already use

You interact with control systems multiple times every day without recognizing them as such. From the thermostat on your wall to the cruise control in your vehicle, the underlying architecture is the same: sense a condition, compare it to a target, and act to correct the difference. Recognizing these examples in familiar environments builds a more intuitive grasp of how the same principles apply at scale in professional AV and industrial settings.

Thermostats and building automation

Your home thermostat is one of the clearest closed-loop examples available. The sensor reads ambient temperature, the controller compares that reading against your setpoint, and the system activates heating or cooling until the gap closes. Modern building automation systems use the same logic but coordinate hundreds of zones, sensors, and actuators across a single structure, adjusting airflow, lighting, and temperature based on occupancy and real-time load data.

Large commercial facilities depend on these automated feedback loops to cut energy costs and reduce manual intervention. When a building management system detects that a conference room sits empty, it trims HVAC output and dims lighting automatically, without anyone touching a switch or making a call to facilities.

Professional AV installations

In a corporate boardroom or university lecture hall, control systems manage every device in the room from a single touch panel interface. A technician programs a Crestron or Extron processor to handle display switching, microphone routing, camera control, and lighting scenes, all triggered by one button press. The room responds as a unified system rather than a collection of independent devices requiring separate adjustments.

When the control logic is written and commissioned correctly, the end user never has to think about what the system is doing behind the panel.

Commissioning these systems properly means verifying that every input triggers the correct output sequence and that the system recovers cleanly from unexpected conditions, like a source dropping offline mid-presentation. That reliability is what separates installations that generate service callbacks from ones that run without issue for years after handoff.

Key takeaways

Control systems follow a consistent logic regardless of scale: sense a condition, compare it to a target, and act to correct the difference. Whether you are looking at a building thermostat or a multi-room AV installation managed by a Crestron processor, the same architecture drives behavior. Open-loop systems handle predictable, fixed sequences. Closed-loop systems self-correct continuously, making them the right choice for any environment where conditions change and reliability matters.

For AV integrators and project managers, understanding how control systems work changes how you specify, commission, and troubleshoot installations. Sensors, controllers, and actuators each carry specific failure modes, and knowing where to look when something breaks saves time and protects your client relationships. Well-programmed, properly commissioned control logic is what separates a room that works every time from one that generates repeat service calls.
