Data Center Cabling Standards: A Practical Reference Guide

A single mislabeled cable or a pathway that violates bend radius specs can cascade into hours of troubleshooting and thousands of dollars in downtime. That’s why data center cabling standards exist, they give engineers, integrators, and project managers a shared set of rules for designing, installing, and managing structured cabling infrastructure that actually performs at scale. Without them, every data center would be a one-off experiment with unpredictable results.

Standards from organizations like TIA, ISO/IEC, and BICSI cover everything from cable pathway design and fiber trunk routing to labeling conventions and testing procedures. For AV integrators and project managers running multi-site deployments, understanding these standards isn’t optional, it’s the difference between a clean handoff and a callback. At MegaServices, our nationwide network of certified low voltage and structured cabling technicians works inside these frameworks daily, supporting integration teams that need qualified hands on-site to execute to spec.

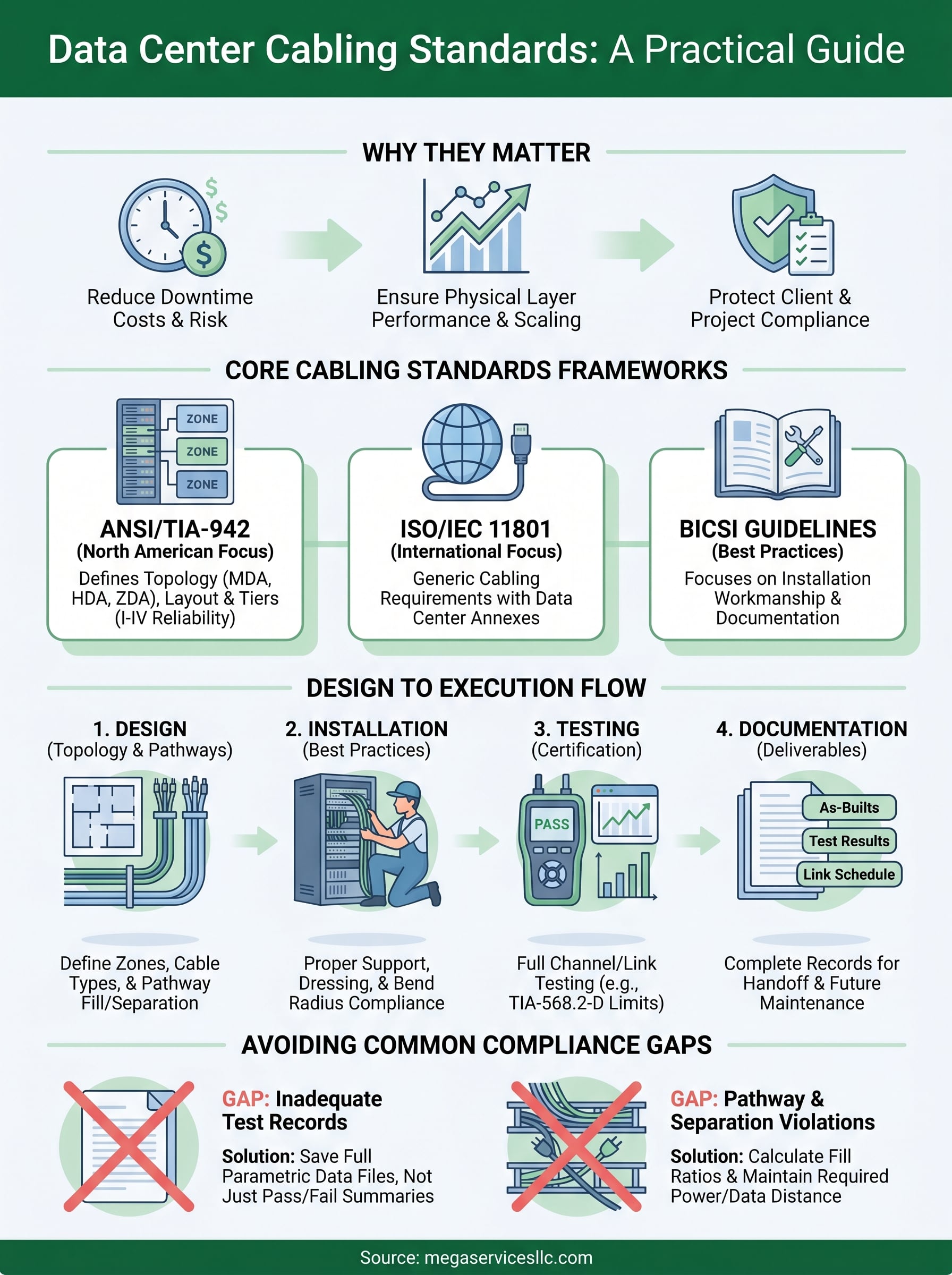

This guide breaks down the major data center cabling standards you’ll encounter on the job, explains how they overlap and where they differ, and gives you a practical reference you can come back to when scoping projects or verifying compliance. We’ll cover ANSI/TIA-942, ISO/IEC 11801, BICSI guidelines, and the key requirements within each that matter most during installation and commissioning.

Why data center cabling standards matter

When a data center goes down, the financial impact hits fast. Downtime costs in enterprise environments can reach tens of thousands of dollars per minute, and a significant share of outages trace back to cabling failures, not hardware. Data center cabling standards exist to reduce that risk by giving everyone on a project, from the design engineer to the field technician, a shared and enforceable baseline for how infrastructure should be built, tested, and maintained.

Performance starts at the physical layer

Most network performance problems have a physical layer root cause, and structured cabling is the foundation of that layer. When you install cabling to the specifications outlined in standards like ANSI/TIA-942 or ISO/IEC 11801, you’re ensuring that the cable plant can support the bandwidth, latency, and signal integrity that the active equipment above it requires. Channel performance margins, insertion loss limits, and return loss thresholds aren’t arbitrary numbers; they reflect the actual physics of how signals travel over copper and fiber under real operating conditions.

Standards don’t just define what works today; they define what continues to work as your infrastructure scales and equipment generations change.

Your design choices at the cabling layer also affect how quickly you can troubleshoot faults and add capacity later. A cabling plant built to spec is one where test results are documented, pathways are labeled consistently, and future technicians can trace any link without guesswork. That discipline pays off every time you need to reconfigure a rack or isolate a failing segment under time pressure.

Compliance protects your project and your client

When you’re managing an installation for a large enterprise or a co-location facility, the client often requires documented standards compliance as a formal condition of project acceptance. Failing to meet those requirements can trigger costly rework, delay final payment, or expose your organization to liability if a poorly installed cable plant contributes to a system failure. Understanding the applicable data center cabling standards before you break ground means you’re building to requirements that hold up during inspection, not scrambling to address gaps after the fact.

Compliance also matters when you bring in outside labor to support a deployment. Any technician working on your project needs to understand the same performance thresholds and documentation requirements you’ve committed to. That alignment between your team’s expectations and the field crew’s execution is what keeps inspections clean and punch lists short when a project moves into commissioning.

Core cabling standards you’ll run into

Three primary frameworks govern most of the data center cabling standards work you’ll encounter on commercial and enterprise projects. Each comes from a different standards body, covers slightly different scope, and gets referenced in different ways depending on your client and project type. Knowing how they relate to each other saves you from treating them as competing requirements when they’re actually complementary layers of guidance.

ANSI/TIA-942

ANSI/TIA-942 is the dominant standard in North American data center design. Published by the Telecommunications Industry Association, it defines the physical layout requirements for data centers, including structured cabling topology, equipment distribution areas, and pathway separation rules. It also introduced the widely used Tier I through Tier IV reliability classification system, which clients and facility operators reference when specifying redundancy and uptime expectations.

Your client’s tier requirement directly influences how you design cable pathways, redundant routes, and maintenance access.

ISO/IEC 11801

ISO/IEC 11801 is the international counterpart to TIA-942, and you’ll encounter it on projects with global clients or facilities outside North America. It defines generic cabling requirements for customer premises, with specific annexes addressing data center environments. The standard aligns closely with TIA specifications on channel performance but uses different class and category nomenclature that you need to map carefully when both standards apply to the same project.

BICSI Guidelines

BICSI produces reference documents rather than enforceable standards, but its Data Center Design and Implementation Best Practices guide carries significant weight in the field. Many project specifications call out BICSI compliance explicitly, particularly for installation workmanship and documentation practices. Technicians holding BICSI credentials demonstrate familiarity with these guidelines, which matters when your client reviews submittals.

How standards shape a data center cabling design

When you start designing a data center cabling infrastructure, the applicable standards don’t just influence a few details, they drive the fundamental structure of your entire layout. From how you distribute horizontal and vertical pathways to where you position your main distribution area and horizontal distribution areas, standards define the topology before you pull a single cable.

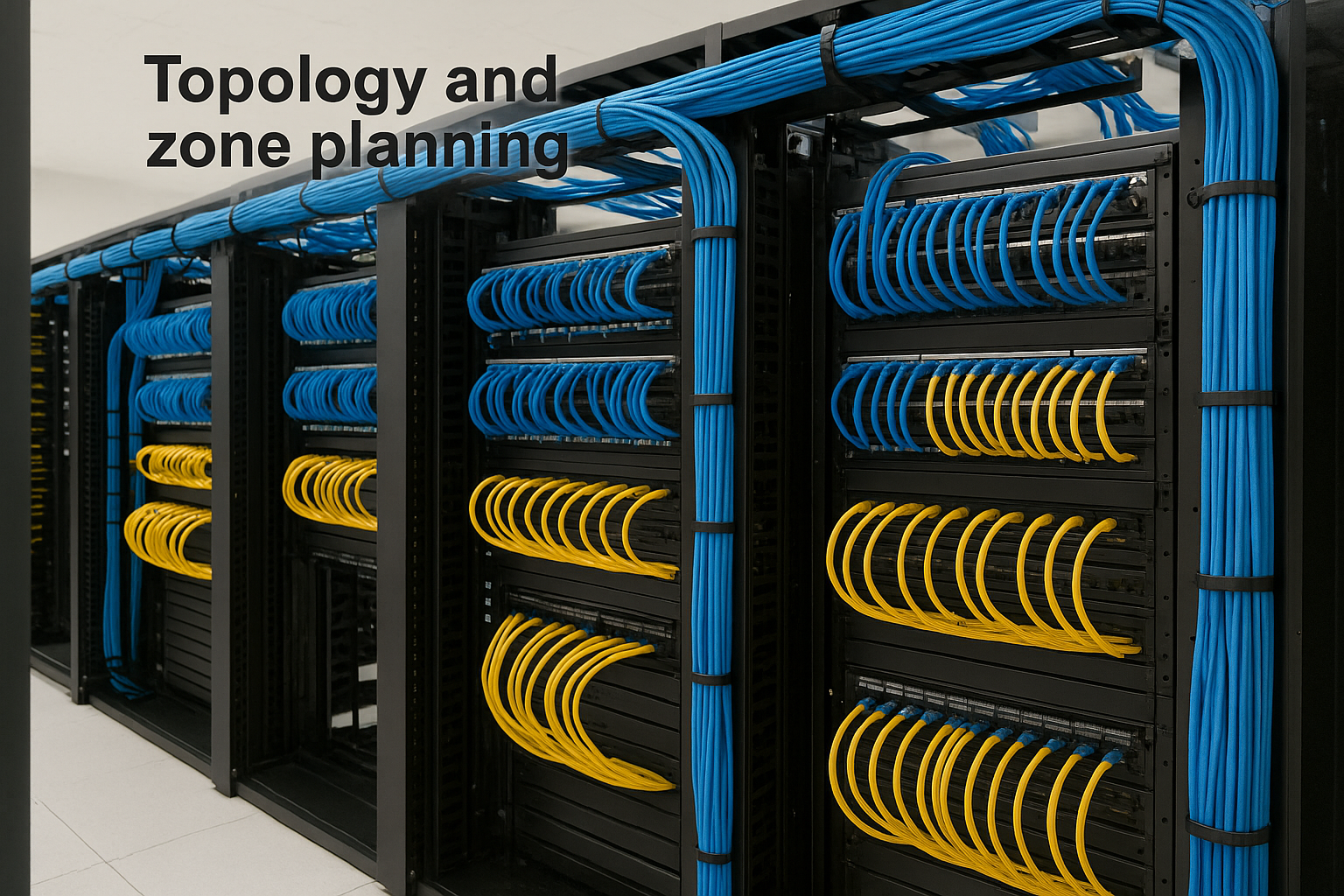

Topology and zone planning

ANSI/TIA-942 requires a specific hierarchical topology that flows from the main distribution area (MDA) through intermediate distribution areas (IDAs) and horizontal distribution areas (HDAs) down to the zone distribution areas (ZDAs) and equipment distribution areas (EDAs). When you follow this framework, you create a cable plant that’s predictable, scalable, and far easier to manage as your client’s equipment footprint grows or changes over time.

Getting zone boundaries right at the design stage costs far less than recabling sections of a live floor after deployment.

Cable selection and pathway requirements

Data center cabling standards give you specific guidance on which cable categories and fiber types belong at each link in your topology. For copper runs, TIA-942 references Category 6A as the minimum for 10GBase-T applications, while fiber specifications account for multi-mode and single-mode options depending on distance and bandwidth requirements. Pathway requirements cover minimum bend radius, fill ratios for conduit and cable tray, and physical separation between power and data runs.

Your pathway design also needs to account for thermal management and airflow, since overfilled cable trays restrict circulation and raise rack temperatures. Standards provide the fill ratio thresholds that keep your cable plant from becoming an unintended obstacle to cooling performance, which matters especially in high-density deployments.

Installation, testing, and documentation essentials

Knowing the standards on paper only gets you halfway there. Executing to those standards in the field requires that your installation crew understands the specific workmanship requirements, your test equipment is calibrated correctly, and your documentation package is complete before you hand anything over to the client.

Field installation practices

Data center cabling standards specify installation requirements that go beyond simple connectivity. Your team needs to maintain proper cable dressing, consistent support spacing, and bend radius compliance throughout every run, from the point of termination in the panel back through every pathway segment to the source. Shortcuts in any of these areas create marginal links that pass testing on day one but degrade under thermal cycling and physical stress over time.

A cable plant installed to spec performs predictably for years; one installed to "good enough" generates callbacks you can’t afford.

Testing and certification

Every copper and fiber link in the installation requires channel or permanent link testing with a certified tester set to the correct limit file for the applicable standard. For Category 6A copper runs, that means testing to TIA-568.2-D limits and saving the full results, not just pass/fail summaries, in a format your client can retain for their records. Fiber links need both insertion loss and, on critical backbone runs, OTDR traces to confirm splice quality and verify no hidden faults exist along the route.

Documentation deliverables

Your documentation package should include labeled as-built drawings, test result files, and a complete link schedule that maps every cable ID to its physical path and termination points. Clients in co-location and enterprise environments routinely require this package as a formal project acceptance condition, so building it throughout the installation rather than reconstructing it at the end saves significant time and reduces errors.

Common compliance gaps and how to avoid them

Even experienced teams run into compliance issues that derail project closeout. Most gaps don’t come from ignorance of data center cabling standards; they come from time pressure, substituted materials, or incomplete handoffs between design and installation crews. Knowing where these gaps show up most often gives you a real advantage when scoping work and managing field crews.

Inadequate test documentation

The most common gap field inspectors find isn’t a failed link, it’s missing or incomplete test records. Teams sometimes save only pass/fail summaries instead of the full parametric data files that clients and commissioning engineers require. When you set up your project, establish which test standard applies, confirm your tester’s limit file is current, and make sure your crew saves every result in the client-required format from the first day of testing, not the last.

Rebuilding a test package after the fact is far more expensive than building it correctly during the installation.

Pathway fill and separation violations

Overfilled cable trays and inadequate separation between power and data runs are consistent sources of compliance failures. Installers sometimes add runs to existing trays without recalculating fill ratios, which pushes the pathway above the maximum fill thresholds defined in TIA-942 and BICSI guidelines. Before your crew adds any cables to an existing pathway, require a quick fill calculation and verify that power and low voltage runs maintain the required physical separation throughout the route.

Your design documentation should specify fill ratios and separation distances clearly enough that any technician on your team can verify compliance without guessing.

Next steps

Understanding data center cabling standards gives you a foundation, but applying them correctly on a live project requires experienced technicians who work within these frameworks every day. Whether you’re commissioning a new build, expanding an existing floor, or filling geographic gaps in your workforce, the quality of your field crew determines whether your cabling plant passes inspection the first time or generates costly rework. ANSI/TIA-942, ISO/IEC 11801, and BICSI guidelines only produce results when the people executing your installation actually know them.
