Data Center Structured Cabling Guide: Design & Standards

Every rack, switch, and server in a data center depends on one thing: the physical cabling that connects it all. A well-planned data center structured cabling guide covers the standards, materials, and design principles that keep infrastructure organized, scalable, and easy to maintain. Get it wrong, and you’re looking at signal degradation, costly downtime, and a nightmare of tangled cable runs that no one wants to troubleshoot at 2 a.m.

Whether you’re building out a new facility or upgrading an existing one, structured cabling is the foundation that supports everything above it, from unified communications to AV systems and beyond. The challenge isn’t just choosing the right cable types. It’s designing a system that meets TIA and BICSI standards while staying flexible enough to handle future growth. That takes planning, certified technicians, and hands-on experience pulling cable in real-world environments.

At MegaServices, we deploy vetted technicians with low voltage structured cabling expertise across the U.S. and Canada, supporting AV integrators and project managers who need skilled labor on-site, fast. This guide breaks down the core principles of data center cabling design, from pathway planning and cable management to industry standards and scalability, so you can approach your next project with a clear framework in place.

Why structured cabling matters in data centers

A data center without structured cabling is essentially a ticking clock. Every poorly routed cable adds resistance to airflow, complicates future upgrades, and creates a single point of failure that can take down entire systems if someone pulls the wrong cord. Structured cabling isn’t just about neatness. It’s the physical layer that determines how well your entire data center performs, and skipping the planning phase costs far more to fix later than it saves upfront.

Performance and reliability

Poor cabling choices cause real performance problems. Signal degradation happens when cable runs exceed category spec lengths, connectors are improperly terminated, or cables run too close to high-EMI equipment like PDUs and power conduits. A reliable structured cabling system keeps transmission speeds consistent across every link in the network, from the main distribution area to individual equipment cabinets. That consistency is what separates a facility that runs smoothly from one that generates constant help desk tickets.

A single bad termination can drop a 10GbE link to half its rated throughput, and finding that fault across hundreds of patch panels without proper labeling takes hours.

Airflow is another factor that cabling directly affects. Bundled or improperly routed cables block cold air paths in hot-aisle/cold-aisle configurations, forcing cooling systems to work harder and raising operating costs. Keeping cable runs tight and routed through designated pathways lets your HVAC equipment do its job and reduces thermal-related hardware failures over the long term.

Scalability and future planning

Data centers grow. You add racks, expand to new zones, or support new equipment types, and your cabling infrastructure needs to absorb that growth without requiring a full rip-and-replace. Pre-planned trunk routes, high-density fiber cassettes, and properly sized conduit give your team the headroom to scale without disrupting live systems. Any solid data center structured cabling guide will tell you to design for at least 30% spare capacity in every pathway from day one.

Effective scalability planning covers a few specific areas:

• Conduit fill ratios: Keep initial fill below 40% so future pulls don’t require new pathways
• Modular fiber cassettes: Allow port count expansion without re-terminating trunk cables
• Consistent zone labeling: Lets new technicians onboard quickly during rapid expansion

Maintenance and troubleshooting

When something breaks, your team needs to find the problem fast. Color-coded cabling, consistent labeling, and logical port mapping make that possible. Without a structured approach, you’re relying on whoever originally built the system to remember where everything goes. Documented cabling infrastructure lets any qualified technician walk in, read the system, and resolve issues without guesswork.

Scheduled maintenance also becomes faster with a structured system. Hardware swaps and firmware updates require knowing exactly what’s connected before you touch anything. When your cabling documentation matches physical reality, your team spends less time tracing cables and more time completing actual work.

Core standards and data center cabling zones

Understanding which standards govern your installation is where every solid data center structured cabling guide starts. TIA-942 and BICSI 002 are the two most referenced frameworks in North America, covering everything from pathway requirements to redundancy design. Following these standards isn’t optional if you want your installation to pass inspection or qualify for a Tier certification from the Uptime Institute.

Skipping standards compliance upfront often means expensive rework during audits or when a client’s facility requirements change mid-project.

TIA-942 and BICSI 002 requirements

TIA-942 defines four Tier levels (I through IV), each representing an increasing level of redundancy and fault tolerance. Tier I covers basic capacity with a single, non-redundant path, while Tier IV requires fully fault-tolerant infrastructure with concurrent maintainability. BICSI 002 complements TIA-942 by providing detailed design and installation guidance, including specific requirements for cable management systems, grounding, and bonding throughout the facility.

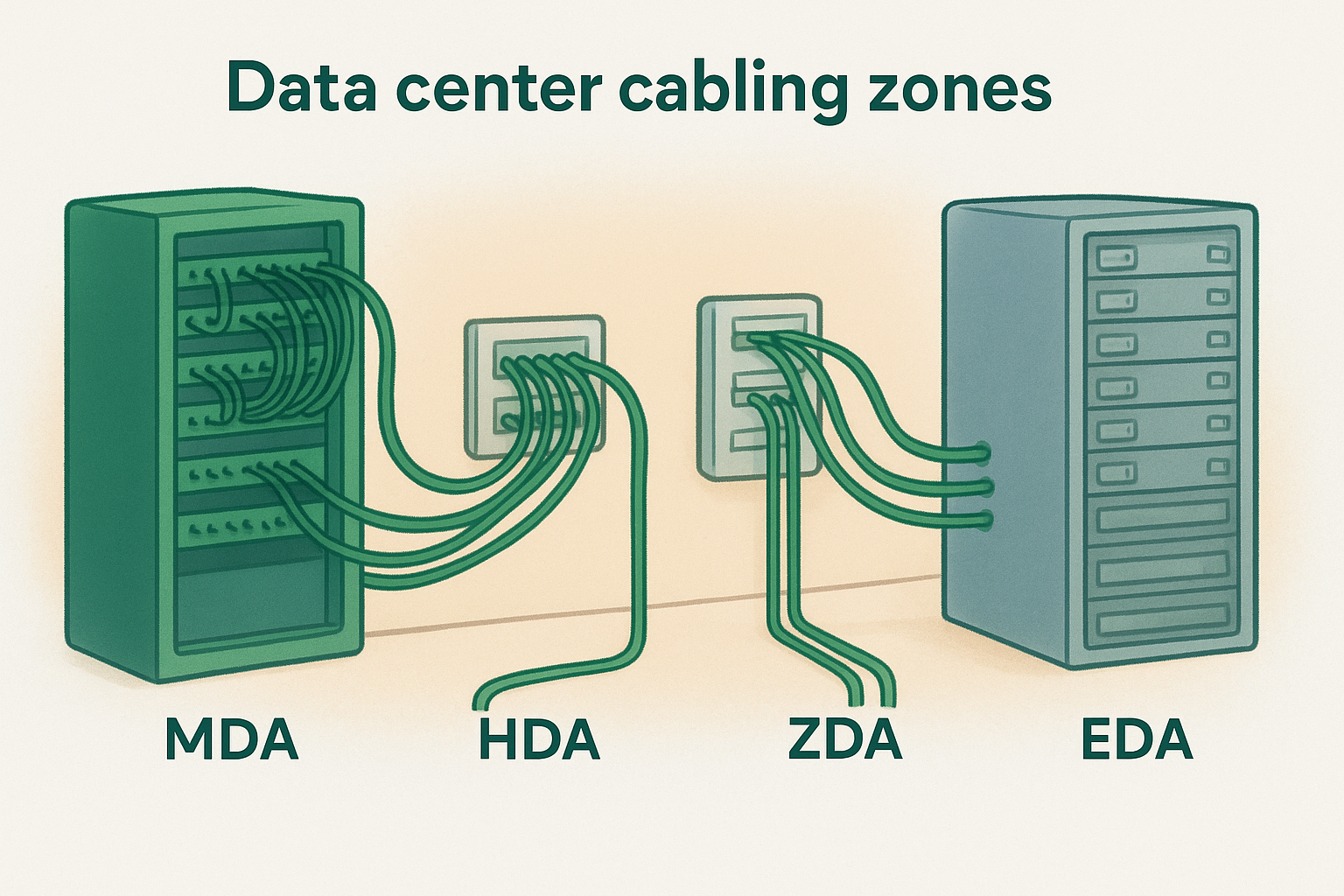

Data center cabling zones

TIA-942 divides a data center into distinct functional zones, and your cabling design must address each one separately. The Main Distribution Area (MDA) acts as the core network hub, housing main cross-connects for LAN, SAN, and outside plant cabling. From there, the Horizontal Distribution Area (HDA) feeds the Equipment Distribution Area (EDA), where your servers and storage devices actually terminate. Each zone has defined cable length limits and cross-connect rules that you need to follow to maintain standards compliance.

Cables, connectors, and hardware to use

Choosing the right materials shapes how your system performs under load and how straightforward maintenance becomes over time. Any practical data center structured cabling guide will tell you that cutting costs on cables and connectors almost always leads to higher failure rates and more expensive corrections down the road.

Fiber vs. copper cable types

Single-mode fiber (SMF) handles long backbone runs between distribution areas, supporting distances up to several kilometers without signal degradation. Multimode fiber (MMF), specifically OM3 or OM4, suits shorter intra-facility runs and costs less per foot while still supporting 40GbE and 100GbE applications. For rack-level equipment connections, Cat6A copper is the practical standard, delivering 10GbE performance up to 100 meters with better alien crosstalk suppression than Cat6.

The right cable type for each segment depends on distance, bandwidth requirements, and budget. Use this quick reference when specifying materials:

• Short runs under 100m, copper preferred: Cat6A
• Short to medium fiber runs: OM3/OM4 multimode
• Long backbone runs: Single-mode fiber

OM5 wideband multimode fiber supports wavelength division multiplexing and is worth specifying if your facility plans to support 400GbE links within the next few years.

Connectors and patch panels

LC duplex connectors are the standard for multimode and single-mode fiber, valued for their compact form factor and reliable latch mechanism. On the copper side, shielded RJ45 connectors paired with Cat6A cable reduce interference in dense rack configurations.

High-density angled patch panels improve cable management at the rack face and reduce tension on connector ports, which directly extends the service life of your terminations.

Cable management hardware

Horizontal and vertical cable managers keep patch cords routed cleanly between panels and active equipment. Your design should include the following pathways to support structured trunk runs between zones without excessive bending or tension:

• Overhead ladder rack or wire basket: Ideal for high-volume fiber and copper trunk routes
• Under-floor cable trays: Useful in raised-floor environments for routing power and data separately

How to design and install structured cabling

A structured cabling installation starts well before anyone touches a cable. Your design phase determines every pathway, zone boundary, and conduit route that technicians will build from. Any experienced data center structured cabling guide will tell you that spending more time on paper design saves significantly more time during physical installation.

Rushing the design phase to meet project timelines is the single most common cause of compliance failures and expensive rework.

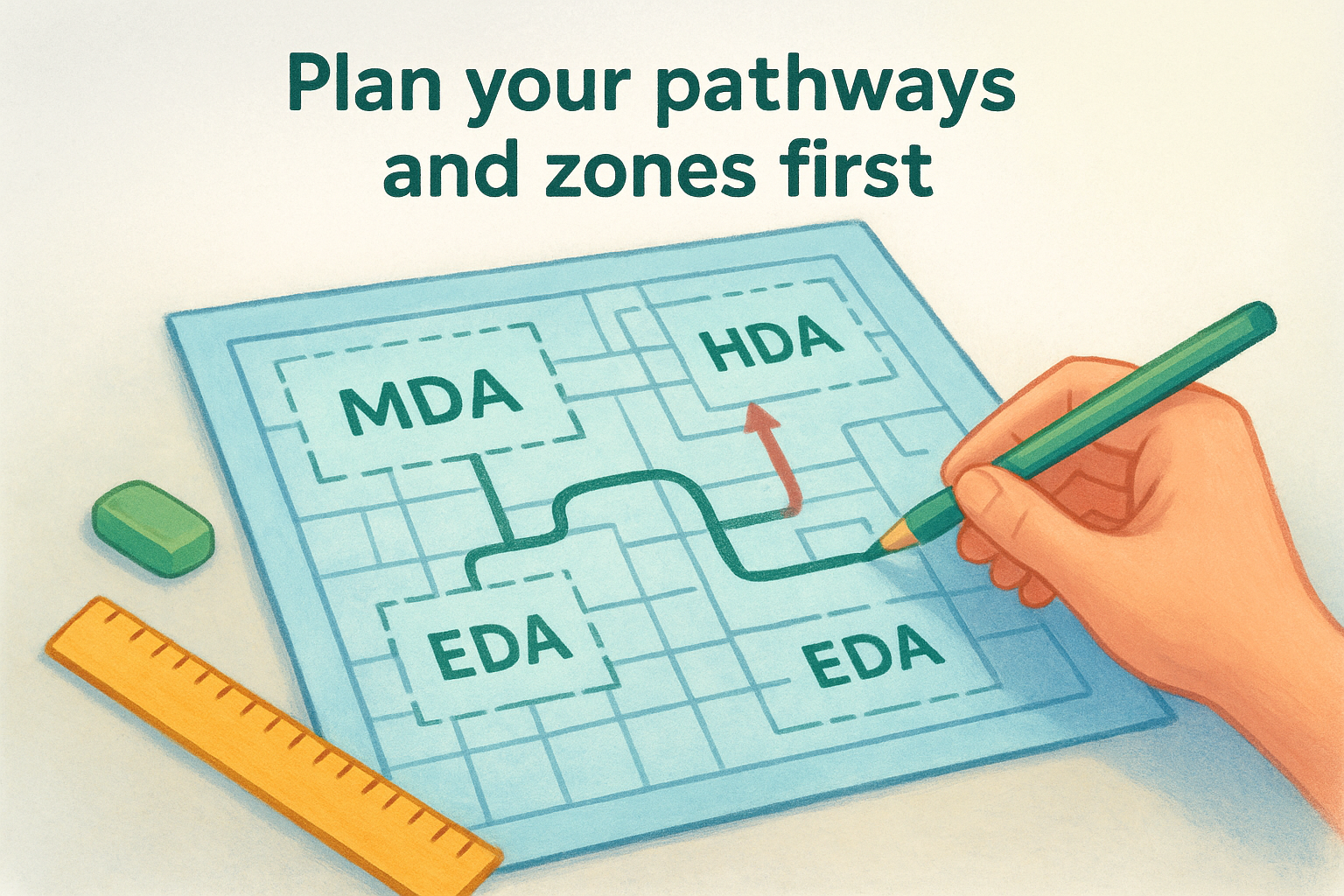

Plan your pathways and zones first

Before pulling any cable, map out your MDA, HDA, and EDA zones based on your current rack layout and projected growth. Confirm that conduit routes, ladder rack positions, and floor penetrations are sized to TIA-942 specifications for your target Tier level. Your pathway plan should also account for separate routes for fiber trunks and copper horizontal runs to prevent signal interference and simplify future maintenance.

• Mark all zone boundaries clearly on your floor plan
• Specify conduit fill ratios at each segment
• Identify dedicated pathways for power and data to avoid EMI issues

Pull, terminate, and test in sequence

Your installation sequence directly affects quality. Pull trunk cables first, then work from the MDA outward to each HDA before terminating horizontal runs to the EDA. This order keeps the workspace clear and reduces the risk of damaging already-terminated connectors during subsequent pulls.

Once terminations are complete, test every link with a certified cable tester against TIA-568 performance specs before patching any active equipment. Document each test result and attach the report to your as-built drawings so any technician can reference them during future maintenance or troubleshooting.

Operating the cabling system long-term

A structured cabling system doesn’t manage itself after installation. Long-term performance depends on consistent documentation practices and scheduled inspection routines that keep your physical infrastructure aligned with what your records show. Any reliable data center structured cabling guide will tell you that the work doesn’t end when the last cable is terminated.

Keep documentation current

Every change to your cabling plant needs to go into your records immediately. As-built drawings should reflect physical reality at all times, not just what was planned before installation. When technicians swap patch cords, add new trunk runs, or decommission equipment, updating the documentation is part of the job, not an afterthought.

Outdated documentation is one of the most common reasons troubleshooting takes three times longer than it should.

Use a structured change management process that logs each modification with a date, technician name, and affected circuit ID. Even a simple spreadsheet works if your team applies it consistently across every change.

Schedule regular physical inspections

Cables shift, connectors loosen, and cable managers fill up faster than expected. Quarterly visual inspections of your pathways, patch panels, and cable management hardware catch small problems before they turn into outages. Check for excessive bend radius violations, improperly seated connectors, and cable runs added outside your managed pathways since the last inspection cycle.

Run performance tests annually on high-priority links to confirm they still meet TIA-568 spec thresholds. Link performance degrades slowly over time from connector wear, and identifying marginal links before they fail completely keeps your maintenance schedule predictable and prevents unplanned downtime from disrupting operations.
