Digital Signage Installation Guide: Plan, Mount, Configure

Getting a digital signage system from "still in the box" to "live on the wall" involves more moving parts than most people expect. Between site surveys, structural considerations, network requirements, and content management setup, even a single display installation can go sideways without a clear plan. Scale that to dozens or hundreds of locations, and the complexity multiplies fast. That’s exactly why having a solid digital signage installation guide matters, whether you’re deploying screens in one building or across the entire country.

At MegaServices, we’ve supported AV integrators and project managers with certified technicians for digital signage rollouts since 2007. Our nationwide network of over 2,000 vetted techs handles everything from mounting hardware to system commissioning, and we’ve seen firsthand what separates a smooth install from a costly mess. The difference almost always comes down to preparation.

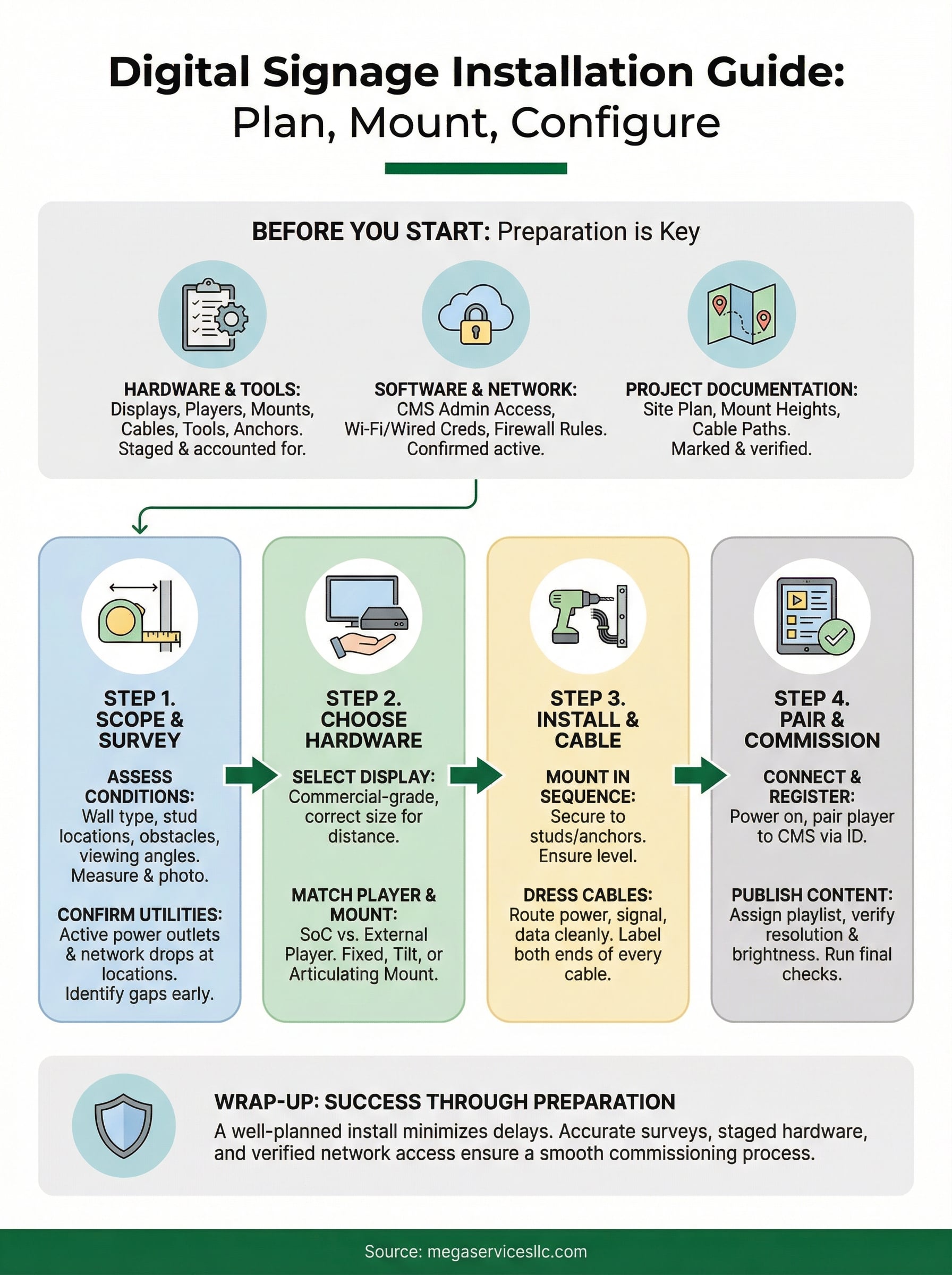

This guide walks you through the full process, planning, physical installation, and software configuration, so you can execute your next digital signage project with fewer surprises, tighter timelines, and better results.

What you need before you start

Pulling together the right resources before your crew arrives on site is the single biggest time-saver in any installation. A missing mounting bracket or an unconfigured network port can turn a half-day job into a two-day ordeal. Before you follow any digital signage installation guide, confirm that every piece of hardware, software access, and project documentation is staged and verified.

Arriving on site without confirmed network credentials or the correct mounting hardware is one of the most preventable causes of project delays.

Hardware and Tools

Your hardware list will vary by display size and mounting surface, but the core items stay consistent across most jobs. Make sure you have all display units and media players staged and accounted for, along with the mounting hardware specified for each location before the install day.

Pack extra anchor bolts, cable clips, and zip ties to handle surprises inside walls or ceilings. Running out of a small part mid-install causes real delays.

Software Access and Network Credentials

Every screen needs a content management system (CMS) login, and every player needs network access before you can push content. Confirm that your CMS admin credentials are active and that the site’s IT contact has provisioned the correct network segment or VLAN for your devices ahead of time.

Collect and verify the following before you arrive on site:

• CMS platform login with admin-level access
• Wi-Fi SSID and password, or MAC address whitelist approval for wired connections
• Remote access credentials if you need to configure players after leaving the site
• Firewall rule confirmations that allow outbound traffic on the ports your CMS requires

Project Documentation

Good documentation keeps your team aligned and gives the client a clear record of what was installed. Prepare a site plan with display locations, mounting heights, and cable paths marked for each area before the install begins.

Your project documentation package should include:

• Display location map with dimensions and mounting heights
• Cable routing diagram per area
• Equipment serial numbers and model specifications
• Client sign-off sheet for approval at project completion

Step 1. Scope the project and survey the site

A solid site survey is the foundation of any effective digital signage installation guide. Before you order hardware or book labor, physically walk every display location, confirm structural mounting options, and document the exact conditions your crew will face on install day. Skipping this step is one of the most reliable ways to inflate your budget and push your timeline out.

Measure every wall surface, note stud locations, and photograph each spot before finalizing your hardware order.

Assess structural and environmental conditions

Every mounting surface tells a different story. Drywall over studs, concrete, glass, and ceiling grids each require different hardware and different skill sets. Note the wall material, ceiling height, ambient light levels, and any obstructions like HVAC ducts or existing conduit that could block your cable routes. Take photos from multiple angles and record exact dimensions so your team can source the correct brackets before arriving on site.

Check the viewing distance and angle for each location too. A screen that looks correctly placed on a floor plan can be completely unreadable from the actual pedestrian path if the mounting height is off by even two feet.

Confirm power and network availability

Your install depends on having live power outlets and active network drops exactly where your displays will go. Verify outlet locations and circuit load capacity with the facility manager, and confirm that IT has provisioned the correct network segment for your devices.

Use this checklist at each display location:

• Outlet position and circuit capacity
• Existing Cat6 or fiber data port within reach
• VLAN or network segment provisioned for AV devices
• Distance to the nearest wireless access point for wireless players
• Locations requiring new conduit or electrical rough-in

Flag every gap before you finalize the install schedule so electrical and network work can happen ahead of time.

Step 2. Choose displays, players, mounts, and networking

Your hardware decisions directly affect installation speed, long-term reliability, and total project cost. Locking in the right display size, player type, and mounting solution before you order anything is how you avoid last-minute substitutions that throw off your schedule and budget.

Select display size and technology

Commercial-grade displays are built for continuous operation at higher brightness levels than consumer televisions, which makes them the correct choice for any professional deployment. Match screen size to viewing distance using the standard ratio: measure the distance in feet from the screen to your furthest viewer and divide by 8 to get the minimum screen diagonal in inches. A viewer standing 16 feet away needs at least a 55-inch display to read content clearly.

Never substitute a consumer TV for a commercial display in a permanent installation, the duty cycle ratings and warranty terms are not designed for that environment.

Match your player and mounting hardware

Your media player choice depends on your CMS platform requirements and your available network infrastructure. System-on-chip (SoC) displays with built-in players simplify cabling and reduce hardware count per location. External players like a dedicated media player box give you more processing power for complex content. Confirm compatibility with your CMS vendor before finalizing your order.

Use this quick-reference table to match hardware to use case:

Following a structured digital signage installation guide at this stage keeps your hardware aligned with your actual site conditions and content requirements.

Step 3. Install mounts and run power, data, and cables

Physical installation is where preparation pays off. Follow your site plan precisely, work location by location in a defined sequence, and complete each station fully before moving to the next. Jumping between partially installed locations creates confusion, increases errors, and slows your final inspection. This is the step where every decision you made earlier in this digital signage installation guide gets put to the test.

Mount displays in sequence

Start with the most structurally complex locations first so any surprises surface early, while you still have time to adapt. Use your stud finder to confirm anchor points before drilling, and verify your mounting height against the site plan at each location before you commit a single hole. Hold the bracket against the wall with a level before marking, and confirm the VESA pattern matches your display.

Follow this sequence at each location:

1. Locate and mark stud or anchor positions
2. Drill pilot holes and install wall anchors or lag bolts
3. Attach the bracket and confirm it is plumb and level
4. Hang the display and tighten all fasteners to spec
5. Verify tilt and swivel adjustments before finalizing position

Never rely on drywall anchors alone for displays larger than 32 inches; always hit a stud or use a rated toggle bolt system for the load.

Run and dress cables cleanly

Route your power, HDMI or DisplayPort signal cables, and Cat6 data cables through the wall or along the cable path marked in your documentation. Use conduit wherever the cable runs are exposed. Label both ends of every cable at the point of installation using a consistent naming convention, for example, "DSP-03-PWR" for the power cable at display position three. Labeled cables cut commissioning time significantly and make future service calls far faster.

Step 4. Pair devices, publish content, and commission

With mounts set and cables dressed, you move into the final phase of this digital signage installation guide: getting every player online, pushing your content, and confirming the system performs exactly as scoped. This step is where the physical work connects to the software layer, and skipping any part of it will cost you a return visit.

Connect and register each player

Power on each display and player in sequence, starting at the first location on your site plan. Open your CMS on a laptop connected to the same network segment as the devices and register each player by its MAC address or auto-generated device ID. Most commercial CMS platforms like those built on Android for Business or similar managed frameworks will display a pairing code on screen the moment the player boots.

Register players in the same order as your location map so your device list in the CMS matches your physical layout from the start.

Use this commissioning template for each display:

Publish content and run final checks

Assign your approved playlist or content schedule to each player group in the CMS and publish. Walk every display location and confirm the content renders at the correct resolution and brightness with no overscan or cropping. Verify that scheduled content switches on time by advancing the player clock if your CMS allows it. Capture a photo of each live screen and log it against your serial number record before handing the site off to the client.

Wrap-up and next actions

This digital signage installation guide covers every stage from pre-install documentation through final commissioning. You now have a repeatable process for site surveys, hardware selection, physical mounting, cable management, and CMS configuration that you can apply to a single-screen deployment or a multi-site national rollout.

The biggest factor separating a clean install from a costly one is how well your crew prepares before touching a wall. Confirm your hardware list, get network credentials in advance, document every location, and work through each display station in sequence. Follow those steps and your commissioning pass will move fast with fewer callbacks.
