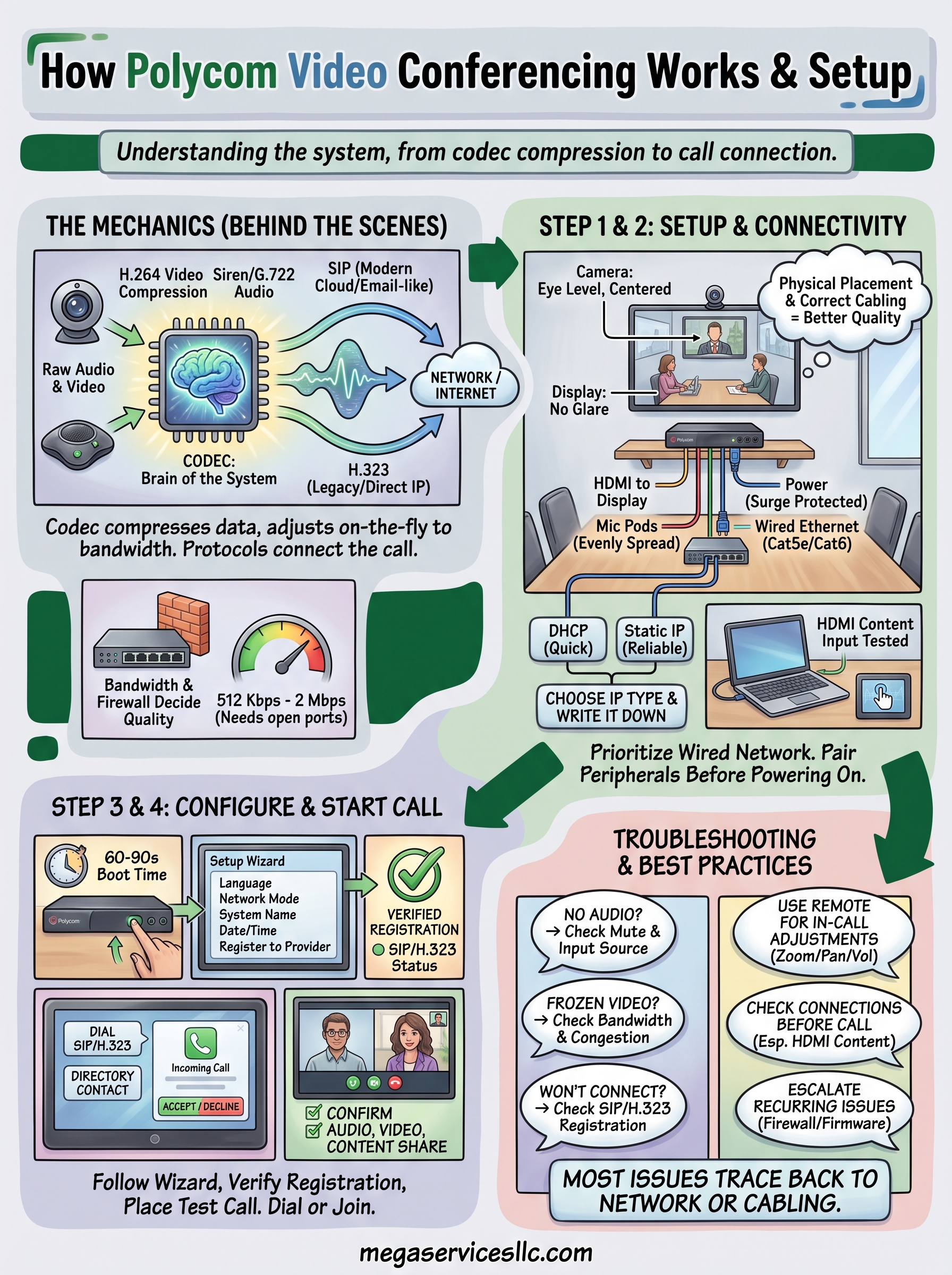

How Polycom Video Conferencing Works: A Complete Guide

When a Polycom room will not connect, the fastest fix comes from knowing which part of the system is responsible. The codec processes audio and video, SIP or H.323 establishes the call, and the network carries the media. This guide explains how Polycom video conferencing works and gives practical steps for setup, calling, and troubleshooting on RealPresence and Group Series systems.

How Polycom video conferencing technology works

A Polycom system combines three layers: a codec that processes audio and video, signaling that sets up the call, and room hardware that captures and displays the meeting. A fault in any layer can interrupt the experience, so troubleshooting should follow the same chain.

The codec does the heavy lifting

The codec, short for coder-decoder, takes raw audio and video from the camera and microphones, compresses it, and sends it across the network. The far-end codec reverses the process. Polycom RealPresence Group Series supports video standards in the H.264 family and audio codecs such as Siren and G.722. During a call, the endpoints negotiate compatible formats and a call rate based on their capabilities and the available network path.

The codec can adapt the media stream, but it cannot compensate for severe packet loss, congestion, or a blocked network path.

SIP and H.323 make the connection

SIP and H.323 are signaling frameworks used to establish and manage calls. They are not the audio or video itself. The endpoint must be configured for the protocol, call-control service, and dialing format used by the other system.

If a call will not connect, confirm that both sides support the chosen protocol and that the endpoint is registered. Also verify the dialing string, DNS, and any required firewall traversal service.

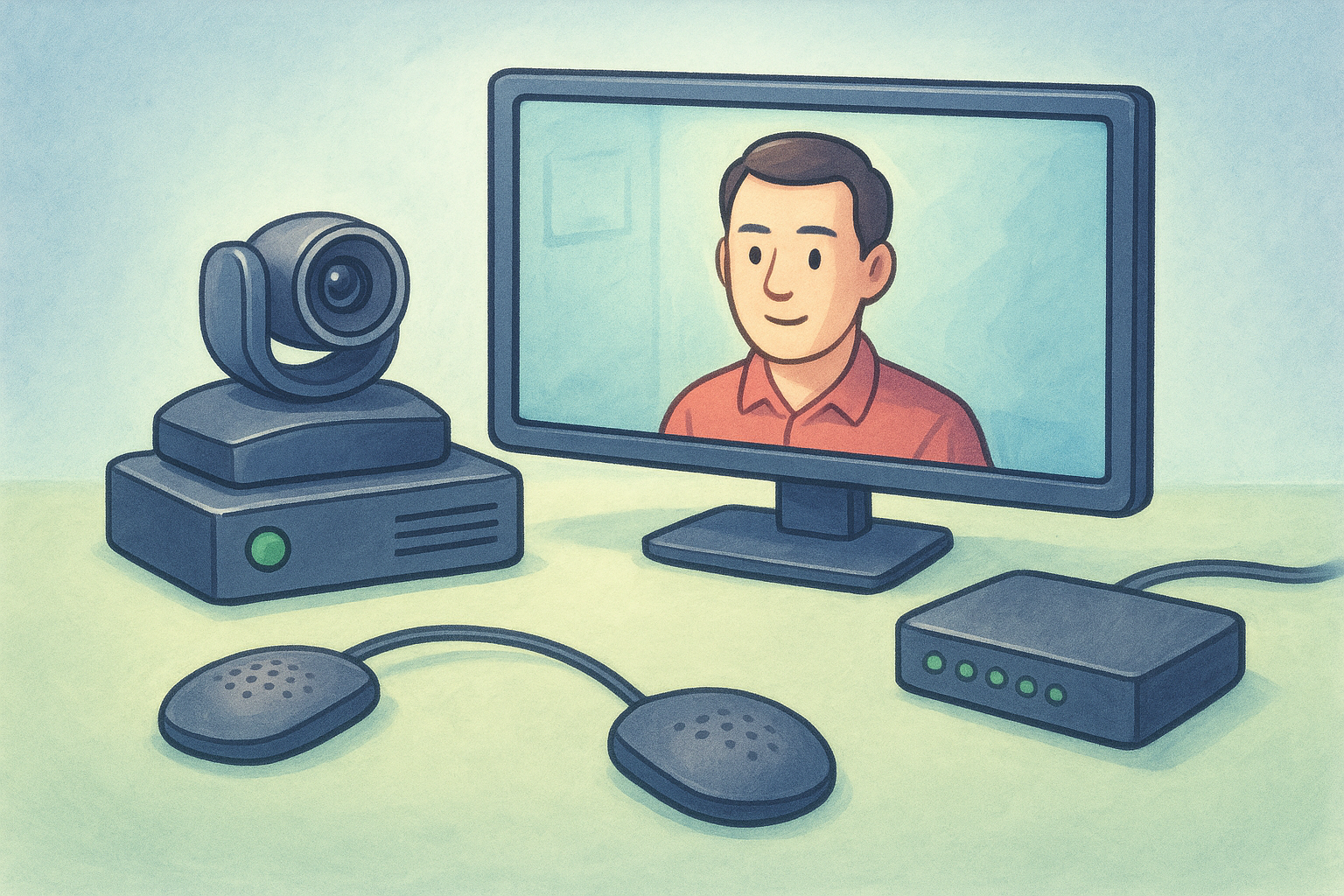

The hardware stack captures and displays the meeting

The exact connections vary by model, but the core components are consistent:

• Camera: captures the room video
• Microphones: capture voices and feed the audio path
• Codec: compresses media and handles call signaling
• Display and speakers: present the far-end video and audio
• Network switch or router: carries signaling and media traffic

Start with physical connections. A loose camera, microphone, display, or network cable can look like a software failure even when the codec is operating normally.

Bandwidth and firewalls decide call quality

Required bandwidth varies by model, resolution, frame rate, and call service. Published Group Series specifications support calls from low-bandwidth modes through multi-megabit HD. In practice, reserve consistent capacity in both directions and watch packet loss, jitter, and latency, not only raw speed. Firewalls must allow the signaling and media ranges required by your SIP, H.323, or conferencing service. Because those ranges differ by deployment, use the endpoint and service documentation rather than copying a generic port list.

Step 1. Set up your Polycom hardware

Physical placement affects call quality, so plan the room before connecting cables.

Position the camera and display for the room

Center the camera above or below the display, close to seated eye level, and frame the full table. Place the display where windows and overhead lights will not create glare or strong backlighting. Spread approved microphone pods across the pickup area and keep them away from speakers, vibration, and cable hazards.

Route power and cabling correctly

Follow the connection diagram for your model. Polycom generations use different camera, microphone, and controller interfaces.

1. Connect the supported camera and microphone equipment to the codec.
2. Connect the display and, if used, the laptop content input.
3. Connect Ethernet to the correct network port.
4. Connect the specified power supply to surge-protected power.
5. Secure and label cables, leaving enough service slack.

Mount the codec unit where it belongs

Install the codec on a stable shelf, credenza, or rack with the ventilation clearance stated in its manual. Keep vents open and make connectors accessible for service.

Step 2. Connect the system to your network and devices

A system can power on normally and still fail calls when registration, addressing, or firewall settings are wrong. Coordinate these settings with the network team before the room is scheduled for use.

Wire the network connection

Use wired Ethernet when the model supports it. Connect the codec to the correct switch port and VLAN, then confirm link status. Use supported speed and duplex settings, normally auto-negotiation unless the product or network standard requires otherwise.

Choose static IP vs DHCP

Use the addressing method required by your organization. A DHCP reservation often provides a predictable address with centralized management, while a static address can also work when it is documented and excluded from the DHCP pool.

Pair peripherals and confirm connectivity

Connect only supported controllers, microphones, cameras, and content-sharing devices. Before configuration, check:

• Ethernet link is active on the intended switch port
• Camera, microphone, display, and controller respond
• HDMI content input works with a test laptop
• IP address, subnet, gateway, DNS, and time settings match the network plan

If presenters cannot share their screen, reseat the content cable and confirm that the correct input is selected before changing network settings.

Step 3. Power on and configure the system

Power on the display, codec, and controller as directed for the model. Let the system finish booting, and note any on-screen errors.

Run the initial setup wizard

Menus differ by software version, but the initial tasks are similar:

1. Select the language and region.
2. Configure DHCP or static network settings.
3. Set a clear system and room name.
4. Set the date, time zone, and approved NTP server.
5. Configure SIP or H.323 registration with credentials from IT or the service provider.
6. Apply approved software updates according to your change process.

Verify registration before you trust the system

Confirm the endpoint reports its SIP or H.323 service as registered or connected. Then place a test call. Verify two-way audio, live video, camera control, and content sharing. A successful boot does not prove that call control or media traversal is working.

Step 4. Start or join a video call

Dial out using an address or directory

From the touch controller or remote, enter the SIP URI, H.323 address, or meeting number provided for the call. You can also select a saved directory entry or a scheduled meeting when calendar integration is configured. If dialing fails, recheck registration and the exact address before changing hardware.

Join a call someone else started

For an incoming call, review the caller information and select Accept. The endpoints then negotiate compatible audio, video, resolution, and call rate. If the call connects without media, check camera privacy, mute status, and firewall traversal.

Confirm the connection before you relax

At the start of the meeting, confirm audio in both directions, live far-end video, camera framing, and content sharing. Use the system mute control instead of disconnecting a microphone.

Step 5. Manage the call and troubleshoot issues

Handle in-call adjustments without disrupting the meeting

Use the controller’s pan, tilt, and zoom controls to adjust framing. Change room volume through the configured system controls. For content sharing, confirm the laptop is connected and the correct source is selected.

Troubleshoot the problems that show up most

Know when to escalate

Escalate recurring registration failures, dropped calls, or problems affecting several rooms. IT should review call logs, software versions, switch and firewall changes, and packet-loss data. An AV technician should inspect cabling, room acoustics, damaged peripherals, or hardware faults.

Keeping your Polycom meetings running smoothly

Once you understand how Polycom video conferencing works, troubleshooting becomes a sequence: check the room hardware, registration and dialing, then the network path. Keep a tested room checklist and document every endpoint’s model, software version, address, and support contact.

For multi-site rollouts, service, or troubleshooting, Mega Services can coordinate experienced Pro AV technicians through its MegaTech network. Book a MegaTech for your next project to get the room configured, tested, and ready for users.
