How To Build An AV Rack: Planning, Mounting & Wiring

A well-built AV rack is the backbone of any professional audio-visual setup. Whether you’re organizing equipment for a conference room, a home theater, or a control room, knowing how to build an AV rack properly means the difference between a system that runs clean for years and one that becomes a tangled, overheating mess within months. The good news: you don’t need to be a certified engineer to get this right, but you do need a solid plan.

At MegaServices, our technicians have built and wired thousands of AV racks across the U.S. and Canada since 2007. We’ve seen what works, what fails, and what shortcuts come back to haunt you. That hands-on experience is exactly what shaped this guide. We’re walking you through the full process, from choosing the right rack and laying out your gear to mounting components and managing cables the way professionals do it.

By the end, you’ll have a clear, step-by-step framework to build an AV rack that stays organized, runs cool, and makes future maintenance straightforward. If you’d rather hand the job off to a certified tech, we can have someone on-site within 48 hours, but let’s start with what it takes to do it yourself.

What you need before you start

Before you touch a single screw, gather everything you need in one place. Skipping this step is the most common reason AV rack builds stall halfway through. You end up making three trips to the hardware store and losing track of which equipment goes where. Spending 30 minutes on preparation here saves you hours of rework later.

Tools and hardware

Every AV rack build requires the same core set of tools, regardless of the size or complexity of the system. You’ll need a power drill with Phillips and hex bit attachments, a label maker, a ruler or measuring tape calibrated in rack units (each "U" equals 1.75 inches), and a torque screwdriver for sensitive rack-mount equipment. Pick up cage nuts and rack screws in the correct thread size for your enclosure before you start. M6 and 10-32 are the two most common standards, and mixing them up will strip your rails.

• Power drill with Phillips, hex, and flathead bits
• Cage nuts and rack screws (M6 or 10-32, match your rack)
• Hook-and-loop cable straps or cable ties
• Label maker with heat-shrink or adhesive labels
• 1U shelf for any non-rack-mount gear
• Brush plate or cable entry panel

Gear inventory and rack unit count

Before you work out how to build an av rack, write down every device going into it. Note each piece of equipment’s rack unit height, its weight, and whether it runs hot. This inventory becomes your layout map in the planning step.

Getting this list right the first time prevents you from buying a 12U rack when you actually need a 24U.

Use this template to track your gear before you order anything:

Fill in every row before moving to the planning stage. Add a 10 to 15 percent buffer to your total U count so you have room to expand without tearing the rack down and starting over.

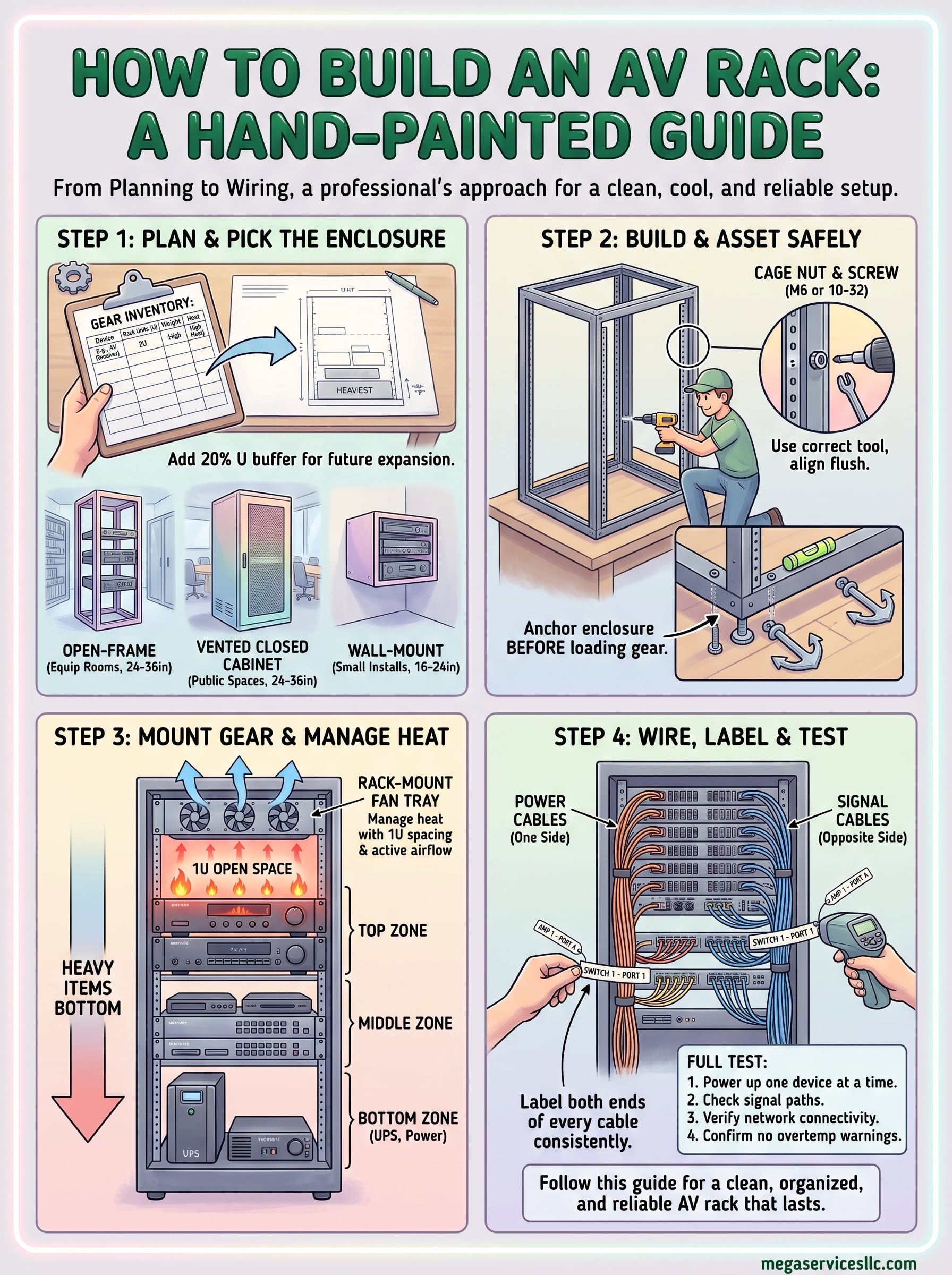

Step 1. Plan the rack and pick the enclosure

Your inventory list from the previous step drives every decision in this stage. Transfer your total U count to a rough layout diagram before you order an enclosure, sketching heavier equipment at the bottom and heat-generating gear near the top where airflow can carry warmth away. This layout sketch is the foundation of how to build an av rack that runs reliably from day one.

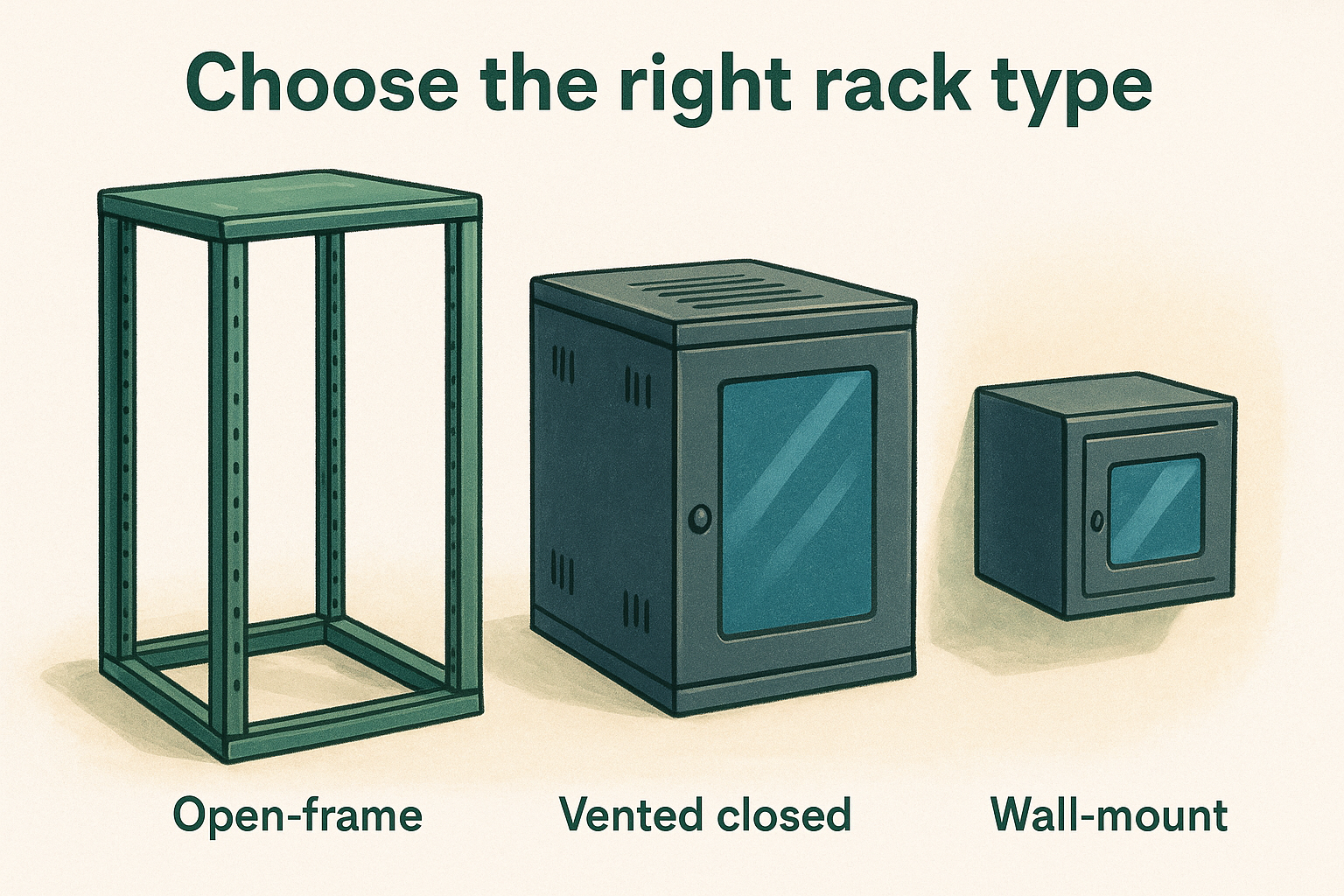

Choose the right rack type

Rack enclosures fall into three categories: open-frame, vented closed-cabinet, and wall-mount. Open-frame racks give you the easiest access and the lowest cost, which makes them the right choice for most equipment rooms where physical security is not a concern. Closed cabinets with vented side panels work better in public-facing spaces. Wall-mount racks fit shallow gear in tight rooms where floor space is limited.

Lock in the rack unit count and depth

Add 20 percent to your total U count before you purchase, giving yourself room for future additions without starting over. Measure the depth of your deepest component, then choose an enclosure that exceeds that measurement by at least four inches so cables can route cleanly behind gear.

Buying too small an enclosure is the single most expensive planning mistake you can make on an AV rack build.

Step 2. Build or assemble the rack safely

With your enclosure ordered and your layout finalized, the physical assembly stage of how to build an av rack moves faster than most people expect. Rushing through it, though, creates problems you will spend hours fixing later. Work on a flat, stable surface with enough room to lay the enclosure on its back while you set the rails, install cage nuts, and verify alignment before any gear goes in.

Set the rails and install cage nuts

Start by positioning your rack rails at the correct vertical spacing for your tallest component. Most modern racks ship with adjustable rails, so confirm the front and rear spacing matches your deepest piece of gear before you tighten anything down. Install cage nuts only in the positions your layout map specifies, not randomly across the rail.

Installing cage nuts before you know exactly where each device lands is a fast way to waste time pulling them back out.

Use a cage nut tool or a flathead screwdriver to seat each nut flush. Loose cage nuts cause stripped screws and misaligned faceplates once gear goes in.

Anchor the enclosure before loading gear

Bolt the rack to the floor or wall using the anchor points built into the base or rear of the enclosure. An unanchored rack becomes a tip hazard the moment you slide in a heavy amplifier or UPS unit. Confirm the enclosure is level in both directions with a bubble level before you load a single piece of equipment.

Step 3. Mount gear and manage heat

With your rack anchored and your rails set, you’re ready to load equipment following the layout map you built earlier. Follow the weight-first rule and mount your heaviest items, like UPS units and power conditioners, at the bottom of the rack first. Lighter, heat-sensitive components go toward the top where warm air exits naturally, keeping your densest gear stable at the base.

Mount equipment in the right order

Start at the bottom and work your way upward, sliding each device into its designated slot. Secure every unit with rack screws torqued to finger-tight plus a quarter turn to avoid cracking faceplates or stripping cage nuts. Confirm each device sits flush and level before moving on to the next.

Manage heat with spacing and active airflow

Heat causes more AV rack failures than any other single factor. Leave at least 1U of open space directly above any amplifier, video processor, or other high-output device to give warm air room to move. If you’re using a closed cabinet, add a rack-mount fan tray in the top 2U to actively pull heat out before it builds up and spreads to neighboring gear.

A single overheating amplifier can raise your rack’s internal temperature enough to shorten the lifespan of every device around it.

Knowing how to build an av rack that runs reliably long-term means treating heat management as a primary concern, not something you address after everything is already bolted in.

Step 4. Wire, label, and test the system

Wiring is where most how to build an av rack projects either come together cleanly or fall apart into a mess that nobody wants to troubleshoot six months later. Start from your power conditioner and patch panel, running those connections first so every other cable has a clear path to follow without crossing over signal lines unnecessarily.

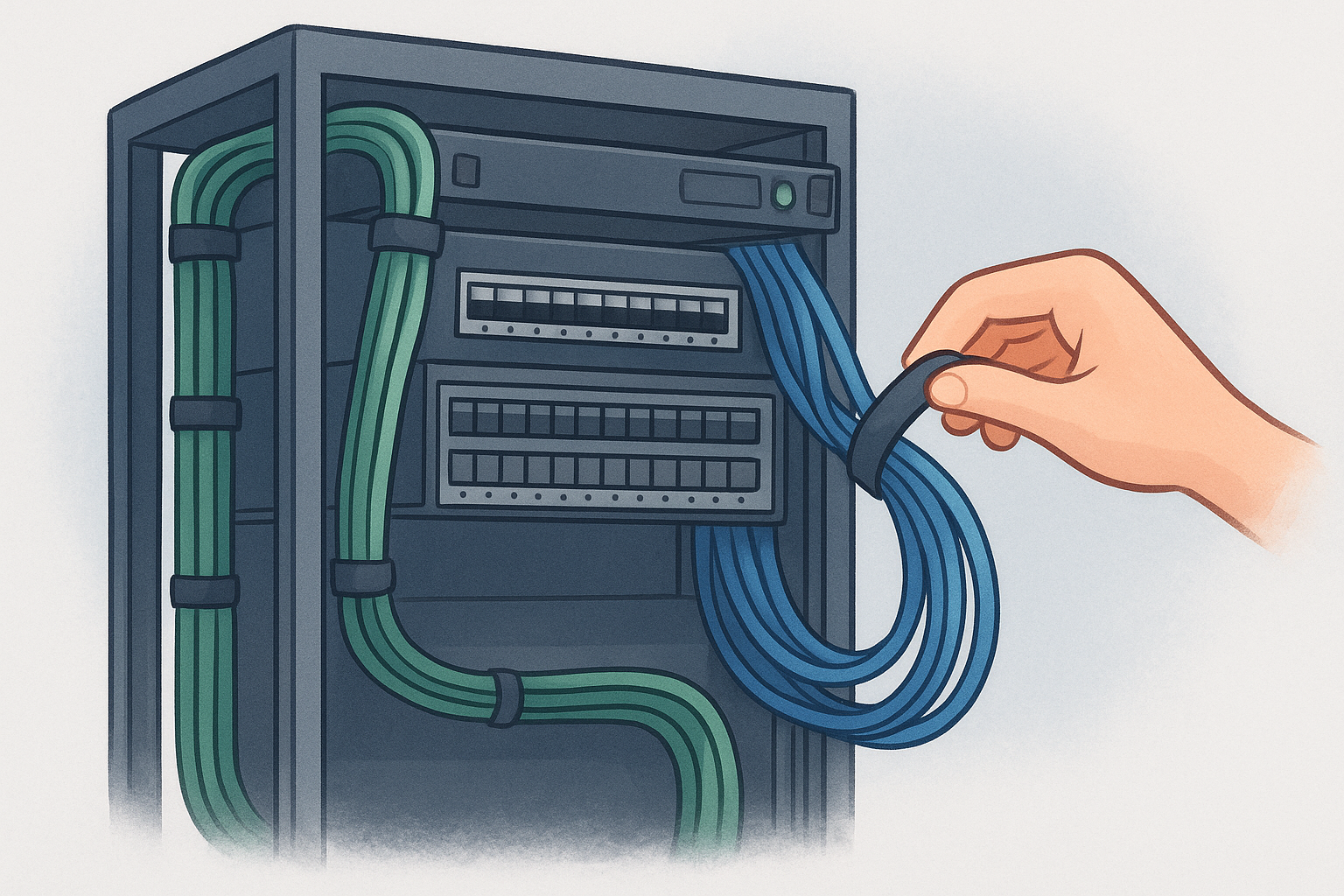

Route and dress your cables

Run power cables along one side of the rack and signal cables along the opposite side to minimize interference. Use hook-and-loop straps every 12 inches to bundle cables into clean runs rather than leaving them loose. Keep cable lengths close to what you actually need; excess cable coiled inside a rack traps heat and blocks airflow just as badly as a missing fan tray.

Leaving six feet of slack on every cable because it felt safer is one of the fastest ways to turn a clean rack into an unworkable tangle.

Label everything and run a full test

Label both ends of every cable before you close anything up. Use a consistent naming format, such as device name plus port number, so anyone opening the rack later can trace a connection in under a minute. A label maker with heat-shrink sleeves holds up far better than adhesive tape on cables that move or generate heat.

Power the system up one device at a time, starting from your UPS, and confirm each unit initializes before adding the next. Check signal paths, confirm network connectivity, and verify that no component reports an overtemperature warning before you call the build complete.

Ready to put your rack into service

Following this guide on how to build an av rack gives you a system that runs clean, stays organized, and holds up to daily use without constant troubleshooting. You planned your layout, matched your enclosure to your gear, managed heat from the start, and labeled every cable before powering up. That foundation makes every future upgrade or repair faster and less disruptive than starting from scratch.

Not every project fits the DIY path. If you’re building racks across multiple locations, managing a tight project deadline, or simply need certified hands on-site to handle the installation correctly, MegaServices can put a vetted AV technician at your location within 24 to 48 hours. Our techs carry the credentials and field experience to take a project from bare enclosure to fully tested system without the rework. Request a MegaTech for your next AV project and get your system into service on schedule.
