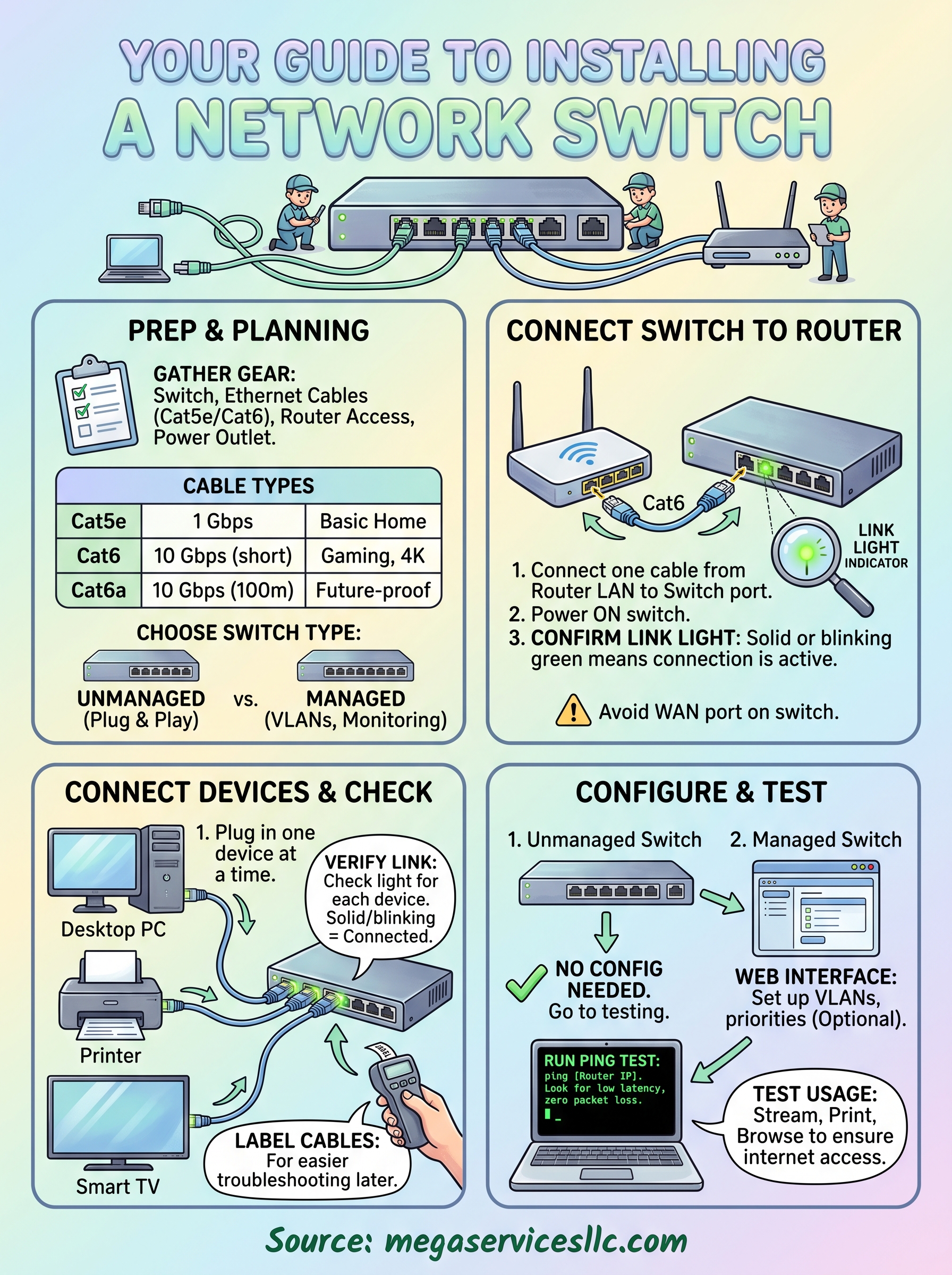

How to Install a Network Switch: Step-by-Step Setup Guide

Adding a switch to your network sounds simple until you’re staring at a wall of unlabeled ports wondering which cable goes where. How to install a network switch comes down to a handful of physical connections and a few configuration steps, but getting the order wrong causes dropped connections, IP conflicts, or a switch that just sits there with blinking lights and no traffic passing through it.

This guide walks you through the process in order: choosing the right switch for your setup, connecting it to your router, wiring your devices, and confirming everything talks to each other correctly. You’ll also learn the difference between an unmanaged switch and a managed one, and when you actually need the extra configuration options a managed unit provides.

We put this together after years of dispatching certified AV technicians for structured cabling and system installations across offices, retail locations, and conference rooms. The steps below work fine for a home network, but if you’re scaling a commercial installation with dozens of endpoints, that’s a different job, and one worth handing to a professional.

What you need before you start

Grabbing the wrong cable or discovering your switch needs a power outlet three feet from an empty wall is the fastest way to turn a fifteen-minute job into an hour-long scramble. Gathering your gear first means you won’t be crawling under a desk mid-install looking for a spare Ethernet cable. Before you touch a single port, lay out everything you’ll need and confirm your router has an open port to spare.

Hardware checklist

Here’s what to have on hand before you start unboxing anything:

• Network switch with enough ports for your current devices plus a few extra for growth
• Ethernet cables (Cat5e minimum, Cat6 if you want headroom for future speeds)
• Access to your router or modem with at least one open LAN port
• A power outlet near the switch’s intended location
• A laptop or phone for testing once devices are connected

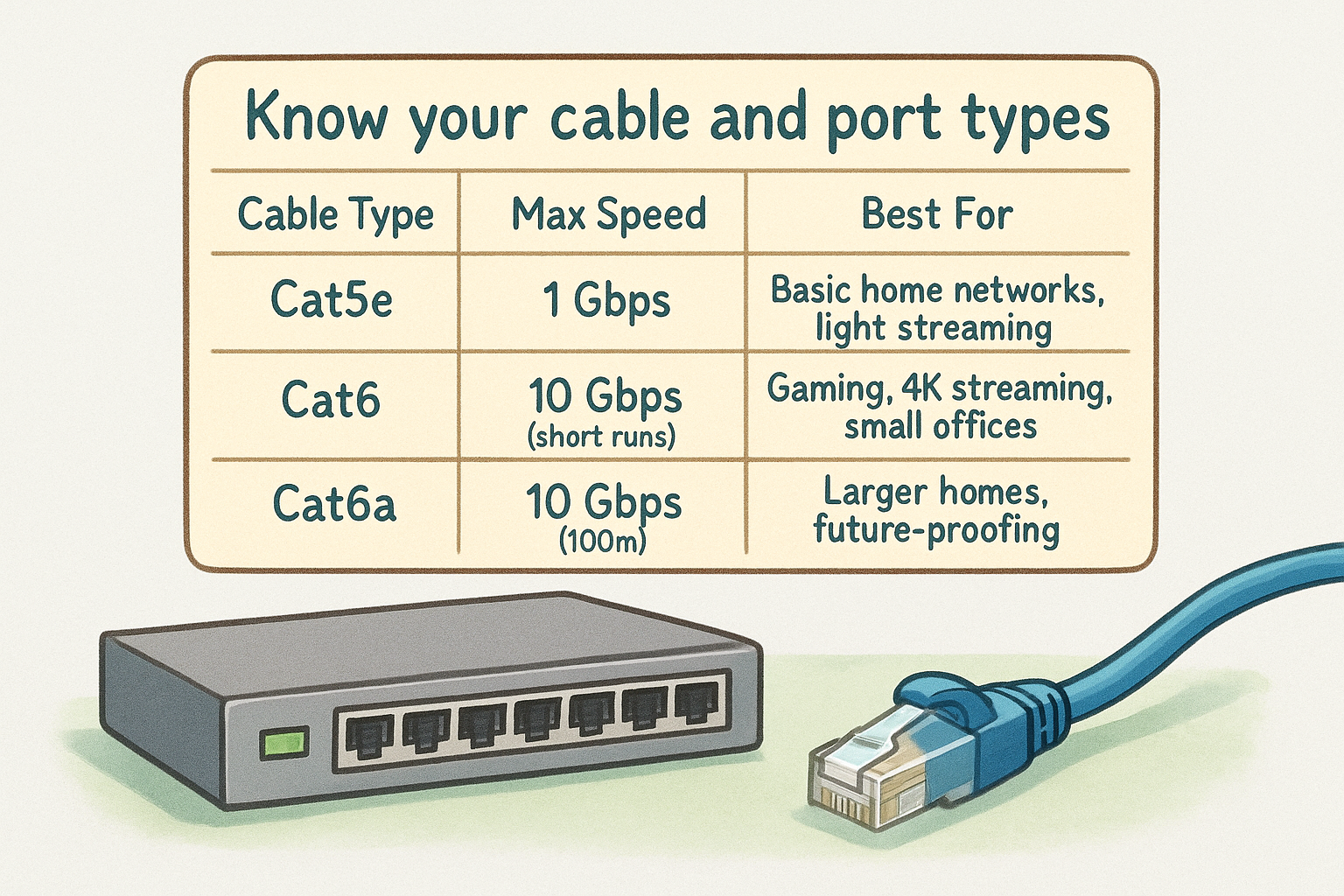

Know your cable and port types

Not all Ethernet cable is the same, and mixing up categories can bottleneck a network you just paid to upgrade, which is why it helps to know the codes, layout rules, and testing steps behind cable installation. Cable category matters more than most people realize when you’re planning for anything beyond basic web browsing.

A switch is only as fast as the weakest cable in the chain.

Check your switch’s port speed rating too. A gigabit switch paired with old Cat5 cable won’t deliver gigabit performance, no matter how good the hardware is. If you’re not sure what’s already run through your walls, a quick cable tester or a look at the printed markings on the jacket will tell you what you’re working with before you start pulling new runs.

Step 1. Choose the right switch and plan your layout

Counting ports sounds trivial, but it’s where most home installs go wrong. Port count planning means adding up every device you’ll ever plug in, then adding two or three more for the smart TV or gaming console you’ll buy next year. A 5-port switch fills up fast once you factor in a desktop, a printer, a streaming box, and a spare port for guests.

Unmanaged vs. managed switches

Most home users only need an unmanaged switch. It works out of the box with zero setup, just plug in and go. A managed switch gives you VLANs, traffic prioritization, and remote monitoring, but that complexity is overkill unless you’re running a small business network or need to segment traffic for security reasons.

Buy the switch that matches your network’s complexity, not the one with the most features on the box.

Plan the physical location

Place the switch somewhere central to the devices it’ll serve, ideally near your router if you’re extending a single room, or closer to a cluster of devices if you’re running cable back to a central point, and if you’re mounting and wiring gear in a network rack, plan that space first. Ventilation matters too; don’t tuck it into a closed cabinet where heat builds up over months of continuous use.

Step 2. Connect the switch to your router

Once your switch is powered and sitting in its spot, run one Ethernet cable from a LAN port on your router to any regular port on the switch. Uplink connection basics are simple: you’re not plugging into a special "uplink" port on most modern switches, since auto-sensing ports handle that automatically. Skip the WAN port on the switch if it has one; that’s for a different setup entirely.

Power on the switch before or after the cable is connected, it doesn’t matter which. What matters is watching the port light up. A solid or blinking green light next to that port tells you the link light indicator is doing its job and the switch sees your router.

If the port light stays dark, the connection isn’t there yet, no matter how good the rest of your setup looks.

Here’s the quick sequence to follow:

1. Plug one end of an Ethernet cable into an open LAN port on your router
2. Plug the other end into any port on the switch (avoid the WAN port if present)
3. Confirm the switch is powered on
4. Check for a lit or blinking status light on both ends of the cable

Double-check the cable is fully seated on both ends if you don’t see a light. A cable that looks plugged in but isn’t clicked into place is the most common reason this step stalls out.

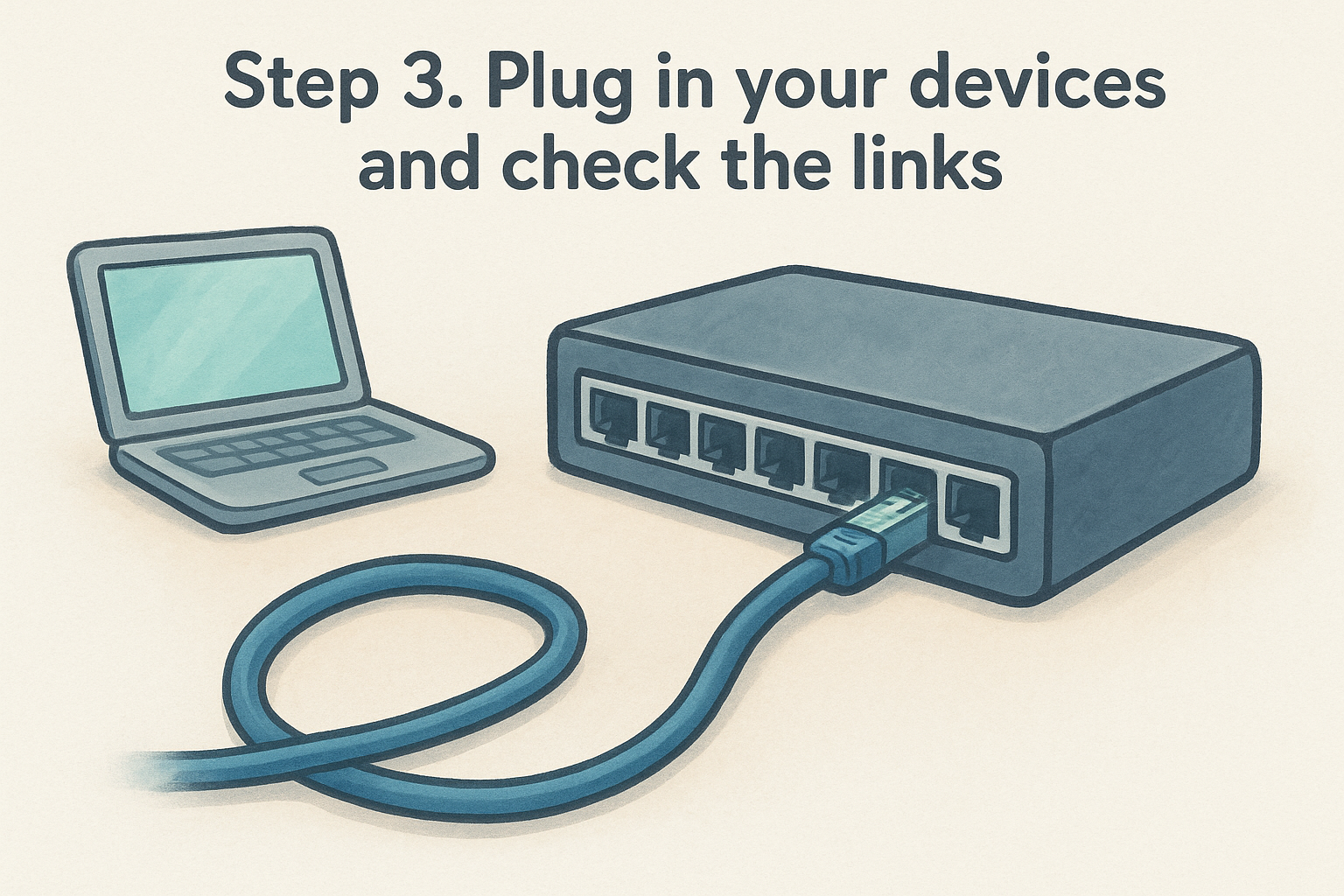

Step 3. Plug in your devices and check the links

With the switch talking to your router, start connecting your devices one at a time instead of plugging everything in at once. Sequential device connection makes it easy to spot a bad cable or a dead port immediately, rather than troubleshooting five problems at the same time. Grab an Ethernet cable, run it from the device to an open port on the switch, and watch for the link light before moving to the next one.

Verify each connection as you go

A solid or blinking light next to the port means the switch and device are exchanging signals. No light usually means a bad cable, a port that’s not fully seated, or a device that’s powered off. Work through your devices with this checklist:

• Desktop or workstation: plug in, confirm light, check the device sees a network connection
• Printer or scanner: plug in, confirm light, print a test page if possible
• Streaming box or smart TV: plug in, confirm light, load an app to test
• Any additional switch or access point: plug in, confirm light (see the step-by-step wireless access point installation guide for placement details)

One bad cable can look identical to a bad port, so always test the cable itself before assuming the hardware failed.

Label each cable, port, and jack at both ends as you go, especially if you’re wiring more than four or five devices, and consider learning how to install a patch panel once the runs pile up. It saves real time later when you need to trace a connection during troubleshooting, and it turns a tangle of identical cables into something you can actually manage.

Step 4. Configure settings and test your network

If you installed an unmanaged switch, this step is short: there’s nothing to configure. Confirm every device shows an active network connection, then move straight to testing. A managed switch needs a bit more attention. Log into its web interface using the IP address printed in the manual, usually something like 192.168.1.x, and set up any VLANs or port priorities your network requires; our guide on how to configure a network switch walks through that interface in detail. Most home setups never need this layer, so don’t add complexity you don’t have a use for.

Run a basic connectivity test

Open a command prompt or terminal on a connected device and ping your router to confirm traffic is passing through the switch correctly.

ping 192.168.1.1

Replace the address with your router’s actual IP if it’s different. You should see replies with low latency and zero packet loss. If pings fail or time out, recheck cable seating and port lights before assuming a hardware problem.

A clean ping test tells you more about your setup than any blinking light ever will.

Test each device’s actual usage too: stream a video, print a document, or load a webpage. This network connectivity testing step catches issues a ping alone might miss, like a device that connects but can’t reach the internet due to a DNS or DHCP hiccup upstream.

Getting the most out of your new switch

A properly installed switch should disappear into the background, quietly passing traffic without another thought from you. Once your setup is running clean, the only maintenance you’ll need is the occasional reboot if a device drops offline, and a glance at those link lights whenever something seems slow. Keep a spare Ethernet cable on hand for the day one goes bad, and label new devices as you add them so troubleshooting stays simple down the road, the same structured cabling best practices that keep larger networks future-ready.
