How To Install A Projector Screen: Wall & Ceiling Steps

Knowing how to install a projector screen correctly makes the difference between a clean, professional setup and one that sags, shifts, or falls off the wall six months later. Whether you’re mounting a fixed-frame screen in a conference room or hanging a motorized unit from a drop ceiling, the process demands precise measurements, the right hardware, and an understanding of the mounting surface you’re working with.

Since 2007, MegaServices has supported Pro AV projects in commercial spaces, including conference rooms, classrooms, and retail environments. Experience across a range of screen types and mounting conditions has helped our team identify common issues that can complicate an installation.

Below, you’ll find a complete walkthrough covering wall-mounted and ceiling-mounted installations, the tools you’ll need, surface-specific considerations, and the mistakes that lead to callbacks. If you’re handling the install yourself, this will get you there. If you need certified AV technicians deployed to your job site, that’s what we do, typically within 24 to 48 hours, anywhere in the U.S. or Canada.

What to plan before you drill

Good planning prevents the most common installation failures. Before you learn how to install a projector screen, you need to gather specific information about your space, your screen type, and your mounting surface. Skipping this step leads to misaligned mounts, anchors pulling out of drywall, and screens that won’t sit level. Taking 30 minutes to plan saves hours of rework later.

Know your screen type and mounting method

Fixed-frame screens, motorized roll-down screens, and tab-tensioned screens each require a different mounting approach. A fixed-frame screen uses a rigid perimeter frame that mounts directly to the wall with L-brackets or keyhole hardware. A motorized screen mounts via a header case that attaches to the ceiling or a wall close to the ceiling, and it needs access to a power source within reach of the installation point. Tab-tensioned screens use a tensioning system along the sides of the viewing surface to help keep the material flat. Mounting and adjustment requirements vary by manufacturer and model.

Before you touch a drill, confirm the make and model of your screen, then download the manufacturer’s installation template from their website. Most manufacturers publish these as PDFs, and the template gives you exact bracket spacing, screen weight, and required hardware specifications so you’re not guessing.

Check your wall or ceiling structure

The surface you’re mounting to determines the hardware you use. Stud spacing, ceiling joist direction, and material type all affect which anchors and fasteners will hold the load safely. For wall mounts, use a stud finder to map the framing behind the drywall and mark every stud in the target area with painter’s tape. The mounting structure and fasteners must support the screen’s full weight and match the manufacturer’s installation requirements. Use structural framing or an approved mounting solution rather than relying on generic drywall anchors.

Do not use generic drywall anchors unless both the screen manufacturer and fastener manufacturer approve them for the screen weight and wall construction. Even heavy-duty toggle bolts have limits, and vibration from a motorized screen can loosen them over time.

For ceiling mounts, identify whether you’re working with wood joists, metal studs, or a concrete slab. Verify that the mounting hardware, supporting structure, and attachment method meet the screen manufacturer’s requirements and all applicable building standards.

Gather the right tools and hardware

Having the correct tools on hand before you start prevents mid-job delays. Here’s what a standard projector screen installation requires:

• Stud finder
• Laser level or long bubble level (48 inches minimum)
• Power drill with both drill bits and driver bits
• Measuring tape
• Pencil and painter’s tape for marking
• Hardware appropriate to the surface: wood screws for studs, toggle bolts or concrete anchors for other materials
• Safety glasses

Confirm that all included hardware matches the surface you’re mounting to before you begin. Many screens ship with wood screws only, which won’t work for metal studs or concrete. Check the hardware bag first, and swap out anything that doesn’t suit your specific surface material.

Step 1. Choose the right height and position

The most common mistake when figuring out how to install a projector screen is drilling the first bracket hole without confirming the correct screen height and horizontal position first. Getting this wrong means viewers in the back row see the bottom edge blocked by heads in front, or the projector’s throw angle creates keystoning that no software correction fully fixes.

Calculate screen height from the floor

The bottom edge of your screen should sit at a height that keeps the image in the sightlines of the entire audience. Set the image height based on the room layout, audience sightlines, screen size, and projector placement. There is no single mounting height that works for every space.

If the room has a single flat floor with no risers, start at 44 inches from the finished floor as your baseline, then adjust after checking the actual sightline from the seat farthest from the screen.

Use a measuring tape to mark two reference points at equal height on the wall, one at each outer edge of where the screen will hang. Connect those marks with a laser level to confirm they share the same horizontal plane before you commit any fasteners.

Factor in projector throw distance

Your screen’s horizontal centerline must align with the projector lens to avoid image offset that distorts geometry. Measure the distance from the projector’s planned mount position to the screen wall, then check the throw ratio in your projector’s manual. That ratio tells you the exact screen width range that produces a focused, full-size image at that specific distance.

Mark the horizontal center of the screen’s planned position on the wall using a vertical pencil line. This reference keeps both bracket points or both ends of the header case equidistant from center when you move into the actual mounting steps.

Step 2. Install a projector screen on a wall

Wall mounting is the most common method for fixed-frame and standard motorized screens. Before you get into the physical steps of how to install a projector screen on a wall, confirm that you have your stud locations marked with painter’s tape and your manufacturer’s template printed or displayed on a device you can reference while working at the wall.

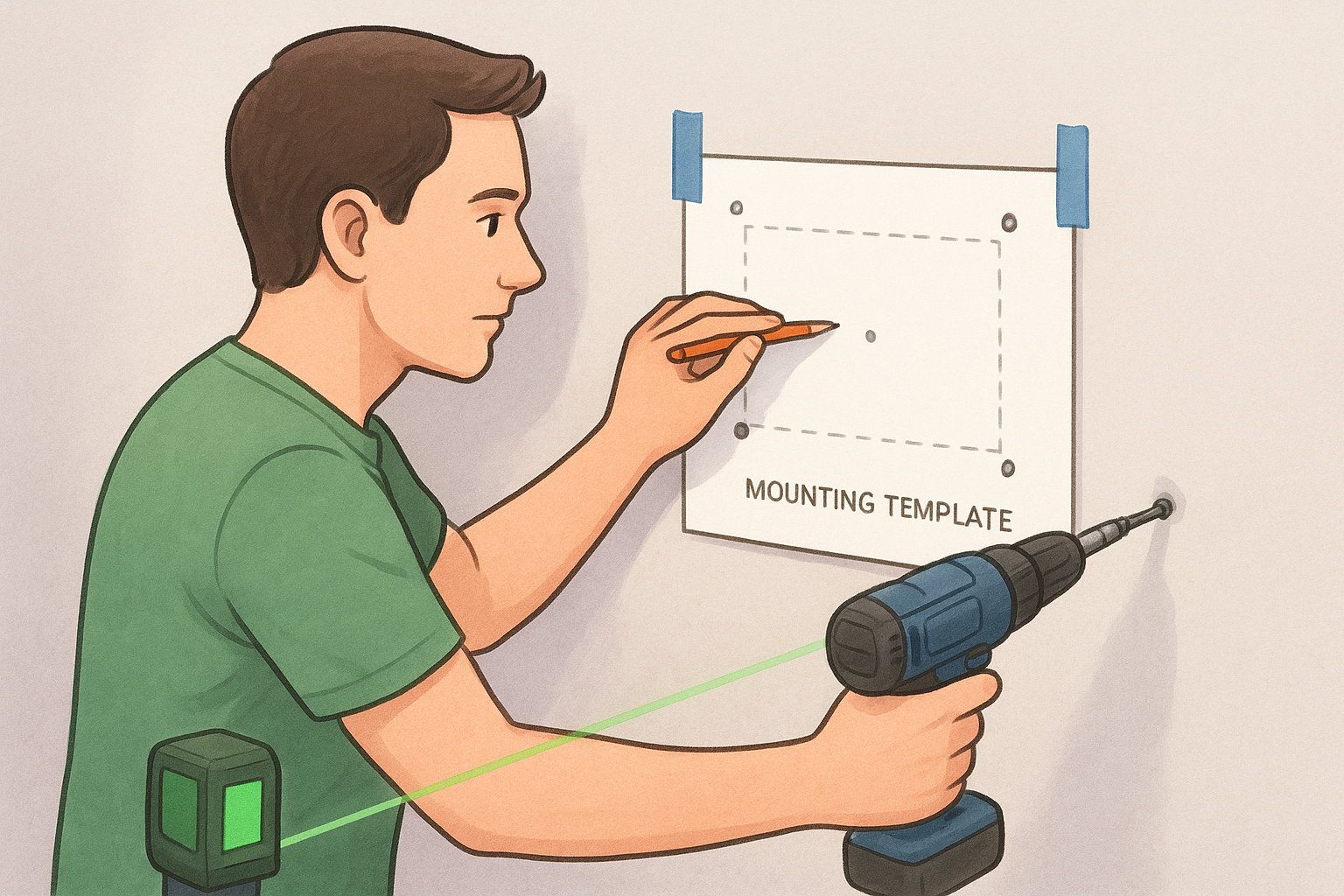

Mark and drill the bracket points

Hold the mounting template flat against the wall, align it with your centerline reference mark from Step 1, and use a pencil to transfer every bracket hole location onto the wall surface. Double-check that the marks sit at the correct height using your laser level before drilling anything. Small errors at this stage compound once the screen is hanging.

If your template doesn’t exist or doesn’t match your screen model, measure the bracket spacing directly off the screen’s back hardware and transfer those measurements to the wall manually, starting from your established centerline.

Drill pilot holes at each marked location. For wood studs, use a drill bit that’s slightly smaller than your screw diameter, typically 1/8 inch for a #10 wood screw. For walls without stud access at a specific bracket point, install a toggle bolt. Verify that the mounting hardware, supporting structure, and attachment method meet the screen manufacturer’s requirements and all applicable building standards.

Attach brackets and hang the screen

Drive your fasteners into the pilot holes and hand-tighten first, then snug them down with your drill on a low torque setting. Leave each bracket slightly loose until all brackets are seated, then tighten in a cross pattern to distribute pressure evenly and keep the mounting rail straight.

With a second person supporting the screen, lift it onto the mounted brackets. Most fixed-frame screens use a keyhole slot system that lets you slide the frame down onto protruding screw heads. Motorized screens typically clip or hook onto a mounted header rail. Once the screen is on the wall, pull a tape measure across the bottom rail at both ends to confirm the screen hangs level before fully tightening all fasteners.

Step 3. Install a projector screen on a ceiling

Ceiling installation is the right choice when wall space is limited, sightlines demand a higher mounting position, or you’re working with a motorized screen in a room that has a drop ceiling grid. The core principle of how to install a projector screen from the ceiling follows the same logic as wall mounting, but gravity works against you throughout, so your anchor points need to carry the full screen weight plus handle vibration from the motor every time the screen cycles up or down.

Locate joists and mark your anchor points

You need to identify solid structural material above the finished ceiling before you mark a single hole. In a standard wood-framed building, use a stud finder set to deep scan mode and run it in two directions across your target area to map joist direction and spacing. Mark each joist with painter’s tape so you have a clear picture of what’s above you before you commit to bracket positions.

Use the following checklist to confirm your ceiling anchor points are ready before drilling:

• Joist or structural material confirmed at each bracket location
• Hardware selected matches ceiling type: lag screws for wood joists, drop-in anchors for concrete, toggle bolts for metal stud ceilings
• Combined anchor load rating that meet the screen manufacturer’s requirements and all applicable building standards.
• Centerline reference mark transferred from Step 1 to the ceiling surface

Never mount a motorized ceiling screen using only drop ceiling grid rails. The grid is not load-bearing and will fail under sustained weight.

Attach the header case and connect power

With your anchor points confirmed, drill pilot holes and drive your fasteners, leaving them slightly loose until all points are seated. Lift the header case into position and hang it on the fasteners with a second person supporting the weight, then tighten all fasteners in a cross pattern. Check that the case sits level using your laser level across the bottom lip.

Run your power cable to the nearest accessible junction point before you lower the screen for the first time. Motorized screens need clean power, so avoid daisy-chaining extension cords and use the voltage rating in the manufacturer’s spec sheet to confirm the circuit can handle the load.

Step 4. Align, secure, and test the setup

With the screen physically on the wall or ceiling, the final phase of how to install a projector screen shifts from mounting to verifying. Every fastener needs to be at full torque, and the screen itself needs to sit level, square to the room, and free of any twist or bow before you power on the projector.

Check level and final tighten

Place your laser level across the bottom rail of the screen and read it from directly in front, not from an angle. A reading that’s off by even half a bubble translates to a visible tilt once the projector image hits the surface. Adjust the screen’s position on its brackets before you fully tighten, since most keyhole and hook systems give you a small amount of horizontal adjustment at this stage.

Once the screen sits level, tighten all fasteners in a cross pattern, starting from the center and working outward. Check that the bottom rail hangs parallel to the floor by measuring from the floor to each bottom corner and comparing the two numbers. They should match within 1/4 inch before you consider the mount complete.

Run a full cycle test

For motorized screens, run at least three complete open-and-close cycles before calling the installation done. Watch the fabric as it lowers: it should track straight without drifting to one side, and the bottom bar should land at the same position each time. If the fabric drifts, check that the header case is level and that both side channels, on tab-tensioned models, are plumb.

A screen that drifts during its first test cycle almost always points to a mounting case that’s slightly out of level, so fix it now rather than after the client has used the screen a dozen times.

Finally, power on the projector and confirm the image fills the screen without spilling past the edges. Check that keystoning stays within the projector’s correction range and that the screen surface shows no visible wrinkles, which typically means the fabric needs 24 to 48 hours to relax fully after unrolling.

Quick wrap-up

Knowing how to install a projector screen comes down to four things: planning your surface and hardware before you drill, setting the right height for your audience’s sightlines, using the correct fasteners for your specific ceiling or wall material, and running a full cycle test before you hand the room over. Skipping any one of these steps is where most installations create problems that are expensive to fix after the fact.
