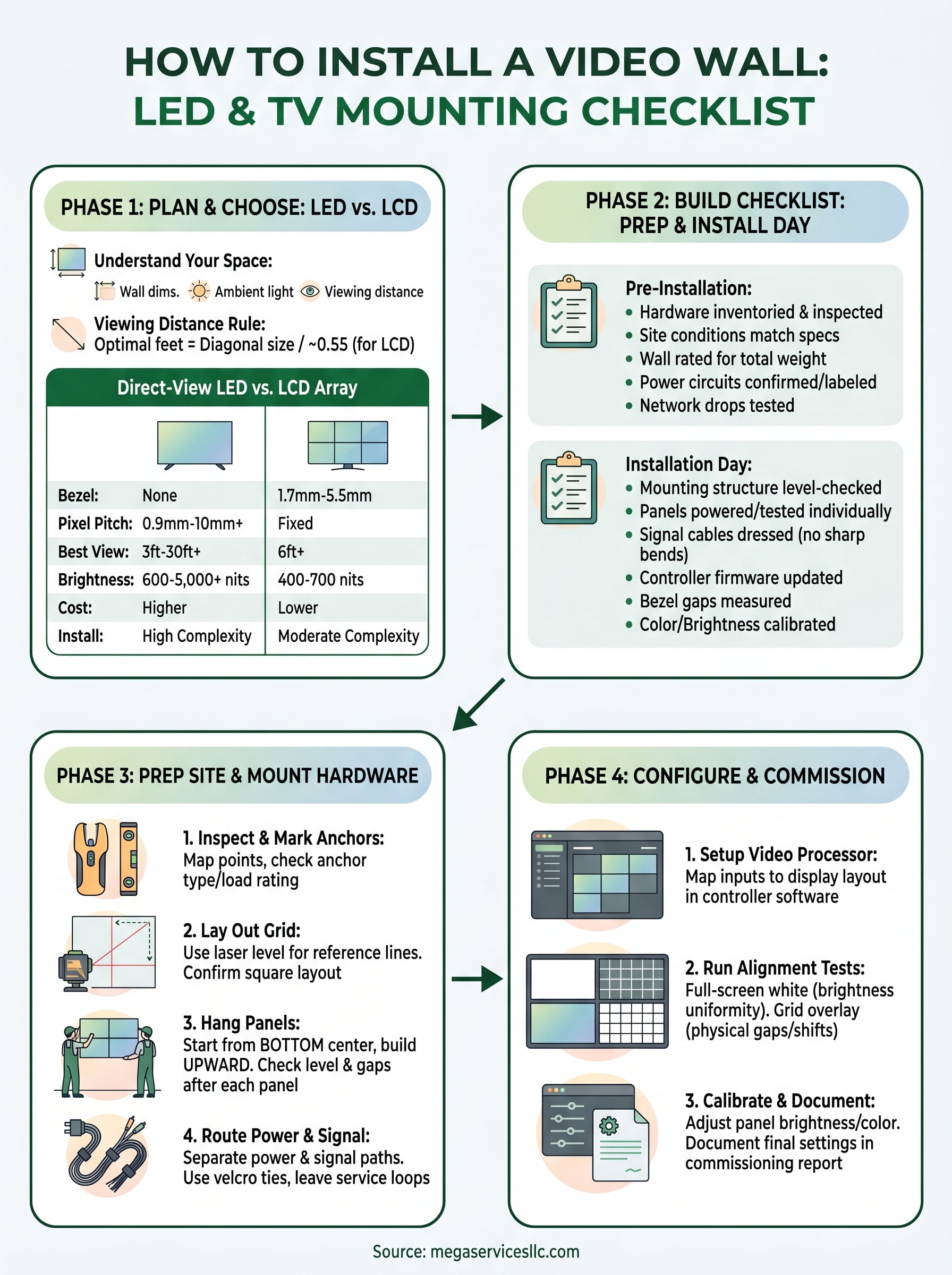

Master How To Install A Video Wall: LED And TV Mounting Checklist

A video wall can transform a lobby, command center, or retail space, but only if the installation is done right. Knowing how to install a video wall means more than bolting displays to a wall. It requires careful planning around structural support, signal distribution, display alignment, and configuration that keeps every panel seamless from edge to edge.

Whether you’re working with direct-view LED panels or mounting multiple commercial TVs in a tiled array, the margin for error is slim. Misaligned brackets, incorrect power planning, or overlooked ventilation can turn a flagship project into an expensive callback. That’s exactly the kind of problem our technicians at MegaServices solve every day, we’ve supported AV integrators nationwide since 2007 with certified labor for video wall installs of every scale.

This guide walks through the full process from site assessment to final calibration. You’ll get a practical, step-by-step checklist covering hardware selection, mounting, cabling, and processor configuration so your next video wall project goes up clean and stays running.

Plan the wall and choose LED vs LCD TVs

Before you buy a single panel or spec a controller, you need a clear picture of the space. Wall dimensions, ambient light levels, and viewing distance all determine whether your project succeeds or becomes a post-installation headache. Pull out a measuring tape, note the exact available surface area, check the structural load rating of the wall, and document where power circuits and data drops currently land.

Understand your space and viewing distance

Viewing distance drives nearly every hardware decision you’ll make when figuring out how to install a video wall. A widely used rule is that optimal viewing distance in feet equals the diagonal screen size divided by roughly 0.55, though LED pixel pitch tightens or loosens that range significantly. For a command center where operators sit 8 to 10 feet from the screen, you need a much finer pixel pitch than a lobby display viewed from 20 feet across a room.

Measure the closest point any viewer will stand from the screen – that single distance sets your pixel pitch floor and your minimum resolution requirement for the entire system.

Document the following before speccing hardware:

• Wall width and height in inches, accounting for mounting hardware clearance on all sides
• Nearest and farthest viewing distances from the primary audience position
• Ambient light levels in lux at peak hours, especially if the wall faces windows
• Structural load capacity of the wall or ceiling rigging points
• Existing power circuits, available amperage, and breaker proximity
• Network drops, signal source locations, and cable routing paths

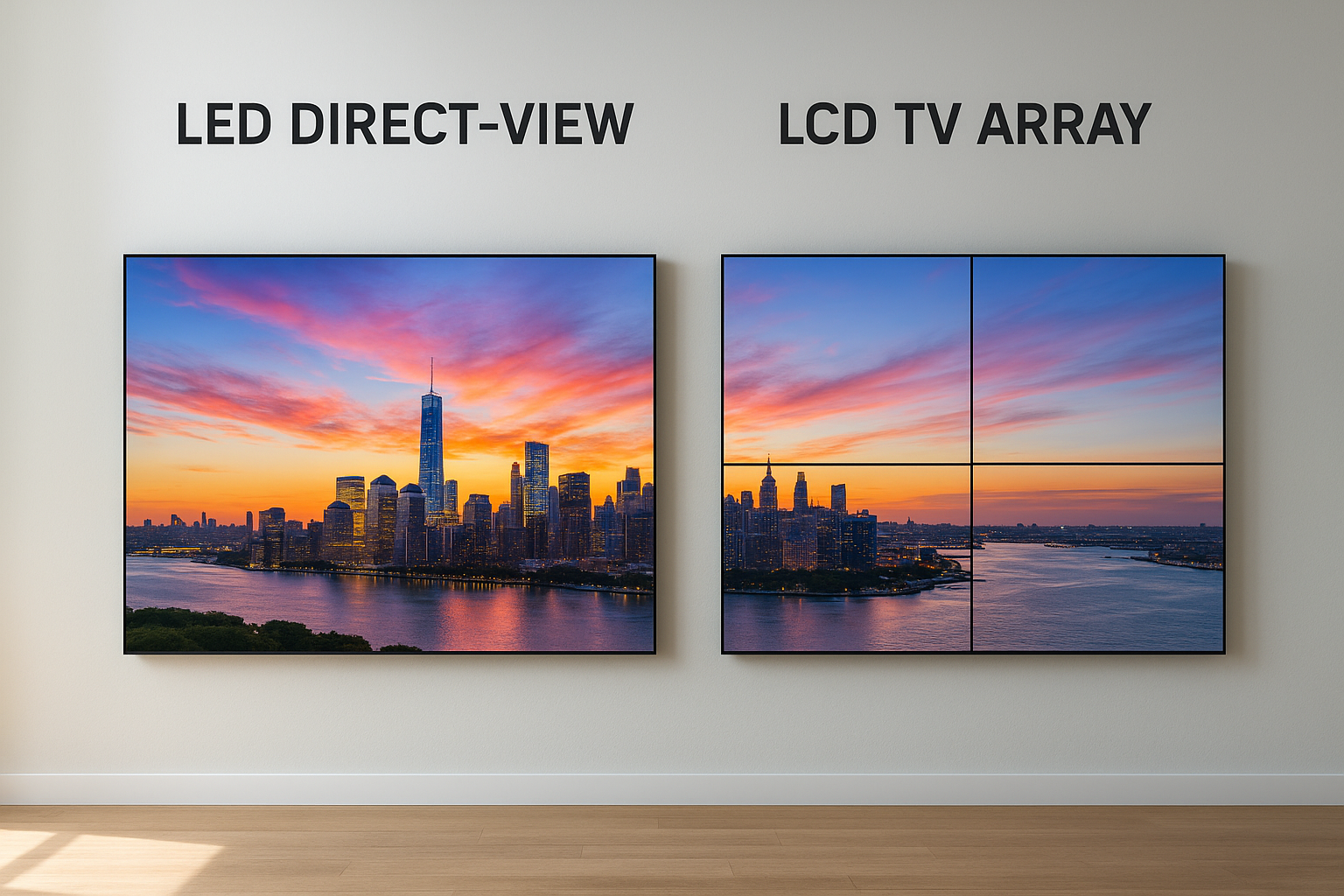

LED direct-view vs LCD TV arrays

Your two main display options each carry distinct trade-offs. Direct-view LED panels deliver seamless images with no bezels, higher brightness, and longer operational lifespans, but they cost significantly more per square foot and require precise cabinet alignment during installation. Commercial LCD displays in a tiled array cost less upfront and are easier to source on short timelines, but the bezel between panels creates a visible grid that some clients find distracting in close-range environments.

Use this comparison to match the right display type to your project requirements:

Build your video wall install checklist

A checklist keeps your crew aligned and prevents missed steps that cause expensive rework on site. When you’re working through how to install a video wall, having every task documented before you touch the wall means nothing slips between the planning phase and commissioning day.

A checklist also gives your client a clear record of what was completed, which protects you if questions come up after the project closes.

Pre-installation items

Before anyone arrives on site, confirm that all hardware has been received and inspected and that the site conditions match your design specs. Walk through power availability, structural readiness, and cable routing paths before the crew loads in.

• Wall rated for total display weight (panels + brackets + cabling combined)
• Power circuits confirmed and labeled, with correct amperage per run
• Network drops or fiber terminated and tested at the rack location
• All display panels, brackets, controllers, and signal cables inventoried on site
• Safety equipment staged (lifts, harnesses, hand tools)

Installation day items

On the day of the install, work through each task in order and sign off on each line before moving to the next phase. Skipping ahead creates alignment problems that are far harder to correct once panels are bolted in place.

• Mounting structure level-checked and anchored to studs or rated anchors
• All panels powered on and tested individually before final position
• Signal cables dressed and secured with no sharp bends at connectors
• Controller or video processor connected and firmware updated
• Bezel gaps measured and confirmed within manufacturer tolerance
• Color calibration and brightness uniformity verified using a full-screen white test pattern

Step 1. Prep the site and lay out the grid

Site prep is where most video wall installs either get off to a clean start or accumulate problems that follow the crew through every later phase. Before you touch a drill, confirm that the wall surface matches your pre-installation documentation and that your structural anchors land on studs, concrete, or rated backing rather than drywall alone. Skipping this step when learning how to install a video wall is one of the fastest ways to end up with a sagging mount on a high-visibility install.

Inspect and mark structural anchoring points

Start by using a stud finder and a level to map every anchor location across the full mounting footprint. Mark each point with painter’s tape rather than pencil so your marks stay visible during the entire install without damaging the surface. If the wall uses concrete or CMU block, confirm that your anchor hardware matches the substrate and that you have the correct drill bit type and diameter on hand before anyone starts boring holes.

Always pull the exact hardware specs from your bracket manufacturer’s documentation and verify anchor pull-out ratings against the total suspended load before the first hole goes in.

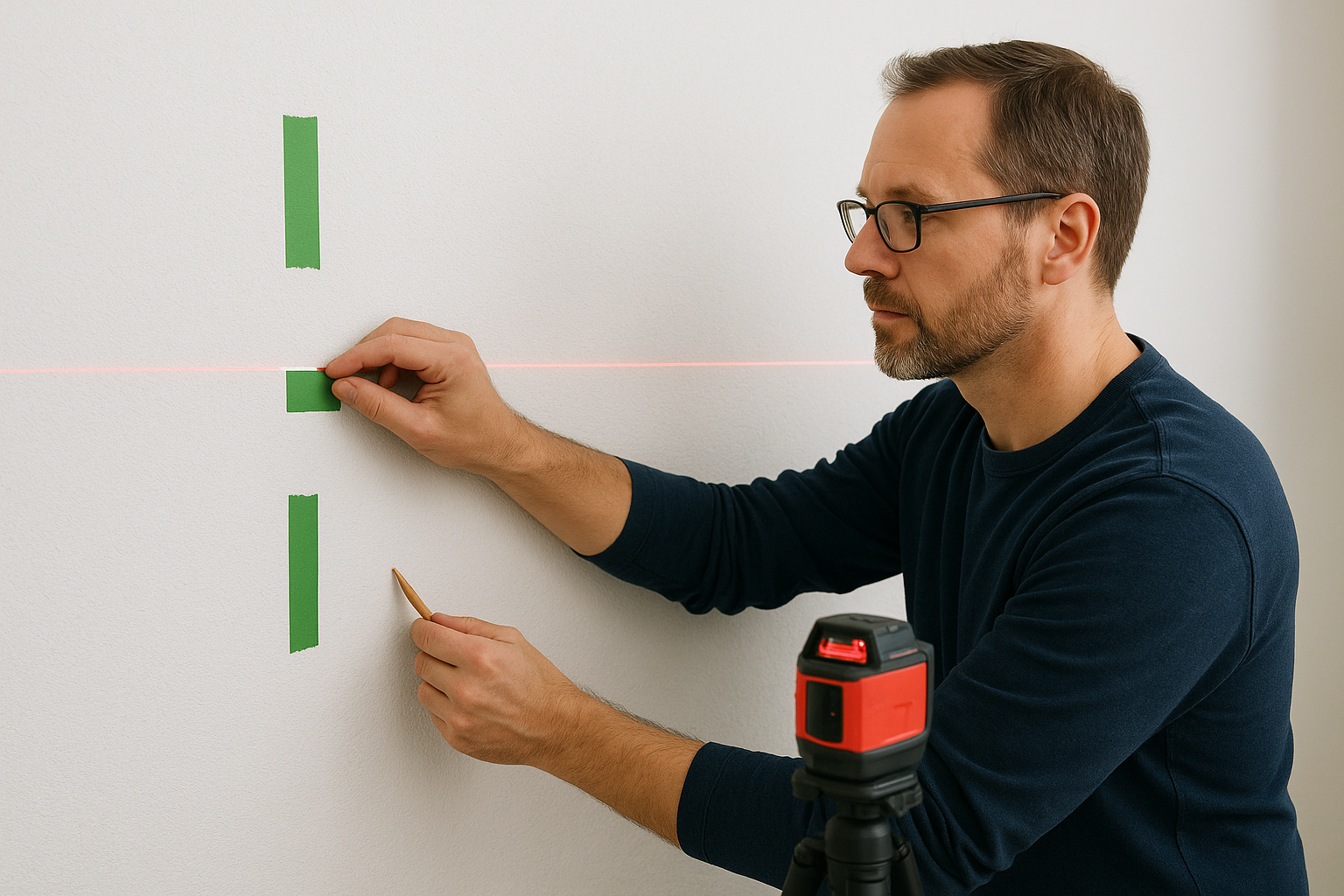

Lay out the panel grid with precision

Use a laser level to project both a true horizontal and a true vertical reference line across the full grid area before you position a single bracket. Transfer those reference lines to the wall with chalk line or tape, then mark each bracket hole position individually against the grid. Check your corner-to-corner diagonal measurements to confirm the layout is square, because a grid that is even slightly off-square becomes obvious the moment you power on a full-screen image.

Step 2. Mount, power, and run signal cleanly

With your grid laid out and anchor points confirmed, you’re ready to mount hardware. This is the most physically demanding phase of how to install a video wall, and the order you work in matters. Start at the bottom row and build upward, using your reference lines to keep every bracket seated on the same plane before you lock anything permanently.

Hang panels in a controlled sequence

Mount your main rail or bracket structure first, then hang display panels one at a time starting from the bottom center and working outward. Have a second technician hold each panel against the bracket while you check level before tightening any fasteners. Check the gap between adjacent panels after every install and verify it matches your specified bezel tolerance before moving on.

Never fully torque mounting fasteners until the entire row is hung and level-checked, because adjusting one panel after the fact shifts every neighboring one.

Route power and signal without cutting corners

Power and signal cabling need separate routes wherever possible to reduce interference, especially in large LED installations. Run power conduit along dedicated paths that keep mains voltage away from low-voltage signal cables at every crossing point. Use velcro cable ties rather than zip ties on signal runs so your team can re-route without cutting and replacing ties if the processor configuration changes.

Follow this sequence when dressing cables at each panel:

• Connect power first and confirm the breaker holds before plugging in data cables
• Route signal cables with a minimum 6-inch service loop at each panel connector
• Label both ends of every cable before you close up any cable management covers
• Secure all runs to the mounting structure so no cable touches the back of a live display panel

Step 3. Configure, align, and commission the wall

With all panels mounted and cables dressed, the final phase of how to install a video wall shifts from physical work to software and calibration. This step determines whether your displays function as a single cohesive image or a collection of mismatched panels, and rushing through it is the most common reason clients call back for corrections after a project closes.

Set up the video processor and map inputs

Your video wall processor or controller needs to know the exact layout of your displays before it can distribute signal correctly. Open the processor’s configuration software, enter your grid dimensions (number of columns and rows), and assign each physical display to its corresponding output port. Most controllers from manufacturers like Datapath or Userful use a drag-and-drop matrix editor to map panel positions. Confirm that each output matches the physical location on the wall before you send any content.

Double-check your input source resolution against the processor’s output settings before running a live signal, because a mismatched resolution causes visible tearing or blank panels that look like hardware failures.

Run alignment tests and calibrate the display

Start your alignment check by pushing a full-screen white test pattern across the entire wall. White reveals any brightness variation between panels immediately, and it exposes any physical gaps or overlaps in your mounting grid that color content would hide. Adjust individual panel brightness settings in the processor or display OSD menus until the wall reads as uniform.

Run a grid overlay test pattern next, which places horizontal and vertical lines across the full image. If any lines break or shift at a panel boundary, use the fine-adjustment screws on your mounting brackets to correct the physical position before locking down fasteners permanently. Document your final brightness and color temperature settings in a commissioning report for the client.

Wrap up and next steps

Following this guide gives you a repeatable process for how to install a video wall from site assessment through final commissioning. Every phase builds on the one before it, so skipping steps in planning or mounting compounds into calibration problems you’ll spend hours correcting. Work through the checklist in order, document your brightness and color settings, and hand your client a commissioning report they can reference for future service calls.
