Home Wi-Fi Setup: How To Install A Wireless Network

Setting up a reliable Wi-Fi connection at home doesn’t require a networking degree, but it does help to follow a clear process. Whether you just got a new router or you’re starting from scratch with a fresh internet plan, knowing how to install a wireless network properly saves you from dead zones, dropped connections, and hours of frustration down the road.

At MegaServices, our technicians handle network infrastructure and structured cabling across commercial and residential environments every day. We’ve seen firsthand what happens when networks are set up without a plan, and how simple it is to get it right when you follow the correct steps. That hands-on experience is exactly what shaped this guide.

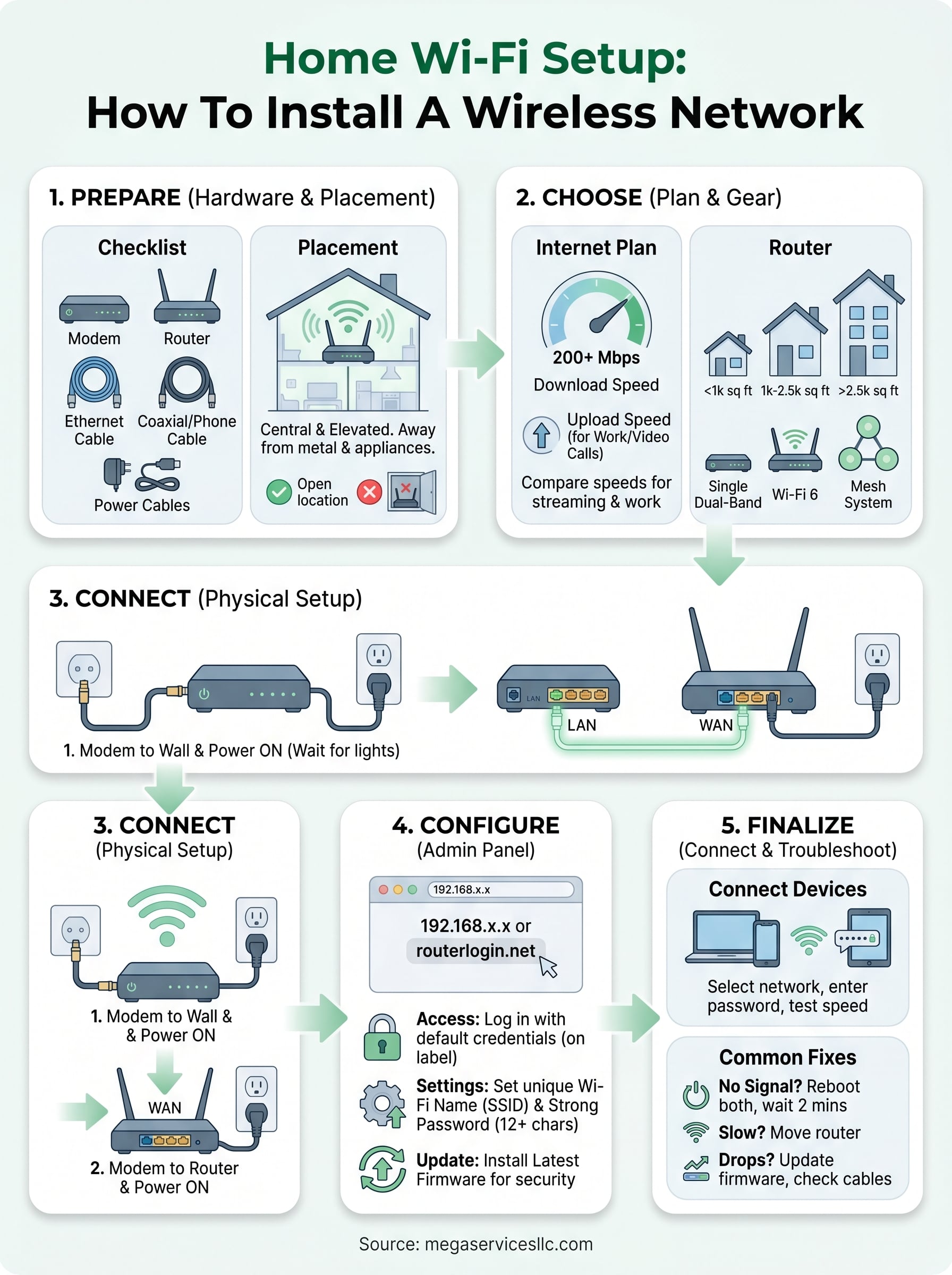

Below, we’ll walk you through the full process: choosing and positioning your hardware, connecting your modem and router, configuring your network settings, securing your connection, and getting all your devices online. Each step is straightforward, and by the end, you’ll have a fully functional home Wi-Fi network you can count on.

Before you start: what you need and where to place it

Before you touch a single cable, you need to know what hardware is required and where each piece of equipment should go. Getting this foundation right saves you significant time during setup, and it directly affects the speed and reliability of your wireless network once everything is live. Running through this checklist first also helps you avoid mid-install interruptions when you realize something is missing.

The hardware checklist

Every home Wi-Fi setup relies on a few core components. You need a modem (which connects your home to your internet service provider), a wireless router (which broadcasts the Wi-Fi signal to your devices), and the cables to tie everything together. Some ISPs supply a combined modem and router unit called a gateway, which simplifies the process by reducing the number of devices you manage. If you’re using separate units, you’ll also need an Ethernet cable to link the modem to the router directly.

Gather everything on this list before you begin:

Where to place your router for best coverage

Router placement has a bigger impact on Wi-Fi performance than most people expect. Your router should sit in a central location in your home, elevated off the floor, and away from walls, large metal objects, and appliances like microwaves or cordless phones that can disrupt the signal.

Place your router in the open, at mid-height, and as close to the center of your living space as possible to maximize consistent coverage in every room.

Avoid tucking your router inside a cabinet or hiding it behind your TV. Physical obstructions reduce signal strength significantly, and poor placement is one of the most common reasons people experience dead zones or slow speeds in certain rooms. If your home is large or has multiple floors, consider whether a mesh Wi-Fi system (which uses several nodes distributed throughout your space) would serve you better than a single router before you move forward with the installation.

Step 1. Choose your internet plan and Wi-Fi gear

Before you learn how to install a wireless network, you need to confirm you have the right internet plan and the correct hardware for your situation. Choosing an underpowered plan or outdated router is one of the most common reasons home networks underperform from day one, so sorting this out first prevents problems later.

Pick the right internet plan

Your internet plan determines the maximum speed available to every device on your network, so spend a few minutes comparing options before you commit. Contact your local ISPs and ask specifically about download and upload speeds, data caps, and contract terms. For most households with 3 to 5 users streaming video and video calling at the same time, a plan offering at least 200 Mbps download speed is a practical starting point.

If you work from home, prioritize plans with strong upload speeds, not just download speeds, since video conferencing and cloud file transfers rely heavily on upload bandwidth.

Select the right router for your home

Your router controls Wi-Fi range, connection speed, and the number of devices it can handle simultaneously without slowing down. For most homes under 1,500 square feet, a dual-band Wi-Fi 6 router handles everyday streaming, browsing, and video calls without issue. Larger homes with multiple floors or thick walls benefit more from a mesh Wi-Fi system, which distributes signal evenly across the space.

Use this quick reference to match your home to the right gear:

Step 2. Hook up the modem and router correctly

With your hardware in hand and your router placed in the right spot, you’re ready to make the physical connections. This step is where the actual installation begins, and the order in which you connect each device matters. Powering things up in the wrong sequence is one of the most common reasons people end up with a modem that won’t sync or a router that doesn’t broadcast a signal.

Connect the modem to your wall outlet

Start by running a coaxial cable or phone line from your wall outlet to the matching port on the back of your modem. Which cable you use depends on your ISP: cable providers use coaxial, while DSL providers use a standard phone cable. Once the modem is connected to the wall, plug the power adapter into an outlet and wait roughly 2 to 3 minutes for the modem to fully initialize. The status lights on the front will stabilize when it’s ready.

Do not plug in your router until the modem is fully online, otherwise the router may not receive a valid IP address from your ISP.

Link the modem to your router

Take an Ethernet cable (Cat5e or Cat6) and run it from the modem’s output port (often labeled "LAN" or "Ethernet out") into the router’s WAN or Internet port, which is usually a different color from the other ports. Then plug the router into power and give it another 2 minutes to boot. Once both devices show stable indicator lights, your physical setup is complete and you’re ready to move into software configuration.

Step 3. Configure Wi-Fi name, security, and updates

Now that your hardware is connected, you need to log into your router’s admin panel to configure your wireless network settings. Open a browser on any computer connected to the router via Ethernet and type the router’s default IP address into the address bar. Most routers use 192.168.1.1 or 192.168.0.1 as the default gateway. You’ll find the exact address, along with the default admin username and password, printed on the label on the bottom of the router.

Set your network name and password

Once you log in, navigate to the wireless settings section of the admin panel. This is where you assign your SSID, which is the name that appears when devices scan for available Wi-Fi networks. Choose a name that does not reveal your router model or any personal information, since exposing your hardware model makes it easier for bad actors to target known vulnerabilities. Set a strong, unique password using a combination of uppercase letters, lowercase letters, numbers, and symbols, with at least 12 characters total.

Avoid using your name, street address, or anything personally identifiable as your Wi-Fi network name.

Update firmware and verify your settings

After saving your network name and password, navigate to the firmware or software update section in your admin panel. Router manufacturers release updates that patch security vulnerabilities and improve connection stability, so installing the latest version during the process of learning how to install a wireless network is a step you should never skip. Once the update completes, reboot your router and confirm that your new network name appears on nearby devices before moving to the next step.

Step 4. Connect devices and fix common issues

With your network configured and broadcasting, the final part of learning how to install a wireless network is connecting your devices and knowing how to handle problems if they appear. This step applies to any device that supports Wi-Fi, including Windows computers, smartphones, smart TVs, and tablets.

Connect your devices to the new network

On a Windows computer, click the Wi-Fi icon in the system tray at the bottom-right corner of your screen, find your network name in the list, and click Connect. Enter the password you set during Step 3. On a smartphone or tablet, open Settings, tap Wi-Fi, select your network name, and enter the same password. Your device will save the credentials automatically and reconnect whenever you’re in range.

Once your first device connects successfully, run a quick speed test at fast.com to confirm your connection is performing close to the speeds your internet plan promises.

Fix the most common Wi-Fi problems

Most connection issues come down to a small set of repeatable causes that are easy to resolve without calling technical support. Work through this list before assuming your hardware is faulty:

Next steps

You now have everything you need to complete the process of how to install a wireless network from start to finish. Starting with the right hardware placement, then connecting your modem and router in the correct order, configuring your network name and security settings, and troubleshooting connection issues that come up gives you a home Wi-Fi setup that performs reliably from day one.
