How to Install and Terminate a Cat6 Cable: A Step-by-Step Guide

Running network cable through a wall sounds simple until you’re staring at a stud bay wondering how to fish a line without tearing up drywall. Learning how to install Cat6 cable correctly means understanding pull tension, bend radius, and the Cat6 cable installation standards behind every termination before you ever pick up a punch-down tool, because a bad crimp or a kinked run can tank your speeds even on brand-new cable.

This guide walks you through the full process: planning your cable path, pulling cable without damaging the jacket, and terminating ends with either RJ45 connectors or keystone jacks using the T568B standard. You’ll also learn which tools actually matter (a decent cable tester beats a fancy crimper every time) and how to test each run before you close up the wall.

We put this guide together after years of managing structured cabling projects for AV integrators and corporate clients across the country. Whether you’re wiring a single home office or prepping a commercial low-voltage cabling installation for a technician crew, the fundamentals here are the same ones our certified low-voltage techs use on job sites every day. Follow along and you’ll end up with clean, reliable runs instead of a callback.

What you need before installing Cat6 cable

Before you drill a single hole, get every tool and material staged in one spot. Nothing kills momentum faster than climbing into an attic, running fifty feet of cable, and realizing you left the punch-down tool in the truck. A proper Cat6 installation starts on the workbench, not in the wall.

Tools you’ll need

You don’t need a van full of gear, but a few specialized tools make the difference between a clean termination and a callback. Here’s what belongs in your kit:

• Cable stripper built for round CAT cable (a generic wire stripper will nick the conductors)
• Punch-down tool with a 110 blade for keystone jacks
• RJ45 crimper if you’re terminating plugs directly instead of jacks
• Cable tester that checks wire map, length, and continuity, not just “link light” status
• Fish tape or fiberglass fish rod for pulling through finished walls
• Stud finder to avoid drilling into framing where you don’t want a hole
• Labeling machine or wire labels for both ends of every run

Skip the bargain-bin crimper kits sold as “networking sets.” A quality cable tester costs more than a cheap crimper, but it’s the tool that actually catches wiring faults before you close up drywall.

Choosing the right cable and connectors

Not all Cat6 is the same, and picking the wrong jacket rating can get you fined or, worse, cause a fire hazard. Riser-rated cable is fine for most vertical runs inside walls, but anything passing through an HVAC plenum space needs a plenum-rated jacket per the fire code jacket ratings for low voltage cable.

Buying plenum-rated cable for any run through a ceiling air-handling space isn’t optional. It’s code, and inspectors check.

Here’s a quick comparison to help you pick the right cable and connector combo for cat6 wiring:

If you’re doing a cat6 ethernet cable installation for a home office or small business network, standard riser-rated solid-core Cat6 covers almost every scenario. Save Cat6a for data closets or backbone runs where you expect heavier throughput down the road.

Connectors and safety gear

Decide upfront whether you’re terminating to keystone jacks (recommended for wall outlets) or RJ45 plugs (used for direct patch connections). Buy a few extra of each; you will mess up at least one termination on your first attempt, and that’s normal even for experienced installers.

Finally, grab basic safety gear before you start cutting into walls: safety glasses for drilling, a dust mask if you’re working in an older attic, and a headlamp for crawlspaces where outlets are scarce. None of this is glamorous, but showing up prepared is what separates a one-day install from a three-trip ordeal.

Step 1. Plan your cable route

Grab a notepad before you touch a drill. Walk the space and sketch where the equipment rack, router, or patch panel you plan to mount and set up sits, then mark every wall outlet you want to feed. A rushed cable route almost always ends up crossing HVAC ducts, running parallel to electrical lines, or dead-ending in a stud bay with no way through. Planning on paper costs you fifteen minutes; unplanning a bad pull costs you an afternoon.

Mapping the path and measuring distance

Think in straight lines and short runs. Every twist and turn you route through the wall adds resistance to the pull and increases the odds of nicking the jacket on a rough stud edge. When you’re figuring out how to install Cat6 cable in an existing structure, favor routes through open joist bays, unused chases, or closets stacked directly above one another, since those give you the cleanest vertical path between floors.

A straight, short run beats a clever, twisty one every single time.

Measure total distance from the patch panel to the farthest outlet, and add 10 to 15 percent slack for service loops and termination waste. Cat6 has a hard limit of 100 meters (328 feet) end to end under the TIA/EIA-568 rules for cable length and testing, patch cables included, so if your run is pushing past 80 meters of bulk cable, plan for a switch or patch point partway through instead of forcing a single long pull.

Checking for interference and access points

Before you commit to a path, check what’s already living inside that wall. Run Cat6 too close to electrical conduit and you’ll pick up crosstalk that shows up as intermittent drops months later, not immediately. Keep at least 12 inches of separation from electrical lines where possible, and cross them at a 90-degree angle if a crossing is unavoidable.

• Confirm no plumbing, gas lines, or ductwork sits in the planned path
• Note stud spacing (typically 16″ or 24″ on center) using your stud finder
• Identify existing holes or chases from prior electrical or cable work
• Mark entry and exit points on both the wall plate location and the rack location

Finally, decide how you’ll access each bay, and if a mid-run patch point is in the plan, know how to install a network switch there before you start pulling: through an attic above, a crawlspace below, or by fishing horizontally between two wall openings. That decision drives everything in the next step.

Step 2. Run the cable through walls and ceilings

Once you’ve mapped the route, it’s time to actually pull cable, and this is where patience pays off more than muscle. Drill your access holes first: a 3/4-inch spade bit through top and bottom plates gives you enough clearance for the cable and a fish tape without forcing anything. Rushing this step is how installers end up with a kinked jacket or a nicked conductor pair hidden inside a wall they’ve already patched.

Fishing cable through finished walls

Working inside finished walls means you’re fishing blind, so let the tool do the work instead of yanking on the cable itself. Feed a fiberglass fish rod down from the top plate, or up from a baseboard opening, until you feel it hit the bottom or top plate hole you drilled. Tape the cable end to the fish rod with electrical tape, wrapping it smoothly so it doesn’t snag on insulation or old wiring, then pull steadily from the other end.

Pull tension, not brute force, is what separates a clean run from a damaged cable.

Cat6 cable has a maximum pull tension of about 25 pounds of force. Yanking harder than that stretches the internal conductors and changes their twist ratio, which degrades performance even though the cable looks fine from the outside. If the cable stops moving, back off and check for a snag rather than pulling harder.

Running cable through open framing and ceilings

Open attics and unfinished basements make this step far easier, since you can see exactly where the cable travels. Secure the cable to joists with cable staples or J-hooks every 4 to 5 feet, never stapling directly through the jacket. Keep a gentle drape rather than a taut line; cat6 wiring performs best when it isn’t under constant tension against a hard edge.

• Maintain at least a 1-inch bend radius equal to four times the cable diameter at every turn
• Avoid draping cable directly across ceiling tiles or resting it on light fixtures
• Route around HVAC ducts rather than alongside them
• Leave a labeled service loop of 12 to 18 inches at both ends for future re-termination

Vertical drops between floors are usually the trickiest part of any cable installation, so take your time here and follow the best practices for supporting in-wall cable runs. When you reach the outlet box or patch panel location, leave enough slack to work comfortably, then move on to preparing the ends for termination.

Step 3. Strip and prepare the cable ends

With cable pulled and slack left at both ends, it’s time to set up for termination. This step decides whether your finished run passes a certification test or fails on wire map. Rushing the strip and untwist is the single most common reason a homeowner’s DIY run underperforms compared to a professional low-voltage install, so slow down here even if you’re eager to see a link light.

Stripping the jacket without nicking the pairs

Start by sliding your cable stripper about 1.5 inches from the end of the jacket, rotating it a full turn to score the outer sheath without cutting into the twisted pairs underneath. A generic wire stripper almost always cuts too deep, nicking one or more conductors even when the jacket looks intact. Pull the scored jacket off cleanly, then check the exposed pairs for any scuffed or exposed copper. If you see bare copper on any pair, cut back further and start the strip again rather than trusting a damaged conductor to perform.

A nicked conductor you can’t see will still cause packet loss you can measure.

Untwisting and organizing the pairs

Cat6 cable often includes a plastic spline running down the center that separates the pairs and reduces crosstalk. Trim the spline flush with the jacket rather than yanking it out, since pulling it can stretch the pairs unevenly. Untwist each pair only as far as needed to reach the jack or plug, ideally no more than half an inch for keystone jacks and even less for RJ45 plugs, because every untwisted inch reintroduces the crosstalk the twist was designed to cancel.

• Trim the center spline flush, don’t rip it out
• Untwist pairs the minimum distance required for your connector type
• Keep pairs in order: orange, green, blue, brown (per T568B)
• Avoid over-flexing or creasing individual conductors while separating them

Squaring the ends for a clean termination

Before you punch down or crimp, square off the ends of the untwisted conductors with sharp flush cutters so all eight wires sit at the same length. Uneven wire lengths are a leading cause of failed cat6 wiring terminations, since a short conductor won’t seat fully in the jack’s contact or the crimp connector’s pin. Once your ends are stripped, untwisted to spec, and squared, you’re ready to move on to terminating to a jack or plug.

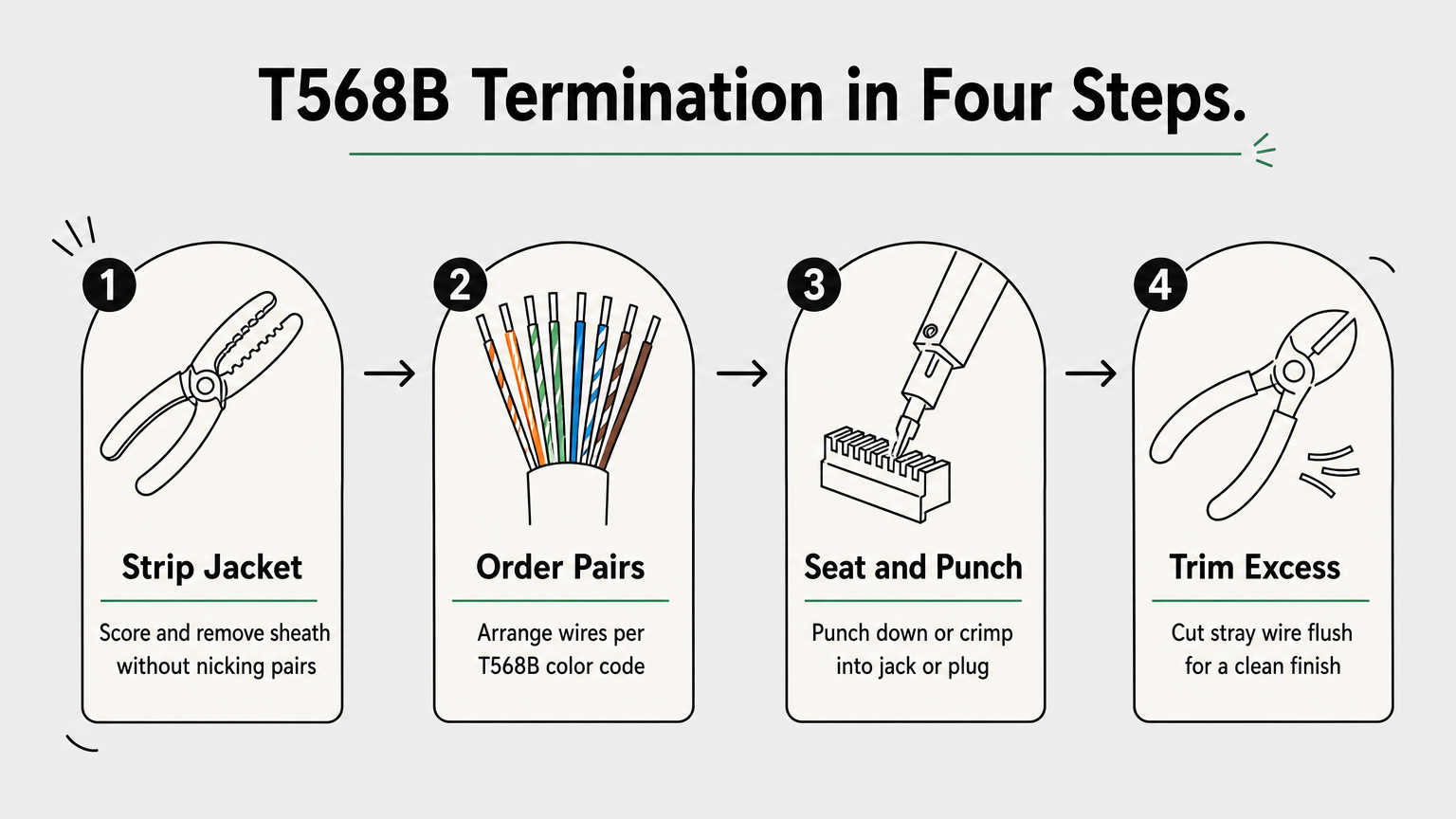

Step 4. Terminate to a keystone jack or RJ45 plug

Now you decide how each cable ends: a keystone jack for wall plates and patch panel terminations, or an RJ45 plug for direct connections into a switch or device. Most structured cabling jobs use jacks at both ends, with short factory patch cables filling the last few feet. Whichever connector you’re using, the T568B wiring standard keeps every termination consistent across the whole job, and consistency is what saves you from mismatched pairs down the line.

Terminating a keystone jack

Keystone jacks use a punch-down process instead of a crimp, which means less risk of crushing the conductors if you go slow. Lay each wire into its labeled slot on the jack body, matching the color code printed right on the housing, then seat it with your 110 punch-down tool until you hear the click. Trim the excess wire flush with the blade on the tool itself instead of switching to scissors, since a clean cut reduces the chance of a stray copper strand shorting an adjacent pin.


Terminating an RJ45 plug

RJ45 plugs demand more precision because you’re feeding all eight conductors into a tiny plastic housing at once. Order the wires per T568B, square them off, then slide them fully into the plug until you can see each colored wire pressed against the clear tip. Confirm the jacket itself sits inside the plug body, not just the bare conductors, since the crimp needs to clamp down on the jacket for strain relief. Squeeze the crimper firmly in one motion; a partial crimp is one of the most common causes of an intermittent connection that tests fine on day one and fails a month later.

Once you’ve terminated both ends, whether jack-to-jack or plug-to-plug, resist the urge to close up the wall or bundle the patch panel just yet. A termination that looks perfect can still hide a reversed pair or a split pair you can’t catch by eye, which is exactly what the next step is built to catch.

T568B Pin Order:
1. White/Orange
2. Orange
3. White/Green
4. Blue
5. White/Blue
6. Green
7. White/Brown
8. Brown

The above example is ready to be crimped with a termination tool.

Step 5. Test and label every connection

Grab your cable tester before you touch a wall plate cover or bundle a single patch cord. Every run, no exceptions, needs a full wire map test, because a termination that looks flawless can still hide a split pair or a reversed pin that only shows up under load. Skipping this step is how a network passes a quick ping test on install day, then starts dropping packets three weeks later once someone starts a video call.

Running the wire map and certification test

Plug one end of the tester into the jack or plug at the wall, and the remote unit into the far end at the patch panel or switch. A proper cable tester checks wire map, length, and continuity, not just whether a link light turns on, and that distinction matters more than most DIYers realize.

A link light tells you the cable is connected. A wire map test tells you it’s actually correct.

Run through this cabling test and closeout checklist for every single termination:

• Confirm all eight conductors map to the correct pin (1-8, no shorts or opens)
• Check for split pairs, where two wires from different pairs get swapped
• Verify the measured length matches your expected run (a shorter reading than expected often means a fault mid-cable)
• Re-terminate immediately if anything fails, don’t wait until the whole job is done to retest

Quick tip: test before you close drywall or drop a ceiling tile back into place. Retesting after the wall is patched turns a five-minute fix into a half-day repair.

Labeling both ends for the long term

Once a run passes, label it immediately at both ends, using the same reference number on the wall plate and the patch panel port. Six months from now, nobody remembers which cable feeds which office, and an unlabeled patch panel turns a five-minute troubleshooting call into an hour of tracing wires by hand.

Use a labeling machine over handwritten tags whenever you can. Handwriting fades and smudges, and a mislabeled port on a cat6 installation costs real time down the road when someone’s trying to isolate a dead connection during a live outage. Consistent, permanent labels are what separate a professional structured cabling job from a rushed weekend project, and it’s exactly the standard our certified technicians hold every job site to.

Bringing your network online

You now know how to install Cat6 cable the way a professional low-voltage crew does it: plan the route, pull with the right tension, strip and terminate cleanly, then test every single run before the wall goes back together. Skip any one of these steps and you end up with a network that looks finished but drops packets the first time someone streams video or joins a call. The difference between a callback and a clean job almost always comes down to discipline at the termination and testing stages, not fancier tools.

Some runs, though, especially multi-drop commercial jobs or anything on a tight deadline, are worth handing to a certified technician instead of tackling solo. If you’d rather have a vetted, Mega Certified pro handle the pulls, terminations, and certification testing, book a MegaTech for your Cat6 cabling job and get it done right the first time.
