How To Install Ceiling Speakers: Placement, Wiring, Setup

Knowing how to install ceiling speakers correctly makes the difference between a clean, professional AV deployment and a callback that eats into your margins. Whether you’re outfitting a single conference room or rolling out audio across dozens of retail locations, the fundamentals stay the same, but the details matter more than most people expect.

This guide walks through the full process: choosing speaker locations, running cable, cutting into different ceiling types, making connections, and testing the system. We cover common obstacles like limited attic access, fire-rated plenums, and drop ceiling grids, the real-world conditions your crews deal with on nearly every job site.

At MegaServices, we’ve supported ceiling speaker installs nationwide since 2007, deploying certified AV technicians to job sites across the U.S. and Canada, often within 24 to 48 hours. We built this guide from that hands-on experience. Use it to train new team members, plan your next project, or brush up on best practices before a large-scale rollout. And if you need extra hands on-site, that’s exactly what we do.

Before you start: tools, safety, and code basics

Rushing the prep stage is one of the most common reasons how to install ceiling speakers goes wrong on a job site. Before you touch a ceiling, gather everything you need and review the site conditions. Missing a tool or ignoring a local code requirement mid-job costs you time, creates rework, and can put your crew in a difficult position with the building owner or inspector.

Tools you need on the job site

Having the right tools staged before your crew starts cutting keeps the job moving without unnecessary stops. A stud finder with AC detection is non-negotiable; it tells you where joists are and flags any live electrical runs hiding above the drywall. Beyond that, you’ll need a drywall saw or hole saw kit sized to your speaker cutouts, a wire fish kit, a voltage tester, a drill with long flex bits for running cable through wall cavities, and fish tape or a pulling string.

Here’s a quick reference checklist to review before the job starts:

• Stud finder with live wire detection
• Drywall saw or adjustable hole saw (typically 4" to 8" depending on speaker model)
• Wire fish kit with flexible rods
• Non-contact voltage tester
• Low-voltage drill bit (18" or longer)
• Fish tape or pulling string
• Labeling tape and permanent marker
• Pencil and speaker cutout template (usually included with the speaker)
• Multimeter for checking impedance and continuity

Electrical and safety rules to follow

Never assume a ceiling cavity is safe to work in without testing first. Run a non-contact voltage tester along your planned cut area before you score any drywall. Ceiling spaces in commercial buildings often carry HVAC control wiring, data cables, and electrical conduit that don’t appear on the original drawings. Your crew should also wear safety glasses and dust masks, especially in older buildings where insulation or acoustic tile material can release particles during cutting.

Always de-energize any circuit you suspect runs near your work area and verify with a tester before cutting. Guessing here is not an option.

Speaker wire is low-voltage, so it doesn’t carry the same shock risk as line-voltage wiring. That said, the cable jacket still needs to match the rating for the space it runs through, which directly affects which wire you order and what code requires on the job.

Code basics: plenum ratings and permits

Plenum-rated cable (CL3P or CMP) is required any time your wire runs through a plenum air space, which is the area above a drop ceiling that your HVAC system uses for air return. Most commercial buildings have plenum ceilings, and using standard CL2 or CL3 jacket cable in those spaces violates fire codes because the jacket produces toxic smoke when it burns. Check the building drawings or ask the facilities manager before you order wire. Getting this wrong means pulling everything back out.

Permits vary by jurisdiction. Low-voltage work in many states doesn’t require a permit for a basic speaker installation, but multi-zone commercial audio systems, systems tied to life-safety infrastructure, or work in certain occupancy types often do. Check with the local authority having jurisdiction (AHJ) before the project starts, not after the wire is already in the ceiling. Some municipalities also require a licensed low-voltage contractor, so confirm your crew’s credentials match what the specific job demands before mobilizing.

Step 1. Plan placement for stereo and home theater

Planning speaker positions before you cut a single hole is the most important step in figuring out how to install ceiling speakers correctly. Poor placement decisions are nearly impossible to reverse without patching drywall and starting over, so spending 20 to 30 minutes on a scaled room diagram before you touch the ceiling saves hours of rework on the back end. Mark your planned positions with painter’s tape directly on the ceiling surface before committing to any cuts.

Stereo ceiling speaker placement

For a stereo setup, your goal is to create an even listening field that covers the room without hot spots or dead zones. Place the two speakers at an equal distance from the center listening position, and angle them toward the seating area if they have rotatable tweeters. A reliable starting point is to position each speaker one-third of the room’s width in from each side wall, and between one-third and halfway into the room from the front wall.

Avoid placing speakers directly above the listening position; sound coming straight down loses stereo separation and feels unnatural to anyone sitting there.

In a 12-by-16-foot room, that formula puts each speaker roughly 4 feet from its respective side wall and about 5 to 6 feet from the front wall. Keep both speakers at least 6 feet apart to maintain clear stereo imaging at the primary listening position.

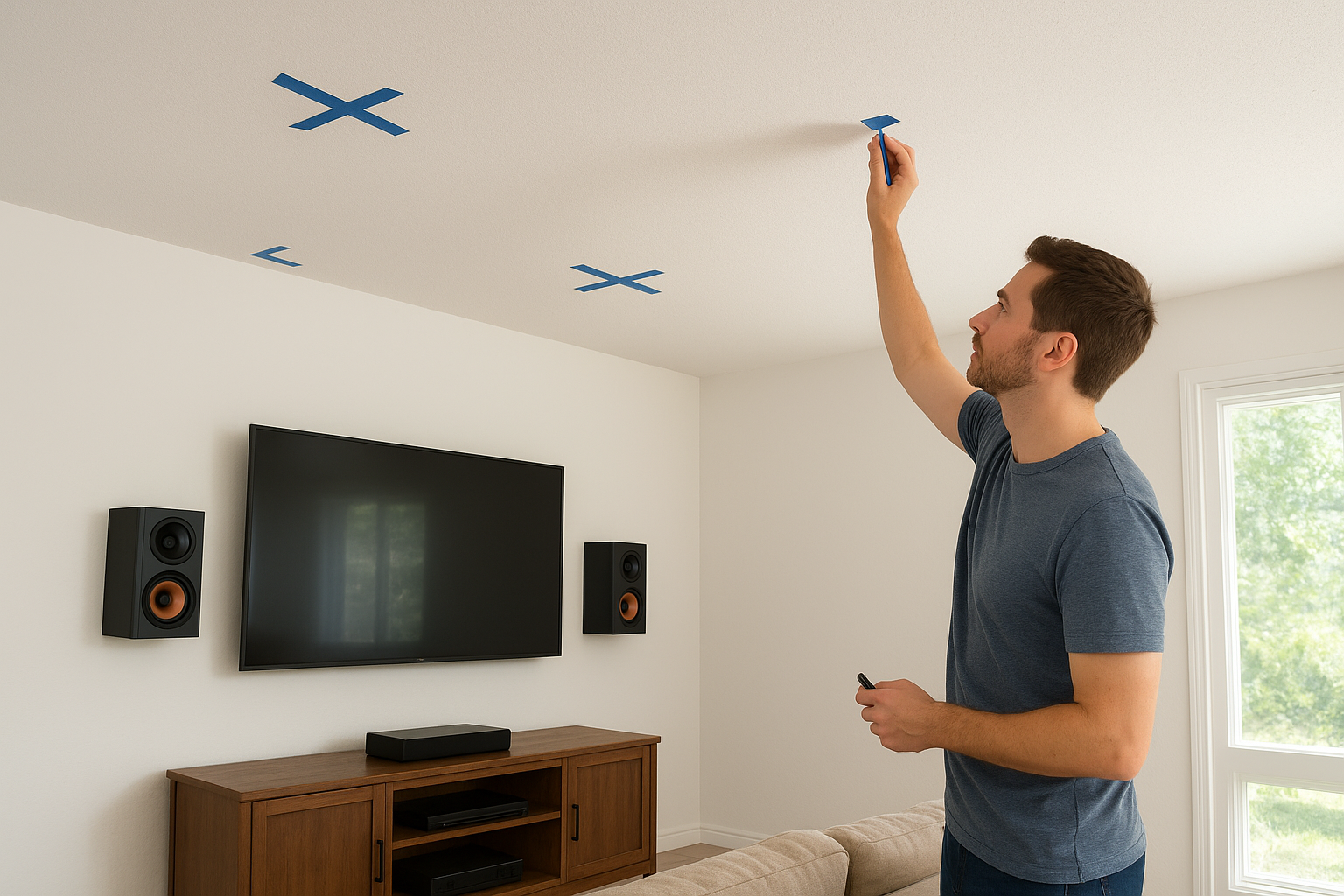

Home theater and surround sound placement

Home theater placement follows established channel standards developed by Dolby and other format developers. For a basic 5.1 surround layout, the two front channels mirror the stereo rules above, while the center channel speaker sits directly above the screen wall. Your two surround speakers go to the sides or slightly behind the main seating row, approximately 2 feet above ear level when seated, which typically puts them 7 to 8 feet off the floor.

For overhead channels in a Dolby Atmos configuration, position your height speakers at 30 to 55 degrees from the listening position both front and back. Use this reference table to confirm your channel targets before marking the ceiling:

Step 2. Choose your signal path and power source

The signal path decision shapes every other part of how to install ceiling speakers on your project. Before you run a single foot of wire, you need to know whether your speakers are passive or powered, and what device is driving them. Getting this wrong means pulling speakers back out and re-terminating connections after everything is already in the ceiling.

Passive versus powered ceiling speakers

Passive ceiling speakers are the most common type in commercial and residential installs. They have no built-in amplifier, which means they need an external amplifier or AV receiver to produce sound. Most 8-ohm passive speakers work well with standard two-channel or multi-channel receivers. Powered ceiling speakers include a built-in amplifier and connect directly to a signal source or network switch, which simplifies the wiring run but adds cost per speaker.

For most commercial deployments covering multiple rooms or zones, passive speakers with a dedicated multi-zone amplifier are the more cost-effective and scalable option. Powered options work better in single-room setups where running a separate amp rack is not practical.

If you’re unsure which type your client specified, check the speaker model number against the manufacturer’s data sheet before you order wire or amplification.

Matching your amplifier to the speaker load

Impedance matching is the single most common wiring mistake on ceiling speaker jobs. Most ceiling speakers are rated at 8 ohms. When you wire multiple speakers on one amplifier channel, the combined impedance drops. Two 8-ohm speakers wired in parallel present a 4-ohm load to the amplifier, so check your amplifier’s minimum impedance rating before finalizing any multi-speaker zone layout.

Use this quick reference to confirm your load before you wire:

In larger commercial zones covering retail floors, conference centers, or multi-room audio, a 70-volt distributed audio system removes the impedance math entirely. Each speaker carries a transformer that lets you set the wattage tap independently, so you can manage varying speaker counts across one amplifier output without recalculating the load every time the layout changes.

Step 3. Map the wire route for your ceiling type

Mapping your wire route before you cut anything is one of the steps that separates a clean install from a messy one. Your ceiling construction determines the entire approach to running cable, and knowing how to install ceiling speakers correctly across different ceiling types is largely about understanding what sits above that drywall before you commit to a path. Sketch your planned route on a simple floor plan and walk the space before pulling a single foot of wire.

Standard drywall ceilings with attic access

When you have attic access above the installation area, running speaker wire is the most straightforward of all ceiling scenarios. Drop into the attic from the access panel, route your wire from the amplifier location to a point directly above each speaker cutout, then use a long flex drill bit to punch through the top plate and fish the wire down. Attach a pull string to your bit before drilling so you can retrieve your wire without making a second trip through the same hole.

Label every wire run at both ends immediately after pulling it through; chasing unlabeled wire behind a finished ceiling is one of the biggest time losses on any commercial job.

Measure your drill entry points in the attic from two reference walls before you drill. Confirming your position from two separate reference points keeps you in the correct ceiling bay and prevents punching through the wrong location or into a joist.

Drywall ceilings without attic access

No attic access means fishing wire through wall cavities from a device location up to the ceiling plane. Find an interior wall adjacent to your speaker position, fish up through the wall cavity to the top plate, use a flexible 18-inch drill bit to make the horizontal turn into the ceiling cavity, and pull the wire across to your cutout location. This route takes more time but works reliably when you map the full path during your site walk before you start cutting.

If fire blocking inside the wall cavity stops your fish tape from advancing, a surface-mounted low-voltage raceway gives you a clean and code-compliant alternative without opening up the wall. Plan for that possibility during your initial walkthrough so you have the materials on the truck.

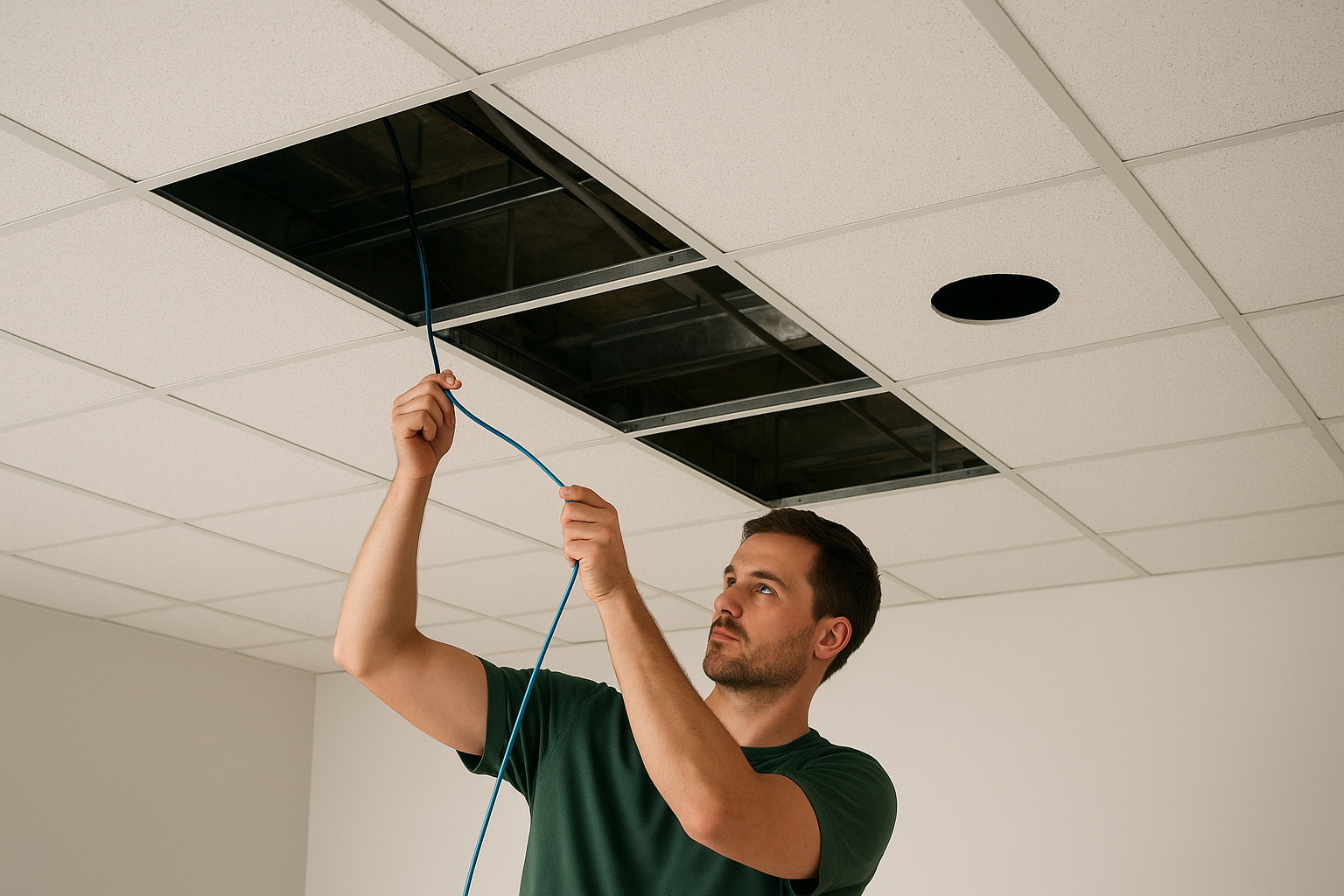

Drop and suspended grid ceilings

Drop ceilings are the simplest ceiling type to run wire through because lifting tiles gives your crew direct access to the cavity above the grid without any drilling through drywall. Route all cable using J-hooks or cable ties attached to the structural deck above to keep runs organized, separated, and off the grid frame itself. Keep every wire run at least 6 inches away from fluorescent lighting fixtures and HVAC ducts to avoid induced signal interference and satisfy the separation requirements outlined by the National Electrical Code for low-voltage wiring in plenum spaces.

Step 4. Cut clean openings and prep the ceiling cavity

Cutting the actual opening is the point in how to install ceiling speakers where sloppy technique becomes permanent. A ragged or oversized cutout won’t grip the speaker’s mounting bracket correctly, and a hole cut in the wrong spot leaves a visible gap around the trim ring that no amount of paint can fix. Take your time on this step, because a clean cut takes two minutes and a repair takes two hours.

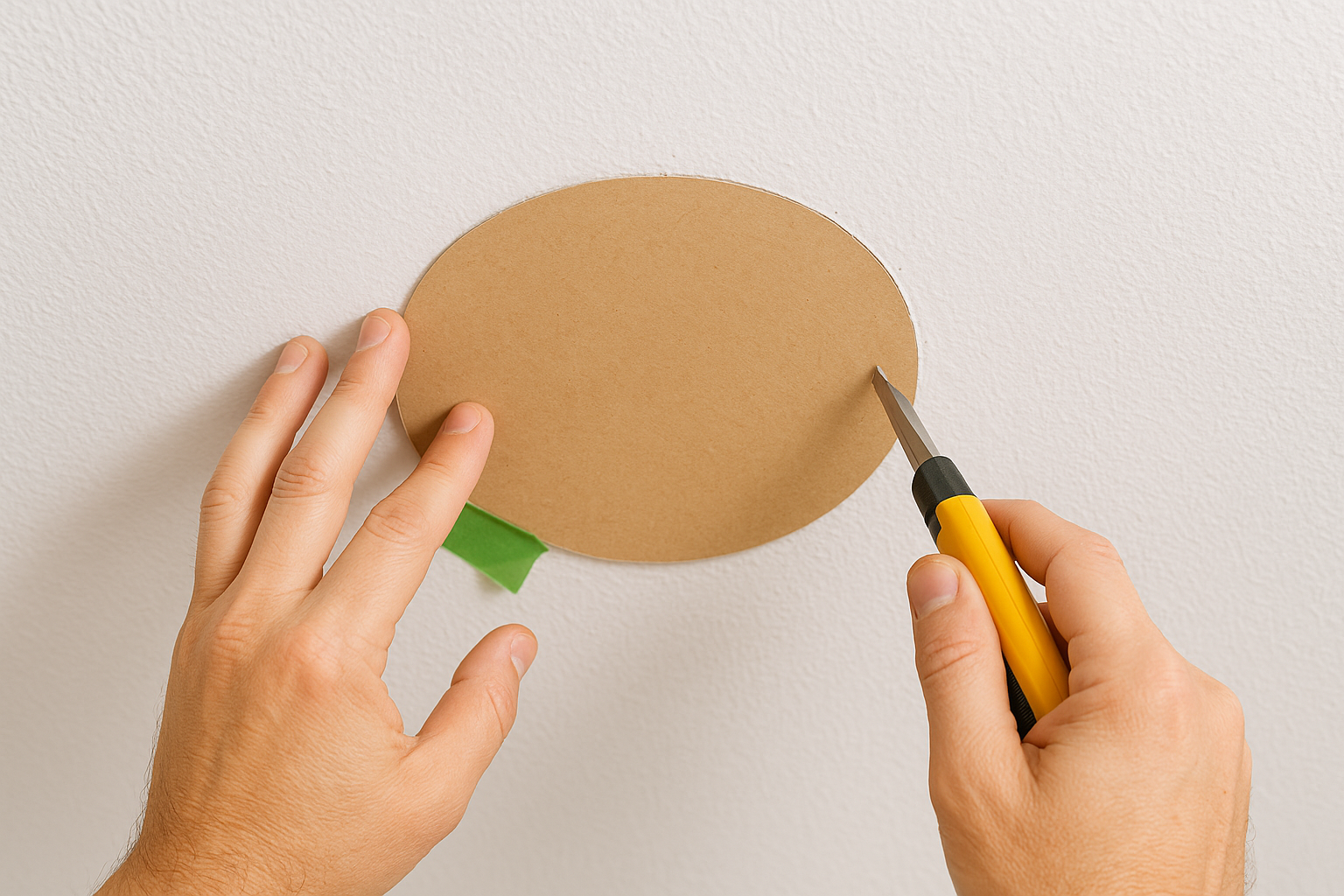

Mark and score the cutout

Most ceiling speakers include a paper or cardboard cutout template in the box. Use it. Tape the template to your marked location on the ceiling, trace the perimeter with a pencil, then remove the template and score the drywall along your pencil line with a utility knife before you bring in the hole saw or drywall saw. Scoring first gives you a clean edge and prevents the paper facing on the drywall from tearing outward when the saw blade exits.

Do not start cutting until you have confirmed with your stud finder and voltage tester that the area directly behind your marked circle is clear of joists, pipes, and electrical runs.

If you’re using a hole saw, set the depth so the pilot bit barely penetrates the drywall before you run the saw at full depth. For a drywall jab saw, start your entry hole at the center of the marked circle and work toward the scored edge in short, controlled strokes. Cut on the pull stroke rather than the push stroke for better control and a tighter edge.

Clear and prep the cavity before you fish wire

Once the disc of drywall drops free, reach into the cavity with a gloved hand and clear any loose insulation, dust, or debris away from the opening edges. In older buildings, you may find blown insulation or batt material sitting directly on top of the ceiling drywall. Pull it back far enough to give yourself a clear path to feed wire and to seat the speaker bracket without compression pushing insulation into the driver.

Check the cavity depth against your speaker’s listed back-clearance requirement, which you’ll find in the spec sheet for your specific model. Some shallow-mount speakers need as little as 2.5 inches, while standard models typically require 3.5 to 4 inches. If a joist or blocking sits too close to your cutout, reposition the speaker location now rather than forcing a speaker into a cavity that’s too tight and risking driver damage after installation.

Step 5. Run, label, and terminate speaker wire

Running wire is where most of the physical labor in how to install ceiling speakers actually happens. A clean wire pull protects signal quality, speeds up termination, and makes future service calls far less painful for whoever opens that ceiling next. Work from your amplifier location outward to each speaker cutout, pulling one run at a time and keeping tension steady to prevent kinks in the cable jacket.

Pull wire cleanly and avoid common routing mistakes

Use a fish tape or flexible rod kit to guide your wire through wall cavities and across ceiling spans without forcing the cable through tight bends. Speaker wire has a relatively flexible jacket, but sharp bends around corners or over joists compress the conductor and can introduce resistance that affects your signal over long runs. Keep every bend gradual, and secure the cable at regular intervals using low-voltage J-hooks or cable staples rated for your wire gauge. Space fasteners no more than 4 feet apart in open ceiling runs.

Never bundle speaker wire alongside AC power cables or data runs for more than a few feet; even low-voltage signal wire picks up interference from parallel power conductors at close proximity.

Leave 18 to 24 inches of extra wire hanging from each speaker cutout after you complete the pull. That slack gives you enough length to reach down through the opening comfortably during termination without straining the connection points or pulling the run tight against the ceiling deck above.

Label every run at both ends

Labeling sounds obvious, but it’s the step most crews skip when the job is moving fast. Wrap a piece of labeling tape around each wire within 6 inches of the cutout and write the zone and speaker position in permanent marker using a consistent format. A simple convention like the one below keeps your system organized across any size project:

Zone-Position format:
[Zone abbreviation]-[Speaker number]

Examples:
LBY-1   (Lobby, speaker 1)
CNF2-3  (Conference room 2, speaker 3)
RR-2    (Rear right, speaker 2)

Apply the same label at the amplifier end of every run before you land any terminations. Matching labels at both ends cut your troubleshooting time to minutes instead of hours when you’re chasing a wiring issue after the ceiling tiles go back up.

Strip and terminate speaker wire correctly

Strip back 3/4 inch of jacket from each conductor using a wire stripper set to your wire gauge, typically 14 or 16 AWG for most ceiling speaker applications. Avoid nicking the conductor strands; a nicked conductor loses surface area at the connection point and weakens over time. Twist the exposed strands clockwise before inserting them into binding posts or spring clips to keep the bundle tight and prevent stray wire whiskers from shorting across the terminal gap.

Confirm polarity on every single connection before you close up the speaker. The positive terminal on your speaker, usually marked with a red indicator or a plus sign, must connect to the positive conductor on your wire run, which is typically the marked or ribbed side of standard zip cord. A reversed polarity connection on even one speaker in a stereo or surround zone causes phase cancellation that sounds like thin, hollow audio at the listening position.

Step 6. Mount speakers, connect gear, and test audio

This final step in how to install ceiling speakers is where all the prep work pays off. Feed your pre-labeled wire down through the cutout, confirm the conductors are correctly stripped and twisted, then connect positive to positive and negative to negative at the speaker’s terminal. Before you push the speaker body into the opening, give the wire a firm tug to make sure the run above has enough slack and won’t pull tight against the terminal block once the speaker seats fully.

Seat the speaker and secure the mounting bracket

Push the speaker body into the cutout at a slight angle, get one side of the frame flush against the ceiling, then straighten it so the full trim ring sits flat. Most ceiling speakers use dog-leg or cam-style mounting dogs that rotate outward when you tighten the mounting screws. Turn each screw evenly in a star pattern rather than fully tightening one side before the other, so the clamping force distributes evenly across all the mounting points. Uneven clamping warps the trim ring and leaves visible gaps against the ceiling surface.

Hand-tighten the mounting screws until the speaker is snug against the drywall, then give each screw a quarter-turn more; overtightening crushes the drywall paper and reduces grip.

Connect to the amplifier and power on

At the amplifier end, land each wire run on the correct output channel using the labels you applied during the pull. Double-check that no stray conductor strands are crossing adjacent terminals before you power the unit on. If your amplifier has a protection relay, it will engage for a few seconds after power-up before audio passes through, so wait at least 10 seconds before assuming a channel is dead.

Run a signal test and confirm polarity

Use a test tone generator or a known mono audio source to send signal to each speaker individually. A simple smartphone connected to the amplifier’s auxiliary input works fine for a basic sweep. Listen for clean, distortion-free output across the full frequency range at moderate volume, then check polarity by playing a mono signal through both speakers in a stereo pair simultaneously. In-phase speakers produce a focused, centered sound image directly between the two units; out-of-phase speakers produce a diffuse, hollow sound with no clear center. Reverse the two conductors at one speaker terminal if you hear the out-of-phase result. Run through this verification checklist before calling the system complete:

• Each speaker produces clean audio at low and moderate volume
• No buzzing, rattling, or crackling from loose mounting
• Stereo or surround pairs are confirmed in phase
• All trim rings sit flush with no visible gaps
• Wire labels match your as-built documentation

Wrap up and next steps

Following each step in this guide gives you a repeatable process for how to install ceiling speakers cleanly and correctly, from mapping speaker positions and confirming cable ratings to seating the drivers and verifying polarity before you close out the job. The details that separate a professional result from a callback are mostly in the prep: right wire gauge, correct plenum rating, clean cuts, and labeled runs at both ends.

Most ceiling speaker problems trace back to one skipped step early in the process, so use this guide as a field checklist on your next project, not just a one-time read. If your project scope, timeline, or crew availability makes it hard to staff the installation side, that’s where MegaServices can help. We deploy vetted AV technicians across the U.S. and Canada, often within 24 to 48 hours. Submit an information request and tell us what you need.
