How To Install Digital Signage: Hardware, Mounting & Setup

Digital signage is everywhere, retail stores, corporate lobbies, restaurants, hospitals, university campuses. But between the sleek screens you see on the wall and the content playing on them, there’s a real installation process that can go sideways fast if you skip steps. Knowing how to install digital signage the right way means understanding the hardware, the mounting requirements, the network configuration, and the software that ties it all together. Get any one of those wrong, and you’re looking at service calls, downtime, or worse, a screen that falls off the wall.

At MegaServices, we’ve supported AV integrators and project managers with certified technicians for digital signage installations across the U.S. and Canada since 2007. We’ve seen what works, what doesn’t, and where most teams run into trouble. That hands-on experience across thousands of deployment sites is baked into this guide.

Below, we’ll walk you through every phase of a digital signage installation, from choosing the right display hardware and mounting method to configuring your CMS and running a final system check. Whether you’re handling a single-location install or rolling out signage nationally, this guide gives you a clear, step-by-step process to get it done right the first time.

What you need before you start

Before you touch a wall or unbox a screen, you need a complete picture of what you’re working with. Jumping into an install without the right gear or confirmed site information leads to extra trips, wasted labor hours, and real safety risks. Pull together the hardware, credentials, and site details listed below before the install date so nothing stops your team mid-job.

Display hardware checklist

Your display selection drives almost every other decision in the installation. Commercial-grade displays are built for extended operation, typically rated for 16 to 24 hours of daily use, and carry better warranty terms than consumer TVs. For most applications, look for a display with built-in LAN control, multiple HDMI ports, and a brightness rating matched to the ambient light in the target environment.

Always choose commercial displays over consumer TVs for signage running more than eight hours daily. Consumer panels are not rated for that duty cycle and will degrade or fail ahead of schedule.

Confirm these specifications before the display ships to the site:

• Screen size and aspect ratio suited to the viewing distance (rule of thumb: 1 inch of diagonal per 10 inches of viewing distance)
• VESA mounting pattern (200×200, 400×400, or 600×400) matched to your wall mount bracket
• Brightness rating (300 to 700 nits for standard indoor use; 1,000+ nits for window-facing or high-ambient-light areas)
• Input compatibility with your media player (HDMI 2.0, DisplayPort, or USB-C)

Media player and CMS access

Your media player is the brain of the entire system. It connects to the display, runs your signage software, and pulls content from your content management system. Hardware players like BrightSign devices or Chrome OS boxes work well for dedicated deployments, while a mini PC gives you more flexibility. Before arriving on site, make sure your CMS login credentials are confirmed and your player firmware is fully updated so you don’t run into pairing or connectivity issues on the day.

Tools, credentials, and site details

Learning how to install digital signage properly means showing up with the right physical tools and verified location data. Bring a stud finder, laser level, cable tester, appropriate wall anchors, and conduit for clean cable management. You also need confirmed site details covering wall material, ceiling height, power outlet proximity, and network infrastructure.

Use this quick reference before every install:

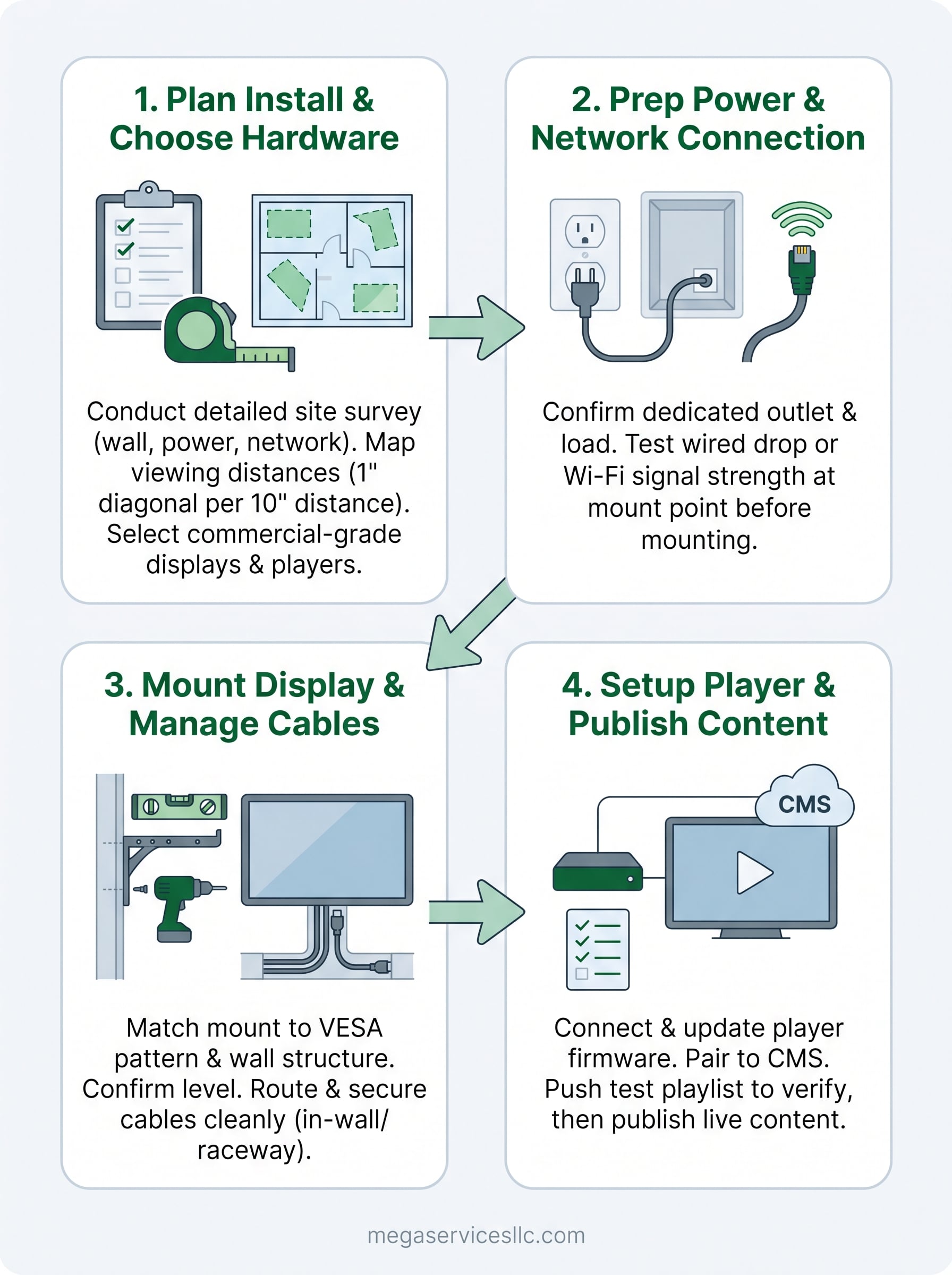

Step 1. Plan the install and choose your hardware

Every successful digital signage install starts with a site walk or detailed remote survey before you order a single piece of hardware. Skipping this step is the most common reason installs run over time and budget. Confirm the exact wall location, ceiling height, power access, and whether the site has an existing network drop or requires a wireless connection. You need this information documented before you can finalize your hardware list.

Map your content zones and viewing distances

Before you lock in display sizes, map out where viewers will stand relative to each screen. A common field formula is one inch of diagonal screen size per 10 feet of viewing distance for standard HD content. For a lobby where viewers stand 15 feet away, that puts your minimum display size at around 65 inches. Sketch a simple floor plan with screen positions, cable run paths, and power outlet locations so your install team has a clear picture of the job scope.

Document every cable run path before the install day. Discovering an unexpected concrete wall or an inaccessible ceiling on site will cost you more time than the survey would have.

Choose hardware that fits the use case

Understanding how to install digital signage correctly means selecting hardware matched to the environment, not just the budget. Indoor lobbies with controlled lighting work well with a 400-nit commercial display paired with a dedicated hardware media player. High-ambient-light areas like window-facing storefronts need displays rated at 1,000 nits or higher. Write out a simple spec sheet for each location before ordering so you don’t end up with mismatched equipment on install day.

Step 2. Prep power and network before you mount

Mounting a display before confirming power and network access is a step that catches even experienced teams off guard. When you learn how to install digital signage properly, you treat power and connectivity as prerequisites, not afterthoughts. Skipping these checks forces you to pull a mounted screen back off the wall, which costs extra labor time and risks damaging both the display and the mounting surface.

Confirm power outlet placement and circuit load

Your display and media player need dedicated, accessible power close to the mount point. Measure the distance from the planned mount center to the nearest outlet. If that gap exceeds a few feet, use an in-wall power extension kit or bring in an electrician to add a recessed outlet behind the screen. Confirm the circuit can handle the combined wattage of your display, media player, and any other connected hardware before the day of the install.

Never run a power strip behind a mounted screen without confirming it meets local electrical code requirements. A proper recessed outlet keeps the install clean and compliant.

• Verify the outlet is on a dedicated circuit where possible
• Use a recessed in-wall power kit to hide cords
• Keep total wattage draw under 80% of the circuit capacity

Set up your network connection before the screen goes up

A wired Ethernet connection is always more reliable than Wi-Fi for signage systems that pull content updates on a schedule. Locate the nearest network drop and test it with a cable tester before the display goes on the wall. For wireless installs, verify the SSID, password, and signal strength at the exact mount location using a phone or laptop first. Weak signal at the mount point causes dropped content and failed updates after the screen is already in place.

Step 3. Mount the display and manage cables cleanly

With power confirmed and your network connection tested, you’re ready to put the display on the wall. Rushing this phase is where teams cause the most damage, both to the wall and the equipment. Follow a deliberate sequence: locate studs or anchor points first, install the bracket, verify it’s level, then hang the display with a second person helping to lift.

Choose the right mount for the location

Your mounting bracket must match two specs exactly: the display’s VESA pattern and the wall’s structural capacity. A full-motion arm gives you tilt and swivel flexibility but requires solid stud or anchor support rated well above the display weight. Fixed and tilt mounts work well for permanent installations where the viewing angle is set during planning. Never rely on drywall anchors alone for a commercial display; always drive lag bolts into studs or use a properly rated toggle bolt system for concrete or masonry walls.

Use a laser level to confirm the bracket is perfectly horizontal before you tighten the final bolts. A crooked mount is very difficult to correct once the display is hanging.

Run and secure your cables

Learning how to install digital signage the right way means treating cable management as part of the finished product, not an afterthought. Route HDMI, power, and data cables through the wall or inside cable raceways before the display goes onto the bracket. Use velcro cable ties at consistent intervals to bundle runs that must stay exposed, and keep power cables separated from HDMI runs by at least a few inches to reduce signal interference.

• Use in-wall conduit for new construction or accessible wall cavities
• Use surface-mounted raceways for retrofit installs where in-wall routing is not possible
• Label each cable at both ends before the display covers access to the connection points

Step 4. Set up the player, software, and go live

With the display mounted and cables secured, the final phase is connecting your media player, configuring your content management system (CMS), and confirming that content plays correctly before you close out the job. This is where knowing how to install digital signage pays off, because a clean physical install means nothing if the software isn’t configured correctly and your content fails to load on schedule.

Connect and configure the media player

Power on the media player and connect it to the display via HDMI before touching any software settings. Once the signal appears on screen, connect the player to your network using the wired Ethernet connection you tested in Step 2, or enter your Wi-Fi credentials if the install requires wireless. Update the player firmware immediately through the device settings menu before pairing it to your CMS account. Outdated firmware is a common cause of sync failures and content gaps after go-live.

Use this quick-start configuration checklist before publishing content:

• Confirm the player is connected to the correct network
• Set the correct time zone on the device
• Pair the player to your CMS using the device registration code
• Assign the player to the correct display group or location in the CMS dashboard

Publish your first content and verify playback

Log into your CMS platform and push a test playlist to the registered player. Watch the screen cycle through at least one full loop to confirm timing, resolution, and audio levels are correct. Check that scheduled content rules are working by setting a test start and end time, then confirming the display transitions properly. Once the test passes, publish your live content, document the player ID and CMS login in your handoff notes, and sign off the installation.

Always leave your client with written documentation covering the player ID, CMS login, network details, and steps to restart the system if a reboot is needed.

Wrap-up

Knowing how to install digital signage correctly comes down to following the right sequence: survey the site before you order hardware, confirm power and network before you mount anything, manage cables as part of the finished install, and verify software and content before you hand off the job. Each step builds on the last, and skipping any one of them creates problems that are harder and more expensive to fix after the display is on the wall.
