How To Install Fiber Optic Cable: Planning, Pulling, Test

Fiber optic cable carries data at the speed of light, but a bad installation can bring that speed to a dead stop. Knowing how to install fiber optic cable correctly, from route planning through final testing, is what separates a reliable network from an expensive headache. Whether you’re running fiber through a commercial building, a campus, or a data center, the margin for error is slim, and the stakes are high.

At MegaServices, we’ve deployed certified low voltage and structured cabling technicians across the U.S. and Canada since 2007, supporting AV integrators and project managers who need skilled hands on-site for exactly this kind of work. We’ve seen what goes right and what goes wrong when fiber gets pulled, terminated, and tested in the field, and that real-world experience shapes everything in this guide.

Below, you’ll find a practical, step-by-step breakdown covering route planning, conduit preparation, cable pulling techniques, termination, and testing. The goal is straightforward: give you the knowledge to execute a clean fiber install or confidently manage the crew doing it. Let’s get into it.

Before you start: scope, tools, and safety

Before you touch a single cable, take time to assess the full scope of your project. Knowing how to install fiber optic cable successfully depends on what you know before you start pulling, not after. You need to understand the total cable run distance, the number of termination points, and whether the fiber will travel through existing conduit or entirely new pathways.

Scope and site survey

Walk the entire route before ordering materials. Measure every segment of the run, and account for bends, vertical drops, and any fire-rated wall penetrations that require listed fittings. A thorough site survey prevents costly re-orders and the kind of delays that push a two-day job into a week-long problem.

Accurate route measurements, taken before ordering, are the single most effective way to keep a fiber project on schedule and on budget.

Tools and materials checklist

Having the right tools on hand before day one keeps the job moving and prevents mid-install supply runs. Below is a standard checklist for most fiber installs:

• Fiber optic cable matched to application (single-mode or multimode)
• Cable pulling lubricant
• Fish tape or pull string
• Conduit, fittings, and hangers
• Fiber cleaver and jacket stripping tool
• Fusion splicer or mechanical splice kit
• Patch panels and appropriate connectors
• OTDR (Optical Time Domain Reflectometer) for testing

Double-check every item against your project specs before the crew arrives. Missing a fiber cleaver or pull lubricant on day one can cost you hours.

Safety basics

Fiber glass strands are invisible and sharp, and they embed in skin or eyes without warning. Always wear safety glasses when cleaving or stripping, and dispose of fiber scraps in a sealed container rather than leaving them on the floor. Never look directly into a live fiber connector; even a low-power single-mode strand can cause permanent eye damage.

Step 1. Choose cable type and map the route

The first real decision in learning how to install fiber optic cable is picking the right cable for your application. Getting this wrong means pulling cable that doesn’t meet your bandwidth or distance requirements, and that’s an expensive mistake to undo.

Pick the right cable type

Two cable types cover most installations: single-mode (OS2) and multimode (OM3/OM4). Single-mode carries signal over longer distances, typically beyond 300 meters, and suits campus or inter-building runs. Multimode works well for shorter runs inside a single building and costs less per foot.

Map your route

Once you’ve selected the cable, sketch a detailed route diagram that includes every bend, transition point, and penetration. Mark the exact distances between each termination point, and note any areas where the cable crosses high-voltage conduit, which requires physical separation. A clear route map also helps your crew pull efficiently without guessing.

A route diagram reviewed on-site before pulling prevents the majority of mid-job surprises that stall a project.

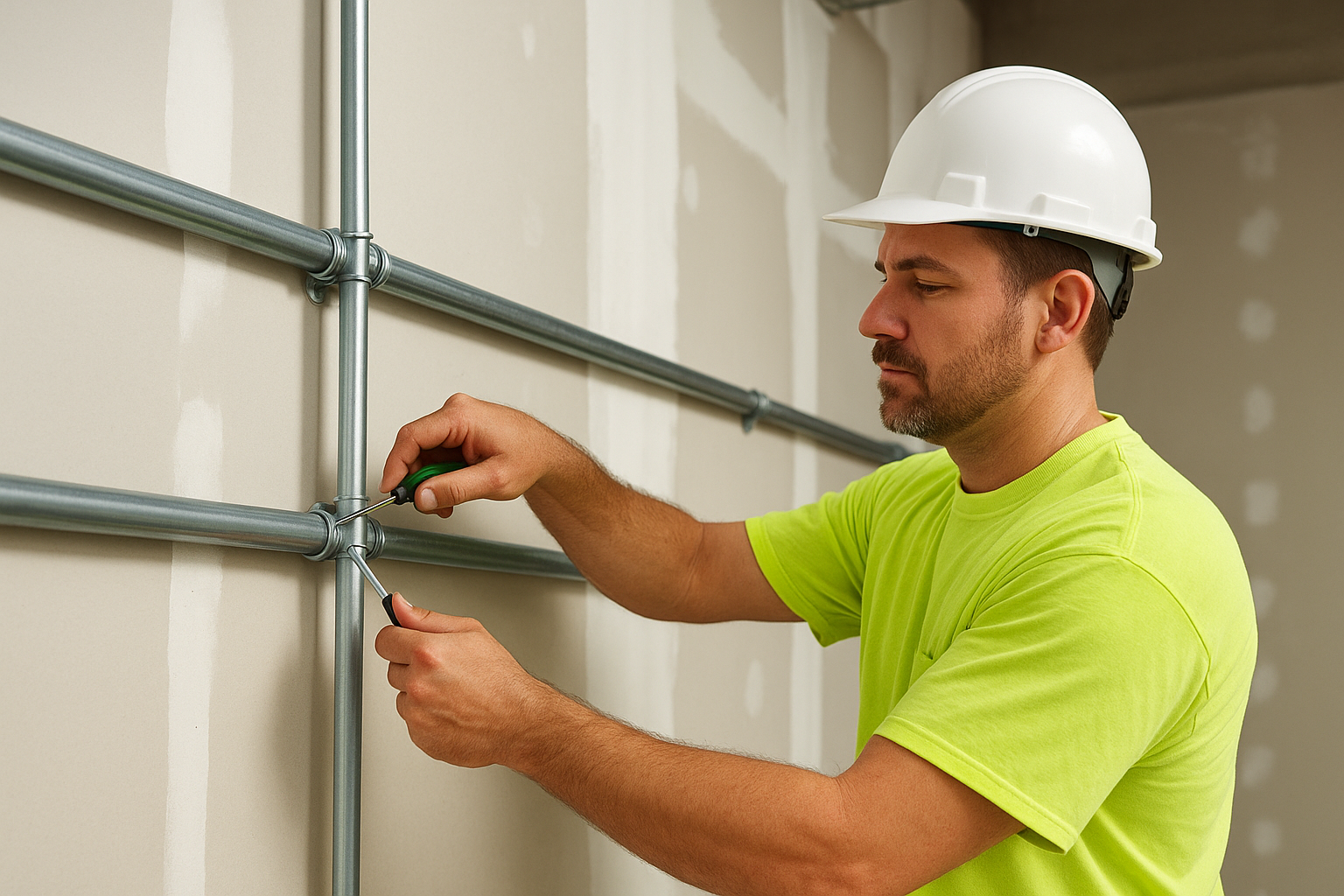

Step 2. Build the pathway with conduit and supports

With your route mapped out, the next task in learning how to install fiber optic cable correctly is building a clean, protected pathway before any cable gets pulled. Skipping this step or rushing it leads to damaged jacket, crushed strands, and failed test results that force you to redo the entire run.

Select and size your conduit

EMT conduit works well for exposed runs in commercial spaces, while innerduct or ENT handles concealed runs inside walls or above ceilings. Size the conduit so fiber fills no more than 40% of the interior cross-section. That fill ratio preserves enough room for smooth cable movement during the pull and protects the fiber from excessive friction.

Oversizing conduit by one trade size costs very little upfront and prevents pull-force problems that damage the cable.

Secure the pathway properly

Mount conduit supports every 5 to 10 feet along horizontal runs and secure vertical drops at each floor penetration. Use cable hangers designed for fiber rather than standard metal staples, which can crimp the jacket under even moderate pressure. Seal every fire-rated wall penetration with listed firestop material before moving forward. A secure, properly supported pathway protects your investment in the cable itself.

Step 3. Pull the fiber without damage

Pulling fiber is the most physically demanding part of learning how to install fiber optic cable, and it’s where most damage happens. Fiber has a maximum tensile load rating, usually between 100 and 600 Newtons depending on the cable type, and exceeding that rating during the pull permanently damages the glass strands inside, even if the jacket looks completely fine from the outside.

Control tension and bend radius

Apply cable pulling lubricant generously before the pull starts, and reapply at every conduit entry point. Use a tension-rated pulling grip attached to the cable’s strength members, never to the jacket itself, which can stretch and deform under load. Check the manufacturer’s data sheet for your specific cable’s maximum pull tension before the crew begins.

Never exceed the manufacturer’s minimum bend radius during the pull; a bend too tight causes microfractures that only appear during final testing.

Pull in stages for long runs

For runs longer than 100 feet, break the pull into multiple segments using pull boxes or intermediate access points. Have one person feed the cable from the reel while another guides it into the conduit to prevent kinks and tangles. Keep the reel on a stand so it rotates freely and the cable pays off without twisting, preserving the integrity of the strand throughout the entire run.

Step 4. Terminate, splice, and connect to equipment

Termination is where learning how to install fiber optic cable shifts from physical labor to precision work. Every strand must be stripped, cleaved, and connected cleanly before the network carries a single packet. Rushing this step introduces signal loss that no amount of cable re-pulling can fix.

Clean and cleave each strand

Strip the outer jacket and buffer coating carefully using a fiber stripping tool, exposing roughly 30mm of bare glass. Wipe the exposed strand with an isopropyl alcohol-soaked wipe before cleaving, and cleave at a 90-degree angle using a calibrated cleaver. A bad cleave is the most common cause of high insertion loss readings during final testing.

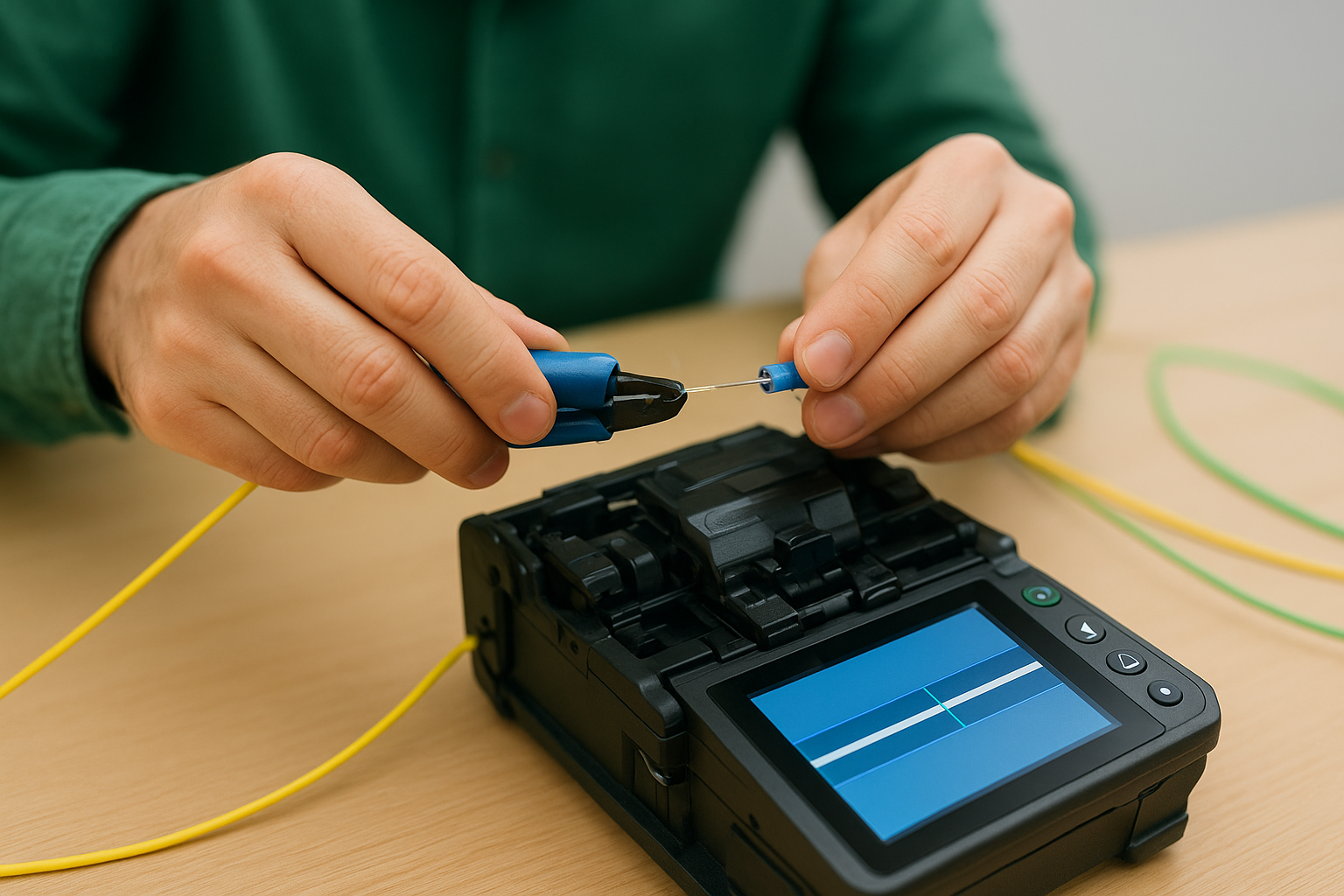

Splice or connectorize

Your two options are fusion splicing and field-installable connectors. Fusion splicing uses heat to permanently join two fiber ends and delivers the lowest insertion loss, typically under 0.1 dB. Field connectors work faster but produce slightly higher loss values.

Always verify splice loss on your fusion splicer’s screen before closing the splice tray.

Connect to equipment

Seat each connector into the patch panel or active equipment port until the latch clicks. Label every port on both ends using a consistent numbering scheme so your test results map directly to physical locations.

Wrap up and next steps

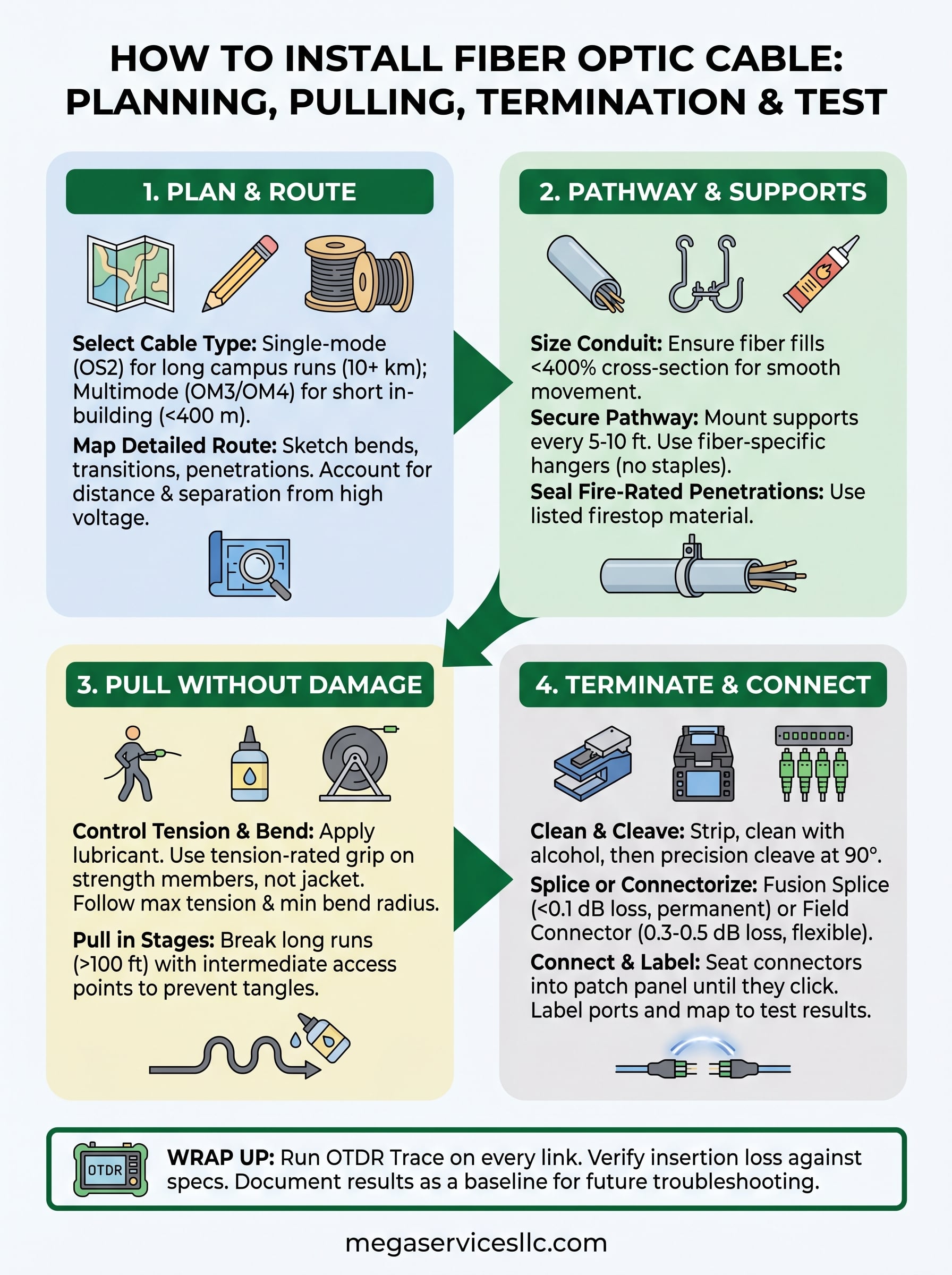

Knowing how to install fiber optic cable correctly comes down to four core steps: choosing the right cable type, building a protected conduit pathway, pulling without exceeding tension limits, and terminating each strand with precision. Each step depends on the one before it. A clean route map sets up a smooth pull, and a smooth pull sets up a clean termination. Miss one step and your OTDR will show you exactly where things went wrong.

Testing is your final confirmation. Run an OTDR trace on every run, verify insertion loss against manufacturer specs, and document your results before closing any cable tray or patch panel. Those test records become your baseline for every future troubleshooting call on that network.
