How to Install IP Cameras: Wiring, NVR & Network Setup

Most botched IP camera installs fail for the same three reasons: bad cable runs, mismatched PoE budgets, and network configs nobody documented. If you’re figuring out how to install ip cameras for a retail location, corporate office, or multi-site rollout, you need a process that holds up under inspection, not just a camera that powers on and streams for a week before dropping offline.

This guide walks through the physical and network side of the job: running and terminating Cat6 to each camera location, sizing your PoE switch correctly so you don’t starve devices down the line, and connecting everything to an NVR with the right channel licensing and storage plan. You’ll also get the network setup steps that separate a stable install from a call-back, including IP addressing, VLANs, and remote access configuration.

We put this together from field experience across hundreds of AV and low-voltage jobs, the kind of structured cabling and system commissioning work our certified technicians handle daily for integrators who can’t afford a failed walkthrough. Whether you’re a field tech doing your first install or a project manager reviewing scope before a bid, you’ll walk away with a repeatable checklist you can hand to any crew.

Before you begin: tools, cabling and network prep

Grab the right gear before you climb a single ladder. Missing tools mid-run cost more time than any other rookie mistake on a camera job, and running back to the truck three times a day kills your schedule. Here’s the baseline kit for a standard IP camera install:

• Cable tester and toner (Fluke or equivalent) to certify every run before termination
• Cat6 or Cat6A cable, rated for the run length and environment (plenum-rated for drop ceilings)
• RJ45 connectors and a quality crimper, or keystone jacks and a punch-down tool if you’re terminating to a patch panel
• PoE switch sized to your camera count and power draw (more on this in Step 3)
• NVR with enough channel licenses and storage for your camera count and retention requirements
• Fish tape, cable pulling lubricant, and a stud finder for wall and ceiling penetrations
• Label maker or wire markers, because unlabeled cable runs turn every future service call into a scavenger hunt

Network prep matters just as much as the physical kit. Decide on your IP addressing scheme before you touch a single camera. Most installers put cameras on a dedicated VLAN, separate from office or POS traffic, using a static range like 192.168.10.x with the NVR at a fixed address everyone can find without guessing.

A clean install starts on paper, not on a ladder.

Registration also belongs on this list. If the site needs remote viewing, set up port forwarding or a cloud relay account now, not after the client calls asking why they can’t check cameras from their phone. Confirm switch capacity too. A cheap 8-port PoE switch won’t power eight 4K cameras drawing 12 watts each; check the total wattage against the switch’s PoE budget listed in its datasheet before you commit to hardware.

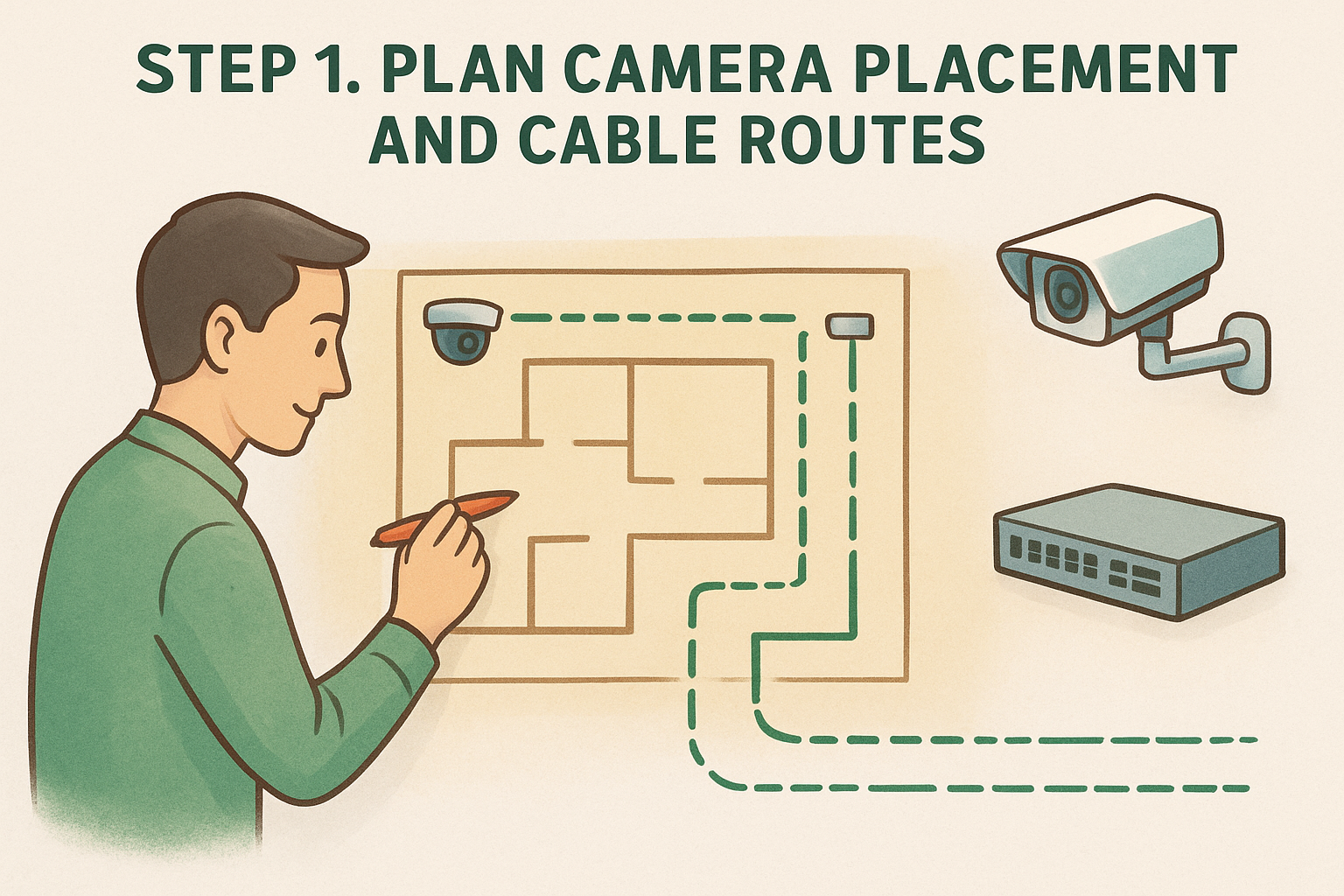

Step 1. Plan camera placement and cable routes

Walk the site before you order a single foot of cable. Camera placement drives everything else in this job, so mark every mounting point on a floor plan and note the ceiling height, mounting surface, and field of view for each one. Entry points, cash wraps, loading docks, and parking lot corners usually top the priority list for retail and corporate sites.

Next, measure your cable runs from each camera location back to the telecom closet or PoE switch. Cat6 has a hard limit of 328 feet (100 meters) for reliable PoE and data transmission, per the TIA/EIA-568 standard. Runs pushing that limit need a PoE extender or a closer switch location, not a hopeful shrug.

If a run is close to 328 feet on paper, it’ll fail on site. Plan for no more than 300 feet of cabling (not including patch cables).

Sketch your routes through accessible pathways: above drop ceilings, inside conduit, or along cable trays. Avoid running parallel to electrical conduit, which causes interference on unshielded cable. Document every route on your floor plan with distances, so the crew running cable later isn’t guessing at ceiling tiles.

Step 2. Run and terminate the cabling

Pull cable before you mount a single camera. Running cable first lets you test every path for continuity issues before you’re standing on a ladder with a camera in one hand. Use your fish tape to pull Cat6 through conduit or ceiling space, leaving a service loop of 12 to 18 inches at both ends so you have slack for termination mistakes or future re-punches.

Terminate to T568B wiring standard on both ends, whether you’re crimping RJ45 plugs directly or punching down to keystone jacks and a patch panel. Consistency matters more than which standard you pick, since mixing A and B on the same run causes crossed pairs and dropped links.

A cable that isn’t tested is a cable that isn’t installed.

Test every run with your cable tester before you close up walls or ceilings. Check for continuity, wire map accuracy, and length. A failed test now costs five minutes; a failed test after drywall goes up costs a return trip. Label both ends of every cable with the camera number and location, matching your floor plan documentation from Step 1.

Step 3. Mount the cameras and connect power via PoE

Secure the camera bracket first, then plug in the cable, not the other way around. Mounting hardware matters here, so use the anchors rated for the surface, drywall anchors for interior walls, concrete screws for exterior soffits, and always add a drip loop on outdoor runs so water travels away from the connector instead of into it.

Connect each camera’s Cat6 to a PoE port on the switch and confirm the switch registers the device with a link light and PoE indicator. Total up the wattage draw across every connected camera and compare it against the switch’s rated PoE budget from the datasheet you checked in the prep step.

A switch that’s out of PoE budget doesn’t fail loudly, it just starves the last few cameras.

Cameras on the far end of an overloaded switch will reboot randomly or lose IR performance at night, and that failure mode looks like a bad camera when it’s really a bad power budget. Aim the lens, adjust the focus ring if the camera has one, and snap a quick photo of the field of view for your closeout documentation before moving to the next unit.

Step 4. Configure the network, NVR and camera settings

Power up each camera and log into its web interface using the default IP printed on the label or box. Assign each camera a static IP inside the VLAN range you planned in the prep step, then change the default admin password immediately. Skipping this step is how cameras end up botnet-recruited within days of going live.

Add cameras to the NVR

Log into the NVR and add each camera by its static IP, matching the channel to your floor plan numbering so channel 1 is always the front entrance, not whatever order you happened to plug things in.

• Confirm each stream resolution and frame rate against your storage plan
• Set motion detection zones to cut down false recordings
• Verify retention days match the client’s contract requirement

If the channel numbers don’t match your floor plan, every future service call starts with confusion.

Lock down remote access

Enable remote viewing through the manufacturer’s cloud service or a VPN, never by opening ports directly to the NVR’s web interface. Direct port forwarding on an NVR is one of the most common ways these systems get compromised, and it’s avoidable with five extra minutes of setup.

Step 5. Mount the cameras and connect power via PoE

Secure the camera bracket first, then plug in the cable, not the other way around. Mounting hardware matters here, so use the anchors rated for the surface, drywall anchors for interior walls, concrete screws for exterior soffits, and always add a drip loop on outdoor runs so water travels away from the connector instead of into it.

Connect each camera’s Cat6 to a PoE port on the switch and confirm the switch registers the device with a link light and PoE indicator. Total up the wattage draw across every connected camera and compare it against the switch’s rated PoE budget from the datasheet you checked in the prep step.

A switch that’s out of PoE budget doesn’t fail loudly, it just starves the last few cameras.

Cameras on the far end of an overloaded switch will reboot randomly or lose IR performance at night, and that failure mode looks like a bad camera when it’s really a bad power budget. Aim the lens, adjust the focus ring if the camera has one, and snap a quick photo of the field of view for your closeout documentation before moving to the next unit.

Keeping your IP camera system running smoothly

A properly installed IP camera system doesn’t need much attention once it’s live, but it needs the right foundation from day one. Clean cable runs, a properly sized PoE switch, and documented network settings are what separate a system that runs quiet for five years from one that generates monthly service calls. Skip a step in this process, and you’ll be back on that ladder within a month, chasing a problem that a service loop or a labeled cable would have prevented.
