How to Measure Room Acoustics: A Step-by-Step Guide

If a conference room sounds muddy on video calls or a home studio never quite sounds right, the room may be contributing as much as the gear. Learning how to measure room acoustics gives you a repeatable baseline and can help identify reflections, room modes, or excessive decay before you make treatment decisions.

This guide covers the measurement tools you need, including Room EQ Wizard, where to place your microphone and speakers, and how to read the resulting graphs. Use the process to document a baseline measurement before you buy acoustic treatment, then re-measure after changes.

Whether you are treating a home studio or checking a corporate conference room, the same acoustic measurement steps can help reduce trial and error. Consistent setup and clear notes make the results easier to compare over time.

Why measuring your room’s acoustics matters

A room can look finished on paper, with well-installed AV equipment and tuned DSP, yet still sound unclear on a call. Room acoustics are not visible, so measurements help turn listening impressions into repeatable information. Measuring before treatment can help identify parallel-wall reflections, room modes, or excessive decay instead of treating the wrong area first.

The hidden cost of guessing

Guessing at acoustic problems can use time and budget without addressing the cause. Foam panels placed from a hunch may not address low-frequency issues, while bass buildup in corners, flutter echo between hard parallel surfaces, and long reverberant tails each need different checks. Measurements help you distinguish among these issues and prioritize treatment.

Measure before treating so decisions start from a repeatable baseline.

What a proper acoustic measurement reveals

A measurement session can show patterns that are hard to judge by ear alone. Instead of relying only on impressions such as “it echoes” or “the bass is boomy,” use repeated measurements to compare frequency response, decay, and reflections. Here are common signs to investigate:

What a proper acoustic measurement reveals

ProblemWhat it sounds likeWhat measurement can show
Excess reverberationMuddy speech, words blending togetherDecay that is high for the room’s size and intended use
Bass buildupBoomy, uneven low end at certain seating spotsPersistent low-frequency peaks or slow decay across repeat measurements
Flutter echoMetallic “zing” after claps or sharp soundsRepeating reflections in the impulse response or other time-domain checks
Early reflectionsComb filtering, hollow or phasey vocal toneResponse changes paired with reflection timing in the impulse response

Why this matters more for AV and VTC rooms

For commercial spaces, acoustics support speech intelligibility in video conferencing setups. Poor room acoustics can undermine otherwise capable microphones and processing. Measurements taken before commissioning, or during a service call about audio quality, provide a baseline for finding issues and evaluating changes.

Before-and-after measurements can make results easier to discuss with clients by documenting how the room changed after treatment.

Step 1. Gather the right measurement tools

You do not need a professional acoustics lab to collect useful data. The goal is repeatability, so assemble the right measurement tools, use them consistently, and document the setup before changing settings.

The software: Room EQ Wizard

Room EQ Wizard (REW) is a useful free option for room measurements. It can generate and analyze sweep measurements, including frequency response, impulse-response, RT60, and waterfall views. It runs on Windows, Mac, and Linux.

A calibrated measurement microphone and its individual calibration file are important for measurements you can compare with confidence.

The hardware checklist

Beyond the software, use a short, practical hardware setup that supports consistent measurements.

ItemWhy you need itNotes
Calibrated measurement microphone (e.g., UMIK-1)Provides a known response for more reliable readingsLoad the microphone’s individual calibration file.
USB audio interface (if not using a USB mic)Provides the input path from mic to laptopSet gain and routing according to the interface and REW setup.
Full-range powered speaker or the room’s installed systemProvides the sweep sourceMeasure through the system listeners will normally use.
Mic stand or tripodKeeps microphone height and position repeatableRecord the position before moving it.
Laptop with REW installedRuns sweeps and processes resultsConfirm the selected input and output before each session.
Tape measureDocuments mic and speaker positions for repeat testsRecord height and relevant distances in your notes.

Follow the microphone manufacturer’s orientation and calibration-file guidance. For a UMIK-1, use the 0-degree file when the microphone points toward the source and the 90-degree file when it points upward for sound arriving from multiple directions.

Skip the smartphone apps

Phone-based sound level meter apps can be useful for rough checks, such as comparing noise levels or confirming that a system is active. Because an uncalibrated phone microphone may not be accurate across the frequency range, do not use phone data as the sole basis for treatment decisions. A calibrated measurement microphone provides a more dependable baseline.

Step 2. Position your microphone and speakers

Getting microphone placement right helps your data reflect the room and system in normal use. Start with the primary listening or seating position, then take additional representative measurements as needed. Document every position so results remain repeatable.

Start at the main listening position

Place your measurement microphone where a listener’s ears would be, such as the mix position in a studio or a primary seat at a conference table. Mount it at the relevant ear height and follow the microphone manufacturer’s orientation guidance. Use the system in its normal operating location. This first sweep becomes your baseline measurement, so document the exact height and position before moving anything.

Your primary-position sweep is the reference for later comparisons, so make the setup repeatable before taking another reading.

Add secondary positions

After the primary sweep, measure additional representative positions to see whether a pattern persists across the room:

  • Other seats: compare locations that listeners regularly use.
  • Areas near boundaries: check positions where low-frequency response may differ.
  • Other room zones: compare locations where reflections or decay may be more apparent.

Speaker setup matters just as much

Use the speaker system the room will normally use, whether that is studio monitors or the installed conferencing system. Keep the speakers in their normal operating locations and document their placement, aiming, routing, and level. Consistent setup makes before-and-after measurements easier to compare.

Step 3. Run a sine sweep in Room EQ Wizard

With your microphone calibrated and positioned, it is time to generate data. A sine sweep sends a tone through the system, and the measurement microphone captures how the room shapes that signal. The sweep provides the data behind the graphs you will analyze in the next step.

Configure REW before your first sweep

Open Room EQ Wizard and confirm the audio devices before running a measurement. Set the sweep range and playback level for the system you are measuring, follow REW’s level checks, and use a safe level that is above ambient noise. Avoid input or output clipping. Check these settings first:

  • Soundcard tab: select your USB interface or calibrated mic as the input, and the system being measured as the output.
  • Mic/meter calibration: load the individual calibration file for your UMIK-1 or equivalent microphone.
  • Sweep range and length: choose settings appropriate for the system and the frequencies you need to assess.
  • Level check: follow REW’s guidance, using enough level to clear ambient noise without clipping the output or input.

Use a safe, repeatable level and confirm that neither the input nor output is clipping before you rely on a sweep.

Run the sweep and check for clipping

Start the measurement in REW and let the sweep play without interruption. Keep the room quiet during the test because nearby movement or noise can affect the result. Watch REW’s level indicators. If input or output clipping occurs, adjust the system level or microphone gain and repeat the measurement. REW will display the resulting impulse response after the sweep, which you can use with the other views to assess the result.

Save and label every measurement

Before moving your microphone to the next position, save the measurement with a clear label such as “Main Position: Pre-Treatment.” Keep the calibration file loaded and repeat the same process at each documented position so you can compare measurements side by side.

Step 4. Read your frequency response and RT60 data

Once your sweeps are saved, switch to REW’s graph views and compare what the room is doing across positions. This is where acoustic measurement steps help turn listening impressions into evidence for treatment decisions.

Reading the frequency response graph

Look for persistent, meaningful peaks, nulls, and decay issues across measurements rather than chasing a perfectly flat trace. Minor variations are normal. Compare the primary and representative positions to identify patterns that repeat, then use the response together with time-domain views to investigate their likely cause.

A useful graph is one that reveals repeatable patterns you can test and re-measure after treatment.

Reading RT60 and the waterfall plot

RT60 depends on room volume and intended use. In smaller rooms, especially at low frequencies, RT60 can be less meaningful. Use waterfall, spectrogram, or decay views to assess low-frequency decay. As a qualified starting point, around 0.3 seconds can suit small listening or recording rooms under roughly 50 m³, while 0.4 to 0.6 seconds can be a useful reference for larger rooms up to roughly 200 m³. For a deployed conference room, the appropriate target should reflect its size, use, and project requirements.

Reading RT60 and the waterfall plot

Room contextQualified RT60 reference
Small listening or recording room under roughly 50 m³Around 0.3 seconds can be a starting point.
Larger room up to roughly 200 m³About 0.4 to 0.6 seconds can be a useful reference.
Deployed conference roomSet the target to the room’s size, intended use, and project requirements.

The waterfall plot adds a time dimension, showing how long each frequency rings after the direct sound stops. Persistent low-frequency ridges can indicate modal resonances. Flutter echo is better assessed with the impulse response or other time-domain checks.

Cross-check before you commit to treatment

Compare the primary and representative sweeps side by side. A pattern that appears at many positions may call for room-wide treatment, while a localized issue may need a more targeted approach. Use the measurements to guide treatment, then re-measure to confirm the result.

The RT60 figures in this infographic are simplified starting points, not universal requirements. Interpret them alongside room size, intended use, and project needs.

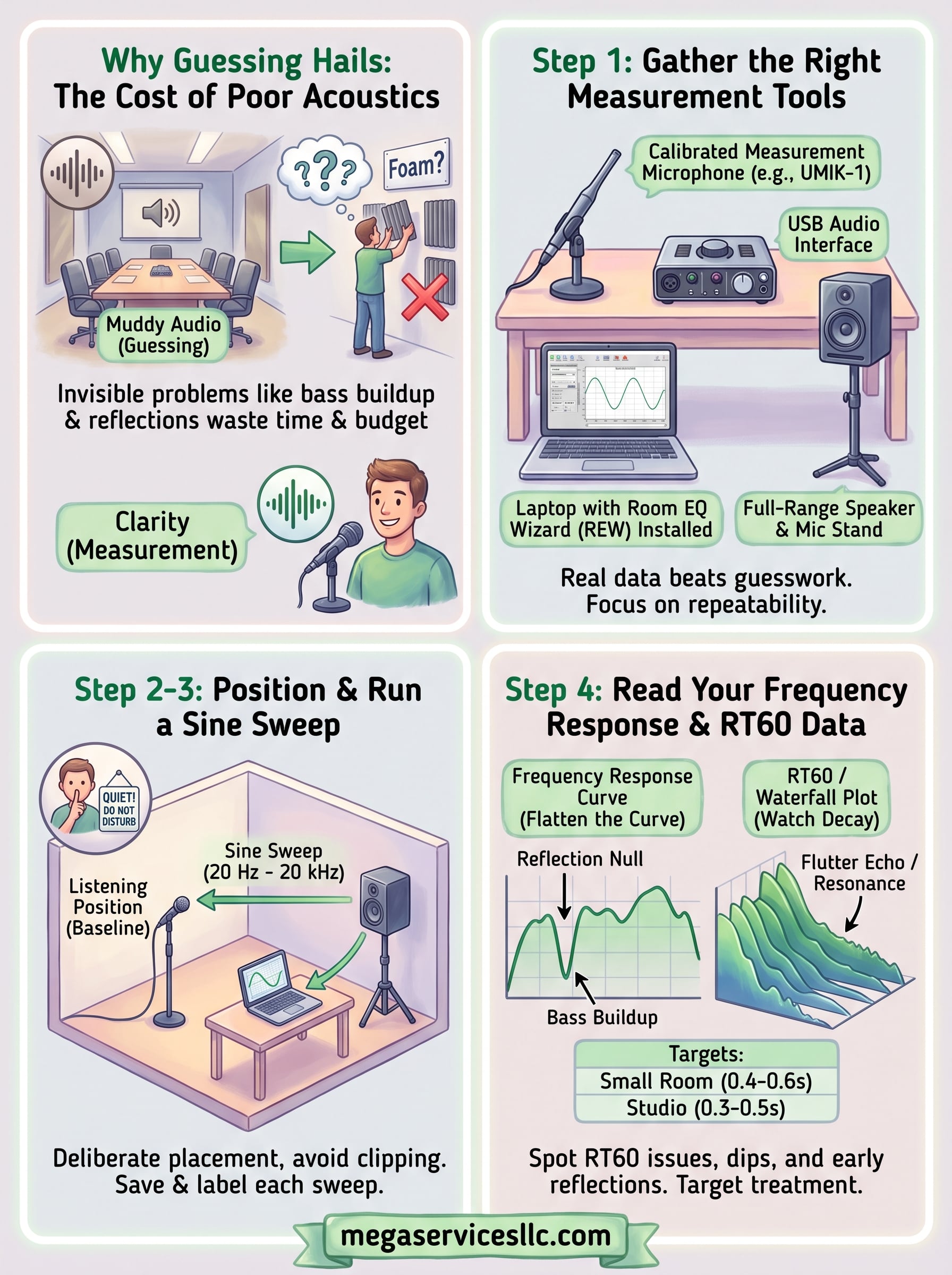

how to measure room acoustics infographic

From measurement to a better-sounding room

Measuring first helps turn acoustic treatment into a targeted process. Gather calibrated tools, position your mic and speakers consistently, sweep with Room EQ Wizard, compare the graphs, and re-measure after changes. That is a practical way to use how to measure room acoustics before investing in treatment.
