How To Mount Ceiling Speakers: Placement, Wiring & Brackets

Ceiling speakers deliver clean, evenly distributed audio without eating up wall or floor space, but only if they’re installed correctly. Knowing how to mount ceiling speakers the right way means getting the placement, wiring, and bracket selection right from the start. Skip any of those steps, and you end up with uneven coverage, rattling panels, or a callback that costs more than the original install.

At MegaServices, we’ve supported AV integrators and project managers with certified technician staffing for ceiling speaker installs and full-scale audio deployments since 2007. Our techs have mounted thousands of in-ceiling and on-ceiling speakers across corporate offices, retail chains, and conference rooms nationwide, so we know exactly where these projects go sideways and how to prevent it.

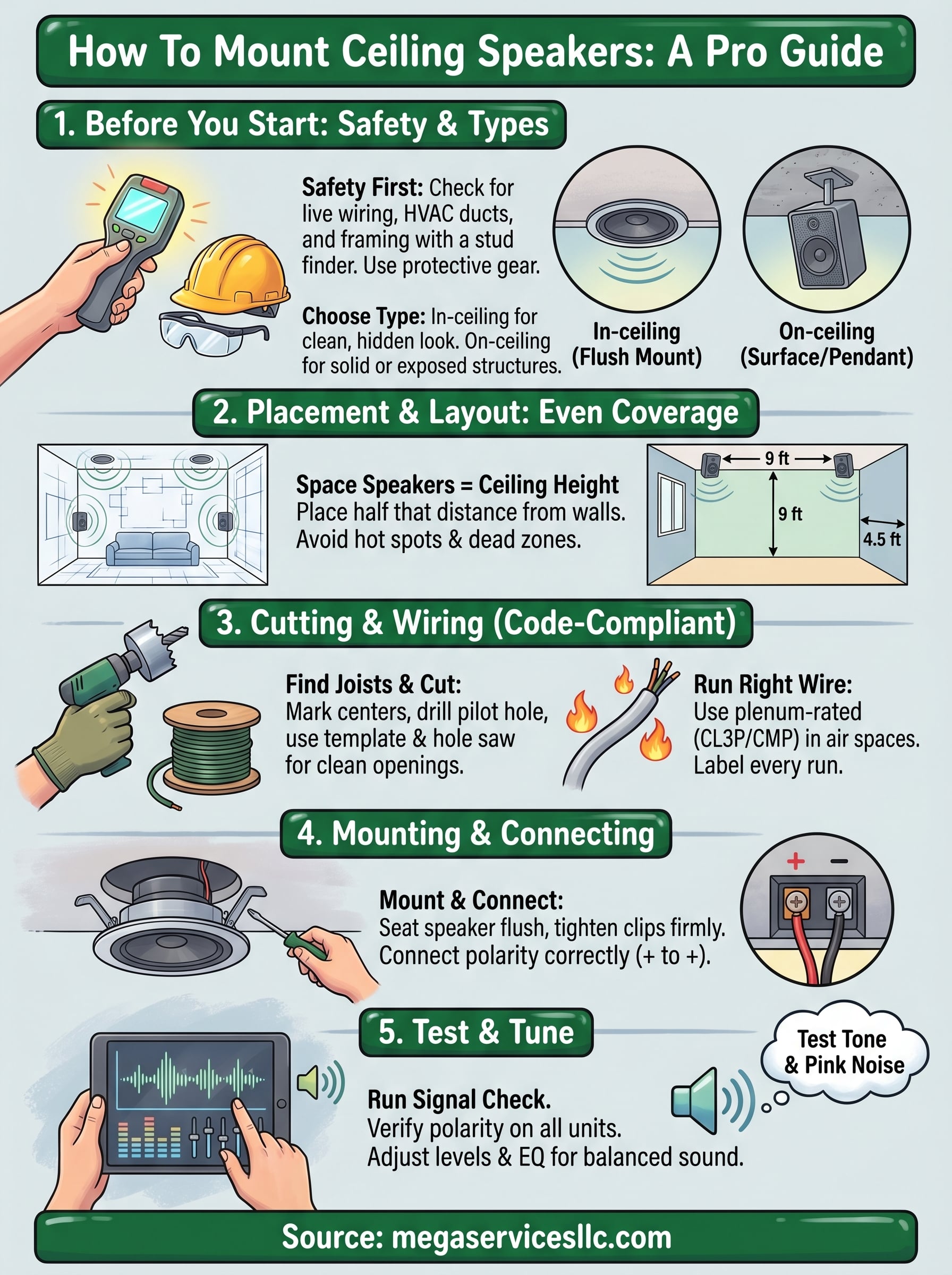

This guide walks you through the entire process: choosing the right ceiling location, running and terminating speaker wire, selecting the correct mounting hardware, and securing the speaker for long-term reliability. Whether you’re handling a single conference room or rolling out audio across dozens of locations, the fundamentals covered here will help you get it done right the first time.

Before you start: speaker types and safety

Before you pick up a drill, you need to know what type of speaker you’re working with and what’s inside your ceiling. Getting these details wrong costs time and money, whether you’re punching holes in the wrong location or discovering mid-install that your speaker has incompatible impedance for the amplifier. Every successful ceiling speaker install starts with a clear-eyed review of the hardware and the space it’s going into.

In-ceiling vs. on-ceiling speakers

These two categories look similar but install very differently. In-ceiling speakers (also called flush-mount speakers) require you to cut a hole in the drywall and drop the speaker into the cavity, where the backcan or the speaker’s own frame clips into the ceiling material. On-ceiling speakers (also called surface-mount or pendant speakers) bolt or screw directly to the ceiling surface and hang below it, so they work where you don’t have drywall access or where the ceiling cavity is obstructed.

For most commercial installs, in-ceiling speakers deliver a cleaner finish and better acoustic performance because the backcan isolates the driver from the ceiling cavity. On-ceiling speakers are faster to install and better suited to concrete ceilings, plenum spaces with restricted access, or environments where a finished aesthetic matters less than quick deployment.

If you’re figuring out how to mount ceiling speakers in a space with a concrete or exposed-structure ceiling, on-ceiling surface-mount speakers will save you hours of labor and eliminate the need for specialized cutting tools.

Speaker specs that matter before you cut

Impedance and amplifier matching are the two most common spec errors on ceiling speaker installs. Most residential and light commercial systems use 8-ohm speakers wired directly to an amplifier channel. Large commercial deployments frequently use 70V or 100V distributed audio systems, where each speaker taps the line at a specific wattage. Mixing these two systems, or mismatching wattage taps to amplifier output, will degrade sound quality or damage equipment over time.

Check three specs on every speaker before you commit to any layout: rated impedance or transformer tap wattage, recommended cutout diameter, and the minimum ceiling cavity depth required. These numbers live on the spec sheet, not just the box. A speaker that lists a 6.5-inch driver might need a 6.875-inch cutout and four inches of clearance behind the ceiling, none of which is obvious until you’re already staring at a hole you cannot undo.

Safety steps before the first cut

Your two biggest hazards inside a ceiling are live electrical wiring and HVAC ductwork. Before you mark any cutout location, use a stud finder with AC detection mode to scan the area for wiring, and cross-reference with any existing electrical plans for the space. In commercial buildings, request as-built drawings from the facility manager before starting work.

Follow these steps before making any cuts:

• De-energize nearby circuits at the breaker and confirm with a non-contact voltage tester before drilling pilot holes.
• Check for HVAC ducts, sprinkler pipes, and data cabling by inserting an inspection camera through a small pilot hole before committing to the full cutout.
• In plenum-rated ceilings used as part of the HVAC return air path, use only CL3P or CMP-rated cable to meet fire code requirements.
• Confirm that the ceiling material can support the speaker’s weight, especially with larger 8-inch drivers or heavy on-ceiling brackets.
• Wear eye protection and a dust mask when cutting drywall or ceiling tile.

Spending ten minutes on these safety checks protects both you and the client’s property. A nicked wire or a cracked sprinkler pipe turns a routine install into a costly emergency that no amount of careful speaker placement will fix.

Step 1. Plan placement for your room and use case

Placement determines coverage more than any other single variable in an audio install. Before you get into how to mount ceiling speakers physically, you need a layout that actually serves the room. The goal is even sound pressure level (SPL) across the entire listening area, meaning no hot spots directly under a speaker and no dead zones near the perimeter. Start by identifying your use case, because a conference room where speech intelligibility is the priority needs a completely different layout than a retail floor running background music at low volume.

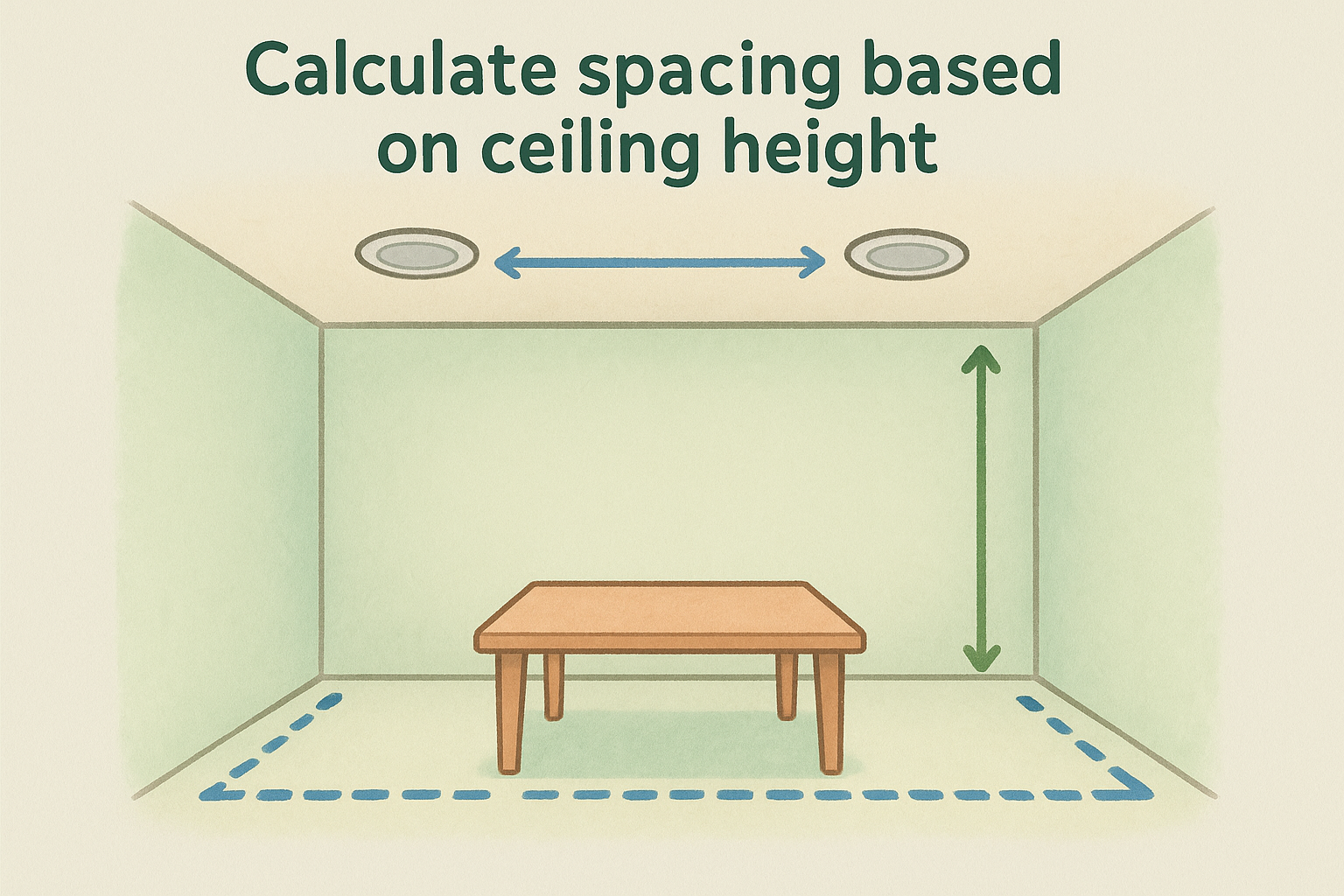

Calculate spacing based on ceiling height

The standard rule for in-ceiling speaker spacing ties directly to ceiling height. For most speakers with a 90-degree dispersion angle, the recommended distance between speakers equals the ceiling height. A room with a 9-foot ceiling should place speakers roughly 9 feet apart. Speakers should also sit at half that spacing from the nearest wall, so about 4.5 feet from the perimeter in a 9-foot ceiling space. This keeps SPL consistent and prevents the drop-off you get when speakers are clustered toward the center of the room.

Use this reference table for common ceiling heights:

For ceilings above 12 feet, consider speakers with a narrower 60-degree dispersion angle to maintain adequate SPL at ear level without adding extra units to the layout.

Adjust for your specific room type

Conference rooms require tighter spacing to support speech intelligibility over wide coverage. In a 10-by-20-foot room with a 9-foot ceiling, two speakers positioned at one-third and two-thirds of the room’s length, centered on the width, will cover the table without creating rear-wall echo. Keep speakers away from microphone pickup zones to avoid feedback in video conferencing setups.

Retail and open-office installs call for consistent background-level coverage across the full floor. For these spaces, hold closely to the ceiling-height spacing formula, then verify your layout before cutting anything. Place painter’s tape on the ceiling at each planned speaker location and walk the room while playing audio from a portable speaker held at ceiling height. This check surfaces clustering problems and dead zones before you commit to any cuts.

Step 2. Pick brackets and mounting method

The hardware you select determines how securely the speaker sits in the ceiling and how much flexibility you have during final positioning. Most installers move past this step too quickly and end up with a rattling speaker or a clip that loses grip within a year. Match your mounting method to the ceiling type and the speaker’s weight before ordering any hardware.

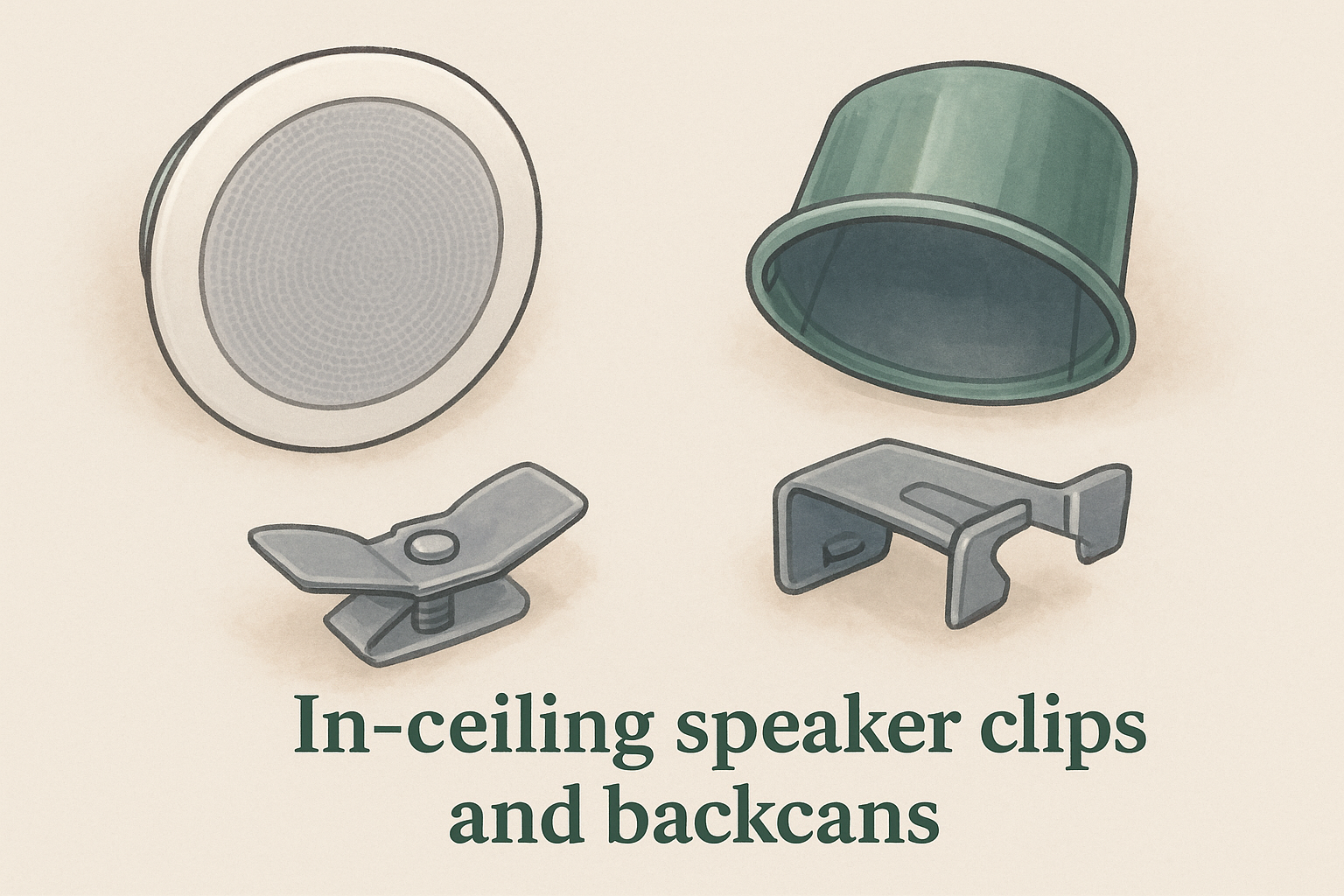

In-ceiling speaker clips and backcans

In-ceiling speakers typically ship with dog-ear mounting clips (also called butterfly clips) that fold flat for insertion into the cutout, then rotate outward and tighten against the back of the drywall once the speaker body is seated. These clips perform well in standard 1/2-inch or 5/8-inch drywall, but they lose grip in ceiling tile or thin plaster. For those surfaces, use aftermarket metal clamp assemblies rated for the specific ceiling material, and always verify the load rating against the speaker’s actual weight before installation.

A backcan is a separate enclosure installed into the ceiling cavity before the speaker goes in. Backcans serve two functions: they improve low-frequency response by giving the driver a defined air volume to work against, and they provide a fire-rated barrier in plenum ceilings. If your project spec requires plenum-rated installation, confirm the backcan carries a UL listing for air-handling spaces before accepting it on the job site.

If you’re working out how to mount ceiling speakers in a drop-tile ceiling, use a tile bridge bracket that spans across the T-bar frame rails rather than relying on the tile itself to carry the speaker’s weight.

Surface-mount and pendant brackets

On-ceiling speakers attach to the ceiling surface using a surface-mount bracket, which typically includes a swivel or ball joint so you can angle the driver toward the listening area after the speaker is secured. Choose a bracket with a weight rating that exceeds the speaker’s gross weight by at least 30 percent to account for vibration load accumulated over time.

Pendant brackets suspend the speaker below the ceiling on a threaded rod or cable system, which suits warehouses, atriums, and spaces with high exposed ceilings. When using pendant mounts, anchor the rod directly into a structural joist or use a rated concrete anchor for hard ceilings. Never rely on a suspended ceiling grid alone to support pendant hardware, since grid systems carry rated loads distributed across tiles, not point loads at a single connection.

Step 3. Locate joists and lay out the cutouts

Marking incorrect cutout locations is one of the most common and costly mistakes in any ceiling speaker install. Before you draw a single line on the ceiling, confirm exactly where your joists run and verify that your planned speaker locations sit between them, not through them. This step protects your layout and prevents you from cutting a hole you cannot use.

Find joists and obstructions before you mark anything

Start with a stud finder set to deep-scan mode to map joist centers across the entire speaker zone. Mark each joist edge with painter’s tape so you have a clear visual reference as you compare joist positions against your planned speaker grid from Step 1. Once you have the joist layout mapped, drill a 3/8-inch pilot hole at each speaker location and insert a bent wire or a flexible inspection camera to check for wiring, ducts, or pipes before committing to the full cutout.

If your pilot hole hits an obstruction or falls within two inches of a joist, shift the speaker location slightly along the room’s length rather than its width, which keeps the layout symmetrical from the listening area.

Follow this sequence for each planned location:

1. Drill a pilot hole at the center of the planned cutout.
2. Insert the inspection camera and rotate 360 degrees to confirm no obstructions.
3. Confirm at least one inch of clearance on all sides from any joist face.
4. Mark the approved center point with a pencil before moving to layout.

Mark and cut the openings cleanly

Once you confirm a clear cavity, use the paper or cardboard template that ships with most in-ceiling speakers to trace the cutout outline. Center the template on your approved pilot hole, then trace the perimeter with a pencil. For speakers that don’t include a template, set a compass to the exact cutout radius from the spec sheet and scribe the circle from the pilot hole center.

Cut the opening with a drywall hole saw matched to the speaker’s cutout diameter, not a jab saw, because a hole saw produces a consistently round edge that the speaker’s flange seats against cleanly. Keep the saw perpendicular to the ceiling throughout the cut to avoid an oval opening. Once the disc drops out, test the speaker body for fit before running any wire, since this is when you learn how to mount ceiling speakers correctly rather than discovering a miscut opening after the wire is already pulled.

Step 4. Run speaker wire and meet code requirements

Wire selection and routing are where installs get into code trouble the fastest. Pulling the wrong cable type through a plenum ceiling violates fire code and will require a costly re-pull, so you need to confirm your cable rating before you order any wire. This step in how to mount ceiling speakers correctly is less glamorous than cutting openings, but it protects the project from failed inspections and liability.

Choose the right wire gauge and cable rating

Wire gauge affects both signal quality and safe current handling. For most in-ceiling speaker runs under 50 feet, 16 AWG is sufficient. Runs between 50 and 100 feet should use 14 AWG to limit resistance-related signal loss, especially on 8-ohm systems. For 70V distributed audio systems with many speakers on a single zone, use 16 AWG minimum but always verify against your amplifier manufacturer’s guidance.

Cable jacket rating is non-negotiable based on the space type:

Never substitute a non-plenum cable in a plenum-rated ceiling, even temporarily. Fire marshals treat this as a code violation during any inspection, regardless of when the cable was pulled.

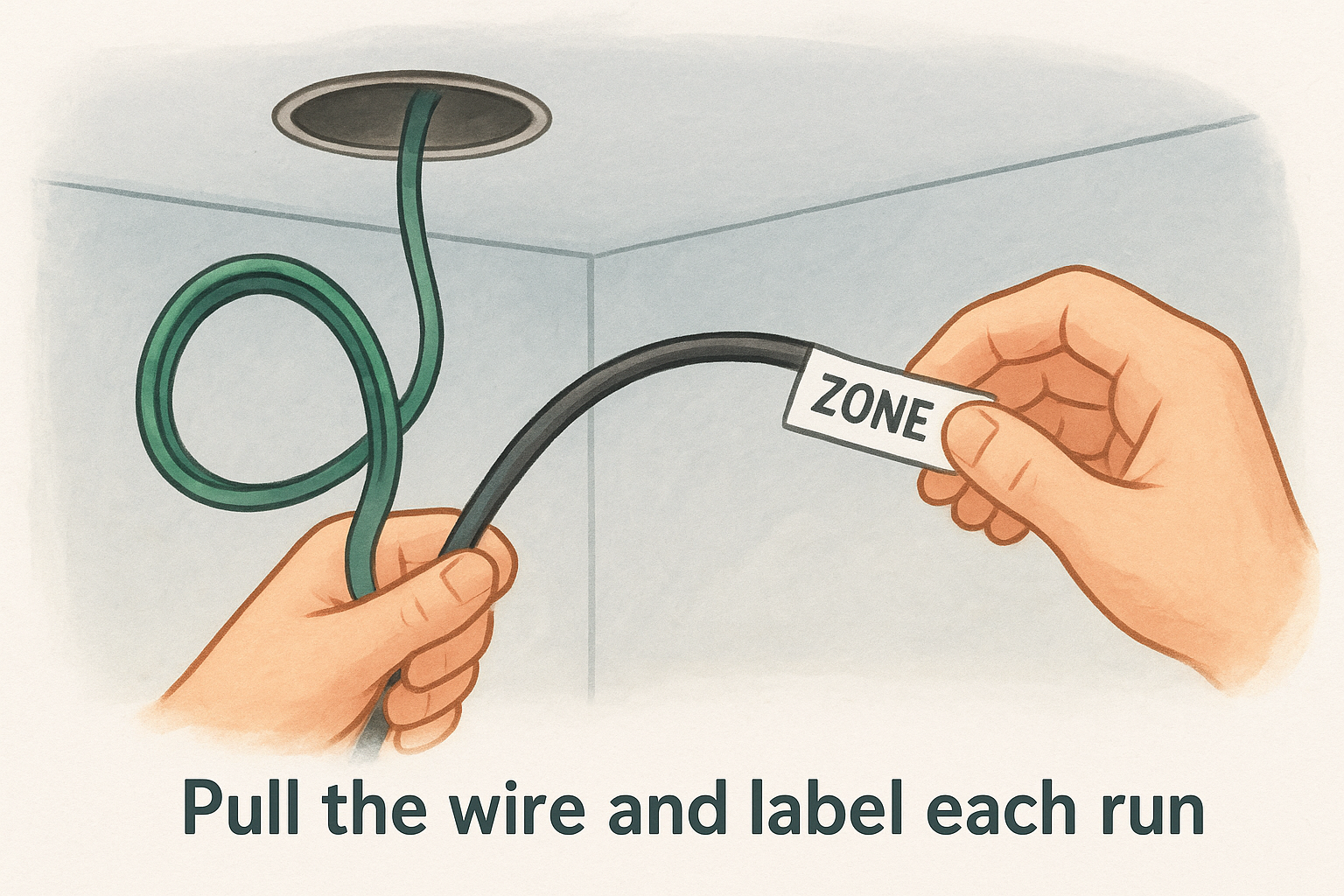

Pull the wire and label each run

Before you pull wire, map the full route from amplifier to each speaker location on paper or a simple floor plan. This catches situations where a run must cross a fire-rated wall assembly, which requires a rated firestop seal around the cable penetration. Identify these crossings before pulling so you can order the correct firestop putty or intumescent wrap ahead of time.

Follow this sequence for each wire run:

1. Feed a fish tape or flexible fish rod from the amplifier location toward the first speaker cutout.
2. Tape the speaker wire to the fish tape with electrical tape, leaving at least 18 inches of extra wire at the speaker end for terminations.
3. Pull the wire back through the route slowly to avoid snagging on framing or insulation.
4. Label both ends of each run with adhesive cable labels showing the zone and speaker number before moving to the next run.
5. Coil the excess wire above the ceiling line at the speaker end so it stays accessible during the next step.

Labeling every run as you pull it takes two minutes per cable and saves significant troubleshooting time once you have a dozen wires hanging at the amplifier rack.

Step 5. Mount the speakers and make connections

With your wire pulled and labeled, you’re ready to physically seat the speakers and make the final connections. This is the step where how to mount ceiling speakers becomes tactile: every clip, terminal, and polarity decision you make here directly affects sound quality and long-term reliability. Work through each speaker location one at a time rather than rushing all the speakers into position simultaneously, which makes it easy to catch a misconnection before you seal the speaker flush against the ceiling.

Seat the speaker and secure the mounting clips

Pull the labeled wire ends through the speaker cutout and confirm you have at least 12 inches of slack before positioning the speaker body. Fold the dog-ear clips flat against the speaker frame, insert the speaker into the opening at a slight angle, then level it flush against the ceiling surface. Once the speaker sits flush, tighten each clip screw with a screwdriver until you feel firm resistance, which rotates the clip outward to grip the back of the drywall. Avoid overtightening: excess torque cracks the ceiling surface around the cutout edge and weakens the clip’s grip over time.

Check that the speaker grille aligns with the room’s existing trim lines or ceiling tile grid before fully tightening the clips, since repositioning after full seating requires loosening all clips and restarting.

For surface-mount or pendant speakers, attach the mounting bracket to the ceiling first using fasteners rated for the ceiling material, then hang the speaker body onto the bracket and tighten the locking collar or set screw. Verify the bracket’s swivel joint points the driver toward the primary listening zone before locking it in place.

Terminate the wire and connect the speaker

Strip 3/4 inch of insulation from each conductor using a wire stripper, not a knife, to avoid nicking the copper strands. Most in-ceiling speakers use spring-clip or binding post terminals on the rear of the driver. Match polarity consistently across every speaker in the system: positive terminal to the conductor marked with a stripe or ribbing, negative terminal to the unmarked conductor. Reversed polarity on even one speaker cancels bass frequencies when that unit plays against a correctly wired neighboring speaker.

Use this connection reference for standard two-conductor speaker wire:

Push each conductor firmly into the terminal until the connection seats with no exposed copper visible outside the clamp.

Step 6. Test the system and fine-tune the sound

With all speakers mounted and connected, you need to confirm the system works correctly before you put away your tools. Testing at this stage, rather than after the client walk-through, gives you the chance to catch polarity errors, loose terminals, and dead channels while the wiring is still accessible and every connection point is still within reach.

Run a signal check on every speaker

Start by playing a mono test tone or pink noise through the amplifier at a low volume, then verify each speaker produces sound. Walk under each unit and listen for any distortion, rattling, or absence of signal. Rattling typically points to a loose clip, an unseated grille, or a nearby ceiling fixture vibrating sympathetically with the driver. Address each issue before moving on, since rattles rarely resolve on their own.

Confirm polarity across every speaker using a nine-volt battery. Touch the positive battery terminal briefly to the positive speaker terminal and the negative to the negative: the cone should push outward. Reversed polarity causes the cone to pull inward instead. Verify every speaker in the system pushes in the same direction, which ensures they reinforce each other’s output rather than cancel it.

A single out-of-phase speaker in a distributed system reduces bass output across the entire zone, which is audible even at moderate listening levels and difficult to diagnose without a methodical polarity check on each unit.

Adjust levels and EQ for the room

Once every speaker passes the signal check, play a familiar reference track at normal listening level and walk the full coverage area. Identify any location where volume noticeably increases or drops compared to adjacent zones. Minor SPL imbalances between speakers in a 70V system are correctable by adjusting the transformer tap wattage on the affected speaker to the next step up or down.

Use a free SPL meter app on a calibrated device to measure levels at multiple points across the room. Target a variance of no more than plus or minus 3 dB across the listening area for background music, and plus or minus 2 dB for speech-primary installs such as conference rooms. If the room shows consistent high-frequency harshness, apply a narrow cut between 3 and 5 kHz in the amplifier or DSP EQ rather than simply lowering the overall level.

Learning how to mount ceiling speakers correctly does not end when the last clip tightens. The final level and EQ pass is what separates a technically complete install from one that actually sounds right in the space.

Wrap-up and when to bring in help

Knowing how to mount ceiling speakers correctly comes down to executing each step in the right order: confirm speaker specs, plan your layout, select the right brackets, pull code-compliant wire, seat and connect each speaker carefully, then test and tune before calling the job complete. Skipping any of those steps creates problems that are harder to fix after the ceiling is sealed.

Some installs fall outside what a single technician should handle alone. Multi-location rollouts, plenum-rated environments, or projects with tight deadlines all benefit from bringing in certified labor with direct experience in commercial AV deployments. If you’re managing a project that needs qualified AV technicians on short notice anywhere in the US or Canada, MegaServices can put vetted, certified techs on site within 24 to 48 hours. Request information about AV labor support to find out how we can staff your next project.
