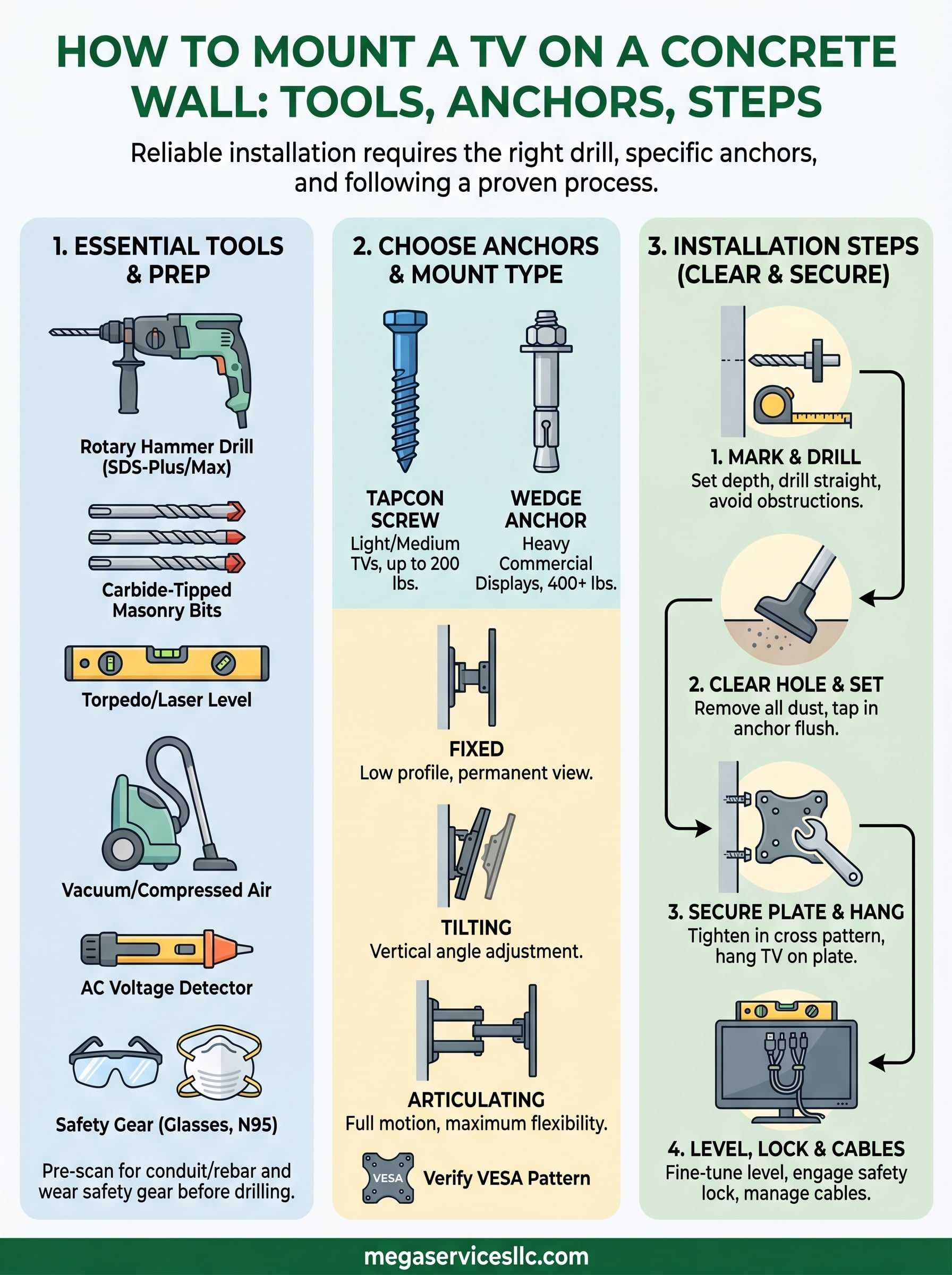

How To Mount TV On Concrete Wall: Tools, Anchors, Steps

Concrete walls are everywhere in commercial spaces, office buildings, retail stores, conference rooms, warehouses. And if you’ve ever tried to figure out how to mount tv on concrete wall, you already know it’s a different game than hanging a display on wood-framed drywall. Standard screws won’t cut it. You need the right drill, the right anchors, and a clear understanding of how masonry fastening actually works.

The good news: it’s absolutely doable, and this guide walks you through every step. We’ll cover the specific tools you need, the types of concrete anchors that hold weight reliably, and a clear process from start to finish, including the mistakes that lead to cracked concrete or a TV on the floor. Whether you’re handling a single install or outfitting an entire building, the fundamentals are the same.

At MegaServices, our technicians mount displays on concrete, brick, and block walls across the U.S. and Canada every week as part of commercial AV installation projects. That hands-on experience is exactly what shaped this guide, so you’re getting field-tested steps, not theory pulled from a spec sheet.

What you need before you start

Before you figure out how to mount tv on concrete wall, you need to gather the right gear. Concrete is unforgiving – if you show up with the wrong drill or the wrong anchors, you will crack the wall, strip the fastener, or end up with a mount that fails under the weight of the display. Pulling everything together before you start saves time on-site and prevents the frustrating mid-job hardware run.

Tools you’ll need

The single most important tool for this job is a hammer drill, also called a rotary hammer. A standard drill does not generate the hammering action needed to punch through concrete or masonry – you will burn out the motor before the bit makes meaningful progress. For most residential concrete and CMU block, a corded or cordless SDS-Plus rotary hammer gets the job done. For harder aggregate or reinforced concrete in commercial settings, step up to an SDS-Max.

A hammer drill is not optional. Using a standard drill on concrete leads to overheating, broken bits, and holes that are too shallow to anchor properly.

Here is the full tool checklist:

• Hammer drill or rotary hammer (SDS-Plus for standard concrete, SDS-Max for dense or reinforced walls)
• Masonry drill bits sized to match your anchor diameter (carbide-tipped)
• Torpedo level or laser level for accurate placement
• Tape measure and pencil for marking hole locations
• Vacuum or compressed air to clear dust from holes before inserting anchors
• Socket wrench or impact driver for tightening anchor bolts
• AC voltage detector to check for conduit or electrical lines inside the wall

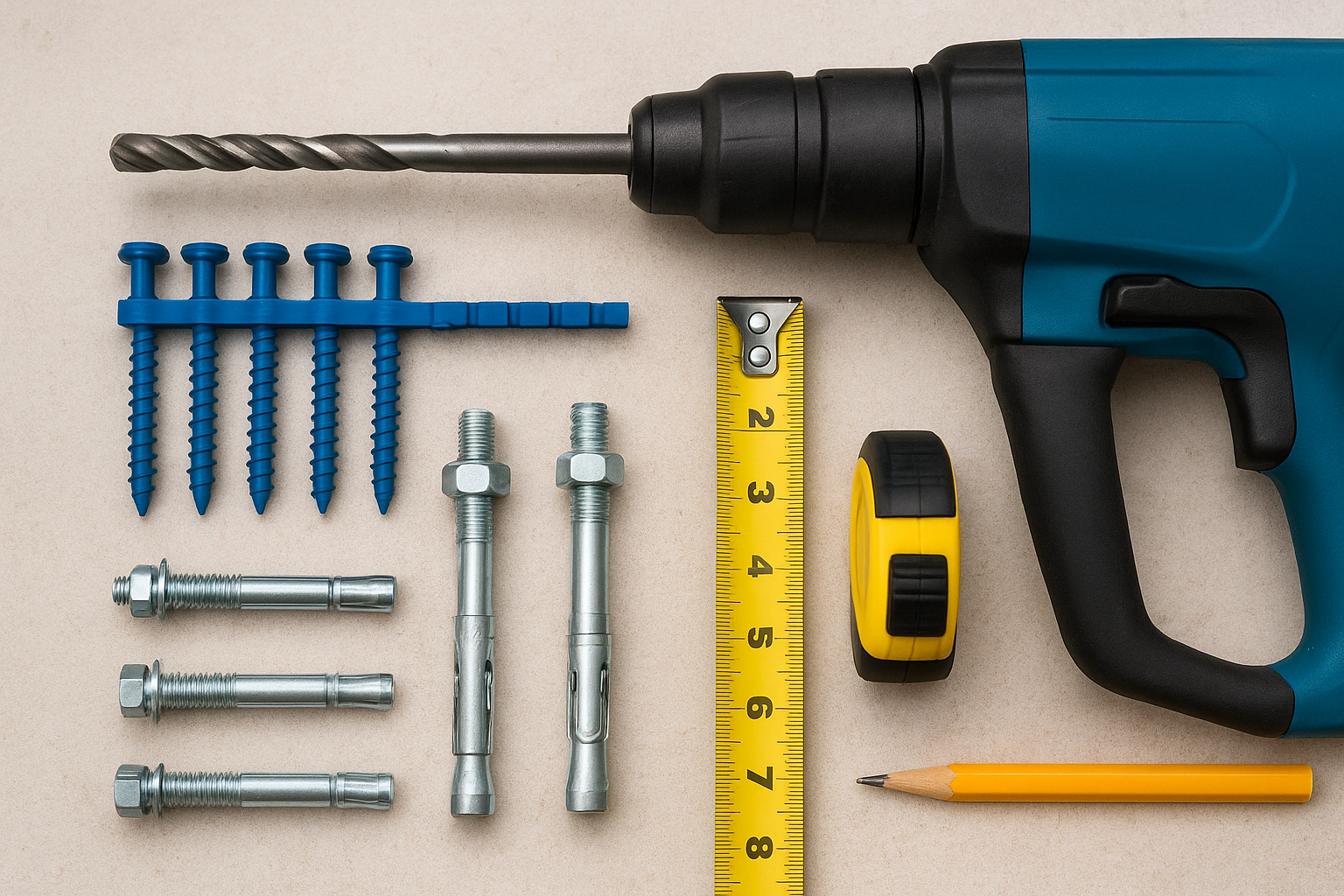

Anchors and fasteners

Choosing the wrong anchor type is one of the most common reasons TV mounts fail on concrete. The two most reliable options for this job are Tapcon concrete screws and wedge anchors. Tapcons work well for lighter displays and thinner concrete sections; wedge anchors are the better call when you’re dealing with heavier commercial displays or dense block walls where you need maximum holding strength.

Here is a quick comparison to help you choose the right anchor for your project:

Safety gear and prep

Concrete drilling throws fine silica dust, and that dust is a serious respiratory hazard. Before you start drilling, put on safety glasses and an N95 respirator or higher. Knee pads help if you’re working low on the wall, and heavy work gloves protect your hands when handling anchors and mount hardware.

Scanning the wall for embedded conduit, rebar, or electrical lines before you drill is non-negotiable, especially in commercial spaces. A basic AC voltage detector or a scanning tool can flag live wires before your bit hits them. Striking rebar will not just break your bit – it will shift your anchor placement and potentially weaken the structural integrity of the entire mount.

Pick the location and the right mount hardware

Before you drill a single hole, picking the right wall location saves you from unnecessary rework. One of the most common errors people make when figuring out how to mount tv on concrete wall is choosing a spot that looks good at first glance but creates problems once the display is up – poor viewing angle, glare from a nearby window, or a location that makes cable management nearly impossible. Take five minutes to stand in the room, note where people will be seated, and identify any light sources that could reflect off the screen.

Find the right spot on the wall

Eye level from a seated position is the standard rule: the center of the screen should sit at roughly 42 to 48 inches from the floor for most seating arrangements. Mark this center point on the wall with a pencil before you do anything else. In conference rooms or commercial spaces, the viewing distance matters just as much as height – a general guideline is to place the screen at a distance of 1.5 to 2.5 times the diagonal screen size from the audience.

Measure twice, mark once. Moving anchor holes in concrete is far more difficult than adjusting a pencil mark.

Check the area you’ve marked for hidden obstructions like conduit runs, electrical boxes, or structural steel. In commercial concrete walls, conduit is often embedded during the pour and won’t show up on the surface. Use an AC voltage detector and, if possible, review any existing electrical drawings for the space before you commit to a drilling location.

Choose a mount that fits your TV and use case

Mount type directly affects how much hardware you’ll need, how many anchor points you’ll drill, and how much flexibility you have after installation. Here are the three main categories to consider:

• Fixed mount: Lowest profile, simplest install, best for permanent displays where the viewing angle never changes.
• Tilting mount: Adds vertical tilt (typically 5 to 15 degrees), useful for displays mounted higher than eye level.
• Full-motion or articulating mount: Maximum flexibility, more anchor points required, and heavier load on the concrete.

Verify the VESA pattern on the back of your TV before ordering a mount. VESA standards (75×75, 100×100, 200×200, 400×400, and others) define the bolt hole spacing, and a mismatch means the mount simply won’t attach to the display at all.

Drill clean holes and install concrete anchors

This is the step where most DIY installs go wrong. Rushing the drilling process or skipping the dust-clearing step results in anchors that spin, pull out under load, or crack the surrounding concrete. When you’re working through how to mount tv on concrete wall, the drilling phase sets up everything that follows, so precision here pays off every time.

Set your drill depth before you start

Drilling to the correct depth prevents two common problems: holes that are too shallow to seat the anchor fully, and holes that go so deep they hit a void or conduit on the other side of the wall. Measure the usable length of your anchor, then add roughly a quarter inch of extra depth to give the anchor room to seat cleanly.

Mark your drill bit with painter’s tape or a depth-stop collar at the target depth. Most rotary hammers come with an adjustable depth rod, and using it is faster and more consistent than eyeballing the tape. Mark all your bits before you touch the wall, not one at a time during drilling.

Setting your depth before you drill takes 60 seconds and prevents you from re-drilling misaligned or undersized holes.

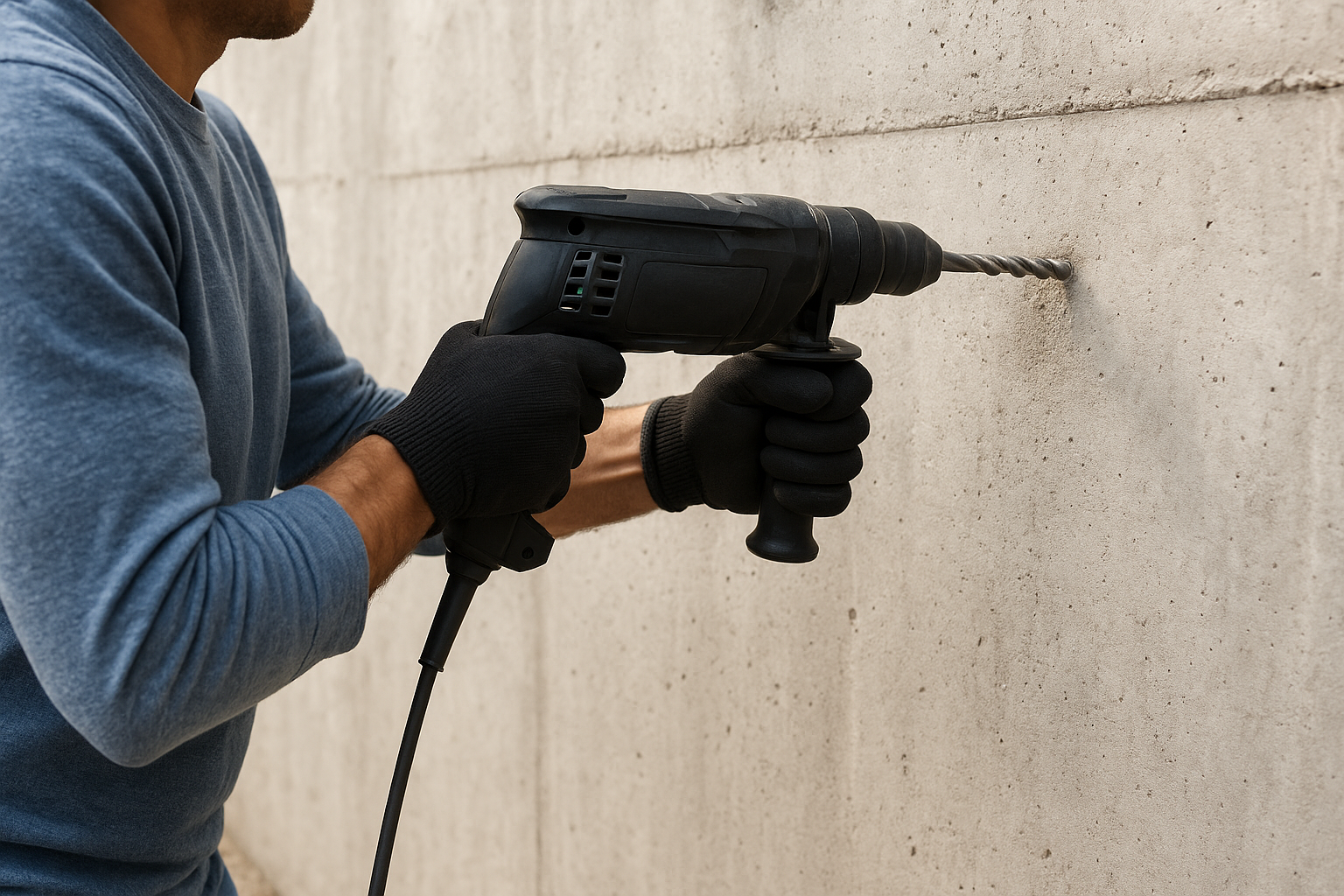

Drill straight and let the hammer do the work

Hold the rotary hammer perpendicular to the wall surface throughout each hole. Angle the bit even slightly and the anchor will sit crooked, which reduces its holding strength and makes it harder to align the wall plate. Use both hands to maintain control and apply steady forward pressure without forcing the drill.

Let the hammering action do the work rather than pushing hard against the wall. On solid concrete, each hole should take 15 to 30 seconds with a properly sized carbide-tipped bit. If progress stalls, you may have hit an aggregate stone or rebar. Pull back slightly, let the hammer work at a slightly different angle, and then return to your line.

Clear the hole before setting the anchor

Concrete dust packs into the hole as you drill, and leaving that dust in place significantly reduces the anchor’s grip. Use a can of compressed air or a vacuum with a narrow tip to pull debris out completely. Blow into the hole two or three times and check that the sides feel clean before inserting anything.

Tap the anchor in with a hammer until it’s flush with the wall surface, then tighten to the manufacturer’s specified torque. For Tapcon screws, stop tightening once resistance increases sharply to avoid stripping the threads in the concrete.

Secure the wall plate and hang the TV

With your anchors fully seated and flush against the surface, you’re ready to attach the wall plate and get the display off the floor. This is the step where the prep work from earlier pays off. Every hole you drilled clean and every anchor you seated correctly translates directly into a solid, stable mount that holds the TV without shifting over time. Rushing here after doing everything else right wastes all that effort.

Attach the wall plate to the anchors

Hold the wall plate against the anchor bolt locations and thread the hardware by hand first before reaching for any tools. Starting bolts by hand prevents cross-threading, which is easy to do when you’re working against a vertical surface and can’t see the thread engagement directly. Once all fasteners are hand-tight, move to your socket wrench or impact driver and tighten each bolt in a cross pattern rather than working around the plate in sequence.

Tightening in a cross pattern distributes load evenly and keeps the plate from racking to one side as you torque the bolts down.

Check the plate for movement by applying firm lateral and forward pressure before you attach anything to it. If it flexes, shifts, or makes any sound, stop and identify the loose anchor before hanging the TV. A plate that moves under hand pressure will not hold a display safely.

Hang the TV on the wall plate

Most mounts for how to mount tv on concrete wall installations use a two-piece system: the wall plate you just secured, and a set of brackets that attach to the back of the TV. Attach those TV-side brackets to the VESA bolt holes on the display before you lift it toward the wall. Having a second person assist with the lift is important for any display larger than 43 inches.

Lift the TV and lower the mounting brackets onto the wall plate until you hear or feel the locking mechanism engage. Verify engagement by applying gentle downward and outward pressure on the display. The TV should not lift off the wall plate without deliberately releasing the locking tab. Confirm the safety lock or locking screw is engaged according to the mount manufacturer’s instructions before you let go completely.

Level it, lock it, and tidy the cables

After the TV is hanging, the job is not done yet. Most mounts allow a small amount of horizontal adjustment even after the display is hooked, and taking two minutes to confirm everything is plumb before you lock it down is a step many people skip. Skipping it means living with a crooked display or going back to re-hang it later.

Check the level and fine-tune the position

Place a torpedo level or digital level directly on top of the TV and read the bubble. If the display tilts left or right, most wall plates have horizontal adjustment slots that let you slide the TV along the plate before the locking hardware is engaged. Shift the display slowly, check the level again, and repeat until the reading is centered.

A level display that looks off can sometimes indicate an unlevel floor or ceiling rather than a mount problem, so use the level on the TV itself rather than relying on the room as a visual reference.

Once the display reads level, tighten any horizontal adjustment set screws on the wall plate to prevent the TV from drifting over time. On articulating mounts, confirm that the arm tension is set firmly enough to hold the display at your chosen angle without slowly dropping.

Manage the cables before you call it done

Cable management is the last functional step in any how to mount tv on concrete wall project, and it has a direct impact on both the safety and the finished appearance of the install. Loose cables hanging freely can snag on the mount, get pulled accidentally, or create a tripping hazard in high-traffic commercial spaces.

Here are the most common cable management options for concrete wall installations:

• Surface raceway: A plastic channel that mounts directly to the concrete and hides cables behind a removable cover. Easy to install and easy to modify later.
• J-channel cable clip: A low-profile clip that secures cables flat against the wall without a full raceway enclosure.
• In-wall conduit: The cleanest result, but requires drilling through the wall and is best planned before the mount goes up.
• Velcro cable ties: A fast option for bundling cables behind the TV without adding hardware to the wall.

Group all cables together before routing them into your chosen management solution, and leave a few extra inches of slack at each connection point so you can tilt or adjust the mount without pulling a cable loose.

You’re ready to watch

At this point, your display is mounted, level, locked, and your cables are clean. You worked through every stage of how to mount tv on concrete wall the right way, from choosing the correct anchors to torquing the wall plate and verifying the safety lock. That preparation is what separates a mount that holds for years from one that shifts or fails under the weight of the display.

For a single room, this process is manageable as a DIY project. Scaling it across a multi-room office, a retail chain, or a conference center is a different story. Managing dozens of concrete wall installations across multiple locations requires certified technicians, consistent quality control, and reliable scheduling, none of which you want to improvise.

If your project is larger than one room, request AV installation support from MegaServices and get qualified technicians on-site fast.
