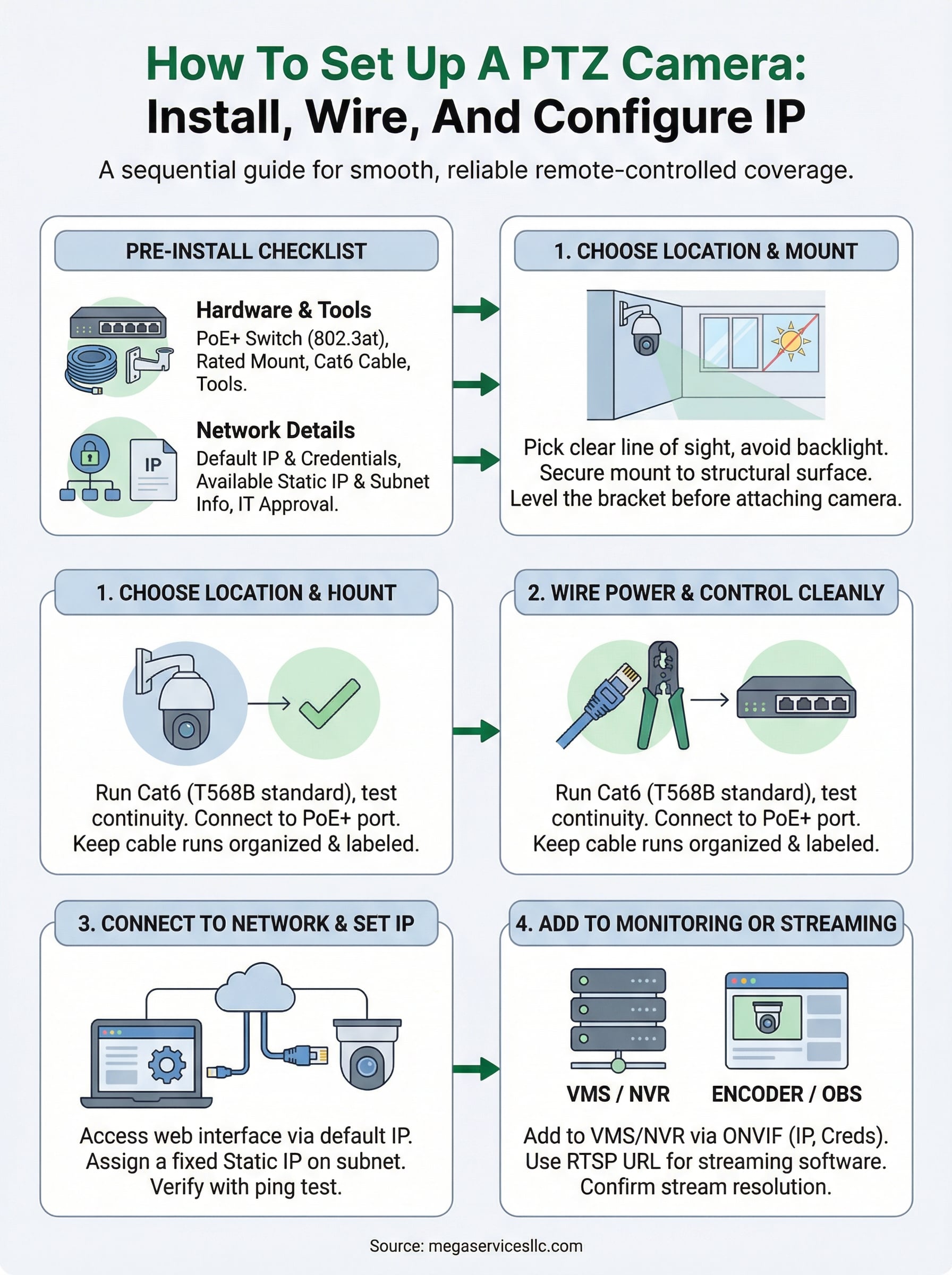

How To Set Up A PTZ Camera: Install, Wire, And Configure IP

Getting a PTZ camera out of the box is the easy part. Knowing how to set up a PTZ camera correctly, mounting it, pulling cable, assigning an IP address, and dialing in presets, is where most installations either succeed or stall. Whether you’re adding a camera to a conference room, a house of worship, or a live-production environment, the process involves the same core steps, and skipping any of them usually means a service call later.

A properly configured PTZ camera delivers smooth, remote-controlled coverage that static cameras simply can’t match. But between PoE switches, DHCP reservations, ONVIF discovery, and joystick mapping, there are enough variables to trip up even experienced integrators. This guide breaks the full process into clear, sequential steps, from physical mounting through final image tuning, so you can get it right the first time.

At MegaServices, our technicians install and configure PTZ systems across the U.S. and Canada every week for AV integrators and enterprise clients. This guide reflects hands-on knowledge from thousands of deployments, not spec-sheet theory. Let’s walk through it.

What you need before you start

Before you can work through how to set up a PTZ camera correctly, you need the right materials on-site and the right information in hand. Showing up without a PoE switch that matches your camera’s power draw, or without login credentials for the camera’s web interface, are the most common reasons a one-day install turns into two. Running through this checklist before you touch a ladder saves real time on the job.

Hardware, tools, and cabling

Every PTZ installation requires a specific set of physical components, and the exact list varies based on whether you’re running PoE, separate power, or RS-485 control. At minimum, plan for a PoE+ switch (802.3at) or a dedicated 12V/24V power supply, a Cat6 cable run to the camera location, and a mounting surface rated for the camera’s weight. PTZ cameras are heavier than fixed cameras, so a junction box or ceiling mount rated for at least 15 lbs is standard for most mid-range units.

Here’s a practical pre-install checklist:

Network details and credentials

The network side of PTZ setup trips up more installs than the physical side. You need the camera’s default IP address (usually printed on a sticker inside the box or listed in the quick-start guide), along with the default admin username and password and access to the switch you’re connecting to.

Confirm with the IT administrator before the install whether the camera will use a DHCP-assigned address or a static IP reservation. Walking onto a corporate job site without network access approval adds hours to a simple setup.

You also need to know the IP range of the existing network so you can place the camera on the correct subnet. For example, if the network runs on 192.168.1.x, you’ll target a static IP like 192.168.1.50 with a subnet mask of 255.255.255.0. Ping the target address from your laptop before assigning it to the camera to confirm there are no conflicts already on the network.

Step 1. Choose location and mount the camera

Location dictates everything else in how to set up a PTZ camera. A poor mounting position limits the camera’s range of motion, forces awkward preset angles, and often means you’re back on a ladder within a week making corrections. Before you drill a single hole, walk the space and map the coverage zones you need the camera to reach.

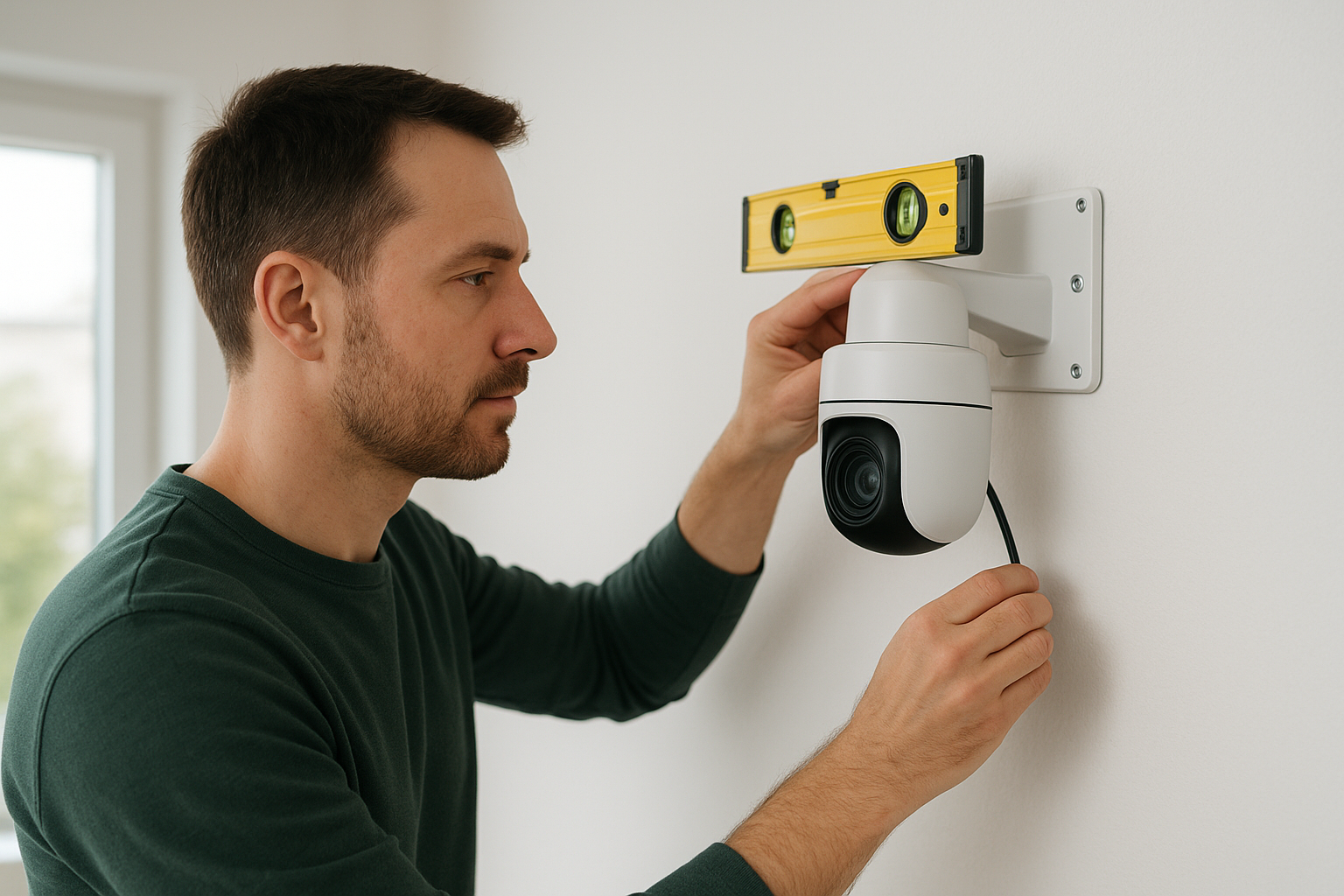

Pick the right mounting position

Height and angle matter more with PTZ cameras than with fixed units because the camera needs clear lines of sight across its full pan and tilt range. For most conference rooms and sanctuaries, a rear-wall mount between 8 and 12 feet high gives you a clean shot toward the front of the room without the lens fighting backlighting from windows. Avoid mounting directly above or below bright light sources, since a PTZ camera pointing into a window loses usable image fast.

If you’re ceiling-mounting, confirm the ceiling structure can support a hard mount point. Drop-ceiling grid tiles will not hold a PTZ camera safely.

Also check for cable routing paths from the mount point to the nearest network closet or equipment rack. A clean, concealed run almost always starts with where you position the camera, not after the fact.

Secure the mount and hang the camera

Start by attaching the wall or ceiling bracket to a structural surface: a stud, a concrete anchor, or a metal backing plate. Use a level before you set any screws. A tilted bracket means every preset the camera saves will look slightly off, and correcting it in software only goes so far.

Once the bracket is locked in, thread your pre-run cable through the mount before attaching the camera head. Hang the camera body onto the bracket, tighten the locking ring or bolts to the torque spec listed in the manual, and do a manual tilt test by hand to confirm the mount is rigid with no play.

Step 2. Wire power, video, and control cleanly

Wiring is where a lot of how to set up a PTZ camera goes wrong. A cable pulled too tight around a corner, terminated sloppily, or routed through the same conduit as high-voltage runs will cause signal degradation and intermittent failures that are frustrating to troubleshoot after the fact. Before you make a single connection, plan the full path from the camera to your rack or switch, and keep every run labeled from the start.

Run the cable and terminate it correctly

Cat6 is the minimum standard for PTZ installations that carry both PoE power and video signal over a single cable. Run the cable with enough slack at the camera end, roughly 12 inches of service loop, so you can re-terminate if a connector fails. Avoid sharp bends tighter than a 1-inch radius, and never staple directly through the cable jacket.

Once your run is in place, terminate both ends using the T568B wiring standard, which is the most common convention in commercial AV and IT environments. Crimp the RJ45 connector, then use a cable tester to confirm continuity on all eight conductors before you connect anything live.

Connect control for RS-485 or VISCA over IP

If your camera uses RS-485 serial control, connect the positive and negative terminals to the matching terminals on your controller or matrix switcher. Polarity matters: reversing the leads produces no response from the camera. Keep RS-485 runs under 4,000 feet and use twisted-pair cable with a drain wire tied to ground at one end only to avoid ground loops.

For most modern installs, VISCA over IP eliminates the need for RS-485 entirely, letting you send pan, tilt, and zoom commands directly through the same Cat6 run that carries your PoE power and video stream.

Step 3. Connect to the network and set the IP

This step is the bridge between physical hardware and a working system. Connecting the camera to the network and assigning a fixed IP address is one of the most critical parts of how to set up a PTZ camera, and doing it in the right order prevents conflicts that are annoying to unravel later. Plug the Cat6 cable into your PoE+ switch port and confirm the camera powers on before you open a browser.

Access the camera’s web interface

Most PTZ cameras ship with a default IP address, typically something like 192.168.1.188 or 192.168.0.20. Check the quick-start guide or the label inside the camera housing to confirm yours. To reach the web interface, set your laptop’s network adapter to a manual IP on the same subnet, for example 192.168.1.100 with a subnet mask of 255.255.255.0, then type the camera’s default IP into a browser.

If the browser does not load the login page, ping the camera’s default IP from a command prompt to confirm you have basic connectivity before adjusting any settings.

Log in with the default admin credentials, then locate the network settings page. The layout varies by manufacturer, but you’re looking for a section labeled "Network," "TCP/IP," or "LAN Settings."

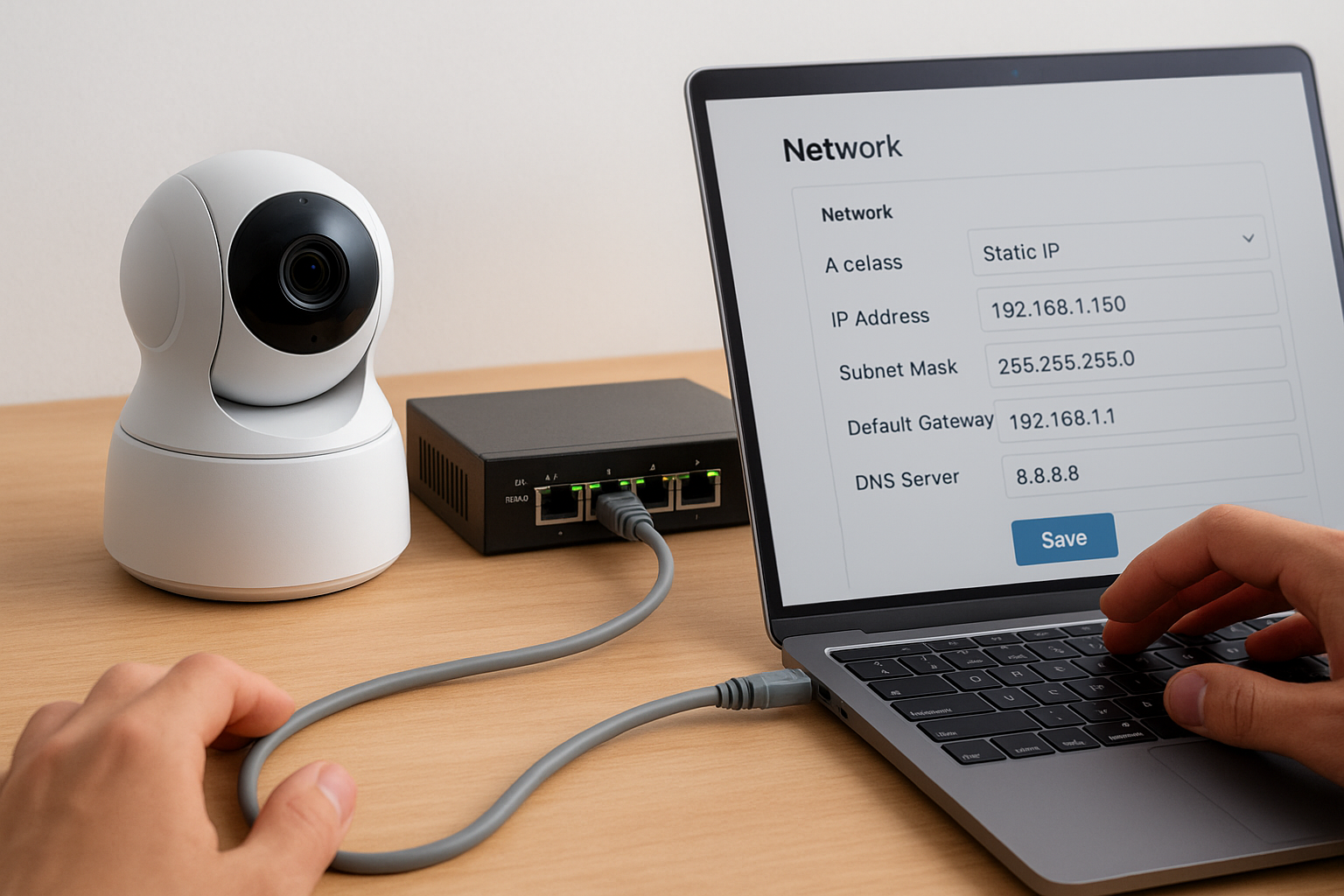

Assign a static IP and confirm connectivity

Once you’re inside the network settings, switch the address mode from DHCP to static and enter the IP address, subnet mask, default gateway, and DNS server values you confirmed with the IT administrator before the install. Apply the settings and let the camera reboot. After it restarts, update your laptop’s adapter back to its original settings, then navigate to the new static IP to confirm the web interface loads correctly.

Run a final ping test from a second device on the same network to verify the camera responds at its new address before you move to the next step.

Step 4. Add the camera to monitoring or streaming

With the camera on the network and holding a fixed IP, the last phase of how to set up a PTZ camera is connecting it to the software or hardware that actually uses the footage. Whether you’re feeding a video management system (VMS), a network video recorder (NVR), or a live-streaming encoder, the process follows the same pattern: point the software at the camera’s static IP address, authenticate with your credentials, and confirm the stream pulls in at the correct resolution before you close out the job.

Add to a VMS or NVR

Most modern VMS platforms and NVRs use ONVIF Profile S as the standard protocol for discovering and adding IP cameras. Open your VMS, navigate to the device or camera management panel, and select "Add Camera" or "Add Device." Enter the camera’s static IP address, username, and password, then select ONVIF as the connection type. The system pulls in the camera’s stream profile options, typically H.264 or H.265 at multiple resolutions.

If your VMS does not auto-detect presets, push PTZ preset positions manually by navigating to the PTZ control panel within the VMS and saving each position there.

After the camera is added, verify both the main stream and sub-stream are available and recording correctly. The main stream handles high-resolution recording, while the sub-stream feeds lower-bandwidth live views on dashboards or mobile apps.

Add to a streaming encoder or software

For live production environments, connect the camera’s RTSP stream directly to your encoder or software, such as OBS Studio or a hardware encoder. The RTSP URL format for most PTZ cameras follows this pattern:

rtsp://[username]:[password]@[camera IP]:554/stream1

Replace the placeholders with your camera’s credentials and IP. In OBS, add a "Media Source" and paste the RTSP URL into the input field. Set the encoder to match the camera’s output resolution, confirm the stream appears in preview, and you’re ready to go live or record.

Quick recap and next step

You now have the full picture of how to set up a PTZ camera from the ground up. You picked a location that gives the camera a clean range of motion, secured the mount to a structural surface, pulled and terminated Cat6 correctly, assigned a static IP address on the right subnet, and connected the stream to your VMS, NVR, or encoder. Each step builds on the last, and cutting corners on any one of them creates problems that show up at the worst possible time.
