How to Terminate a Patch Panel: Step-by-Step Guide

A sloppy patch panel termination causes intermittent link drops, failed certification tests, and callbacks that eat your margin months after the install. If you’re wiring a data closet and need how to terminate a patch panel correctly the first time, you’re in the right place. This guide walks through the exact sequence a certified low-voltage tech follows, from stripping the jacket to seating each conductor in the right IDC slot, so your terminations pass certification testing instead of failing it.

Getting this right means matching wire color codes to the panel’s T568B labeling, maintaining proper untwist length, and using a punch down tool with the correct blade for your connector type. Skip a step and you risk crosstalk, wiremap failures, or a panel that looks clean but tests poorly under a Fluke certifier. We break down each stage so you can terminate with confidence, whether it’s your first patch panel or your fiftieth.

Below you’ll find the tools you actually need, a walkthrough for both punch-down and tool-less panels, and troubleshooting tips for common mistakes like reversed pairs or split pairs. If your team handles structured cabling across multiple sites and needs certified technicians who get terminations right on the first visit, that’s exactly the kind of structured cabling work Mega Services staffs nationwide.

What you’ll need before you start

Gathering the right gear before you touch a single wire saves you from mid-job scrambling and half-finished terminations. You need a punch down tool with both 66 and 110 blades (a Paladin or Platinum Tools unit works fine), a cable stripper sized for Cat5e/Cat6 jackets, diagonal cutters, and a cable certifier or at minimum a simple continuity tester to check your work when you’re done. Don’t skip the tester. A termination that looks perfect can still fail wiremap or NEXT testing if a pair got split.

Beyond tools, you need the right consumables and reference materials on hand. Keep the patch panel’s labeling diagram visible while you work, since panels vary slightly in port layout and IDC block orientation even within the same manufacturer’s product line.

A termination is only as good as the tools and prep behind it, not the speed you finish it in.

Here’s the full checklist to have on your bench or in your bag before you start:

• Punch down tool with 110 blade (and 66 blade if the panel calls for it)
• Cable stripper rated for the cable jacket you’re using
• Diagonal cutters or flush snips
• Cat5e or Cat6 cable, pre-run and labeled at both ends
• Patch panel with visible T568A/T568B color-code legend
• Cable certifier (Fluke or similar) or a basic continuity tester
• Velcro cable ties or hook-and-loop wraps for dressing
• Labels or a label maker for port identification

Check your panel’s documentation for whether it uses T568A or T568B wiring, since mixing the two standards across a run causes wiremap failures even when every individual termination looks clean. Most commercial installs in North America default to T568B, but always confirm rather than assume, especially on retrofit jobs where a previous installer might have used the other standard.

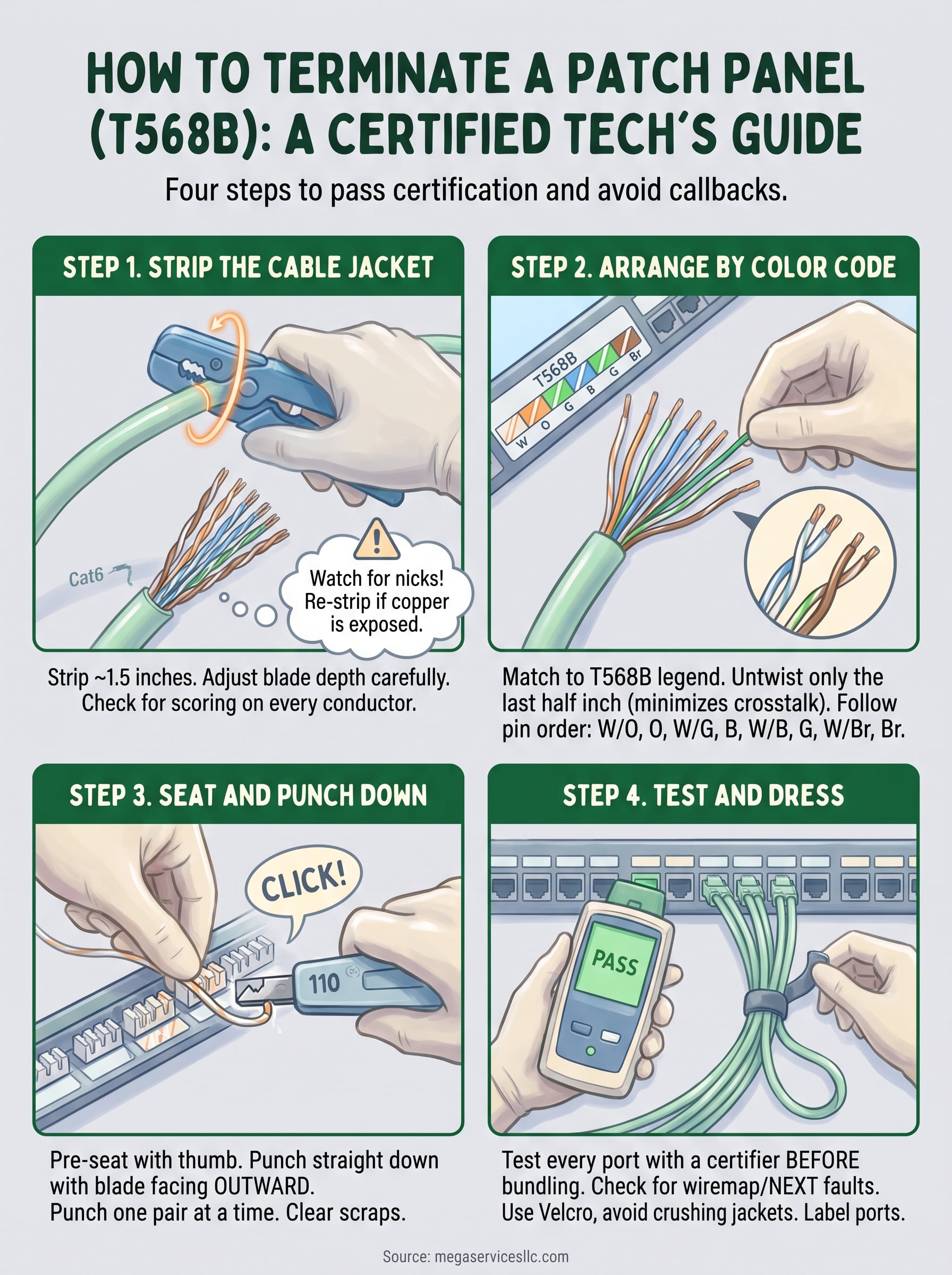

Step 1. Strip the cable jacket

Set your cable stripper to the jacket diameter before you make the first cut. Most Cat5e and Cat6 strippers have an adjustable blade depth, and getting this wrong is the single biggest cause of nicked conductors in a termination job. Aim for a strip length of about 1.5 inches, just enough to expose the twisted pairs without leaving excess jacket dangling near the IDC block.

A nicked conductor inside the jacket won’t show up until the certifier flags a NEXT failure weeks later.

Watch for nicks in the copper

Run the stripper around the jacket once, rotating the cable rather than the tool, then pull the jacket free in one motion. Check every conductor for scoring before you move on:

• Hold the exposed pairs up to a light and look for shiny nicks in the copper
• Re-strip with a fresh cut if you see any exposed copper through the insulation
• Trim the jacket flush, leaving no loose plastic near the termination point

Finish by confirming the pair twists are still intact right up to the cut line. Untwisting too much this early sets you up for crosstalk problems in the next step.

Step 2. Arrange the wires by color code

Once the jacket is stripped, fan the eight conductors out flat against the panel legend so each pair lines up with its labeled slot. Untwist only the last half inch of each pair, since excess untwisting past that point introduces crosstalk that a certifier will catch during NEXT testing. Match every wire to the diagram printed on the panel body, not to memory, because a mislabeled port or an outdated color chart taped to your bag will cost you a callback.

Most commercial jobs use T568B. Confirm which standard your panel and cable run specify, then follow this pin order:

Lay the wires into their IDC grooves in this order before you punch anything down, so you can double-check alignment while everything is still loose and easy to fix.

Step 3. Seat and punch down each wire

Press each wire firmly into its IDC slot with your thumb before you ever bring the punch down tool near it. This pre-seating step keeps the conductor from sliding sideways when the blade comes down, which is how you end up with a wire punched into the wrong groove on a busy job. Verify one more time against the panel legend, then start punching pairs in order rather than jumping around the block.

A wire that shifts half a millimeter during the punch is a callback waiting to happen.

Get the blade orientation right

Orient the punch down tool with the cutting edge facing outward, away from the panel, so the excess wire trims off cleanly instead of tearing loose insulation on the next conductor over. Push straight down with steady pressure until you hear the click, then lift straight up without twisting the tool.

• Seat the wire by hand first, then punch
• Face the blade outward on every strike
• Punch one pair at a time, checking seating depth as you go
• Clear trimmed wire scraps immediately so they don’t foul the next slot

Terminating a patch panel this way, one confirmed wire at a time, is slower than rushing the whole block, but it’s the difference between a clean pass and a reterminate.

Step 4. Test and dress the cables

Once every wire is punched down, run your cable certifier or continuity tester on each port before you move to the next one. Testing as you go beats testing at the end because you catch a wiremap error while the panel is still open and easy to fix, not after you’ve dressed forty cables into a bundle. Check for split pairs, reversed pairs, and opens on every single port, since a panel that passes visually can still fail electrically.

Test each port before you dress the bundle, not after, or you’ll be undoing your own cable management to fix one bad pair.

Confirm the wiremap, then bundle neatly

Run through this sequence for each port before moving to cable management:

• Test for continuity and correct pin mapping on every conductor
• Flag and reterminate any port showing a split pair or wiremap fault
• Label the port to match the drop’s documented ID
• Bundle cables loosely with Velcro ties, avoiding zip ties that can crush the jacket
• Leave a service loop behind the panel for future reterminations

Dress the cables so airflow isn’t blocked and technicians after you can trace a run without guessing. A clean, tested bundle is the visible proof that your patch panel termination work will hold up under load, not just at first glance.

Getting it right the first time

Terminating a patch panel correctly comes down to discipline, not luck. Strip the jacket cleanly, keep your untwist length short, match every wire to the color code before you punch, and test each port before you bundle it. Skip any one of those steps and you’re gambling on a certifier catching what your eyes missed, usually weeks after the closet is closed up and the client’s already using the network.

Experienced techs treat certification testing as part of the termination process, not a final checkbox. That mindset is what separates a panel that passes on the first try from one that generates callbacks. If your projects need that level of consistency across multiple sites, you don’t have to train every crew from scratch. Mega Services staffs certified low-voltage technicians who already terminate to this standard on every job. When you need reliable hands on structured cabling work, book a MegaTech for your next project and skip the guesswork.
