Ceiling Speaker Wiring: How To Wire Ceiling Speakers Right

Getting ceiling speakers installed correctly comes down to one thing: the wiring. You can pick the best speakers on the market, but if you don’t know how to wire ceiling speakers properly, right cable gauge, correct polarity, solid connections, you’ll end up with audio that sounds thin, cuts out, or doesn’t work at all. It’s one of the most common failure points we see in AV installations, and it’s almost always preventable.

At MegaServices, we’ve been deploying certified AV technicians across the U.S. and Canada since 2007, supporting everything from single-room installs to nationwide rollouts. Our techs handle ceiling speaker wiring regularly for integrators, project managers, and service teams who need the job done right the first time. That hands-on experience is exactly what shaped this guide.

Below, we’ll walk you through the full process, from choosing the right speaker wire and planning your cable runs, to making connections at the amplifier and speaker terminals. Whether you’re tackling a straightforward residential install or prepping for a more complex commercial layout, this guide covers the practical steps and common pitfalls to avoid so your ceiling speakers perform the way they should.

Before you start: plan, tools, and code basics

Before you pick up a single tool, good preparation separates a clean installation from a frustrating rework. Knowing how to wire ceiling speakers correctly starts well before you thread any cable through drywall. You need to know your room dimensions, speaker count, amplifier location, and the path your wire will travel from the amp to each speaker position. Skipping this planning step almost always results in running wire the wrong way, creating longer cable runs than necessary, or discovering mid-install that an HVAC duct blocks your only viable route.

Map your room and speaker layout

Grab a tape measure and sketch your room on paper or in a simple notes app. Mark each speaker location at least 2 to 3 feet from side walls for even sound dispersion, and note where your amplifier or AV receiver will sit. From there, calculate your cable run distances for each speaker, then add 10 to 15 feet to every measurement as buffer for routing around obstacles, drops, and termination at both ends.

Always cut your wire longer than the measured distance. Pulling a run short means you’ll either splice in the middle of a ceiling or re-pull the entire run from scratch.

Use this template to plan your runs before you start:

Tools you’ll need on the job

Having the right tools assembled before you start prevents mid-job stops. Going up and down a ladder to find a tool you forgot wastes time and breaks your workflow on a ceiling install. Make sure you have everything on this list ready before you make a single cut:

• Fish tape or fish sticks for pulling wire through walls and ceilings
• Drill with a long flex or spade bit for boring through top plates
• Stud finder to locate joists and hidden obstacles
• Wire stripper and crimping tool for clean terminations
• Non-contact voltage tester to confirm circuits are off before you work near them
• Low-voltage mounting brackets if your cutout won’t grip the speaker housing directly
• Headlamp for working in attic or crawl space areas

Know the code basics before you cut

NEC Article 640 and your local building code govern how speaker wire gets installed inside walls and ceilings. For most residential work, CL2 or CL3 rated in-wall cable is required any time your wire runs inside a finished wall or ceiling cavity. That rating confirms the insulation can handle the heat and physical conditions inside a wall without becoming a fire hazard.

If you’re working on a commercial project, requirements often go further. Plenum-rated cable (CMP) is required in air-handling spaces like drop ceilings used for HVAC return air, and local AHJs can add rules on top of NEC minimums. Contact your local authority having jurisdiction before you start cutting on a commercial site.

Step 1. Choose the right wire and route

The wire you select determines how well your system performs at the far end of every run. When you’re learning how to wire ceiling speakers, the two factors that matter most at this stage are wire gauge and cable route. Getting both right before you pull a single foot of cable saves you from having to redo runs after the ceiling is closed.

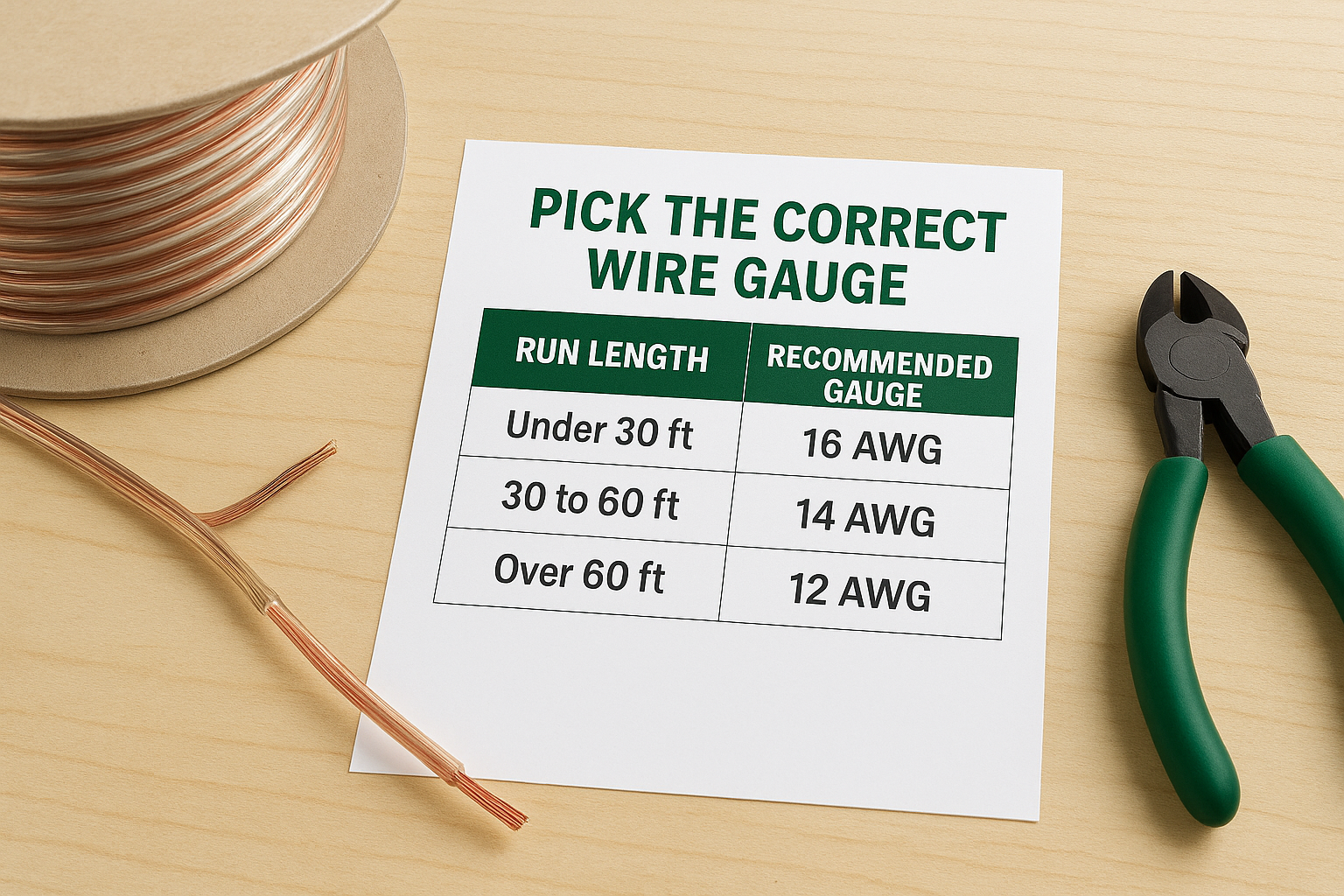

Pick the correct wire gauge

Speaker wire gauge is measured in AWG (American Wire Gauge), and the lower the number, the thicker the wire. Thicker wire carries signal further with less resistance, which matters in ceiling installations where runs can stretch 50 feet or more. Use this chart to match your run length to the right gauge:

Going one gauge thicker than the minimum for your run length protects against resistance-related signal loss, especially in multi-speaker setups.

For in-wall and in-ceiling runs, always use CL2 or CL3 rated cable to meet NEC requirements, as covered in the planning section above. Plenum-rated CMP cable is required in any ceiling cavity used as HVAC return air.

Plan your route before you pull

Before you drill or cut anything, trace your route physically from the amplifier location to each speaker cutout. Your two main options are an attic run above the ceiling or a wall cavity run from below. Attic access is faster when you have it because you can lay cable across the joists without cutting multiple access holes.

Mark every obstacle on your room sketch, including HVAC ducts, structural beams, and electrical conduit. A route that looks direct on paper often requires two or three offsets once you are in the attic looking at the actual structure.

Step 2. Fish wire through ceilings safely

Fishing wire through a finished ceiling is where most first-time installers slow down. The physical process of pulling cable from your amplifier location to each speaker cutout is the most labor-intensive part of learning how to wire ceiling speakers, and the technique you use depends entirely on whether you have attic access above the ceiling.

Work from the attic when you can

Attic access makes this step significantly faster. Start by drilling a small pilot hole through the top plate directly above your wall chase point, then feed your fish tape or pull string down through the wall cavity to the opening at ceiling level. Have a second person at the ceiling cutout to grab the tape and thread the wire through. Once you attach the wire to the fish tape, pull it up slowly and avoid sharp bends that can damage the jacket.

Keep at least 12 inches of wire hanging out at each speaker cutout before you secure the cable. That extra length gives you room to make clean connections at the terminal.

Use cable staples or low-voltage clips rated for in-wall use to secure the wire across the attic joists every 4 to 5 feet. Leaving wire loose across an attic floor creates a trip hazard and can lead to insulation damage over time.

Fishing wire from below without attic access

Without attic access, you’ll need to cut access holes strategically to navigate around ceiling joists. Use a stud finder to map the joist layout, then plan your route to cross the minimum number of joists possible. For each joist crossing, cut a small access hole on the side of the joist, bore through it with a flex bit, and use a wire snake to push the cable through.

Patch all access holes with low-profile drywall patches after the wire is pulled and tested. Leaving open holes in a ceiling cavity affects both appearance and fire rating in finished spaces.

Step 3. Connect speakers and set impedance

Once your wire is pulled and hanging at each cutout, you’re ready to make the actual connections. This is the step where polarity and impedance matter most, because getting either one wrong affects sound quality and can damage your amplifier. Understanding how to wire ceiling speakers correctly means you handle both at the same time, every time.

Match polarity at every terminal

Every speaker has a positive (+) and negative (-) terminal, and your wire has two conductors that need to match at both ends of every run. Most CL2/CL3 speaker wire uses a stripe or ridge on one conductor to mark the positive side. Connect the marked conductor to the positive terminal at the speaker, then trace that same conductor back to the positive terminal on your amplifier channel. Reversing polarity on even one speaker in a multi-speaker setup causes phase cancellation, which makes bass frequencies drop out and stereo imaging collapse.

Check polarity at both ends of every run before you push the speaker into the ceiling. Fixing a reversed connection after the speaker is seated costs you significantly more time.

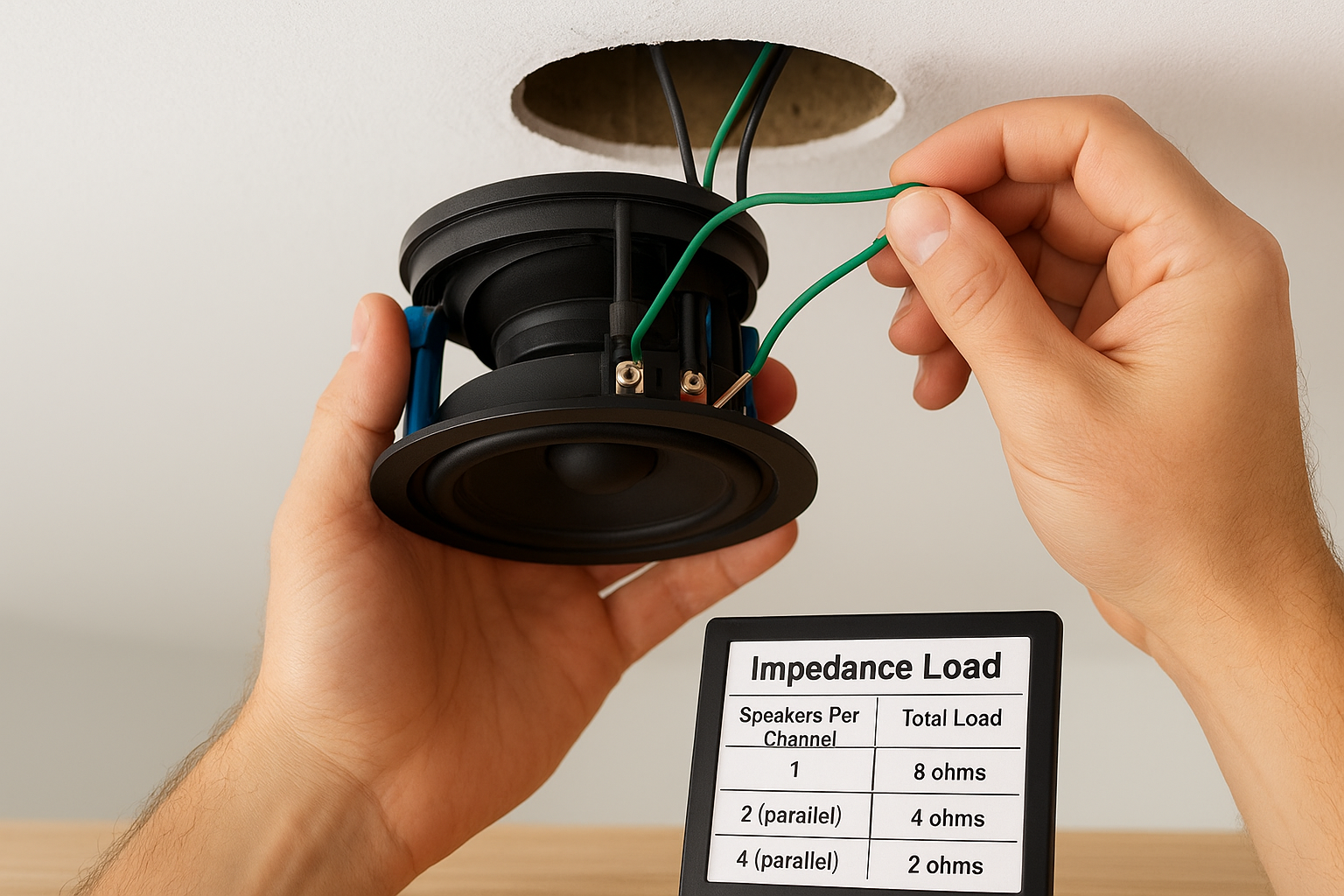

Calculate and manage impedance load

Your amplifier is rated to drive a minimum impedance load, typically 4, 6, or 8 ohms. Each ceiling speaker you wire in parallel cuts the total impedance in half. Use this table to track your load as you add speakers per amplifier channel:

Wiring four 8-ohm speakers in parallel to a channel rated for 4 ohms will overheat your amplifier and trigger protection shutdowns. If your design calls for more speakers per zone than your amplifier can handle, use a speaker selector switch with impedance protection or convert the zone to a 70-volt distributed audio line.

Step 4. Test, label, and finish the install

Testing before you seat the speakers is the step most installers skip when they’re in a hurry, and it’s the step that costs them the most time when something sounds wrong after the ceiling is closed. Running a signal through each channel with the speakers hanging loose lets you catch polarity errors, loose terminations, and impedance issues while you still have easy access to every connection. This is the final checkpoint in knowing how to wire ceiling speakers correctly, and it takes less than ten minutes per zone.

Test each channel before seating speakers

Connect your amplifier and play a mono test tone at low volume through each channel individually. Listen for clear, undistorted output and confirm that paired speakers move in phase with each other. If two speakers facing the same space push and pull in opposite directions, bass cancels out and the sound thins noticeably. Use a 9-volt battery test on any channel you suspect has reversed polarity: touch the positive battery terminal to the positive wire and the negative to the negative. The speaker cone should push outward. If it pulls inward, your polarity is flipped.

Fix any polarity issue before you seat a single speaker, because unseating a mounted speaker to swap terminals adds unnecessary time to the job.

Label every run and seal the cutouts

Labeling your wire runs directly after testing protects the next person who touches this system, whether that’s you six months from now or another technician. Use a label maker or wrap a piece of tape around each run at the amplifier end with a short description: "Kitchen L," "Lobby 3," or "Conference R." This table shows a clean labeling format to follow at the amplifier termination point:

Once labels are on and all connections are verified, seat each speaker into its cutout, secure the mounting hardware, and snap the grille into place. Wipe down the ceiling around each cutout before the grille goes on to remove any drywall dust that settled during the pull.

Wrap-up and next steps

Knowing how to wire ceiling speakers correctly comes down to four things: solid planning, the right cable, clean connections, and a thorough test before you seal everything up. Every step in this guide builds on the one before it, so cutting corners early creates problems that are harder to fix once the ceiling is closed. Follow the sequence, check polarity at both ends of every run, and verify your impedance load before you call the job done.
