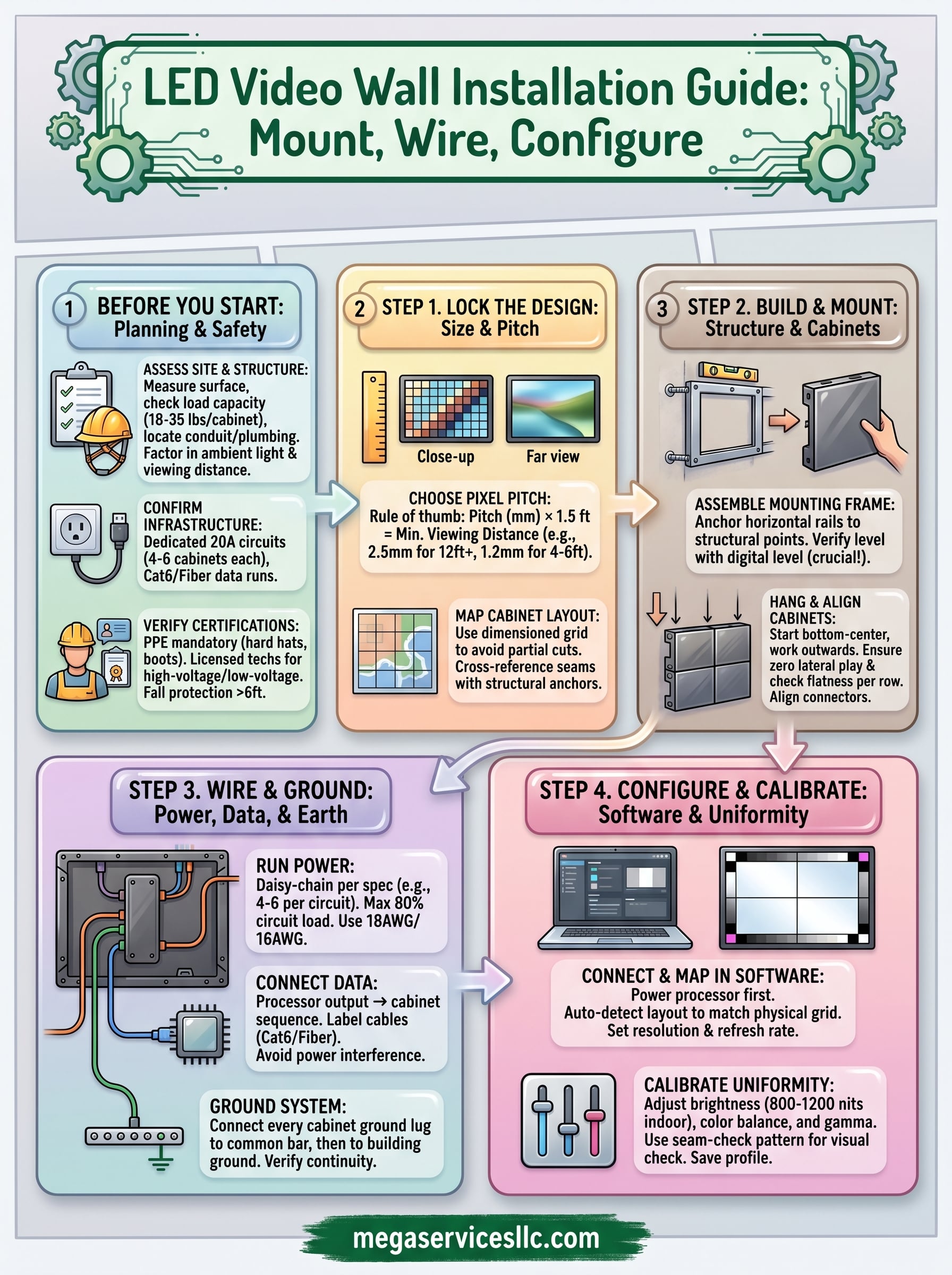

An LED video wall can transform a corporate lobby, command center, or retail space, but only if it’s installed correctly. A poor mount, sloppy wiring, or misconfigured processor will turn a six-figure investment into a maintenance headache. This LED video wall installation guide breaks down the full process so you can plan and execute with confidence, whether you’re handling the project in-house or augmenting your crew with specialized labor.
Getting it right means understanding structural requirements, power distribution, signal flow, and software calibration before a single panel goes on the wall. Skip a step, and you risk dead pixels, uneven seams, or worse, a safety hazard that puts your team and your client at risk. Each phase matters, and they all connect.
At MegaServices, we’ve supported AV integrators on LED video wall projects nationwide since 2007, deploying certified technicians within 24 to 48 hours to fill skill gaps or scale crews for tight timelines. The guide below walks through mounting, wiring, and configuration step by step, giving you a reliable reference whether you’re doing the install yourself or coordinating a team of techs on-site.
Before you start: planning, safety, and requirements
Skipping the pre-installation phase is the fastest way to turn a well-budgeted project into a costly correction. Every step in this LED video wall installation guide depends on decisions you make before a single panel comes off the truck. You need to confirm that your site, structure, power supply, and team credentials can support the system you’re specifying, or you’ll be solving problems mid-install instead of finishing on time.
Assess the site and structural capacity
Start with a physical site survey. Measure the wall or rigging surface that will carry your cabinets and confirm it can handle the total assembled weight. A standard LED cabinet weighs between 18 and 35 pounds, and a wall with 30-plus cabinets adds up fast. Check the wall material, because concrete anchor points behave differently than drywall over steel studs. Note ceiling height for rigging access and locate any existing conduit, plumbing, or electrical runs that could interfere. Document everything with photos and a dimensioned sketch before your crew arrives.
A mounting surface that hasn’t been load-rated for the full installed weight of the display is a safety liability, not just a project risk.
Ambient lighting levels and primary viewing distance also factor in here. Map out where your audience will stand or sit relative to the screen, because those measurements directly influence the pixel pitch decision you’ll make in Step 1.
Confirm power and data infrastructure
Your electrical infrastructure needs to be ready before any cabinets arrive on-site. LED video walls typically require dedicated 20-amp circuits for every four to six cabinets, depending on the manufacturer’s specifications. Confirm panel capacity with a licensed electrician and verify you have enough circuits at the correct locations. Data runs should be Cat6 or fiber, routed cleanly from the processor location to the display without sharp bends or staple damage that can degrade signal quality.
Gather safety gear and verify certifications
Every technician on this install needs the right personal protective equipment (PPE): hard hats, steel-toed boots, and safety harnesses if the mount exceeds six feet. Make sure your crew holds the credentials required for each task. If the scope includes low-voltage cabling or high-voltage electrical connections, those roles require licensed or certified individuals in most jurisdictions. Confirm permit requirements with the local authority having jurisdiction before work begins.
| Task | Minimum Credential |
|---|---|
| High-voltage electrical | Licensed electrician |
| Low-voltage cabling | Low-voltage license (state-dependent) |
| Rigging above 6 ft | Fall protection training |
| AV system commissioning | CTS or manufacturer certification recommended |
Step 1. Lock the design: size, pitch, and layout
Your design decisions at this stage lock in every downstream choice in this LED video wall installation guide, from cabinet count to processor spec. Before you order anything, confirm three numbers: the total display area in square feet, the pixel pitch in millimeters, and the final cabinet layout mapped to the actual wall dimensions.
Choose the right pixel pitch
Pixel pitch sets your minimum viewing distance and drives the entire resolution spec. Use this rule of thumb: minimum viewing distance (in feet) = pixel pitch (in mm) × 1.5. A 2.5mm pitch works well at distances of 12 feet or more, while a 1.2mm pitch suits conference rooms or command centers where viewers sit 4 to 6 feet from the screen.
Ordering the wrong pixel pitch after cabinets arrive on-site means the entire display ships back, burning your project timeline.
Map the cabinet layout
LED cabinets ship in standard sizes, typically 500mm × 500mm or 500mm × 1000mm. Use a dimensioned layout grid to map cabinet positions against your confirmed wall dimensions before you finalize the order. This prevents partial-cabinet cuts and keeps seam alignment clean across the full display.
| Display Environment | Pitch Recommendation | Min. Viewing Distance |
|---|---|---|
| Small meeting room | 1.2 – 1.5mm | 4 – 6 ft |
| Corporate lobby | 2.5 – 3.0mm | 10 – 15 ft |
| Large auditorium | 4.0 – 6.0mm | 20 ft+ |
Cross-reference your cabinet grid against the structural anchor points from your site survey. Any mismatch between cabinet seams and mounting positions forces a redesign that stalls the whole install before it starts.
Step 2. Build the structure and mount the cabinets
With your layout finalized and your site verified, you’re ready to build the frame and start hanging cabinets. This is the most physically demanding phase of any LED video wall installation guide, and the quality of your mounting work directly determines how flat, aligned, and serviceable your display will be for its entire lifespan.
Select and assemble the mounting frame
Most manufacturers supply a dedicated rail or frame system designed for their cabinet series. Use it. Third-party frames may save money upfront but often lack the precision tolerances that keep cabinets flush across a large display. Start by anchoring your horizontal rails to the structural points confirmed in your site survey, using the manufacturer’s specified hardware and torque values. Verify each rail is level with a digital level before moving on, because a rail that’s off by even two millimeters will compound across every cabinet row above it.
A frame that isn’t level and plumb at installation will never produce a flat, seamless display, regardless of how well the cabinets are aligned afterward.
Hang and align the cabinets
Begin mounting cabinets from the bottom center of the layout and work outward and upward. This approach keeps weight distribution balanced and makes seam alignment easier to manage as you build out. Each cabinet should click or bolt securely into the rail with zero lateral play. Use the alignment adjusters on your frame to close any gaps between cabinet edges before tightening fasteners permanently. Check flatness across every row with a straightedge before continuing to the next. Once all cabinets are mounted, confirm that power and data connector ports on adjacent cabinets line up cleanly for the wiring phase.
Step 3. Wire power, data, and grounding the right way
Wiring is where most LED video wall installation guide steps get rushed, and that’s where problems show up six months later. Loose connections, undersized cable, and missing ground paths are the root cause of flickering panels, intermittent outages, and callbacks that destroy your project margin. Take your time here.
Run power to each cabinet
Follow the manufacturer’s power daisy-chain map exactly. Most systems allow you to chain four to six cabinets per circuit, but that limit varies by cabinet wattage, so verify against the spec sheet before you start. Run 18AWG or 16AWG power cable between cabinets depending on the total circuit load, keeping cable runs as short as possible to reduce voltage drop across the chain.
Never exceed 80 percent of a circuit’s rated amperage across all connected cabinets.
Connect data cables and signal chain
Start your data connections from the processor output port and work cabinet by cabinet through the display in the sequence the manufacturer specifies. Most modern systems use RJ45 connections carrying proprietary or standard protocols, so label each cable at both ends before you terminate it. This saves significant troubleshooting time if you need to trace a signal issue later. Keep data cables away from power runs where possible, or use shielded Cat6 to reduce interference.
| Cable Type | Typical Use | Max Recommended Run |
|---|---|---|
| Cat6 unshielded | Short data runs indoors | 100 ft |
| Cat6 shielded (STP) | Runs near power cables | 100 ft |
| Fiber | Long runs or high EMI environments | 300 ft+ |
Ground the system correctly
Connect every cabinet’s ground lug to a common ground bar mounted on the frame, then run a single ground wire from that bar to the building’s dedicated ground point. Floating grounds produce hum bars and pixel noise that look like a software problem but are purely electrical. Verify continuity on every ground connection with a multimeter before powering the system on.
Step 4. Configure the processor and calibrate the wall
With power confirmed and every data cable seated, you’re ready to bring the display to life. Processor configuration and calibration are the final technical steps in this LED video wall installation guide, and they determine whether your wall looks polished or amateur. Rush this phase and you’ll hand a client a display with color banding, brightness hotspots, or seams that are visible across the room.
Connect and map the display in software
Power on the video processor first, then bring up the cabinets. Open the manufacturer’s control software and run the auto-detect function to let the system identify every connected cabinet. Confirm the detected layout matches your physical cabinet grid before saving any configuration. If a cabinet shows offline, check the data connection at that cabinet’s input port before assuming the panel is defective.
A single unplugged or reversed data cable will take down every cabinet downstream of it in the signal chain, not just the one at the fault point.
Once the layout is confirmed, input your source resolution and refresh rate into the processor settings. Most LED processors run best at a refresh rate of 3840Hz or higher for broadcast and live event environments, while 1920Hz works for static signage applications.
Calibrate brightness, color, and seam uniformity
Run the onboard calibration tool with a full-white test pattern loaded on screen. Set your peak brightness to match the ambient light level in the space, typically 800 to 1200 nits for indoor environments with controlled lighting. Adjust gamma and white balance using the processor’s color management controls until the display looks uniform from corner to corner. Finish with a seam-check pattern, such as a fine horizontal grid, to confirm no cabinet edges are visually proud or recessed. Document your final settings and save them to a named profile in the processor before powering down.
Ready to hand it off
Following this LED video wall installation guide from site survey through calibration puts you in a position to hand off a display that works correctly from day one. You’ve confirmed the structure, locked the layout, wired every cabinet to spec, and saved a verified processor profile. Your client gets a system that’s documented, calibrated, and ready for daily use, not a wall that looks fine at acceptance and fails three weeks later.
