Low Voltage Cabling Standards: TIA, BICSI, NEC, NFPA

Every cable pull, termination, and pathway decision on a commercial AV or IT project is governed by a set of low voltage cabling standards that most end users never think about, but that technicians and integrators can’t afford to ignore. These standards, published by organizations like TIA, BICSI, NEC, and NFPA, define everything from minimum bend radius and fire ratings to testing procedures and pathway separation requirements.

At MegaServices, our nationwide network of over 2,000 vetted technicians handles structured cabling work across the United States and Canada, and standards compliance is non-negotiable on every job site we support. Whether we’re augmenting your crew for a single install or staffing a multi-site rollout, our techs show up trained on the codes and specs that matter. That firsthand experience is exactly why we put this guide together, to give project managers, AV integrators, and service coordinators a clear reference they can actually use.

This article breaks down the major standards bodies, explains how their guidelines overlap and differ, and covers the specific codes you need to know to keep your low voltage installations compliant, safe, and built to last.

What counts as low voltage cabling

The term "low voltage" gets used loosely in the field, but it has a specific technical meaning that shapes how you design, install, and inspect your cabling systems. In the United States, the National Electrical Code (NEC) defines low voltage circuits as those operating at 50 volts or less, though some classifications extend this threshold depending on the circuit type and application. Knowing exactly which category your cabling falls into determines which code articles apply and what installation methods are acceptable on your job site.

Voltage thresholds and NEC classifications

Under the NEC, low voltage wiring falls primarily under Article 725, which covers Class 1, Class 2, and Class 3 remote-control, signaling, and power-limited circuits. Class 2 and Class 3 circuits, the ones most relevant to AV and IT installations, operate at inherently limited power levels that reduce shock and fire risk, which is exactly why they carry different installation rules than standard electrical wiring. These distinctions affect conduit fill, separation from power conductors, and fire-rating requirements for the cables you specify on a project.

The difference between a Class 2 and Class 3 circuit often determines whether your cable can share a conduit with other wiring or must run in a dedicated pathway.

Common low voltage system types

Your AV and IT projects will regularly touch several low voltage cabling categories across a single job site. Structured data cabling (Cat5e, Cat6, Cat6A), fiber optic runs, coaxial cable, speaker wire, and AV control wiring all fall under the low voltage umbrella. Common system types include:

• Data networking: Cat5e, Cat6, Cat6A, and fiber optic
• AV distribution: coaxial cable, HDMI extender cabling, and speaker wire
• Building systems: access control, security, and building automation wiring

Security and building automation cabling follows the same low voltage cabling standards as your AV install, so understanding the full scope keeps every trade on your project compliant from the start.

Why low voltage cabling standards matter

Following low voltage cabling standards isn’t just about passing inspections. Non-compliant installations create measurable liability for your business, delay project closeouts, and put building occupants at risk when a fire-rated cable fails to perform as intended. The consequences of skipping a plenum rating or misrouting a cable pathway show up as failed audits, costly rework orders, and in serious cases, safety incidents that your company owns.

A single non-compliant cable run in a plenum space can trigger a full remediation order that shuts down work across an entire floor.

Safety, liability, and project acceptance

Every jurisdiction that adopts the NEC and NFPA 70 holds your installation team legally accountable for the work they perform. When your cabling runs through air-handling spaces, fire-rated walls, or occupied buildings, the jacket rating and pathway separation requirements you follow directly affect occupant safety and your company’s exposure to liability claims.

General contractors and facility owners require documented standards compliance before they accept a completed installation and release final payment. Staying current with BICSI and TIA specifications also protects your manufacturer warranties, since many vendors void coverage on components installed outside their certified guidelines.

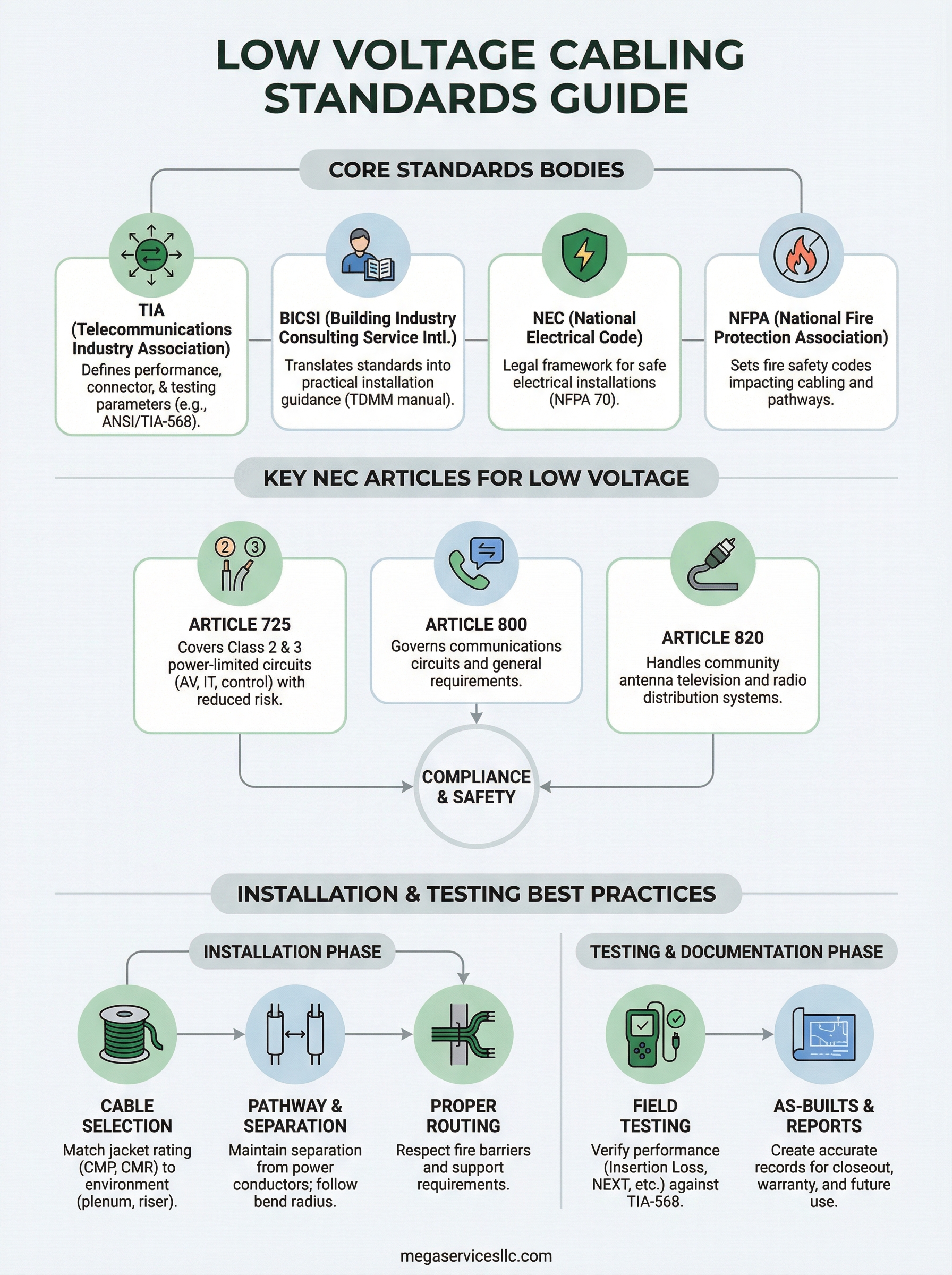

The main standards and codes to know

Four organizations publish the low voltage cabling standards that govern the majority of commercial AV and IT installations in the United States. Understanding what each body covers helps you apply the right spec at the right stage of your project, rather than treating every code document as interchangeable.

TIA and BICSI guidelines

The Telecommunications Industry Association (TIA) publishes ANSI/TIA-568, which defines cabling performance categories, connector types, and testing parameters for structured cabling systems. BICSI (Building Industry Consulting Service International) translates those standards into practical installation guidance through its TDMM manual, covering pathway design, cable management, and grounding practices. These two bodies work in parallel: TIA sets the performance bar, and BICSI tells your team how to meet it on site.

NEC and NFPA codes

Published by NFPA as NFPA 70, the National Electrical Code (NEC) is the legal framework that most jurisdictions adopt into local law. Article 800 covers communications circuits, Article 820 handles coaxial cable, and Article 725 addresses power-limited signaling circuits. Your installation must satisfy the NEC before a jurisdiction will approve an inspection, regardless of which TIA or BICSI spec your design follows.

Always confirm which NEC edition your local jurisdiction has adopted, since requirements can vary by several code cycles.

How to plan and install to meet standards

Meeting low voltage cabling standards starts well before the first cable leaves the spool. Your planning phase needs to account for pathway routing, fire barrier penetrations, and cable ratings before any field work begins, because fixing compliance gaps after installation costs far more time and money than addressing them at the design stage.

Getting your cable schedule and pathway drawings reviewed and approved before mobilizing your crew eliminates the most common causes of rework.

Select the right cable for each environment

Cable jacket ratings determine where your cable can legally run. CMP-rated (plenum) cable is required in air-handling spaces, while CMR-rated (riser) cable applies to vertical shaft runs between floors. Matching the correct jacket type to each pathway segment is a required step you cannot skip in your pre-installation planning process.

Follow separation and bend radius rules

Separation from power conductors protects your signal cables from interference and keeps your installation code-compliant. You must maintain minimum separation distances between low voltage runs and electrical conduit, particularly in shared pathways, and document your routing decisions as you go. Every cable turn also needs to respect the manufacturer’s minimum bend radius to avoid performance degradation and failed test results at closeout.

Inspection, testing, and documentation

Completing the physical install is only part of meeting low voltage cabling standards. Every run you pull needs to pass field testing before your project closes, and you need documentation that proves it. Inspectors and general contractors will not accept verbal confirmation as a substitute for test reports and as-built drawings.

Your closeout package is only as strong as the test data and documentation backing it up.

Testing your cable runs

Field certification testers let you verify that each cable link meets the performance parameters defined in TIA-568. For copper runs, you test parameters including insertion loss, return loss, and NEXT to confirm the link performs at the specified category level. Fiber runs require optical power loss testing to confirm acceptable signal levels across each span.

Common parameters you’ll test on copper links:

• Insertion loss
• Return loss (RL)
• Near-end crosstalk (NEXT)
• Propagation delay and delay skew

Documentation requirements

Your project closeout package must include test reports, as-built drawings, and pathway records that show exactly how and where every cable runs. Keep your records organized by location and circuit type so that facility managers and future technicians can maintain the system without starting from scratch. Accurate documentation also protects your company if questions arise after project acceptance.

Next steps

Low voltage cabling standards give your team a clear set of rules that protect the safety of every building your work touches and the professional reputation of every project you close. The codes and guidelines covered here, from NEC Articles 725, 800, and 820 to TIA-568 performance testing and BICSI installation practices, work together as a system. Treating them as separate checklists instead of a unified framework is where most compliance gaps start.
