Network Cable Installation Standards: Codes, Layout, Testing

Every AV integration or low voltage project depends on one thing before anything else: cabling done right. Network cable installation standards exist to define what "done right" actually means, covering everything from conductor specifications and pathway layouts to testing thresholds and fire-safety compliance. Standards like ANSI/TIA-568 and ISO/IEC 11801 aren’t suggestions; they’re the technical baseline that determines whether a system performs reliably or fails under load.

At MegaServices, our nationwide network of over 2,000 vetted technicians handles structured cabling and AV installations across the U.S. and Canada. We see firsthand what happens when standards are followed, and when they aren’t. Poorly installed cable infrastructure creates signal degradation, failed inspections, and costly rework. Projects that reference the correct codes from day one avoid those problems entirely.

This article breaks down the major standards governing network cable installation, including code requirements, layout best practices, and testing protocols. Whether you’re managing a single site buildout or coordinating a multi-location rollout, you’ll walk away with a clear understanding of the guidelines your cabling work needs to meet, and why cutting corners on compliance is never worth the tradeoff.

What counts as a network cable installation standard

A network cable installation standard is a formally documented set of rules that defines how cabling must be designed, installed, tested, and maintained to function reliably and safely. These standards come from several different sources, including standards development organizations (SDOs), national code bodies, and government regulators, and they don’t all cover the same territory. Some focus on the electrical and signal performance of the cable itself. Others govern how you route cable through a building, how you protect it from fire hazards, or how you document the finished installation. Understanding where each standard comes from, and what it controls, determines whether your project will pass inspection and perform as designed.

Technical specifications for materials and performance

Technical standards define the measurable performance requirements for cable categories, connectors, patch panels, and the complete channel from one endpoint to another. They specify parameters like insertion loss, return loss, crosstalk, and impedance, all of which determine whether a copper or fiber run can actually carry the data rates it’s supposed to support. When you install Category 6A horizontal cable to a workstation outlet, for example, the standard tells you the maximum channel length, the minimum bend radius, and the connector insertion requirements your link must meet before it’s considered compliant.

These specifications apply to the physical components and the installed system together, not just the products you buy off the shelf. A cable that’s rated for 10 Gigabit Ethernet at the factory can fail those same parameters after installation if your technicians pull it around tight corners, bundle it too tightly, or terminate it incorrectly. The standard is the benchmark your finished work gets measured against, not the equipment box it came in.

Regulatory and safety codes

Beyond technical performance, building and safety codes control how cabling integrates with the construction and fire protection systems of a facility. The National Electrical Code (NEC), published by the National Fire Protection Association, is the primary regulatory reference in the United States for low voltage cabling. It specifies plenum versus riser versus general-use cable ratings, dictating which jacket compounds are permitted in air-handling spaces, vertical shafts, and standard building cavities.

Ignoring the NEC’s cable jacket requirements isn’t just a compliance risk; it’s a life safety failure that can result in permit rejection, project shutdown, or liability after a fire event.

Local jurisdictions adopt the NEC on their own schedules and sometimes amend it, so your project team needs to verify which edition and which local amendments apply at each job site. This is especially important for multi-site deployments across different states, where the adopted code version and local amendments can differ significantly from one city to the next.

Industry best practices vs. enforceable requirements

Not everything labeled a "standard" carries the same legal weight. ANSI/TIA standards, for instance, are voluntary industry consensus documents. They become enforceable on your project only when a contract, specification, or local code references them directly. Without that reference, they function as best practices rather than binding rules.

Enforceable requirements on your project typically come from three places: the contract specifications your client has written, the building codes adopted by the local authority having jurisdiction (AHJ), and any federal or industry-specific regulations that apply to the facility type. A data center, a hospital, and a school each carry a different compliance stack even if they’re in the same city, so you need to identify all three layers before your first cable hits a pathway.

The key standards and how they relate

Two documents sit at the center of network cable installation standards used in commercial and institutional settings: ANSI/TIA-568 and ISO/IEC 11801. Both address structured cabling systems, but they originate from different standards bodies, apply to different geographic markets, and organize their requirements in distinct ways. Knowing how they overlap and where they diverge helps you determine which one your project specification will reference and what that means for your installation team.

ANSI/TIA-568: The U.S. commercial cabling standard

ANSI/TIA-568 is published by the Telecommunications Industry Association and approved by the American National Standards Institute. It covers horizontal cabling, backbone cabling, work area components, and telecommunications rooms for commercial buildings. The current series includes TIA-568.0 for generic requirements, TIA-568.1 for structured cabling topology, and component-specific standards like TIA-568.2 for balanced twisted-pair cabling and TIA-568.3 for optical fiber cabling.

The standard sets maximum horizontal cable distances (90 meters for the permanent link, 100 meters for the full channel), minimum component performance thresholds by category, and the testing parameters your field technicians must verify before a link qualifies as compliant.

Meeting ANSI/TIA-568 on a project doesn’t just satisfy your client’s specification; it gives you a documented, testable baseline that protects your team if system performance disputes arise after handoff.

ISO/IEC 11801: The international framework

ISO/IEC 11801 serves as the international equivalent for generic cabling in customer premises. Published jointly by the International Organization for Standardization and the International Electrotechnical Commission, it uses a class and category system that maps closely to but isn’t identical to the TIA category naming. Class EA, for example, roughly corresponds to TIA’s Category 6A, but the specific channel performance limits don’t always align one-to-one.

Projects outside the United States, particularly in Europe and Asia-Pacific, will typically reference ISO/IEC 11801 rather than ANSI/TIA. If your firm manages international deployments or works with multinational clients who specify a single global standard, your technicians need to recognize which class requirements apply and test to those exact parameters. Treating the two frameworks as interchangeable without verifying the specific limits can produce certification failures at final inspection.

Code and safety requirements you must follow

Network cable installation standards address performance, but code requirements address safety, and the two operate on different enforcement tracks. Your project can meet every TIA channel length and loss specification and still fail inspection if your team used the wrong cable jacket type in a plenum space or left a pathway penetration unsealed. Understanding which codes apply at each site before installation begins is what separates projects that close on time from those that end with rework orders and permit holds.

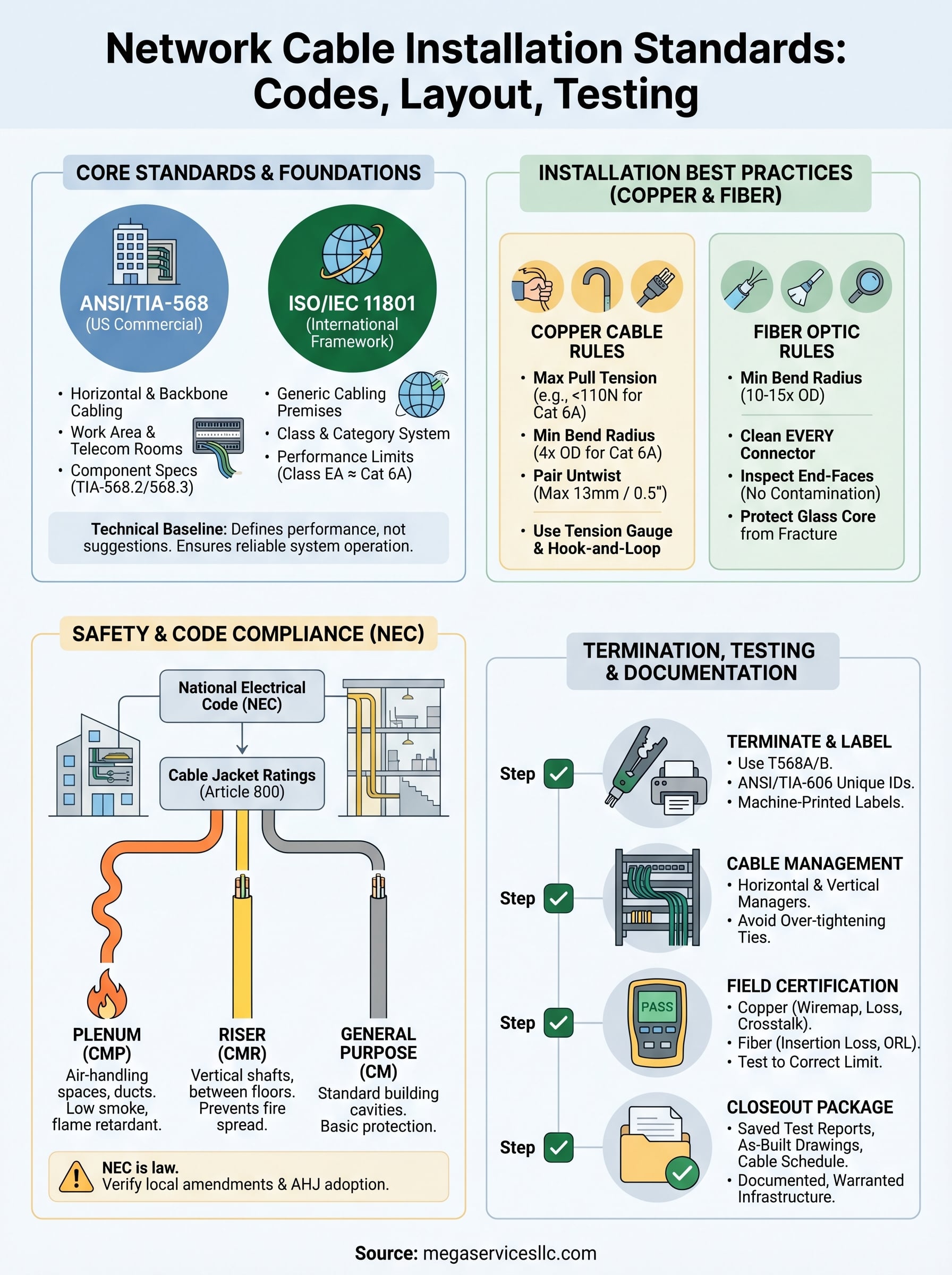

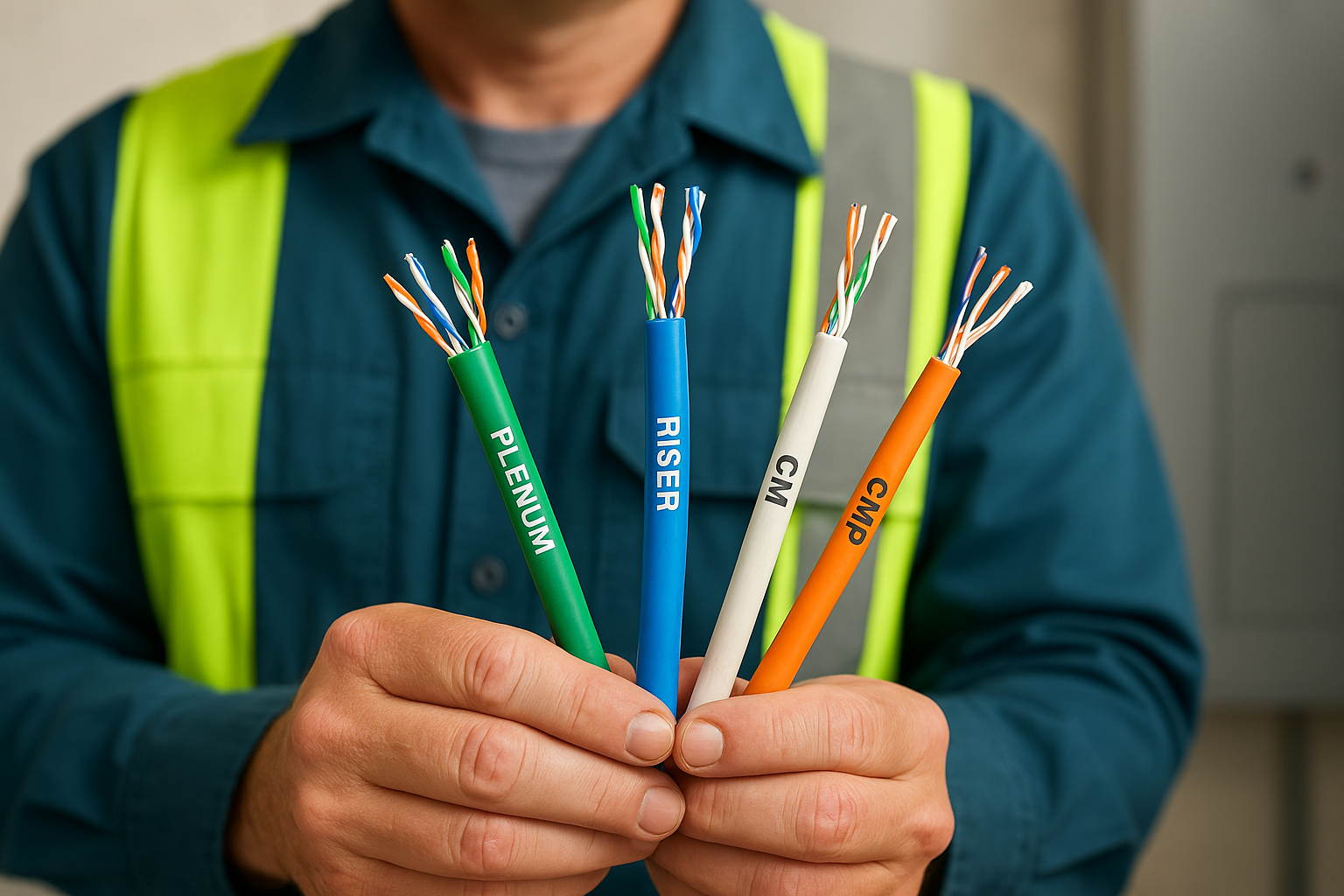

The National Electrical Code and cable jacket ratings

The National Electrical Code (NEC), maintained by the National Fire Protection Association, is the governing document for low voltage cabling installation in the United States. Article 800 covers communications circuits and defines the three primary cable jacket ratings your team must select from based on where the cable runs: plenum (CMP), riser (CMR), and general purpose (CM). Each rating reflects how the jacket material behaves when exposed to fire, specifically how much toxic smoke it produces and how far a flame travels along the cable.

Installing riser-rated cable in a plenum air-handling space is a code violation that puts occupants at risk and exposes your client to liability the moment an inspector or adjuster reviews the installation.

Plenum spaces are any areas used to return conditioned air, which includes many dropped ceiling cavities in commercial buildings. If your cable route passes through those areas, CMP-rated cable is required, not optional. Selecting the correct jacket type starts with reading the building drawings and confirming the ceiling and shaft classifications before you order materials.

Local amendments and authority having jurisdiction

The NEC is a model code, meaning each local jurisdiction adopts it independently and may modify it. The version in effect in one city may lag one or two full code cycles behind another, and local amendments can add requirements that go beyond the base document. Your team needs to verify the current adopted edition and any local changes with the authority having jurisdiction (AHJ) before work begins on every project site.

For multi-site deployments across several states, tracking these differences becomes a project management task in itself. Build a simple checklist that captures the adopted NEC edition, relevant local amendments, and AHJ contact information for each site before your technicians mobilize. That groundwork prevents compliance surprises during rough-in inspection.

How to design a compliant cable layout

A compliant cable layout starts on paper before your crew ever touches a cable tray or conduit. Network cable installation standards give you the performance limits and pathway rules you need to build a design that will pass both testing and inspection, but the layout decisions you make during planning determine whether your technicians can actually install to those standards in the field. Getting this phase right reduces change orders, avoids rework, and keeps your project on schedule.

Start with telecommunications room placement and cable distances

ANSI/TIA-568.1 sets the horizontal cabling distance limit at 90 meters for the permanent link, from the telecommunications room (TR) to the work area outlet. That 90-meter rule is your primary driver for TR placement. On large floor plates or multi-story buildings, map your farthest outlet locations first and then work backward to determine where each TR must sit to serve every work area within the limit.

Your design should also account for backbone pathways connecting TRs to the main distribution area (MDA) or intermediate distribution area (IDA). Plot those routes on your building drawings early, because backbone conduit and tray requirements differ from horizontal pathways, and conflicts with mechanical or electrical systems are far easier to resolve at the design stage than during installation.

Skipping detailed TR placement calculations and assuming your runs will fit inside the distance limit is one of the most common causes of channel failures on large commercial projects.

Separate cable pathways from power sources

Low voltage cabling and power circuits must maintain separation to prevent electromagnetic interference from degrading signal performance. The NEC and TIA both address pathway separation, and your layout design needs to reflect those requirements before any conduit or tray gets installed. For unshielded twisted-pair copper cable running parallel to power lines, a minimum separation of 12 inches is the standard reference point, though closer proximity is acceptable with shielded cable or physical barriers depending on the voltage level and run length.

Mark shared pathway conflicts on your floor plan wherever your cable routes cross or run adjacent to electrical conduit, fluorescent lighting fixtures, or HVAC motors, all of which generate interference. Resolving those conflicts during the design phase takes minutes; fixing them after rough-in takes hours and money.

How to install copper and fiber the right way

Installation technique is where network cable installation standards move from document to physical reality. A cable that meets spec on the shelf can fail channel certification if your crew pulls it incorrectly, exceeds its bend radius, or applies too much tension during the pull. The rules governing copper and fiber installation are specific and measurable, which means your technicians need to know the exact limits before they start work, not after a certification failure surfaces during final testing.

Copper cable: pull tension, bend radius, and pair untwist limits

Unshielded twisted-pair copper cable has strict pull tension limits that vary by cable category. Category 6A cable, for example, has a maximum pulling tension of 110 Newtons (approximately 25 pounds-force). Exceeding that limit during a long or complex pull stretches the conductors, distorts the pair geometry, and permanently degrades the cable’s crosstalk performance. Use a tension gauge on long runs and pull from the reel end, never the box end, to prevent kinking.

A single over-tensioned pull that damages 90 meters of installed Category 6A cable costs far more to replace than the time it takes to set up a proper pull correctly.

Bend radius is the other critical variable on copper runs. The installed minimum bend radius for Category 6A is four times the cable’s outer diameter. Anywhere your route changes direction, including cable tray corners, J-hooks near outlet boxes, and entry points into telecommunications rooms, your team must verify the bend meets that minimum. Tight bends that exceed the limit cause the same crosstalk degradation as over-tension, and both failure modes show up clearly on a field certification tester.

Fiber optic cable: handling, routing, and connector hygiene

Fiber optic cable requires a different discipline than copper because the failure modes are physical rather than electrical. The minimum bend radius for most multimode and singlemode fiber is ten times the cable diameter during installation and no less than fifteen times under tension. Exceeding these limits fractures the glass core, producing insertion loss readings that fail certification and may not be visible to the eye.

Connector contamination is the leading cause of fiber link failures in the field. Clean every connector and adapter port with an appropriate fiber optic cleaning tool before you mate any connection, and inspect each end with a fiber inspection scope before final testing. Skipping this step produces intermittent failures that are far harder to diagnose after patch panels and equipment are fully loaded.

Termination, labeling, and cable management rules

Termination, labeling, and cable management are where many otherwise solid installations fall apart. You can pull cable correctly, maintain bend radius throughout every run, and still produce a system that fails certification or creates long-term maintenance problems if you rush through the final steps. Network cable installation standards address all three areas with specific requirements, and treating them as afterthoughts rather than technical disciplines is a reliable way to generate rework.

Termination techniques for copper and fiber

Pair untwist at termination is the most common copper failure point. ANSI/TIA-568.2 limits the maximum untwist at each termination to 13 millimeters (approximately half an inch) for Category 6 and 6A. Beyond that limit, the pair geometry that controls crosstalk performance breaks down, and your channel test will show it. Terminate to 110-style punch-down blocks or keystone jacks using the correct T568A or T568B wiring scheme consistently across the entire installation; mixing schemes on the same project creates continuity failures and troubleshooting confusion.

Fiber termination requires clean cleaves, proper epoxy cure or mechanical alignment depending on the connector type, and end-face inspection before every connection is made. Polished connector end-faces must meet the return loss and insertion loss thresholds your certification tester will verify. Any contamination or surface defect on the ferrule end-face produces loss readings that fail the link, so clean and inspect every connector before you call a run complete.

Labeling requirements and conventions

ANSI/TIA-606 is the administration standard that governs how you identify cables, panels, outlets, and spaces in a structured cabling system. Every cable must carry a unique identifier that connects it to the corresponding records in your documentation package, and every label must be durable enough to remain legible for the life of the installation.

A cable plant without consistent labeling forces every future technician to trace infrastructure manually, which turns routine moves and adds into multi-hour diagnostic sessions.

Use printed labels rather than handwritten ones on permanent installations. Handwriting fades, smears, and varies in legibility across a large project. Machine-printed labels applied at both ends of each cable, including on patch panel ports and outlet faceplates, give your client a system they can actually manage after you leave the site.

Cable management and pathway organization

Horizontal cable management panels and vertical wire managers in telecommunications rooms keep patch cables routed cleanly, protect connections from accidental stress, and allow technicians to work in the rack without disturbing adjacent runs. Your design should allocate one horizontal manager per patch panel row as a baseline and add vertical managers wherever your cable density requires it.

Bundling copper cable with nylon tie wraps torqued too tightly crushes the outer jacket, deforms the pair geometry, and degrades channel performance in the same way an over-tensioned pull does. Use hook-and-loop fasteners on horizontal cable runs and tighten any tie wraps to finger-snug only, never to the point where the cable bundle deforms under the fastener.

Testing, certification, and documentation

Testing is the step that converts completed cable installation work into verifiable, documented evidence that your system meets the standard it was built to. Without field certification, you have cable in the wall. With it, you have a compliant, warranted infrastructure that your client can rely on and that protects your team if performance disputes arise. Network cable installation standards define exactly what parameters your finished links must meet, so your testing process needs to match those specifications precisely.

Field certification testing for copper and fiber

Field certification testers from manufacturers like Fluke Networks perform automated test suites that measure every relevant channel parameter: wiremap, length, insertion loss, return loss, near-end crosstalk (NEXT), and far-end crosstalk (FEXT), among others. For copper links, you select the appropriate test limit in the tester’s library before you run a single measurement. A Category 6A channel test limit is not the same as a Category 6 limit, and selecting the wrong one produces results that mean nothing during acceptance review.

Running tests against the wrong limit and handing your client a "pass" report is worse than running no test at all, because it creates a false record that will surface during any future audit.

Fiber certification requires measuring insertion loss and, on singlemode links, optical return loss (ORL). Use an OLTS (Optical Loss Test Set) for loss measurement and an OTDR for fault location on longer backbone runs. Your test method, whether single-ended or dual-ended, must match the method your project specification references, because the two produce different loss budgets and are not interchangeable in your report.

Documentation and test reports

Every link you test must produce a saved result that ties directly to your labeling and cable schedule. Your certification tester stores individual pass/fail records with the link ID, date, technician ID, and measured values for each parameter. Export those records and deliver them to your client as part of the project closeout package, alongside your as-built drawings, cable schedule, and any splice or connector records for fiber runs.

A complete documentation package lets your client’s IT or facilities team manage the infrastructure for years without retracing cable manually. It also gives your firm a clear record if a warranty claim or performance question comes up after project handoff.

Next steps for a clean, testable install

Network cable installation standards give your project a measurable finish line: every link either meets the specified parameters or it doesn’t. The path to getting there is the same on every job: design to the correct TR placement and distance limits, install copper and fiber within their physical handling specifications, terminate pairs with minimal untwist, label every cable consistently, and run field certification tests against the correct category limit before you close out the project.

Your documentation package is what converts finished cabling into a verified, maintainable asset your client can manage for years. Build your test records, as-built drawings, and cable schedule as you go rather than at the end, and you’ll avoid the scramble that derails most closeout timelines. If your team needs certified AV and structured cabling technicians who work to these standards across the U.S. and Canada, submit an information request to MegaServices and tell us what your project requires.
