Network Rack Installation Guide: Set Up, Mount, And Wire

A poorly built rack creates problems that compound over time, overheating equipment, tangled cables that turn a simple swap into an hour-long ordeal, and troubleshooting nightmares that slow down entire teams. Whether you’re outfitting a server closet or building out AV infrastructure across multiple sites, a solid network rack installation guide saves you from those headaches before they start.

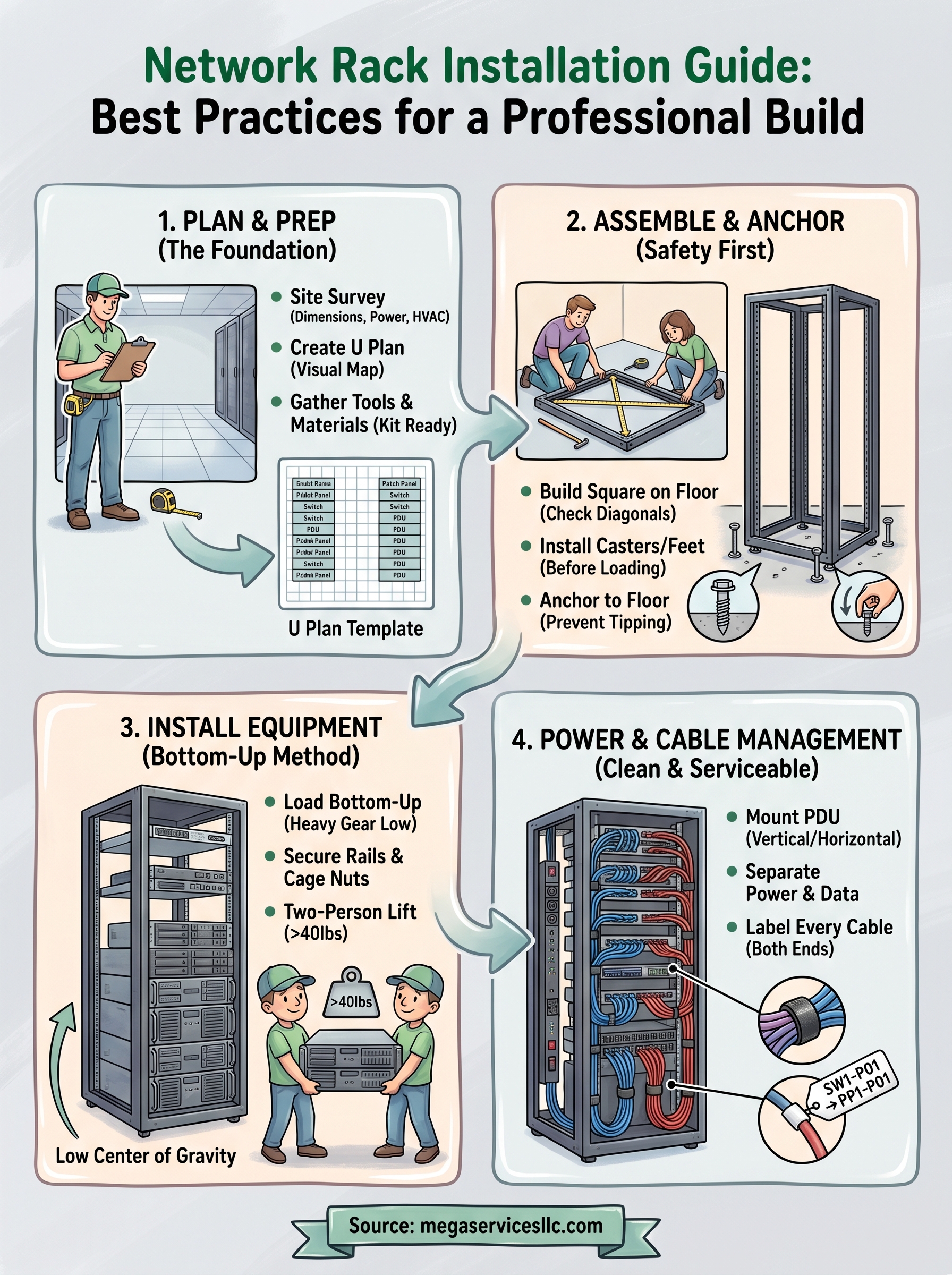

This guide walks you through the full process: choosing the right rack, mounting it, installing your hardware, and managing cables so everything stays clean and accessible. We cover best practices that apply to both small office setups and large-scale commercial deployments, with a focus on doing it right the first time.

At MegaServices, our technicians have been racking and stacking AV and IT equipment on job sites across the U.S. and Canada since 2007. We’ve seen what works, what fails, and what separates a professional rack build from a messy one. This guide draws on that hands-on experience to give you a clear, practical resource, whether you’re doing the work yourself or managing a crew that is.

Before you start: plan, measure, and prep

Rushing into a rack installation without a solid plan is one of the most common mistakes on the job. Skipping the planning phase leads to racks that won’t fit through doorways, equipment that overheats because airflow was an afterthought, and power circuits that trip under load. Before you touch a single piece of hardware, spend the time to gather the right information so your installation goes smoothly from the first bolt to the final cable tie.

Survey the site and check your power

Walk the space before you order anything. Measure the ceiling height, floor dimensions, and the width and height of every doorway the rack will travel through during delivery. A full-size 42U rack standing over seven feet tall with casters attached will not clear a standard 80-inch doorframe without tilting. Note where your power circuits land, how many circuits are available, and what amperage each one supports.

If you’re running a 20-amp circuit, plan for no more than 16 amps of continuous load to stay within NEC guidelines and avoid nuisance trips.

Check whether the floor can handle the weight. A fully loaded 42U rack can exceed 1,500 pounds. Concrete floors handle that without issue, but raised access floors or older wood-frame construction require you to verify load ratings with a structural professional before you proceed. Also confirm that your HVAC can handle the heat load your equipment will generate, since undersized cooling causes hardware failures faster than almost anything else.

Here’s a site survey checklist to work through before installation day:

• Room dimensions (length, width, ceiling height)
• Doorway clearance (width and height along the full delivery path)
• Available power circuits, amperage, and outlet types (NEMA 5-15, 5-20, L6-30, etc.)
• HVAC or cooling capacity relative to your equipment’s total BTU output
• Nearest network or fiber entry point
• Floor type and confirmed weight capacity

Gather your tools and materials

Having the right tools on hand before you start prevents delays and keeps the job moving. A standard rack installation requires a #2 Phillips screwdriver, a flathead screwdriver, a torque screwdriver for cage nuts, a level, a tape measure, and a cable tie tool. For heavier builds, bring a rack lift or a second person for any equipment above 2U that weighs more than 40 pounds. Installing heavy gear solo above mid-rack height is how injuries happen.

Pull together your rack hardware kit before you open the first equipment box: cage nuts, M6 screws, clip nuts if your rails require them, cable ties, Velcro straps, and patch panel labels. Running out of cage nuts mid-install is a completely preventable delay. Print your project spec sheet or keep this network rack installation guide accessible on-site so you can confirm each step as you complete it rather than relying on memory.

Step 1. Choose the rack, layout, and U plan

The rack you choose sets every constraint that follows. Open-frame racks work well in climate-controlled server rooms where airflow is managed and physical security is less of a concern. Enclosed cabinets are a better fit for shared spaces, edge deployments, or anywhere you need to lock equipment away from unauthorized access. Measure your equipment depth before committing, since shallow gear in a deep cabinet creates cable management headaches.

Pick the right rack form factor

Most commercial AV and IT equipment is designed for 19-inch EIA-standard racks, which is the width you’ll encounter on nearly every project. Depth varies more than width, ranging from 24 inches for lighter network gear to 42 inches or deeper for servers and high-density switching. Two-post racks suit lighter loads like patch panels and small switches, while four-post racks or full cabinets handle heavier equipment and provide better cable routing paths along all four corners.

Always confirm your heaviest piece of equipment’s depth before ordering a rack, since a 2-inch mismatch forces expensive adjustments on installation day.

Build your U plan before you buy

A U plan is a visual map of every device going into the rack, listed top to bottom by rack unit height. Building this map before you purchase anything prevents you from ordering a 24U rack when your equipment list actually needs 30U or more, once you account for patch panels, blanking panels, and a power distribution unit.

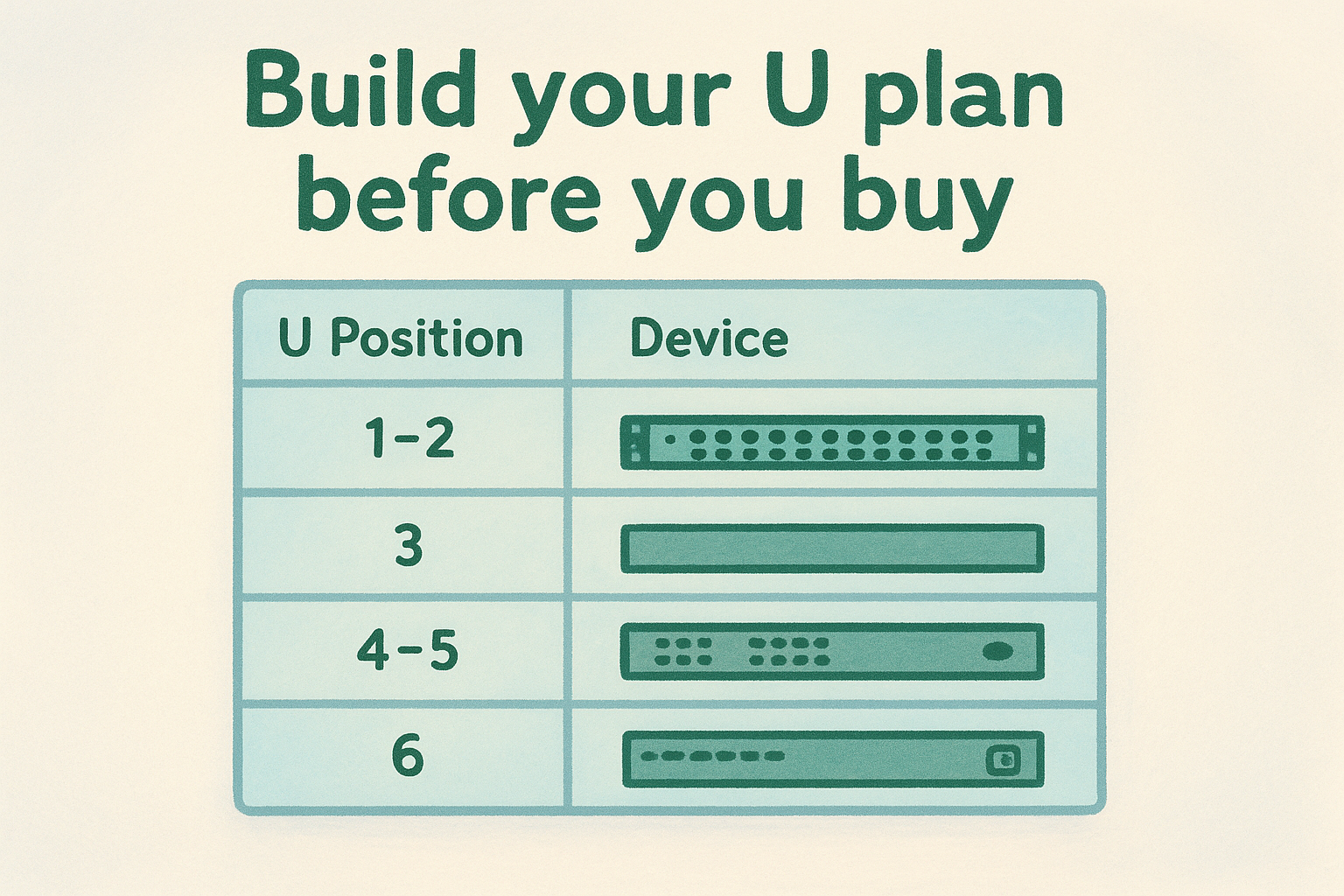

Here is a simple U plan template you can adapt for your build:

Following a structured approach like this network rack installation guide recommends keeps your build organized from the first step forward.

Step 2. Assemble and anchor the rack or cabinet

Most racks ship flat-packed, and the assembly sequence matters. Read the manufacturer’s instructions before you start, since many open-frame racks require you to attach the top and bottom rails to the vertical posts in a specific order, and reversing steps mid-build means disassembling work you’ve already done. Lay all parts out on a clean floor and confirm every bolt, nut, and washer is present before you pick up a tool.

Assemble the frame on the floor first

Build the entire frame at floor level before you attempt to stand it upright. Tighten every bolt to hand-snug first, then go back and torque them to spec once the frame is square. Use a tape measure to check that diagonal measurements from opposite corners match, since a rack that is racked (twisted) will cause alignment issues with every rail and piece of equipment you install afterward. Two people make this step significantly faster and safer.

A rack that is even slightly out of square will cause rails to bind and doors to misalign on enclosed cabinets, so check your diagonals before final torque.

Once the frame is square and fully tightened, tip it upright with a second person supporting the opposite side. Install the casters or leveling feet based on your site requirements before the rack is loaded with any equipment, since adding them after the fact under a loaded rack is unsafe.

Anchor the rack to prevent tipping

An unanchored rack is a serious safety hazard. Most jurisdictions and manufacturers require floor anchoring, especially in seismic zones or any installation where the rack could be bumped by forklifts or carts. Bolt-down kits use floor flanges and lag bolts into concrete anchors. For raised floors, follow the specific anchoring hardware your raised floor vendor provides. This network rack installation guide strongly recommends anchoring every rack regardless of whether local code requires it, since a tipped rack destroys equipment and injures people.

Step 3. Install rails, shelves, and equipment safely

With your rack anchored and level, you’re ready to install the mounting hardware. Rail installation order and equipment placement sequence both matter for safety and long-term serviceability, so follow this section carefully before sliding in your first piece of gear.

Mount your rails correctly

Rails come in two main types: fixed shelf rails and sliding equipment rails. Fixed shelves attach to cage nuts on both vertical posts and support passive gear like switches or AV processors that don’t need to slide out. Sliding rails let you pull servers or heavy equipment forward for maintenance without full removal. Check your equipment’s rail kit instructions, since some manufacturers require specific cage nut positions and torque specs to maintain warranty coverage.

Always insert cage nuts with a cage nut tool or a flathead screwdriver wrapped in tape, since bare hands on steel cage nut edges will cut you.

Install cage nuts at the correct U positions based on your U plan from Step 1 before you attach any rails. Confirm each cage nut is fully seated by pulling it lightly with your finger. A partially seated cage nut will back out under load and drop equipment.

Load equipment from the bottom up

Bottom-loaded racks have a lower center of gravity, which reduces tip risk during the rest of the installation. Start with your heaviest equipment at the lowest available U positions, then work upward with lighter gear. Never place heavy servers or amplifiers in the top third of a rack before the lower sections are populated, since this top-heavy configuration makes the rack dangerously unstable even when anchored.

Use two people for any equipment over 40 pounds. This network rack installation guide recommends keeping a free hand on the equipment until every mounting screw is fully tightened, since rails alone do not carry the load until the front screws engage.

Step 4. Add power, cable management, and final checks

With all equipment mounted and secured, you’re ready to bring the rack to life. Power distribution and cable routing are the two areas where most racks go from looking professional to looking chaotic, and both are far easier to handle before anything is powered on.

Install your PDU and route power

Mount your power distribution unit (PDU) vertically in a rear rack rail or horizontally at the bottom of the rack depending on the model. Vertical PDUs keep outlets accessible along the full height of the rack without consuming U space. Run each power cord directly from the equipment to the nearest available outlet, avoiding long loops of excess cord across the front of the rack. Secure excess cord length with Velcro straps rather than cable ties, since Velcro lets you adjust later without cutting.

Never daisy-chain PDUs or use surge strips inside a rack in place of a proper rack-mounted PDU, since this creates overload and fire risk.

Manage your cables before powering on

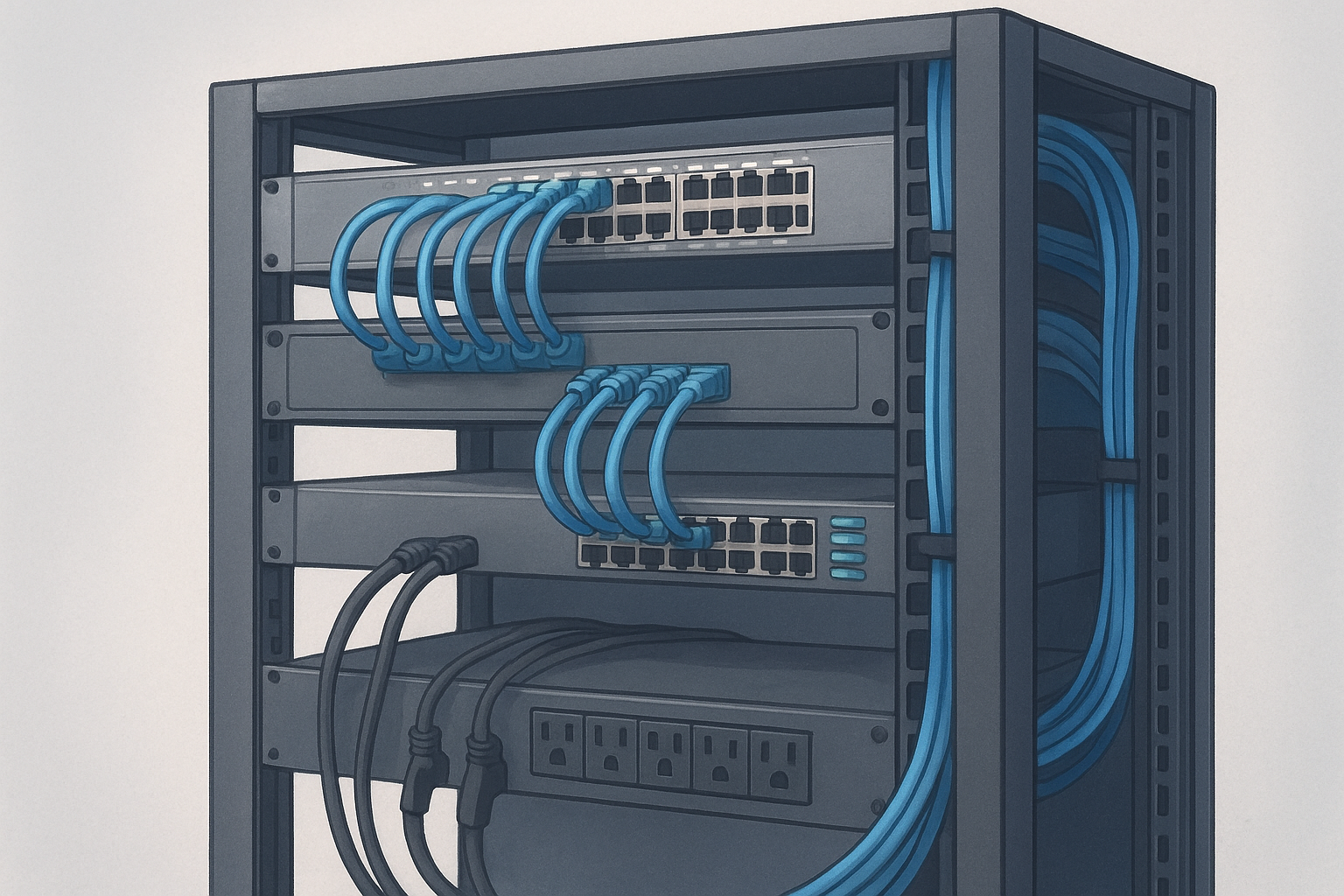

Horizontal cable managers between patch panels and switches keep patch cords routed cleanly and prevent them from blocking airflow across your equipment. Run data cables along the sides of the rack using vertical cable management channels, keeping them separated from power cords on the opposite side to reduce interference. This front-to-back separation between power and data is a standard practice covered throughout any reliable network rack installation guide.

Label both ends of every cable before you route it. A simple label template to follow:

Run final checks before go-live

Before you power on, walk through a physical inspection checklist to catch anything you may have missed. Confirm every screw is tight, every cage nut is seated, and no cables are pinched behind sliding rails. Power on equipment in sequence, starting with the PDU, then networking gear, then servers or AV processors, so you can isolate any fault by layer.

Conclusion

A clean rack build is not complicated, but it does require you to work through each step in the right order. Planning your space and U layout before you order anything prevents the most common and costly mistakes. Following this network rack installation guide from site survey through final cable checks gives you a rack that is safe, serviceable, and ready to scale as your infrastructure grows.

Your installation quality directly affects how easy or difficult every future maintenance task will be. Label every cable, anchor every rack, load from the bottom up, and keep power and data separated from the start. Those habits take a few extra minutes during the build and save hours of troubleshooting later.

If your project scope exceeds what your team can handle in-house, MegaServices deploys vetted, certified technicians across the U.S. and Canada within 24 to 48 hours. Request AV labor support to get the right people on your job site fast.
