PA System Troubleshooting Guide: Fix No Sound, Buzz, Feedback

A PA system that cuts out mid-announcement, throws feedback at full volume, or produces a constant buzz can shut down an event, disrupt a meeting, or stall an entire project timeline. When the pressure’s on and the audio isn’t cooperating, you need a structured PA system troubleshooting guide, not guesswork. The good news: most PA problems trace back to a handful of common causes, and you can resolve many of them without replacing a single component.

This guide walks through the most frequent PA system failures, no sound, unwanted buzz and hum, feedback loops, and hardware connectivity issues, with step-by-step diagnostics you can run on-site. We built it from the kind of real-world scenarios our technicians encounter daily. Since 2007, MegaServices has deployed over 2,000 vetted AV technicians across the U.S. and Canada to handle exactly these situations: system installs that need commissioning, live environments where something suddenly stops working, and facilities where aging AV infrastructure needs attention.

Whether you’re an AV integrator troubleshooting a client’s system, a project manager trying to determine if a site needs hands-on support, or a service coordinator triaging a ticket before dispatching a tech, this guide gives you a clear diagnostic path. And if the fix goes beyond what your current team can handle, MegaServices can have a certified technician on-site within 24 to 48 hours to get the system back up.

Before you start: safety, signal flow, and tools

Jumping straight into swapping cables or adjusting settings without a plan wastes time and can create new problems. Before running through any PA system troubleshooting guide steps, you need three things locked down: a basic understanding of electrical safety, a clear picture of your signal chain, and the right tools in hand. Skipping these steps is how a 30-minute fix turns into a two-hour ordeal.

Know the safety rules before touching anything

AV equipment runs on line voltage at the amplifier stage, and powered speakers and amplifiers must be powered off before you connect or disconnect any cables. Even with the volume at zero, an active amp can send a damaging transient through speakers when you plug in a cable. Working around energized equipment without proper precautions puts both you and the hardware at risk.

Always power down amplifiers before connecting or disconnecting speaker cables. This prevents transient damage to drivers and protects you from unexpected voltage.

Keep these safety rules in place on every job:

• Power off all amplifiers and powered speakers before touching speaker-level connections
• Use a non-contact voltage tester before handling any wiring inside racks or wall panels
• Never bypass ground pins on power cables to eliminate a hum problem
• Confirm that circuit breakers are correctly rated for the load before powering up a full system

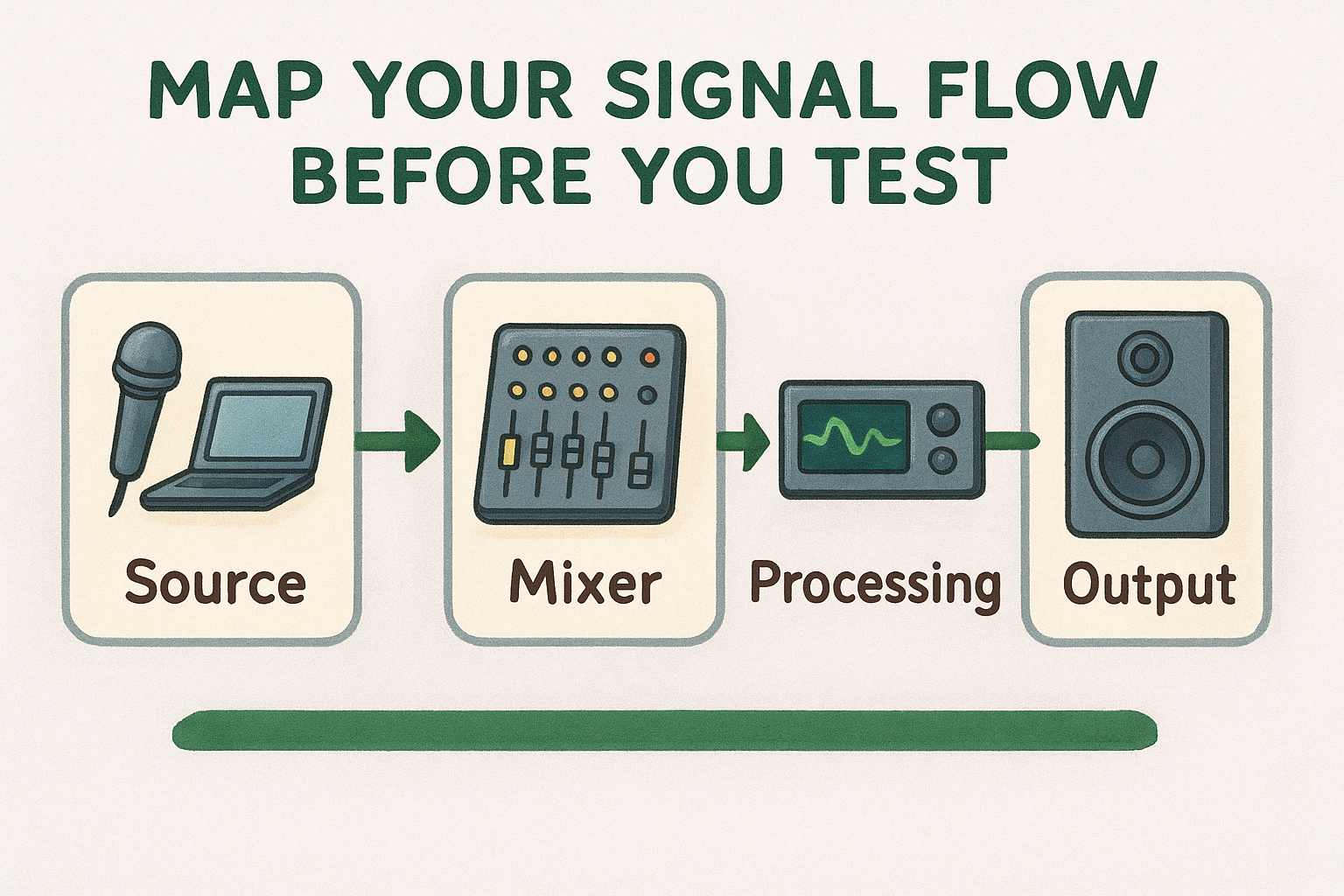

Map your signal flow before you test

Signal flow is the single most important concept in PA troubleshooting. Audio travels in one direction: from the source (microphone, media player, laptop) through the mixer, then to processing (EQ, DSP, crossover), then to amplification, and finally to the speakers. Every fault you encounter lives somewhere along this chain, and your job is to pinpoint exactly where the signal stops, degrades, or goes wrong.

Draw out or mentally trace the path before you touch anything. A simple signal flow map for a typical PA system looks like this:

Working stage by stage rather than randomly swapping gear cuts your diagnostic time significantly and prevents you from introducing new variables while trying to isolate the original fault.

Gather the right tools before you start

You can diagnose most PA problems with a compact set of tools that fits in a carry bag. Having these on hand before you start means you won’t lose time running back to the truck or waiting on gear to arrive:

• Cable tester (XLR, TRS, speakON, RCA): catches open circuits, shorts, and miswired pins
• Multimeter: checks AC/DC voltage, continuity, and impedance at speaker terminals
• Audio signal generator or tone generator app: injects a known signal at any point in the chain
• Laptop or tablet with RTA app: lets you see the frequency response in real time
• Spare cables (XLR, TRS, RCA): lets you swap-test quickly without guessing
• Non-contact voltage tester: confirms live circuits before touching rack wiring
• Flashlight or headlamp: rear panel connectors in dark racks are hard to read without one

With safety covered, signal flow mapped, and tools ready, you can move through each diagnostic step below efficiently without doubling back or creating new problems along the way.

Step 1. Fix no sound with fast signal isolation

No sound coming from your speakers is the most alarming PA fault you can encounter, but it’s also one of the most solvable. Signal isolation means you test each stage of the chain independently so you can find the exact point where the audio disappears. This is the fastest method in any PA system troubleshooting guide, and it prevents you from chasing your tail by swapping gear that isn’t actually broken.

Check the obvious first

Before you inject test signals or pull connectors, rule out the simple causes that account for a large percentage of no-sound calls. Rushed setups and unfamiliar equipment are behind most of these issues.

Run through this checklist before touching anything else:

• Confirm the amplifier or powered speaker is powered on and not in standby mode
• Check that the mixer’s master fader and channel faders are set to an appropriate level, not at zero
• Verify the correct input channel is selected and not muted
• Confirm the output routing on your mixer or DSP sends signal to the correct output bus
• Inspect the speaker cable connections at both the amplifier and the speaker terminals
• Check that the source device (laptop, microphone, or media player) is actively outputting signal and not muted at the device level

A muted channel or a fader left at zero causes more "dead system" calls than any hardware failure. Check signal routing before touching a single piece of hardware.

Inject a test signal and walk the chain

Once you’ve cleared the obvious causes, inject a known test signal at the source input and work forward through the chain one stage at a time. Use a tone generator app on your phone or laptop to produce a consistent 1kHz sine wave, which gives you a reliable reference signal that’s easy to identify at any point in the system.

Start at the mixer’s main output and use headphones plugged into the monitor or headphone jack to confirm the signal is present there. If you hear tone through headphones but nothing through the speakers, the fault is downstream of the mixer. If no tone reaches the mixer output, trace back to the input stage to find where the signal broke.

Work forward through each test point in this sequence:

Step 2. Fix low volume and unclear speech

Low volume and muddy speech are two of the most common complaints in any PA system troubleshooting guide scenario, and they almost always trace back to poor gain structure somewhere along the signal chain. Unlike a completely dead system, these faults are subtle enough that they get ignored until they become a serious problem during a live event or presentation.

Check gain structure from source to amp

Gain structure means setting the correct signal level at each stage so the audio arrives at the amplifier clean, loud enough, and free of noise. When gain is set too low at the source or mixer input, you end up compensating by cranking the amplifier, which raises the noise floor and produces thin, weak audio. When gain is set too high at any stage, you introduce clipping before the signal even reaches the amp.

Proper gain structure starts at the source. Set each stage to receive a healthy signal, then pass it forward without boosting to compensate for a weak upstream level.

Follow this sequence to set gain correctly from input to output:

1. Set the source device (laptop, media player, microphone preamp) to output at approximately 75 to 80 percent of its maximum level
2. Bring the mixer channel gain or trim knob up until the channel meter peaks around 0dB during normal program material, with headroom for peaks
3. Set the master output fader to unity gain (typically marked as "U" or "0" on the fader scale)
4. Adjust the amplifier input sensitivity so the amp reaches full rated output when the mixer is at unity
5. Confirm the signal at the amp output matches the speaker’s rated input power, not double or half

Identify and fix intelligibility problems

If volume is adequate but speech sounds muddy, distant, or unintelligible, the problem is usually frequency-based. Midrange frequencies between 1kHz and 4kHz carry most of the consonant sounds that make speech clear, and too much low-mid energy (roughly 200Hz to 500Hz) masks those consonants and makes voices sound thick and unclear.

Use a real-time analyzer (RTA) app on your laptop while someone speaks into the microphone to visualize the frequency response reaching your speakers. If you see excessive energy below 500Hz compared to the 1kHz to 4kHz range, apply a high-pass filter at 100Hz to 120Hz on the microphone channel and reduce the low-mid EQ band on the channel strip by 3 to 6dB. This single adjustment fixes the majority of intelligibility complaints in speech-focused PA systems.

Step 3. Remove hum, buzz, and static noise

Unwanted noise is one of the most frustrating faults you’ll encounter in any PA system troubleshooting guide scenario, partly because it’s always present and partly because it has multiple possible causes. Hum, buzz, and static each point to different problems, so identifying the exact character of the noise is the first step before you change anything.

Identify the type of noise first

Before you pull a single cable, listen carefully to the noise and classify what you’re hearing. Each noise type has a distinct signature that tells you where to look.

If the noise changes when you touch a connector or cable, that physical connection is your fault, not the broader electrical circuit.

Fix ground loops and electrical interference

Ground loops are the most common cause of 60Hz hum in PA systems, and they happen when two or more pieces of equipment connected by audio cables have different ground potentials. The fix is straightforward: lift the signal ground on the offending connection using a passive direct box (DI box) with a ground lift switch, or use a balanced line transformer between the two devices. Never remove the safety ground from any power cable. That approach creates a shock hazard and is never acceptable on any job site.

Confirm that all your equipment plugs into the same power distribution unit or circuit whenever possible. Equipment drawing power from different circuits or different phases in a building’s electrical system is a frequent source of ground loops that are difficult to trace without checking the power path first.

Resolve static and intermittent noise

Static and intermittent noise almost always trace back to a physical problem: a worn cable, an oxidized XLR pin, or a loose connector at the back of a rack unit. Flex each cable while the system is running and listen for any changes in the noise. If flexing a specific cable changes the static, replace that cable immediately rather than taping it in place.

Oxidized connectors on older installations respond well to contact cleaner applied to the pins before re-seating the connection. Give each connector a few insertion cycles after cleaning to restore proper contact between the pin and the socket.

Step 4. Stop feedback without killing intelligibility

Feedback is the loudest, most disruptive fault in any PA system troubleshooting guide scenario, and the instinct to immediately pull the master fader down is understandable but incomplete. Feedback happens when a microphone picks up its own amplified output from a speaker and re-amplifies it in a loop, but the frequency at which it rings tells you exactly where to make your correction. Killing the overall volume stops the squeal, but it also kills your intelligibility. The goal is to target the specific frequency that feeds back without touching the rest of the audio.

Pulling the master fader down every time feedback starts is a symptom management approach, not a fix. Find the frequency and address it directly.

Find the feedback frequency fast

Identifying the exact feedback frequency lets you make a surgical EQ cut instead of scooping out a broad range of your audio. When feedback starts, listen to its pitch: a low rumble points to the 200Hz to 500Hz range, a harsh mid screech sits between 1kHz and 3kHz, and a piercing high squeal lives above 5kHz. If you have an RTA app running on a laptop or tablet, the feedback frequency will spike clearly on the display and remove all the guesswork.

Use this reference to match what you hear to where you should cut:

Adjust mic position and gain before reaching for EQ

Microphone placement relative to the speaker causes more feedback than any EQ problem, and fixing the physical position costs nothing. Keep microphones behind the plane of the main speakers whenever possible, point them away from speaker cabinets, and keep them at least six to eight feet from any floor monitor. If a handheld mic is being used on stage, brief the presenter to hold it at chin level and not point it toward the floor monitors while speaking.

Before you cut EQ, reduce the gain on the specific microphone channel by 2 to 3dB and test whether feedback returns at the same level. EQ cuts reduce the tonal quality of a channel, so use them only after you’ve confirmed that gain adjustments and mic repositioning alone aren’t enough to solve the problem. When you do cut, use a narrow Q setting (Q of 5 to 10) so the notch targets only the problem frequency without affecting the surrounding range.

Step 5. Fix distortion, clipping, and amp protect

Distortion, clipping, and amplifier protect mode are three distinct problems that often appear together, but each requires a different fix. In any thorough pa system troubleshooting guide, these faults deserve attention as a group because clipping at an early stage in the signal chain can trigger protect mode at the amplifier, making it look like a hardware failure when the real issue is a gain problem three components upstream.

Diagnose and fix clipping at each stage

Clipping happens when a stage receives more signal than it can cleanly pass, and it produces a harsh, torn quality that gets worse as you push the level higher. The most common source of clipping is a mixer output level set too high before reaching the amplifier’s input. Check every gain stage in the signal path for overdriven meters showing red consistently, not just occasional peaks.

Work through each stage and reduce the output level until the meters on the receiving device peak around 0dBu rather than above it. A useful field check is to listen for audible breakup on transients like consonant sounds in speech or the attack of a snare hit. If the breakup disappears when you pull the sending stage’s output level down by 3 to 6dB, you found your clip point.

Clipping is cumulative. One overdriven stage passes distortion to the next, and by the time the signal reaches the speakers, the damage to the audio quality compounds at every step.

Use this quick reference to identify where clipping is most likely occurring:

Get an amplifier out of protect mode

Protect mode is a built-in safety circuit that shuts down the amplifier output when it detects a condition that could cause internal damage. Your amplifier triggers protect mode for several reasons: a shorted speaker cable, a speaker load with impedance below the amp’s rated minimum, DC offset at the input from a faulty upstream device, or thermal overload from sustained clipping.

Start by powering down the amplifier and disconnecting all speaker cables. Power the amp back on with no load connected. If the protect light clears, your speaker wiring or speaker impedance is the problem. Check each speaker cable for a short using a multimeter set to continuity, and verify that the total impedance load across the amp’s output terminals matches the amp’s rated minimum.

Finish with a quick verification pass

Once you’ve worked through each step in this pa system troubleshooting guide, run a full end-to-end check before you consider the system ready. Play program material at typical operating levels for at least five minutes and listen for any returning noise, distortion, or feedback. Check every amplifier’s status lights, confirm no clip LEDs are active, and walk the room to verify coverage is consistent across the listening area.

If your verification pass reveals a fault you can’t resolve with the steps above, the problem likely lives inside a specific component or in the building’s electrical infrastructure, and both require hands-on diagnosis. MegaServices deploys certified AV technicians to job sites within 24 to 48 hours across the U.S. and Canada, with no contracts or minimums required. If you need qualified labor on-site fast, request a MegaTech for your next ProAV project and get your system running correctly.
