Projector Screen Ceiling Mount Installation: Step-by-Step

A clean projector screen ceiling mount installation starts with preparation, choosing the right hardware, finding structural support, and making precise measurements. Skip any of those steps, and you’re looking at a screen that sags, vibrates, or worse, comes down entirely. Whether you’re mounting a fixed-frame screen flush to the ceiling or recessing a motorized unit into a drop ceiling, the process demands attention to detail and the right technique for the environment.

At MegaServices, our technicians handle AV installations like these across the U.S. and Canada every week. Since 2007, we’ve supported integrators and project managers who need skilled hands on-site to get screens, projectors, and full AV systems mounted correctly the first time. That experience is baked into this guide, it’s built from real-world installation knowledge, not guesswork.

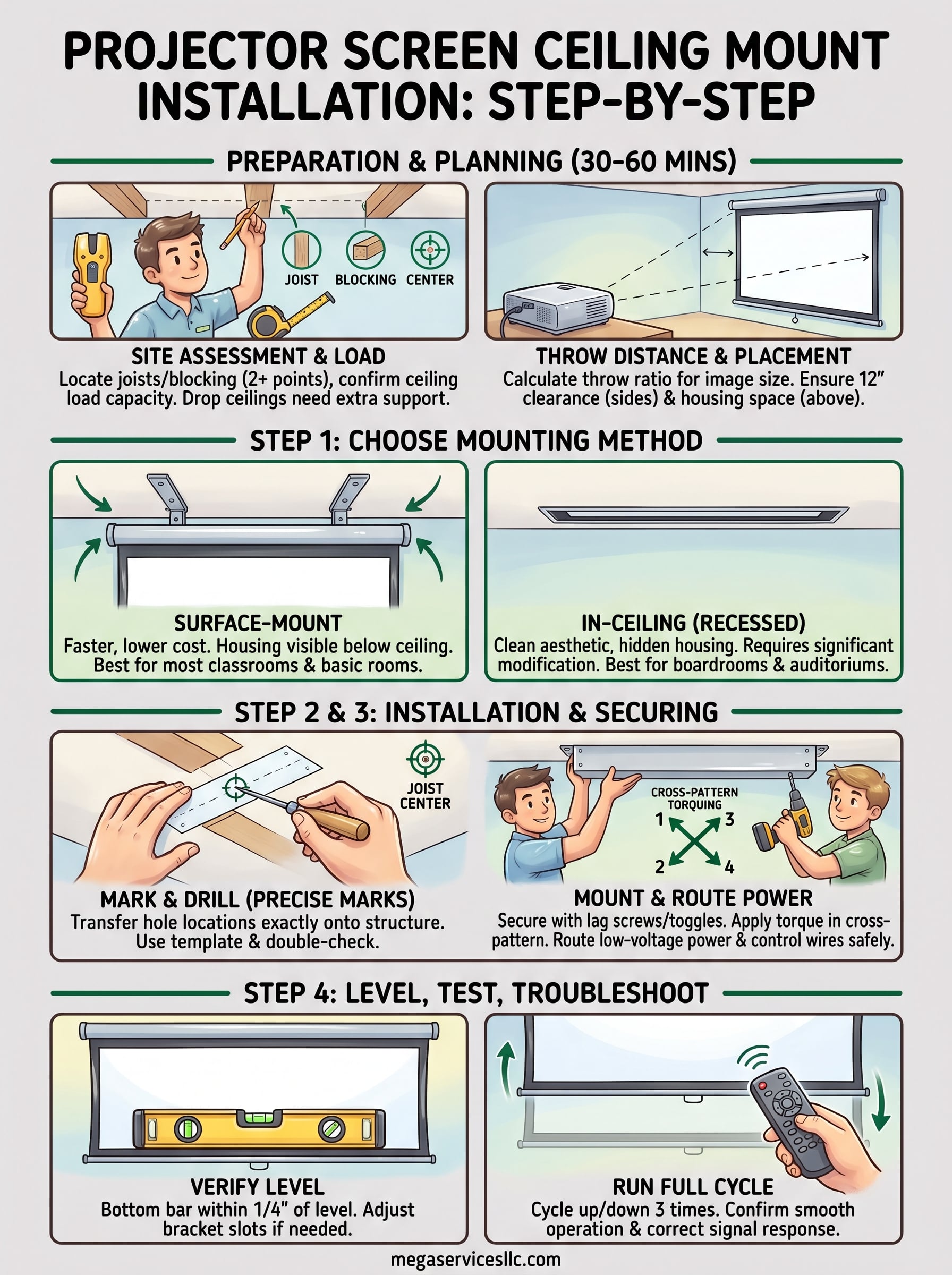

Below, you’ll find a complete walkthrough covering site assessment, hardware selection, mounting methods for both surface-mount and recessed screens, and the finishing details that separate a professional install from a shaky one. Follow these steps whether you’re handling the job yourself or prepping a scope of work for a technician deployment.

Before you drill: plan the location and load

Before any projector screen ceiling mount installation begins, you need answers to two questions: where exactly will the screen hang, and can the ceiling support the weight? Skipping this planning phase is the most common reason installs get rescheduled, reworked, or end with hardware pulling out of the ceiling. Spend 30 to 60 minutes on a proper site assessment before you touch a drill, and every step that follows moves faster and cleaner.

Calculate throw distance and screen placement

Your projector’s throw ratio determines how far it needs to sit from the screen to fill the image area correctly. A standard throw projector with a 1.5:1 ratio needs 15 feet of distance to fill a 10-foot-wide screen. Before you commit to a screen position on the ceiling, confirm where the projector mounts and work backward to verify the image fills the screen without keystoning or overshoot.

Measure the room and mark the screen’s center point on the ceiling with painter’s tape. From that center point, measure left and right to confirm the screen edges clear light fixtures, HVAC vents, and sprinkler heads by at least 12 inches on each side. For motorized screens, you also need clearance above the ceiling line for the housing unit, typically 5 to 8 inches depending on the model, so confirm that space exists before ordering equipment.

Locking in screen position before touching the ceiling is the single most important planning step. Moving a screen after mounting means new holes, patched drywall, and wasted time.

Verify ceiling structure and load capacity

You need solid structural support directly above every mount point. Drywall alone will not hold a projector screen safely, especially a motorized unit that can weigh 25 to 60 pounds or more. Use a stud finder to locate ceiling joists and map out their spacing, which runs 16 or 24 inches on center in most wood-frame construction. Your mount points need to hit at least two joists or a properly installed blocking board.

Drop ceilings require extra attention. Standard T-bar grid is not rated for significant suspended loads, so you will need to install a support board spanning the structural members above the grid or attach directly to the building structure overhead. Check the facility’s ceiling specifications or consult the building manager before drilling into anything you cannot visually verify.

Use this table as a quick reference for screen weights and what each type structurally demands:

Confirming load capacity before drilling prevents the worst outcome: hardware failure after the install is complete and the room is in use.

Step 1. Choose the right mounting method

There are two primary approaches for any projector screen ceiling mount installation: surface-mount and in-ceiling recessed. The method you choose depends on your ceiling type, your screen model, and how much structural modification the project budget allows. Getting this decision right before purchasing hardware saves you from ordering the wrong brackets and retrofitting everything on install day.

Surface-mount installation

Surface-mount brackets attach directly to the ceiling face, leaving the screen housing visible below the ceiling line. This is the faster and lower-cost option for most projects, and it works well in standard drywall or concrete ceilings where you have access to structural support above. Most manual pull-down screens and many motorized units ship with surface-mount hardware included, so you typically need fewer additional parts to complete the job.

Surface-mount is the right default choice unless your project specifically requires a clean ceiling aesthetic or the screen model is designed for recessed installation only.

In-ceiling (recessed) installation

In-ceiling installation means the screen housing sits completely above the ceiling plane and drops through a cut opening when deployed. This approach requires significant ceiling modification, including cutting the rough opening, building a structural housing frame, and routing power and control wiring through the ceiling cavity. The result is a clean look with no visible hardware when the screen is retracted, which matters in boardrooms, auditoriums, and high-end conference rooms where aesthetics are part of the project spec.

Here is a quick comparison to help you decide:

Step 2. Find structure and mark holes

With your mounting method selected, the next task is locating exactly where solid structure exists and translating that into precise, drill-ready marks on the ceiling. This step directly determines how secure your projector screen ceiling mount installation will be. A mark placed even two inches off-center from a joist means your fastener bites into nothing but drywall.

Locate joists and blocking

Run a stud finder across the ceiling in a slow, steady pass starting from a wall and moving toward your marked screen center. Most stud finders beep or light up when they cross a joist edge, so mark both edges and find the center point between them. That center is where your lag screw goes. Repeat this process for every mount point the screen’s bracket requires, typically two to four points depending on screen width and housing design.

If your stud finder gives inconsistent readings, try the knock method: tap the ceiling firmly with your knuckle and listen for the sound to shift from hollow to solid. The solid sound marks where a joist sits.

For drop ceilings or concrete slab construction, you need a different approach. In concrete ceilings, use a rebar locator or a quality AC scanner to avoid drilling into conduit or rebar. In T-bar drop ceilings, identify the hanger wire locations above the grid, then measure to the nearest structural members and install a dedicated blocking board rated for the screen’s weight before proceeding.

Mark and prep your hole locations

Tape the mounting bracket template to the ceiling at your planned mount point, then use a pencil or awl to transfer each hole location through the template directly onto the ceiling surface. Double-check every mark with a tape measure before drilling. Use this checklist before you pick up the drill:

• Confirm each mark lands on joist center or solid blocking
• Verify spacing matches the bracket’s hole pattern exactly
• Check that all marks clear wiring, plumbing, and HVAC runs above
• Confirm the pattern is level using a spirit level or laser level across all marks

Step 3. Mount the screen and manage power

With your holes marked and structure confirmed, you’re ready to attach the hardware. This is the most physically demanding part of any projector screen ceiling mount installation, so work with a partner whenever possible. One person holds the screen housing in position while the other drives fasteners, keeping the bracket aligned throughout.

Hang the housing and secure fasteners

Start by pre-threading your lag screws or toggle bolts into the mounting bracket before lifting anything overhead. For wood joists, use 3/8-inch lag screws with a minimum 1.5-inch bite into solid wood. For concrete ceilings, use sleeve anchors rated at least 200 lbs per anchor point. Lift the bracket into position, align the first hole with your ceiling mark, and drive that first fastener just enough to hold the bracket in place without overtightening. Then align the remaining holes and drive all fasteners before applying final torque.

Never fully tighten one fastener before the others are started. Torquing a single point first pulls the bracket out of alignment and can crack drywall around adjacent holes.

Once all fasteners are seated, apply full torque in a cross pattern, moving from one fastener to the opposite rather than going in sequence. This distributes load evenly across all anchor points and seats the bracket flat against the ceiling surface.

Route power and control wiring

Motorized screens need a dedicated power feed and a control connection to function properly. Before dropping the screen into its housing, confirm that a power circuit reaches the ceiling location and that any RS-232, IR, or relay control wire is accessible inside the ceiling cavity. Secure wiring runs against joists every 24 inches using low-voltage cable staples, keeping all cables at least 6 inches away from high-voltage lines to prevent signal interference.

Connect the power and control leads to the screen’s terminal block following the manufacturer’s wiring diagram, then tuck any excess cable into the housing cavity before closing access panels.

Step 4. Level, test, and troubleshoot

With the screen physically mounted and wiring connected, your final task is confirming the installation performs correctly and the screen surface hangs perfectly level. A projector screen ceiling mount installation is not complete until you have verified alignment, cycled the screen through a full deployment, and resolved any issues that will affect image quality or long-term performance.

Verify level and alignment

Pull the screen down manually or trigger a partial drop on a motorized unit. Hold a 4-foot spirit level against the bottom bar and check the bubble in both directions. If the screen hangs off-level by more than 1/4 inch across its width, adjust the bracket by loosening the fastener on the high side slightly, repositioning, and re-torquing. Most surface-mount brackets include slotted adjustment holes specifically for this correction. After any adjustment, check level again before proceeding.

Use this alignment checklist before calling the install complete:

• Bottom bar hangs within 1/4 inch of level across full width
• Screen surface shows no visible wrinkle or curl when fully extended
• Housing sits flush against the ceiling with no visible gap on either end
• All mounting fasteners are fully torqued with zero movement when you press up on the housing

Run a full deployment test

Cycle the motorized screen up and down three full times to confirm the motor runs smoothly and the screen retracts evenly on both sides. A screen that drifts to one side on retraction usually indicates that one end cap is misaligned or the tension on the roller is uneven. Consult the manufacturer’s tension adjustment procedure, which is typically a set screw on one or both end caps, to correct this before the room goes live.

If the screen binds or stops mid-travel during any test cycle, cut power immediately and inspect the housing for obstructions before running another cycle.

Confirm that control signals fire correctly by triggering the screen from every connected input, including wall switch, relay, and any RS-232 or IP control commands if your system uses them.

Final check and when to call a pro

Before you call the room ready, run one final review of the full projector screen ceiling mount installation. Push up firmly on the screen housing to confirm zero movement at every fastener point. Verify the image from the projector fills the screen surface evenly, with no keystoning or hot spots from an off-center mount. Check that all access panels are closed, cable slack is tucked away, and the control system triggers the screen reliably from every input source.

Some projects go beyond a single-person scope. If your ceiling is concrete, the screen exceeds 60 pounds, or the install requires structural blocking you cannot safely build alone, bring in a certified technician. Attempting complex installs without the right tools or experience creates liability and increases the chance of a failed mount. If you need a vetted AV technician deployed to your site within 24 to 48 hours, request a MegaTech for your next install and get qualified hands on-site fast.
