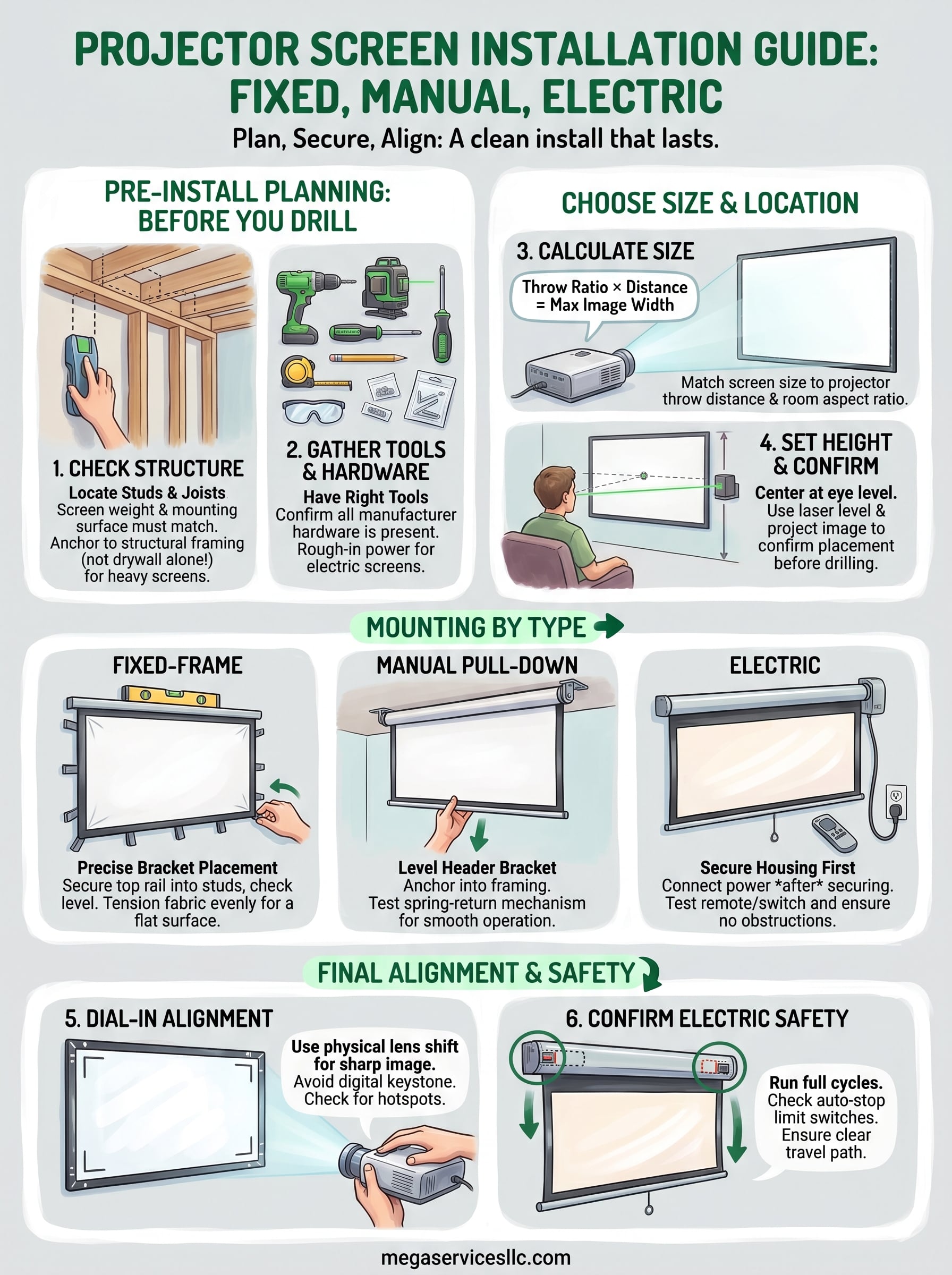

Projector Screen Installation Guide: Fixed, Manual, Electric

Getting a projector screen mounted correctly matters more than most people think. A poorly secured screen can sag, vibrate, or fall entirely, turning what should be a straightforward task into a costly callback. Whether you’re tackling a boardroom, a classroom, or a multi-site retail rollout, this projector screen installation guide covers the process for fixed-frame, manual pull-down, and electric models so the job gets done right the first time.

Each screen type comes with its own mounting requirements, hardware, and quirks. We’ll walk through wall and ceiling mounting methods, weight considerations, electrical rough-in for motorized units, and the common mistakes that lead to service calls. The goal is a clean, secure install that holds up long after the ladder comes down.

At MegaServices, we’ve supported AV integrators and project managers with certified technicians across the U.S. and Canada since 2007, projector screen installs included. If you need hands on-site to handle installations at scale, our network of over 2,000 vetted AV techs is built for exactly that. But whether you’re deploying your own crew or calling on ours, the steps below will keep your install on track.

What to plan before you mount anything

Rushing to drill is the fastest way to create a problem you can’t undo. Before this projector screen installation guide walks you through each screen type, you need to confirm three things: what’s behind your mounting surface, what tools and hardware you actually need, and whether your install requires any electrical prep. Skipping this planning phase is what turns a two-hour job into a two-day headache.

Check your wall and ceiling structure

Your screen’s weight and the mounting surface have to work together. A fixed-frame screen can weigh anywhere from 15 to over 80 pounds depending on size, and a motorized unit adds even more with its housing tube and motor assembly. Before you pick up a drill, locate your studs or ceiling joists using a stud finder, and verify that your anchoring points align with the screen’s mounting brackets.

Never rely on drywall anchors alone for screens heavier than 20 pounds. Always anchor into structural framing or use a backing board secured to framing.

Concrete and CMU walls require hammer-drill bits and appropriate masonry anchors. Drop ceilings need a different approach entirely: you’ll need to reach the structural deck above the tiles or install a support bracket that spans multiple ceiling grid rails rated for the load. Know your surface before you commit to a mounting location.

Gather your tools and hardware

Having the right tools on-site before you start saves you from stopping mid-install. Here’s what a standard projector screen install typically requires:

Always verify that all manufacturer-supplied hardware is accounted for before the install starts. A missing bracket bolt can stall the job while you wait on a parts order, which no project schedule can absorb easily.

Confirm rough-in requirements for electric screens

Motorized screens require a dedicated power outlet within reach of the screen housing, and that outlet needs to be in place before the screen goes up. Most electric screens need a standard 120V receptacle, but confirm the spec sheet for your specific model. If you’re working in a new construction or renovation space, coordinate with the electrician to rough in the outlet at the correct height, typically 6 to 12 inches above the finished ceiling line where the housing will sit.

Control wiring is a separate consideration. If your screen includes a hardwired wall switch or integrates with a control system using a relay trigger from a projector, that low-voltage wiring needs to be run before drywall closes up. Plan the conduit path early so you’re not fishing wire through finished walls later.

Step 1. Choose screen size, height, and location

Getting screen size and placement wrong wastes both money and wall space. Before you commit to a location, you need to match screen dimensions to your throw distance and confirm that your mounting height puts the image in the right viewing zone for your audience.

Calculate the right screen size

Your projector’s throw ratio determines how much screen it can fill from a given distance. Multiply the throw ratio by your available projection distance to find the maximum image width your projector can produce. For example, a 1.5:1 throw ratio projector sitting 15 feet from the screen produces a 10-foot-wide image, which corresponds to roughly a 120-inch diagonal screen at a 16:9 aspect ratio.

Always confirm your projector’s throw ratio from the manufacturer’s spec sheet before purchasing the screen, since swapping a screen after installation is expensive.

Check whether the room requires a 16:9, 4:3, or 2.35:1 aspect ratio based on primary content type. Boardrooms and classrooms typically use 16:9. Cinematic or large-venue installs may require a wider format.

Set the correct mounting height

Eye-level alignment is the baseline rule: the center of the screen should sit at or slightly above seated eye level, typically 42 to 48 inches from the finished floor in standard conference or classroom seating arrangements. Standing audiences shift this number up by about 12 inches.

Factor in the screen’s drop distance from the top bracket to the screen’s bottom edge when calculating your bracket position. For a 100-inch screen with 8 inches of case clearance, your brackets need to be high enough that the image bottom clears seated sight lines without forcing viewers to crane their necks upward.

Confirm the final position before drilling

Use a laser level and tape measure to mark the four corners of the projected image on the wall before mounting anything. This projector screen installation guide consistently reinforces one rule: verify placement with the projector powered on so you see exactly where the image lands before a single fastener goes in.

Step 2. Mount a fixed-frame screen on wall or ceiling

Fixed-frame screens deliver the sharpest image of any screen type because the fabric stays permanently tensioned across a rigid frame. That rigidity also means you have zero adjustment once the frame is up, so your bracket placement has to be exact before a single fastener is driven. Pull out your laser level and take your time here.

Attach the wall brackets

Start by holding the top mounting rail against the wall at your marked height and transferring the bracket hole positions onto the surface using a pencil. Drill pilot holes at each mark, confirm you’ve hit stud or solid blocking, then drive your lag bolts or structural screws to the torque specification listed in the manufacturer’s instructions. Do not overtighten, since stripping a fastener in a stud weakens the hold.

Follow this sequence for a clean wall mount:

1. Mark bracket positions with a laser level across the full width of the top rail.
2. Drill pilot holes sized for your fastener diameter.
3. Install the top rail brackets and check level before tightening fully.
4. Hang the top rail and confirm it is plumb on both ends.
5. Attach the side and bottom frame sections according to the manufacturer’s assembly diagram.
6. Apply the velvet border tape to all frame edges if not pre-attached.

For ceiling mounts, use threaded rod hangers anchored into joists, and verify that the total load rating of your hardware exceeds the screen weight by at least 3x.

Hang and tension the screen fabric

Once the frame assembly is secure on the wall, lay the fabric flat and attach it to the frame’s retention tabs or channel starting from the top center and working outward toward each corner. This prevents wrinkles from locking in at the edges. Pull each attachment point snug but do not over-stretch the material, since excessive tension creates visible distortion across the viewing surface.

Check the fabric under a raking light before you pack your tools. Any ripples or waves that remain after tensioning indicate an attachment point that needs adjustment. A tight, flat surface is the only acceptable finish for a fixed-frame install.

Step 3. Install manual pull-down and electric screens

Manual pull-down and electric screens share the same first challenge: a top bracket that carries the full weight of the housing tube and rolled fabric. Unlike fixed-frame installs, these screens hang from a single continuous bracket or a pair of end brackets, so each anchor point is under more concentrated load. Confirm your fastener placement hits solid framing before you proceed.

Mount the header bracket for pull-down screens

Most pull-down screens include a pre-drilled mounting bracket that spans the full width of the housing. Hold the bracket at your target height, use a laser level to confirm it’s straight, and mark each fastener hole position on the wall or ceiling. Drill pilot holes, verify you’ve hit studs or blocking, then drive your hardware to the torque spec in the manual.

Follow this sequence for a clean pull-down mount:

1. Mark bracket hole positions at the correct height using a laser level.
2. Drill pilot holes and confirm each one hits structural framing.
3. Secure the bracket with the manufacturer-specified fasteners.
4. Hang the screen housing onto the bracket and verify it sits level.
5. Pull the screen down halfway and release it to confirm the spring-return mechanism operates smoothly.

Wire and hang the electric screen

This projector screen installation guide covers electric screens separately because the electrical connection step has to happen in the right order. With the power outlet already roughed in from your planning phase (requires coordination with a licensed electrician), position the housing at your marked bracket height and attach it to the wall or ceiling the same way you would a pull-down unit.

Never connect the screen’s power cord until the housing is fully secured to the bracket and all fasteners are tightened to spec.

Once the housing is secure, connect the power cord to the outlet and test the motor by running the screen through a full cycle with the wall switch or remote. Check that the screen descends evenly without lateral drift, and that the auto-stop limit switches halt travel at the correct bottom and top positions before you call the install complete.

Step 4. Align the image and verify safe operation

With the screen secured, your next job is to confirm that the projected image fills the screen surface cleanly and that every moving part operates safely. This step applies to all three screen types covered in this projector screen installation guide, though electric screens require additional safety checks before you hand the space back to the client or end user.

Dial in the projector alignment

Power on the projector and display a full white test pattern or use your projector’s built-in test grid, which most modern units include. Check that all four corners of the image land on the screen fabric without spilling onto the frame or wall. If the image sits off-center, adjust the projector’s horizontal and vertical lens shift settings before touching the physical mount.

Rely on the projector’s keystone correction only as a last resort. Physical alignment through lens shift or mount adjustment always produces a sharper, more accurate image than digital correction, since keystone processing degrades pixel geometry across the entire image. Once the image fills the screen, lower the room lights and check for hotspots, wrinkles, or uneven gain across the fabric surface.

If you spot a consistent shadow or bright edge on one side, recheck that the screen fabric is seated evenly in its frame or tension channel before adjusting the projector.

Confirm safe travel limits on electric screens

Run the electric screen through three complete cycles, watching the motor engage and stop at both the fully retracted and fully extended positions. The auto-stop limit switches should halt movement cleanly without the housing shuddering or the fabric continuing to drift. If the screen overruns its limit, consult the manufacturer’s calibration instructions to reset the limit switch positions using the adjustment screws inside the housing end cap.

Verify that no cables, ceiling tiles, or fixtures sit in the screen’s travel path before you close out the job. A single obstruction can damage the fabric or strain the motor assembly on every subsequent use, turning a simple oversight into a recurring maintenance call.

Ready for showtime

A completed projector screen install comes down to three things done correctly: solid anchoring into structural framing, precise alignment before you drill, and a full operational test before you leave the site. This projector screen installation guide has walked you through each screen type, from fixed-frame tensioning to electric limit switch verification, so your install holds up through years of daily use without a callback.

Most problems that show up after installation, sagging brackets, drifting images, motor overruns, trace back to steps that got rushed during planning or skipped during final verification. Follow the sequences in this guide and you cut that risk significantly.
