PTZ Camera Installation Guide: Mounting, Wiring & Setup

A poorly mounted PTZ camera defeats its own purpose, limited coverage, shaky footage, and constant recalibration. Whether you’re outfitting a corporate boardroom, a house of worship, or a live event venue, getting the installation right the first time saves hours of troubleshooting later. This PTZ camera installation guide walks you through every stage of the process, from choosing the right mounting location to final software configuration.

The steps themselves aren’t overly complicated, but they do require attention to detail: correct mounting height, proper cable routing, network configuration, and precise preset programming all play a role in whether your camera performs as expected. Skip one, and you’ll feel it during the first live session.

At MegaServices, we’ve supported thousands of AV installations nationwide since 2007, deploying certified technicians who handle PTZ camera setups as part of larger integration and staffing projects. That hands-on experience is baked into this guide. Below, you’ll find the step-by-step process our techs follow, covering mounting, wiring, and digital setup, so you can approach your next PTZ install with confidence.

Pre-install checklist and design decisions

Before you touch a drill or unbox a camera, confirm that every piece of hardware, cabling, and network infrastructure is ready. Skipping this stage is the most common reason installs run over schedule. A solid pre-install review gives you a clear picture of what you have, what you still need, and whether the environment can support the camera system you’re planning to deploy.

Gear and equipment checklist

Walk through this checklist before you leave the shop or accept delivery on-site. Missing even one item, a mounting bracket or a short patch cable, can stall an entire day of work. Every component below plays a direct role in the install, and confirming it up front keeps the job moving.

Double-check the power spec before you leave the warehouse: showing up with a standard PoE switch for a camera that requires PoE+ (802.3at) means the camera won’t power on at all, and you’ll be making a run to the supply house mid-job.

Network and infrastructure requirements

Your network environment determines whether the camera performs reliably or becomes a constant source of support tickets. Before you configure anything, verify the basics with the IT team or network administrator on-site. You need a dedicated VLAN or at minimum a reserved IP address for each camera, consistent bandwidth (most PTZ streams use 2 to 8 Mbps per camera depending on resolution and codec), and firewall rules that allow control traffic through.

Confirm each of these before configuration begins:

• DHCP reservation or static IP assigned for each camera
• Switch port confirmed as PoE+ capable with port speed set to auto-negotiate
• Network VLAN tagged if AV traffic is separated from the corporate LAN
• Multicast enabled if the camera feed distributes to multiple displays simultaneously
• Firewall or ACL rules permitting RTSP (port 554), HTTP (port 80), and HTTPS (port 443)

Room and environment design decisions

This is where you make the calls that affect every step that follows in this PTZ camera installation guide. Room dimensions, ambient lighting, ceiling height, and primary subject position all influence where the camera goes, what lens range you need, and how you’ll program presets later. Nail these decisions before you mark a single anchor point, and the physical install becomes straightforward.

Work through these questions during your site survey:

• What is the primary subject area (podium, conference table, altar, stage)?
• Where are the main light sources, and will the camera ever shoot directly into them?
• What is the farthest subject distance, and does the camera’s zoom range cover it?
• Are there obstructions such as support columns, speaker arrays, or light rigs?
• Does the space require multiple cameras, and if so, how will their coverage zones hand off to each other?

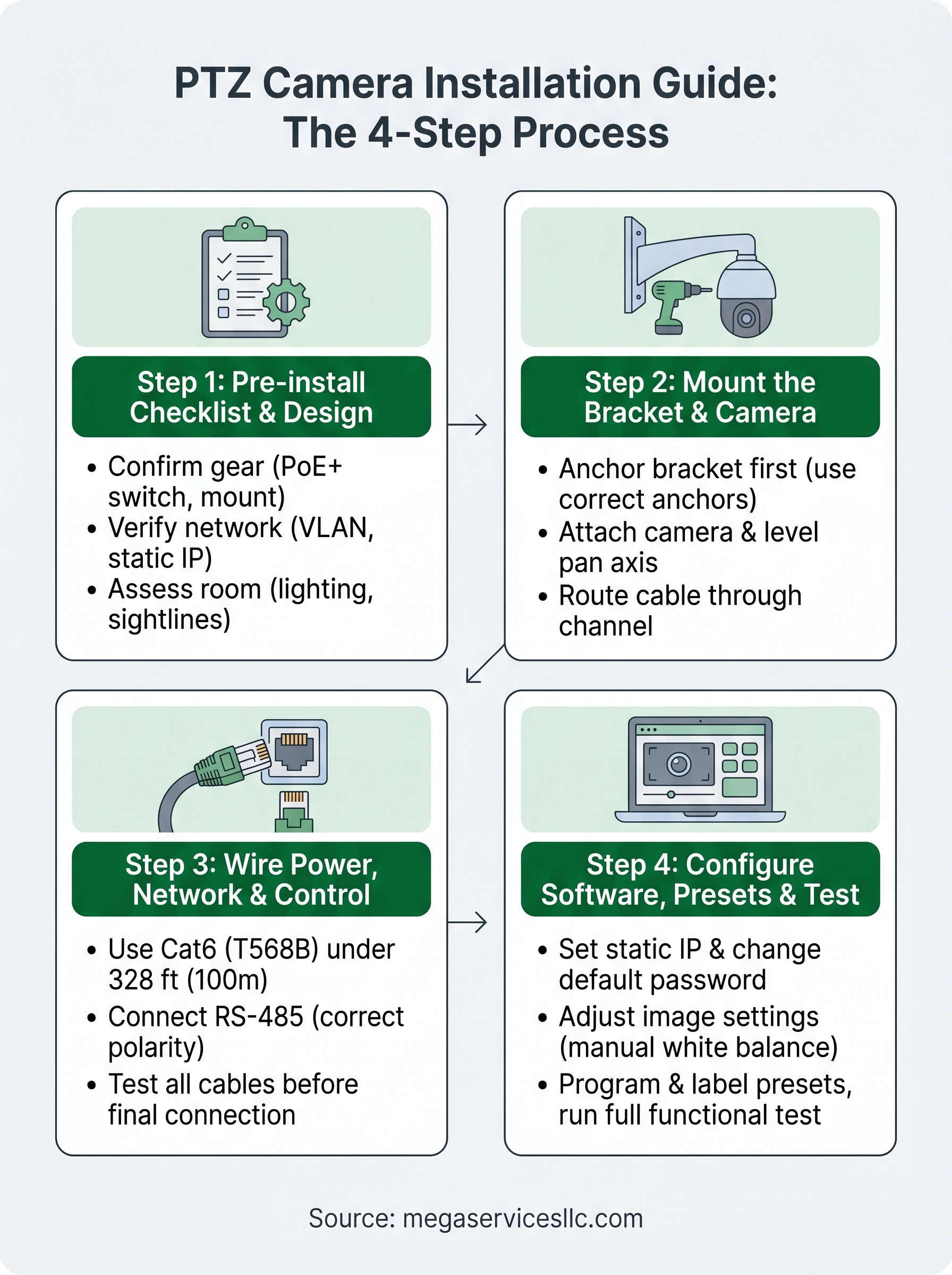

Step 1. Choose placement and mounting height

Placement is the single decision in this ptz camera installation guide that you cannot fix with a firmware update or a preset adjustment. Once the bracket is anchored and the cable is run, moving the camera means patching walls and re-pulling wire. Get this right before you drill anything.

Standard mounting heights by room type

The right mounting height depends on room function and primary subject distance. Mount too high and the camera looks down at an unflattering angle; mount too low and it shoots straight into light fixtures or captures too much ceiling in wide shots. Most installs land in the 8 to 12 foot range, but the exact number shifts based on the space.

Use this as your baseline reference:

For conference rooms, the camera centerline should sit at or just above seated eye level when zoomed in on participants, roughly 4 to 5 feet above the floor when accounting for the camera’s downward tilt angle.

Evaluating coverage zones and sightlines

Before you mark the bracket position, verify the camera’s horizontal field of view matches the width of your primary subject area at the intended distance. Most PTZ cameras offer a wide end between 60 and 70 degrees, but zoom in and that angle narrows considerably. Use the manufacturer’s field of view spec sheet to confirm coverage at both wide and tele settings before committing to a location.

Sightlines matter just as much as angles. Walk the room and look for columns, pendant lights, speaker clusters, or display screens that could block the camera’s view of key positions. Mark any obstructions on your floor plan so you can adjust the mount point before you anchor anything permanently.

Step 2. Mount the bracket and camera

With your mount position marked and verified, you’re ready to put hardware on the wall or ceiling. This step is straightforward when you follow the sequence correctly: anchor the bracket first, then attach the camera body. Reversing that order creates unnecessary weight overhead and increases the chance of dropping the camera mid-install. Work with a partner whenever possible, especially for ceiling or truss mounts above 10 feet, and confirm all anchor points align with your cable path before you commit.

Anchor the bracket to the surface

Your bracket install method depends entirely on surface material. Drywall over wood studs, concrete block, and T-bar ceiling grids each require different anchor hardware. Using the wrong anchor for the surface is a structural failure waiting to happen, and PTZ cameras are not light, with many models weighing 4 to 8 pounds before cabling is attached.

Follow this sequence regardless of surface type:

1. Mark anchor points using the bracket as a template; use a level to confirm the bracket sits plumb before marking
2. Drill pilot holes sized to the anchor spec; for concrete, use a hammer drill with a masonry bit
3. Insert anchors appropriate to the surface: toggle bolts for hollow drywall, concrete anchors for block or poured concrete, and beam clamps or bar clamps for truss
4. Torque fasteners to the manufacturer’s specified rating; do not overtighten, as stripped anchors in drywall will not hold load reliably
5. Test the bracket by applying firm lateral and downward pressure before hanging any equipment on it

If you’re mounting to a T-bar ceiling grid, use a rated above-tile mounting plate that spans structural grid supports, not the lightweight cross-tees.

Attach and secure the camera

Once the bracket is confirmed solid, mount the camera body according to the manufacturer’s attachment method. Most PTZ cameras use a quarter-turn bayonet lock or a threaded mounting collar. Hand-tighten first, then verify the camera is fully seated before applying the locking screw or retention pin. Check that the camera pan axis sits level at this stage, since correcting tilt after cabling is complete takes significantly more time.

Route the cable through the bracket’s cable management channel before you finalize the camera position. Feeding cable after the camera is locked in place creates unnecessary stress on the connectors. Leave a 6-inch service loop at the camera connection point so you can rotate or adjust the camera body without pulling tension on the cable. Skipping this step is a common shortcut that leads to connector failures during future PTZ camera installation guide adjustments or routine maintenance.

Step 3. Wire power, network, and control

With the camera physically secured, your next move is to pull and terminate the cables that carry power, network data, and control signals to the unit. This is where most field errors happen: reversed RS-485 polarity, a cable run that exceeds the PoE distance limit, or a crimped connector that passes a cable tester but fails under load. Follow the sequence below precisely, and test each connection before you move the ladder.

Pull and terminate the power and network cable

A single Cat6 cable handles both power delivery and network data when you’re running PoE+, which simplifies your cable run considerably. Measure the total run from the camera mount point back to the nearest PoE+ switch port, including any vertical drops inside walls or cable trays. If the run exceeds 295 feet (90 meters), budget for the extra margin; at 328 feet (100m) you’re at the hard limit, and any additional patch cable at either end eats into that figure.

Terminate both ends using the T568B wiring standard unless the project spec explicitly calls for T568A. After crimping, verify continuity with a cable tester before you power the switch port. A failed pair is far easier to find and fix before the camera connects than after you’ve powered up and the unit shows offline. Once the cable passes the tester, route it through the bracket’s cable channel, connect the RJ45 to the camera’s LAN port, and plug the other end into the designated switch port.

Label both ends of every cable with the camera ID before you seal up any wall penetrations; tracing unlabeled runs during a future service call wastes far more time than labeling takes now.

Connect the control interface

Serial control over RS-232 or RS-485 remains common in this ptz camera installation guide context, particularly for hardware controllers or video switchers that send VISCA or Pelco commands directly to the camera. If your system uses IP control exclusively through the network connection you just terminated, you can skip the serial run entirely. If it does not, connect the RS-485 data pair with correct polarity: the camera’s DATA+ pin connects to the controller’s DATA+ terminal, and DATA- to DATA-. Reversed polarity produces no error message on most systems; the camera simply won’t respond to commands.

Confirm the control protocol and baud rate in the camera’s on-screen display menu before you run any tests. Common baud rate settings are 9600 and 38400; mismatched baud rates between the camera and controller are a frequent source of no-response issues that look like wiring faults on the surface.

Step 4. Configure software, presets, and testing

Power the switch port and wait 60 to 90 seconds for the camera to boot fully before you attempt any connection. Open a browser on a laptop connected to the same network segment, type the camera’s IP address into the address bar, and log in using the default credentials listed in the manufacturer’s documentation. Change the default password immediately after first login; leaving factory credentials in place is a security gap that network administrators will flag during any site audit.

Configure the camera’s network and image settings

Your first stop inside the web interface is the network configuration page. Set a static IP address that matches the reservation your IT contact confirmed during the pre-install stage, and verify the subnet mask and default gateway match the rest of the network segment. Once you save and the camera reconnects, navigate to the image settings page and adjust white balance, exposure mode, and iris to match the room’s lighting conditions. For most fixed-lighting environments, a manual white balance locked to the room’s color temperature produces more consistent results than auto mode during live presentations.

Set the video codec to H.264 for the widest compatibility across control systems and recording platforms; H.265 saves bandwidth but introduces decoding overhead that older hardware controllers may not handle reliably.

Program and label presets

Presets are the core functional output of this entire ptz camera installation guide, so set them up with precision. Use the camera’s web interface or a connected hardware controller to position the camera at each intended shot, then save the preset with a descriptive label rather than a number alone. Most cameras support storing 100 or more presets, but a typical room configuration needs between 3 and 10 well-named positions.

Run a full functional test

With presets saved, call each one in sequence from the control interface and confirm the camera moves to the correct position, locks focus accurately, and holds stable without drift. Have a second person stand at each subject position while you call presets from the controller so you can verify framing and focus under real-world conditions rather than an empty room. Run the full preset cycle at least twice before you close out the job.

Wrap-up and next steps

This ptz camera installation guide covers every stage that determines whether a camera system performs reliably or becomes a recurring support problem: pre-install planning, mounting height and bracket anchoring, cable termination, and software configuration with labeled presets. Follow each step in sequence and you avoid the most common field errors before they cost you time on-site.
