Getting a PTZ camera online shouldn’t require a PhD in networking, but skipping steps during PTZ camera network setup can leave you troubleshooting for hours. Whether you’re deploying a single unit in a conference room or rolling out dozens across a national retail chain, the process follows the same core principles: proper IP configuration, reliable PoE connectivity, and correct integration with your control system or NVR.

This guide walks through the full setup process from unboxing to operational status. You’ll get clear instructions on assigning static IP addresses, selecting the right PoE switch class, connecting to controllers, and verifying camera functionality on your network. Each step reflects the kind of hands-on technical work our technicians at MegaServices handle daily on AV integration projects across the U.S. and Canada.

If you’re an AV integrator or project manager who needs to get these systems configured correctly the first time, or if you need certified technicians deployed to a job site within 48 hours to handle it, this guide gives you the technical foundation. Let’s walk through it step by step.

What you need before you start

Before you touch a single cable, gather everything listed in this section. Missing one component mid-installation adds unnecessary delay to your PTZ camera network setup, especially when you’re working on a tight project timeline or coordinating across multiple job sites. Confirming your hardware and software checklist upfront is the fastest way to avoid the kind of troubleshooting that eats up billable hours.

Showing up to a job site without confirming PoE wattage compatibility is the single most common reason PTZ installations stall before they start.

Hardware to have on-site

You need specific physical equipment staged and verified before installation begins. PoE compatibility between your switch and camera is the most overlooked detail, and it causes more failed installs than any other single factor. Pull up the camera’s spec sheet and confirm its maximum power draw in watts before selecting your switch port.

Here is a quick reference table to check off:

A cable tester catches wiring faults before you mount the camera out of reach on a ceiling bracket. It takes thirty seconds to use and saves you from pulling a ladder back out later.

Software and network access you need ready

Sorting out software access before you start physical installation keeps the workflow moving without interruption. Your camera’s web interface typically requires either a manufacturer-specific browser plugin or ONVIF-compliant software, so confirm compatibility on your laptop ahead of time. Many cameras ship with plugins originally built for Internet Explorer, which do not run natively on Chrome or Edge without additional configuration.

Collect the following before you begin:

• Default admin credentials for the camera, usually printed on the label on the unit or in the quick-start sheet inside the box
• Network admin access to the switch or router so you can verify DHCP lease assignments and configure VLANs if needed
• Manufacturer’s IP scanner or device manager utility, available through the manufacturer’s official support page
• NVR login credentials if you plan to register the camera to an existing recorder
• Your local network’s IP address range (for example, 192.168.1.x), written down so you can assign a static IP in Step 3 without creating an address conflict

Knowing your subnet range and gateway address before you start means you can complete static IP assignment cleanly in one pass, rather than bouncing between screens trying to find the information mid-configuration.

Step 1. Mount and power the camera with PoE

Physical mounting and power delivery form the foundation of any successful PTZ camera network setup. Before you plug in a single cable, confirm that your mounting surface and camera bracket can handle the camera’s weight and that your PoE switch port is enabled. Skipping these confirmations creates problems that are harder to fix once the camera is bolted to a ceiling.

Position the camera before you drill

Good camera placement directly affects pan, tilt, and zoom range once you’re in the control interface. Position the camera so its horizontal field of view covers the intended area without obstruction, then mark your anchor points before drilling. For ceiling-mounted PTZ units, center the bracket over a solid joist or use appropriate anchors rated for the camera’s total weight, which typically runs between 4 and 10 pounds depending on the model.

Always confirm the mounting surface load rating before securing the bracket. A loose bracket causes vibration artifacts in the video feed that no software setting can fix.

Check the tilt range in the spec sheet so you know how far down the lens can physically angle. For conference rooms, a mount height between 8 and 10 feet gives you the best coverage angle without needing extreme tilt.

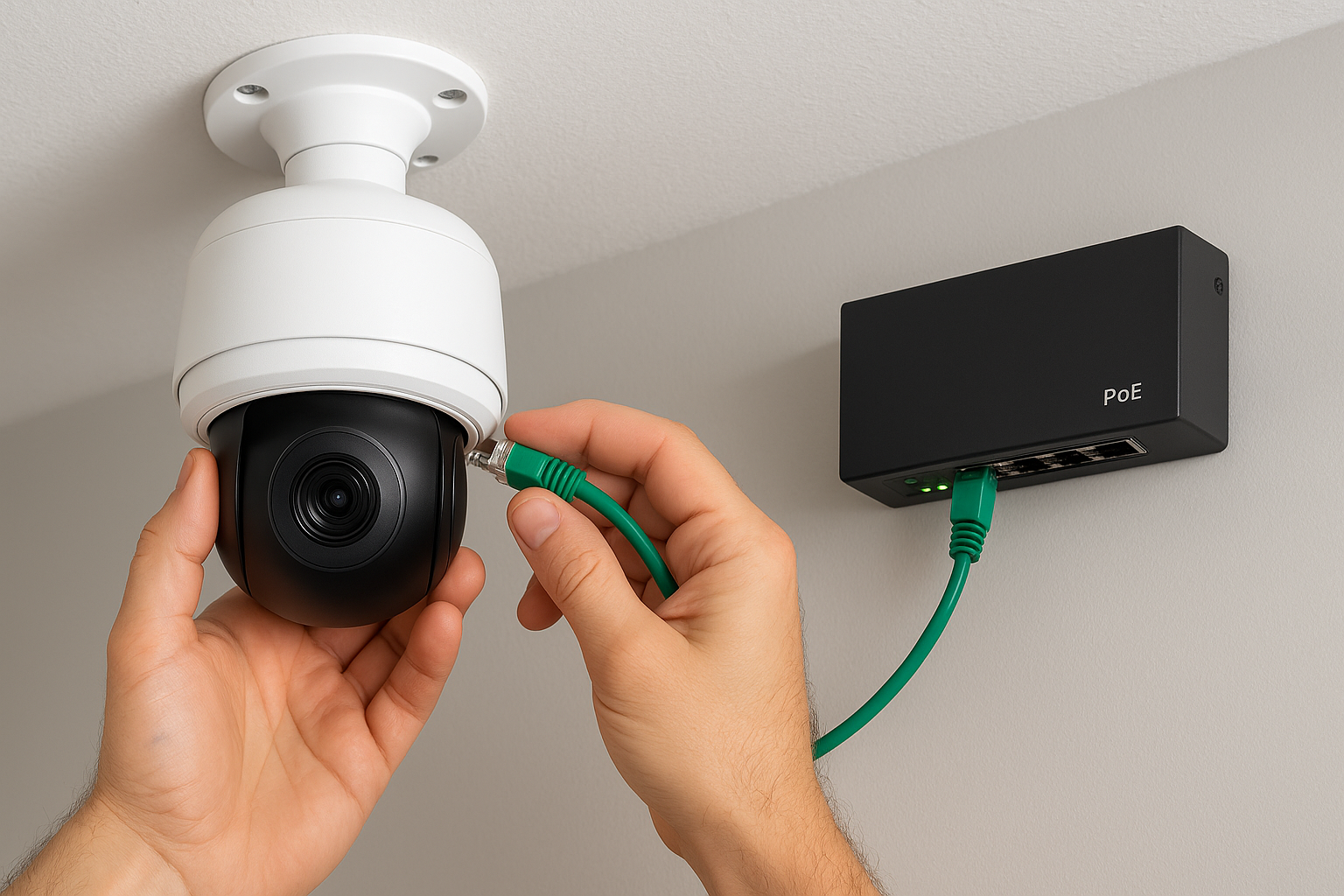

Run the cable and connect PoE power

Once the bracket is secured, route your Cat6 cable from the PoE switch to the camera location. Keep cable runs under 328 feet (100 meters) to stay within the IEEE 802.3 standard for PoE power delivery over Ethernet. Longer runs cause voltage drop that can prevent the camera from powering on or cause it to reboot intermittently.

Connect the cable to the camera’s RJ45 port, then enable the corresponding PoE port on your switch. The camera’s LED indicator should light up within 15 to 30 seconds if power delivery is successful. If it does not, confirm the port class matches the camera’s wattage requirement from your pre-installation checklist.

Step 2. Put the camera on your LAN and find its IP

With the camera powered and the LED confirmed active, your next move in the PTZ camera network setup is getting the device visible on your local network. Most cameras ship configured to request an IP address automatically via DHCP, which means your router or switch will assign one as soon as the camera connects. Your job at this stage is to confirm the connection happened and track down the address the camera received.

Verify the camera is on the LAN

Open a command prompt on your laptop and run a quick ping broadcast or ARP scan to confirm network traffic is reaching the camera segment. If your laptop and the camera are on the same subnet, you should see the camera’s MAC address appear in your ARP table within seconds of the camera booting. You can check this by running the following command on Windows:

arp -a

This outputs a list of IP-to-MAC address mappings currently cached on your machine. Look for an unfamiliar IP in your subnet range, which is likely your camera. Cross-reference the MAC address prefix against the camera manufacturer’s registered OUI if you want to confirm it with certainty.

If nothing appears in the ARP table, confirm that your laptop and the camera are physically on the same switch or VLAN segment before suspecting a camera fault.

Use the manufacturer’s IP scanner to confirm the address

Running the manufacturer’s device discovery utility is the most reliable method for locating your camera’s assigned IP. These tools broadcast a discovery packet across the local subnet and return a list of detected devices with their model names, MAC addresses, and current IP assignments.

Download the utility directly from the manufacturer’s official support page, launch it on your laptop, and click Scan or Search. The camera should appear in the results within a few seconds. Note the IP address shown because you will use it in the next step to access the camera’s web interface.

Step 3. Set DHCP or static IP and lock it in

Now that you have the camera’s current IP address, you need to decide whether to keep it on DHCP or switch to a static assignment. For any production deployment, a static IP is the correct choice. A DHCP-assigned address can change after a router reboot or lease expiration, which breaks your NVR registration, controller mapping, and any firewall rules you have configured around that address.

Why static IP is the right call for most installs

In a PTZ camera network setup involving more than one device, address consistency directly affects your ability to troubleshoot quickly. If a camera’s IP shifts overnight because of a DHCP renewal, you will spend time rediscovering it instead of diagnosing the actual problem. Assigning a fixed address outside your DHCP pool eliminates that variable entirely and makes future servicing faster for whoever touches the system next.

Reserve a dedicated IP block on your router for AV devices, for example 192.168.1.150 through 192.168.1.200, and assign only static addresses from that range to cameras, switches, and controllers.

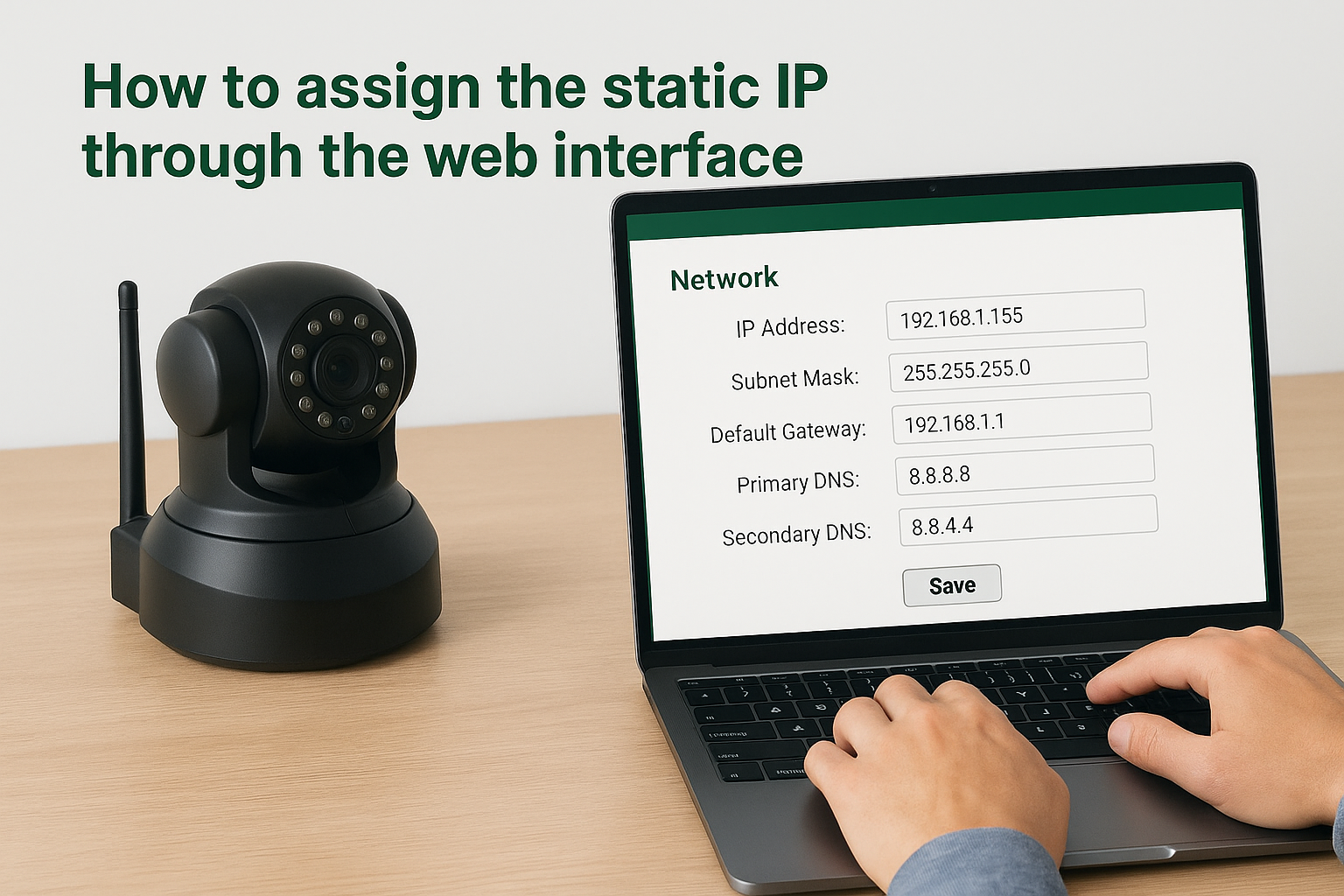

How to assign the static IP through the web interface

Open a browser on your laptop, type the camera’s current IP address into the address bar, and log in with your admin credentials from your pre-installation checklist. Navigate to the network settings section, which is usually labeled Network, TCP/IP, or LAN Configuration depending on the manufacturer. Enter the values for your network using the following template as a guide:

IP Address:      192.168.1.155
Subnet Mask:     255.255.255.0
Default Gateway: 192.168.1.1
Primary DNS:     8.8.8.8
Secondary DNS:   8.8.4.4

Replace the IP address with one that falls outside your DHCP pool range and does not conflict with another device. Use your actual gateway address, which you confirmed before starting installation.

Save and verify the configuration

After entering your values, click Save or Apply in the interface. The camera will reboot, and your browser will lose the connection briefly. Type the new static IP address into your browser once the camera finishes restarting. If the login page loads, the static assignment is confirmed and locked in.

Step 4. Connect to PC, NVR, and controller

With a confirmed static IP in place, the final stage of your PTZ camera network setup is integrating the camera with the systems that will actually use it: your PC-based management software, NVR, and physical or software controller. Each connection type follows a distinct process, so work through them in the order that matches your deployment.

Add the camera to your NVR

Open your NVR’s management interface and navigate to the camera or device management section. Most NVRs support ONVIF protocol, which gives you a manufacturer-agnostic way to add any compliant PTZ camera using its IP address, port, and admin credentials. Select Add Device or the equivalent option, then enter the following details:

Protocol:   ONVIF (or manufacturer-specific if available)
IP Address: 192.168.1.155  (your assigned static IP)
Port:       80 (HTTP) or 554 (RTSP)
Username:   admin
Password:   your admin password

After saving, the NVR should pull a live video feed within a few seconds. If it does not, confirm that the camera’s ONVIF service is enabled in the camera’s web interface under the network or service settings menu.

If your NVR and cameras sit on separate VLANs, you need a routing rule between those segments or the discovery broadcast will not cross the VLAN boundary.

Connect a software controller or PC client

For PC-based PTZ control, install the manufacturer’s control client or use an ONVIF-compatible platform like PTZOptics Connect or similar software available through the manufacturer’s support page. Enter the camera’s static IP and control port (typically port 80 for HTTP control or port 5678 for Visca over IP, depending on your camera model) and test pan, tilt, and zoom movement to confirm communication. For a hardware joystick controller, connect it to the same network segment, assign it a compatible IP, and point it to the camera’s Visca over IP port using the controller’s device setup menu.

Quick wrap-up

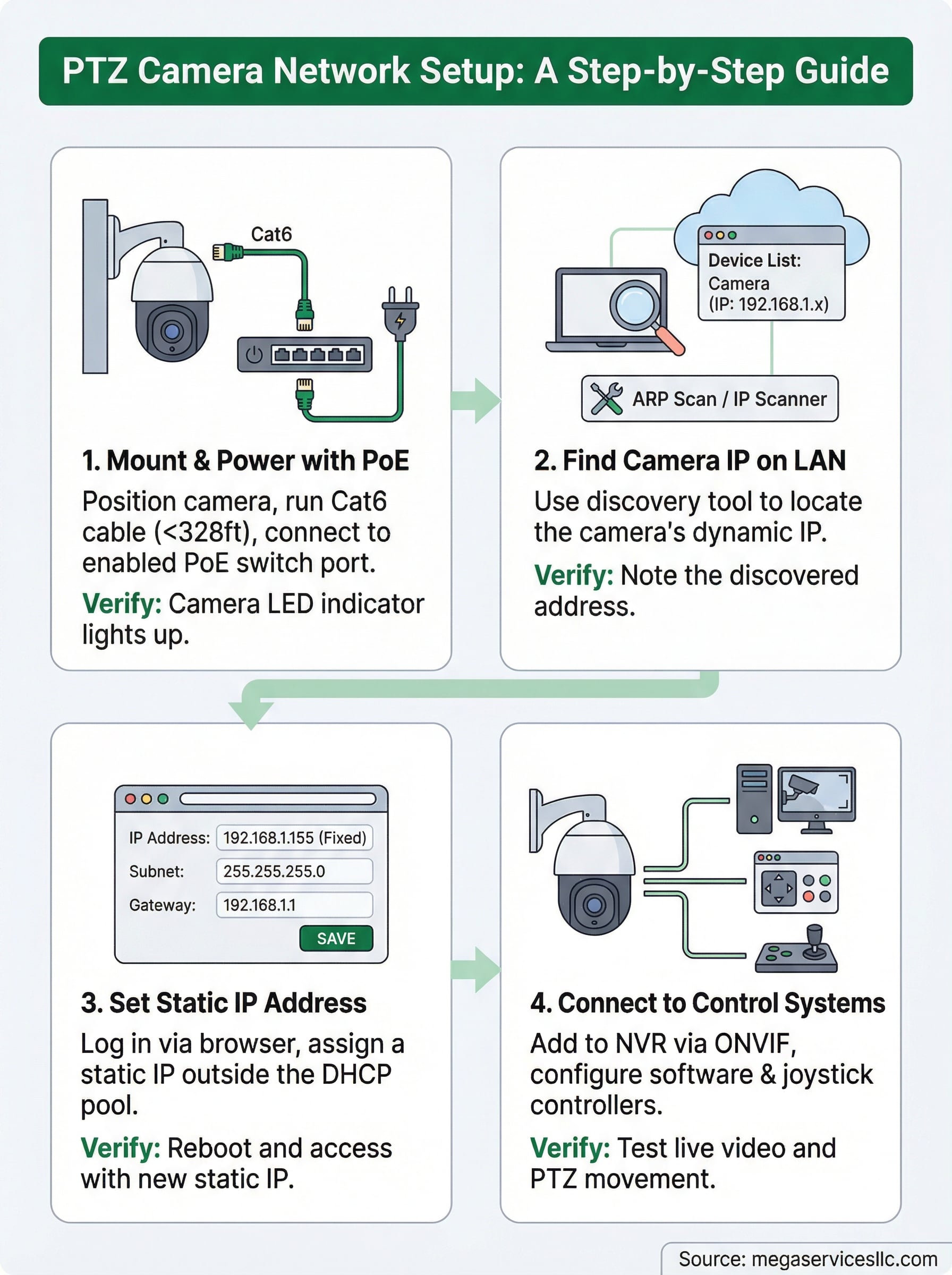

A complete PTZ camera network setup comes down to four repeatable steps: mount with confirmed PoE compatibility, locate the camera’s IP using a discovery tool, lock in a static address outside your DHCP pool, and register the device to your NVR and control system. Follow those steps in order and you avoid the most common failure points before they happen.

Your checklist from this guide covers every layer of the process: hardware verification, IP assignment, ONVIF integration, and controller configuration. Each step builds directly on the one before it, so cutting corners early means rework later.
