Security Camera Placement Best Practices: Heights & Angles

A security camera that’s mounted in the wrong spot is barely better than no camera at all. Poor angles create blind spots, bad heights produce unusable footage, and sloppy positioning can even violate privacy laws. Getting security camera placement best practices right from the start saves you from costly reinstalls and, more importantly, from gaps in coverage that only become obvious after an incident occurs.

Whether you’re overseeing a single building retrofit or rolling out cameras across dozens of locations, placement decisions directly affect how much value you get from your investment. The difference between a system that captures clear, actionable footage and one that records nothing but blurry motion often comes down to a few feet of mounting height and a few degrees of lens angle.

At MegaServices, our nationwide network of vetted AV technicians has been installing and commissioning security camera systems since 2007. We’ve seen firsthand what works, what doesn’t, and where projects go sideways. This guide pulls from that hands-on field experience to walk you through optimal camera heights, angle strategies, coverage planning, and the common mistakes that compromise even well-specced systems, so your next deployment gets it right the first time.

What good camera placement looks like

Good placement means every camera on your system has a defined purpose and a clear field of view that serves it. A well-designed layout covers all entry and exit points, maintains overlapping sight lines to eliminate dead zones, and positions cameras at heights and angles that produce footage you can actually use. When you follow security camera placement best practices, you end up with a system where each device contributes to a cohesive picture rather than a patchwork of disconnected feeds.

Coverage that accounts for how people actually move

People don’t move randomly. Foot traffic flows through predictable corridors, and intruders use the same paths as everyone else. Effective placement maps to those movement patterns: cameras at building entrances, stairwells, elevator lobbies, parking lot entrances, and any interior hallway that connects secure areas to public-facing spaces. Your goal is to create a network where a person moving through your property cannot pass through more than one zone without appearing on at least two cameras before reaching any sensitive area.

Footage quality you can act on

A recording is only useful if the footage is clear enough to identify a person or verify an event. This means thinking beyond coverage area alone. Camera angle, lighting conditions, lens focal length, and sensor resolution all determine whether your footage helps you respond to an incident or leaves you guessing. Cameras pointed directly at a light source will backlight subjects and render faces unrecognizable.

A camera that captures a wide area but cannot produce an identifiable image creates a false sense of security, not real protection.

The mounting height and downward tilt angle work together to define your identification zone. Too high and you get a top-down view that makes facial recognition nearly impossible. Too low and you risk tampering, obstruction, or distorted close-up footage. Most professional installations target 7 to 10 feet above ground level for entry-point cameras, tilted down at roughly 15 to 45 degrees depending on the coverage depth required.

Deterrence versus detection

Placement also determines whether your system deters incidents before they happen or documents them after. Visible cameras at eye level near entrances send a clear signal to anyone considering unauthorized access. Covert or higher-mounted cameras, on the other hand, prioritize capturing clear footage of events that a potential offender might not anticipate being recorded.

Balancing both approaches separates a thoughtful design from one that only checks a compliance box. Use visible cameras at primary entry points to discourage opportunistic behavior, and position secondary cameras at less obvious angles to capture the incidents deterrence alone doesn’t prevent. Knowing which strategy fits each zone is a foundational decision you need to make before a single mount goes into the wall.

Step 1. Map your risks and coverage zones

Before you pick a single camera or plan any mounting heights, you need a clear picture of where your risks actually are. This step involves walking the property and identifying the specific zones where an incident could occur, then ranking them by likelihood and impact. Skipping this stage is one of the most common mistakes that creates coverage gaps that only surface after something goes wrong.

Identify your highest-risk entry points

Start by listing every access point a person could use to enter or move through your facility. This includes main doors, side exits, loading docks, windows, parking lot entrances, and any interior doors that connect public spaces to restricted areas. For each point, ask whether unauthorized access there would lead directly to people, assets, or data. Higher-risk points need overlapping camera coverage from multiple angles, not just a single device.

If you cannot position at least two cameras with overlapping fields of view on a critical entry point, treat it as an unresolved gap until the design is corrected.

Use this checklist to categorize each access point before you move forward:

• Critical: Direct access to people, cash, inventory, or server equipment
• High: Routes connecting public areas to restricted zones
• Medium: Secondary exits, stairwells, and low-traffic corridors
• Low: Storage areas with no sensitive assets

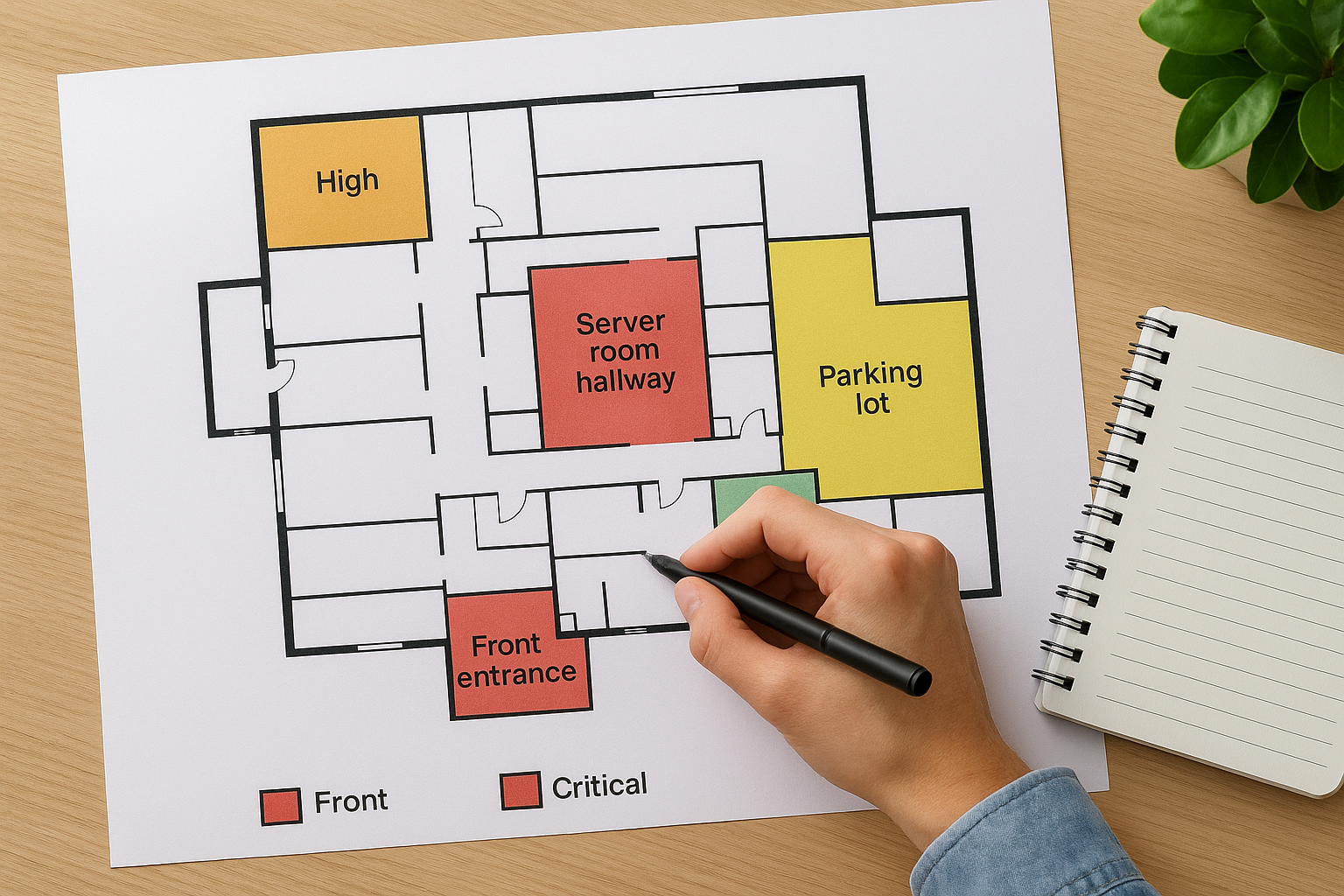

Document your zones on a floor plan

Once you have your risk rankings, transfer them onto a scaled floor plan or site map. Mark each zone with its risk level and sketch the estimated field of view for a camera at each proposed location. This visual step helps you spot overlaps, identify dead zones, and align the design with your installers before work begins. Applying security camera placement best practices at this planning stage prevents expensive rework because problems are far easier to solve on paper than on-site.

Track each zone with a simple planning table like this:

Step 2. Choose cameras and lenses for each area

Once you have your risk map and coverage zones defined, the next decision is selecting the right camera type and lens for each specific location. Not every area needs the same hardware. Matching the camera to the zone’s function is one of the most practical security camera placement best practices you can apply, and it directly determines the quality of footage you collect when you need it most.

Match camera type to zone function

Each zone you identified in Step 1 has a different operational requirement. Wide entry areas and parking lots benefit from cameras with wider fields of view, while narrow corridors and point-of-sale counters need tighter angles with higher resolution to capture fine detail. Use the table below to match your zones to the appropriate camera type.

Select the right lens focal length

Focal length controls how wide or narrow your field of view is and directly affects how much detail you capture at a given distance. A 2.8mm lens gives you a broad view ideal for wide open spaces but reduces detail at range. A 6mm to 12mm lens narrows the view and pulls in more detail at distance, which is what you need for identifying faces at a lobby entrance or license plates at a parking gate.

Choosing the wrong focal length is one of the most common causes of footage that covers the right area but fails to produce identifiable images.

For exterior perimeter cameras covering distances beyond 30 feet, consider a varifocal lens so your installer can fine-tune the field of view on-site rather than committing to a fixed angle before the mount is set.

Step 3. Set mounting height and angle for clear IDs

Mounting height and tilt angle work together to determine whether your camera captures identifiable faces and actions or just the tops of people’s heads. Getting this step right is one of the most impactful security camera placement best practices you can apply, because even a high-resolution camera pointed at the wrong angle produces footage that investigators cannot use.

Find the right mounting height for your environment

Height determines your camera’s perspective on the scene and how much facial detail you capture. Mount too high and you lose facial features. Mount too low and you risk obstruction, vandalism, and distorted close-up images. For most indoor entry points, corridors, and retail environments, 7 to 10 feet is the target range because it keeps the camera above easy reach while keeping faces in clear view.

The exact height you choose should match the ceiling height, the distance to your subject, and whether the goal is facial identification or general scene coverage.

Use the table below as a starting reference for common installation environments:

Dial in the tilt angle for your target zone

Once you fix the mounting height, tilt angle controls where the identification zone lands on the floor below. A camera mounted at 9 feet and tilted down at 15 degrees places the sharpest focal point roughly 15 to 20 feet in front of the mount, which works well for a long hallway or entrance approach. Tilting steeper at 30 to 45 degrees pulls the focus zone closer, which is appropriate for a narrow doorway or a counter where subjects stop directly below the camera.

Your installer should use a live view monitor during setup to confirm the identification zone hits the exact spot where subjects will be, not an estimated position based on the mounting plan alone.

Step 4. Avoid blind spots, glare, and privacy issues

Even a well-planned camera layout can fail if you don’t actively check for the three most common field problems: coverage gaps that create blind spots, lighting conditions that destroy image quality, and camera positions that cross legal privacy boundaries. Addressing all three during this step is a core part of following security camera placement best practices because each one can independently make your footage useless or create liability you didn’t anticipate.

Close blind spots with overlapping fields of view

Blind spots form where two camera fields of view don’t quite meet, leaving a corridor, corner, or open area completely unmonitored. Walk every zone in person after you’ve established your proposed camera positions and identify any area where a person could stand without appearing on any feed. Corners, stairwell landings, and the sides of large columns are the most common problem areas.

Use this checklist to close gaps before installation is finalized:

• Confirm every access point appears on at least two camera feeds from different angles
• Check that adjacent camera fields of view overlap by at least 10 to 15 percent to avoid seams
• Identify structural obstructions like pillars, shelving, and HVAC equipment and reposition accordingly
• Verify that wide-area cameras don’t create coverage that looks complete on paper but misses ground-level movement

Control glare and backlight before locking in positions

Direct light sources and reflective surfaces are the two biggest causes of washed-out footage. A camera aimed toward a window or a glass door during daytime will backlight every subject, making identification impossible. Before committing to a position, visit the site at multiple times of day to see how light conditions shift, particularly near exterior-facing entrances where sun angles change significantly.

Stay within privacy and legal boundaries

Pointing cameras at areas where people have a reasonable expectation of privacy, such as restrooms, locker rooms, or neighboring private property, exposes your organization to serious legal risk. Confirm your camera positions comply with your state’s surveillance laws and your organization’s internal privacy policy before any mount is finalized.

When in doubt about a camera’s angle relative to a neighboring property or a sensitive indoor space, adjust the position rather than assume compliance.

Step 5. Test, label, and maintain for reliable footage

Installation day is not the finish line. A camera that looks correctly positioned from the ground can still have a miscalibrated angle, an obstructed field of view, or a focus setting that produces blurry footage at the exact distance where you need clarity most. Testing every camera immediately after mounting, then building a maintenance routine around it, is what separates a reliable security system from one that fails you at a critical moment.

Run a full field-of-view test before sign-off

Have someone walk each zone while a second person monitors the live feed on a screen in real time. Confirm that the camera captures a clear, identifiable image of the subject at the intended distance, not just motion. Use this field test checklist to verify each camera before you close out the installation:

• Facial identification zone: Confirm a face is recognizable at the intended capture distance
• Tilt and angle: Verify the identification zone hits the correct floor position
• Lighting check: Review footage at different lighting conditions, including low light
• Obstructions: Walk the frame perimeter to confirm no column, sign, or fixture cuts into the view
• Night vision or IR range: Test after dark if the camera covers an exterior or low-light zone

Do not sign off on any camera position until you have reviewed actual recorded footage, not just a live preview, for each device.

Label every camera with a location ID

Assign each camera a unique alphanumeric ID that matches your floor plan documentation, and attach a physical label to the housing. When footage pulls from camera "CAM-04-LOBBY-EAST," your team immediately knows where to look and what the camera covers. This step saves significant time during an incident review and makes maintenance scheduling far easier.

Set a maintenance schedule to keep footage reliable

Dust, condensation, spider webs, and lens drift degrade image quality gradually, so you won’t notice the decline day to day. Schedule a physical inspection of every camera every 90 days. During each inspection, clean the lens, verify the angle hasn’t shifted, confirm the recording is writing correctly to storage, and check that no new obstructions have appeared. Applying these security camera placement best practices through ongoing maintenance ensures your system performs when it counts, not just on day one.

Wrap-up and what to do next

Following security camera placement best practices comes down to five decisions made in the right order: map your risks, match your hardware to each zone, set the correct mounting height and angle, eliminate blind spots and privacy risks, then test and maintain everything you install. Each step builds on the last, and cutting corners at any stage creates gaps that only show up when you need the footage most.

Your system is only as strong as the technicians who deploy it. Miscalibrated angles, incorrect focal lengths, and poor lighting assessments are installation errors, not equipment problems, and they require hands-on expertise to get right the first time. If you’re managing a rollout across multiple sites, working with experienced professionals makes the difference between a system that performs and one that looks complete on paper.

Contact MegaServices to discuss your security camera installation needs and get qualified, vetted AV technicians on-site fast.
