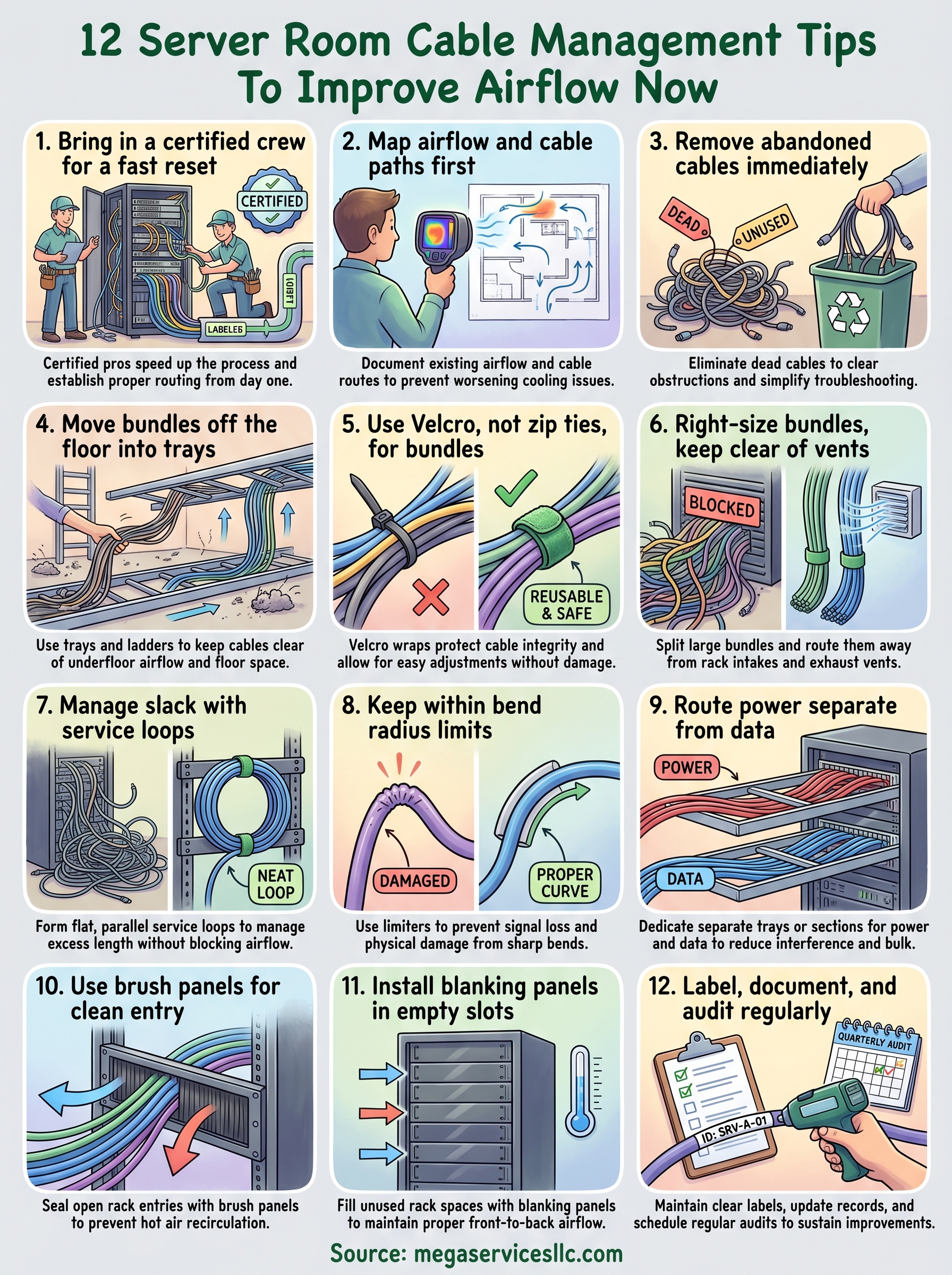

12 Server Room Cable Management Tips To Improve Airflow Now

A tangled mess of cables behind your server racks isn’t just ugly, it’s a real threat to uptime. Poor server room cable management tips might seem like basic housekeeping, but ignoring them leads to restricted airflow, overheating equipment, and troubleshooting sessions that take three times longer than they should. When a single misrouted cable can block a fan intake or make it impossible to trace a failed connection, the stakes go well beyond aesthetics.

At MegaServices, our technicians have been hands-on with structured cabling and AV system installations since 2007, deploying skilled labor into server rooms, data closets, and network operations centers across the U.S. and Canada. We’ve seen firsthand what separates a well-organized rack from a cable nightmare, and the difference almost always comes down to a handful of repeatable habits that any team can adopt.

This article breaks down 12 practical tips you can apply right now to clean up your server room cabling, improve airflow across your racks, and make future maintenance significantly easier. Whether you’re building out a new environment or inheriting someone else’s mess, these are the proven methods our technicians rely on every day in the field.

1. Bring in a certified crew to reset the room fast

If your server room has reached the point where cables cover the floor, block rack vents, or take 20 minutes to trace, a full reset is the fastest path forward. Trying to fix a heavily congested room with internal staff while operations keep running often drags the project out for months. Bringing in certified technicians who specialize in structured cabling and server room builds gets the job done in days, not quarters.

What to do

Start by sourcing technicians with low voltage and structured cabling certifications rather than general IT staff. Look for credentials like CTS (Certified Technology Specialist) or manufacturer-specific certs from vendors like Belden or Panduit. You want people who have physically built out server rooms before, not just patched ports. A crew of two to four certified technicians can typically audit, strip, and rebuild a mid-sized room within 48 to 72 hours when given proper access and a clear scope.

Why it improves airflow

Among the most impactful server room cable management tips, getting routing right from the start delivers the fastest thermal results. Technicians who follow industry-standard routing practices ensure cables travel through trays and ladders instead of cutting across open rack space. When cables block hot air from exiting the rear of a rack or cold air from entering the front, equipment runs hotter and fans spin harder. Proper cable management restores the separation between hot and cold air paths that your cooling system was designed to maintain, and a trained crew executes that from day one.

A single cable bundle draped across a rear exhaust vent can raise rack temperatures by several degrees, enough to trigger thermal throttling on critical servers.

How to keep it compliant and serviceable

Experienced technicians document their work as they go. They label every run and photograph the completed installation, then produce as-built drawings your team can reference for any future changes. This documentation keeps the room compliant with safety codes, speeds up audits, and ensures the next person who touches a cable knows exactly where it goes and what it carries.

Quick checklist

Before the crew arrives, prepare the room to avoid wasted time on day one. Clearing access and gathering key information lets technicians focus entirely on rebuilding the cable infrastructure rather than hunting for circuit diagrams or waiting on access approvals.

• Pull a current inventory of active and inactive connections
• Identify all decommissioned equipment that still has cables attached
• Clear physical access to cable trays, ladder racks, and patch panels
• Confirm your maintenance window and any blackout periods with operations
• Have replacement Velcro wraps, labels, and spare blanking panels on-site

2. Map airflow and cable paths before you touch anything

Jumping straight into pulling cables without a plan almost always makes things worse. Before you move a single bundle, take time to document how air currently flows through the room and where cables are running, so every change you make supports cooling rather than working against it.

What to do

Walk the room with a thermal camera or a basic airflow meter and record where cold air enters the front of racks and where hot air exits the rear. Sketch or photograph existing cable routes, tray positions, and any obstructions blocking vents. This baseline gives you a clear picture of what’s working and what needs to change before any physical work begins.

Why it improves airflow

Mapping first prevents you from relocating one cable problem directly onto a vent or tray that feeds your cooling path. Cold aisle and hot aisle separation only works when cables don’t bridge the two zones. Identifying problem areas on paper means your crew targets the highest-impact fixes first rather than rerouting cables at random.

Skipping the mapping step is one of the most common reasons server room cable management tips fail to deliver lasting thermal improvements after a cleanup.

How to keep it compliant and serviceable

Store your airflow diagrams and cable path sketches alongside your as-built documentation. Update these records every time a cable run changes, so future technicians work from accurate information rather than guessing. Keeping this documentation current also satisfies site audit requirements and cuts troubleshooting time significantly during incidents.

Quick checklist

Use this list to complete your mapping pass before any cables move.

• Photograph the current state of cable trays and rack entries
• Note all rack positions with blocked front or rear vents
• Record airflow direction for each cooling unit in the room
• Mark planned cable routes on your floor plan before work starts

3. Remove abandoned cables and dead jumpers immediately

Dead cables do more damage than most people realize. Abandoned patch cables, decommissioned runs, and dead jumpers add physical bulk to your bundles, restrict airflow through the rack, and make every future troubleshooting job harder than it needs to be. If a cable isn’t carrying live traffic, it has no business taking up space in your server room.

What to do

Walk every rack and trace each cable back to both endpoints. Any cable that terminates at decommissioned equipment or an unused port should be tagged, logged, and physically removed from the room. Pay close attention to legacy copper runs left over from previous builds, since these are the most common source of unexplained cable bulk in older environments.

Why it improves airflow

One of the most overlooked server room cable management tips is that dead cables are pure obstruction. They sit in trays, hang off panels, and pile up in corners without contributing anything functional. Removing them directly opens up airflow paths between racks and through cooling units, which lowers ambient temperature without any changes to your HVAC system.

Removing dead cables from a single mid-sized rack can cut cable volume by 30 percent or more, which has an immediate impact on rear vent clearance and airflow efficiency.

How to keep it compliant and serviceable

Document every cable you remove with a date, port ID, and the reason for removal. This protects you during audits and prevents someone from pulling an active run by mistake during a future cleanup.

Quick checklist

• Verify both endpoints before removing any cable
• Tag dead runs before pulling them to avoid confusion
• Update your cable documentation immediately after removal
• Dispose of or recycle removed cabling according to site policy

4. Move bundles off the floor and into trays or ladders

Cables on the floor are more than a tripping hazard. They block underfloor airflow, collect dust, and make it nearly impossible to trace a run without getting on your hands and knees. Moving every bundle off the floor and into cable trays or ladder racks is one of the fastest wins available in any server room cable management tips checklist.

What to do

Install overhead ladder racks or below-raised-floor cable trays to carry all copper and fiber runs between racks. Route patch cables through vertical cable managers inside each rack rather than letting them drape over the sides. For rooms without a raised floor, mount ladder racks 12 to 18 inches above the top of the racks to keep runs accessible and well-organized.

Why it improves airflow

Floor-level cables interrupt the cold air supply path that feeds your equipment from the front of the rack. When you move bundles overhead or into structured pathways, cold air travels directly to rack intakes without obstruction.

Clearing the floor completely can reduce rack inlet temperatures by two to four degrees Fahrenheit in rooms that rely on underfloor cooling.

How to keep it compliant and serviceable

Secure all trays to structural ceiling supports or dedicated rack uprights rather than to ceiling tiles or conduit. This keeps the load-bearing path safe and ensures trays hold position over time. Document the routing path for each tray segment so any technician can follow a cable run from patch panel to equipment without guessing.

Quick checklist

• Remove all cables from the floor before securing trays
• Label tray segments to match your cable documentation
• Confirm weight ratings on all tray hardware before loading

5. Use Velcro, not zip ties, to protect airflow and cables

This single swap is one of the most underrated server room cable management tips available. Zip ties feel fast and secure, but over-cinching them crushes cable jackets, reduces signal integrity, and permanently deforms bundles in ways that restrict airflow through tight rack spaces.

What to do

Replace every zip tie in your racks with reusable Velcro cable wraps. Apply them snugly but without compressing the bundle, meaning you should be able to slide one finger under the wrap after fastening. Keep bundle widths consistent so wraps hold their position and don’t migrate toward vents over time.

Why it improves airflow

Velcro wraps let you adjust bundles quickly without cutting and replacing fasteners. That flexibility means technicians can reroute or redistribute cables during maintenance without disturbing neighboring runs or collapsing a tightly secured bundle into a vent opening.

A zip-tied bundle that gets moved during maintenance often ends up blocking the same vent the original routing was designed to avoid.

How to keep it compliant and serviceable

Velcro wraps support ongoing compliance because they’re removable without tools, which speeds up audits and makes cable tracing faster during incidents. Choose wraps rated for plenum or riser environments depending on your room’s fire suppression requirements, and replace any that show fraying or reduced grip.

Quick checklist

Use this list each time you secure or audit cable bundles in your racks.

• Replace all zip ties with reusable Velcro wraps
• Check that no wrap compresses the bundle tightly enough to deform it
• Confirm bundles sit clear of front and rear rack vents after fastening
• Stock extra wraps on-site for immediate use during any cable work

6. Right-size bundles and keep them out of rack vents

Oversized cable bundles are one of the most common problems our technicians encounter in the field. When you pack too many cables into a single bundle, the mass grows large enough to drift in front of rack vents, and no amount of repositioning fixes the problem until you split the bundle down to a manageable size.

What to do

Keep bundles to a maximum of 24 cables for patch runs and fewer for heavier copper. When a bundle exceeds that count, split it into two parallel groups and route them along separate sides of the vertical cable manager. Never let a bundle cross directly in front of a rack intake or exhaust vent, even briefly, and secure each group so it stays in place between maintenance visits.

Why it improves airflow

Smaller, well-positioned bundles leave open lanes of air movement between cable managers and rack equipment. This is one of the most direct server room cable management tips you can apply without buying new hardware, because the improvement comes entirely from redistributing what you already have.

A single oversized bundle resting against a rear exhaust vent can raise equipment temperatures by three to five degrees Fahrenheit within one rack unit.

How to keep it compliant and serviceable

Document the bundle count and routing path for each cable group so future technicians know the intended layout. This prevents someone from adding cables to an already full bundle during a rushed maintenance window.

Quick checklist

• Split any bundle exceeding 24 cables into two separate groups
• Confirm bundles clear all front and rear rack vents after securing
• Record bundle assignments in your cable documentation

7. Manage slack with service loops, not cable piles

Excess cable length is unavoidable in most server room builds, but how you handle that slack makes or breaks your airflow. Piling extra cable length behind a rack or stuffing it into a corner creates a dense, unmanaged mass that blocks cooling paths and makes future changes far harder than they need to be.

What to do

Form controlled service loops for any cable with extra length, keeping the loop diameter above the cable’s minimum bend radius and securing it flat against a vertical cable manager or tray. Route the loop so it sits parallel to the airflow direction rather than perpendicular to it, which keeps the loop from acting as a wall across your hot or cold air path.

Why it improves airflow

A flat, secured service loop takes up a fraction of the space that a loose pile does. When you apply this approach across every rack in your room, you open up significant clearance around fan intakes and exhaust vents that cable piles would otherwise block. This is one of the most space-efficient server room cable management tips you can implement without adding hardware.

Unmanaged cable slack piled at the back of a rack can cut rear exhaust clearance in half, which forces fans to work harder and raises operating temperatures across multiple rack units.

How to keep it compliant and serviceable

Secure each service loop with a Velcro wrap and label it so technicians know which run it belongs to. Documented loops are easy to extend or shorten during equipment changes without disrupting neighboring cables.

Quick checklist

• Form all service loops at a diameter above your cable’s minimum bend radius
• Secure loops flat against a cable manager or tray
• Label each loop with the run ID in your cable documentation
• Confirm loops stay clear of all rack vents after fastening

8. Keep copper and fiber within bend radius at all times

Violating bend radius is one of the fastest ways to damage your cabling infrastructure without realizing it. Copper and fiber cables that get bent too tightly lose signal integrity gradually, and by the time you notice degraded performance, the physical damage is already done. This problem shows up constantly in dense server rooms where technicians try to force cables into tight corners to clear up space.

What to do

Follow the manufacturer’s minimum bend radius specification for every cable type in your room. Cat6A copper typically requires a bend radius of four times the cable diameter, while single-mode fiber demands even gentler curves. Use bend radius limiters at patch panels, rack entries, and tray corners so cables never exceed their rated curve, and avoid routing cables around sharp rack edges without a physical guide in place.

Why it improves airflow

Cables that follow proper bend radius specifications route more predictably through trays and managers, which means they sit flat and take up less cross-sectional space. This is one of the more technical server room cable management tips, but the airflow benefit is real: cables that curve gently through their path don’t bunch up or splay outward into vent openings the way kinked cables do.

A single fiber run bent past its minimum radius can fail silently while physically blocking a fan intake, causing both a signal problem and a thermal problem at the same time.

How to keep it compliant and serviceable

Install bend radius limiters on all patch panel entry points and document the cable types installed in each tray segment. This lets any technician verify compliance quickly during an audit.

Quick checklist

• Confirm bend radius specs for every copper and fiber type in your room
• Install bend radius limiters at all tray corners and rack entries
• Inspect all existing runs for kinks or sharp bends before securing them
• Replace any cable showing visible deformation at a bend point

9. Route power separately from data to reduce clutter

Mixing power and data cables in the same bundle or tray is one of the most common mistakes in server room environments. Shared routing creates electromagnetic interference, adds bulk to every cable path, and turns a straightforward troubleshooting job into a frustrating tangle where technicians can’t tell a power run from a data run without tracing each one by hand.

What to do

Designate dedicated trays or tray sections for power cables and keep all data runs in separate pathways on the opposite side of the rack or overhead ladder. Mount power distribution units vertically on the rear of each rack and route their power cords directly down through a dedicated vertical manager, away from patch cables and data trunks entirely.

Why it improves airflow

Separating these two cable types cuts overall bundle size in half across most racks, which is one of the most effective server room cable management tips for freeing up airflow around both front intakes and rear exhausts. Smaller, single-purpose bundles sit flatter against vertical managers and leave more open space for air to move between the rack and adjacent equipment.

Combining power and data in a single bundle can double the cross-sectional area blocking a rear exhaust vent compared to properly separated runs.

How to keep it compliant and serviceable

Label every tray segment as either power or data so any technician entering the room knows which pathway to use before they pull a single cable. This labeling practice also supports NEC compliance requirements for separation between power and low-voltage wiring.

Quick checklist

• Separate all power runs from data cables into dedicated trays or tray sections
• Route PDU cords through dedicated vertical managers on the rear of each rack
• Label every tray segment clearly as power or data

10. Use brush panels and pass-throughs for clean entry

Every opening in your rack or raised floor is a potential airflow problem. Without the right hardware controlling cable entry points, gaps around cable bundles let hot exhaust air recirculate back into your cold supply path, which is one of the most damaging thermal issues a server room can develop. Brush panels and grommeted pass-throughs seal those openings while still letting cables enter cleanly.

What to do

Install 1U brush panels at every unused rack opening where cables currently enter through open gaps. For raised-floor environments, fit grommeted floor cutouts at each cable entry point so bundles pass through a sealed opening rather than an uncovered hole. Size your pass-throughs to match your bundle diameter closely, and add a second brush panel if a bundle only fills half the opening.

Why it improves airflow

Open rack entries act as uncontrolled mixing points where cold and hot air meet before either reaches its intended destination. Sealing those gaps with brush panels forces air to follow the front-to-back path your cooling system was designed around, which is one of the most cost-effective server room cable management tips you can apply in an afternoon.

A single unsealed 1U cable entry gap can allow enough hot air recirculation to raise intake temperatures by two to three degrees Fahrenheit across an entire rack row.

How to keep it compliant and serviceable

Choose brush panels rated for your room’s fire suppression requirements, whether that’s plenum or standard, and document each installed location in your cable records so auditors can verify coverage quickly.

Quick checklist

• Install brush panels at every unused or partially used rack cable entry
• Fit grommeted pass-throughs at all raised-floor cable openings
• Confirm no open gaps remain around any cable bundle after installation
• Update your cable documentation to reflect all new panel locations

11. Clean up the front-to-back path with blanking panels

Empty rack slots are invisible airflow problems. Every open 1U space in your rack creates a shortcut where hot exhaust air bypasses your equipment and recirculates directly into the cold supply zone, raising inlet temperatures without any change to your cooling output. Blanking panels are the cheapest fix in the entire list of server room cable management tips, and most rooms need far more of them than they currently have installed.

What to do

Fill every open rack slot with a solid 1U blanking panel from front to back. Do not leave gaps above or below active equipment, even temporarily during a hardware swap. Keep a stock of spare blanking panels on-site so any slot vacated during a maintenance window gets covered immediately rather than sitting open until the next scheduled visit.

Why it improves airflow

Blanking panels force air to travel the full front-to-back path through active equipment instead of short-circuiting through open slots. This restores the pressure differential your cooling system depends on to push cold air through server intakes at the right volume and velocity.

Removing just two adjacent blanking panels from a rack can raise server inlet temperatures by four degrees Fahrenheit or more within minutes, depending on rack density.

How to keep it compliant and serviceable

Choose tool-less blanking panels so technicians can remove and replace them in seconds during equipment changes. Document the slot position of every blanking panel in your rack layout so auditors can verify complete coverage without physically inspecting each rack.

Quick checklist

• Install blanking panels in every unused rack slot immediately
• Keep spare panels on-site for use during hardware swaps
• Audit all racks for uncovered slots during every scheduled maintenance visit

12. Label, document, and audit so airflow stays fixed

Every improvement you make in this list only holds if the next person who enters the room knows what you built and why. Labels, documentation, and scheduled audits are the maintenance layer that keeps every other server room cable management tip from degrading over time.

What to do

Label both ends of every cable with a consistent ID format that matches your cable documentation, and update that documentation every time a run changes. Schedule a quarterly visual audit where a technician walks each rack, checks that blanking panels are in place, confirms bundles sit clear of vents, and flags any new cables that got routed incorrectly during the previous maintenance window.

Why it improves airflow

Airflow problems almost always come back after a cleanup because someone adds a cable during a rushed change and doesn’t follow the routing standards you established. Clear labels and accurate records give every technician the context they need to maintain proper routing without having to guess, which protects the thermal gains you worked to achieve.

A single undocumented cable added during an emergency maintenance window can undo weeks of airflow improvements if it gets routed across a vent.

How to keep it compliant and serviceable

Store your cable documentation in a centrally accessible location that your whole team can reach, not just in one person’s laptop. Use a format that includes port IDs, run lengths, bundle assignments, and the date of the last audit so any reviewer can verify compliance quickly.

Quick checklist

• Label both ends of every cable with a matching ID
• Update documentation immediately after any cable change
• Schedule quarterly audits to verify vent clearance and blanking panel coverage
• Flag and correct any routing violations found during each audit

Quick wrap-up and next steps

These 12 server room cable management tips give you a clear, prioritized path from a congested, overheating room to one that cools efficiently and stays that way. Each tip builds on the last, starting with getting certified technicians on-site to reset the foundation and ending with the labeling and audit practices that protect every improvement you make going forward.

You don’t need to tackle all 12 at once. Pick the three changes that match your most urgent airflow or maintenance problem right now, execute them cleanly, then move to the next group. The compounding effect of small, well-documented fixes is significant. If your room has reached the point where internal staff can’t keep up with the scope, MegaServices technicians are ready to step in fast. Request information about our cabling and technical staffing services and we’ll help you put together a plan that fits your timeline and budget.
