Single Mode vs Multimode Fiber Optic Cable: Key Differences

Choosing between single mode vs multimode fiber optic cable comes down to a few critical factors: how far your signal needs to travel, how much bandwidth you need, and what your budget allows. Get it wrong, and you’re looking at costly rework, performance bottlenecks, or infrastructure that can’t scale with your organization.

At MegaServices, our technicians install and terminate fiber optic cabling on AV and low voltage projects across the U.S. and Canada every day. We’ve seen firsthand how the right cable choice sets a project up for success, and how the wrong one creates problems that surface months later. That hands-on experience across thousands of job sites is what informs this breakdown.

This article covers the core technical differences between single mode and multimode fiber, including core size, transmission distance, bandwidth capacity, and cost. We’ll also walk through the practical use cases for each type so you can make a confident decision for your next networking or AV integration project.

Why the choice matters for network and AV projects

Fiber optic cable is not a commodity purchase where any option performs just as well as another. The cable type you specify at the design phase locks in your system’s performance ceiling for the life of that infrastructure. When you’re comparing single mode vs multimode fiber optic cable, you’re making a decision that affects transmission distance, signal quality, hardware compatibility, and total project cost. Changing course after installation means pulling cable, replacing transceivers, and absorbing labor costs that a correct specification would have avoided entirely.

The infrastructure cost of getting it wrong

Most fiber installation mistakes do not surface during commissioning. A mismatched transceiver or the wrong cable type often passes initial testing but fails under real-world load or over longer runs where signal loss accumulates. By the time the issue appears, the walls are closed, the conduit is full, and the remediation cost is several times what a correct specification would have required up front.

Specifying the wrong fiber type is one of the most avoidable sources of rework on AV and network integration projects.

The cost difference between single mode and multimode cable is not extreme at the cable level, but the optics and transceivers tied to each type carry very different price tags. Multimode transceivers are significantly cheaper than their single mode counterparts. Specifying single mode infrastructure across a building where multimode is sufficient adds unnecessary hardware cost to every switch port and patch panel connection on the job.

How AV systems put fiber to the test

AV integration projects carry demands that general IT infrastructure does not always share. Large-scale video distribution, control system backbones, and digital signage networks require consistent, low-latency signal delivery across distances that vary widely depending on the venue. A convention center, corporate campus, or stadium can easily involve cable runs that push the practical limits of certain multimode fiber categories.

When your system combines video over IP, AV control, and network switching in one cabling infrastructure, the fiber backbone needs to support the highest-bandwidth signal in that mix. Many AV engineers default to multimode for in-building runs and then discover mid-project that a specific piece of equipment requires single mode optics to function correctly. Catching that equipment requirement before pulling cable saves significant rework hours.

Distance and scalability are not afterthoughts

The distance a signal needs to travel is the most important variable in the fiber type decision. Multimode fiber supports shorter distances, typically up to 400 meters for most high-speed applications, while single mode fiber handles runs measured in kilometers. If your project spans multiple buildings or connects equipment across a large campus, single mode is the practical choice regardless of other factors.

Scalability also factors into the decision in ways that are easy to underestimate. If there is any reasonable chance the infrastructure will need to support higher bandwidth or longer runs within the next several years, single mode gives you room to grow without replacing the physical cable plant.

Single-mode fiber basics and where it wins

Single-mode fiber uses a very small core diameter of 8 to 10 microns, which allows only one light path, or mode, to travel through the cable at a time. Because the light travels in a single straight line rather than bouncing at multiple angles, the signal experiences far less dispersion over distance. That physics advantage is what gives single-mode fiber its defining characteristic: the ability to carry high-bandwidth signals across very long runs without meaningful degradation.

The physics behind single-mode performance

The tight core eliminates modal dispersion entirely, which is the primary reason signal quality holds up across distances that would compromise multimode fiber. Single-mode cable supports runs well beyond 10 kilometers depending on the transceiver and wavelength in use, which puts it in a completely different category than multimode for any project with long-distance requirements. Laser-based transceivers drive single-mode systems, and while those optics cost more than the LED or VCSEL sources used in multimode setups, the performance return justifies the investment on the right projects.

If your project involves inter-building connections or campus-wide runs, single-mode fiber is the practical default, not an upgrade.

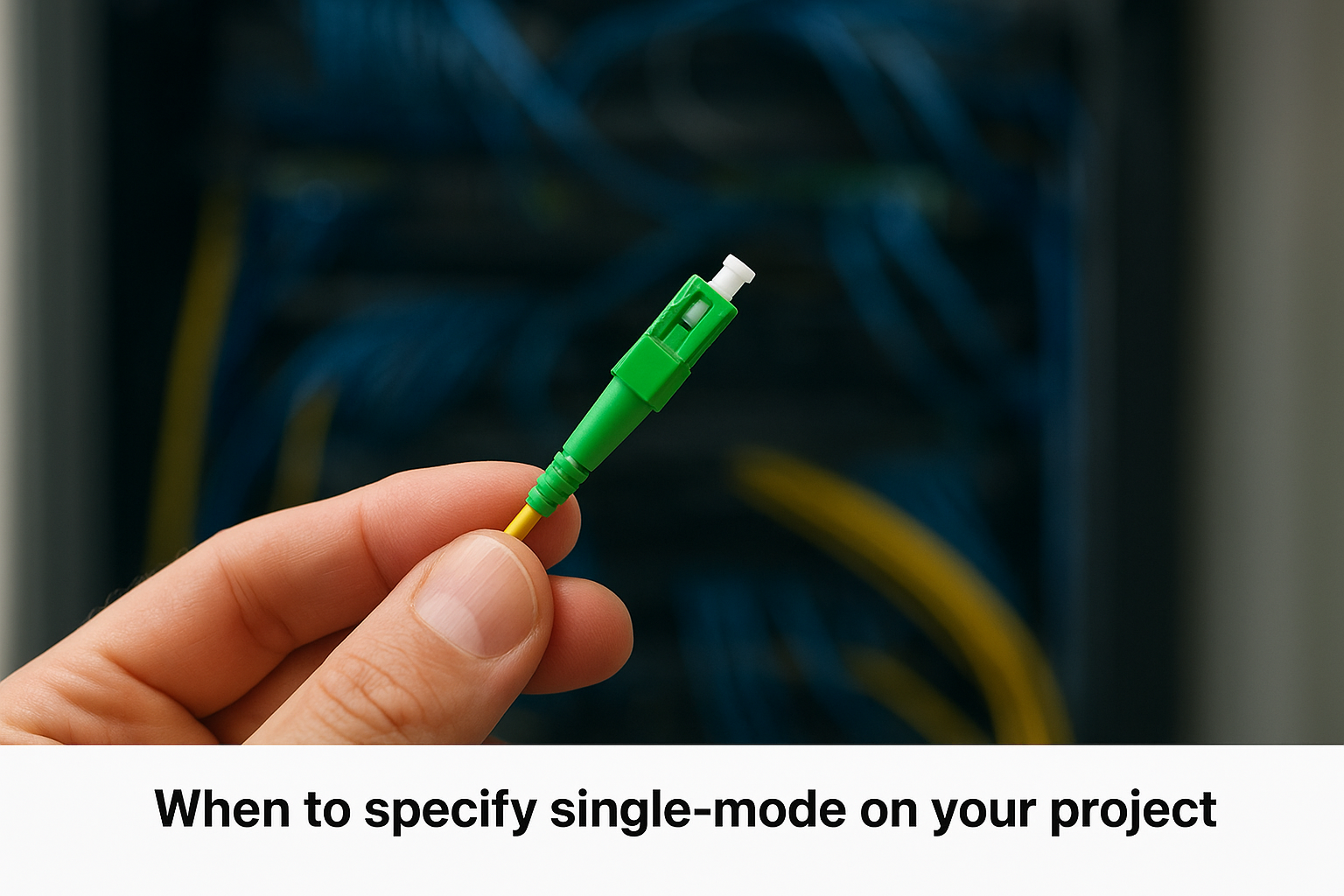

When to specify single-mode on your project

When you compare single mode vs multimode fiber optic cable for a large campus, healthcare facility, or multi-building corporate environment, single-mode wins on distance every time. Any run that exceeds 400 meters needs single-mode infrastructure, and specifying it upfront saves you from a cable replacement later when the network grows. Yellow jacket color coding makes single-mode cable easy to identify in the field, which reduces termination errors when your technicians are working across a dense cable plant.

Single-mode also wins when your equipment manufacturer specifies it directly. Certain high-end AV switchers, fiber extenders, and long-haul video transport devices only support single-mode optics, and installing multimode cable to those endpoints creates a mismatch that no transceiver swap can fix without pulling new cable.

Multimode fiber basics and where it wins

Multimode fiber uses a larger core diameter, typically 50 or 62.5 microns, which allows multiple light paths to travel simultaneously through the cable. That larger core makes it easier to couple light into the fiber, so LED and VCSEL light sources work well with multimode rather than the expensive lasers that single-mode requires. The tradeoff is modal dispersion: different light paths travel at slightly different angles and arrive at varying times, which limits both distance and bandwidth compared to single-mode.

Why the larger core reduces your hardware costs

The cost advantage of multimode fiber is straightforward. Multimode transceivers and active optics cost significantly less than their single-mode equivalents, and on a project with dozens of switch ports, that per-port price difference compounds quickly across your entire hardware budget. You keep the same reliable optical performance for in-building runs without paying a premium for hardware the distance does not justify.

For in-building AV and network infrastructure where runs stay under 300 to 400 meters, multimode fiber delivers the performance you need at a fraction of the optics cost.

OM3 and OM4 multimode categories support 10 Gigabit Ethernet up to 300 and 400 meters respectively, and OM4 handles 40G and 100G applications up to 150 meters. For most corporate office builds, data centers, and mid-size AV installations, those distance ratings cover the vast majority of your runs without any performance compromise.

Where multimode fits your project

When you compare single mode vs multimode fiber optic cable for a single-building deployment, multimode is often the practical choice. Short runs between equipment rooms, AV racks, and endpoint devices fall well within multimode’s capable range, and you avoid paying a premium for single-mode optics where the distance simply does not require them. Common applications where multimode earns its place include:

• In-building structured cabling between IDF and MDF closets
• AV rack-to-rack connections inside a venue or campus building
• Data center top-of-rack and end-of-row interconnects
• Digital signage backbone runs within a single floor or wing

Aqua jacket color coding identifies OM3 and OM4 cable in the field, which helps your technicians manage and trace runs accurately during both installation and future maintenance work.

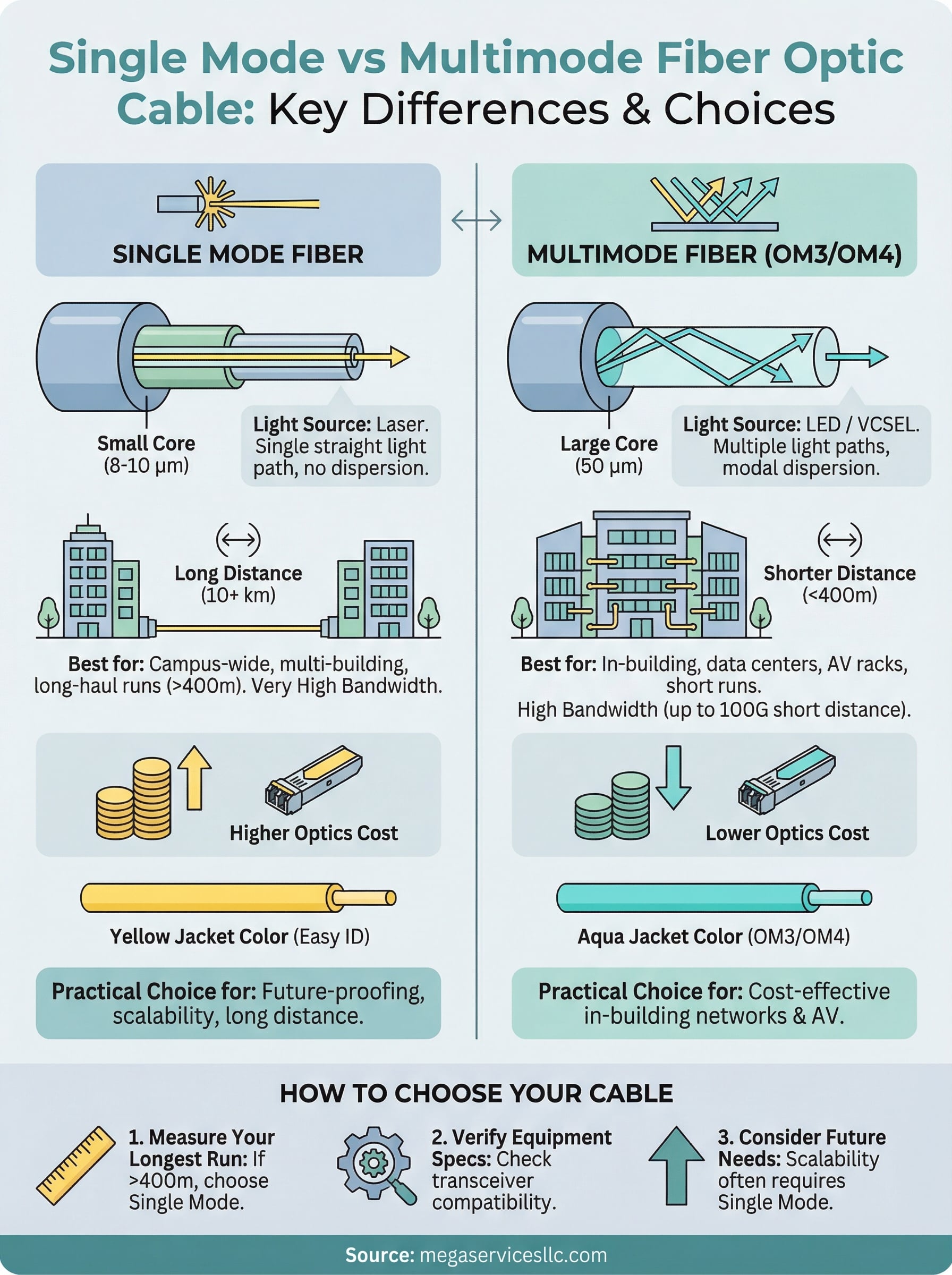

Compare specs: distance, bandwidth, optics, color codes

When you place single mode vs multimode fiber optic cable side by side, the differences become concrete and actionable. Understanding each spec in context helps you match the right cable type to your project’s actual requirements rather than defaulting to one type out of habit.

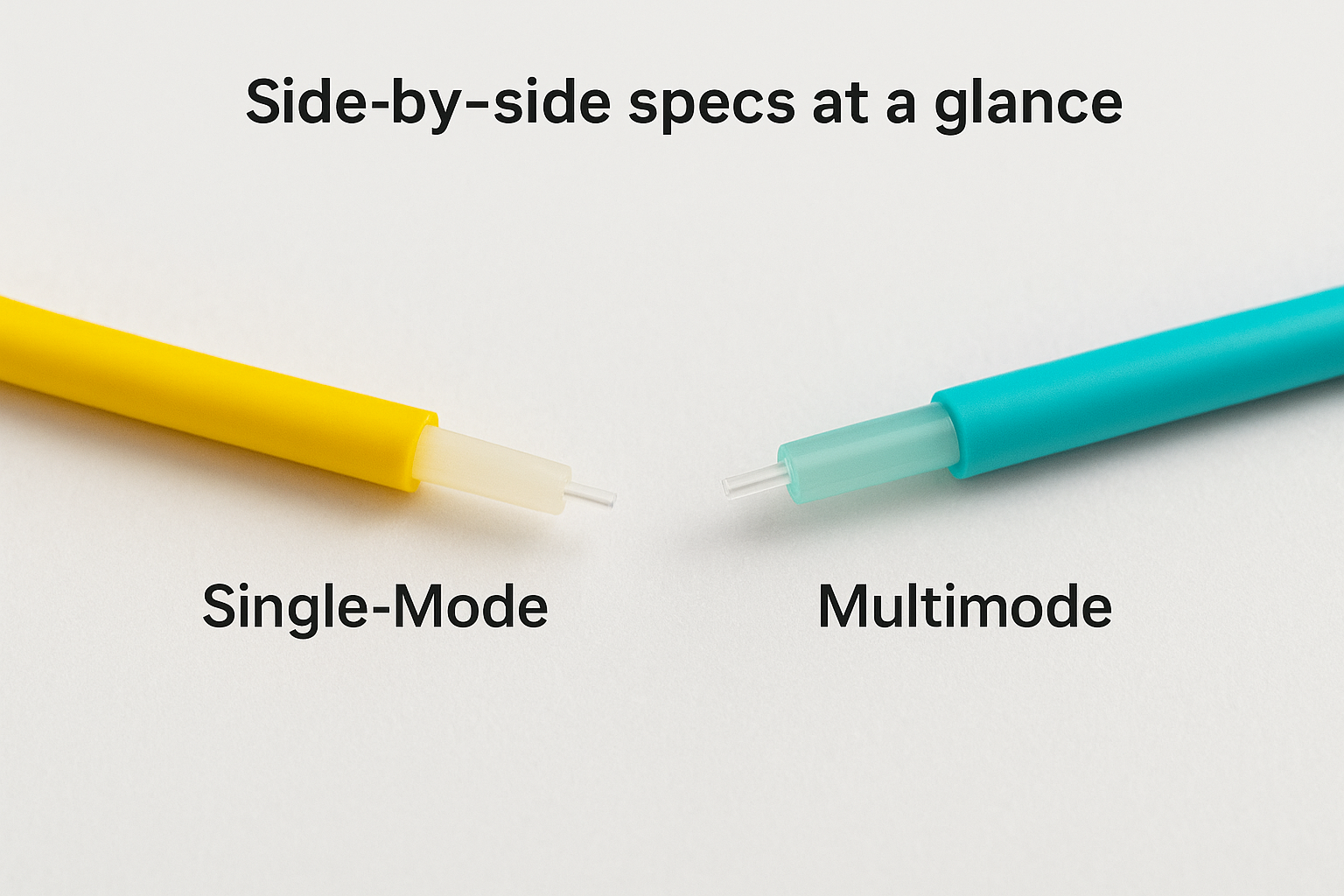

Side-by-side specs at a glance

The table below captures the core technical differences you need to reference during the design phase. These numbers directly influence your hardware selection, your budget, and your installation plan, so reviewing them before you finalize any fiber specification is worth the time.

Transceiver cost is where the budget difference between single-mode and multimode becomes most significant on large projects.

What the numbers mean for your project

Core diameter controls how light travels through the fiber, and that single physical difference drives every other spec in the table. Single-mode’s tight 8-10 micron core forces light into one straight path, eliminating modal dispersion and enabling multi-kilometer runs. Multimode’s 50 micron core accepts more light easily, which reduces hardware cost but caps usable distance.

Jacket color gives your technicians a reliable visual reference in the field without testing each run. Yellow immediately identifies single-mode, and aqua identifies OM3 and OM4 multimode. Maintaining that color discipline throughout your cable plant prevents termination errors and speeds up troubleshooting on future moves, adds, and changes. When your team works across a dense patch panel with dozens of runs, consistent color coding is the practical quality control that keeps mistakes from compounding into larger problems during and after installation.

How to choose for your build and avoid mistakes

The decision between single mode vs multimode fiber optic cable starts with one question: what is your longest run? That single measurement narrows your options immediately and prevents you from over- or under-specifying the rest of your infrastructure. Pull your floor plans, identify your most distant endpoint, and measure before you finalize any cable specification.

Start with your longest run and work backward

Once you know your maximum run distance, the choice becomes straightforward. Any run over 400 meters requires single-mode fiber, full stop. For everything under that threshold, multimode OM3 or OM4 gives you the bandwidth you need at a lower hardware cost. Use this checklist before locking in your specification:

• Identify the longest run between any two active endpoints
• Confirm whether any equipment manufacturer specs require single-mode optics
• Check if future expansion plans will add longer runs or higher bandwidth requirements
• Document your fiber type decision in your design package before procurement

If even one device on your project mandates single-mode optics, standardizing the entire pull on single-mode is often cleaner than mixing fiber types across the same cable plant.

Verify equipment requirements before procurement

Equipment compatibility is the most common source of avoidable rework on fiber projects. Check the transceiver specs for every active device on your design before you order cable. Some AV extenders, managed switches, and video transport systems only accept single-mode optics, and discovering that mismatch after installation forces a complete cable replacement on those runs.

Pull the data sheet for each active device, confirm the supported fiber type and wavelength, and note any exceptions in your bill of materials. If your project mixes devices with different fiber requirements, flag that early with your project manager so the routing plan accounts for separate conduit paths where needed. Keeping single-mode and multimode runs clearly separated in your cable plant saves your technicians real time during termination and testing.

Final takeaways and next steps

The decision between single mode vs multimode fiber optic cable does not need to be complicated. Measure your longest run, confirm your equipment requirements, and let those two facts guide your specification. Single-mode gives you distance and scalability at a higher optics cost, while multimode covers most in-building applications at a lower per-port price. Neither type is universally better; the right choice is the one that matches your actual project conditions.

Bring these criteria into your design phase before procurement, not after. Catching a fiber type mismatch early costs you nothing; catching it after installation costs you real labor hours and materials. If your project involves complex AV or low voltage cabling across multiple sites and you want certified technicians who know this work, request project support from MegaServices to get qualified labor on your job fast.
