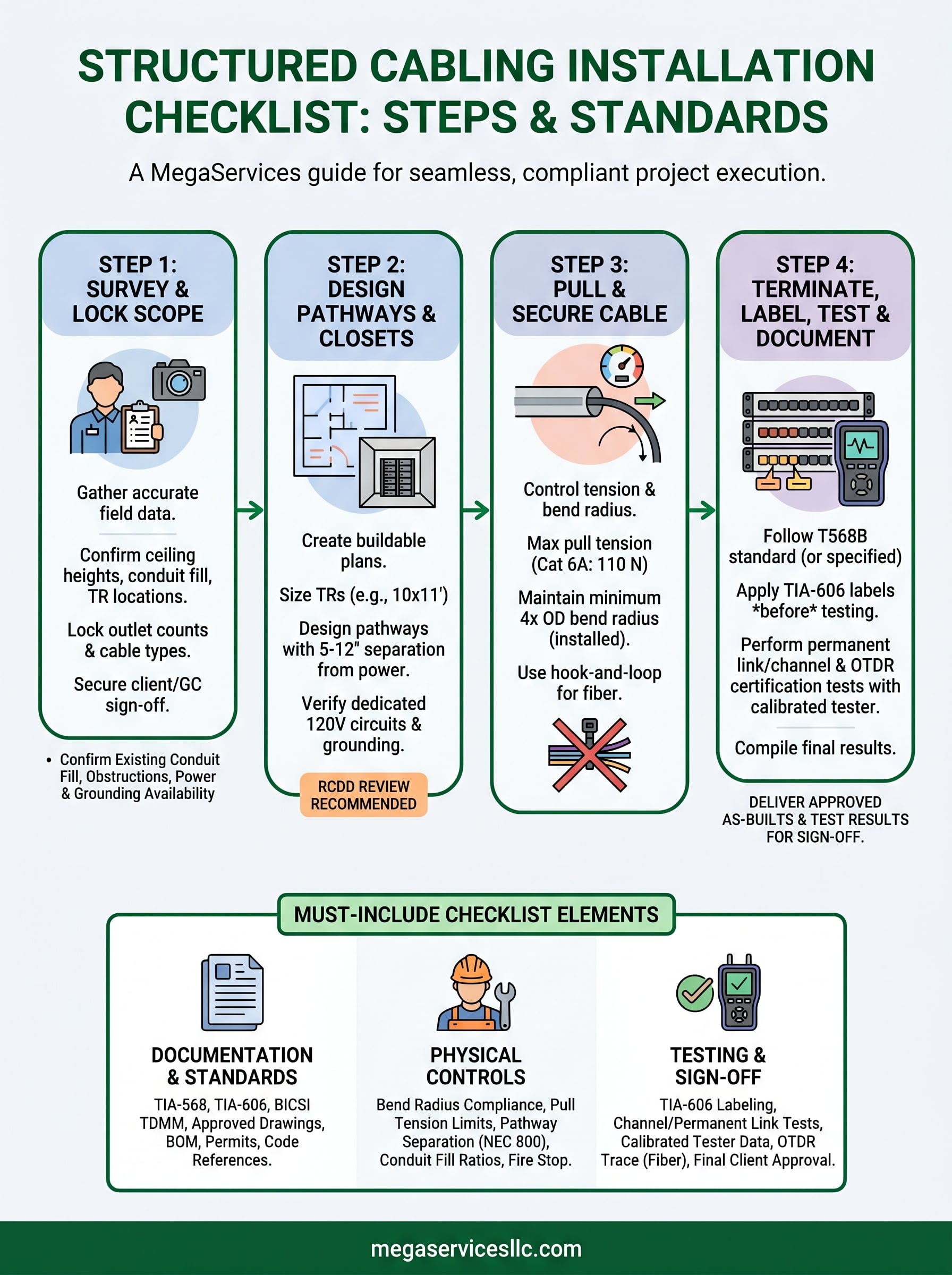

Structured Cabling Installation Checklist: Steps & Standards

A missed cable pull, a mislabeled patch panel, or a pathway that doesn’t meet code, any one of these can turn a structured cabling project into an expensive rework job. The difference between a clean install and a chaotic one usually comes down to preparation. A solid structured cabling installation checklist keeps every phase on track, from site survey through final testing, so nothing falls through the cracks. For AV integrators and project managers running installs across multiple markets simultaneously, that kind of structure isn’t optional, it’s how you protect margins and timelines.

At MegaServices, we’ve supported low voltage and structured cabling projects nationwide since 2007, deploying vetted technicians with industry-specific certifications to job sites within 24 to 48 hours. We’ve seen firsthand what separates successful cable installations from the ones that spiral into change orders. Consistent documentation and clear standards matter just as much as skilled hands on-site.

This guide walks through every step, standard, and best practice you need to plan, execute, and verify a structured cabling installation. Whether you’re building out a single floor or coordinating a multi-site rollout across the country, you’ll find a clear framework to follow. We also cover the industry standards, like ANSI/TIA and BICSI, that your work needs to meet, along with practical tips for quality assurance and sign-off.

What a structured cabling checklist must include

A structured cabling installation checklist isn’t just a task list. It’s a control document that ties every phase of the project to a verifiable output. Without one, technicians make assumptions, skip steps, and create the kind of rework that kills profit margins. Your checklist needs to cover three core areas: documentation and standards compliance, physical installation controls, and testing and sign-off. Each area needs clear pass/fail criteria so any technician on the job knows exactly what "done" looks like.

Documentation and Standards Reference

Every checklist starts with the paperwork behind the work. You need to confirm the applicable ANSI/TIA standards (specifically TIA-568 for commercial cabling and TIA-606 for administration) and BICSI TDMM guidelines are referenced before a single cable gets pulled. This section verifies that design drawings are approved, the bill of materials is finalized, and permits are in hand. Without confirmed documentation at the start, field decisions get made on the fly, and that’s where costly errors originate.

If your project doesn’t have a reviewed and approved set of drawings before work begins, stop. Getting this right upfront saves far more time than rushing to the first pull.

Your documentation block should capture:

• Approved design drawings and as-built template
• Material submittals and approval records
• Applicable code references (TIA-568, TIA-606, local AHJ requirements)
• Project contact list with site access details

Physical Installation Controls

The physical phase covers pathway preparation, cable pulling, and securing. Your checklist needs to verify bend radius compliance, proper cable support spacing, and separation from electrical conduit per NFPA 70 (National Electrical Code) requirements. For copper, document pull tension limits. For fiber, note that the minimum bend radius under tension differs from the unloaded bend radius. Any deviation from spec here causes signal problems that only appear at test time, which is the worst possible time to find them.

This section of your checklist should also confirm:

• Conduit fill ratios are within code limits
• Cable trays and J-hooks are installed at correct intervals
• Fire stop materials are applied at all penetrations
• Slack loops and service loops are provided at each termination point

Testing, Labeling, and Sign-Off

Cables that aren’t properly labeled and tested don’t exist as far as documentation is concerned. Your checklist must confirm that every run carries a unique identifier matching the as-built drawings, and that each link passes channel or permanent link tests per TIA-568 using a calibrated tester. This is where the checklist transitions from a planning tool to a legal record. Test results, tester model, calibration date, and the technician’s name all belong in the final project package.

Step 1. Survey the site and lock the scope

The site survey is the foundation of your structured cabling installation checklist. Without accurate field data, your design assumptions will conflict with physical reality, and those conflicts show up as delays, wasted materials, and change orders you never budgeted for. Schedule the walkthrough before any design work begins, not after.

What to Capture During the Walkthrough

Walk every potential cable pathway before you commit to a design. You need to confirm ceiling heights and conduit availability, the location of the main distribution area (MDA), and the actual distance from each work area outlet to the telecommunications room. Measure real field distances because blueprint dimensions rarely match what you find on site.

During the walkthrough, document:

• Existing conduit fill and remaining capacity
• Obstructions such as fire barriers, HVAC runs, and structural beams
• Power panel locations and grounding electrode availability
• Riser shaft access points and sleeve locations
• Ceiling type (plenum or non-plenum) in each zone

Lock the Scope Before Mobilizing

Scope creep on a cabling project kills budgets faster than any material cost overrun. Confirm outlet counts, cable categories, and pathway requirements in writing before your crew ever shows up on site.

Once you complete the survey, produce a scope confirmation document that lists the total number of cable runs, the cable category (Cat 6A, OM4 fiber, etc.), telecommunications room locations, and any special requirements such as plenum-rated cable or armored fiber. Get client or general contractor sign-off on this document before ordering materials or scheduling pulls. Without that approval, you absorb the cost of every change. A signed scope document also gives your technicians a clear reference on site, cutting the back-and-forth calls that slow installation days down.

Your scope confirmation document should include:

Step 2. Design pathways, closets, and power

With your scope locked, you move into design. This phase turns field measurements into a buildable plan that specifies where cables travel, where equipment rooms sit, and how power and grounding support the infrastructure. Every decision you make here feeds directly into your structured cabling installation checklist, so errors at this stage multiply downstream and cost more than anything you’ll face during the pull.

Get your pathway and closet design reviewed by a BICSI-registered designer (RCDD) before finalizing. A single correction at the design stage costs far less than rerouting cable after it’s installed.

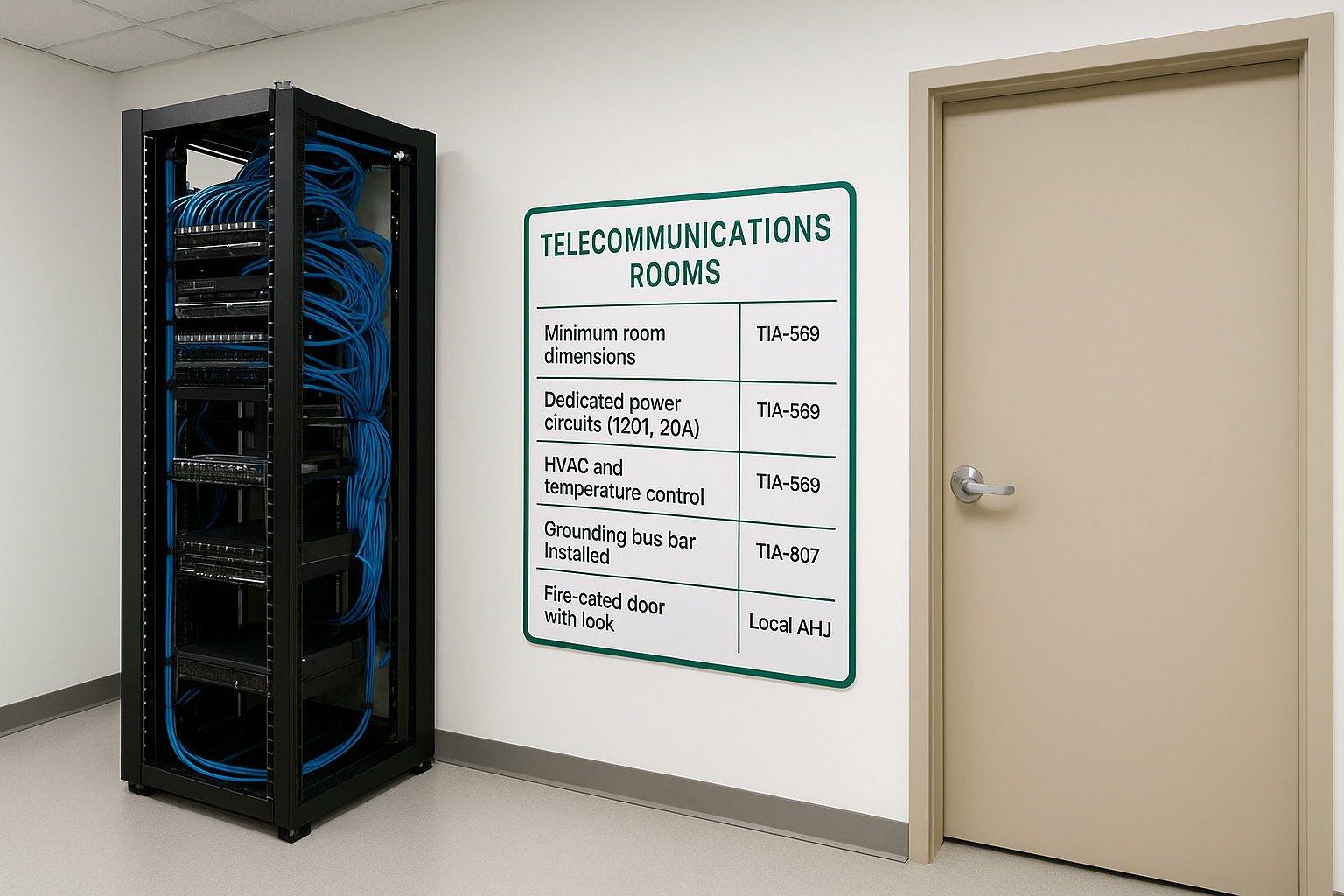

Size and Position Your Telecommunications Rooms

Your telecommunications rooms (TRs) need to be sized and positioned before a single conduit gets run. TIA-569 sets the minimum dimensions: for up to 1,000 square feet of served space, a 10×11-foot room is the standard starting point. Confirm that each TR has dedicated 120V circuits, proper HVAC to maintain temperatures between 64°F and 75°F, and a grounding bus bar connected to the building’s grounding electrode system per TIA-607.

Use this checklist block to verify each TR before finalizing the design:

Map Cable Pathways and Confirm Separation

Pathway design must keep low voltage cabling separated from electrical conduit per NEC Article 800. Maintain a minimum of 5 inches of separation from unshielded power conductors and at least 12 inches from fluorescent lighting. Draw your conduit routes on the approved floor plan, marking every sleeve, pull box, and junction point so technicians follow a defined path rather than improvising in the field.

Document your pathway design with these specifics for each zone:

• Conduit size and type (EMT, PVC, flexible)
• Fill ratio calculation confirming capacity for planned cable count
• Pull box locations spaced to limit pull lengths to manageable runs
• Pathway separation distances from all electrical infrastructure

Step 3. Pull and secure copper and fiber

With pathways confirmed and telecom rooms ready, your crew can begin the cable pull. This phase of your structured cabling installation checklist is where most physical damage happens if you skip controls. You need to enforce pull tension limits and bend radius compliance from the first run to the last, not just when a supervisor is on site.

Pulling too fast or cutting corners around a conduit bend costs far more in re-pulls and failed test results than the few minutes you think you’re saving.

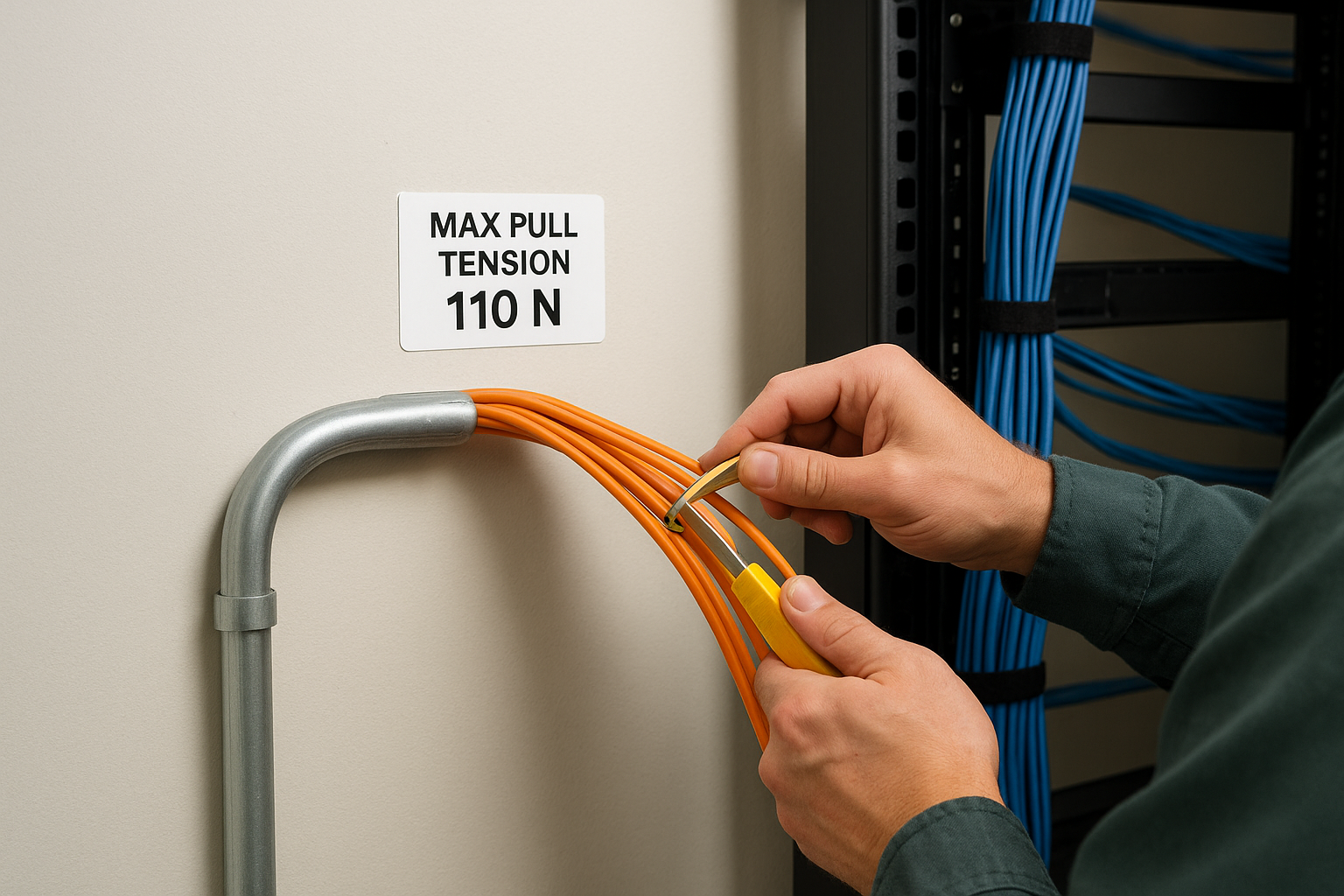

Control Tension and Bend Radius for Copper

Copper cable fails silently. You won’t see a damaged pair until the link fails a certification test, which is why maximum pull tension limits must be posted at the pull point and followed on every single run. For Cat 6A, the limit is 110 Newtons (approximately 25 lbf) under load. Once the cable is at rest, the installed bend radius must stay at a minimum of four times the cable’s outer diameter at every turn, including inside the TR where cables are frequently dressed too tightly around rack edges.

Handle Fiber with Extra Discipline

Fiber is less forgiving than copper under physical stress. Your crew must keep pulling tension below 100 Newtons for standard OS2 single-mode cable and confirm the cable never exceeds its minimum bend radius during the pull or at any fixed support point. After the pull is complete, install strain relief at both ends and secure fiber runs with hook-and-loop straps, not plastic zip ties, which compress the jacket and cause attenuation over time. Log each fiber run’s route, reel number, and measured length on your as-built drawing before your team moves to termination.

Step 4. Terminate, label, test, and document

Termination and testing is where your structured cabling installation checklist pays off as a quality control tool. Every terminated connection, every label, and every test result needs to be captured in a format that survives the job and can be handed to the client as a permanent record. Skipping documentation at this stage is one of the most common reasons projects fail final inspection.

Termination Standards and Labeling Protocol

Terminate every copper run to the T568B wiring standard (or T568A if the spec sheet requires it) and confirm pair untwist at each termination point stays within the limits your cable manufacturer specifies, typically no more than half an inch for Cat 6A. After terminating, apply TIA-606-compliant labels to both ends of every cable, every patch panel port, and every outlet faceplate before you run a single test. Labels applied after testing get skipped under deadline pressure, and unlabeled infrastructure creates problems for every technician who touches that system after you leave.

A label applied before testing is a label that actually gets applied. Build it into your termination sequence, not your cleanup sequence.

Your labeling standard for each run should follow this format:

Certification Testing Requirements

Run permanent link or channel certification tests using a calibrated Ethernet tester such as a Fluke DSX series unit, and confirm the tester’s calibration date falls within the manufacturer’s required interval, typically 12 months. Every run that fails needs to be retested after correction before you close the record. Log each result with the tester model, calibration date, technician name, and test date. Fiber runs require an OTDR trace and insertion loss measurement at both wavelengths specified in TIA-568, and those results go into the same project package as the copper certification reports.

Close out the job with confidence

Your structured cabling installation checklist does one final job at project close: it becomes the handoff document that protects you after you leave the site. Compile your approved as-built drawings, all certification test results, labeling records, and photos of the telecommunications rooms into a single project package. Deliver that package to the client or general contractor and get a written sign-off before you demobilize. Without that confirmation, any future cabling issue gets blamed on your crew regardless of when the damage actually occurred.

Running a tight close-out process also builds the kind of reputation that earns repeat work and referrals. Clients remember who handed them clean documentation and who left them with a folder full of gaps. If you need certified technical labor to execute these steps across multiple markets simultaneously, MegaServices can put vetted technicians on your job site in 24 to 48 hours. Request project labor support and keep your installs on schedule.
