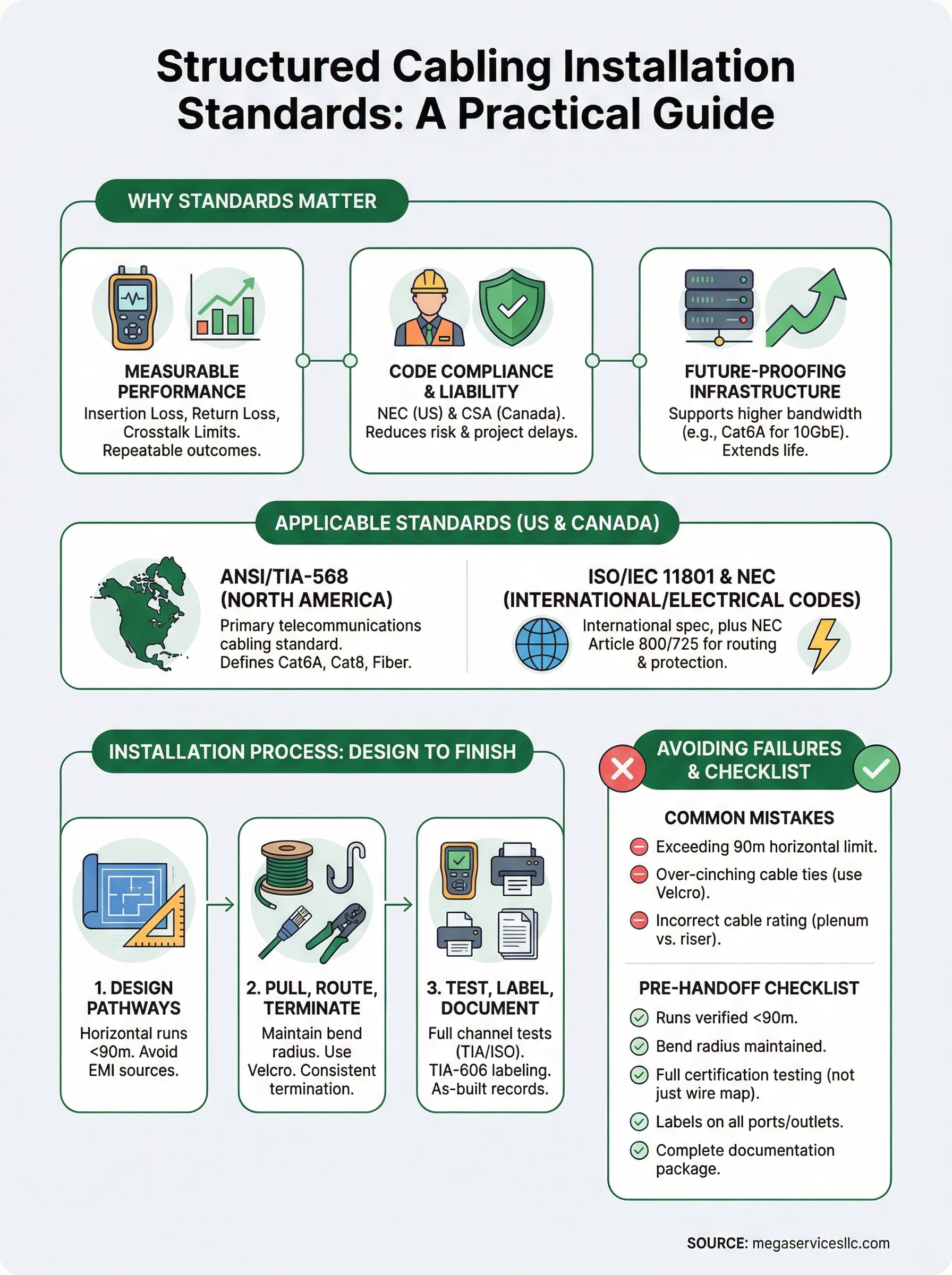

Structured Cabling Installation Standards: A Practical Guide

A single cable pulled to the wrong spec can take down an entire floor’s network, and the project timeline with it. Structured cabling installation standards exist to prevent exactly that kind of failure, giving integrators and project managers a shared technical language for how cabling infrastructure should be designed, routed, terminated, and tested. Standards from ANSI/TIA, ISO/IEC, and the NEC don’t just suggest best practices; they define the minimum performance thresholds your cabling plant must meet to support current and future network demands.

For AV integrators and project managers running multi-site rollouts, knowing these standards inside and out isn’t optional, it’s the difference between a clean handoff and a costly callback. Whether you’re pulling Cat6A for a corporate AV system or terminating fiber in a retail environment, compliance drives every decision from cable pathway design to final certification testing. At MegaServices, our nationwide network of vetted low voltage technicians executes structured cabling work to these standards daily, supporting integrators who need reliable, certified labor across the U.S. and Canada.

This guide breaks down the major standards governing structured cabling installations, explains how they intersect, and walks through the practical requirements that matter most on the job site.

Why structured cabling standards matter

Standards aren’t bureaucratic overhead. Structured cabling installation standards give every party involved in a project, from the integrator to the end client, a clear benchmark for what the finished system must deliver. When you build to a published standard, you remove ambiguity from the job and give yourself a defensible baseline if performance disputes arise after handoff.

Performance you can measure and repeat

Every cable run, patch panel, and connector in a cabling plant contributes to overall channel performance. Standards define the insertion loss limits, return loss thresholds, and crosstalk margins that a finished link must pass before the client accepts it. When your team terminates and tests to those numbers, you’re not estimating performance; you’re proving it with test data the client can keep on file.

A cabling system that passes certification testing to the applicable standard gives the client documented proof that the infrastructure will support the bandwidth it was designed to carry.

Repeatability matters just as much as raw performance. If your technicians follow the same installation methods on every project, from consistent bend radius to uniform termination technique, the test results become predictable. That consistency is what separates a workforce that scales reliably from one that produces variable outcomes across sites.

Code compliance and liability

Cabling work in commercial environments falls under the National Electrical Code in the U.S. and CSA standards in Canada. NEC Article 800 covers communications circuits, and NEC Article 725 governs Class 2 and Class 3 remote-control and signaling circuits, both of which intersect directly with AV and low voltage cabling installations. Pulling cable outside those code requirements isn’t just a standards violation; it’s a liability the integrator carries.

Inspectors, insurance carriers, and building owners all reference these codes when a system fails or causes damage. If your installation doesn’t comply, you absorb the risk of remediation costs, project delays, and potential legal exposure. Following the applicable standard from the start keeps the project on solid ground and protects your business when questions come up.

Future-proofing the infrastructure

Networks evolve, and the AV systems installed today will carry higher bandwidth loads and support additional endpoints within a few years. Category 6A cabling supports 10GBASE-T at 100 meters, a performance ceiling that Cat5e cannot reach. When you install to current standards, you give the client infrastructure headroom instead of a system that needs recabling in three years.

Key reasons to install above the minimum standard when the budget allows:

• Supports higher data rates without pulling new cable
• Reduces signal degradation over longer horizontal runs
• Accommodates growing Power over Ethernet (PoE) demands for AV endpoints
• Extends the useful life of the passive infrastructure

Which standards apply in the US and Canada

Before you pull a single cable, you need to know which governing bodies set the rules for your project. In the U.S. and Canada, structured cabling installation standards come from a mix of telecommunications standards bodies and electrical codes, and the requirements from each one overlap on most commercial jobs. Understanding which documents apply to your work keeps your team aligned and your installations defensible.

ANSI/TIA-568

The ANSI/TIA-568 series is the primary standard governing commercial building telecommunications cabling in North America. Published by the Telecommunications Industry Association, it covers horizontal cabling, backbone cabling, connecting hardware, and the minimum performance requirements each component must meet. The current revision defines specifications for Cat6A, Cat8, and optical fiber, so your material selections need to reference the right version for your project scope.

If you’re installing in a facility that will carry 10GbE or higher, ANSI/TIA-568 points you directly to Cat6A or fiber as your baseline, not Cat6.

TIA-568 also sets rules for the telecommunications room (TR) layout, grounding, and the structured star topology that most enterprise and AV cabling systems follow. Staying within those topology rules keeps your horizontal runs under the 90-meter permanent link limit.

ISO/IEC 11801 and the NEC

ISO/IEC 11801 is the international equivalent of TIA-568 and applies when your client operates across both U.S. and Canadian borders or when a project spec references international standards. Many multinational clients include ISO/IEC 11801 in their global infrastructure requirements, so your team should recognize how its channel classifications map to TIA categories.

On the electrical code side, NEC Article 800 and Article 725 govern how you route and protect communications and low voltage circuits inside commercial buildings. Canadian projects follow CSA C22.1, which mirrors many NEC requirements but includes jurisdiction-specific differences your technicians need to verify before the pull begins.

How to install to standard from design to finish

A compliant installation starts well before your first technician sets foot on the job site. Structured cabling installation standards require that you carry the rules from the design phase through to the final pull, not just apply them at termination. Getting the sequence right keeps your team on schedule and protects your project from the costly rework that comes with deficiencies found during certification testing.

Design the pathways first

Your cable pathway design determines whether the finished system will pass or fail certification before a single cable moves. Horizontal runs must stay at or below 90 meters from the telecommunications room to the work area outlet, leaving 10 meters of combined patch cord and equipment cord slack within the channel. Map your routes to avoid sources of electromagnetic interference (EMI), including HVAC equipment, electrical panels, and fluorescent lighting runs, and document every pathway decision in the design drawings before the pull begins.

Routing communications cables parallel to high-voltage electrical conduits is one of the fastest ways to introduce noise that tanks your channel test results.

Pull, route, and terminate correctly

When your technicians pull cable, bend radius and pulling tension directly affect channel performance. Cat6A has tighter mechanical tolerances than Cat6, and exceeding the manufacturer’s bend radius limits the cable’s ability to cancel crosstalk internally. Use cable management hardware, including ladder rack, J-hooks, and Velcro ties rather than zip ties cinched tight, to maintain separation and support across every horizontal run.

At termination, pair untwist must stay within the limits the standard specifies, typically no more than 13mm for Cat6A at the connecting hardware. Train every technician on your crew to follow the same termination sequence for every port in the patch panel. Consistent technique is what gives you predictable test results across every run in the system.

How to test, label, and document the system

Completing the physical installation gets you to the halfway mark. Structured cabling installation standards require that every link in your cabling plant pass certification testing before the system goes live, and that you deliver organized documentation the client can reference for the life of the infrastructure.

Test every link with a certified tester

A certification-grade field tester measures the parameters your standard requires: insertion loss, NEXT, return loss, and propagation delay. Run a full channel test on every link from patch cord to outlet and verify that each result lands within the pass/fail limits defined by your applicable standard, whether that’s TIA-568 for Cat6A or the relevant fiber tier. Never stop at a wire map; wire maps only confirm connectivity, not performance.

A link that passes wire map but fails insertion loss will drop packets under load, and you won’t catch it until the client calls with complaints.

Label every port and run

TIA-606 is the administration standard that defines how you label your cabling plant. Assign a unique identifier to every horizontal run, patch panel port, and outlet, then match those identifiers across both ends of each link. Consistent labeling lets your client’s IT team locate and troubleshoot any run in minutes rather than tracing cables by hand across the ceiling.

Document the results before you hand off

Compile your test reports, as-built drawings, and panel schedules into a single deliverable package before you close the project. Record the tester model, firmware version, and the standard you tested against so the client has a complete performance record on file. Accurate documentation protects you if a performance dispute surfaces after handoff and gives the client a clear baseline for any future moves, adds, or changes to the system.

Common compliance mistakes and a quick checklist

Even experienced crews repeat the same errors across projects. Structured cabling installation standards are detailed enough that a small oversight during the pull or termination phase produces failures that only show up during certification testing, which is the worst time to discover them. Catching these patterns before your team reaches the job site saves rework time and keeps your project schedule intact.

Mistakes that fail inspection

The most common compliance failure is exceeding the 90-meter horizontal run limit without accounting for it in the design phase. Your crew may measure cable on the spool rather than tracing the actual routed pathway, and that difference routinely adds 5 to 10 meters by the time the run reaches the work area outlet. The second most frequent issue is over-cinching cable ties, which crush the Cat6A jacket and compromise the cable’s ability to reject alien crosstalk internally.

A single over-tightened tie point mid-run can push a marginal channel past the insertion loss threshold and fail the entire link.

Additional violations that show up during inspections include installing riser-rated cable in plenum spaces, terminating with excessive pair untwist at the connecting hardware, and failing to verify cable ratings on your as-built drawings before the inspector arrives.

Pre-handoff checklist

Work through this list before you submit your certification package to confirm your installation meets the applicable standard:

• Horizontal runs verified at or under 90 meters from TR to outlet
• Bend radius maintained throughout every routed segment
• Cable ties replaced with Velcro straps where crushing risk exists
• Plenum or riser rating confirmed for each cable in the applicable space
• All links tested to the full TIA or ISO standard, not wire map only
• TIA-606 labels applied to every port and outlet on both ends
• Test reports and as-built drawings compiled into a single handoff package

Final checks before you sign off

Following structured cabling installation standards from design through documentation gives you a finished system that performs as specified and holds up under scrutiny. Before you submit your certification package and close out the project, verify that every run is under the 90-meter horizontal limit, every link has passed full certification testing to the applicable standard, and your labels match across both ends of every port. Your as-built drawings and test reports need to be compiled into a single organized package the client can reference for years.
