Structured Cabling System Components: The 6 Key Subsystems

A structured cabling system components breakdown matters because every cable pull, every patch panel, and every termination point plays a role in whether your network performs reliably or becomes a maintenance nightmare. When an AV integration project goes sideways, the root cause often traces back to a cabling infrastructure that was designed without a clear understanding of how each subsystem connects to the next.

The structured cabling standard (ANSI/TIA-568) defines six distinct subsystems that together form a complete cabling infrastructure. Each one serves a specific function, from where outside service provider lines enter your building to the outlet where an end user plugs in a device. Understanding these subsystems helps project managers and integrators plan installations that scale, troubleshoot issues faster, and avoid costly rework down the line.

At MegaServices, our technicians handle low voltage structured cabling installations across the U.S. and Canada as part of larger AV integration and deployment projects. We’ve seen firsthand what happens when subsystems are overlooked or improperly spec’d. This article walks through all six key subsystems, what each one includes, and why it matters to get them right from the start.

Why structured cabling components matter

When you understand each piece of a structured cabling infrastructure, you gain control over outcomes that are otherwise left to chance. Most AV integration failures don’t happen because of bad equipment. They happen because the cabling backbone supporting that equipment was installed without a clear picture of how the six subsystems work together. Understanding the structured cabling system components from the start gives you a foundation that every device, panel, and switch in the building depends on.

Poor subsystem planning creates compounding problems

Skipping the planning phase or treating individual subsystems as isolated tasks is where most projects start to break down. When a technician pulls horizontal cabling without accounting for the maximum 90-meter channel distance, or terminates a run without following the correct bend radius, that single mistake can degrade signal quality across dozens of endpoints. Network performance issues often get blamed on switches, routers, or AV equipment when the real cause is cabling installed without following subsystem-specific standards.

Every structured cabling problem you ignore during installation becomes a troubleshooting problem that costs you significantly more to fix after the fact.

What makes this worse in large-scale projects is that cabling issues are frequently buried inside walls, above ceilings, or under raised floors. By the time a performance issue surfaces, tracing it back to a specific run or termination point requires significant labor and time. Proper planning at the subsystem level prevents these situations by establishing clear documentation, consistent labeling, and installation practices that meet ANSI/TIA-568 standards before the first cable is pulled.

Getting component specs right protects your project timeline

Your project timeline depends on more than scheduling technicians. It depends on every subsystem specification being confirmed before work begins. Incorrect cable categories, undersized conduit, or missing telecommunications rooms in the building design are the kinds of oversights that stop a project cold mid-installation. When you lock in the right specs for each component early, you reduce the risk of change orders that push out your delivery date and erode your margin.

There are also compliance and warranty implications to consider. Manufacturers of structured cabling components often require full channel testing and documentation to honor their system warranties. If your horizontal cabling isn’t tested end-to-end, or your backbone connections aren’t documented, you can lose warranty coverage on the entire infrastructure. Getting the components right from the beginning means your client receives a certified, warranted system, and you avoid liability for failures down the line.

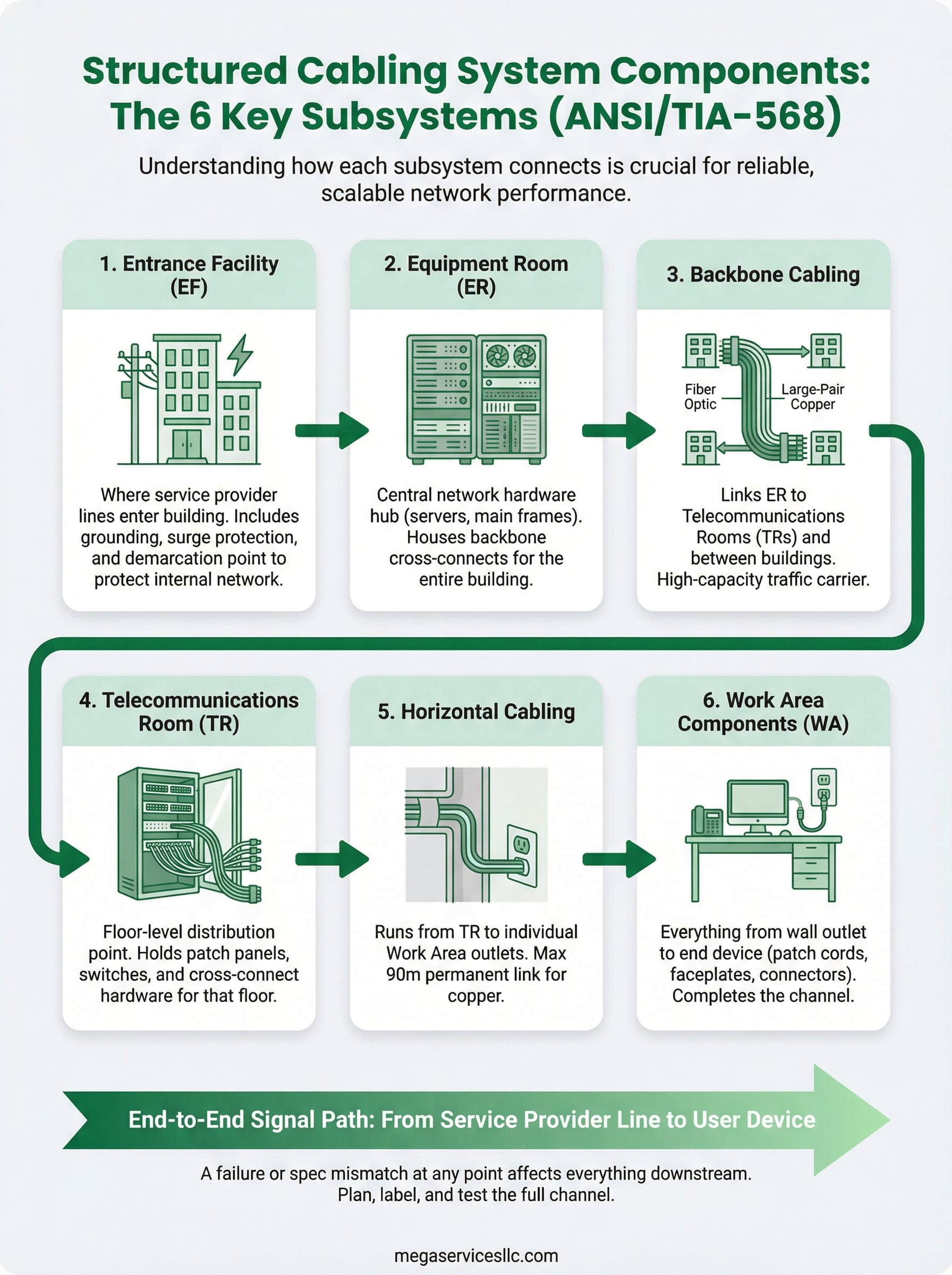

The 6 structured cabling subsystems explained

The ANSI/TIA-568 standard organizes every structured cabling system component into six subsystems. Each one handles a specific portion of the signal path, from the point where outside lines enter the building to the outlet where a user plugs in a device. Knowing what each subsystem covers helps you plan installations accurately, assign the right technicians, and catch specification gaps before work begins.

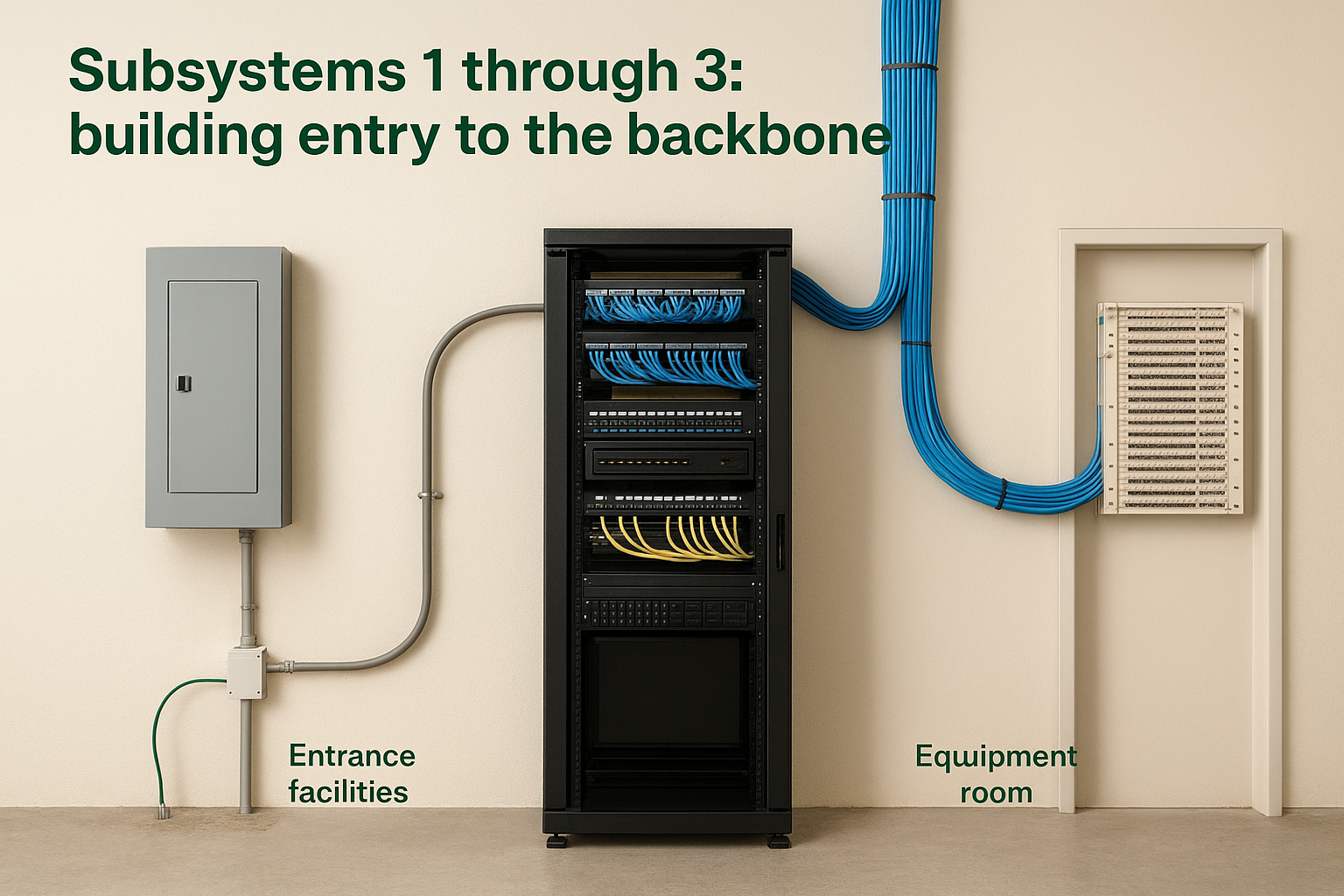

Subsystems 1 through 3: building entry to the backbone

Entrance Facilities (EF) mark the boundary between the service provider’s external cabling and your internal infrastructure. This is where grounding, surge protection, and demarcation equipment get installed to protect everything downstream. Equipment Rooms (ER) house the central network hardware for the entire building, including servers, main distribution frames, and backbone cross-connects. Backbone cabling links the equipment room to telecommunications rooms on each floor using fiber optic or large-pair copper runs sized for the distance and bandwidth the project requires.

Key functions these three subsystems handle:

• Protecting internal infrastructure from external electrical hazards
• Centralizing cross-connects for the entire building
• Carrying high-capacity traffic between floors and building sections

Backbone cabling distances carry strict limits under TIA-568 based on cable type, and exceeding those limits degrades signal integrity across every downstream device.

Subsystems 4 through 6: floor distribution to the work area

Telecommunications Rooms (TR) act as the floor-level distribution points where backbone runs terminate and horizontal cabling begins. Each TR holds patch panels, switches, and cross-connect hardware that manages traffic for that specific floor.

Horizontal cabling runs from each TR to individual work area outlets, with a maximum permanent link of 90 meters for Category-rated copper. Work Area Components cover everything between the wall outlet and the end device, including patch cords, faceplates, and connectors. Each component must match the performance rating of the full channel or it becomes the weakest link in the system.

How the subsystems connect end to end

Understanding each subsystem in isolation only gets you halfway. The real value comes from seeing how signal flow moves through the full channel, from the carrier’s line at the building perimeter to the patch cord at a user’s desk. Each of the six structured cabling system components hands off to the next in a defined sequence, and a failure or spec mismatch at any point in that chain affects everything downstream.

Following the signal from the building entry point

The path starts at the Entrance Facility, where the service provider’s external lines connect to your internal infrastructure through grounding and protection hardware. From there, the signal moves into the Equipment Room, which cross-connects the building’s backbone to the core network hardware. The backbone cabling then carries that traffic vertically or horizontally across the building to reach each floor’s Telecommunications Room.

A single undersized backbone run can become a bottleneck that limits performance for every device on that floor, regardless of how well the rest of the channel is built.

Getting backbone sizing right matters because every Telecommunications Room on every floor depends on that connection. If your backbone fiber is spec’d too conservatively for current bandwidth demands, adding capacity later means re-pulling cable through conduit that may already be at capacity.

Completing the path at the work area

Once the signal reaches the Telecommunications Room, horizontal cabling carries it to individual work area outlets within the 90-meter permanent link limit. Your technicians then connect end devices through patch cords at the work area, completing the full channel. The performance rating of that entire channel is only as strong as its lowest-rated component, which is why every element from the patch panel to the faceplate needs to match the specified category without exception.

How to plan, install, label, and test correctly

Getting structured cabling system components installed correctly depends on the decisions you make before any technician sets foot on the job site. Confirm cable categories, conduit sizing, and subsystem locations in the building design phase, not during installation. Changes made mid-pull cost significantly more in labor and materials than catching gaps on paper.

Plan subsystem specs before any cable is pulled

Start by mapping out where each telecommunications room sits relative to the work areas it serves. Confirm that horizontal runs stay within the 90-meter permanent link limit and that backbone sizing supports projected bandwidth for the full building before ordering a single spool of cable.

• Verify conduit fill ratios allow room for future cable additions
• Confirm grounding and bonding requirements at the Entrance Facility
• Document every run, pathway, and cross-connect point before materials ship to the site

Label every run from day one

Consistent labeling from the first cable pull prevents the confusion that makes troubleshooting slow and expensive. Each run should carry a unique identifier that maps directly to your documentation, linking the physical cable to its patch panel port, outlet, and room designation without ambiguity.

Unlabeled or mislabeled cabling turns a standard service call into an all-day investigation that eats your labor budget.

Apply the same labeling convention across every floor and every telecommunications room without exception. Building that consistency into your installation workflow from the start means your project documentation stays accurate when handover happens and the client’s team takes over.

Test the full channel, not just individual runs

Channel testing validates performance from patch cord to patch cord, covering every component in the signal path rather than isolated segments. Use a certified cable analyzer that meets the test requirements for the specific cable category in your design.

Retain all test results and reports as part of your project handover package. Manufacturers require this documentation to honor system warranties, and it protects you if a performance dispute comes up after the project closes.

Common questions and specs to know

When you’re specifying structured cabling system components for a new project, the same questions come up repeatedly. Getting clear answers before installation starts prevents spec mismatches that slow down your project and create performance problems after handover.

What cable category should you use?

The cable category you select determines the maximum bandwidth and frequency the full channel can support. For most commercial AV and data installations today, Category 6A is the standard minimum for horizontal cabling because it supports 10-Gigabit Ethernet at full 100-meter channel distances and provides headroom for higher-frequency AV signals. Category 6 supports 10GbE only up to 55 meters, which limits your flexibility on larger floor plates.

• Cat 6: Supports 1GbE at 100m, 10GbE up to 55m
• Cat 6A: Supports 10GbE at the full 100m channel distance
• Cat 8: Supports 25GbE and 40GbE but only up to 30m, suited for short data center runs

What are the key distance limits to follow?

Distance limits under ANSI/TIA-568 apply to the full channel, not just the horizontal cable run. The permanent link maximum for copper horizontal cabling is 90 meters, leaving 10 meters of allowance split between patch cords at the telecommunications room and the work area. Backbone fiber distances vary by fiber type: OM4 multimode supports up to 400 meters for most building applications, while single-mode fiber extends well beyond 2,000 meters for campus and inter-building runs.

Exceeding the 90-meter permanent link limit on horizontal copper invalidates your channel test results and voids manufacturer warranties on the installed system.

Confirming these limits during your design phase keeps every channel test result clean and ensures the full installation qualifies for manufacturer system certification at project close.

Next steps for your next cabling project

Every structured cabling project starts with the same foundation: knowing what each subsystem requires before your technicians arrive on site. The six structured cabling system components covered in this article give you a complete picture of what needs to be planned, installed, labeled, and tested to deliver a system that performs reliably and earns manufacturer certification at handover.

Applying this knowledge works best when your crew has the technical depth to execute it correctly across every floor, every telecommunications room, and every work area outlet. MegaServices deploys vetted low voltage technicians across the U.S. and Canada who work within ANSI/TIA-568 standards and bring the hands-on experience to get installations done right the first time. Whether you need one technician to fill a gap or a full team for a large-scale rollout, we can deploy quickly without long-term contracts or minimums. Request more information about your next cabling project to get started.
