How to Set Up Teams Meeting Room Audio Conferencing

Clear Teams meeting room audio conferencing starts with two separate checks: whether people can join the meeting, and whether everyone in the room can be heard. Licensing and dial-in settings affect access. Microphone coverage, room acoustics, network quality, and device configuration affect the listening experience.

This guide covers Microsoft Teams Rooms licensing, how Teams room audio actually works, phone dial-in setup, and choosing audio devices for your space.

You will also find practical conference room microphone options and a test checklist to help catch echo, dropouts, and one-sided conversations before handoff. For existing problems, use a structured approach to audio troubleshooting rather than assuming every issue is a licensing fault.

What you need before you start

Before installation, confirm the room account, license, network access, equipment compatibility, and seating layout. Decide whether callers need telephone dial-in as well as normal Teams meeting audio over the internet.

Licensing and account access

Have an authorized Microsoft 365 administrator provision a dedicated room resource account and assign a Teams Rooms Basic or Pro license. Use the appropriate administrative roles for each task rather than sharing administrator credentials with installers. Both room licenses include Audio Conferencing, subject to service availability and applicable usage charges.

A valid room license enables supported features; it does not correct poor microphone coverage or room acoustics.

Room and network readiness

Record ceiling height, table dimensions, seating positions, and noise sources before selecting a conference room microphone. Note reflective surfaces and, where useful, measure the room’s acoustics. Confirm that network connectivity meets the room-system vendor’s requirements. A stable connection is essential, but there is no universal “video conferencing-rated” Wi-Fi designation.

Here’s the checklist to complete before Step 1:

• An authorized administrator with appropriate provisioning permissions
• Teams Rooms Pro or Basic license assigned to the room account
• Confirmed organizer dial-in entitlement, regional availability, and any usage charges
• Room measurements (length, width, ceiling height)
• Network connectivity that meets the room-system requirements
• List of certified audio hardware compatible with your room size

Resolve missing requirements before scheduling the installation, and allow time for account and policy changes to take effect.

Step 1. Confirm licensing and audio conferencing availability

In the Microsoft 365 admin center, verify the room resource account and assigned license. Teams Rooms Basic provides core meeting features for certified room systems, with up to 25 Basic licenses per organization. Teams Rooms Pro adds advanced meeting and management capabilities. Both include Audio Conferencing. If you are investigating a meeting room without audio conferencing, distinguish missing telephone dial-in details from problems with the room’s microphone or speakers.

Do not purchase a separate Audio Conferencing add-on for a room account without first checking the services already included in its license.

Check Microsoft’s current regional availability and any charges for toll-free or international usage. Dial-in details depend on the meeting organizer’s Audio Conferencing setup; inviting a licensed room does not automatically add dial-in capability to another organizer’s meeting. Direct Routing for Teams Phone is not an automatic substitute for unavailable conferencing service.

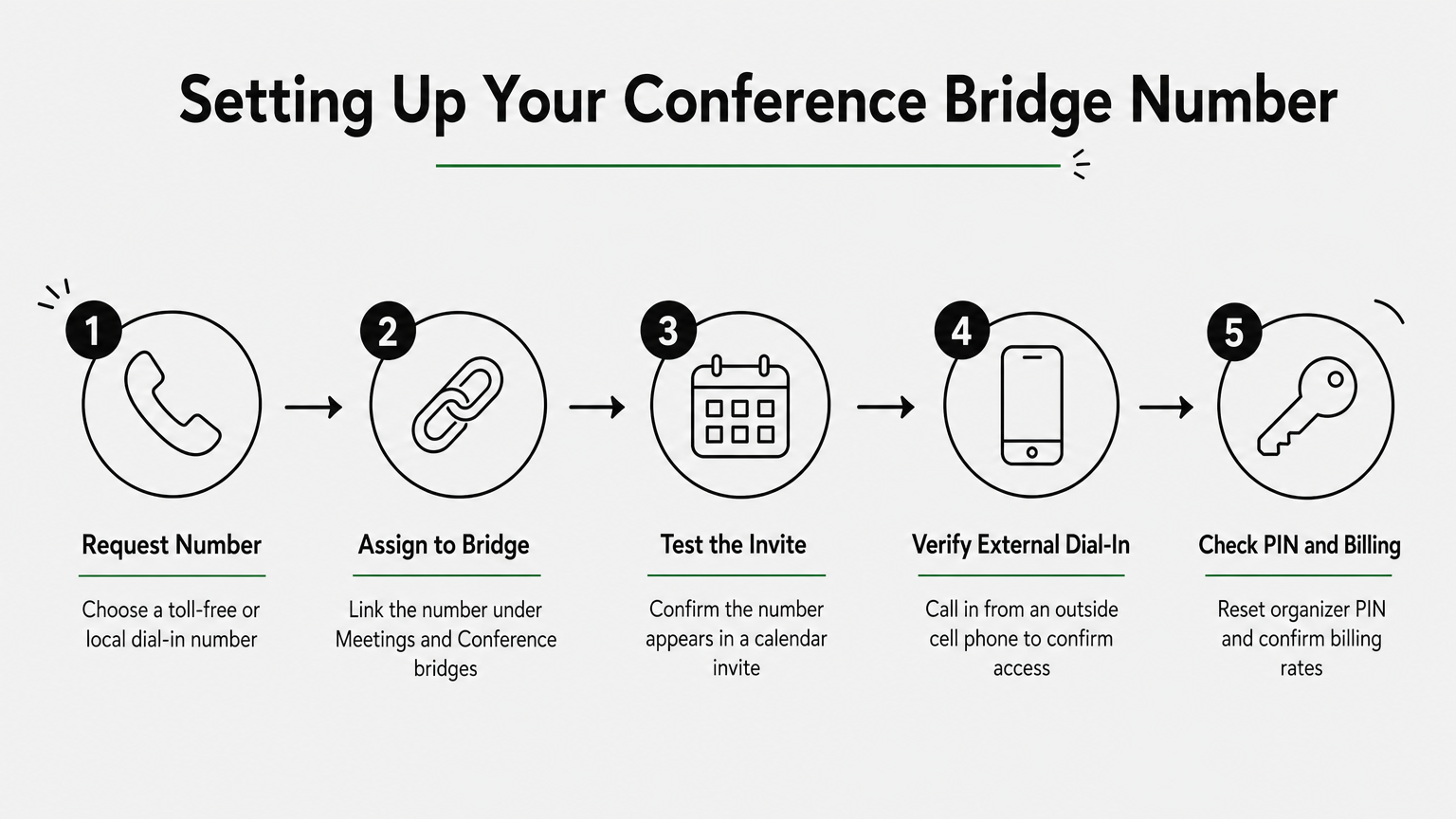

Step 2. Get and assign conference bridge phone numbers

If telephone dial-in is needed, first check the organization’s existing conferencing bridge numbers. A bridge serves meetings across the tenant; you do not normally need a unique number for every physical room. Confirm whether available toll or toll-free service numbers meet your callers’ needs.

Assigning the number to your conference bridge

For a new service number, use Voice > Phone numbers in the Teams admin center and the supported acquisition or porting process. Select the number and choose Assign to associate it with the conferencing bridge. Manage the bridge under Meetings > Conference bridges, then verify the organizer’s dial-in number assignments or policies.

Test an invitation from the actual meeting organizer, not just the room account.

Before moving to Step 3, confirm:

• The number shows correctly in a test meeting invite
• Dial-in works from an external cell phone, not just an internal extension
• The organizer’s PIN is generated and reset if needed
• Toll-free minutes or per-minute billing rates match your budget expectations

Check a newly created invitation after configuration changes. Allow for provisioning delays before assuming a number assignment has failed.

Step 3. Configure bridge languages and settings

Under Meetings > Conference bridges, select the applicable phone number and review its default and alternate languages. Available controls can depend on the number type. Choose prompts for the people who will call that number and verify them with a test call.

Tone, entry announcements, and PIN behavior

Open Bridge settings to review entry and exit announcements and organizer PIN length. An organizer PIN is used for certain phone-only meeting-start scenarios; it is not a universal password every dial-in guest must enter. Review meeting lobby and caller-admission policies separately.

Check the caller experience as well as the settings shown in the admin center.

Before moving to hardware, confirm these settings match your organization’s standard:

• Default and available alternate languages for the dial-in number
• Entry/exit tone or name announcement preference
• Organizer PIN behavior and separate caller-admission policies
• Dial-in details in a test invitation from the intended organizer

If the room only needs internet-based Teams audio, bridge-number configuration is not a prerequisite for testing its microphones and speakers.

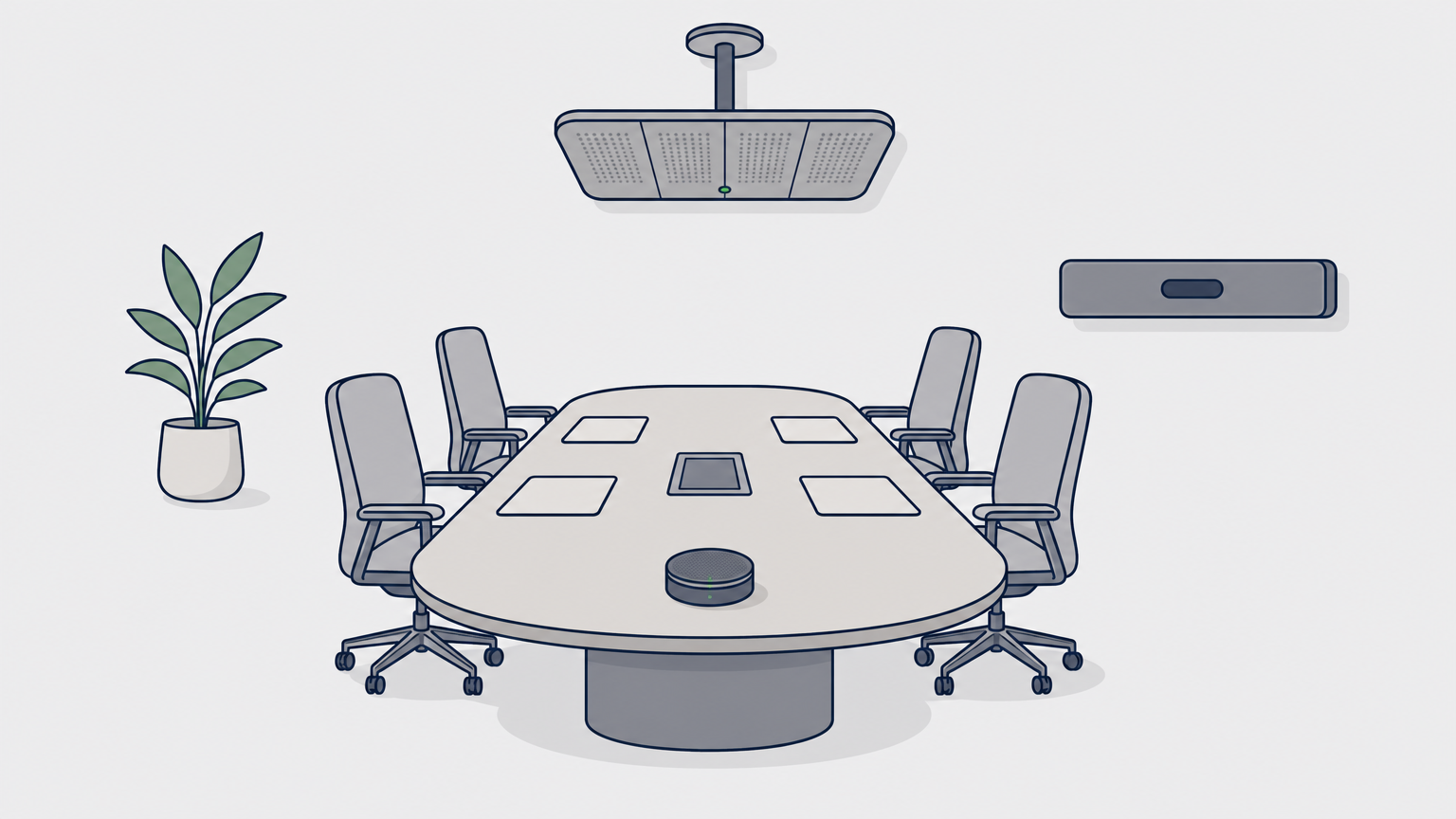

Step 4. Choose and install conference room audio hardware

When you design an audio system for a meeting room, use seating layout, pickup distance, acoustics, and manufacturer coverage guidance rather than headcount alone. An integrated video bar may suit a small room. Larger spaces may need table or ceiling microphones, separate loudspeakers, and a compatible audio processor. Compare conference room microphone options before ordering; ceiling arrays are not mandatory for every large room.

Buy for the room’s hardest seat to hear, not the easiest one.

For Teams meeting room audio conferencing, review Microsoft Teams Rooms certified devices and verify the exact supported system, peripheral combination, and firmware. Certification covers tested Teams performance and compatibility; it does not mean every device updates automatically or that uncertified devices never receive updates.

Follow the manufacturer’s placement and cabling instructions, accounting for HVAC noise and reflective surfaces. Select the intended microphone and speaker in the room system, confirm mute controls, and test a live call with a remote participant from every seating area. Avoid joining a second device in the same room with its microphone and speakers active, which can cause feedback or echo.

Getting your meeting rooms conference-ready

Reliable Teams meeting room audio conferencing combines correct account setup with hardware that suits the space. Verify telephone dial-in only where it is required, then test the room’s audio independently.

Before handoff, document the selected devices and settings, record unresolved issues, and show staff how to join, mute, adjust volume, and report problems. Agree on support responsibilities instead of assuming licensing or certification guarantees trouble-free operation.
