Video Conferencing Setup Guide: Step-By-Step For Any Room

A poorly configured conference room doesn’t just frustrate participants, it derails meetings, wastes billable hours, and reflects badly on whoever signed off on the install. Whether you’re outfitting a single huddle space or rolling out video conferencing across dozens of locations, a solid video conferencing setup guide saves you from the trial-and-error approach that leads to echo-filled calls and cameras pointed at the ceiling.

Getting it right means more than plugging in a camera and hoping for the best. You need to account for room acoustics, display placement, network bandwidth, codec selection, and a dozen other variables that change based on room size and use case. The difference between a functional setup and a great one comes down to understanding how each component interacts, and having the technical know-how to calibrate the whole system as a unit.

At MegaServices, we’ve supported thousands of VTC installations and AV integration projects across the U.S. and Canada since 2007. Our technicians hold certifications from Crestron, Shure, Biamp, and other major manufacturers, and they handle everything from structured cabling to final system commissioning. We built this guide based on what our teams see in the field every day, the mistakes, the shortcuts that backfire, and the steps that actually produce reliable, high-quality video conferencing environments.

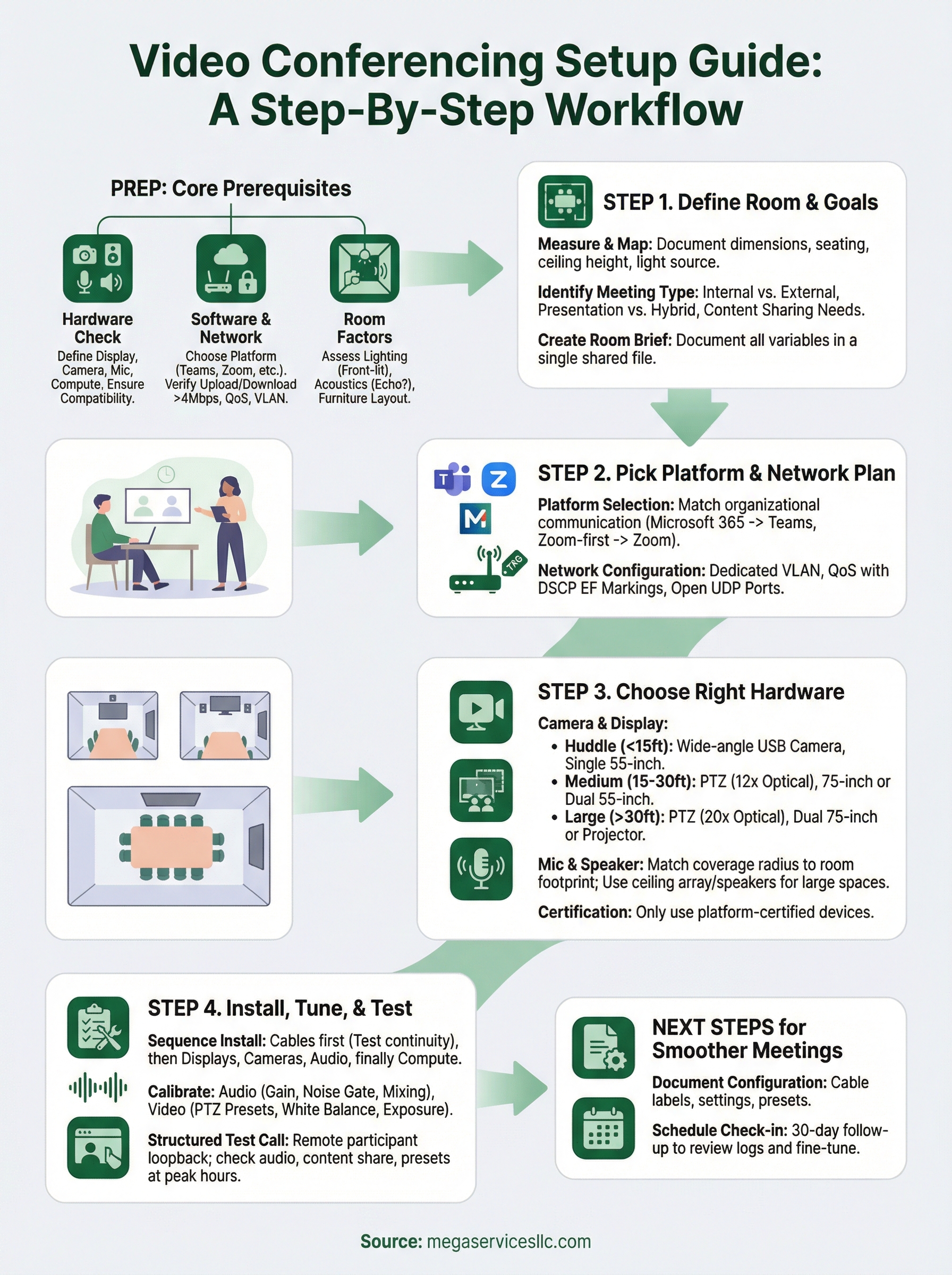

Below, you’ll find a step-by-step breakdown covering hardware selection, room preparation, software configuration, and system testing. Each section is written for project managers and AV professionals who need actionable detail, not a surface-level overview. Let’s get into the specifics of building a video conferencing setup that works on day one and keeps working long after.

What you need before you start

Before you touch a single cable or launch a platform trial, you need a clear picture of what you’re working with. Skipping this preparation stage is the single most common reason video conferencing installs go over budget or fail performance tests on day one. This section lays out the core categories of preparation every AV project manager should run through before procurement starts, because fixing a bad foundation after installation is far more expensive than getting it right upfront.

Hardware components to account for

Getting your hardware list right before you buy anything prevents the costly back-and-forth of returning incompatible gear. Every room type carries a different hardware footprint, so start by identifying your display, camera, microphone, speaker, and compute unit requirements separately, then verify that each component works with the others before anything ships to the job site.

Here is a baseline hardware checklist for a standard conference room:

Software and network prerequisites

Platform selection and network readiness need to happen in parallel, not one after the other. If you lock in a platform before checking your network capacity, you will discover bandwidth problems during your first high-stakes call. Check your upload and download speeds, jitter, and packet loss before committing to any hardware or software stack, and involve your IT team at this stage, not after the equipment arrives.

A network with more than 1% packet loss will produce noticeable audio dropouts and video freezing, regardless of how good the endpoint hardware is.

For most room-based video conferencing, Microsoft recommends at least 4 Mbps dedicated upload and download per endpoint for 1080p calls. You also need QoS rules configured on your router or switch to prioritize video traffic over general internet activity, particularly in shared office environments where multiple devices compete for bandwidth simultaneously.

Room and environmental factors

Lighting, acoustics, and furniture layout affect call quality in ways that no amount of post-processing can fully compensate for. Confirm that your primary light source sits in front of participants rather than behind them, and that the room lacks hard parallel surfaces that create flutter echo. A quick clap test in an empty room tells you immediately whether reverberation will be a problem before you ever pull a cable.

Treating room preparation as a technical requirement rather than a cosmetic concern is central to this video conferencing setup guide. Address these three categories first, and every step that follows becomes far more predictable.

Step 1. Define the room and meeting goals

Before you look at a single product spec sheet, document the physical room and how it will actually be used. This step is where most video conferencing projects get derailed, because integrators spec hardware for a generic room rather than the specific one in front of them. Every decision you make in this video conferencing setup guide should trace back to what you define here.

Measure the room and map the participants

Room dimensions and seating layout determine almost every hardware choice that follows. A 10×12 huddle room with four seats needs completely different camera coverage, microphone pickup, and display sizing than a 20×30 boardroom with 16 participants around a table. Measure the room length, width, and ceiling height, then note where participants will sit relative to the display wall.

Use this quick-reference template before procurement starts:

Identify the meeting type and frequency

How participants use the room matters as much as the room itself. A space running back-to-back external client calls has different reliability and quality requirements than an internal team standup room. Identify whether meetings are primarily internal or external-facing, whether content sharing is frequent, and whether the room hosts hybrid meetings where some participants join remotely.

Rooms used for external client calls should be treated as presentation spaces, which means tighter control over background, lighting, and audio quality than internal-only spaces typically require.

Write down your answers in a single room brief document and share it with every vendor or technician involved in the project. This single step eliminates most of the miscommunication that causes installs to run long or over budget.

Step 2. Pick your platform and network plan

Platform choice and network configuration are tightly linked decisions that you need to make together. Choosing a platform first and then checking whether your network can support it is a sequence that creates problems on day one. Lock in both before you order a single piece of hardware, because the platform you choose determines your codec requirements, your firewall rules, and your minimum bandwidth thresholds.

Compare the major platforms

Your platform selection should match how your organization already communicates, not what a vendor recommends in isolation. If your company runs on Microsoft 365, Teams Rooms is the logical choice because it integrates natively with your calendar, directory, and file sharing. If your clients predominantly use Zoom, forcing them onto another platform adds unnecessary friction to every external call.

Use this quick comparison to narrow your options:

Configure your network for video traffic

Network preparation is non-negotiable in any reliable video conferencing setup guide, and skipping this step produces problems that look like hardware failures but trace back to bandwidth contention or misconfigured QoS rules. Run a network readiness test during peak office hours, not at 6 a.m. when the building is empty, because that is when your real bottlenecks appear.

Every video endpoint needs a dedicated VLAN with QoS policies that prioritize RTP traffic, or you will see frame drops the moment general internet usage spikes on the same network.

Configure your router or managed switch to tag video traffic with DSCP EF (Expedited Forwarding) markings so it moves ahead of standard data packets. Verify that your firewall allows the UDP ports your chosen platform requires, and document those port ranges in your room brief so IT can reference them during troubleshooting later.

Step 3. Choose the right hardware for the space

With your room brief and platform locked in, hardware selection becomes a matching exercise rather than a guessing game. Every component you choose should satisfy two tests: it must be certified for your chosen platform, and it must fit the physical dimensions you documented in Step 1. Buying uncertified equipment saves money upfront and reliably costs more in troubleshooting hours than the savings justify.

Camera and display

Camera field of view and display size both scale directly with room depth. For a huddle room under 15 feet deep, a wide-angle USB camera mounted at eye level above the display covers all participants without needing a PTZ motor. Rooms between 15 and 30 feet deep require a PTZ camera with at least 12x optical zoom so remote participants can identify who is speaking at the back of the room.

Use this sizing reference before you finalize any orders:

A display where the far edge subtends less than 30 degrees from the farthest seat forces participants to strain to read shared content, which reduces engagement on every call.

Microphone and speaker

Microphone coverage radius is the spec that most integrators underestimate when building larger rooms. A single tabletop unit covers roughly an 8-foot radius, which means a 20-foot conference table needs at least two units or a ceiling array designed for the full room footprint. Any reliable video conferencing setup guide should push you to verify manufacturer room-sizing documentation before finalizing your microphone count.

Your speaker placement and power rating should match room volume, not just headcount. For rooms above 3,000 cubic feet, ceiling-mounted speakers distributed across the space deliver more consistent audio levels than a single front-facing unit and eliminate the dead zones that generate complaints from participants sitting farthest from the display wall.

Step 4. Install, tune, and test the setup

With your hardware on site and your network configured, physical installation sequence matters more than most integrators acknowledge. Mounting hardware in the wrong order forces you to backtrack, and backtracking on a ceiling mount is far more time-consuming than doing it right the first time. Follow a consistent install order on every room to keep the process clean and repeatable.

Follow a physical installation sequence

Cable runs always come first, before any device gets mounted. Pull your Cat6A and HDMI 2.0 runs, label both ends, and test continuity before you secure a single cable in the wall. Then mount your displays, followed by cameras, then ceiling microphones or speaker systems. Connecting your compute unit or codec appliance comes last, after all passive infrastructure is confirmed clean.

Use this installation order as your field checklist:

1. Pull and label all cable runs
2. Test cable continuity at both ends
3. Mount and secure display panels
4. Install camera at correct eye-level height
5. Mount ceiling microphone array or place tabletop units
6. Install and wire ceiling speakers if applicable
7. Connect and power up compute unit or codec

Calibrate audio and video

Audio calibration is where most installs fall short, because integrators skip manufacturer tuning tools in favor of default settings. Open your microphone’s configuration software, whether that is Biamp Tesira, Shure Designer, or a similar platform, and run the room tuning wizard to set gain structure, noise gate thresholds, and automatic mixing levels for the specific room dimensions you documented in Step 1.

For camera calibration, adjust your PTZ presets so each preset frames a distinct zone of the room. Set your near-end camera to automatic white balance and confirm the exposure compensates for your primary light source without blowing out participant faces.

Run a structured test call

Every room needs a live test call before you hand it off, not just a local AV check. This final step in your video conferencing setup guide should cover audio loopback, screen share latency, camera preset switching, and content display resolution.

A test call with a remote participant in a different building confirms performance under real network conditions that a local loopback test cannot replicate.

Run your test at the same time of day the room will typically be in use, verify that shared content displays at full resolution on the far-end screen, and confirm that every participant seat falls within microphone pickup range before you close out the installation report.

Next steps for smoother meetings

Following this video conferencing setup guide gives you a repeatable process, but the work does not stop at handoff. Document every configuration decision, including cable labels, network port assignments, microphone gain settings, and PTZ presets, in a single room file that any technician can reference when something needs adjustment six months from now. Rooms without documentation become black boxes, and black boxes create expensive service calls.

Your next practical step is to schedule a 30-day check-in with whoever manages the room day to day. Collect user complaints, review any call quality logs your platform generates, and use that data to fine-tune the setup before small problems grow into recurring issues. Even a well-executed install benefits from a structured follow-up review.

If you need certified AV technicians to handle the installation, calibration, or ongoing support across one room or dozens of locations, submit an information request to MegaServices and our team will respond within one business day.
