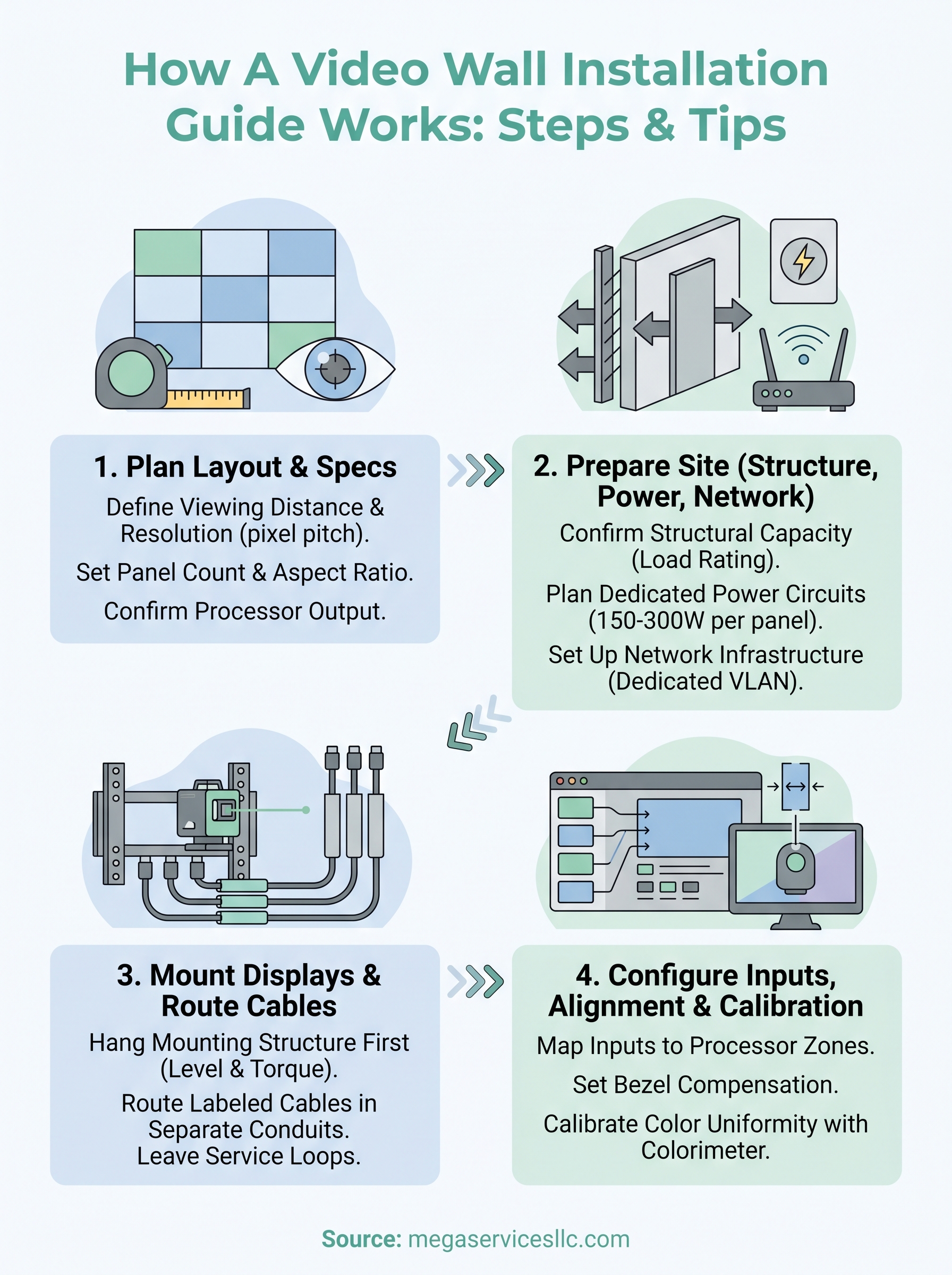

How A Video Wall Installation Guide Works: Steps & Tips

A video wall installation guide covers everything from selecting the right display hardware to mounting panels flush and configuring them as a single, seamless canvas. Some people search for this same process as a video wall setup guide, but whether you call it installation or setup, the hardware, mounting, and configuration steps are identical. It sounds straightforward on paper, but anyone who’s managed one of these projects knows how quickly things get complicated. Bracket alignment, signal distribution, content processing, thermal management: miss one detail and you’re staring at a wall of bezels that don’t line up or tiles that drop signal mid-presentation.

This guide breaks down the full process step by step, including hardware requirements, physical mounting procedures, and the technical configuration that ties it all together. Whether you’re deploying a video wall in a corporate lobby, a retail flagship, or a command-and-control center, the fundamentals stay the same, and getting them right the first time saves real money.

At MegaServices, we’ve supported AV integrators and project managers with certified technicians for video wall installs across the U.S. and Canada since 2007. Our network of over 2,000 vetted techs handles everything from low-voltage cabling to final calibration, deployed to your job site within 24 to 48 hours. We built this guide from that hands-on experience, so you get practical, field-tested steps rather than generic spec-sheet summaries. Let’s get into it.

What a video wall install includes

A video wall installation brings together three major layers: hardware, signal distribution, and configuration. Before you can follow any video wall installation guide step by step, you need to understand what you’re actually managing. These aren’t just oversized consumer TVs bolted to a wall. They’re integrated systems where every component depends on the others to function correctly, and a gap in any one layer affects the entire display.

Getting clear on the full scope of a video wall install before you start is what separates a clean, on-time deployment from a costly redo.

The hardware layer

Display panels are the most visible part of the project, but they’re just the beginning. You’ll also need a mounting system rated for the total panel weight, power distribution that meets the combined load of all screens running simultaneously, and signal cabling routed cleanly between every node. For a standard 3×3 video wall using commercial-grade panels, you’re typically managing nine displays, nine power feeds, and nine HDMI or DisplayPort connections, all tied back to a central processor.

Most commercial video walls use either fine-pitch LED panels or LCD tile panels, and that choice affects your entire installation. Fine-pitch LED, also called direct-view LED, ships in modular tiles you can scale to nearly any size or aspect ratio without a visible seam, but it costs more per square foot and performs best in a controlled viewing environment since bright ambient light washes out the image. LCD video wall panels cost less, push brighter peak output for daylight-heavy lobbies and retail spaces, and rely on a mature bezel-based mounting approach, but you’re left with a visible seam line even with narrow-bezel panels. Match the panel type to your viewing distance and lighting conditions before you lock in a vendor.

Here’s what a basic hardware inventory looks like for a 3×3 install:

The software and signal chain

Content management and signal processing sit at the center of how a video wall actually functions. Your video wall processor takes one or more input sources and distributes them across all panels as a single image or in split zones. Most modern processors let you configure display zones, input switching, and resolution mapping through a software interface, but you need to set this up before the panels go on the wall, not after.

Look for a processor with redundant inputs and automatic failover, since a single dropped source shouldn’t take down the entire display during a live event. Many processors also let you preload multiple layout presets, so switching from full-screen video to a four-quadrant data dashboard takes one click instead of a manual reconfiguration mid-meeting. Confirm the processor’s maximum output resolution matches your panel count and pixel pitch combined, because undersizing the processor here is one of the most common mistakes we see on video wall setup and service calls.

The labor and coordination side

Installation work on a video wall isn’t something you hand to a general contractor. AV installation specialists handle the structural mounting, low-voltage cabling, and final calibration to manufacturer specs. Your project also needs coordinated AV project management and clear sequencing: panels don’t go up until the mounting structure is level and confirmed, cables don’t get terminated until the routing path is clean, and calibration doesn’t start until every panel is powered and displaying signal.

Good technicians document the install as they go, too: cable maps, calibration settings, firmware versions, and photos of the mounting structure before panels go up. That paperwork becomes your reference point for warranty claims and future service calls, so don’t treat it as optional busywork tacked onto the end of the job.

Step 1. Plan the layout, specs, and viewing goals

Planning determines everything that comes after in any video wall installation guide. Before you order panels or schedule a site visit, nail down your viewing distance, target resolution, and the content types you’ll display. Skipping this step is the fastest way to end up with a video wall that looks wrong in the space, even if every panel works perfectly.

Your layout and spec decisions made during planning directly control your hardware costs, your signal chain complexity, and your final image quality.

Define your viewing distance and resolution

Viewing distance drives your pixel pitch decision. The closer your audience sits, the finer the pixel pitch you need to avoid a visible grid pattern. A common field formula: optimal viewing distance equals roughly one to two times the screen height. For a 9-foot-tall 3×3 video wall, that puts your front row at 9 to 18 feet minimum for clean image quality. This calculation holds whether you’re following a video wall installation guide for a corporate lobby or a video wall setup guide for a home theater build. The physics of pixel density don’t change based on the venue.

Use this reference when specifying panels:

Set your panel count and aspect ratio

Panel count ties directly to your content format and wall dimensions. A 16:9 content feed works cleanly on a 4×2 or 3×3 layout, but you need to confirm your processor supports that exact resolution output before you finalize the panel count.

Lock in the aspect ratio first, then work backward to the panel quantity that fills the space without cropping your content. Changing this after you’ve quoted hardware adds cost and delays your entire project timeline.

Build in some headroom for future-proofing while you’re at it. Specify a processor that supports more inputs and higher resolution than your current layout needs, since adding rows or columns to the wall later is far cheaper when your existing hardware can already handle the expanded output.

Step 2. Prepare the site: structure, power, and network

Site prep is where most installations hit their first real delays. Before any panel goes near the wall, you need to confirm that the mounting surface can handle the load, the electrical circuits meet your power requirements, and the network infrastructure is in place. Skipping any of these checks mid-project forces you to pull panels back down, which adds time and damage risk.

Confirm structural capacity

Wall type and load rating determine whether your mounting system is safe. For a 3×3 video wall using 55-inch commercial panels at roughly 35 pounds each, you’re placing 315 pounds on the wall, not counting the mounting hardware. Use this quick checklist before specifying brackets:

• Concrete or CMU walls: no additional reinforcement typically required, though anchoring into concrete takes the right hardware
• Steel stud walls: confirm stud gauge and spacing before attaching
• Wood stud walls: add blocking or a steel backing plate to distribute weight evenly
• Drywall only: never mount directly; always anchor to the structure behind it

Confirm your wall’s load rating before you spec the mounting hardware, not after.

Plan your power distribution

Each panel draws between 150 and 300 watts depending on the model, so you need dedicated circuits to handle that load without tripping breakers at peak brightness. Run a dedicated 20-amp circuit for every three to four panels, and keep video wall power circuits isolated from HVAC, lighting, or other high-draw systems on the same breaker panel.

For the 3×3 example above, nine panels at roughly 250 watts each average out to about 2,250 watts total, which splits comfortably across three dedicated 20-amp circuits with margin for peak brightness spikes. Always calculate your worst-case wattage, not the average, since panels draw more power at full white screen brightness than during typical mixed content.

Set up the network infrastructure

Every solid video wall installation guide treats network readiness as a hard prerequisite, not an afterthought. Your processor and display panels need a stable LAN connection for remote management, firmware updates, and input switching. Run a dedicated VLAN for your AV equipment to isolate it from general office traffic and prevent bandwidth contention during live presentations.

Budget at least 1 Gbps of switch capacity per processor for firmware updates and content pushes, and use managed switches, installed and configured properly, so you can monitor port-level traffic if a panel drops offline.

Step 3. Mount the displays and route cables cleanly

Physical mounting is the step where sequencing matters most. Every part of a complete video wall mounting checklist emphasizes one rule: install and level the mounting structure before any panel touches the wall. Once panels are hung, adjusting the underlying frame costs you twice the labor and risks scratching or dropping hardware worth thousands of dollars.

Hang the mounting structure first

Start by marking stud or anchor locations on the wall using a laser level, not a bubble level, so your horizontal reference line stays accurate across the full width of the installation. Torque each fastener to the manufacturer’s rated specification and pull-test the frame by applying downward force at each attachment point before you hang any display. If the frame moves, find the cause and fix it before moving forward.

A frame that’s off by a quarter inch on one side translates to visible misalignment across every bezel joint on the finished wall.

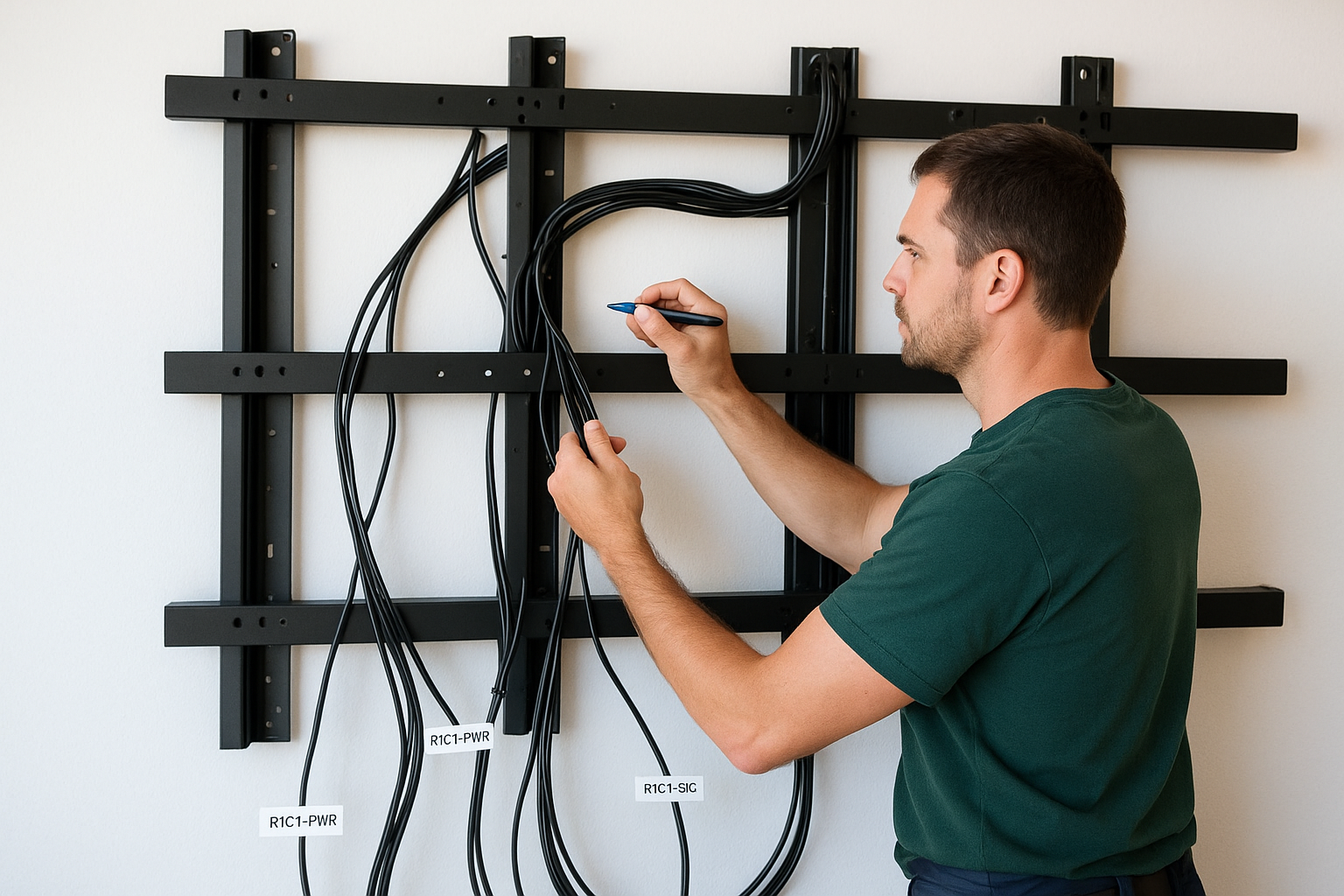

Route cables before the panels go up

Clean AV cable management is far easier with the wall empty. Label both ends of every cable before you route it, using a consistent naming convention tied to panel position (for example: R1C1 for row 1, column 1). Run signal cables and power cables in separate conduits or raceways to avoid interference, and leave a service loop of at least 12 inches behind each panel position so technicians can disconnect without pulling the full cable run. Use this labeling template as a starting point:

Step 4. Configure inputs, alignment, and calibration

With your panels mounted and cables terminated, configuration is what turns nine separate screens into a single coherent display. This step is where most video wall installation guides get vague, but the sequence is specific: set up your inputs first, then run geometric alignment, then calibrate color uniformity across every panel.

Rushing through calibration to meet a deadline is the most common reason video walls look inconsistent at handoff.

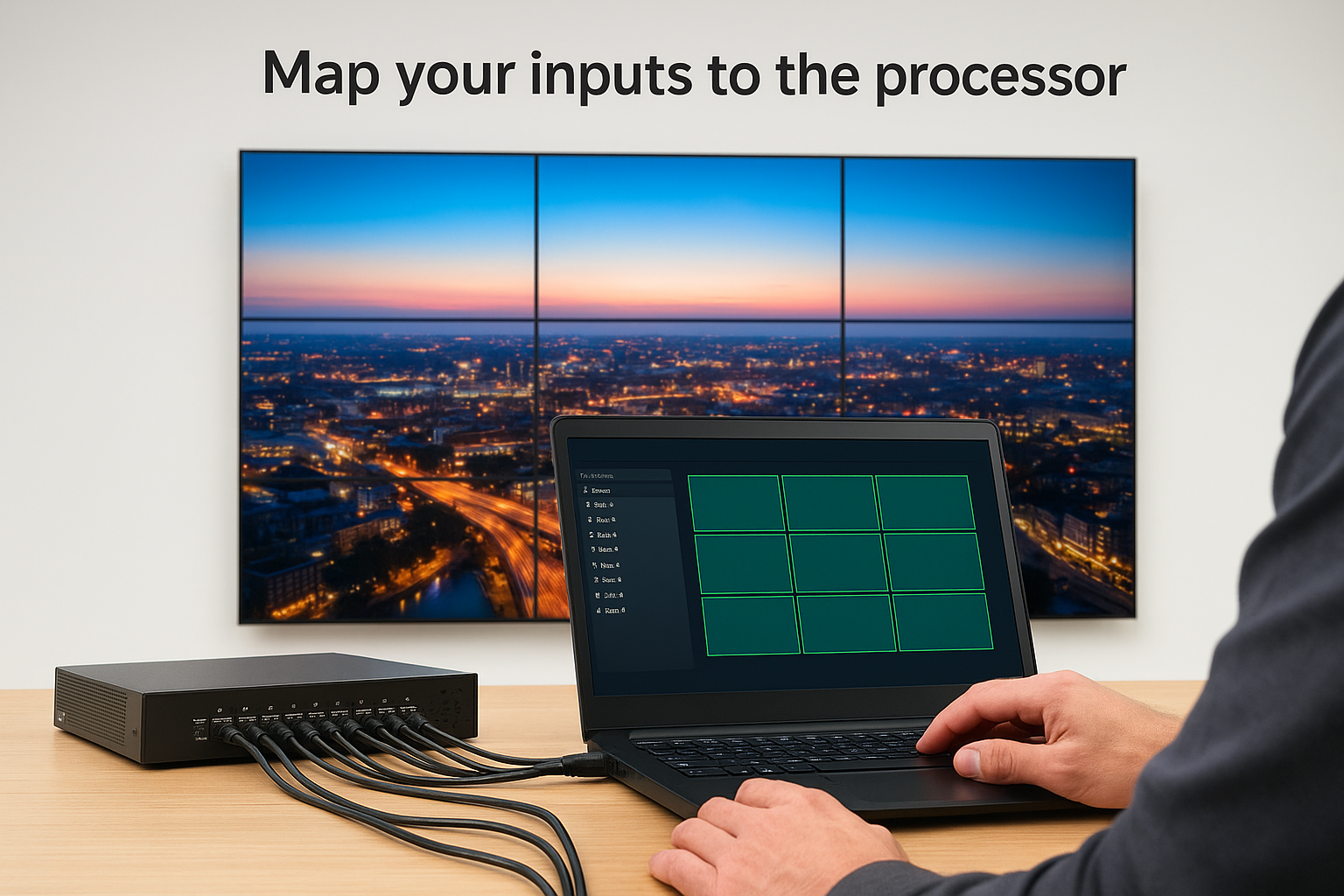

Map your inputs to the processor

Open your processor’s management software and assign each physical input port to its corresponding display zone. Most controllers use a drag-and-drop interface that maps input sources to a grid matching your panel layout. Confirm that each output channel pushes the correct resolution to its assigned panel before you test any content. Use this checklist before moving to alignment:

• Verify each panel shows signal from the correct output channel
• Set refresh rate to 60Hz across all panels
• Disable overscan on every display
• Confirm the processor output resolution matches each panel’s native resolution

Align bezels and calibrate color

Bezel compensation tells the processor to account for the physical gap between panels so content flows without visible breaks. Set this value in millimeters inside the processor software using the actual bezel width you measured on site.

After bezel compensation, run color and brightness calibration using a colorimeter to match white point and peak luminance across all panels. Panels from the same production batch can vary by 10 to 15 percent in brightness out of the box, so skipping colorimeter measurements leaves visible hot spots across your finished wall.

Once calibration is locked in, document your settings before you leave the site. Save a copy of the processor configuration, the bezel compensation values, and the colorimeter readings for each panel as part of closeout documentation and commissioning, since that baseline is what you’ll compare against during future maintenance visits. Most manufacturers recommend rechecking calibration every six to twelve months, because LED and LCD panels both drift in brightness and color as they age. A quarterly visual inspection, plus a clean of the panel surfaces and rear vents, is routine AV equipment maintenance that catches dust buildup before it turns into a thermal problem.

Wrap-up and next steps

This video wall installation guide covers the full path from planning your layout and confirming structural capacity to mounting panels in sequence, routing cables cleanly, and running calibration before handoff. Each step builds on the previous one, and skipping any part of that sequence is where projects run into visible problems at final inspection.

Even a clean install runs into issues once the wall goes live. Most problems trace back to one of three causes: a loose HDMI or DisplayPort connection that drops signal on a single tile, a processor output set to the wrong resolution after a firmware update, or a panel that’s drifted out of calibration months after handoff. Before you call for support, check cable seating at both ends, confirm the processor firmware matches what each panel expects, and pull up your saved calibration baseline to see how far current readings have drifted. Walking through those three checks resolves most video wall setup issues without a truck roll.

If you’re managing a video wall project across multiple sites or need a certified technician on-site within 24 to 48 hours, MegaServices deploys vetted AV technicians nationwide across the U.S. and Canada with no long-term contracts or minimum requirements. Your team gets the specific technical labor it needs, when and where the project demands it, whether that’s a single tech for final calibration or a full crew for a multi-display rollout. Book a certified MegaTech for your video wall installation and tell us what your project needs.
