What Is Audio Visual Integration? Components and Examples

If you’ve ever walked into a conference room where the displays, microphones, cameras, and control panels all work together without a hitch, you’ve seen the result of AV integration done right. So what is audio visual integration, exactly? It’s the process of combining separate audio, video, lighting, and control technologies into a single, coordinated system that serves a specific environment, whether that’s a corporate boardroom, a university lecture hall, or a hospital command center.

The work goes well beyond plugging in a few cables. True AV integration involves system design, equipment selection, structured cabling, programming, commissioning, and ongoing support. Each component has to communicate with the others reliably, and the end result needs to be simple enough for non-technical users to operate daily. That’s a tall order, especially when projects span multiple locations or require specialized certifications like CTS, Crestron, or Biamp.

At MegaServices, we’ve supported AV integration projects across the United States and Canada since 2007, providing vetted technicians who handle the hands-on installation and commissioning work that brings these systems to life. This article breaks down the core components of AV integration, walks through real-world examples, and explains how each piece fits together to create the reliable, unified environments that organizations depend on.

What audio visual integration means in practice

Understanding what is audio visual integration starts with recognizing that the term covers far more than hardware on a wall. AV integration is the deliberate process of designing, installing, and configuring multiple technologies so they behave as a single, unified system rather than a collection of independent devices. That distinction matters because a room full of high-quality equipment still fails if the components cannot communicate with each other effectively or if the user interface creates friction every time someone walks in.

The difference between AV installation and AV integration

Installation and integration are related but not the same thing. Installing a display means mounting it, running power to it, and confirming the picture appears. Integrating that same display means connecting it to a room controller, linking it to a video conferencing codec, tying it into the room scheduling system, and programming the control interface so a single tap brings the entire environment online. The scope of work is fundamentally different.

Integration is what turns a room full of separate devices into a system that serves the people using it.

When you manage or commission an AV project, the integration layer is where the real complexity lives. A technician needs to understand signal flow, control system logic, and network behavior in addition to physical installation skills. That combination is why certified professionals with credentials like CTS, Crestron, or Biamp carry significant value on integration projects.

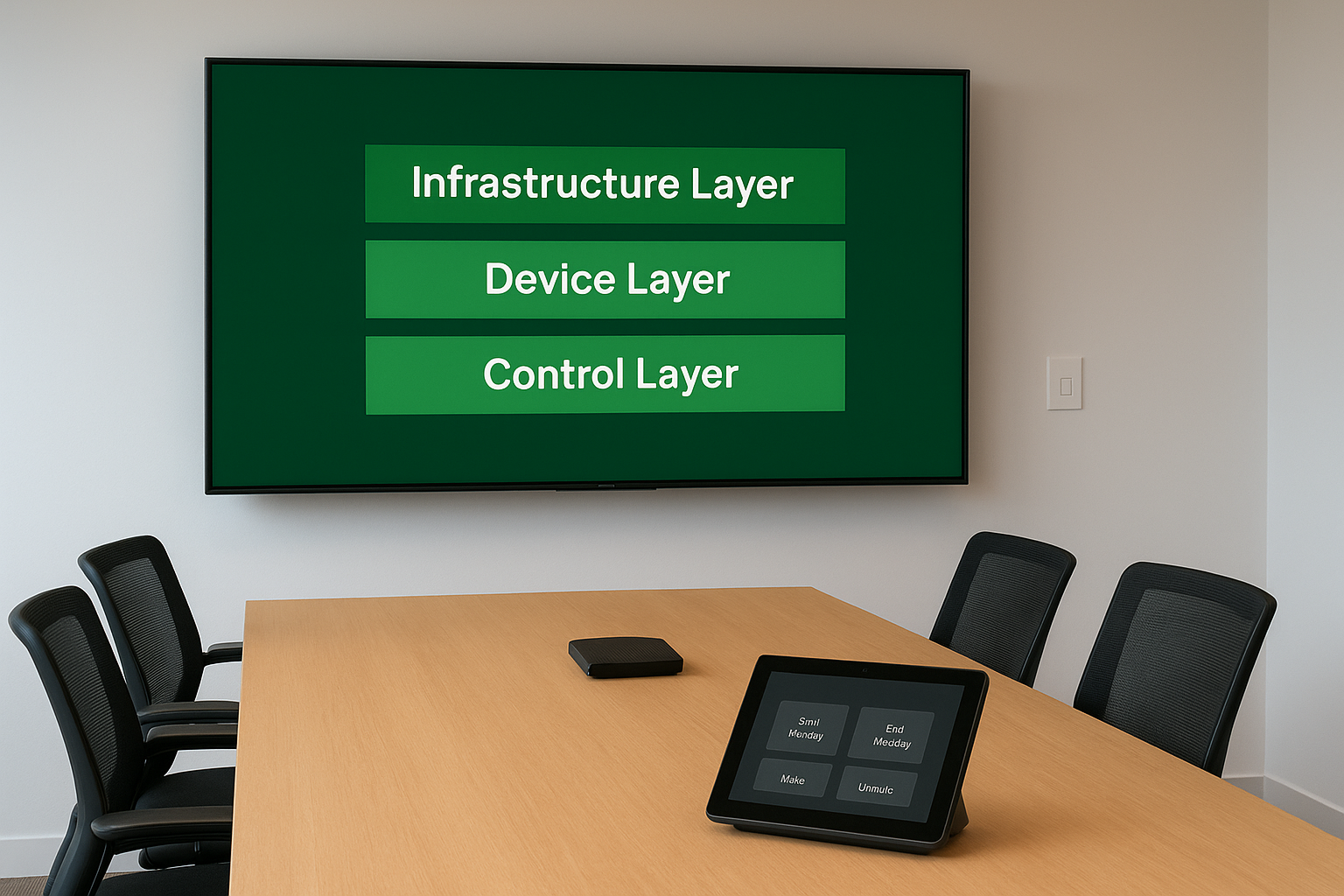

How system layers work together

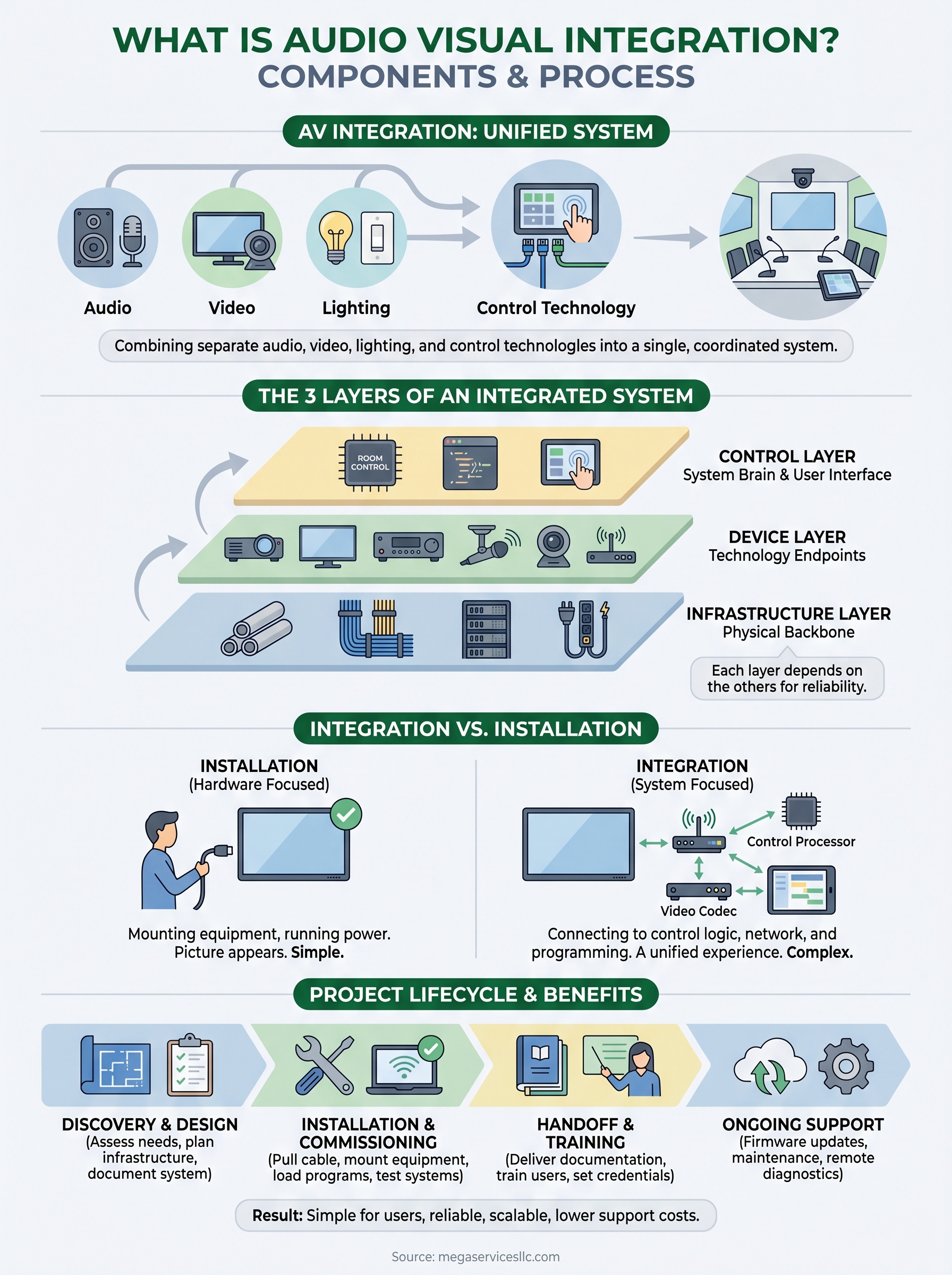

A fully integrated AV system typically has three functional layers working in parallel. The infrastructure layer includes the physical backbone: conduit, structured cabling, rack systems, power distribution, and equipment mounting. The device layer sits on top of that and contains the actual technology endpoints, such as displays, projectors, amplifiers, microphones, cameras, and signal processors. The control layer ties everything together, using a room control processor and a programmed interface to manage all the connected devices through a single point of input.

Each layer depends on the others. Weak cabling infrastructure introduces signal degradation that no amount of high-end equipment can fix. An underpowered amplifier stage distorts audio regardless of how sophisticated the DSP settings are. When you scope an AV integration project correctly, you address all three layers with equal attention rather than treating any one of them as an afterthought.

What the finished system looks like for end users

From the perspective of the people who use the space daily, a well-integrated AV system is nearly invisible. They walk into a conference room, tap a single touch panel or button, and the displays power on, the camera activates, the audio levels set correctly, and the video conferencing platform launches automatically. The complexity of the underlying system is entirely hidden behind a straightforward user experience.

That outcome requires significant work during the design and commissioning phases. Integrators use control system programming to define macros, presets, and conditional logic that automate the behavior of every connected device. A "Start Meeting" button might trigger a dozen separate commands across multiple devices simultaneously. Achieving reliable performance means testing every scenario, adjusting gain structure on the audio chain, verifying camera tracking behavior, and confirming that the control system handles edge cases without freezing or throwing errors.

For organizations managing multi-site rollouts or large-scale builds, this level of coordination across every location is what makes qualified, certified technicians so critical. A technician who understands control system architecture and can commission a system correctly from the start prevents the kind of recurring failures that generate service calls and frustrate end users for months afterward.

Why AV integration matters in modern facilities

The answer to what is audio visual integration becomes clearer when you look at what happens without it. Organizations that deploy AV equipment piecemeal, without a coordinated integration approach, end up with incompatible systems, inconsistent user experiences, and growing maintenance costs that compound over time. Facilities today carry performance expectations that were uncommon a decade ago, and the environments you manage need to deliver on those expectations reliably, every single day, without requiring a technician in the room to make things work.

How hybrid work raised the bar

Remote and hybrid work shifted AV performance from a convenience into a core operational requirement. When half of your meeting participants join remotely, the microphones, cameras, and display systems in your physical space directly determine whether those people can contribute meaningfully or spend the entire call asking others to repeat themselves. A poorly integrated conference room does not just frustrate users; it actively degrades the productivity of every meeting that takes place inside it, and that cost adds up fast across an organization.

The quality of your AV system is now a direct, visible measure of how seriously your organization takes collaboration.

Modern enterprise communication platforms are designed to work with certified room systems, and when your AV integration aligns with those platform requirements and certification standards, you reduce compatibility friction and give both in-room and remote participants a consistent, predictable experience. Misaligned or uncertified systems create audio latency, video dropout, and control failures that no amount of troubleshooting fully resolves without addressing the underlying integration gaps.

The operational case for integrated systems

Integrated systems are also easier and less expensive to support than collections of standalone devices managed independently. When a control processor monitors the status of every connected component, your support team can identify failures faster, push firmware updates centrally, and address problems before they reach end users. That kind of proactive management capability only exists when the system is properly designed and commissioned as a unified environment from the start.

Scalability is the other major operational benefit. When your organization needs to replicate a conference room design across multiple new locations, a documented integrated system gives your deployment team a clear, repeatable blueprint to follow. Technicians work from the same cabling standards, control system programs, and commissioning procedures rather than solving the same problems from scratch at every site. That consistency shortens installation timelines, reduces cost per deployment, and keeps end-user experience uniform regardless of geography.

Core components in an integrated AV system

Understanding what is audio visual integration at a deeper level requires knowing the specific technologies that make up a complete system. Every integrated AV environment contains several distinct component categories, and each one carries technical requirements that affect the performance of the entire system. Skipping or underfunding any single category creates weaknesses that surface during daily use, often in ways that are difficult to trace back to the original cause without a full system review.

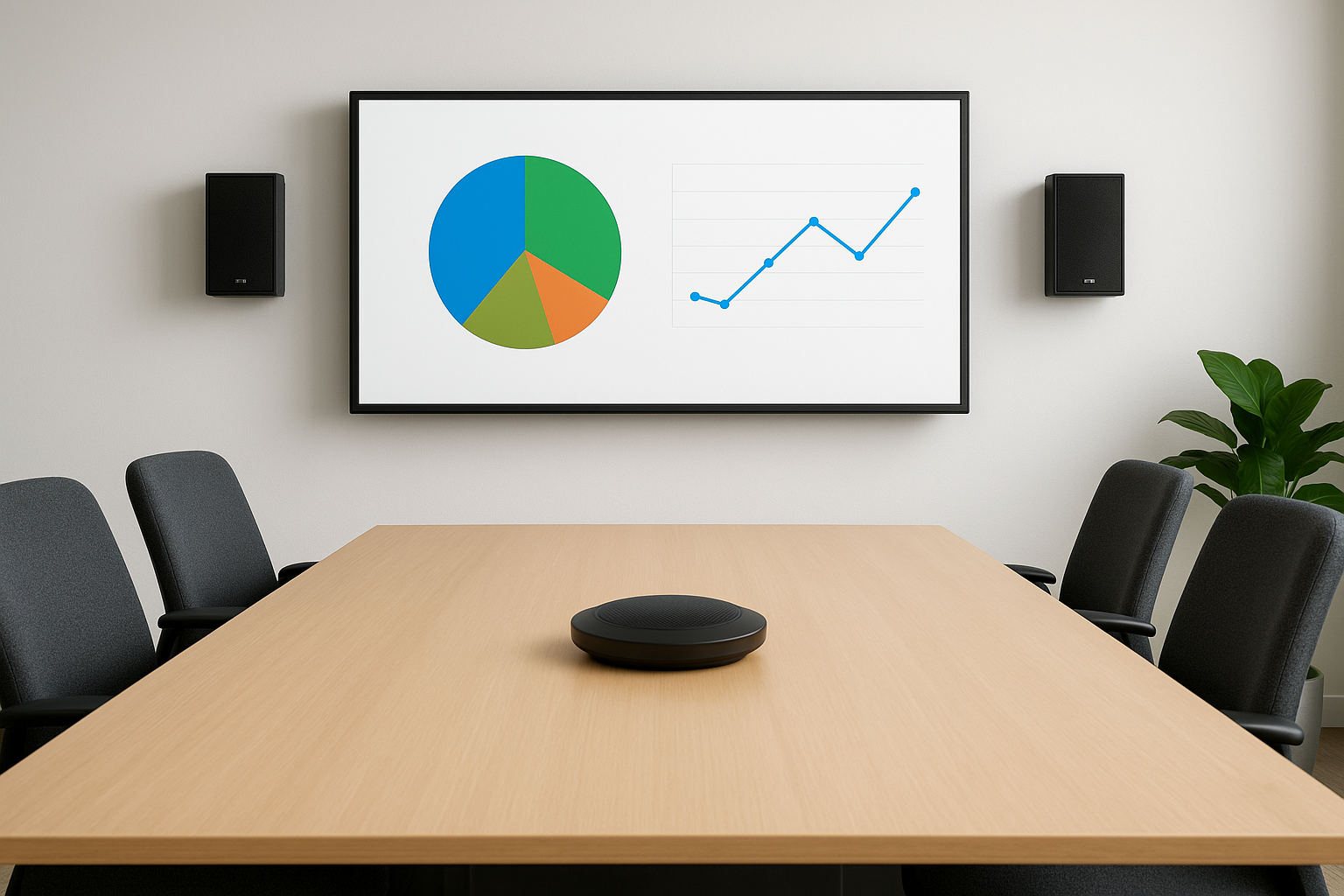

Display and audio endpoints

Display and audio endpoints are the components that end users interact with most directly. Displays and projectors handle the visual output side, and selecting the right screen size, resolution, and panel technology for the space determines whether everyone in the room can see content clearly from their seat. On the audio side, microphone arrays, ceiling speakers, and amplifiers form the capture-and-playback chain that determines whether voice communication is intelligible for both in-room and remote participants.

Endpoint quality sets a ceiling on what the rest of the system can deliver, regardless of how well everything else is configured.

Placement of microphones and speakers matters as much as the hardware itself. A high-quality microphone positioned poorly relative to the room’s acoustic properties will still pick up echo, HVAC noise, and reverberation that makes remote participants struggle to follow the conversation during every call.

Signal distribution and control infrastructure

Signal distribution refers to how audio and video travel from source devices to output devices across the system. This layer includes video switchers, HDMI extenders, AV-over-IP encoders and decoders, and the structured cabling that carries signals between equipment. Your cabling infrastructure sets a hard limit on signal quality, and undersized or improperly terminated cable runs are among the most common sources of performance failures in integrated systems.

Rack systems and power distribution belong in this layer as well. Equipment racks organize signal processors, amplifiers, and control hardware in a way that supports proper ventilation, clean cable management, and straightforward serviceability when a component needs replacement or a firmware update.

Control systems and user interfaces

The control system is the brain of the integrated environment. A room control processor runs the programming logic that links all connected devices and responds to commands from the user interface, whether that’s a wall-mounted touch panel, a wireless tablet, or a button panel depending on the space requirements.

Programming quality determines how reliably the system performs over time. A control processor with well-written logic handles device communication errors gracefully, recovers from unexpected states without manual resets, and gives your end users a consistent experience every time they walk into the room.

How AV integration projects work end to end

Understanding what is audio visual integration at the project level means following the work from the first site visit through final handoff. AV integration projects move through distinct phases, and each one feeds directly into the next. Skipping steps or rushing a phase to meet a deadline creates problems that surface during commissioning, or worse, after the client has already taken ownership of the space.

Discovery and system design

Every project starts with a discovery phase where the integration team assesses the physical space, documents the client’s communication and collaboration requirements, and confirms what infrastructure already exists. This is where you gather ceiling heights, room dimensions, HVAC positions, and existing conduit runs. The output is a system design document that specifies equipment, cable pathways, rack layouts, and control system architecture before anyone picks up a tool.

A thorough design phase prevents the kind of mid-project surprises that push timelines past the original estimate and send costs climbing before installation even begins.

Good system design also accounts for future scalability, so the infrastructure you install today supports technology upgrades without requiring a complete rebuild in two years. Documenting those decisions during design keeps your team aligned and gives clients a clear record of why the system was built the way it was.

Installation and commissioning

Installation covers physical infrastructure first: pulling cable, terminating connections, mounting equipment, and building out rack systems. Once the physical layer is complete, technicians load control system programs, configure DSP settings, and verify that every signal path performs within specification. That systematic work is the commissioning phase, and it cannot start until the installation is solid.

Your commissioning process should include testing under realistic conditions. Run the room through a live video conference, verify microphone coverage from every seat, and confirm that control system macros execute reliably across multiple consecutive trigger events. Edge cases that seem unlikely in testing are exactly the scenarios end users encounter on an important day.

Handoff and ongoing support

Handoff involves delivering complete documentation and user training to the client’s internal team so they can manage the system confidently after the integration team leaves the site. That documentation should include as-built drawings, equipment serial numbers, IP addresses, and control system credentials. Without it, your support team loses significant time every time a service call comes in.

Ongoing support contracts give organizations a structured way to handle firmware updates, preventive maintenance, and remote diagnostics. Facilities that invest in support agreements extend the operational life of their integrated systems and reduce the frequency of disruptive failures during business hours.

Common AV integration examples by space type

The best way to understand what is audio visual integration in concrete terms is to look at how it applies across different physical environments. Each space type carries its own acoustic properties, user behaviors, and communication requirements, which means the integration approach changes significantly depending on where the system lives. The following examples show how those differences shape real project decisions.

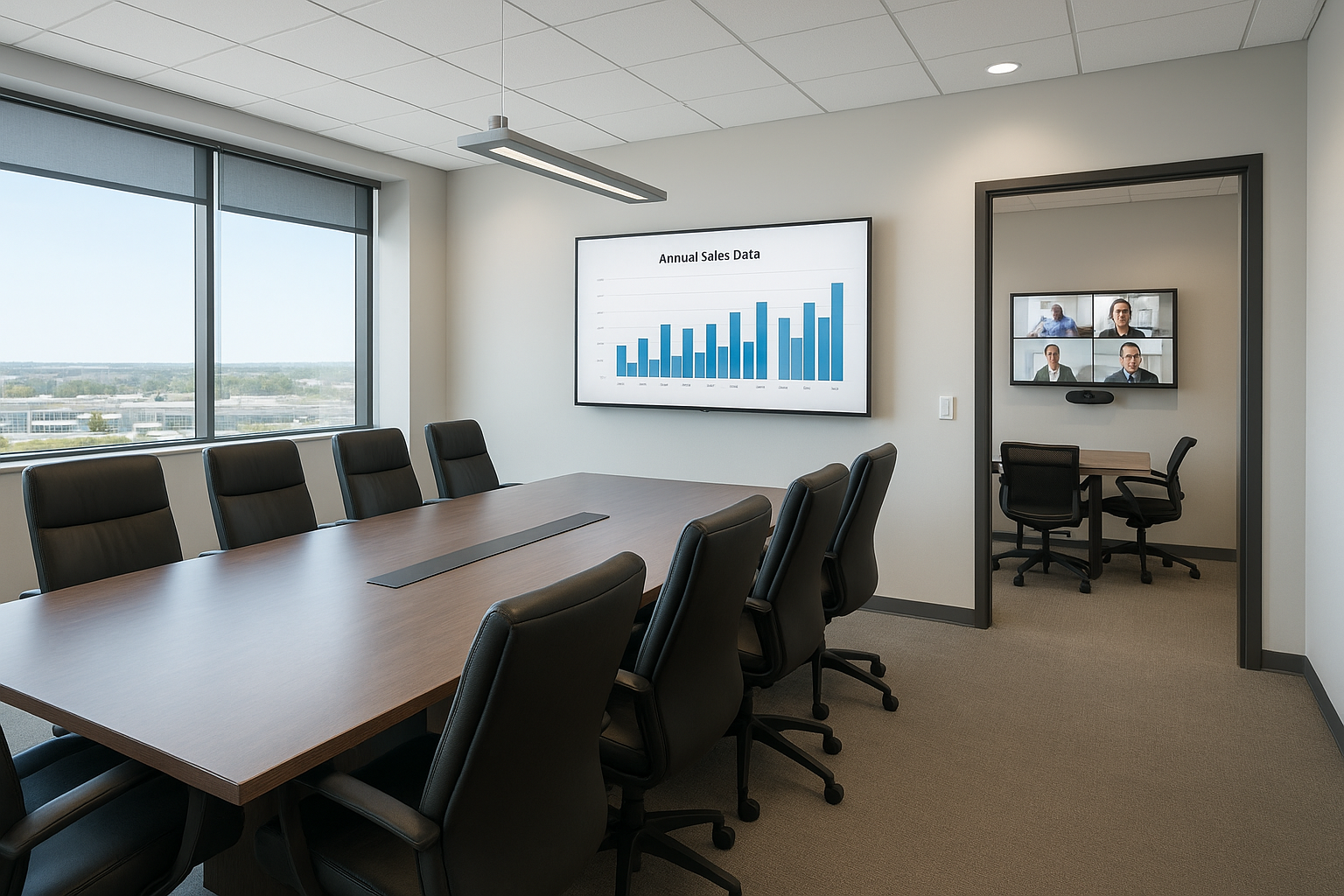

Corporate conference rooms and huddle spaces

Corporate environments account for a large share of AV integration work, and the requirements vary depending on room size. Large boardrooms typically need ceiling microphone arrays, multiple displays for content sharing and video feeds, motorized shades for lighting control, and a central control processor that ties all of it together under a single touch panel interface. Smaller huddle spaces use more compact solutions, often a single display with an integrated camera-microphone bar and a simplified control interface, but the integration principles remain the same: the room needs to come online consistently and work without technical intervention every time someone books it.

A huddle space that requires a five-step setup process before every meeting will sit empty while people default to their desks, which eliminates the investment entirely.

Education and lecture environments

University lecture halls, K-12 classrooms, and training rooms present a different set of challenges. Instructor flexibility is a primary driver here, with users who may have limited technical experience and no tolerance for systems that require manual adjustments mid-lesson. Integrated education spaces commonly include document cameras, wireless presentation systems, lecture capture hardware, and distributed speaker arrays designed to maintain consistent volume levels regardless of where students are seated. Control systems in these environments typically use simplified interfaces with clearly labeled functions so an instructor can manage the room without reading a manual.

Retail, hospitality, and public venues

Retail chains, hotels, and public spaces rely on AV integration for digital signage networks, background music systems, and event display infrastructure. A national retailer deploying digital signage across hundreds of locations needs consistent hardware standards, reliable content distribution architecture, and technicians who can commission each installation to the same specification. Hospitality environments add complexity with ballrooms and meeting spaces that reconfigure for different event types, requiring flexible audio routing, wireless microphone systems, and control interfaces that event staff can operate without AV support on site. In each of these cases, the integration work determines whether the system serves its daily purpose reliably or becomes a recurring maintenance burden.

AV over IP, control, and networking basics

One of the most significant shifts in what is audio visual integration today involves how AV signals travel across a facility. Rather than running dedicated point-to-point cables between every source and display, modern systems increasingly use the existing network infrastructure to carry audio and video alongside standard data traffic. That shift changes both how you design systems and what your IT and AV teams need to understand about each other’s environments.

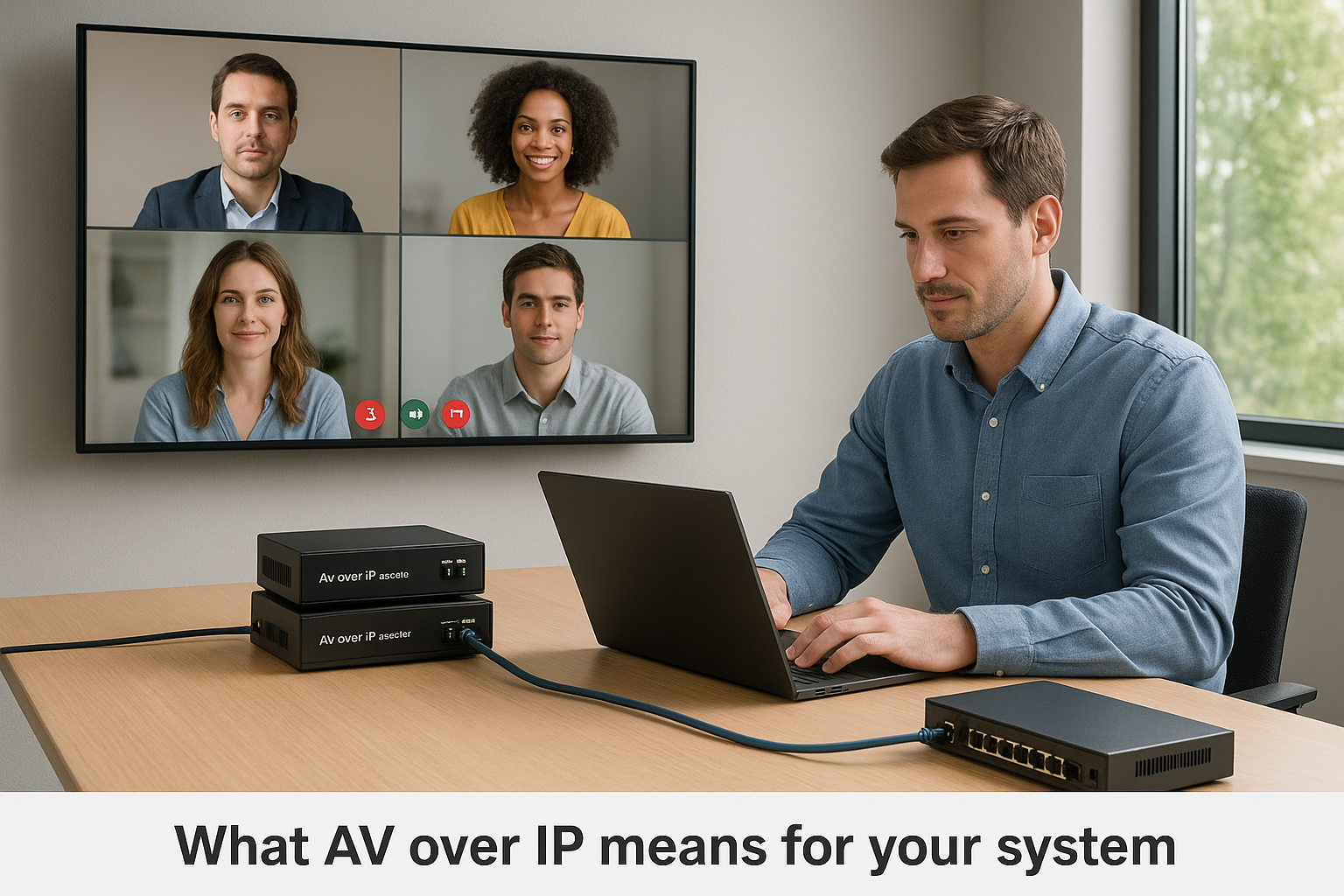

What AV over IP means for your system

AV over IP encodes audio and video into data packets and transmits them across an Ethernet network using encoders at the source end and decoders at the display end. This approach gives you flexible signal routing that you can change through software rather than physically rewiring connections in a rack. A video source in one conference room can feed displays in multiple rooms simultaneously without additional hardware at the source, which simplifies large-scale deployments significantly.

Flexible routing is only an advantage when the network is configured to handle AV traffic correctly, otherwise you trade one set of cabling problems for a different set of network performance problems.

The two main AV over IP standards you encounter on integration projects are SDVoE and DANTE, with SDVoE handling uncompressed video distribution and DANTE focusing on networked audio. Each has specific network configuration requirements, and mixing them with standard business traffic on an unmanaged network creates latency and packet loss that degrades performance in ways that are difficult to diagnose without proper testing tools.

Network requirements that affect AV performance

AV over IP systems demand dedicated VLANs and Quality of Service (QoS) policies to prioritize time-sensitive audio and video packets over standard data traffic. Without those configurations, a large file transfer happening elsewhere on the network can introduce enough congestion to cause visible artifacts on displays or audible dropouts in the audio chain. Your network switches need to support multicast traffic and IGMP snooping so video streams reach only the intended decoders rather than flooding every port on the network.

Control system networking basics

Your control system processor communicates with networked devices using TCP/IP and UDP protocols, which means every controllable device needs a properly assigned IP address within a scheme your team documents and maintains. Static IP assignments prevent control failures that occur when a device acquires a different address after a network restart. Keeping AV control traffic on a separate VLAN from both user data and AV media streams gives you cleaner troubleshooting paths when you need to isolate the source of a performance issue.

AV integration challenges and how teams avoid them

Part of understanding what is audio visual integration is recognizing where projects break down. Even experienced teams run into recurring problems that delay timelines, inflate budgets, and leave clients with systems that underperform from day one. Most of these problems are predictable, which means identifying them early gives your team a clear path to avoiding them rather than managing the fallout after installation is already underway.

Scope creep and incomplete documentation

Scope creep is one of the most common reasons AV integration projects run over budget and past deadline. It starts small: a client requests one additional display, then a second room gets added to the project, then the control system programming expands to cover functionality that was never in the original design. Each individual change seems minor, but the cumulative effect on labor hours and materials costs is significant.

The cleanest way to control scope creep is to build a detailed design document before any equipment is ordered, then treat every change request as a formal addition that gets priced and approved before work begins.

Incomplete documentation compounds the problem after the project closes. Without as-built drawings, IP address logs, and control system credentials, your support team loses hours every time a service call comes in because they are solving the same discovery problems that the installation team already worked through.

Signal integrity and infrastructure gaps

Undersized or improperly terminated cabling is responsible for a disproportionate share of performance failures in integrated systems. Signal degradation caused by bad terminations or cable runs that exceed manufacturer specifications shows up as flickering displays, audio dropouts, and control system timeouts that are difficult to trace without methodical testing. Teams that rush through the infrastructure phase to meet a schedule create problems that follow the system for its entire operational life.

Testing each cable run before equipment goes online catches these issues while they are still inexpensive to fix. Using a cable certification tester rather than a simple continuity tester gives you documented pass/fail results for every run, which also protects your team when a client disputes a performance issue after handoff.

Coordination between AV and IT teams

Networked AV systems require active coordination between your AV integrators and the client’s IT department during both design and commissioning. VLANs need to be created, QoS policies need to be applied, and static IP addresses need to be assigned before commissioning begins. When those conversations happen late in the project, IT teams frequently push back on timeline requests because network changes require their own change management and approval processes that cannot be compressed to fit an AV installation schedule.

How to plan scope and choose the right AV support

Knowing what is audio visual integration gives you the foundation, but translating that knowledge into a well-scoped project requires deliberate planning before any equipment is specified. The two decisions that shape everything else are what the system needs to do for the people using the space and what level of technical support you need to get it built and maintained correctly.

Start with a clear requirements document

Your planning process should begin with a written requirements document that captures the functional goals of each space, not just a list of equipment. Describe how the room gets used: how many participants typically join remotely, whether the space hosts public presentations or private executive meetings, and whether operators will be technically trained or general staff who need a near-automated experience. Those use cases directly inform your equipment selections, control system complexity, and cabling standards.

Requirements that are documented before design begins prevent the disagreements that arise at commissioning when a client’s expectations do not match what the system was built to deliver.

Once you have functional requirements, document the physical constraints of each space: ceiling height, wall construction, existing conduit, and IT infrastructure. Gaps between what the space can support and what the design specifies are far cheaper to address during planning than after equipment has been ordered and installation has started.

Match your support model to project complexity

Choosing the right AV support comes down to matching technical capability to the work in front of you. A single-room installation in a city where your team has experienced staff is a different problem than a 40-site rollout spread across multiple states where you need certified technicians on the ground in markets you do not regularly serve.

For large or geographically distributed projects, staff augmentation through a qualified AV labor provider gives you the flexibility to scale up quickly without carrying full-time overhead between deployments. The key factor to evaluate is whether the provider’s technicians carry the certifications your project requires, such as CTS, Crestron, or Biamp, and whether the provider can consistently deploy to both primary and secondary markets within a timeframe that fits your installation schedule.

Build your support model into the project plan from day one rather than treating it as a procurement decision you make after scope is finalized. Knowing who handles installation, commissioning, and post-handoff support before the project starts gives you accurate cost estimates, realistic timelines, and a clear chain of responsibility when issues come up on site.

Next steps

Understanding what is audio visual integration gives you a clear picture of the work involved, from infrastructure cabling through control system programming and final commissioning. Every layer of the system depends on the others, and every phase of the project feeds directly into the next. When you approach integration with that full picture in mind, you build environments that perform reliably and support the people using them every day.
