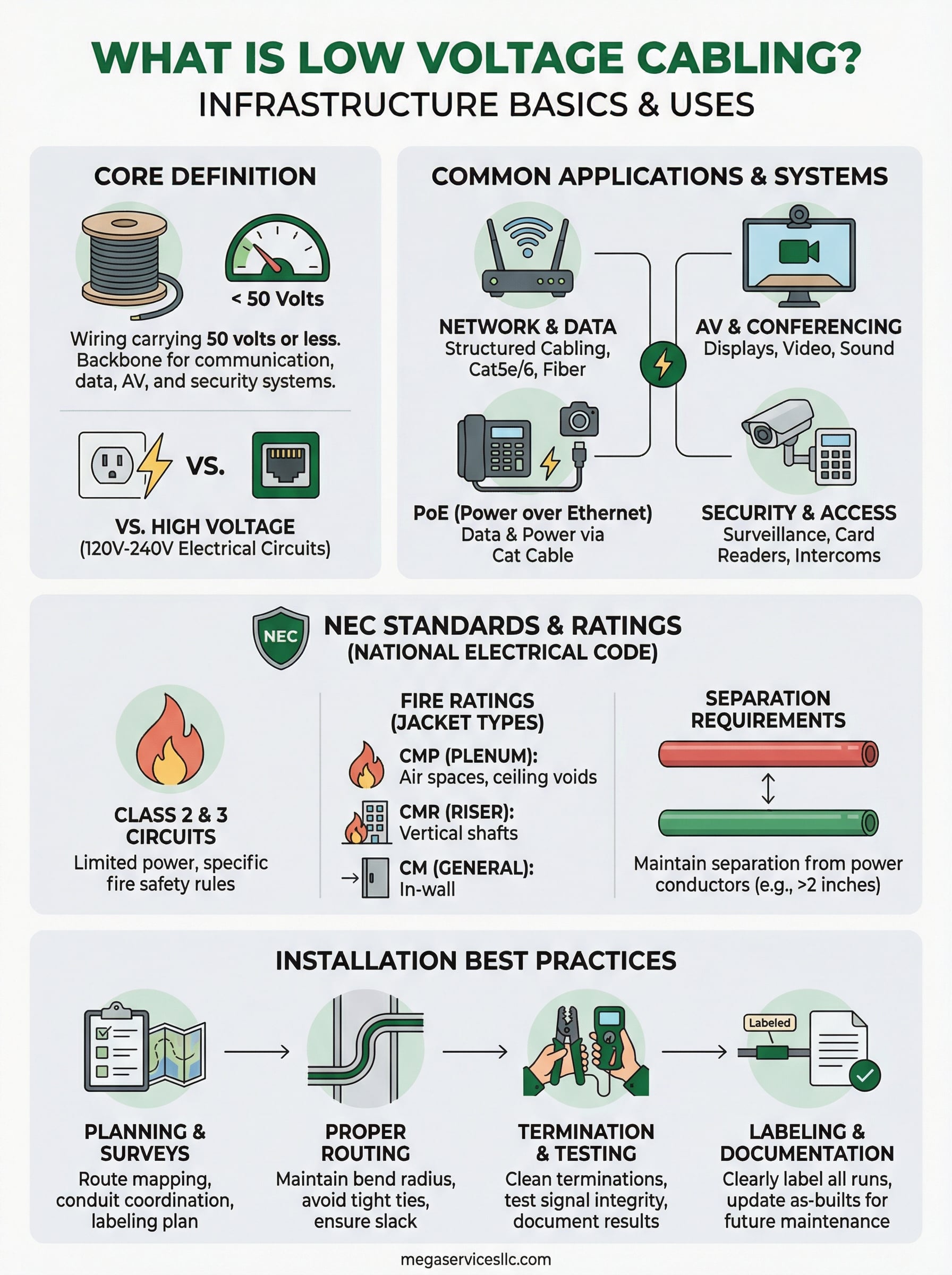

What Is Low Voltage Cabling? Definition, Uses, And Basics

If you’ve ever walked into a modern office and noticed the conference room displays, security cameras, network ports, and phone systems all working seamlessly, you’ve seen low voltage cabling at work. It’s the infrastructure behind nearly every communication, data, and AV system in commercial buildings, yet most people outside the trade don’t fully understand what separates it from standard electrical wiring or why it matters so much.

Low voltage cabling refers to any wiring that carries 50 volts or less, and it serves as the backbone for everything from structured network runs to audiovisual installations and access control systems. At MegaServices, our technicians install and terminate low voltage cabling on Pro AV and integration projects across the U.S. and Canada every day. It’s one of the most requested skill sets in our network of over 2,000 vetted techs, and for good reason.

This article breaks down the definition, common types, real-world applications, and key differences between low voltage and high voltage systems. Whether you’re a project manager scoping out an installation or a service coordinator trying to understand what your techs actually need on-site, you’ll walk away with a solid working knowledge of the basics.

Why low voltage cabling matters

Understanding what is low voltage cabling goes far beyond memorizing a voltage threshold. The way you plan, install, and document these runs directly affects how well every downstream system performs, from your network switches to your conference room displays to your security cameras. A poorly executed low voltage install doesn’t just cause headaches during commissioning; it creates ongoing reliability problems that are expensive and time-consuming to diagnose and fix.

It underpins every connected system in a building

Nearly every technology system in a modern commercial building depends on low voltage infrastructure. Your IP phones, wireless access points, video surveillance cameras, audiovisual equipment, and building automation sensors all rely on cabling that carries 50 volts or less. When that cabling is run correctly, every system above it works as designed. When it isn’t, you end up chasing intermittent failures and signal degradation that rarely trace back to the device itself.

The cabling plant is the foundation of every technology system in a building. If the foundation is weak, everything built on top of it will underperform.

Think of it this way: you can spend hundreds of thousands of dollars on top-tier AV equipment and still deliver a poor experience if the cable runs behind the wall are the wrong category, poorly terminated, or routed without proper separation from high voltage conduits.

It carries real safety and code requirements

Low voltage cabling may not carry the same shock risk as 120-volt or 240-volt circuits, but it still falls under strict regulatory requirements. The National Electrical Code (NEC) classifies low voltage wiring under Articles 725, 800, and 820, depending on the cable type and application. These articles govern everything from cable ratings and fire resistance to how cables must be separated from power conductors.

If your techs ignore these classifications on a job site, you’re looking at failed inspections, potential liability, and rework costs that blow out your project margins. Knowing the rules before the first cable gets pulled saves you real money and protects your client relationship.

What counts as low voltage in the field

The 50-volt threshold is the technical starting point, but the field definition of low voltage cabling is more nuanced than a single number. Most low voltage systems you’ll work with operate well below that ceiling, typically in the 12-volt to 48-volt range, depending on the application and the technology driving it.

The NEC voltage thresholds

The National Electrical Code draws specific lines that determine how cable is rated, routed, and inspected. Class 1 circuits can run up to 600 volts, while Class 2 and Class 3 circuits cap out at 150 and 300 volts respectively under limited power conditions. Most low voltage cabling in commercial AV and IT work falls into Class 2 territory, which is why your technicians follow specific NEC Article 725 rules on every job.

The voltage class of your cable determines everything from the fire rating required to how far it must stay from power conduits.

PoE and its role in modern low voltage work

Power over Ethernet (PoE) has expanded what low voltage cabling can do on a job site. Instead of running a separate power source to each device, PoE delivers both data and electrical power over a single Cat cable, typically at 48 volts DC. This approach powers IP cameras, wireless access points, VoIP phones, and small AV endpoints without dedicated electrical outlets nearby. Understanding PoE standards, including IEEE 802.3af, 802.3at, and 802.3bt, helps you spec the right cable and switches before your techs ever pull the first run.

Common systems that use low voltage cabling

Understanding what is low voltage cabling becomes more concrete when you look at the actual systems it supports on a real job site. Nearly every technology system in a commercial or institutional building runs on low voltage infrastructure, and knowing which systems rely on it helps you scope labor, materials, and timelines accurately before work begins.

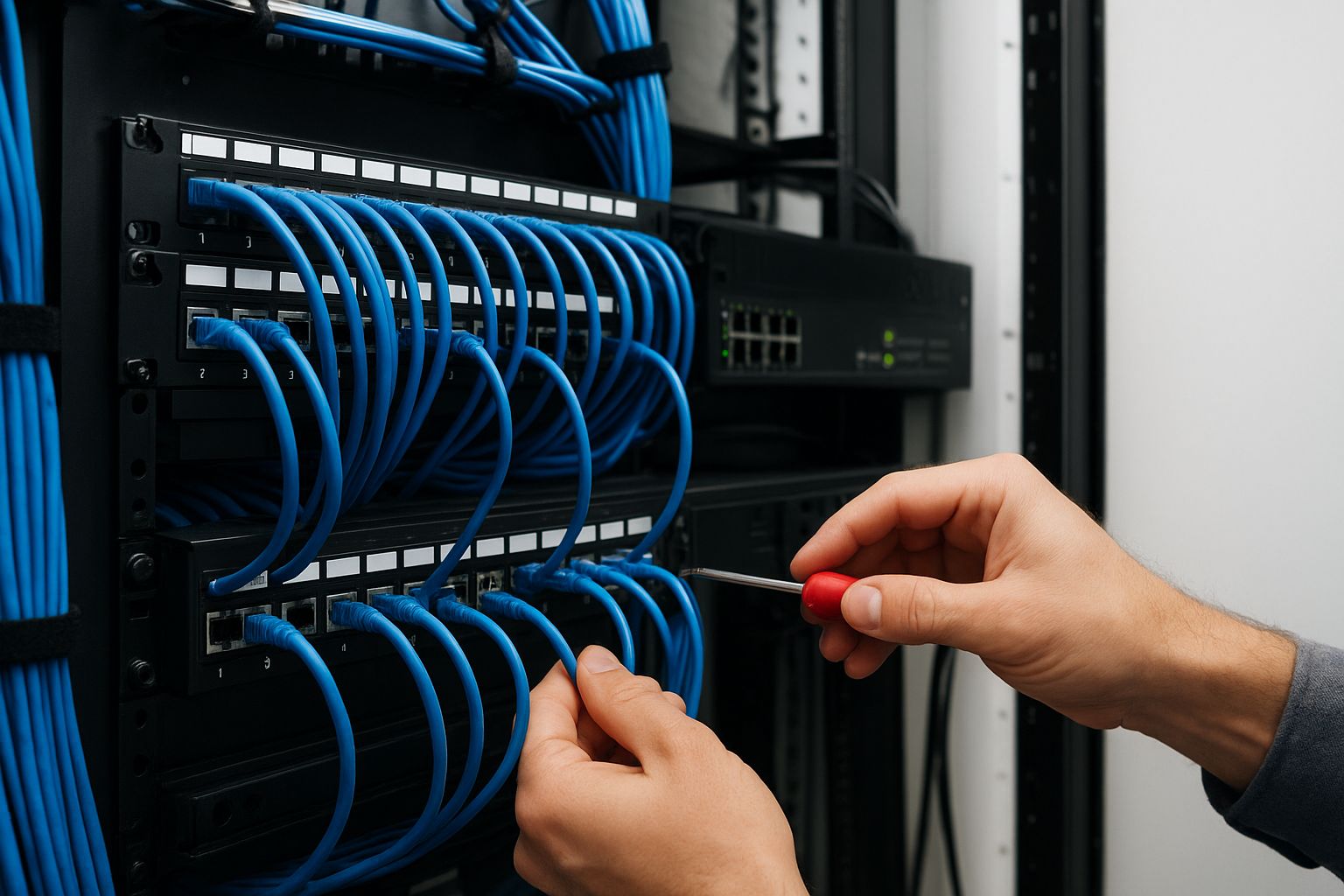

AV, Security, and Communications Systems

Audiovisual systems are among the most cable-intensive low voltage applications you’ll encounter on a commercial project. Conference room displays, video walls, digital signage, and sound reinforcement all require carefully routed and terminated signal cables to deliver reliable performance. Security cameras, access control panels, and intercom systems fall into the same category, typically running on Cat6 or dedicated shielded cable depending on the manufacturer spec.

Getting the cable infrastructure right before AV or security equipment goes in saves you from expensive rework during commissioning.

Here are the most common system types your techs will cable on a typical commercial job:

• IP surveillance cameras
• Access control readers and door controllers
• Intercom and paging systems
• Conference room AV and video conferencing endpoints
• Digital signage displays

Network and Data Infrastructure

Structured cabling for data networks forms the backbone that every other system depends on. Your switches, wireless access points, and workstation drops all connect through Cat5e, Cat6, or fiber runs that feed back to a central IDF or MDF.

A clean, properly labeled network infrastructure cuts troubleshooting time significantly and makes future upgrades far less disruptive for your client. Poor cable management and unlabeled runs are the leading causes of unnecessary service calls long after a project closes out.

Types of low voltage cable and ratings

Knowing what is low voltage cabling means more than understanding voltage thresholds. It also means knowing which physical cable types your project actually requires, because pulling the wrong cable for a given application creates problems that won’t surface until commissioning, often at the worst possible moment.

Twisted Pair and Coaxial Cable

Twisted pair cable is the most common type you’ll encounter on commercial projects. Cat5e handles basic data and VoIP with a bandwidth ceiling of 1 Gbps, while Cat6 and Cat6A push performance further for demanding AV and network applications. Coaxial cable still shows up on analog video and cable TV distribution runs, though IP-based systems have largely replaced it in new construction.

Specifying the right cable category from the start is far cheaper than re-pulling runs after walls are closed.

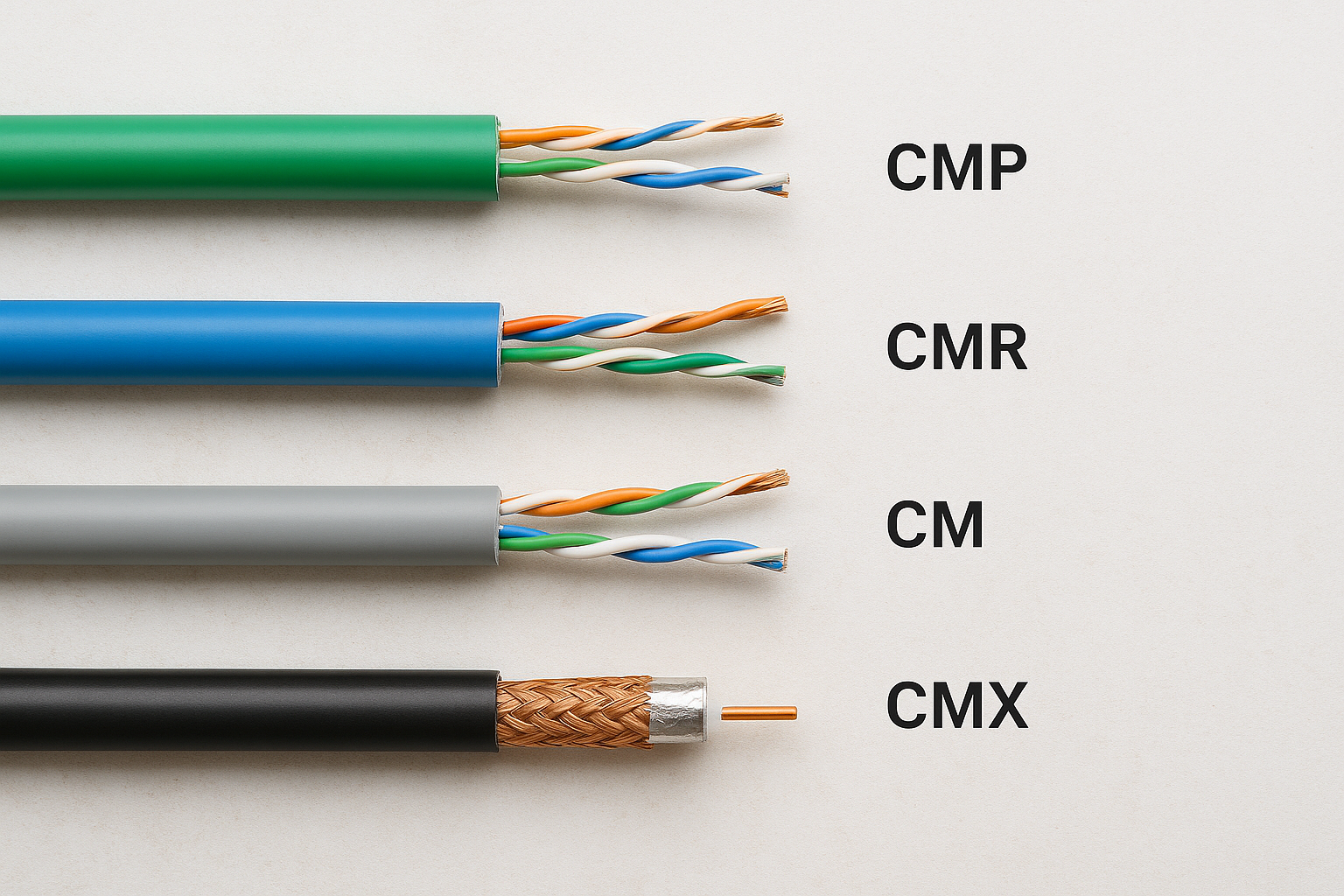

Cable Ratings and Fire Classifications

Cable jacket ratings determine where each cable type can legally run inside a building, and the NEC is specific about it. Plenum-rated cable uses a fire-resistant jacket required in air-handling spaces like drop ceilings and raised floors where smoke could circulate through HVAC systems. Riser-rated cable works in vertical runs between floors, and CM-rated cable covers general in-wall use.

Here are the primary ratings your techs need to match to the installation environment:

• CMP (Plenum): Air-handling spaces and HVAC plenums
• CMR (Riser): Vertical shafts between floors
• CM: General in-wall and open-air installations
• CMX: Residential or exterior use only

How to plan and install low voltage cabling

A solid plan before the first cable gets pulled saves you from the most common and costly mistakes on low voltage jobs. Understanding what is low voltage cabling in practice means mapping out your pathways, confirming cable ratings for each environment, and coordinating with the general contractor on conduit placement before walls close. Starting without a clear plan puts you in a position where you’re making expensive decisions under time pressure.

Pre-installation planning

Site surveys and detailed documentation are the foundation of a clean install. Walk the space, identify where each device lands, and confirm that your cable routes stay clear of high-voltage conduits by at least 2 inches, per NEC guidelines. Pulling schedules and cable labeling conventions should be locked down before your techs arrive on site so the job runs efficiently from the first hour.

A labeled, documented cabling plant cuts commissioning time and makes future service calls faster for every technician who touches the system after you.

On-site installation best practices

Pulling cable correctly matters just as much as specifying the right type. Bend radius violations and over-tightened cable ties degrade Cat6 and Cat6A performance in ways that only surface during testing, sometimes after the client has already signed off. Your techs should also maintain consistent slack loops and proper termination order at patch panels and faceplates to keep the install clean and fully testable from day one. Sloppy terminations are the single most common source of failures that get blamed on equipment.

Final takeaways and next step

Understanding what is low voltage cabling gives you a practical advantage on every project you manage. The voltage threshold, NEC classifications, cable ratings, and termination standards covered in this article are not abstract concepts. They are the decisions that determine whether your installs pass inspection, perform reliably, and hold up under real-world use. Getting these fundamentals right from the planning stage cuts rework, protects your margins, and keeps your client relationships intact.
