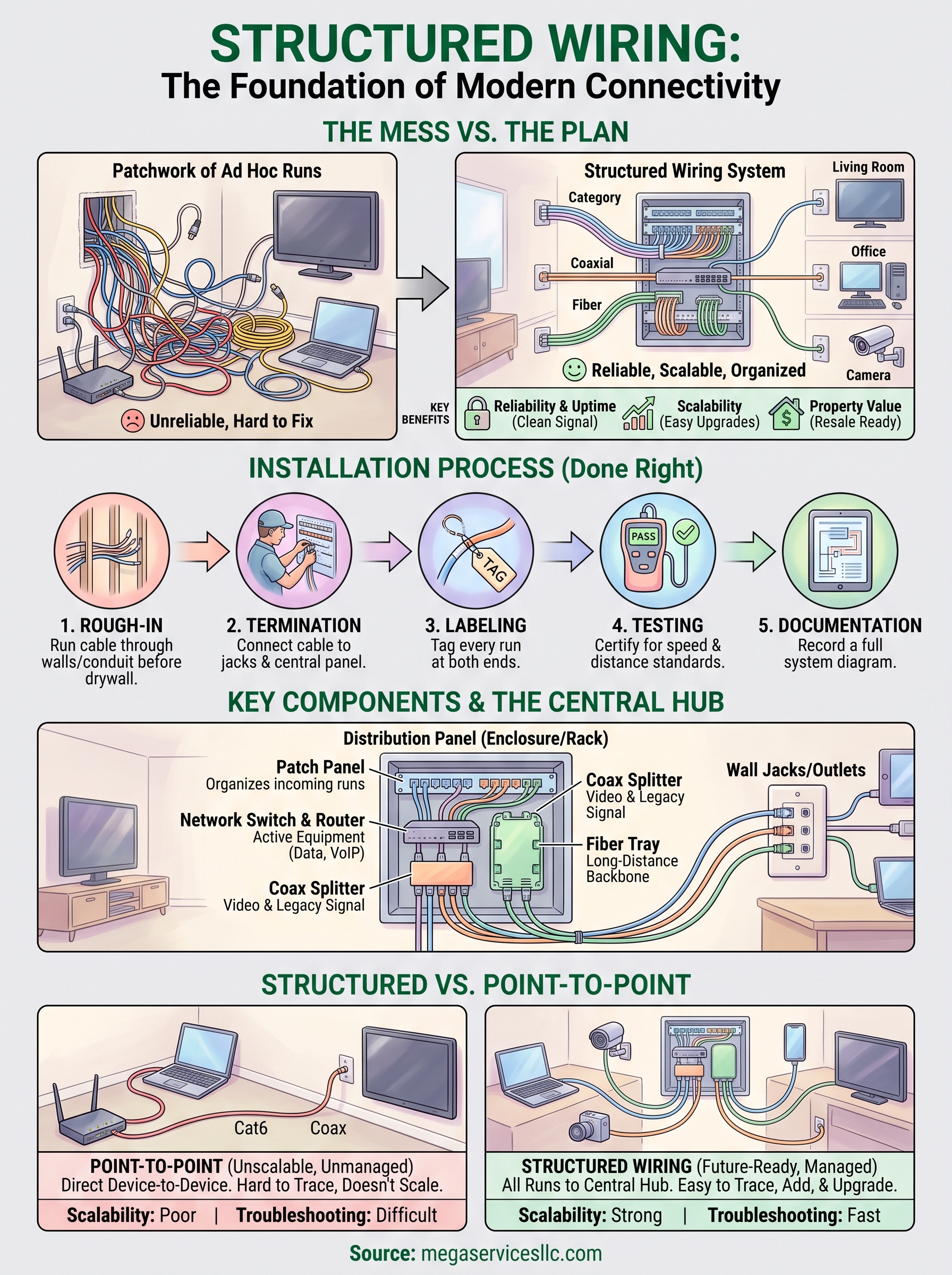

Walk into a building with spotty Wi-Fi, mismatched cabling, and a rack of unlabeled wires, and you can see what happens without a connectivity plan. Structured wiring organizes cabling, outlets, and termination hardware so data, voice, video, and other low-voltage services can be installed, documented, and maintained as a coordinated system instead of a patchwork of ad hoc runs.
Buildings are generally easier to adapt when cabling and pathways are planned from the start. Depending on the application, a system may use category cabling, coaxial cable, or fiber routed through planned pathways and terminated at organized distribution locations. The cabling provides the physical foundation, while network capacity and application performance also depend on active equipment, configuration, and uplink capacity.
This article explains what structured wiring includes, how its components work together, and why careful low-voltage cabling design, installation, testing, and documentation make future service easier. It is a practical foundation for facility managers, project planners, and installation teams.
Why structured wiring matters for modern buildings
Security systems, video conferencing, wireless access points, building controls, and point-of-sale terminals all depend on suitable pathways and cabling. A whole-home wiring system, or its commercial equivalent, gives those services organized routes and termination points. It does not replace switches, routers, access points, or other active equipment, but it gives those systems a manageable physical layer.
Growth is a major reason to plan the physical layer. Facilities add displays, replace access points, deploy VoIP phones, and expand into new areas. When a suitable outlet, pathway, and capacity are already available, a technician may be able to patch and configure the connection at the distribution area. When they are not, new pathways or cable runs may still be required.
A well-planned system can reduce the need for disruptive rewiring as needs change.
Reliability that scales with the building
Commercial systems need consistent installation and documentation because many services share the building’s telecommunications infrastructure. Standards developed by organizations such as the Telecommunications Industry Association address cabling topology, components, installation, pathways, administration, and field testing. Following applicable standards and project requirements helps create a physical layer that is easier to test, document, and support. That is why future-ready cabling practices begin with the infrastructure.
Resale and service considerations
Homes and offices with documented, labeled low-voltage infrastructure can be easier to evaluate, manage, or upgrade. Clear records help the next owner, tenant, or service provider understand the system without starting from a guessing game, especially when retrofitting finished space would be disruptive.
Technicians handling installs and service calls see the difference firsthand. A building with a labeled patch panel and documented cable runs is generally easier to troubleshoot than one where nobody knows which wire goes where. That efficiency can help keep service work on schedule and prevent small issues from becoming lengthy diagnostic jobs.
How structured wiring systems are designed and installed
Designing a structured wiring system starts before anyone pulls cable. The project team identifies outlets, displays, access points, cameras, workstations, equipment rooms, and pathways, then selects media and termination locations that fit the application. Good structured cabling design also considers reasonable spare pathways, outlets, rack space, and capacity because adding them during construction can be less disruptive than retrofitting finished space.
Getting the physical work right takes discipline, not just cable. Installers follow a fairly consistent sequence of structured cabling installation steps on most jobs:
- Rough-in: Run category cable and coax/fiber through walls and ceilings before drywall goes up, or through conduit and accessible pathways in existing construction.
- Termination: Connect each cable to a jack at the room end and punch it down on a patch panel at the central hub.
- Labeling: Tag every run at both ends so techs can identify it months or years later without guesswork.
- Testing: Test each installed link and document the results. Perform certification testing when the project specification, warranty, or applicable standard requires it.
- Documentation: Record a wiring diagram showing where every jack terminates on the panel.
Skip the documentation step, and even a perfectly wired building becomes a mystery to the next technician.
Horizontal cabling commonly follows a star topology, with each outlet cabled back to a telecommunications room, enclosure, or other distribution location. This arrangement can make individual links easier to identify and test. Professionals who understand low-voltage cabling basics, applicable standards, and project documentation help create systems that are easier to service and adapt over time.

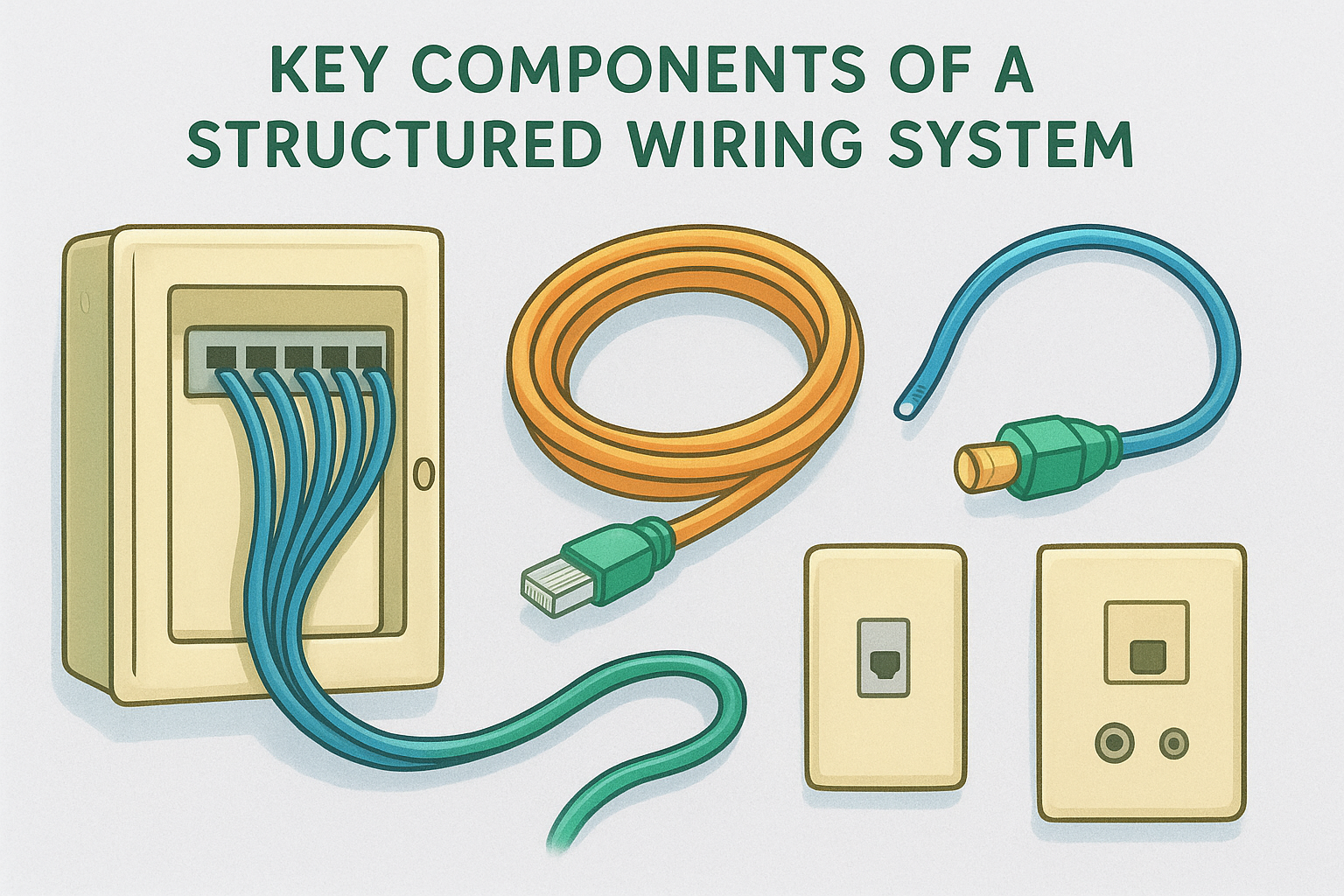

Key components of a structured wiring system
Structured wiring relies on physical components that must be selected and installed as a system. A distribution panel, rack, enclosure, or telecommunications room provides an organized location for termination and patching. Category cable, coaxial cable, and fiber may serve different horizontal or backbone applications, so designers should understand where fiber or copper is appropriate for a given run.

A well-labeled distribution area gives technicians an organized place to trace, patch, and manage connections.
Beyond the panel itself, a functional structured cabling system includes six common components:
| Component | Function |
|---|---|
| Category cable (Cat5e/Cat6/Cat6a) | Carries data, VoIP, and network traffic to each outlet |
| Coaxial cable | Delivers video and legacy TV signal |
| Fiber optic cable | Handles long-distance or high-bandwidth backbone runs |
| Patch panel | Organizes and terminates incoming cable runs at the hub |
| Wall jacks/outlets | Provide the room-side connection point for devices |
| Rack or enclosure | Houses networking gear, panels, and power in one location |
Switches commonly connect to patch panels with patch cords, while routers and other active equipment may share the rack or enclosure when the design allows it. Existing cabling can support new access points, cameras, or VoIP phones only when the media, link performance, available ports, power, and pathways meet the new application’s requirements. Pathway fill, bend radius, separation from power, bonding, applicable codes, and manufacturer instructions all affect the reliability of a home network wiring or commercial installation. Component selection should match the required applications and environment.

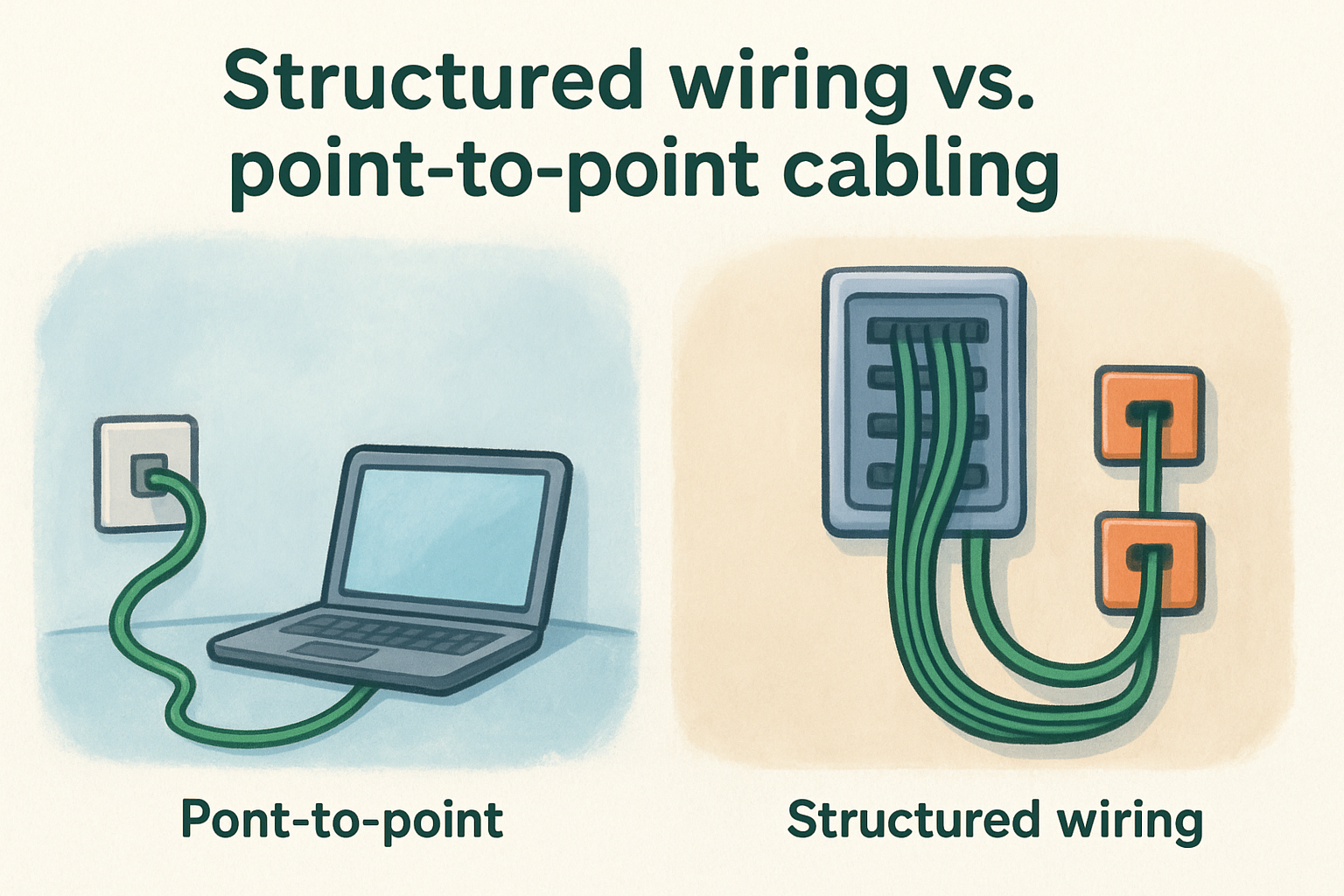

Structured wiring vs. point-to-point cabling
Point-to-point cabling, one of the clearest examples of how unstructured cabling differs, is a dedicated connection installed for a specific application rather than a managed building-wide cabling system. Examples include a cable from one security camera to its recorder or a direct AV link between a source and display. It can suit a one-off connection, but it may become harder to manage and expand as a building adds devices.

Structured wiring can make scaling easier when outlets and capacity are adequately planned by routing every run back to one central distribution point. That central point can simplify adding or troubleshooting connections. Cable management systems built around it keep runs organized, labeled, and testable as a building grows.
Point-to-point cabling addresses a specific application; structured wiring supports planned growth.
Where does point-to-point still make sense? Small, single-purpose jobs, such as one security camera connected to one recorder in a garage, may not justify a full distribution panel. Projects with multiple rooms, multiple device types, or expected growth should consider structured wiring from day one.
| Factor | Point-to-point | Structured wiring |
|---|---|---|
| Scalability | Each new application may require separate planning or cabling | Easier when spare outlets, pathways, ports, and capacity are planned |
| Troubleshooting | Depends heavily on labeling and documentation | Centralized labeling can simplify link identification |
| Upfront cost | Often lower for a single connection | Typically higher for planned multi-room infrastructure |
| Best for | Small, single-purpose connections | Homes, offices, and multi-room buildings with multiple services |
Understanding this distinction helps teams choose an approach that fits the current scope and expected growth.

Getting your wiring right from the start
Structured wiring provides an organized physical foundation for a building’s network, AV, security, and control systems. Getting the design right, terminating and testing links appropriately, and documenting the installation can reduce disruption and make future service easier. A labeled, tested distribution area gives technicians better information when they need to troubleshoot a link or add a device.
