Step-by-Step Wireless Access Point Installation Guide

A single wireless access point, mounted in the wrong spot or configured incorrectly, can cripple an entire floor’s connectivity. Whether you’re expanding coverage in a corporate office, a retail location, or a conference space, following a proper wireless access point installation guide makes the difference between a network that performs and one that frustrates everyone on it. Getting it right the first time saves hours of troubleshooting later.

The process involves more than just plugging in hardware. You need to assess your environment, run cabling, mount the unit, and configure it to work seamlessly with your existing network. Each step has details that matter, skip one, and you’re likely dealing with dead zones, interference, or security gaps. For teams managing deployments across multiple sites, these details multiply fast.

At MegaServices, our technicians handle low voltage structured cabling and network infrastructure installations nationwide. We’ve supported thousands of projects since 2007, and proper access point deployment is one of the most common requests we see from AV integrators and IT project managers scaling across locations. This guide walks you through the full process, from site assessment to final testing, so you know exactly what each step involves, whether you’re handling it in-house or bringing in qualified hands to get it done.

What to know before you install an access point

Before you touch a single cable, you need a clear picture of your environment and hardware. Skipping the pre-installation assessment is the fastest way to end up with a poorly performing network. This wireless access point installation guide assumes you’re working with a managed or semi-managed AP, which is the most common setup in commercial environments. Knowing your equipment type and network requirements upfront eliminates the need to backtrack mid-project and ensures every configuration decision is made with full context.

Access point types and standards

Not all access points behave the same way, and the type you select shapes every decision that follows. Wi-Fi 6 (802.11ax) is the current standard for most commercial deployments and handles dense client environments significantly better than older protocols. Wi-Fi 6E extends into the 6 GHz band, which reduces interference in congested spaces like conference rooms or open offices. Confirm what standard your existing network infrastructure supports before purchasing hardware, since running a Wi-Fi 6E AP on a Wi-Fi 5 controller wastes the upgrade.

Mixing access point generations on the same network without proper controller support often causes roaming problems and inconsistent client performance.

Network requirements to verify first

Your network infrastructure has to support the AP before installation begins. PoE (Power over Ethernet) capability on your switch is required for most ceiling-mounted APs, so confirm your switch ports deliver at least 802.3af (15.4W) or 802.3at (30W) depending on the AP’s power draw. VLAN configuration, DHCP scope, and SSID broadcast settings all need to be ready on your controller or router before the AP comes online.

Run through this checklist before you proceed to physical installation:

• Confirm switch port PoE standard matches the AP’s power requirement
• Verify DHCP scope has available addresses in the AP’s assigned VLAN
• Check that your wireless controller firmware is current
• Document the SSID name, security type (WPA2/WPA3), and passphrase you plan to assign
• Confirm channel width and transmit power settings align with your environment’s density

Step 1. Plan placement, cabling, and power

Planning is where this wireless access point installation guide earns its value. Poor placement decisions create coverage gaps that no amount of configuration can fix later. Walk the space and map cable routes and mounting spots on a floor plan before you order any materials.

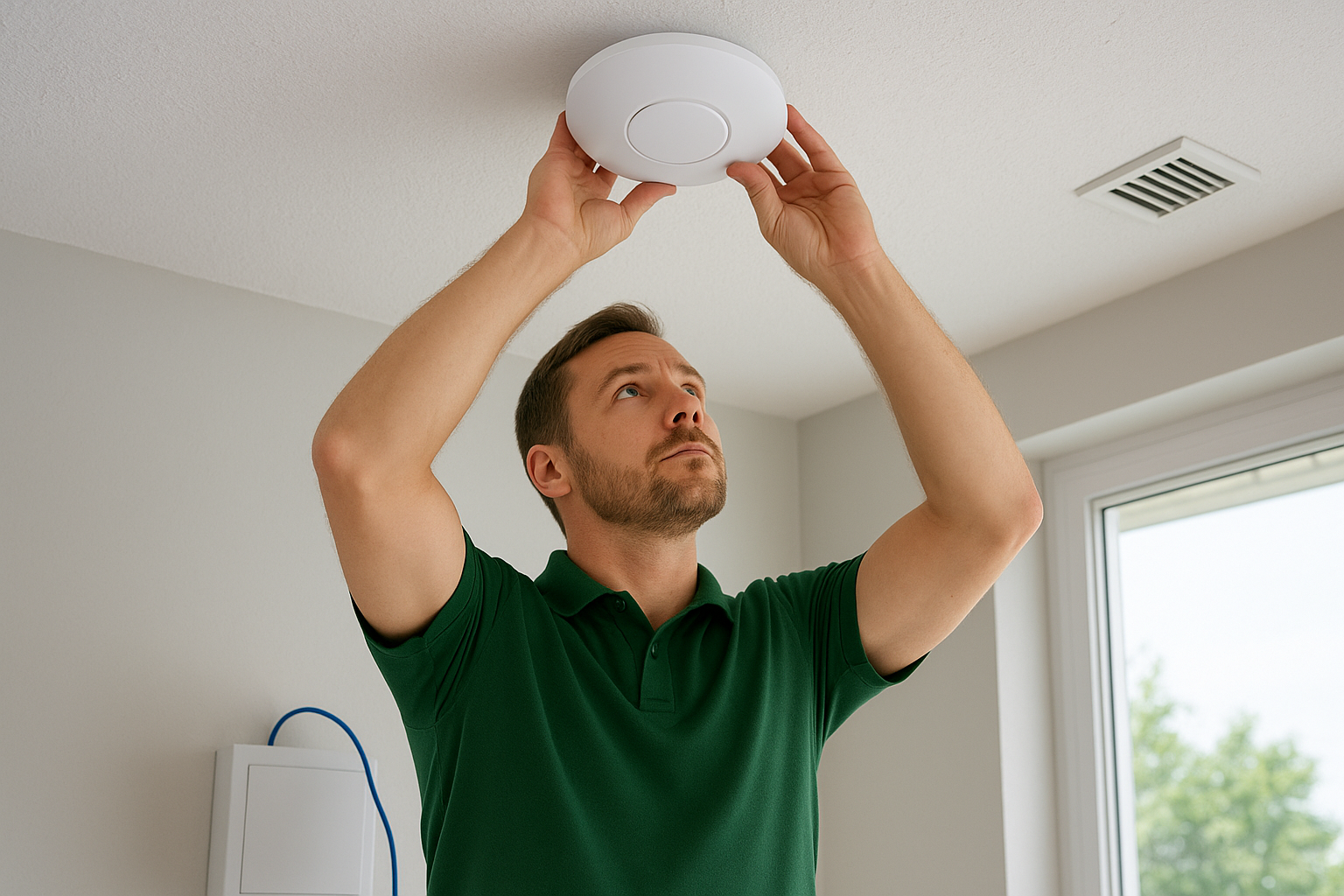

Choose the right mounting location

Ceiling-mounted APs deliver the most consistent coverage because the signal radiates downward and outward across the room. Avoid placing units near metal ductwork, thick concrete, or other APs on the same channel within 20 feet. Every physical obstacle reduces signal strength, so center the unit over the highest-density area it will serve.

• Mount between 8 and 15 feet high for optimal coverage spread
• Keep APs at least 20 feet apart to reduce co-channel interference
• Avoid 2.4 GHz interference sources like microwaves and cordless phones

A misplaced AP often means adding a second unit later, which doubles both your hardware and labor costs.

Run your cabling and confirm power delivery

Cat6 cable is the minimum for any new AP installation, since it supports the bandwidth Wi-Fi 6 and Wi-Fi 6E actually deliver to your switch. Run cable from the nearest network closet and keep each run under 328 feet (100 meters) to stay within Ethernet spec.

Confirm your switch port PoE budget before you finalize cable routing. An underpowered port pushes the AP into low-power mode, which cuts radio performance and reduces how many clients it can reliably serve.

Step 2. Mount and connect the access point

With your cable run complete and your mounting spot confirmed, you’re ready to physically install the unit. Most commercial APs ship with a ceiling tile bracket or a junction box plate, so match the included hardware to your ceiling type before you start. Read the manufacturer’s mounting guide, since the bracket orientation affects how the unit releases for future servicing.

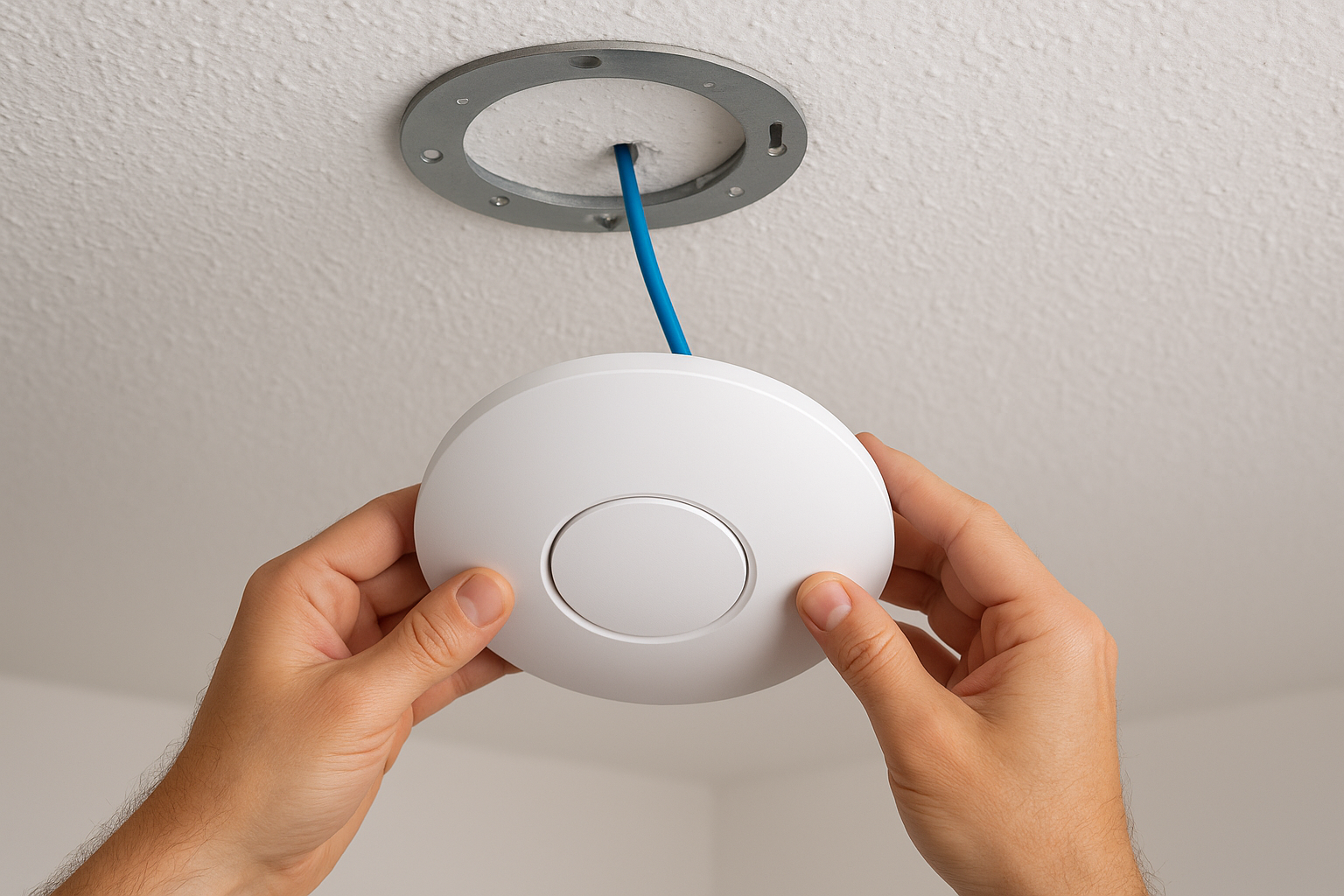

Secure the mounting bracket and attach the AP

Ceiling tile installations require you to position the bracket above the tile, drop the mounting ring through the cutout, and lock it in place before sliding the AP onto the ring. For hard-lid or drywall ceilings, anchor the junction box directly into a stud or use a toggle bolt rated for the AP’s weight. Every manufacturer handles the locking mechanism slightly differently, so confirm the AP clicks or twists fully into position before letting go.

• Confirm the bracket sits flush before locking it down
• Route the cable through the bracket opening before securing it
• Snap or twist the AP onto the bracket until it locks

Connect and verify the Ethernet link

Terminate your Cat6 cable with an RJ45 connector following the T568B wiring standard, or use a pre-terminated patch cable if your run ends at a wall jack. Plug the cable into the AP’s uplink port, then connect the other end to your PoE switch port. Following this wireless access point installation guide keeps each physical step deliberate and verifiable.

Confirm the switch port link light activates within 30 seconds of connecting the cable. No link light typically points to a wiring fault, not a switch problem.

Step 3. Configure Wi-Fi, security, and IP settings

Once your AP is powered and connected, you need to access its management interface and push the right settings. Most commercial APs pull a DHCP address automatically from your network, which lets you reach the web interface or controller dashboard without setting a static IP first. Check your DHCP server’s lease table to find the AP’s assigned address, then open a browser and navigate to it.

Assign an IP address and connect to the controller

Standalone APs use a local web interface for all configuration, while controller-based units like Cisco Meraki or Ubiquiti UniFi adopt into a central dashboard. For standalone units, log in with the default credentials printed on the unit’s label, then assign a static IP address to prevent the AP from shifting addresses after a DHCP lease renewal.

Assign the AP a static IP outside your DHCP range to avoid address conflicts that knock it offline.

Set up SSIDs and security protocols

This wireless access point installation guide recommends configuring WPA3 security wherever your client devices support it, since it provides stronger encryption than WPA2. Set your SSID name, select your security type, enter your passphrase, and match the VLAN tag to your network plan. Use the table below as a baseline for your settings:

Step 4. Test coverage and troubleshoot issues

With your AP configured, walk the coverage area before you call the installation complete. Testing confirms your placement decisions actually delivered the signal quality you planned for, and it gives you documented proof of performance across the space. Pull out a laptop or mobile device and move through the area systematically, noting where signal drops or speeds fall below expectations.

Run a signal strength test

Wi-Fi analyzer tools let you see signal strength in dBm as you move through the space. A reading between -30 dBm and -67 dBm is solid for most commercial applications. Anything weaker than -70 dBm will cause noticeable drops in throughput and reliability for connected clients.

Signal strength above -67 dBm at the farthest corner of your coverage zone means your placement decision was accurate.

Use this checklist to confirm the AP is performing correctly before closing out the job:

• Confirm signal strength stays above -67 dBm across the full intended coverage area
• Run a speed test at the coverage edge and compare it to your wired baseline
• Verify all SSIDs broadcast correctly and accept client connections
• Confirm VLAN tagging routes traffic to the correct network segment

Fix common connection problems

If clients connect but traffic routes incorrectly, check your VLAN tag against your switch port configuration. A mismatched tag puts clients on the wrong subnet and blocks internet access. If signal strength drops sharply in one direction, physical obstructions or co-channel interference from a neighboring AP on the same channel are the most likely causes. Adjust channel assignment in your controller and retest. This wireless access point installation guide covers the full sequence so you can isolate problems quickly instead of guessing.

Wrap-up and next steps

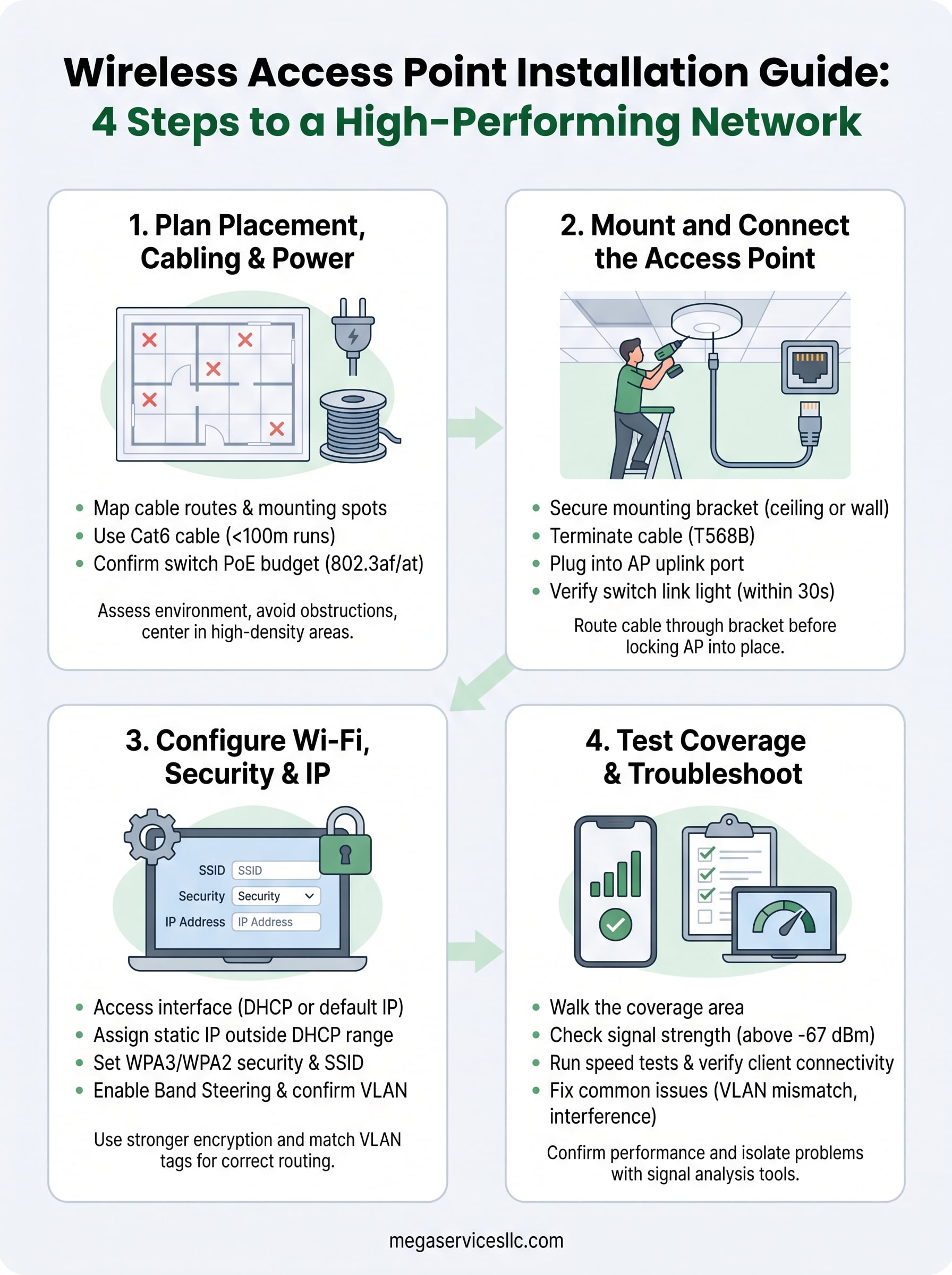

This wireless access point installation guide covered every stage of the process: site assessment, cable runs, physical mounting, configuration, and signal testing. Each step builds directly on the previous one, and cutting corners at any point typically shows up as a performance problem you’ll need to diagnose and fix later.

For single-site deployments, a careful technician working through this sequence can complete a standard installation in a few hours. Multi-site rollouts across dozens or hundreds of locations demand a different approach, one with consistent standards, qualified labor in every market, and a single point of coordination to keep projects on schedule.

MegaServices deploys vetted, certified technicians across the US and Canada for exactly this kind of work. If your network expansion goes beyond your current team’s capacity, request project information to find out how we can support your next deployment.
